Cisco Connected Grid DSL GRWICs Hardware Installation Guide

Table Of Contents

Cisco Connected Grid DSL GRWICs Hardware Installation Guide

Information About the Connected Grid DSL GRWICs

Hardware Overview

Hardware Features

Hardware Specifications

Front Panels

LEDs

Installing and Removing the Connected Grid DSL GRWICs

Safety Warnings

Installing a Connected Grid Single-Wide DSL GRWIC

Removing a Connected Grid Single-Wide DSL GRWIC

Connecting Connected Grid DSL GRWICs to the Network

Software Configuration

Related Documentation

Obtaining Documentation, Obtaining Support, and Security Guidelines


Cisco Connected Grid DSL GRWICs Hardware Installation Guide


Last Revised: May 16, 2012
OL-26959-01

This document provides a hardware overview for Cisco Connected Grid Digital Subscriber Line (DSL) interface cards that provide connectivity to the Wide Area Network (WAN) for the
Cisco 2010 Connected Grid Router (hereafter referred to as the Cisco CGR 2010).

This document includes the following sections:

Information About the Connected Grid DSL GRWICs

Hardware Overview

Installing and Removing the Connected Grid DSL GRWICs

Connecting Connected Grid DSL GRWICs to the Network

Software Configuration

Related Documentation

Obtaining Documentation, Obtaining Support, and Security Guidelines

Information About the Connected Grid DSL GRWICs

Each of the following DSL interface cards is a single-wide, grid router WAN interface card (GRWIC).

Cisco Connected Grid 2-Pair Symmetric High-Bit-Rate Digital Subscriber Line (G.2SHDSL) card

Cisco Multimode ADSL/ADSL2/ADSL2+/VDSL2 Annex A (VA-DSL-A)

Cisco Multimode ADSL/ADSL2/ADSL2+/VDSL2 Annex B (VA-DSL-B)

Cisco Multimode ADSL/ADSL2/ADSL2+/VDSL2 Annex M (VA-DSL-M)


Note For details on software configuration for these GRWICS, please refer to the appropriate document listed in Software Configuration.


Hardware Overview

This section covers the following topics:

Hardware Features

Hardware Specifications

Front Panels

LEDs

Hardware Features

Table 1 summarizes the features of the four Connected Grid DSL GRWICs supported on the
Cisco CGR 2010 router.

Table 1 Hardware Features Supported on the DSL GRWICs

Feature
G.2SHDSL
VA-DSL-A
VA-DSL-B
VA-DSL-M

Hardware Dying Gasp for loss of power
(see ITU G.991.2, section 7.1.2.5.3)

Yes

No

No

No

Wetting Current
(see section A.5.3.3 of G.991.2)

Yes

No

No

No


Hardware Specifications

Table 2 summarizes the hardware specifications of the four Connected Grid DSL GRWICs supported on the Cisco CGR 2010 router.

Table 2 Hardware Specifications for the Connected Grid DSL GRWICs

Item
G.2SHDSL
VA-DSL-A
VA-DSL-B
VA-DSL-M

Dimensions
(H x W x D) (inches)

3 x 2 x 6.5

3 x 2 x 6.5

3 x 2 x 6.5

3 x 2 x 6.5

Slot Restrictions

None

None

None

None

Number of ports

1-port

1-port

1-port

1-port

Connector

RJ-11

RJ-11

RJ-11

RJ-11

2-and 4-wire support

Yes

No

No

No

Subscriber service

ATM

ADSL/ADSL2/ADSL2+/VDSL2
over POTS
Annex A

ADSL/ADSL2/ADSL2+/VDSL2 over ISDN
Annex B

ADSL/ADSL2/ADSL2+/VDSL2 over POTS
Annex M

Transport rate

2-wire(1-pair)- Rates from
192 kb/s to
2.304 Mb/s

Maximum Downstream rate:100 Mb/s

Maximum Downstream rate:100 Mb/s

Maximum Downstream rate:100 Mb/s

4-wire(2-pair)- Rates from
384 kb/s to
4.608 Mb/s

Maximum Upstream rate:
50 Mb/s

Maximum Upstream rate:
50 Mb/s

Maximum Upstream rate:
50 Mb/s

Operating temperature (external to chassis)

0C to 40C

0C to 40C

0C to 40C

0C to 40C

Temperature sensor

Indicates when operating temperature of the GRWIC is exceeded.

Yes

Yes

Yes

Yes


Front Panels

Figure 1 shows the front panel for the Connected Grid G.2SHDSL GRWIC.

Figure 2 shows the front panel for the Connected Grid Multimode ADSL/ADSL2/2+/VDSL2 GRWIC
Annex A.

Figure 3 shows the front panel for the Connected Grid Multimode ADSL/ADSL2/2+/VDSL2 GRWIC Annex B.

Figure 4 shows the front panel for the Connected Grid Multimode ADSL/ADSL2/2+/VDSL2 GRWIC Annex M.

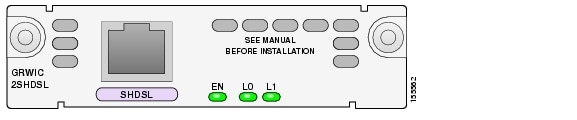

Figure 1 Front Panel for Connected Grid G.2SHDSL GRWIC

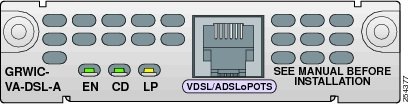

Figure 2 Front Panel for Connected Grid Multimode ADSL/ADSL2/2+/VDSL2 GRWIC Annex A

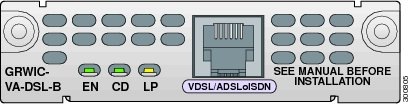

Figure 3 Front Panel for Connected Grid Multimode ADSL/ADSL2/2+/VDSL2 GRWIC Annex B

Figure 4 Front Panel for Connected Grid Multimode ADSL/ADSL2/2+/VDSL2 GRWIC Annex M

LEDs

Table 3 shows the LEDs for the Connected Grid G.2SHDSL GRWIC.

Table 4 shows the LEDs for the Connected Grid ADSL/ADSL2/2+/VDSL2 GRWICs.

Table 3 LEDs for Connected Grid G.2SHDSL GRWIC

LED
Color
Description

EN

Green

Operating system is running on the GRWIC.

Amber

GRWIC is resetting.

Blinking

System is initializing on the GRWIC.

L0, L1



Link status:

On-Link is active.

Off-Link is inactive (disabled).

Blinking-Link is training / Link alarm.


Table 4 LEDs for Connected Grid Multimode ADSL/ADSL2/2+/VDSL2 GRWICs

LED
Color
Description

CD

Green

GRWIC is connected to the network and operating normally.

For ADSL GRWICs only, this LED blinks while training with DSLAMs.

EN

Green

Operating system is running on the GRWIC.

Amber

GRWIC is resetting.

Blinking

System is initializing on the GRWIC.

LP

Yellow

Loopback status.

Yellow-Indicates DSL card is in loopback mode.

Off

Normal operation. No active loopback.


Installing and Removing the Connected Grid DSL GRWICs

This section describes how to install and remove a Connected Grid DSL GRWIC in the Cisco CGR 2010 router and includes the following topics:

Safety Warnings

Installing a Connected Grid Single-Wide DSL GRWIC

Removing a Connected Grid Single-Wide DSL GRWIC

Safety Warnings

This section includes the basic installation warning statements. For regulatory compliance and safety information for the Cisco CGR 2010, refer to the Connected Grid Router 2000 Series Regulatory Compliance and Safety Information document.

http://www.cisco.com/en/US/docs/routers/access/2000/CGR2010/hardware/rcsi/rcsiCGR2000series.html


Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030

Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001

Warning Read the installation instructions before connecting the system to the power source. Statement 1004

Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first. Statement 1026

Installing a Connected Grid Single-Wide DSL GRWIC

All of the Connected Grid DSL GRWICs are single-wide interface cards. The router can accommodate four single-wide GRWICs or two single-wide GRWICs with one double-wide GRWIC, or two double-wide GRWICs at any one time.

A single-wide GRWIC installs in to one of four slots on the cable side of the router.

Each GRWIC is enclosed within a carrier enclosure with bars that extend outward from the front panel (see Figure 5).

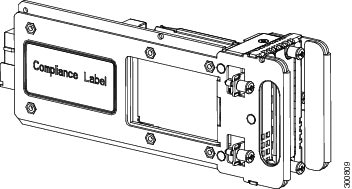

Figure 5 Side View of GRWIC Carrier Enclosure

To install a single-wide GRWIC, follow these steps:


Step 1 Stand the GRWIC on end to slide the single-wide GRWIC in to the router slot (see Figure 6).

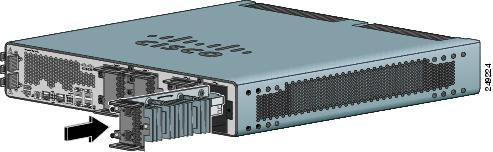

Figure 6 Installing a Single-wide GRWIC in the Cisco 2010 Router

Step 2 Tighten the three captive screws on the front of the GRWIC (see Figure 7).

Figure 7 Front View of GRWIC Within Carrier Enclosure


Note When installing multiple GRWICs at a time, the GRWICS must overlap as seen in Figure 8.

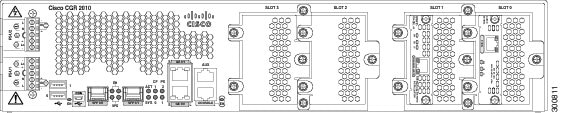

Figure 8 Installing Multiple GRWICs


Removing a Connected Grid Single-Wide DSL GRWIC


Caution The module CANNOT be hot swapped—to install the module, you must first power down the system.


Step 1 Using a screwdriver, loosen the three captive screws on the Connected Grid DSL GRWIC.

Step 2 Gently pull the module out of the slot.


Connecting Connected Grid DSL GRWICs to the Network

To connect the DSL GRWICs to the network, use a standard RJ-11 straight-through cable to establish connection between the GRWIC and the network device.

Table 5 shows the ADSL/ADSL2/2+/VDSL2 GRWIC pinouts.

Table 5 ADSL/ADSL2/2+/VDSL2 GRWIC Pinouts

Pin
Signal

3

Tip

4

Ring



Note If you are connecting an ADSL interface card to an RJ-11 wall jack that has the DSL pair wired for pins 2 and 5, you must use an RJ-11 crossover cable (lavender with blue stripe). The RJ-11 crossover cable can be ordered separately as a spare.



Software Configuration

For details on configuring the Connected Grid DSL GRWICs, refer to the following configuration guides.

For software configuration details for the Connected Grid G.2SHDSL GRWIC, see
Configuring Cisco G.SHDSL HWICs in Cisco Access Routers.

For software configuration details for the Connected Grid VDSL2 functionality, see
Configuring the HWIC-VDSL.

For software configuration details for the Connected Grid ADSL functionality, see
Configuring ADSL in the Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Software Configuration Guide.

Related Documentation

For hardware details on the Cisco 2000 Series Connected Grid Routers, see
Cisco Connected Grid Routers 2010 Hardware Installation Guide
