Connecting Cisco CEoIP Network Modules to the Network


Revised: May 1, 2008, OL-12829-01

This guide describes how to connect Cisco Circuit Emulation Over IP (CEoIP) network modules to your network. It contains the following sections:

Cisco CEoIP Network Modules

4-Port Serial Interface Network Modules (NM-CEM-4SER)

Connecting 4-Port Serial Interface Network Modules to the Network

4-Port T1/E1 RJ-48 Interface Network Modules (NM-CEM-4TE1)

Connecting 4-Port T1/E1 RJ-48 Interface Network Modules (NM-CEM-4TE1) to the Network

Related Documents

Obtaining Documentation, Obtaining Support, and Security Guidelines

Cisco CEoIP Network Modules

Cisco CEoIP network modules provide a virtual circuit through an IP network (similar to a leased line). Transport of data, regardless of the content or structure of the data stream, is entirely transparent to the destination; bits arriving at one end are delivered unchanged to the destination address.

This chapter provides information on the following two Cisco CEoIP network modules:

4-port serial interface network module (NM-CEM-4SER), shown in Figure 1

4-port T1/E1 RJ-48 interface network module (NM-CEM-4TE1), shown in Figure 2

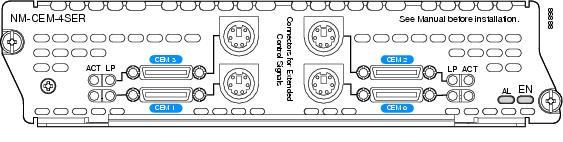

Figure 1 4-Port Serial Interface Network Module (NM-CEM-4SER) Faceplate

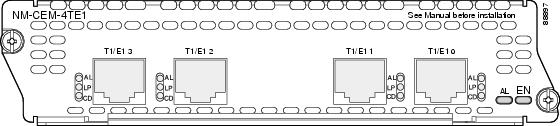

Figure 2 4-Port T1/E1 RJ-48 Interface Network Module (NM-CEM-4TE 1) Faceplate

4-Port Serial Interface Network Modules (NM-CEM-4SER)

The 4-port serial interface network module (NM-CEM-4SER) is a single-wide CEoIP network module with four serial ports that support the following interfaces:

EIA/TIA-232

EIA/TIA-449

EIA-530

EIA-530A

V.35

X.21


Caution To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the 4-port serial interface network module (NM-CEM-4SER) only to intrabuilding or nonexposed wiring or cabling. The intrabuilding cable must be shielded and the shield must be grounded at both ends.

The interface type provided by the port is determined by the cable connected to the port. For information on interface-specific cabling requirements, see the "Connecting 4-Port Serial Interface Network Modules to the Network" section.

For information on network module LEDs, see the "4-Port Serial Interface Network Module (NM-CEM-4SER) LEDs" section.

4-Port Serial Interface Network Module (NM-CEM-4SER) LEDs

See Figure 3 for the location of network module LEDs and Table 1 for LED descriptions.

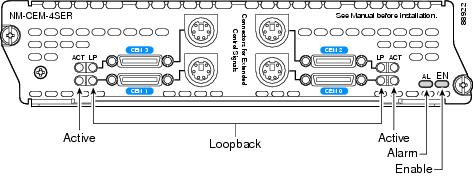

Figure 3 4-Port Serial Interface Network Module (NM-CEM-4SER) LEDs

Table 1 4-Port Serial Interface Network Module (NM-CEM-4SER) LEDs

LED
Color
Meaning

ACT

Green

The channel on this port is operational.

LP

Yellow

A local or network loopback is present on the port.

AL

Red

Not used.

EN

Green

The network module has passed self-test and is available to the router.


Connecting 4-Port Serial Interface Network Modules to the Network

The 4-port serial interface network module uses Smart Serial connectors, permitting each port to support a basic or extended set of serial control signals, depending on the cable connected to the port.


Caution To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the 4-port serial interface network module (NM-CEM-4SER) only to intrabuilding or nonexposed wiring or cabling. The intrabuilding cable must be shielded and the shield must be grounded at both ends.

The following basic set of control signals is used on Cisco 12-in-1 cables:

Data Terminal Ready (DTR)

Data Set Ready (DSR)

Request to Send (RTS)

Clear to Send (CTS)

Data Carrier Detect (DCD)

Local Loop (LL)

The following control signals are part of the extended set, in addition to the basic set listed above, and are used on Cisco Extended 12-in-1 cables:

Remote Loop (RL)

Test Mode (TM)

Ring Indicator (RI)


Note Control signal support depends on the interface type. Not all of the control signals listed above are supported by every interface type.



Note The control signal names used in this document are the names commonly used in the industry for RS-232. Other interface types may use other names for the equivalent control signals.


The 4-port serial interface network module (NM-CEM-4SER) supports both Cisco 12-in-1 interface cables and Cisco Extended 12-in-1 interface cables with user-defined end-connectors permitting connection to either DTE or DCE interfaces.

Interfaces and DTE or DCE modes are defined by the type of cable connected to the network module.


Tip Use the Cisco 12-in-1 cable for X.21 interfaces. The X.21 interface connector does not require an additional DIN connector.


For information on using Cisco 12-in-1 cables with the 4-port serial interface network module, see Table 3. Figure 4 illustrates how to connect the Cisco 12-in-1 cable to the network module.

For information on using Cisco Extended 12-in-1 cables with the 4-port serial interface network module, see Table 4. Figure 5 illustrates how to connect the Cisco Extended 12-in-1 cable to the network module.

All serial interface types are available in DTE or DCE format: DTE requires a plug connector at the customer premises equipment (CPE) end, and DCE requires a receptacle connector at the CPE end.

Serial Interface Data Rates and Distance Limitations

All serial signals are subject to distance limits, beyond which the signal degrades significantly or is completely lost. Generally, the slower the data rate, the greater the distance the signal can travel.

Table 2 lists maximum recommended speeds and distances for each serial interface type. If you understand and compensate for potential electrical problems, you may get good results at speeds and distances greater than those listed. For instance, the recommended maximum rate for V.35 is 2 Mbps, but 4 Mbps is commonly used.

Table 2 Maximum Recommended Speeds and Distances for Each Serial Interface Type


EIA/TIA-232 Distance
EIA/TIA-449, -530, -530A, V.35, X.21 Distance
Data Rate, bps
Feet
Meters
Feet
Meters

2400

200

60

4100

1250

4800

100

30

2050

625

9600

50

15

1025

312

19200

25

8

500

150

38400

12

4

250

75

56000

9

3

100

30


Balanced drivers allow EIA/TIA-449, EIA/TIA-530, EIA/TIA-530A, V.35, and X.21 signals to travel greater distances than EIA/TIA-232 signals. All balanced interfaces easily support 4 to 8 Mbps.

Using Cisco 12-in-1 Interface Cables with the 4-Port Serial Interface Network Module (NM-CEM-4SER)

Table 3 lists the Cisco 12-in-1 interface cables supported by the 4-port serial interface network module. Use the cable part number to order replacement or spare cables for the interface and DTE or DCE mode appropriate for your network.

Figure 4 illustrates how to connect the Cisco 12-in-1 cable to the network module.

Table 3 Cisco 12-in-1 Interface Cable Part Numbers Used with the 4-Port Serial Interface Network Module (NM-CEM-4SER)

Interface
DCE/DTE
Cisco Cable Part Number

EIA/TIA-232

Female DCE
Male DTE

CAB-SS-232FC
CAB-SS-232MT

EIA/TIA-449

Female DCE
Male DTE

CAB-SS-449FC
CAB-SS-449MT

EIA-530

Male DTE

CAB-SS-530MT

EIA-530A

Male DTE

CAB-SS-530AMT

V.35

Female DCE
Female DTE
Male DCE
Male DTE

CAB-SS-V35FC
CAB-SS-V35FT
CAB-SS-V35MC
CAB-SS-V35MT

X.21

Female DCE
Male DTE

CAB-SS-X21FC
CAB-SS-X21MT


Figure 4 Connecting the Cisco 12-in-1 Interface Cable to the 4-Port Serial Interface Network Module (NM-CEM-4SER)

Using Cisco Extended 12-in-1 Interface Cables with the 4-Port Serial Interface Network Module (NM-CEM-4SER)

Table 4 lists the Cisco Extended 12-in-1 interface cables supported by the 4-port serial interface network module. Use the cable part number to order replacement or spare cables for the interface and DTE or DCE mode appropriate for your network.

Figure 5 illustrates how to connect the Cisco 12-in-1 cable to the network module.

Table 4 Cisco Extended 12-in-1 Interface Cable Part Numbers Used with the 4-Port Serial Interface Network Module (NM-CEM-4SER)

Interface
DCE/DTE
Cisco Cable Part Number

EIA/TIA-232

Female DCE
Male DTE

CAB-SS-232FC-EXT
CAB-SS-232MT-EXT

EIA/TIA-449

Female DCE
Male DTE

CAB-SS-449FC-EXT
CAB-SS-449MT-EXT

EIA-530

Female DCE
Male DTE

CAB-SS-530FC-EXT
CAB-SS-530MT-EXT

EIA-530A

Female DCE
Male DTE

CAB-SS-530AFC-EXT
CAB-SS-530AMT-EXT

V.35

Female DCE
Female DTE
Male DCE
Male DTE

CAB-SS-V35FC-EXT
CAB-SS-V35FT-EXT
CAB-SS-V35MC-EXT
CAB-SS-V35MT-EXT



Note Cisco Extended 12-in-1 cables provide additional control signals through the DIN cable connection.


Figure 5 Connecting the Cisco Extended 12-in-1 Interface Cable to the 4-Port Serial Interface Network Module (NM-CEM-4SER)

4-Port T1/E1 RJ-48 Interface Network Modules (NM-CEM-4TE1)

The 4-port T1/E1 RJ-48 interface network module (NM-CEM-4TE1) is a single-wide CEoIP network module with four T1/E1 ports. (See Figure 2.) The NM-CEM-4TE1 connects to any T1/E1 interface for voice or data.

4-Port T1/E1 RJ-48 Interface Network Module (NM-CEM-4TE1) LEDs

See Figure 6 for the location of network module LEDs and Table 5 for LED descriptions.

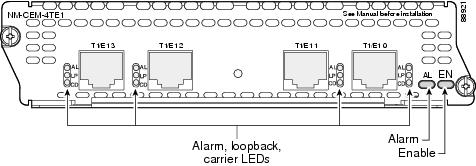

Figure 6 4-Port T1/E1 RJ-48 Interface Network Module (NM-CEM-4TE1) LEDs

Table 5 4-Port T1/E1 RJ-48 Interface Network Module (NM-CEM-4TE1) LEDs

LED
Color
Meaning

AL

Yellow

Loss of signal or loss of frame has occurred, or the network module is unavailable because of excessive errors on the interface.

LP

Yellow

A local or network loopback on the port.

CD

Green

Activity is occurring on the interface (carrier detect).

EN

Green

The network module has passed self-test and is available to the router.

AL

Yellow

Not used.


Connecting 4-Port T1/E1 RJ-48 Interface Network Modules (NM-CEM-4TE1) to the Network

The 4-port T1/E1 RJ-48 interface network module (NM-CEM-4TE1) uses a RJ-48 straight-through cable to connect to the customer premises equipment (CPE) for use in T1 or E1 circuit emulation. (See Figure 7.)


Note All four ports on the network module must operate in the same software-configured mode, either as T1 ports or as E1 ports. The NM-CEM-4TE1 network module does not support combinations of T1 and E1 ports on the same network module.


When configured for E1 operation, the NM-CEM-4TE1 network module provides four 120-ohm balanced ports. To connect any of these ports to a 75-ohm unbalanced network, use Cisco cable CAB-ADP-75-120. For more information, see the Installing the 75-120-Ohm Adapter Cable on E1 Multichannel Port Adapters document:

http://www.cisco.com/en/US/docs/interfaces_modules/port_adapters/install_upgrade/cables_and_attenuator/75-120ohm_cbl_e1_multichan_install/6728cabl.html

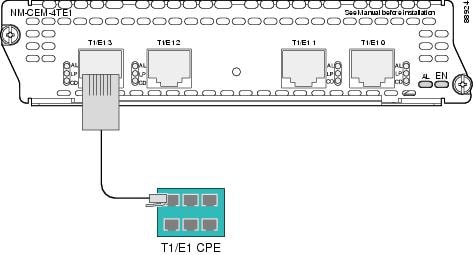

Figure 7 Connecting the 4-Port T1/E1 RJ-48 Interface Network Module (NM-CEM-4TE1) to the Network
