Connecting Cisco Serial Network Modules to the Network

About Serial Connections

About DTE and DCE Devices

About Serial Cables Used with Cisco 2600 Series, Cisco 3600 Series, Cisco 3700 Series, and Cisco MWR 1941-DC Routers

About Data Rates and Distance Limitations

Asynchronous and Synchronous Serial Module Data Rates

Connecting Asynchronous Network Modules to Asynchronous Devices

Octal Cables

12-in-1 Smart Serial Cables

Asynchronous Network Module Interface Numbering

Cisco 3600 Series and Cisco MWR 1941-DC Router 16- and 32-Port Interface Numbering

Cisco 2600 Series and Cisco MWR 1941-DC Router Serial Interface Numbering

Port Interface Numbering

4- and 8-Port

16- and 32-Port

4-Port Serial Network Module

Connecting the 4-Port Serial Module to a Network

4-Port Serial Network Module LEDs

16- and 32-Port Asynchronous Serial Network Modules

Asynchronous Network Module LEDs

4-, 8-, and 16-Port Asynchronous/Synchronous Serial Network Modules

Asynchronous/Synchronous Serial Module LEDs

Related Documents

Obtaining Documentation, Obtaining Support, and Security Guidelines


Connecting Cisco Serial Network Modules to the Network


Revised: May 1, 2008, OL-12809-01

This guide describes how to connect Cisco serial network modules to your network. It contains the following sections:

About Serial Connections

Connecting Asynchronous Network Modules to Asynchronous Devices

Asynchronous Network Module Interface Numbering

4-Port Serial Network Module

16- and 32-Port Asynchronous Serial Network Modules

4-, 8-, and 16-Port Asynchronous/Synchronous Serial Network Modules

Related Documents

Obtaining Documentation, Obtaining Support, and Security Guidelines

About Serial Connections

Before you connect a device to a serial port, you need to know the following:

Type of device—data terminal equipment (DTE) or data communications equipment (DCE)—you are connecting to

Type of connector, male or female, needed to connect to the device

Signaling standard required by the device

About DTE and DCE Devices

A device that communicates over a synchronous serial interface is either a DTE or a DCE device. A DCE device provides a clock signal between the device and the router. A DTE device does not provide a clock signal. DTE devices usually connect to DCE devices. The documentation that accompanied the device should tell you whether it is DTE or DCE. (Some devices have a jumper to select DTE or DCE mode.) If you cannot find this information in your documentation, see Table 1 to help you determine the proper device type.

Table 1 Identifying the Device Type

Device Type
Typical Connector
Typical Devices

DTE

Male1

Terminal

PC

DCE

Female2

Modem

CSU/DSU

Multiplexer

1 If pins protrude from the base of the connector, the connector is male.

2 If the connector has holes to accept pins, the connector is female.



Note Serial ports configured as synchronous DTE require external clocking from a channel service unit/data service unit (CSU/DSU) WAN interface card or other DCE device.


About Serial Cables Used with Cisco 2600 Series, Cisco 3600 Series, Cisco 3700 Series, and Cisco MWR 1941-DC Routers

Cisco Systems offers ten types of serial cables (also called serial adapter cables or transition cables) as listed in Table 2.

Table 2 Serial Cables and Cisco Smart Serial Cables

Standard Serial Cables
Cisco Smart Serial Cables

EIA/TIA-232 serial cable

EIA/TIA-232 Smart Serial cable

EIA/TIA-449 serial cable

EIA/TIA-449 Smart Serial cable

V.35 serial cable

V.35 Smart Serial cable

X.21 serial cable

X.21 Smart Serial cable

EIA/TIA-530 serial cable

EIA/TIA-530 Smart Serial cable EIA/TIA-530A Smart Serial cable


The documentation for the device you plan to connect to the serial port should indicate which interface is used. You can then order a serial transition cable of the correct type.


Tip A cable providing surge protection (CAB-SS-SURGE) is also available from Cisco Systems for use with the NM-16A/S network module. See the "12-in-1 Smart Serial Cables" section for instructions on connecting the surge protector cable.


A standard serial cable uses a universal 60-pin plug at the network module or WAN interface card end. The Smart Serial cable uses a 12-in-1 Smart Serial connector designed by Cisco. The network end of each cable provides the physical connectors most commonly used for the interface. For example, the network end of the EIA/TIA-232 serial cable is a DB-25 connector, the most widely used EIA/TIA-232 connector.

All serial interface types except EIA/TIA-530 and EIA/TIA-530A are available in DTE or DCE format: DTE with a plug connector at the network end, and DCE with a receptacle at the network end. V.35 is available in either mode, with either gender at the network end. EIA/TIA-530 and EIA/TIA-530A are available in DTE only.

Serial cables are not provided with the network module. For ordering information, see the "Obtaining Documentation, Obtaining Support, and Security Guidelines" section.

Although manufacturing your own serial cables is not recommended (because of the small size of the pins on the DB-60 serial connector), cable pinouts are provided in the online document Cisco Modular Access Router Cable Specifications. For further information, see the "Obtaining Documentation, Obtaining Support, and Security Guidelines" section.

About Data Rates and Distance Limitations

All serial signals are subject to distance limits, beyond which the signal degrades significantly or is completely lost. Generally, the slower the data rate, the greater the distance.

Table 3 lists recommended maximum speeds and distances for each serial interface type. If you understand and compensate for potential electrical problems, you may get good results at speeds and distances greater than those listed. For instance, the recommended maximum rate for V.35 is 2 Mbps, but 4 Mbps is commonly used.

Table 3 Serial Interface Recommended Maximum Speeds and Distances


EIA/TIA-232 Distance
EIA/TIA-449, -530, -530A, V.35, and X.21 Distance
Data Rate, bps
Feet
Meters
Feet
Meters

2400

200

60

4100

1250

4800

100

30

2050

625

9600

50

15

1025

312

19200

25

8

500

150

38400

12

4

250

75

56000

9

3

100

30

1544000 (T1)

50

15


Balanced drivers allow EIA/TIA-449 signals to travel greater distances than EIA/TIA-232 signals. The recommended distance limits for EIA/TIA-449 shown in Table 3 are also valid for V.35, X.21, and EIA/TIA-530. Typically, EIA/TIA-449 and EIA/TIA-530 support 2-Mbps rates, and V.35 can support 4-Mbps rates.

Asynchronous and Synchronous Serial Module Data Rates

The following data-rate limitations apply to the slow-speed serial interfaces found on asynchronous and synchronous serial modules:

The maximum data rate on the slow-speed asynchronous interface is 115.2 kbps. The traffic throughput rate allowed is the full 115.2 kbps, with 10 percent of traffic in the opposite direction.

The maximum data rate for the slow-speed synchronous interface is 128 kbps full duplex.

Connecting Asynchronous Network Modules to Asynchronous Devices

An asynchronous network module provides two or four 68-pin receptacles. Each receptacle connects to asynchronous devices by means of an octal cable that has a 68-pin plug at the module end and eight connectors at the network end, one for each of the eight EIA/TIA-232 serial ports. Depending on the type of cable, the network end consists of either RJ-45 connectors or male DB-25 connectors. RJ-45-to-DB-25 adapters are also available.

Ports are numbered from right to left and from bottom to top, as labeled on the module rear panel. (See the "Asynchronous Network Module Interface Numbering" section.)

Octal Cables

Octal cables are not provided with the network module. For ordering information, see the "Obtaining Documentation, Obtaining Support, and Security Guidelines" section.

Use an octal cable, and adapters if necessary, to connect each of the module's 68-pin receptacles to one or more asynchronous modems, terminals, or other devices. (See Figure 1.)

Figure 1 Connecting an Asynchronous Network Module to an Asynchronous Device

12-in-1 Smart Serial Cables

The Cisco NM-16A/S network module uses sixteen 12-in-1 Smart Serial cables. The cables connect the network module to a patch panel or one or more asynchronous modems, terminals, or other devices. (See Figure 2.)

Figure 2 Connecting the NM-16A/S Network Module

The surge protection cable (CAB-SS-SURGE) is installed between the network module and the 12-in-1 Smart Serial cable. (See Figure 3.)

Figure 3 Connecting the Cisco Surge Protector Cable (CAB-SS-SURGE) to the NM-16A/S Network Module

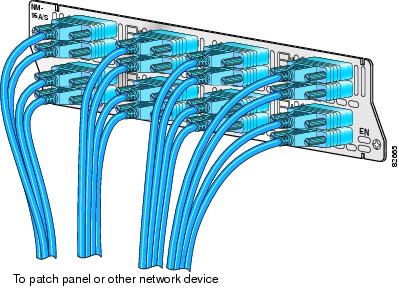

Figure 4 shows the 12-in-1 Smart Serial cables going from the Cisco NM-16A/S network module to a patch panel installed above the network module in a standard telco rack. The numbers next to the connectors on the patch panel correspond to the port number (or connector) on the other side of the patch panel.

Figure 4 Cabling the Cisco NM-16AS Network Module to a Patch Panel

Asynchronous Network Module Interface Numbering

Certain Cisco IOS configuration commands identify asynchronous ports by an interface number (or a line number, which is the same as the interface number). The interface number of a port on an asynchronous network module is related to the slot number where the module is installed and the unit number of the port in the module.

Cisco 3600 Series and Cisco MWR 1941-DC Router 16- and 32-Port Interface Numbering

Cisco 3600 series and Cisco MWR 1941-DC router slot numbering is explained in the "Network Module Slot Locations and Numbering on Cisco Access Routers" section on page 3.

Ports on the 16- and 32-port asynchronous network modules correspond to the outputs of the octal cables that connect the module to the network. These ports are numbered in the same pattern as slot numbers, beginning at 0 at the lower right and continuing from right to left and (in the 32-port module) from bottom to top. In the 16-port module, the right connector provides ports 0 to 7, and the left connector provides ports 8 to 15, as labeled on the module rear panel. In the 32-port module, the connectors in the bottom row provide ports 0 to 7 and 8 to 15, and the connectors in the top row provide ports 16 to 23 and 24 to 31.

The interface number of a port is determined using the following formula:

interface-number = (32 x slot-number) + unit-number + 1

For example, asynchronous port 12 in slot 1 corresponds to interface number
(32 x 1) + 12 + 1 = 45. This is also the line number for the port. Port 12 in slot 1 is always assigned interface number 45, regardless of whether the module in slot 0 is a 16-port asynchronous module, a 32-port asynchronous module, or some other type of module—or even whether there is a network module in slot 0 at all. If you move the module in slot 1 to a different slot, however, its interface numbers change.


Note The Cisco MWR 1941-DC router has one network module slot (slot 1).


Table 4 shows the range of interface numbers available for each type of asynchronous network module in each Cisco 3600 series router slot. (Interface 0 is automatically assigned to the console.)

Table 4 Cisco 3600 Series 16- and 32-Port Asynchronous
Network Module Interface Numbering

Slot Number
Interface Numbers (16-Port Module)
Interface Numbers (32-Port Module)

0

1-16

1-32

1

33-48

33-64

2

65-80

65-96

3

97-112

97-128

4

129-144

129-160

5

161-176

161-192

6

193-208

193-224


Cisco 2600 Series and Cisco MWR 1941-DC Router Serial Interface Numbering

Interface numbering for Cisco 2600 series and Cisco MWR 1941-DC routers differ from Cisco 3600 series interface numbering in the following ways:

WAN interface card slot numbers always appear as slot 0, even if the interface card is installed in the slot labeled W1.

WAN interface cards are numbered dynamically, starting with the first card installed. For example:

If slot W0 is empty and slot W1 contains a 1-port serial WAN interface card, the interface number is serial 0/0.

If slot W0 contains a 2-port serial WAN interface card and slot W1 contains a 1-port serial interface card, serial 0/0 and 0/1 reside in slot W0 and serial 0/2 resides in slot W1.

Port Interface Numbering


Note The Cisco MWR 1941-DC router requires Cisco IOS Release 12.2(15)MC1a and later for 4- and 8-port asynchronous/synchronous and 16- and 32-port asynchronous modules network module support.


4- and 8-Port

The 4-port and 8-port asynchronous/synchronous network modules, when configured for asynchronous operation under releases earlier than Cisco IOS Release 11.2(7)P, use a different interface numbering algorithm:

interface-number = (16 x slot-number) + unit-number + 1

16- and 32-Port

Table 5 shows the numbers available under this numbering scheme. These interface numbers create potential conflicts with the numbers assigned to 16- and 32-port asynchronous modules; that is, it would be possible for a 16- or 32-port asynchronous module in one slot to overlap the interface numbers of a 4- or 8-port asynchronous and synchronous module in another slot.

Table 5 4-, 8-, and 16-Port Serial Network Module Interface Numbering

Slot Number
Interface Numbers
(4-Port Module)
Interface Numbers
(8-Port Module)
Interface Numbers
(16-Port Module)

0

1-4

1-8

1-16

1

17-20

17-24

17-24

21

33-36

33-40

33-40

31

49-52

49-56

49-64

4

N/A

N/A

65-80

5

N/A

N/A

81-96

1 Cisco 3640 and Cisco 3660 routers only.


To prevent this conflict, Cisco IOS Release 11.2(7)P, which is required to operate 16- and 32-port asynchronous network modules, checks when the router boots for the presence of 4- and 8-port asynchronous/synchronous network modules configured as asynchronous. If the software finds any of these network modules, it rewrites the starting configuration in nonvolatile random access memory (NVRAM), if necessary, to adopt the new line numbering scheme for these modules, as shown in Table 6.

Table 6 New 4- and 8-Port Serial Network Module Interface Numbering

Slot Number
Interface Numbers (4-Port Module)
Interface Numbers (8-Port Module)

0

1-4

1-8

1

33-36

33-40

21

65-68

65-72

31

97-100

97-104

1 Cisco 3640 and Cisco 3660 routers only.


When an automatic configuration update is performed, the following message appears:

Line number convention changed from 16 lines/slot to 32 lines/slot.

4-Port Serial Network Module

This section provides information about the 4-port serial network module (Cisco product number NM-4T). (See Figure 5.) With the appropriate serial transition cable, each port on this module can provide an EIA/TIA-232, EIA/TIA-449, V.35, X.21, EIA/TIA-530 DTE, or nonreturn to zero/nonreturn to zero inverted (NRZ/NRZI) serial interface. The module provides a synchronous data rate of 8 MB per second on port 0, 4 MB per second each on port 0 and port 2, or 2 MB on all four ports simultaneously.


Note Half-duplex and binary-synchronous communications are not supported on the 4-port serial network module.

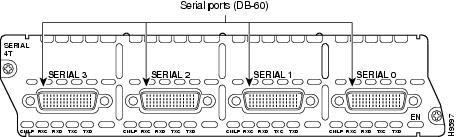

Figure 5 4-Port Serial Network Module

Connecting the 4-Port Serial Module to a Network

The 4-port serial network module provides four universal, high-density, 60-pin receptacles. The serial cable attached to each receptacle determines the port's electrical interface type and mode, DTE or DCE.

After you install a 4-port serial module, use the appropriate serial cable to connect each of the DB-60 serial ports to a synchronous modem, channel service unit/data service unit (CSU/DSU), or other DCE equipment. (See Figure 6.)

Figure 6 Connecting a 4-Port Serial Module to a CSU/DSU

4-Port Serial Network Module LEDs

All network modules have an enable (EN) LED. This LED indicates that the module has passed its self-tests and is available to the router.

Each port on the 4-port serial network module also has the additional LEDs shown in Figure 7 and described in Table 7.

Figure 7 4-Port Serial Network Module LEDs

Table 7 4-Port Serial Network Module LEDs

LED
Meaning

CN/LP

In connect mode when green, in loopback mode when yellow

RXC

Receive clock

RXD

Receive activity

TXC

Transmit clock

TXD

Transmit activity


16- and 32-Port Asynchronous Serial Network Modules

This section provides information about the following network modules:

16-port asynchronous network module (NM-16A) (see Figure 8)

32-port asynchronous network module (NM-32A) (see Figure 9)

When used with corresponding octal cables, these modules provide 16 or 32 EIA/TIA-232 data terminal equipment (DTE) serial interfaces. Speeds up to 134.4 kbps are supported.

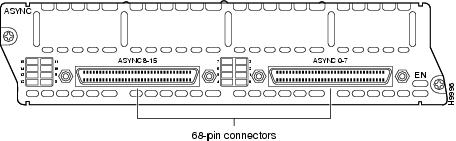

Figure 8 16-Port Asynchronous Network Module

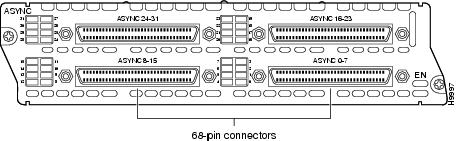

Figure 9 32-Port Asynchronous Network Module

Asynchronous Network Module LEDs

All network modules have an enable (EN) LED. This LED indicates that the module has passed its self-tests and is available to the router.

Each port on an asynchronous network module also has a green status LED to indicate that the port is connected to the network. These LEDs are grouped in blocks of eight to the left of each module and are labeled with the port numbers. (See Figure 10 and Figure 11.)

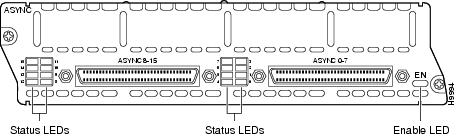

Figure 10 16-Port Asynchronous Network Module LEDs

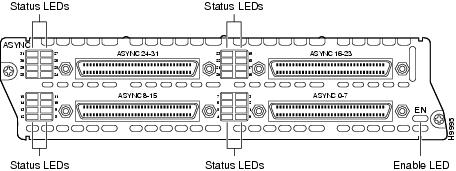

Figure 11 32-Port Asynchronous Network Module LEDs

4-, 8-, and 16-Port Asynchronous/Synchronous Serial Network Modules

This section provides information about the following network modules for Cisco modular routers:

4-port asynchronous/synchronous serial network module (NM-4A/S) (see Figure 12).

8-port asynchronous/synchronous serial network module (NM-8A/S) (see Figure 13).

16-port asynchronous/synchronous serial network module (NM-16A/S) (see Figure 14).


Note The Cisco NM-16A/S network module uses a Cisco patented 12-in-1 Smart Serial cable.


With the appropriate serial transition cable, the ports on these modules can provide an EIA/TIA-232, EIA/TIA-449, V.35, X.21, EIA/TIA-530 DTE, or NRZ/NRZI serial interface. The NM-16 A/S network module can provide an EIA/TIA-530A DTE interface.


Caution To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the 8-port A/S serial network modules (NM-8A/S) and 16-port A/S serial network modules (NM-16A/S) only to intrabuilding or nonexposed wiring or cabling. The intrabuilding cable must be shielded and the shield must be grounded at both ends.

Figure 12 4-Port Asynchronous/Synchronous Serial Network Module

Figure 13 8-Port Asynchronous/Synchronous Serial Network Module

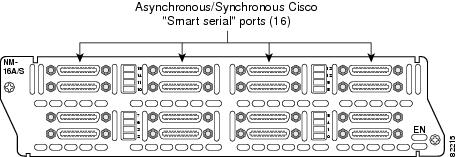

Figure 14 16-Port Asynchronous/Synchronous Serial Network Module

Asynchronous/Synchronous Serial Module LEDs

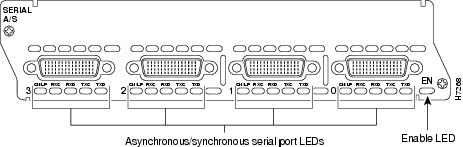

Figure 15 shows LEDs for the 4-port asynchronous/synchronous serial network module. Figure 16 shows LEDs for the 8-port asynchronous/synchronous serial network module. Figure 17 shows the LEDs for the 16-port asynchronous/synchronous serial network module.

Figure 15 4-Port Asynchronous/Synchronous Serial Network Module LEDs

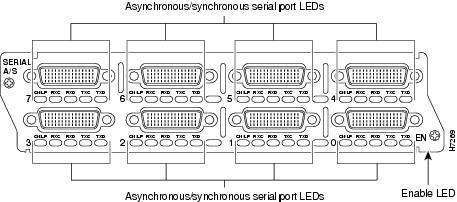

Figure 16 8-Port Asynchronous/Synchronous Serial Network Module LEDs

All network modules have an enable (EN) LED. This LED indicates that the module has passed its self-tests and is available to the router.

Each port on an asynchronous/synchronous serial network module also has the additional LEDs shown in Table 8.

Table 8 4- and 8-Port Asynchronous/Synchronous Serial Network Module LEDs

LED
Meaning

CN/LP

In connect mode when green, in loopback mode when yellow

RXC

Receive clock

RXD

Receive activity

TXC

Transmit clock

TXD

Transmit activity

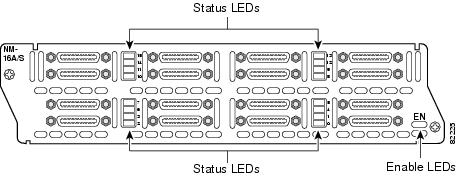

Figure 17 16-Port Asynchronous/Synchronous Serial Network Module LEDs

The NM-16 A/S network module has LEDs that indicate the status of the port. When the LED is green, the physical port is in the up state. When the LED is yellow, the port is in loopback mode. (See Table 9.)

Table 9 16-port Asynchronous Status LEDs and Enabled LEDs

Mode
LED Color
Meaning

DCE

Green

Data terminal ready (DTR) and request to send (RTS) are present.

DTE

Green

Data set ready (DSR), data carrier detect (DCD), and clear to send (CTS) are present.

Loopback

Yellow

The port is in loopback mode


Related Documents

For additional information, see the following documents and resources.

Related Topic
Document Title

Regulatory compliance and safety information

Cisco Network Modules and Interface Cards Regulatory Compliance and Safety Information
http://www.cisco.com/en/US/docs/routers/access/interfaces/rcsi/IOHrcsi.html

Cisco IOS software website and reference documentation

Cisco IOS Software http://www.cisco.com/web/psa/products/index.html?c=268438303


Obtaining Documentation, Obtaining Support, and Security Guidelines

For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
