Preface
This preface discusses how this guide is organized, explains how to use the guide, describes how to get the latest version of the guide, the conventions used in the guide, related documentation, and how to obtain documentation and technical assistance.
Objective
Whether you are a corporate end user or a competitive Internet service provider (ISP), you have purchased a Cisco AS5350XM or Cisco AS5400XM universal gateway to provide dial-up services that facilitate accessibility for remote or roaming personnel, or Internet admission to consumers for e-mail, e-commerce, and web browsing. This guide assists you in configuring basic features to get you started.
Organization and Use
This software configuration guide is organized into the following chapters and appendixes:
Table 1 Document Organization
Chapter Title DescriptionChapter 1
Understanding Basic Hardware Architecture and Cisco IOS Software
Provides a brief overview of the Cisco AS5350XM and Cisco AS5400XM universal gateway architecture, and describes how to upgrade Cisco IOS software.
Chapter 2
Describes how to analyze your system, execute basic tasks, and configure your system to set up the universal gateway using the CLI.
Chapter 3
Describes how to configure additional basic system features.
Chapter 4
Describes how to use the Cisco IOS software command-line interface (CLI) to commission your gateway.
Chapter 5
Managing and Troubleshooting the Universal Port and Dial-Only Feature Cards
Describes how to manage your universal port cards using the CLI.
Chapter 6
Describes how to manage your voice feature cards using the CLI.
Chapter 7
Provides a brief overview of the VoIP call process and explains how to configure VoIP on your gateway.
Appendix A
Describes how to power up the gateway and configure it using the prompt-driven setup script.
Appendix B
Describes how to use the ROM monitor to isolate or rule out hardware problems encountered when you install the gateway.
Appendix C
Provides basic and advanced configuration examples for reference.
For more information about the Cisco AS5350XM and Cisco AS5400XM universal gateways, see the following resources:
•For platform-specific documentation, such as hardware installation and regulatory compliance information, see the Cisco AS5350XM universal gateway technical support and documentation website at this URL:
http://www.cisco.com/en/US/products/hw/univgate/ps501/tsd_products_support_series_home.html
•For platform-specific documentation, such as hardware installation and regulatory compliance information, see the Cisco AS5400XM universal gateway technical support and documentation website at this URL:
http://www.cisco.com/en/US/products/hw/univgate/ps505/tsd_products_support_series_home.html
•For advanced feature configuration information, see the Cisco IOS documentation set, which includes:
–Cisco IOS Command Summary
–Cisco IOS System Error Messages
–Cisco IOS Debug Command Reference
–Cisco IOS Dial Services Quick Configuration Guide
–New feature module documentation and release notes
–Configuration guides and command references (see Figure 1)
The Cisco IOS documentation set for your release is available online at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/
Note The abbreviations next to the book icons are page designators (for example, FC, FR, and so on), which are defined in a key in the index of each document to help with navigation. The bulleted lists under each module describe the major technology areas discussed in their corresponding books.

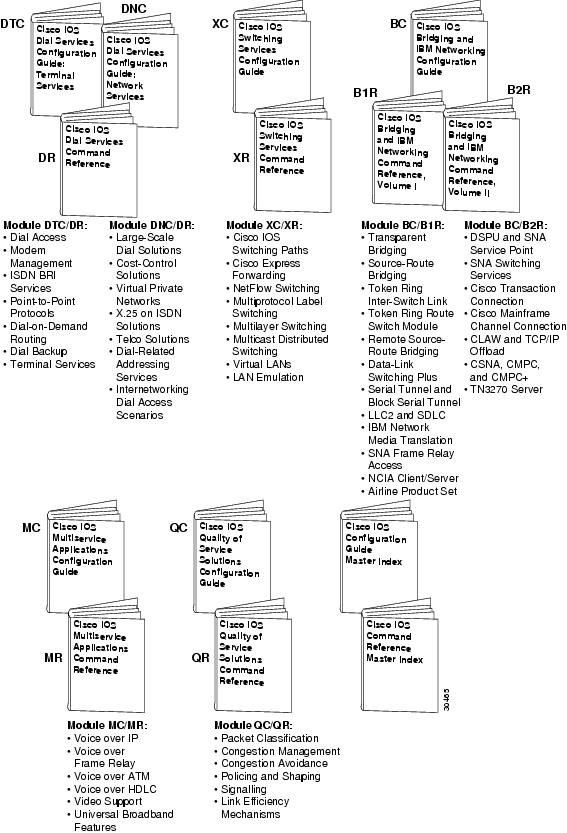

Figure 1 Cisco IOS Software Documentation Modules
Where to Get the Latest Version of This Guide
This guide is available online and is updated continuously to integrate the latest enhancements to the product. You can access the current online copy of this guide on the World Wide Web at
http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.
See also the "Obtaining Documentation" section.Document Conventions
