Installing the Cisco ONS 15454 Fan-Tray Assembly

Table Of Contents

Installing the Cisco ONS 15454 Fan-Tray Assembly

Fan-Tray Assembly Compatibility

Fan-Tray Assembly Installation

Install the Fan-Tray Assembly

Remove the Fan-Tray Assembly

Fan-Tray Air Filter Installation

Install the External Brackets

Install the Fan-Tray Air Filter in the External Brackets

Install the Fan-Tray Air Filter Beneath the Fan-Tray Assembly

Specifications

Related Documentation

Obtaining Documentation and Submitting a Service Request


Installing the Cisco ONS 15454 Fan-Tray Assembly


Product Number: 15454-FTA2 FAN MODULE

The 15454-FTA2 fan-tray assembly is a removable drawer located at the bottom of the ONS 15454 front compartment that holds fans and fan-control circuitry. The front door of the ONS 15454 can be opened and left in place when removing or installing the fan-tray assembly. After you install the fan-tray assembly, you should only need to access it if a fan failure occurs or you need to replace or clean the fan-tray air filter installed beneath it. For more information on the fan-tray air filter, see the "Fan-Tray Air Filter Installation" section.

If one or more fans fail on the fan-tray assembly, replace the entire assembly. You cannot replace individual fans. The red Fan Fail LED on the front of the fan tray illuminates when one or more fans fail. The red Fan Fail LED clears after you install a working fan tray.

Fan speed is controlled by TCC/TCC+ card temperature sensors. The sensors measure the input air temperature at the fan-tray assembly. Fan speed options are low, medium, and high. If the TCC/TCC+ card fails, the fans automatically shift to high speed. The temperature measured by the TCC/TCC+ sensors is displayed on the LCD screen on the fan-tray assembly.

Fan-Tray Assembly Compatibility

When installing the 15454-FTA2 fan-tray assembly, ensure that you are familiar with the compatibility issues between the 15454-FTA2 and the 15454-SA-NEBS3E and 15454-SA-ANSI shelf assemblies as shown in Table 1. See Table 2 For a list of hardware incompatibility alarms.


Caution The 15454-FTA2 fan-tray assembly can be installed in the 15454-SA-NEBS3E shelf assembly. The 15454-FTA2 can also be installed in the ONS 15454 Release 3.1 shelf assembly 15454-SA-ANSI as long as no XC10G, OC192, or OC48 any slot (AS) cards are installed.


Caution The 15454-FTA2 does not include a pin that prevents it from being installed into a non-compliant shelf assembly. Installing the 15454-FTA2 into a non-compliant shelf assembly can result in failure of the alarm interface panel (AIP) which, in turn, will result in power loss to the fan-tray assembly.

Table 1 Fan-Tray Assembly and Shelf Assembly Compatibility

Fan-Tray Assembly
Compatible Shelf Assembly

15454-FTA2

15454-SA-NEBS3E
15454-SA-ANSI (not compatible if XC10G, OC192, or OC48 any slot (AS) cards are installed)


Note The 10-Gbps compatible shelf assembly (15454-SA-ANSI) and fan-tray assembly (15454-FTA3-T) are required with the ONS 15454 XC10G, OC192, and OC48 any slot (AS) cards.




Note If you need to determine the hardware that is installed on a node; from CTC node view, click the inventory tab.


Table 2 Incompatibility Alarms

Shelf Assembly 1
Fan Tray2
AIP3
10G Cards 4
Ethernet Cards 5
Alarms

No fuse

MEA on AIP

NEBS3E

2A

2A

No

None

NEBS3E

2A

2A

Yes

MEA on 10G

NEBS3E

2A

5A

No

None

NEBS3E

2A

5A

Yes

MEA on 10G

ANSI

2A

2A

No

None

ANSI

2A

2A

Yes

2.5G compatible

MEA on fan tray, AIP, Ethernet

ANSI

2A

2A

Yes

10G compatible

MEA on fan tray, AIP

ANSI

2A

5A

No

Either

None

ANSI

2A

5A

Yes

2.5G compatible

MEA on fan tray, Ethernet

ANSI

2A

5A

Yes

10G compatible

MEA on fan tray

1 15454-SA-ANSI (P/N: 800-19857-01) = ONS 15454 Release 3.1 and later shelf assembly,
15454-SA-NEBS3E (P/N: 800-07149-xx) = shelf assemblies released before ONS 15454 Release 3.1

2 2A Fan Tray = 15454-FTA2 (P/Ns: 800-07145-xx, 800-07385-xx, 800-19591-xx, 800-19590-xx)

3 5A AIP (P/N: 73-7665-01), 2A AIP (P/N: 73-5262-01)

4 10G cards = XC-10G, OC-192, OC-48AS

5 2.5G compatible Ethernet cards = E1000-T, E1000-2, E1000T-G, E10002-G, G1000-4
10G compatible Ethernet cards = E1000T-G, E10002-G, G1000-4


Fan-Tray Assembly Installation

To install or replace the fan-tray assembly, it is not necessary to move any of the cable management facilities. You can remove the fan-tray assembly using the retractable handles and replace it by pushing until it plugs into the receptacle on the back panel.

Install the Fan-Tray Assembly


Caution Do not force a fan-tray assembly into place. Doing so can damage the connectors on the fan tray and/or the connectors on the back panel of the shelf assembly.


Step 1 Open the front door of the shelf assembly. To remove the front door (optional):

a. Detach the ground strap from either the door or the chassis by removing one of the Kepnuts.

b. Place the Kepnut back on the stud after the ground strap is removed to avoid misplacement.

c. Secure the dangling end of the ground strap to the door or chassis with tape.

Step 2 If you are installing the fan-tray air filter beneath the fan-tray assembly, slide the air filter into the shelf assembly. For more information on installing the air filter beneath the fan tray, see the "Install the Fan-Tray Air Filter Beneath the Fan-Tray Assembly" procedure.

If you are installing the fan-tray air filter into the external brackets, you can slide the air filter into the brackets at any time. For more information on installing the air filter and external brackets, see the "Fan-Tray Air Filter Installation" section.

Step 3 Slide the fan-tray assembly into the shelf assembly until the electrical plug at the rear of the tray plugs into the corresponding receptacle on the backplane.

Step 4 To verify that the tray has plugged into the backplane, check that the LCD on the front of the fan tray is activated.

Step 5 If you replace the door, also reattach the ground strap.

Step 6 Close and lock the door.


Remove the Fan-Tray Assembly


Step 1 Open the front door of the shelf assembly. To remove the front door (optional):

a. Detach the ground strap from either the door or the chassis by removing one of the Kepnuts.

b. Place the Kepnut back on the stud after the ground strap is removed to avoid misplacement.

c. Secure the dangling end of the ground strap to the door or chassis with tape.

Step 2 Push the outer side of the handles on the fan-tray assembly to expose the handles.

Step 3 Fold out the retractable handles at the outside edges of the fan-tray assembly.

Step 4 Pull the handles and slide the fan-tray assembly one inch out of the shelf assembly and wait until the fans stop.

Step 5 When the fans have stopped, pull the fan-tray assembly completely out of the shelf assembly. Figure 1 shows the location of the fan-tray assembly.

Figure 1 Installing or removing the fan-tray assembly


Fan-Tray Air Filter Installation

The fan-tray assembly features an air filter that you can install in the external brackets or beneath the fan-tray assembly. Remove and visually inspect this filter every 30 days. Clean or replace the air filter as needed. Refer to Cisco ONS 15454 user documentation for air filter cleaning and replacement procedures. Spare filters should be kept in stock.


Warning Do not put a damp filter back in the ONS 15454.


Install the External Brackets

If you use the external brackets to install the fan-tray air filter, you can install and remove the air filter without first removing the fan-tray assembly. The shelf assembly ships with optional external brackets that can be used to install the air filter below the shelf assembly. Attach the brackets to the bottom of the shelf assembly before performing rack installation.

There are two types of brackets that might ship with your fan-tray assembly. The first type has a left- and right-side bracket and three screw holes in each bracket. The second type ("universal") can be used on either side of the shelf assembly and has two screw holes. If the brackets are already installed, skip to the "Install the Fan-Tray Air Filter in the External Brackets" procedure.


Step 1 With the fan-tray assembly removed, place the ONS 15454 face down on a flat surface.

Step 2 Determine which type of filter bracket you will install.

Step 3 Locate the three screw holes that run along the left and right sides of the bottom of the shelf assembly.

Step 4 If using the universal brackets, secure each bracket to the top and bottom screw holes found on the bottom of the shelf assembly (Figure 2). If using the left and right brackets, secure each bracket to the middle and bottom screw holes on the bottom of the shelf assembly (Figure 3).

Each bracket has a filter stopper and a flange on one end. Make sure to attach the brackets with the stoppers and flanges to the rear of the shelf assembly (the top, if the ONS 15454 is face-down during installation).


Note When using the brackets to install the fan-tray air filter, you can install three shelf assemblies in a standard seven-foot rack. If you are not using the brackets, you can install four shelf assemblies in a rack.

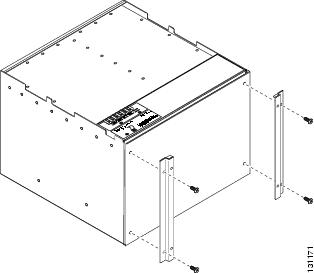

Figure 2 Installing the Universal Fan Filter Brackets

Figure 3 Installing the Left and Right Fan Filter Brackets


Install the Fan-Tray Air Filter in the External Brackets


Step 1 Slide the air filter all the way to the back of the external brackets.

Although the filter will work if installed with either side facing up, Cisco recommends that you install it with the metal bracing facing up to preserve the surface of the filter. Figure 4 illustrates fan-tray air filter replacement when bottom brackets are used to install the filter.

Figure 4 Installing the Fan-Tray Filter in the External Brackets


Install the Fan-Tray Air Filter Beneath the Fan-Tray Assembly


Step 1 Follow the steps in the "Remove the Fan-Tray Assembly" section to remove the fan-tray assembly.

If you are replacing the filter, remove the old filter.

Step 2 Slide the new air filter into the recessed compartment at the bottom of the shelf assembly as shown in Figure 5.


Note You must place the edge of the air filter flush against the front of the fan-tray assembly compartment when installing the fan tray on top of the filter. Failure to do so could result in damage to the filter, the fan tray, or both.


Although the filter will work if installed with either side facing up, Cisco recommends that you install it with the metal bracing facing up to preserve the surface of the filter.

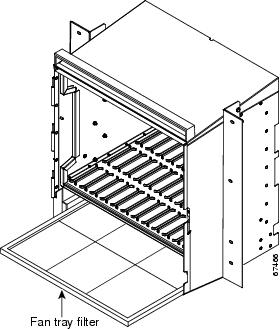

Figure 5 Installing the Fan-Tray Filter in the Shelf Assembly


Specifications

Power

Watts: 53

Amps: 1.1

BTU/hr: 180

Fan Speed

Slow: 2905 RPM

Medium: 3380 RPM

High: 3700 RPM

Shelf Acoustics

Slow fan speed: 55 dBA

Medium fan speed: 58.3 dBA

High fan speed: 60.3 dBA

Temperature Range

I-Temp compliant: -40 to +65 degrees Celsius
