Installing the RJ-45 Bracket and Cable on the Cisco ONS 15454 Rack


This document describes how to install the optional RJ-45 bracket and cable on the Cisco ONS 15454 equipment rack. This kit, included in the ONS 15454 ship kit, allows the rear LAN pins to be terminated using an RJ-45 interface attached to the equipment rack.Use this document in conjunction with the Cisco ONS 15454 Procedure Guide and Cisco ONS 15454 Reference Manual when working with system components.

The RJ-45 ships with accessory kit (53-2329-01), which ships with the following product IDs:

15454-SA-HD=

15454-HD-SHIPKIT=

15454-SA-HD-DDR=

This document contains the following sections:

Install the Bracket and RJ-45 Cable

Related Documentation

Obtaining Documentation and Submitting a Service Request

Install the Bracket and RJ-45 Cable

You will need the following equipment to install the RJ-45 kit:

#2 Phillips screwdriver

12-24 screws (2)

RJ-45 kit (as part of the ONS 15454 accessory kit, 53-2329-01)

RJ-45 bracket with cover

RJ-45 wire-wrap cable assembly


Step 1 Identify the shelf where you want to install the RJ-45 interface.

Step 2 Locate the mounting holes on the rear of the rack where you will install the RJ-45 bracket.

Step 3 Locate the mounting holes on the bracket (Figure 1).

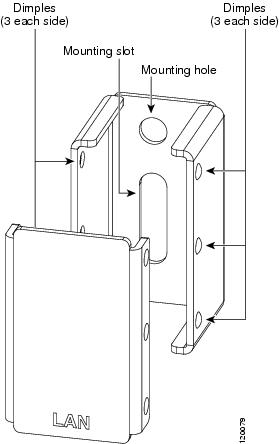

Figure 1 Mounting Holes on the RJ-45 Bracket

Step 4 Line up the mounting holes on the bracket with the mounting holes on the rack, making sure the "TOP" indicator is oriented properly (Figure 2).

Figure 2 RJ-45 Bracket Orientation

Step 5 Using a #2 Phillips screwdriver, install the two screws in the appropriate locations on the mounting hole and mounting slot of the bracket.

Figure 3 and Figure 4 show examples of the RJ-45 kit installed on 19- and 23-inch racks, respectively.

Figure 3 RJ-45 Kit Installed on a 19-Inch Rack

Figure 4 RJ-45 Kit Installed on a 23-Inch Rack

Step 6 On the unterminated free end of the RJ-45 cable assembly, observe the four RJ-45 wires. Wire wrap these wires to the wire-wrap panel in the following order:

Table 1 RJ-45 Pin Installation

RJ-45 Pin
RJ-45 Pin Color
Wire-Wrap Panel LAN Pin

1

White/orange

B2

2

Orange

A2

3

White/green

B1

6

Green

A1


Step 7 Route the RJ-45 connector and cable across the base of the shelf to the bracket securing the cable assembly, according to site specifications.

Step 8 With the RJ-45 connector facing down, insert it into the bracket, making sure the RJ-45 connector latch is facing away from the rack.

Step 9 Snap the cover labeled "LAN" over the bracket, so that the cover snaps over the dimples (Figure 5).

Figure 5 Installing the RJ-45 Bracket Cover


Related Documentation

Cisco ONS 15454 Procedure Guide

Cisco ONS 15454 Reference Manual

Cisco ONS 15454 Troubleshooting Guide
