DWDM



Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration. Cisco does not recommend using its path protection feature in any particular topological network configuration.


This chapter provides general dense wavelength division multiplexing (DWDM) design guidelines and explains the various DWDM node configuration, topologies, optical performances, and features that are available for the ONS 15454. For information explaining installation, turn up, provisioning, and maintenance for Cisco's ONS 15454 DWDM systems, see the Cisco ONS 15454 DWDM Installation and Operations Guide. For an introduction to DWDM, see the DWDM Primer in Appendix C.

The following topics are covered in this chapter:

Design Guidelines

Metro DWDM Design Example

DWDM Card Reference

DWDM Node Configurations

DWDM and TDM Hybrid Node Configurations

DWDM Topologies

Automatic Power Control

Design Guidelines

The ONS 15454 is a flexible platform that can be configured to support passive DWDM applications as a multi-service provisioning platform (MSPP) or provide DWDM aggregation and wavelength services as a multi-service transport platform (MSTP). Software Releases 4.6 and 5.0 fully integrate the passive DWDM MSPP and intelligent DWDM MSTP functions into one ONS 15454 system platform.

MSPP DWDM Applications

The multi-wavelength capabilities of the ONS 15454 MSPP allow it to easily interface with the WDM filters. Since these systems are transparent to the ONS 15454, you can support linear, mesh, and ring network architectures. For passive DWDM applications, use the OC48 and OC192 ITU-T optical cards described in this chapter.

MSTP Applications

With Software Release 4.5 and higher, the ONS 15454 MSTP supports a wide range of wavelength services and DWDM channel aggregation using the ONS 15454 DWDM cards below.

Optical service channel cards provide bidirectional channels that connect all the ONS 15454 DWDM nodes and transport general-purpose information without affecting the client traffic. ONS 15454 optical service channel cards include the Optical Service Channel Module (OSCM) and the Optical Service Channel and Combiner/Separator Module (OSC-CSM).

Optical amplifier cards are used in amplified DWDM nodes, including hub nodes, amplified OADM nodes, and line amplified nodes. Optical amplifier cards include the Optical Preamplifier (OPT-PRE) and Optical Booster (OPT-BST) amplifier.

Dispersion compensation units are installed in the ONS 15454 dispersion compensation shelf when optical preamplifier cards are installed in the DWDM node. Each DCU module can compensate a maximum of 65 km of single-mode fiber (SMF-28) span. DCUs can be cascaded to extend the compensation to 130 km.

Multiplexer and demultiplexer cards multiplex and demultiplex DWDM optical channels. ONS 15454 multiplexer and demultiplexer cards include the 32-Channel Multiplexer (32MUX-O), the 32-Channel Demultiplexers (32DMX-O and 32DMX), and the 4-Channel multiplexer/Demultiplexer (4MD-xx.x).

Optical Add/Drop Multiplexer (OADM) cards are mainly divided into three groups: band OADM, channel OADM, and wavelength selective switch (WSS) cards. Band OADM cards add and drop one or four bands of adjacent channels; they include the 4-Band OADM (AD-4B-xx.x) and the 1-Band OADM (AD-1B-xx.x). Channel OADM cards add and drop one, two, or four adjacent channels; they include the 4-Channel OADM (AD-4C-xx.x), the 2-Channel OADM (AD-2C-xx.x) and the 1-Channel OADM (AD-1C-xx.x). Available in Release 5.0 and higher, the 32-Channel Wavelength Selective Switch (32WSS) card performs channel add/drop processing within the ONS 15454 DWDM node. The 32WSS works in conjunction with the 32DMX to implement reconfigurable optical add/drop (ROADM) functionality. Equipped with ROADM functionality, the ONS 15454 DWDM can be configured to add or drop individual optical channels using CTC, Cisco MetroPlanner, and CTM.

Transponder and muxponder cards process multirate client signals into either 2.5 Gb/s or 10 Gb/s signals for transport into the core network. ONS 15454 transponder and muxponder cards include the following:

The 10 Gb/s Transponder-100 GHz-Tunable xx.xx-xx.xx card (TXP_MR_10G), which processes one 10 Gb/s signal (client side) into one 10 Gb/s, 100 GHz DWDM signal (trunk side).

The 10 Gb/s Transponder-100 GHz-Tunable xx.xx-xx.xx (TXP_MR_10E) card, which is a multirate transponder for the ONS 15454 platform.

The 2.5 Gb/s Multirate Transponder-100 GHz-Tunable xx.xx-xx.xx (TXP_MR_2.5G and TXP_MRP_2.5G) card, which processes one 8 Mb/s to 2.488 Gb/s signal (client side) into one 8 Mb/s to 2.5 Gb/s, 100 GHz DWDM signal (trunk side). The P version indicates the option Protection.

The 2.5 Gb/s-10 Gb/s Muxponder-100 GHz-Tunable xx.xx-xx.xx (MXP_2.5G_10G) card, which multiplexes/demultiplexes four 2.5 Gb/s signals (client side) into one 10 Gb/s, 100 GHz DWDM signal (trunk side).

The 2.5 Gb/s-10 Gb/s Muxponder-100 GHz-Tunable xx.xx-xx.xx (MXP_2.5G_10E) card provides wavelength transmission service for the four incoming 2.5 Gb/s client interfaces.

The 2.5 Gb/s Multirate Muxponder-100 GHz-Tunable 15xx.xx-15yy.yy (MXP_MR_2.5G) card aggregates a mix and match of client Storage Area Network (SAN) service client inputs (GE, FICON, and Fibre Channel) into one 2.5 Gb/s OC-48 DWDM signal on the trunk side.

The 2.5 Gb/s Multirate Muxponder-Protected-100 GHz-Tunable 15xx.xx-15yy.yy (MXPP_MR_2.5G) card aggregates various client SAN service client inputs (GE, FICON, and Fibre Channel) into one 2.5 Gb/s OC-48 DWDM signal on the trunk side.

Available Channels/Wavelength Frequencies

For DWDM system interoperability, the operating center frequency (wavelength) of channels must be the same at the transmitting and at the receiving end. Channel selection (center frequency) and channel width determines the number of non-overlapping channels in the spectrum. Channel width, wavelength, bit rate, type of fiber, and fiber length determine the amount of dispersion. Channel separation should allow for a frequency deviation (~2 GHz) caused by frequency drifts in the laser, filter, and amplifier devices to avoid interchannel interference.

The ITU-T currently recommends 81 channels in the C-band starting from 1528.77 nm, and incrementing in multiples of 50 GHz, to 1560.61 nm. The Cisco ONS 15454 supports this range of wavelengths in increments of 100 GHZ and 200 GHz with its OC48 ITU-T optics, and starting with System Release 4.0, the ONS 15454 supports this range in increments of 100 GHz with its OC192 ITU-T optics. Table 4-1 lists the ITU-T channels available for the ONS 15454.

Table 4-1 SDH to SONET Circuit Type Mapping for Au4 SDH

Product
C Band Spectrum

15454 OC48 ELR 100 GHz ITU-T Cards

X



X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Channel (nm)

1528.77

1529.55

1530.33

1531.12

1531.90

1532.68

1533.47

1534.28

1535.04

1535.82

1536.61

1538.19

1538.98

1539.77

1540.56

1541.35

1542.14

1542.94

1543.73

Frequency (THz)

196.1

196.0

195.9

195.8

195.7

195.6

195.5

195.4

195.3

195.2

195.1

194.9

194.8

194.7

194.6

194.5

194.4

194.3

194.2


Product
C Band Spectrum

15454 OC48 ELR 100 GHz ITU-T Cards

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Channel (nm)

1544.53

1546.12

1546.92

1547.72

1548.51

1549.32

1550.12

1550.92

1551.72

1552.52

1554.13

1554.94

1555.75

1556.55

1557.36

1558.17

1558.98

1559.79

1560.61

Frequency (THz)

194.1

193.9

193.8

193.7

193.6

193.5

193.4

193.3

193.2

193.1

192.9

192.8

192.7

192.6

192.5

192.4

192.3

192.2

192.1


Product
C Band Spectrum

15454 OC192 LR 100 GHz ITU-T Cards1



X

X

X

X



Channel (nm)

1530.33

1531.12

1531.90

1532.68

1534.25

1535.04

1535.82

1536.61

1538.19

1538.98

1539.77

1540.56

1542.14

1542.94

1543.73

1544.53

Frequency (THz)

195.9

195.8

195.7

195.6

195.4

195.3

192.2

192.1

194.9

194.8

194.7

194.6

194.4

194.3

194.2

194.1

1 These wavelengths are shorter lead-time cards and are recommended for deployment.


Product
C Band Spectrum

15454 OC192 LR 100 GHz ITU-T Cards



X

X

X

X



Channel (nm)

1546.12

1546.92

1547.72

1548.51

1550.12

1550.92

1551.72

1552.52

1554.13

1554.94

1555.75

1556.55

1558.17

1558.98

1559.79

1560.61

Frequency (THz)

193.9

193.8

193.7

193.6

193.4

193.3

193.2

193.1

192.9

192.8

192.7

192.6

192.4

192.3

192.2

192.1


The ONS 15454 OC48 ITU-T cards provide you with 37 separate ITU-T channels to choose from. These wavelengths conform to ITU-T 100 GHz and 200 GHz channel spacing, enabling compatibility with most DWDM systems. Integrating the ONS 15454 OC48 ITU-T cards with third party DWDM products enables you to design a low-cost, scalable DWDM system with full add/drop capabilities.

System Release 4.0 and higher offers 8 OC192 ITU-T cards. Each card provides a long reach SONET compliant 9.95328 Gbps high-speed interface operating at a 100GHz spaced, ITU-T compliant wavelength within the 1530 to 1562nm frequency band. The primary application for the OC192 ITU-T card is for use in ultra high-speed Metro inter-office facility (IOF) solutions interconnecting central offices and collocation sites over a DWDM based transport network.

Adding Channels/Wavelengths

Channels/wavelengths can be added or deleted between ONS 15454 MSTP nodes via the CTC circuit creation wizard. Simply select OHCNC (optical channel connection) from the Circuit Type list, choose the wavelength you want to provision, and define the circuit attributes like you would for any CTC circuit. Refer to the Cisco ONS 15454 DWDM Installation and Operation Guide for step-by-step procedures.

You can ensure a smooth upgrade path from a single channel to the maximum number of channels with a minimum disruption of service if the per-channel power of the single channel is properly set from the start. Set the per-channel power so that at full channel loading the total input power is less than -6 dBm (0.25 mW).

For example, if the maximum number of channels at full loading is 18, then you can calculate the power per channel by dividing 0.25 mW by 18, which equals 0.0138 mW. This number (0.0138 mW) in logarithmic scale is -18.6 dBm.

Use Table 4-2 to calculate per-channel power as a function of the maximum total number of channels at full loading.

Table 4-2 Maximum Power Per Channel

Full Loading—Number of Channels
Maximum per Channel
Power (mW)
Maximum per Channel
Power (dBm)

1

0.2500

-6.0

2

0.1250

-9.0

3

0.0833

-10.8

4

0.0625

-12.0

5

0.0500

-13.0

6

0.0416

-13.8

7

0.0357

-14.5

8

0.0312

-15.1

9

0.0277

-15.6

10

0.0250

-16.0

11

0.0227

-16.4

12

0.0208

-16.8

13

0.0192

-17.2

14

0.0178

-17.5

15

0.0166

-17.8

16

0.0156

-18.1

17

0.0147

-18.3

18

0.0138

-18.6

19

0.0131

-18.8

20

0.0125

-19.0

21

0.0119

-19.3

22

0.0113

-19.5

23

0.0108

-19.7

24

0.0104

-19.8

25

0.0100

-20.0

26

0.0096

-20.2

27

0.0092

-20.4

28

0.0089

-20.5

29

0.0086

-20.7

30

0.0083

-20.8

31

0.0080

-21.0

32

0.0078

-21.1

33

0.0075

-21.2

34

0.0073

-21.4

35

0.0071

-21.5

36

0.0069

-21.6

37

0.0067

-21.7

38

0.0065

-21.8

39

0.0064

-22.0

40

0.0062

-22.1


Channel Bit Rate and Modulation

The bit rate of a channel and the modulation technique are parameters that determine the limits of channel width and channel separation, as well as channel performance (i.e. BER, Cross-talk, etc.). Dispersion and noise need to be considered, because they affect the signal to noise ratio (SNR), which influences signal integrity. The bit rate and modulation for the ONS OC48 and OC192 ITU-T cards is listed in Table 4-3.

Table 4-3 OC48 and OC192 ITU-T Bit Rate and Modulation

Parameter
OC48 100 GHz
OC48 200 GHz
OC192 100 GHz

Bit Rate

2488.320 Mb/s

2488.320 Mb/s

9.95328 Gb/s

Transmitter (Modulation)

Electro-absorption laser (Externally Modulated)

Electro-absorption laser (Externally Modulated)

Cooled and Wavelocked CW Laser (Externally Modulated)


Wavelength Management

In a DWDM system, if an optical component fails, it will affect one or more wavelengths. Therefore, protection wavelengths or Y-cable protection modules should be allocated to replace the faulty ones.

Besides hard faults, there may be wavelengths that perform below acceptable levels (i.e. BER < 10-9). Therefore you should monitor all wavelengths, including the spares. Table 4-4 lists the minimum receiver level and optical signal-to-noise ratio (OSNR) for the ONS 15454 OC48 and OC192 ITU-T cards.

Table 4-4 OC48 and OC192 ITU-T Receiver Level and OSNR

Parameter
OC48 100 GHz
OC48 200 GHz
OC192 100 GHz

Minimum Receiver Level

-27 dBm with BER of 10-12

-27 dBm with BER of 10-12

-22 dBm with BER of

10-12

OSNR

21 dB

21 dB

20 dB


Multi-Channel Frequency Stabilization

In DWDM systems with optical filters, filter detuning or frequency offset takes place, which increases insertion loss. You can use the Variable Optical Attenuation (VOA) feature included in Cisco's DWDM products or purchase third-party external attenuators to correct or compensate for detuning.

Channel Performance

The DWDM design must be within the BER requirements of the receiver's sensitivity to insure signal integrity is maintained. The BER depends on the interchannel interference, optical power level at the receiver with respect to the sensitivity of the receiver, modulation technique, and other noise sources such as externally couple noise and jitter. Table 4-5 lists the BER for the ONS 15454 OC48 and OC192 ITU-T cards.

Table 4-5 OC48 and OC192 ITU-T BER

Parameter
OC48 100 GHz
OC48 200 GHz
OC192 100 GHz

BER

10-12

10-12

10-12


Channel Dispersion

In a DWDM system, as wavelengths travel through fibers and various optical components (filters, amplifiers, etc.), dispersion or optical pulse widening occurs. Moreover, connectors and splices insert further loss and dispersion as light travels from one fiber to another. As dispersion increases, so does cross-talk and received power, which influence signal integrity and receiver sensitivity. Therefore, it is necessary to calculate the total dispersion of each channel to ensure your DWDM design is within the acceptable receiver sensitivity range of the DWDM system. Table 4-6 lists the dispersion parameters for the ONS 15454 OC48 and OC192 ITU-T cards.

Table 4-6 ONS 15454 OC48 and OC192 ITU-T Dispersion Parameters

Parameter
OC48 100 GHz
OC48 200 GHz
OC192 100 GHz

Dispersion Tolerance

5400 ps/nm

3600 ps/nm

1200 ps/nm

Optical Path Penalty

2 dB

1 dB

2 dB


You can install dispersion compensation units (DCUs) in the ONS 15454 dispersion compensation shelf when optical preamplifier cards are installed in the DWDM node. Each DCU module can compensate a maximum of 65 km of single-mode fiber (SMF-28) span. DCUs can be cascaded to extend the compensation to 130 km. Figure 4-1 shows a Hub node configuration with DCU cards installed.

Figure 4-1 Hub Node Configuration with DCU Cards Installed

Power Launched

In a DWDM system, the maximum allowable power per channel launched in the fiber (transmitted power), is the starting point of power calculations to assure that the optical signal at the receiver has enough power to be detected without errors or within a BER objective (e.g. <10-11). The maximum allowable power per channel cannot be arbitrary, because the nonlinear effects increase as coupled power increases. Table 4-7 lists the maximum transmitter output per channel for the ONS 15454 OC48 and OC192 ITU-T cards, with a BER of 10-12.

Table 4-7 ONS 15454 OC48 and OC192 ITU-T Maximum Power Launched Per Channel

Parameter
OC48 100 GHz
OC48 200 GHz
OC192 100 GHz

Maximum Transmitter

Output per Channel

0 dBm with BER 10-12

0 dBm with BER 10-12

0 dBm with BER 10-12


Optical Amplification

Optical signal losses should be carefully budgeted and EDFAs should be used to boost the power of the optical signal if needed. You should attempt to space your EDFAs at equal distances apart, if possible, to assure the DWDM system is properly balanced. The ONS 15454 MSTP supports two optical EDFA amplifier cards: Preamplifier (OPT-PRE) and Optical Booster (OPT-BST). These cards are used in amplified DWDM nodes, including hub nodes, amplified OADM nodes, and line amplified nodes. If a DCU is not installed, a 5 dB attenuator loop must be installed between the OPT-PRE DC ports. Figure 4-2 shows a Hub node configuration with OPT-PRE and OPT-BST amplifier cards installed.

Figure 4-2 Hub Node Configuration with Amplifier Cards Installed

Figure 4-3 shows an example of how to cable a Hub node configured with DCU and amplifier cards.

Figure 4-3 Hub Node Wiring Example

1. West DCU TX to west OPT-PRE DC RX 1
2. West DCU RX to west OPT-PRE DC TX 1
3. West OPT-BST COM TX to west OPTPRE COM RX
4. West OPT-BST COM RX to west 32MUXO COM TX
5. West OPT-PRE COM TX to west 32DMXO COM RX
6. East 32DMX-O COM RX to east OPTPRE COM TX
7. East 32MUX-O COM TX to east OPTBSTCOM RX
8. East OPT-PRE COM RX to east OPTBST COM TX
9. East DCU TX to east OPT-PRE DC RX 1
10. East DCU RX to east OPT-PRE DC TX 1

The OC48 ITU-T cards have a single channel span budget of 25 dB. If the span loss is greater than 25 dB, amplification may be used to extend the optical reach of the cards. The OC192 ITU-T cards have a single channel span budget of 23 dB. If the span loss is greater than 30 dB, amplification may be used to extend the optical reach of the cards. Table 4-8 specifies the range of attenuation per span using EDFAs.

Table 4-8 Span Attenuation with EDFAs

No. of Spans
No. of EDFAs in the Path
Worst Attenuation per Span (dB)

1

1 (1 post amp)

22 - 25

1

2 (1 post, 1 pre amp)

33 - 36

2

3 (1 post, 1 pre, 1 line amp)

25 - 28

3

4 (1 post, 1 pre, 2 line

23 - 26

4

5 (1 post, 1 pre, 3 line amps)

21 - 26


Fiber Types

Various factors, such as amplifier bandwidth and amplifier spontaneous emission (ASE) limit optical transmission. In addition to linear effects, such as fiber attenuation, chromatic dispersion, and polarization mode dispersion (PMD), there are nonlinear effects related to the refractive index and scattering that degrades system performance.

The contribution of the nonlinear effects to transmission is defined as the optical power density (power/effective area) times the length of the fiber. The effective area is defined as the cross-section of the light path in a fiber. Depending on the type of fiber, the effective area varies between 50 and 72 mm2, the lowest corresponding to dispersion-shifted fiber (DSF) and the highest to single-mode fiber (SMF). The higher the optical power density and the longer the fiber, the more the nonlinear contribution.

For a fixed length of fiber, the only variable that can be manipulated to lower the nonlinear contribution is optical power. However, if the optical power is lowered, the bit rate should be lowered to maintain transmission at the expected BER. Table 4-9 specifies the attenuation and chromatic dispersion for some of the types of optical fibers that have been tested with the ONS 15454 using OC 48 ELR ITU-T cards.

Table 4-9 Fiber Span Attenuation and Chromatic Dispersion

Type of Optical Fiber
Manufacturer
Attenuation @ 1550 nm (dB/km)
Chromatic Dispersion (ps/(nm* km))
PMD (ps/km 1/2)

SMF-28

Corning

0.30

17.0 - 18.0

0.1 - 0.2

LEAF

Corning

0.25

2.0 - 6.0 (1530 nm - 1565 nm)

0.04 - 0.1

Metrocore

Corning

0.25

-10.0 (1530 nm - 1605 nm)

0.1 - 0.2

Allwave

Lucent Technologies

0.25

Unspecified

0 - 0.1

TrueWave RS

Lucent Technologies

0.25

2.6 - 6.0 (1530 nm - 1605 nm)

0 - 0.1


Optical Power Budget

The optical power budget amounts to calculating all signal losses at every component in the optical path (couplers, filters, cross-connects, connectors, splices, multiplex/demultiplex, fiber, optical patch panels, etc.) between the transmitter and receiver. The main objective is to assure that the power of the optical signal at the receiver is greater than the sensitivity of the receiver.

Power gain and loss (in dB) is additive. Start with the power of the optical signal to be launched into the fiber, expressed a 0 dB. Then, for each loss item, the dB loss is subtracted from it, and for optical amplifiers, the gain is added to it. The remaining is compared with the receiver sensitivity. Typically a net power margin of 3 dB or more is desirable. The power budget formula is as follows:

(Margin) = (Transmitter output power) - (Receiver sensitivity) - (S losses dB)

Table 4-10 specifies the optical power of the composite signal with respect to the number of individual channels being multiplexed and demultiplexed by typical passive DWDM filters.

Table 4-10 Composite Power

Number of channels
Composite Power
Number of channels
Composite Power

1

0 dB

10

+10 dB

2

+3.0 dB

11

+10.4 dB

3

+4.8 dB

12

+10.8 dB

4

+6.0 dB

13

+11.1 dB

5

+7.0 dB

14

+11.5 dB

6

+7.8 dB

15

+11.8 dB

7

+8.5 dB

16

+12.0 dB

8

+9.0 dB

17

+12.3 dB

9

+9.5 dB

18

+12.6 dB


Table 4-10 adopts the standard practice that each channel has the same optical power. It does not take into account insertion loss, however, which must be applied to the table's values. You can typically add 0.3 dB of insertion loss per connector and 0.1 dB of loss per splice. Cisco recommends that you allow a 3 dB optical power design margin and equalize the individual optical signals forming a composite signal.

Metro DWDM Design Example

Typically, a DWDM network design will fall in one of the following categories:

Fixed Distance—Where network locations are already established.

Variable Distance—where the designer chooses the network locations.

The following example provides a manual step-by-step approach to designing a Fixed Distance Metro DWDM network using ONS 15454 OC48 200 GHz ITU-T cards and Cisco's 200 GHz passive DWDM products. You can substitute the Cisco's DWDM products and specifications with third party passive DWDM equipment without affecting the steps listed below. For ONS 15454 MSTP Metro Core applications, Cisco recommends designing the DWDM network with MetroPlanner, Release 2.5 or higher. Cisco MetroPlanner prepares a shelf plan for each network node, and calculates the power and attenuation levels for the DWDM cards installed in the node. Cisco MetroPlanner exports the calculated parameters to an ASCII file called "NE Update." In CTC, you can import the NE Update file to automatically provision the node.


Caution Network ring designs including amplifiers must include at least one Multiplex/Demultiplex site. Network rings containing only Optical Add/Drop Multiplexers (OADMs) are not recommended due to the risk of receiver saturation caused by auto-amplification of propagated noise, which may cause the network to collapse.


Caution Extreme care must be taken when meshed channels are patched through a Multiplex/Demultiplex. If the OADMs belonging to the channel that is patched through the multiplex/demultiplex are removed, the patch can propagate noise, which is auto-amplified. This may cause the network to collapse. Same care must be taken when patches through a multiplex/demultiplex site are inserted so that they address the correct wavelengths.


Note Additional loss is introduced to a channel when it passes through multiple Mux/Demultiplex filters due to effects of cascaded filters.


Step 1: Physical Parameters

Using Figure 4-4 as a reference, identify the general characteristics of the network, which includes the following:

Topology

Fiber type and characteristics

Site types (Hub, pass through, add/drop)

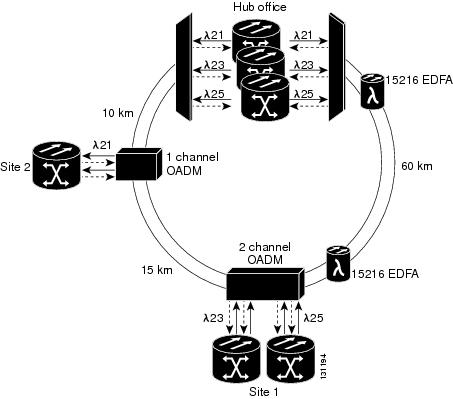

Figure 4-4 DWDM Reference Network

The network is configured in a ring topology. For this example, assume the fiber type is SMF-28 and only 2 fibers are available. There are 3 sites, a Hub and two OADM locations. Network Planning has determined a need for three OC-48 channels, with 1+1 protection, between these locations. All three channels will terminate at the Hub Office. Two channels will be dropped and inserted at Site 1 and one channel will be dropped and inserted at Site 2. Network traffic is forecasted to grow at 3% annually over the next five years.

Complete a table for each working (clockwise) and protect (counter-clockwise) span, such as Table 4-11. Span loss is calculated as follows:

Span loss = fiber length x fiber attenuation

Table 4-11 Working and Protect Span Details

Span
Length
Loss

Hub Office - Site 1

60 km

18 dB

Site 1 - Site 2

15 km

4.5 dB

Site 2 - Hub Office

10 km

3 dB

Hub Office - Site 2

10 km

3 dB

Site 2 - Site 1

15 km

4.5 dB

Site 1 - Hub Office

60 km

18 dB


Identify the dispersion characteristics of the optical fiber being used and calculate the maximum fiber path length that would be used without regeneration with the following formula:

Maximum fiber path length = [chromatic dispersion allowance (ps/nm)] / [fiber dispersion (ps/nm/km)]

The chromatic dispersion allowance depends on the characteristics of the source. The fiber dispersion depends on the fiber type, i.e. SMF-28, LEAF, TrueWave, etc. The dispersion for SMF-28 is 18 ps/nm/km and the chromatic dispersion allowance for the ONS 15454 OC48 200 GHz ITU-T optics is 3600 ps/nm. The maximum fiber path length without regeneration for this example is 200 km (3600 ps/nm / 18 ps/nm/km).

Step 2: Channel Plan

Identify the number channels required for the design and select the appropriate ITU-T wavelengths, DWDM filters, and OADMs. Channels are added or dropped at a node in clockwise or counter-clockwise direction, or they are passed directly through the node.


Tip If there are four or fewer add/drop channels in either direction at a site, then the site should use 1- and/or 2-Channel OADMs. If there are five or more add/drop channels at a site, multi-channel DWDM filters should be used.


Channel 21 (1560.61 nm) will be mapped to a 1-Channel OADM unit and Channel 23 (1558.98 nm) and Channel 25 (1557.36 nm) will be mapped to a 2-Channel OADM unit. Channels 23 and 25 are being dropped at Site 1 and Channel 21 is being dropped at Site 2. Multi-channel passive DWDM filters will be used at the Hub Office.

After identifying which channels to use, create a channel plan like the one shown in Table 4-12.

Table 4-12 Channel Plan

Hub Office
Site 1
Site 2

21



21

23

23



25

25



For this example, multiplexing 3 channels at 0 dBm yields a 0.3 dBm composite signal (0 dBm + 4.8 dB - 4.5 dB). Demultiplexing an -8 dBm composite signal into 3 channels gives -17.3 dBm of optical power for each channel (-8.0 dBm - 4.8 dB - 4.5 dB). Table 4-13 shows what happens to single channel power as channels are demultiplexed.

Table 4-13 Demultiplexed Signal Power

No. of Channels ( lambda )
Total Power (P)

1 lambda, P lambda= 0 dBm

Ptot= 0 dBm

2 lambda, P lambda= 0 dBm

Ptot= -3 dBm

4 lambda, P lambda= 0 dBm

Ptot= -6 dBm

8 lambda, P lambda= 0 dBm

Ptot= -9 dBm

16 lambda, P lambda= 0 dBm

Ptot= -12 dBm

32 lambda, P lambda= 0 dBm

Ptot= -15 dBm


In this example, a composite signal composed of 3 individual optical signals goes through a 1-channel OADM operating at 1560.61 nm. If the power of the composite signal is 0.3 dBm, the power of the 1560.61 nm dropped optical signal is -4.3 dBm (0.3 dBm - 4.8 dB - 2.5 dB). On the other hand, the added 1560.61 nm optical signal has to be manually attenuated by 2.3 dB if coming from a 0 dBm transmitter. With the effect of the add insertion loss, this provides a -6.3 dBm added optical signal which equates for the composite signal going through the throughput path (0.3 dBm - 4.8 dB - 1.8 dB).

Step 3: Regeneration Verification

For each path, the fiber length should be compared to the maximum length calculated in Step 1 to determine whether a regeneration site is needed. If regeneration is needed, the two resulting spans (to and from the regeneration site) should be treated independently. None of the paths exceed the 200 km maximum length calculated in Step 1. Therefore, no regeneration site is required for this example.

Step 4: Channel/Wavelength Selection

The data from the Table 4-12 in Step 2 is used to select the OC48 200 GHz ITU-T cards. For this example, wavelengths 1560.61 nm, 1558.98 nm, and 1557.36 nm were selected. For 1+1 protection, six OC48 200 GHz ITU-T optics cards are required for the Hub Office, four are required for Site 1, and two are required at Site 2.

Step 5: Calculate Path Loss

Calculate the total working path and total protect path losses, based on the type of DWDM filter or OADM used. The formula for total path loss is as follows:

Total Path Loss = (Fiber Loss) + (# of DWDM filters x 4.5 dB) + (# of 1-channel OADMs x 1.8 dB) + (# of 2-channel OADMs x 2.0 dB)

Fiber Loss = Fiber Attenuation x Span Length

The total path loss for each clockwise and counter clockwise span is shown in Table 4-14.

Table 4-14 Total Path Loss

Path
Fiber Loss
DWDM Filter Loss
OADM-1 Loss
OADM-2 Loss
Total Path Loss

Hub Office - Output of Site 1

18 dB

4.5 dB

22.5 dB

Output of Site 1 - Output of Site 2

4.5 dB

1.8 dB

6.3 dB

Output of Site 2 - Hub Office

3.0 dB

4.5 dB

2.0 dB

9.5 dB

Hub Office - Output of Site 2

3.0 dB

4.5 dB

2.0 dB

9.5 dB

Output of Site 2 - Output of Site 1

4.5 dB



1.8 dB



6.3 dB

Output of Site 1 - Hub Office

18 dB

4.5 dB



22.5 dB


Step 6: Amplification

If the total path loss exceeds 22 dB in any channel path, an amplification solution is required. Amplifiers work with total power where Pin + Pgain = Pout. For multi-wavelengths, total power is summed as Pin=. In choosing which location to place the EDFAs, identify a reference node. This should be the source node of the channel, because that should have the lowest power level. For this design, the Hub Office is the reference node.

Work from the reference node in one direction, place the first EDFA at the position where there is a loss of 19 dB or the measured power level is -19 dBm per channel. If the -19 dB point is at a midspan position, check the power level at the input of the next node. If this power level is above -22 dBm, the EDFA can be positioned at the next node. Otherwise it should be placed at the preceding node with an attenuator at the input to avoid exceeding the amplifier maximum input power. The attenuator should bring the EDFA input power to -19 dBm. For OADM nodes, it is preferable to place the EDFA after the node instead of before it, because this will make it easier to carry out the channel power equalization for the added channels on that node. If the EDFA is placed before an OADM node, check that the added power can be adjusted to the power level of the pass-through channel.

Because the total loss for the Hub Office to Site 1 working path and Site 1 to Hub Office protect path exceed 22 dB, each of those spans will require an EDFA.

After placing the first EDFA, recalculate the power levels and place the second EDFA where the power level reaches -19 dBm again. To avoid an unexpected OSNR level, place subsequent EDFAs as close as possible to the -19 dBm power level. If the EDFA power is above -19 dBm, it should be attenuated to -19 dBm. Repeat this process for all remaining amplifiers and then repeat this process in the reverse direction.

The gain and OSNR guidelines for the EDFA used in this example are shown in Table 4-15.

Table 4-15 EDFA Gain and OSNR

Pin
Pout
SNR @ 0.1 nm
FhB/Pin

-40

-17

9

9.600-02

-39

-16

10

7.626-02

-38

-15

11

6.057-02

-37

-14

12

4.811-02

-36

-13

13

3.822-02

-35

-12

14

3.036-02

-34

-11

15

2.411-02

-33

-10

16

1.915-02

-32

-9

17

1.521-02

-31

-8

18

1.209-02

-30

-7

19

9.600-03

-29

-6

20

7.626-03

-28

-5

21

6.057-03

-27

-4

22

4.811-03

-26

-3

23

3.822-03

-25

-2

24

3.036-03

-24

-1

25

2.411-03

-23

0

26

1.915-03

-22

1

27

1.521-03

-21

2

28

1.209-03

-20

3

29

9.600-04

-19

4

30

7.626-04

-18

5

31

6.057-04

-17

6

32

4.811-04

-16

7

33

3.822-04

-15

8

34

3.036-04

-14

9

35

2.411-04

-13

10

36

1.915-04

-12

11

37

1.521-04

-11

12

38

1.209-04

-10

13

39

9.600-05

-9

14

40

7.626-05

-8

15

41

6.057-05

-7

16

42

4.811-05

-6

17

43

3.822-05


For a single optical amplifier between transmitter and receiver, use the value from Table 4-15. For multi-stage optical amplifiers use the following formula:

SNRout = 1/(1/SNRin + FhfB/Pin) where:

SNRout is the OSNR at the output power

SNRin is the OSNR of the previous amplifier

F is the noise figure (ratio)

h is Planck's constant

f is the light frequency

B is the BW measuring the noise figure

Pin is the input power to the amplifier

Pout is the output power from the amplifier

Step 7: Attenuation

After placing all of the EDFAs, the channel powers around the network should be calculated again based on a 0dBm input signal and for all add/drop nodes the power levels of the dropped signal and added signal should be calculated. The dropped power level is:

Pdropped = Node input power - dropped channel insertion loss

For example, if the power level into an 1-channel OADM is -13 dBm and the dropped channel insertion loss is 2.1 dB, then the dropped channel power will be -15.1 dBm (-13 dBm - 2.1 dB).

If the calculated dropped power is above -15 dBm an appropriate attenuator should be used for those dropped channels to adjust the power level to the -15 dBm level and avoid the overload risk on the receiver for those channels. The added power level is:

Padded = Node output power + add channel insertion loss

For example, if the power level out of a 1-Channel OADM is -13 dBm and the added channel insertion loss is 3.2 dB then the added channel's power level to the add point should be -9.8 dBm (-13 dBm + 3.2 dB).

To achieve these add channel power levels, use a VOA (if available) or external attenuators for the OADMs and DWDM filters.

Step 8: Final Design Verification

The final verification of the network is carried out by propagating 9 dBm power from the reference node (Hub Office) and checking whether the power returned back to the same point is 0 dBm as well. Take the following points into consideration when making this verification:

If the reference node does not have pass-through traffic, the received power level should be between -8 dBm and -22 dBm. If the received power level is above -8 dBm, it has to be attenuated to avoid receiver overload. If the power level is below -22 dBm, the design must be revised to reposition the EDFAs or add more EDFAs.

If the reference node does have pass-through traffic, the received power level should be between 0 dBm and -1 dBm. If the received power level is above 0 dBm, it must be attenuated to 0 dBm. If the power level is below -1 dBm, the design must be revised to reposition the EDFAs or add more EDFAs.

It is highly recommended to keep the total gain in the network below the total insertion loss for ring and linear topologies to avoid receiver overdrive and oscillation. The total insertion loss includes accumulated loss for fiber, connectors, filters, and attenuators.

The per channel calculations for the design example are shown below.

Fiber Characteristics:

Attenuation: 0.3 db/km

Dispersion: 18 ps/nm*km

Multiplex/Demultiplex Characteristics:

Channel Spacing: 200 GHz

Mux Insertion Loss: 4.5 dB

Demux Insertion Loss: 4.5 dB

2-Channel OADM Characteristics:

Channel Spacing: 200 GHz

Thru loss: 2 dB

Drop loss: 2.6 dB

Add loss: 4.0 dB

1-Channel OADM Characteristics:

Channel Spacing: 200 GHz

Thru loss: 1.8 dB

Drop loss: 2.1 dB

Add loss: 3.2 dB

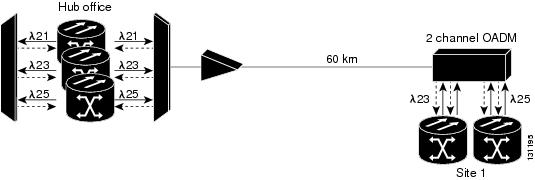

From the Hub Office to Site 1 (see Figure 4-5) the following calculations apply:

Figure 4-5 Hub Office to Site 1

-2.0 dBm ELR Output

+4.5 dB Mux insertion loss

+4.8 dB Conversion to Composite power

-1.7 dBm Composite power into the EDFA

-4.3 dB VOA added to meet the minimum EDFA input specification

-6.0 dbm Composite power into the EDFA

+23 dB Gain from the EDFA2

+17.0 dBm Composite power out of the EDFA

-18.0 dB For 60 km of span loss

-2.6 dBm Drop loss for the 2-Channel OADM

-4.8 dB Conversion to Channel power

-8.4 dB at the OC48 ITU-T receiver at Site 1

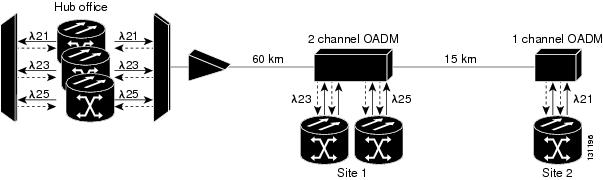

The per channel calculations from the Hub Office to Site 2 (see Figure 4-6) are as follows:

Figure 4-6 Hub Office to Site 2

For the pass-through channel power @ site 1: (-5.8 - 2) = -7.8 dBm

-7.8 dBm out of 2-Channel OADM

-4.5 dB For 15 km of span loss

-2.1 dB Drop loss for the 1-Channel OADM

-14.4 dBm at the OC4 ITU-T receiver of Site 2

The passthrough channel power at Site 2: (-12.3 - 1.8) = -13.1 dBm

The per channel calculations from Hub Office to Hub Office (see Figure 4-7) are as follows:

Figure 4-7 Hub Office to Hub Office

-13.1 dBm out of OADM-1

-4.5 dB For 15 km of span loss

-4.5 dB Drop loss for the Demux

-22.1 dBm at the OC48 ITU-T receiver of the Hub Office

Counter clockwise (protection) calculations are shown below.

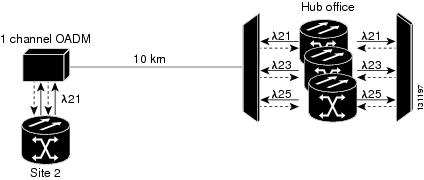

The per channel calculations from the Hub Office to Site 2 (see Figure 4-8) are as follows:

Figure 4-8 Hub Office to Site 2

-2.0 dBm ELR Output

-4.5 dB Mux insertion loss

-6.5 dBm Composite power

-3.0 dB for 10 km of span loss

-2.1 dBm Drop loss for the 1-Channel OADM

-11.6 dB at the OC48 ITU-T receiver at Site 2

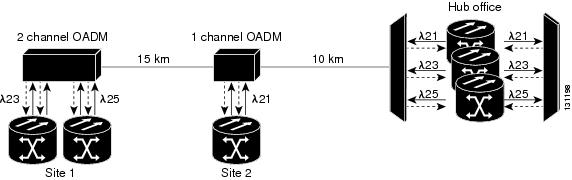

The per channel calculations from the Hub Office to Site 1 (see Figure 4-9) are as follows:

Figure 4-9 Hub Office to Site 1

For the pass thru channel power @ site 2: (-9.5 - 1.8) = -11.3 dBm

-11.6 dBm out of the 1-Channel OADM

-4.5 dB for 15 km of span loss

-2.6 dBm Drop loss for the 2-Channel OADM

-18.7 dB at the OC48 ITU-T receiver of Site 1

The per channel calculations from Hub Office to Hub Office (see Figure 4-10) are as follows:

Figure 4-10 Hub Office to Site 1

For the pass thru channel power at Site 1: (-16.1 - 2) = -18.1 dBm

-18.1 dBm out of the 2-Channel OADM

+22 dB Gain from the EDFA

+3.9 dBm Channel power out of the EDFA

-18.0 dB For 60 km of span loss

-4.5 dB Insertion loss of the Passive DWDM filter

-18.6 dBm at the OC48 ITU-T receiver of the Hub Office

DWDM Card Reference

The following common control cards are needed to support the functions of the DWDM, transponder, and muxponder cards:

TCC2 or TCC2P

AIC-I (optional)

DWDM Cards

Each DWDM card is marked with a symbol that corresponds to a slot (or slots) on the ONS 15454 shelf assembly. These cards can only be installed into slots displaying the same symbols.

ONS 15454 DWDM cards are grouped into the following categories:

Optical service channel (OSC) cards, which provide bidirectional channels that connect all the ONS 15454 DWDM nodes and transport general-purpose information without affecting the client traffic. ONS 15454 optical service channel cards include the Optical Service Channel Module (OSCM) and the Optical Service Channel and Combiner/Separator Module (OSC-CSM).

Optical EDFA cards, which are used in amplified DWDM nodes, including hub nodes, amplified OADM nodes, and line amplified nodes. Optical amplifier cards include the Optical Preamplifier (OPT-PRE) and Optical Booster (OPT-BST) amplifier.

Dispersion compensation units, which are installed in the ONS 15454 dispersion compensation shelf when optical preamplifier cards are installed in the DWDM node. Each DCU module can compensate a maximum of 65 km of single-mode fiber (SMF-28) span. DCUs can be cascaded to extend the compensation to 130 km.

Multiplexer and demultiplexer cards, which multiplex and demultiplex DWDM optical channels. The cards are composed of three main modules: optical plug-in, microprocessor, and the DC/DC converter. ONS 15454 multiplexer and demultiplexer cards include the 32-Channel Multiplexer (32MUX-O), the 32-Channel Demultiplexer (32DMX-O), the single-slot 32-Channel Demultiplexer and the 4-Channel Multiplexer/Demultiplexer (4MD-xx.x).

Optical Add/Drop Multiplexer (OADM) cards, which are mainly divided into three groups: band OADM, channel OADM, and wavelength selective switch (WSS) cards. Band OADM cards add and drop one or four bands of adjacent channels; they include the 4-Band OADM (AD-4B-xx.x) and the 1-Band OADM (AD-1B-xx.x). Channel OADM cards add and drop one, two, or four adjacent channels; they include the 4-Channel OADM (AD-4C-xx.x), the 2-Channel OADM (AD-2C-xx.x) and the 1-Channel OADM (AD-1C-xx.x). The 32-Channel wavelength selective switch (32WSS) card is used with the 32DMX to implement Reconfigurable OADM (ROADM) functionality. These cards are composed of three main modules: optical plug-in, microprocessor, and the DC/DC converter.

Transponder and Muxponder cards, which are divided into two groups:

Cards that are fully optically transparent, such as the TXP_MR_10E and MXP_2.5G_10E

Cards that are not fully optically transparent, such as the TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G, MXP_MR_2.5G, MXPP_MR_2.5G and MXP_2.5G_10G

Table 4-16 describes the Cisco ONS 15454 DWDM cards available for MSTP applications.

Table 4-16 ONS 15454 DWDM Cards

Card
Part Number
Description

Optical Service Channel Modules

OSCM

15454-OSCM=

The OSCM has one set of optical ports and one Ethernet port located on the faceplate. It operates in Slots 8 and 10.

An optical service channel (OSC) is a bidirectional channel connecting all the nodes in a ring. The channel transports OSC overhead that is used to manage ONS 15454 DWDM networks. The OSC uses the 1510 nm wavelength and does not affect client traffic. The primary purpose of this channel is to carry clock synchronization and orderwire channel communications for the DWDM network. It also provides transparent links between each node in the network. The OSC is an OC-3 formatted signal.

The OSCM is used in amplified nodes that include the OPT-BST booster amplifier. The OPT-BST includes the required OSC wavelength combiner and separator component. The OSCM cannot be used in nodes where you use OC-N cards, electrical cards, or cross-connect cards. The OSCM uses slots 8 and 10 when the ONS 15454 is configured as an MSTP.

OSC-CSM

15454-OSC-CSM=

The OSC-CSM has three sets of optical ports and one Ethernet port located on the faceplate. It operates in Slots 1 to 6 and 12 to 17.

The OSC-CSM is identical to the OSCM, but also contains a combiner and separator module in addition to the OSC module.

The OSC-CSM is used in unamplified nodes. This means that the booster amplifier with the OSC wavelength combiner and separator is not required for OSC-CSM operation. The OSC-CSM can be installed in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

Optical Amplifiers

OPT-PRE

15454-OPT-PRE=

The OPT-PRE is designed to support 64 channels at 50-GHz channel spacing, but Software R4.6 only supports 32 channels at 100 GHz. The OPT-PRE is a C-band DWDM, two-stage erbium-doped fiber amplifier (EDFA) with mid-amplifier loss (MAL) for allocation to a dispersion compensation unit (DCU). To control the gain tilt, the OPT-PRE is equipped with a built-in VOA. The VOA can also be used to pad the DCU to a reference value. You can install the OPT-PRE in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

OPT-BST

15454-OPT-BST=

The OPT-BST is designed to support 64 channels at 50-GHz channel spacing, but Software R4.6 supports 32 channels at 100 GHz. The OPT-BST is a C-band DWDM EDFA with OSC add-and-drop capability. When an ONS 15454 MSTP has an OPT-BST installed, it is only necessary to have the OSCM to process the OSC. To control the gain tilt, the OPT-BST is equipped with a built-in VOA. You can install the OPT-BST in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

Multiplexer and Demultiplexer Cards

32MUX-O

15454-32MUX-O=

The 32-channel multiplexer card (32 MUX-O) multiplexes 32 100 GHz-spaced channels identified in the channel plan. The 32 MUX-O card takes up two slots in an ONS 15454 MSTP and can be installed in slots 1 to 5 and 12 to 16.

32DMX-O

15454-32DMX-O=

The 32-Channel Demultiplexer (32 DMX-O) card demultiplexes 32 100 GHz-spaced channels identified in the channel plan. The 32 DMX-O takes up two slots in an ONS 15454 MSTP and can be installed in slots 1 to 5 and 12 to 16.

32DMX

15454-32DMX=

The 32-Channel Demultiplexer card (32DMX) is a single-slot optical demultiplexer. The card receives an aggregate optical signal on its COM RX port and demultiplexes it into to 32 100-GHz-spaced channels. The 32DMX card can be installed in Slots 1 to 6 and in Slots 12 to 17.

4MD-xx.x

15454-4MD-xx.x=

The 4-Channel Multiplexer/Demultiplexer (4MD-xx.x) card multiplexes and demultiplexes four 100 GHz-spaced channels identified in the channel plan. The 4MD-xx.x card is designed to be used with band OADMs (both AD-1B-xx.x and AD-4B-xx.x). There are eight versions of this card that correspond with the eight sub-bands specified in Table 4-17. The 4MD-xx.x can be installed in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

Optical Add/Drop Multiplexer Cards

AD-1C-xx.x

15454-AD-1C-xx.x=

The 1-Channel OADM (AD-1C-xx.x) card passively adds or drops one of the 32 channels utilized within the 100 GHz-spacing of the DWDM card system. There are thirty-two versions of this card, each designed only for use with one wavelength. Each wavelength version of the card has a different part number. The AD-1C-xx.x can be installed in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

AD-2C-xx.x

15454-AD-2C-xx.x=

The 2-Channel OADM (AD-2C-xx.x) card passively adds or drops two adjacent 100 GHz channels within the same band. There are sixteen versions of this card, each designed for use with one pair of wavelengths. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions. Each version of the card has a different part number. The AD-2C-xx.x cards are provisioned for the channel pairs in Table 4-18. In this table, channel IDs are given rather than wavelengths. The AD-2C-xx.x can be installed in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

AD-4C-xx.x

15454-AD-4C-xx.x=

The 4-Channel OADM (AD-4C-xx.x) card passively adds or drops all four 100 GHz-spaced channels within the same band. There are eight versions of this card, each designed for use with one band of wavelengths. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions. There are eight versions of this card with eight part numbers. The AD-4C-xx.x cards are provisioned for the channel pairs in Table 4-19. In this table, channel IDs are given rather than wavelengths. The AD-4C-xx.x can be installed in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

AD-1B-xx.x

15454-AD-1B-xx=

The 1-Band OADM (AD-1B-xx.x) card passively adds or drops a single band of four adjacent 100 GHz-spaced channels. There are eight versions of this card with eight different part numbers, each version designed for use with one band of wavelengths. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions. This card can be used when there is asymmetric adding and dropping on each side (east or west) of the node; a band can be added or dropped on one side but not on the other. The AD-1B-xx.x can be installed in slots 1 to 6 and 12 to17 when the ONS 15454 is configured as an MSTP.

AD-4B-xx.x

15454-AD-4B-xx=

The 4-Band OADM (AD-4B-xx.x) card passively adds or drops four bands of four adjacent 100 GHz-spaced channels. There are two versions of this card with different part numbers, each version designed for use with one set of bands. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions. This card can be used when there is asymmetric adding and dropping on each side (east or west) of the node; a band can be added or dropped on one side but not on the other. The AD-4B-xx.x cards are provisioned for the channel pairs in Table 4-20. In this table, channel IDs are given rather than wavelengths. The AD1B-xx.x can be installed in slots 1 to 6 and 12 to 17 when the ONS 15454 is configured as an MSTP.

32WSS

15454-32WSS=

The 32WSS card has seven sets of ports located on the faceplate. The card takes up two slots and can operates in Slots 1-2, 3-4, 5-6, or in Slots 12-13, 14-15, or 16-17.

The 32-Channel Wavelength Selective Switch (32WSS) card performs channel add/drop processing within the ONS 15454 DWDM node. The 32WSS works in conjunction with the 32DMX to implement ROADM functionality. Equipped with ROADM functionality, the ONS 15454 DWDM can be configured to add or drop individual optical channels using CTC, Cisco MetroPlanner, and CTM.

A ROADM network element utilizes two 32WSS cards (two slots each) and two 32DMX cards (one slot each), for a total of six slots in the chassis.

Transponder and Muxponder Cards

TXP_MR_10G

15454-10T-L1-30.3=

15454-10T-L1-31.9=

15454-10T-L1-34.2=

15454-10T-L1-35.8=

15454-10T-L1-38.1=

15454-10T-L1-39.7=

15454-10T-L1-42.1=

15454-10T-L1-43.7=

15454-10T-L1-46.1=

15454-10T-L1-47.7=

15454-10T-L1-50.1=

15454-10T-L1-51.7=

15454-10T-L1-54.1=

15454-10T-L1-55.7=

15454-10T-L1-58.1=

15454-10T-L1-59.7=

The TXP_MR_10G card has two sets of ports located on the faceplate and can be in Slots 1 to 6 and 12 to 17.

The 10 Gbps Transponder-100 GHz-Tunable xx.xx-xx.xx card (TXP_MR_10G) processes one 10 Gb/s signal (client side) into one 10-Gb/s, 100 GHz DWDM signal (trunk side). It provides one 10 Gb/s port per card that can be provisioned for an STM64/OC-192 short reach (1310nm) signal, compliant with ITU-T G.707, G.709, ITU-T G.691, Telcordia GR-253-CORE, or to 10 GE BASE-LR, compliant to IEEE 802.3.

The TXP_MR_10G card is tunable over two neighboring wavelengths in the 1550nm, ITU 100 GHz range. It is available in sixteen different versions, covering thirty-two different wavelengths in the 1550nm range.

TXP_MR_10E

15454-10E-L1-30.3=

15454-10E-L1-34.2=

15454-10E-L1-38.1=

15454-10E-L1-42.1=

15454-10E-L1-46.1=

15454-10E-L1-50.1=

15454-10E-L1-54.1=

15454-10E-L1-58.1=

The TXP_MR_10E card has two sets of ports located on the faceplate and can be installed in Slots 1 to 6 and Slots 12 to 17.

The 10 Gb/s Transponder-100 GHz-Tunable xx.xx-xx.xx (TXP_MR_10E) card is a multirate transponder for the ONS 15454 platform. It processes one 10 Gb/s signal (client side) into one 10 Gb/s, 100 GHz DWDM signal (trunk side) that is tunable on four wavelength channels (ITU-T 100 GHz grid).

You can provision this card in a linear configuration, BLSR, path protection, or a regenerator. The card can be used in the middle of BLSR or 1+1 spans when the card is configured for transparent termination mode.

The TXP_MR_10E port features a 1550nm laser for the trunk port and an ONS-XC-10G-S1 XFP module for the client port and contains two transmit and receive connector pairs (labeled) on the card faceplate.

The TXP_MR_10E card is tunable over four wavelengths in the 1550nm ITU 100-GHz range. They are available in eight versions of the card, covering thirty-two different wavelengths in the 1550nm range

TXP_MR_2.5G

15454-MR-L1-30.3=

15454-MR-L1-34.2=

15454-MR-L1-38.1=

15454-MR-L1-42.1=

15454-MR-L1-46.1=

15454-MR-L1-50.1=

15454-MR-L1-54.1=

15454-MR-L1-58.1=

The TXP_MR_2.5G card has two sets of ports located on the faceplate and can be installed in Slots 1 to 6 and Slots 12 to 17.

The 2.5 Gb/s Multirate Transponder-100 GHz-Tunable xx.xx-xx.xx (TXP_MR_2.5G) card processes one 8 Mb/s to 2.488 Gb/s signal (client side) into one 8 Mb/s to 2.5 Gb/s, 100 GHz DWDM signal (trunk side). It provides one long-reach STM-16/OC-48 port per card, compliant with ITU-T G.707, ITU-T G.709, ITU-T G.957, and Telcordia GR-253-CORE.

The TXP_MR_2.5G card is tunable over four wavelengths in the 1550nm ITU 100-GHz range. They are available in eight versions of the card, covering thirty-two different wavelengths in the 1550nm range.

The TXP_MR_2.5G card support 2R and 3R modes of operation where the client signal is mapped into a ITU-T G.709 frame.

TXPP_MR_2.5G

15454-MRP-L1-30.3=

15454-MRP-L1-34.2=

15454-MRP-L1-38.1=

15454-MRP-L1-42.1=

15454-MRP-L1-46.1=

15454-MRP-L1-50.1=

15454-MRP-L1-54.1=

15454-MRP-L1-58.1=

The TXPP_MR_2.5G card has three sets of ports located on the faceplate and can be installed in Slots 1 to 6 and Slots 12 to 17.

The 2.5 Gb/s Multirate Transponder-Protected-100 GHz-Tunable xx.xxxx. xx (TXPP_MR_2.5G) card processes one 8 Mb/s to 2.488 Gb/s signal (client side) into two 8 Mb/s to 2.5 Gb/s, 100 GHz DWDM signals (trunk side). It provides two long-reach STM-16/OC-48 ports per card, compliant with ITU-T G.707, ITU-T G.957, and Telcordia GR-253-CORE.

The TXPP_MR_2.5G card is tunable over four wavelengths in the 1550nm ITU 100-GHz range. They are available in eight versions of the card, covering thirty-two different wavelengths in the 1550nm range.

The TXPP_MR_2.5G card support 2R and 3R modes of operation where the client signal is mapped into a ITU-T G.709 frame.

MXP_2.5G_10G

15454-10M-L1-30.3=

15454-10M-L1-31.9=

15454-10M-L1-34.2=

15454-10M-L1-35.8=

15454-10M-L1-38.1=

15454-10M-L1-39.7=

15454-10M-L1-42.1=

15454-10M-L1-43.7=

15454-10M-L1-46.1=

15454-10M-L1-47.7=

15454-10M-L1-50.1=

15454-10M-L1-51.7=

15454-10M-L1-54.1=

15454-10M-L1-55.7=

15454-10M-L1-58.1=

15454-10M-L1-59.7=

The MXP_2.5G_10G card has 9 sets of ports located on the faceplate and can be installed in Slots 1 to 6 and Slots 12 to 17.

The 2.5 Gb/s-10 Gb/s Muxponder-100 GHz-Tunable xx.xx-xx.xx (MXP_2.5G_10G) card multiplexes/demultiplexes four 2.5 Gb/s signals (client side) into one 10 Gb/s, 100 GHz DWDM signal (trunk side). It provides one extended long-range STM-64/OC-192 port per card on the trunk side (compliant with ITU-T G.707, ITU-T G.709, ITU-T G.957, and Telcordia GR-253-CORE) and four intermediate- or short-range OC-48/STM-16 ports per card on the client side. The port operates at 9.95328 Gb/s over unamplified distances up to 80 km (50 miles) with different types of fiber such as C-SMF or dispersion compensated fiber limited by loss and/or dispersion. The port can also operate at 10.70923 Gb/s in ITU-T G.709 Digital Wrapper/FEC mode.

Client ports on the MXP_2.5G_10G card are also interoperable with OC-1 (STS-1) fiber optic signals defined in Telcordia GR-253-CORE. An OC-1 signal is the equivalent of one DS3 channel transmitted across optical fiber. OC-1 is primarily used for trunk interfaces to phone switches in the United States.

The MXP_2.5G_10G card is tunable over two neighboring wavelengths in the 1550nm, ITU 100 GHz range. It is available in sixteen different versions, covering thirty-two different wavelengths in the 1550nm range.

MXP_2.5G_10E

15454-10ME-30.3=

15454-10ME-34.2=

15454-10ME-38.1=

15454-10ME-42.1=

15454-10ME-46.1=

15454-10ME-50.1=

15454-10ME-54.1=

15454-10ME-58.1=

The MXP_2.5G_10E card has 9 sets of ports located on the faceplate and can be installed in Slots 1 to 6 and 12 to 17.

The 2.5 Gb/s-10 Gb/s Muxponder-100 GHz-Tunable xx.xx-xx.xx (MXP_2.5G_10E) card is a DWDM muxponder for the ONS 15454 platform that supports full optical transparency on the client side. The card multiplexes four 2.5 Gb/s client signals (4 x OC48/STM-16 SFP) into a single 10 Gb/s DWDM optical signal on the trunk side. The MXP_2.5G_10E provides wavelength transmission service for the four incoming 2.5 Gbps client interfaces. The MXP_2.5G_10E muxponder passes all SONET overhead bytes transparently.

The MXP_2.5G_10E works with Optical Transparent Network (OTN) devices defined in ITU-T G.709. The card supports Optical Data Channel Unit 1 (ODU1) to Optical Channel Transport Unit (OTU2) multiplexing, an industry standard method for asynchronously mapping a SONET/SDH payload into a digitally wrapped envelope.

The MXP_2.5G_10E card is tunable over four neighboring wavelengths in the 1550nm, ITU 100 GHz range. It is available in eight different versions, covering thirty-two different wavelengths in the 1550nm range.

The MXP_2.5G_10E card is not compatible with the MXP_2.5G_10G card, which does not supports full optical transparency. The faceplate designation of the card is "4x2.5G 10E MXP."

MXP_MR_2.5G

15454-DM-L1-30.3=

15454-DM-L1-34.2=

15454-DM-L1-38.1=

15454-DM-L1-42.1=

15454-DM-L1-46.1=

15454-DM-L1-50.1=

15454-DM-L1-54.1=

15454-DM-L1-58.1=

The MXP_MR_2.5G card has 9 sets of ports located on the faceplate and can be installed in Slots 1 to 6 and Slots 12 to 17.

The 2.5 Gb/s Multirate Muxponder-100 GHz-Tunable 15xx.xx-15yy.yy (MXP_MR_2.5G) card aggregates a mix and match of client Storage Area Network (SAN) service client inputs (GE, FICON, and Fibre Channel) into one 2.5 Gb/s STM-16/OC-48 DWDM signal on the trunk side. It provides one long-reach STM-16/OC-48 port per card and is compliant with Telcordia GR-253-CORE.

The client interface supports the following payload types:

GE

1G FC

2G FC

1G FICON

2G FICON

Because the card is tunable to one of four adjacent grid channels on a 100 GHz spacing, this card is available in eight versions covering thirty-two different wavelengths in the 1550nm range.

MXPP_MR_2.5G

15454-DMP-L1-30.3=

15454-DMP-L1-34.2=

15454-DMP-L1-38.1=

15454-DMP-L1-42.1=

15454-DMP-L1-46.1=

15454-DMP-L1-50.1=

15454-DMP-L1-54.1=

15454-DMP-L1-58.1=

The MXPP_MR_2.5G card has 10 sets of ports located on the faceplate and can be installed in Slots 1 to 6 and Slots 12 to 17.

The 2.5 Gb/s Multirate Muxponder-Protected-100 GHz-Tunable 15xx.xx- 15yy.yy (MXPP_MR_2.5G) card aggregates various client SAN service client inputs (GE, FICON, and Fibre Channel) into one 2.5 Gb/s STM-16/OC-48 DWDM signal on the trunk side. It provides two long-reach STM-16/OC-48 ports per card and is compliant with ITU-T G.957 and Telcordia GR-253-CORE.

The client interface supports the following payload types:

GE

1G FC

2G FC

1G FICON

2G FICON

Because the card is tunable to one of four adjacent grid channels on a 100 GHz spacing, this card is available in eight versions covering thirty-two different wavelengths in the 1550nm range.


Table 4-17 shows the band IDs and the add/drop channel IDs for the 4MD-xx.x card.

Table 4-17 4MD-xx.x Channel Sets

Band IDs
Add/Drop Channel IDs
Add/Drop Wavelengths (nm)

Band 30.3 (A)

30.3, 31.2, 31.9, 32.6

1530.33, 1531.12, 1531.90, 1532.68

Band 34.2 (B)

34.2, 35.0, 35.8, 36.6

1534.25, 1535.04, 1535.82, 1536.61

Band 38.1 (C)

38.1, 38.9, 39.7, 40.5

1538.19, 1538.98, 1539.77, 1540.56

Band 42.1 (D)

42.1, 42.9, 43.7, 44.5

1542.14, 1542.94, 1543.73, 1544.53

Band 46.1 (E)

46.1, 46.9, 47.7, 48.5

1546.12, 1546.92, 1547.72, 1548.51

Band 50.1 (F)

50.1, 50.9, 51.7, 52.5

1550.12, 1550.92, 1551.72, 1552.52

Band 54.1 (G)

54.1, 54.9, 55.7, 56.5

1554.13, 1554.94, 1555.75, 1556.55

Band 58.1 (H)

58.1, 58.9, 59.7, 60.6

1558.17, 1558.98, 1559.79, 1560.61


Table 4-18 AD-2C-xx.x Channel Pairs

Band IDs
Add/Drop Channel IDs
Add/Drop Wavelengths (nm)

Band 30.3 (A)

30.3, 31.2 and 31.9, 32.6

1530.33, 1531.12 and 1531.90, 1532.68

Band 34.2 (B)

34.2, 35.0, and 35.8, 36.6

1534.25, 1535.04 and 1535.82, 1536.61

Band 38.1 (C)

38.1, 38.9 and 39.7, 40.5

1538.19, 1538.98 and 1539.77, 1540.56

Band 42.1 (D)

42.1, 42.9 and 43.7, 44.5

1542.14, 1542.94 and 1543.73, 1544.53

Band 46.1 (E)

46.1, 46.9 and 47.7, 48.5

1546.12, 1546.92 and 1547.72, 1548.51

Band 50.1 (F)

50.1, 50.9 and 51.7, 52.5

1550.12, 1550.92 and 1551.72, 1552.52

Band 54.1 (G)

54.1, 54.9 and 55.7, 56.5

1554.13, 1554.94 and 1555.75, 1556.55

Band 58.1 (H)

58.1, 58.9 and 59.7, 60.6

1558.17, 1558.98 and 1559.79, 1560.61


Table 4-19 AD-4C-xx.x Channel Sets

Band IDs
Add/Drop Channel IDs
Add/Drop Wavelengths (nm)

Band 30.3 (A)

30.3, 31.2, 31.9, 32.6

1530.33, 1531.12, 1531.90, 1532.68

Band 34.2 (B)

34.2, 35.0, 35.8, 36.6

1534.25, 1535.04, 1535.82, 1536.61

Band 38.1 (C)

38.1, 38.9, 39.7, 40.5

1538.19, 1538.98, 1539.77, 1540.56

Band 42.1 (D)

42.1, 42.9, 43.7, 44.5

1542.14, 1542.94, 1543.73, 1544.53

Band 46.1 (E)

46.1, 46.9, 47.7, 48.5

1546.12, 1546.92, 1547.72, 1548.51

Band 50.1 (F)

50.1, 50.9, 51.7, 52.5

1550.12, 1550.92, 1551.72, 1552.52

Band 54.1 (G)

54.1, 54.9, 55.7, 56.5

1554.13, 1554.94, 1555.75, 1556.55

Band 58.1 (H)

58.1, 58.9, 59.7, 60.6

1558.17, 1558.98, 1559.79, 1560.61


Table 4-20 AD-4B-xx.x Channel Sets

Band IDs
Add/Drop Channel IDs
Add/Drop Wavelengths (nm)

Band 30.3 (A)

Band 34.2 (B)

Band 38.1 (C)

Band 42.1 (D)

B30.3

B34.2

B38.1

B42.1

1530.33

1534.25

1538.19

1542.14

Band 46.1 (E)

Band 50.1 (F)

Band 54.1 (G)

Band 58.1 (H)

B46.1

B50.1

B54.1

B58.1

1546.12

1550.12

1554.13

1558.17


Multiplexer, Demultiplexer, and OADM Card Interface Classes

The 32MUX-O, 32WSS, 32DMX, 32DMX-O, 4MD-xx.x, AD-1C-xx.x, AD-2C-xx.x, and AD-4C-xx.x cards have different input and output power values depending upon the optical power of the interface card where the input signal originates. The client interfaces for these cards have been grouped in classes listed in Table 4-21. The subsequent tables list the optical performances and output power of each interface class.

Table 4-21 ONS 15454 DWDM Client Interfaces Assigned to Input Power Classes

Input Power Class
DWDM Client Interfaces

A

10 Gb/s multi-rate transponder with forward error correction (FEC) enabled (TXP_MR_10G or TXP_MR_10E) or 10 Gb/s muxponder with FEC enabled (MXP_2.5G_10G or MXP_2.5G_10E).

B

10 Gb/s multi-rate transponder without FEC (TXP_MR_10G) or 10 Gb/s muxponder (MXP_2.5G_10G) with FEC disabled.

C

OC-192 LR ITU, TXP_MR_10E without FEC.

D

2.5 Gb/s multi-rate transponder (TXP_MR_2.5G), both protected and unprotected, with FEC enabled

E

2.5 Gb/s multi-rate transponder (TXP_MR_2.5G), both protected and unprotected, without FEC enabled and reshape, regenerate, and retime (3R) mode enabled, or OC-48 100 GHz DWDM muxponder (MXP_MR_2.5G).

F

2.5 Gb/s multi-rate transponder (TXP_MR_2.5G), both protected and unprotected, in regenerate and reshape (2R) mode

G

OC-48 ELR 100 GHz

H

2 and 4 port GE Transponder (GBIC WDM 100GHz).

I

TXP_MR_10E with extended FEC (E-FEC) or MXP_2.5G_10E with EFEC.


10 Gbps cards that provide signal input to OADM cards have the optical performances listed in Table 4-22.

Table 4-22 10 Gbps Interface Optical Performances

Parameter
Class A
Class B
Class C
Class I

Type

Power Limited

OSNR Limited

Power Limited

OSNR Limited

OSNR Limited

Power Limited

OSNR Limited

Optical signal to noise ratio (OSNR) sensitivity

23 dB

9 dB

23 dB

19 dB

19 dB

20 dB

8 dB

Power sensitivity

-24 dBm

-18 dBm

-20 dBm

-20 dBm

-22 dBm

-26 dBm

-18 dBm

Dispersion power penalty

2 dB

0 dB

3 dB

4 dB

2 dB

2 dB

0 dB

Dispersion OSNR penalty

0 dB

2 dB

0 dB

0 dB

0 dB

0 dB

2 dB

Dispersion compensation tolerance

+/- 800 ps/nm

+/- 1000 ps/nm

+/- 1000 ps/nm

+/- 800 ps/nm

Maximum bit rate

10 Gb/s

10 Gb/s

10 Gbps

10 Gbps

Regeneration

3R1

3R

3R

3R

FEC

Yes

No

No

Yes (E0FEC)

Threshold

Optimum

Average

Average

Optimum

Maximum BER2

10-15

10-12

10-12

10-15

Power overload

-8 dBm

-8 dBm

-9 dBm

-9 dBm

-8 dBm

Transmitted power range3

10 Gb/s multirate Transponder with FEC (TXP_MR_10G)

+2.5 to 3.5 dBm

+2.5 to 3.5 dBm

OC-192 LR ITU

+3.0 to 6.0 dBm

10 Gb/s multirate Transponder with FEC (TXP_MR_10E)

+3.0 to 6.0 dBm

+3.0 to 6.0 dBm



+3.0 to 6.0 dBm

1 3R = retime, reshape, regenerate

2 BER = biter error rate

3 These values, decreased by patch cord and connector losses, are also the input power values for the OADM cards.


Table 4-23 2.5 Gb/s Interface Optical Performances—Part One

Parameter
Class D
Class E
Class F
Class G
Type
Power Limited
OSNR Limited
Power Limited
OSNR Limited
OSNR Limited
Power Limited
OSNR Limited

Optical signal to noise ratio (OSNR) sensitivity

14 dB

6 dB

14 dB

10 dB

15 dB

14 dB

11 dB

Power sensitivity

-31 dBm

-25 dBm

-30 dBm

-23 dBm

-24 dBm

-27 dBm

-33 dBm

Dispersion power penalty

2 dB

0 dB

3 dB

4 dB

3 dB



2 dB

Dispersion OSNR penalty

0 dB

2 dB

0 dB

2 dB

0 dB

0 dB

0 dB

Dispersion compensation tolerance

-1,200 to +5,400 ps/nm

-1,200 to +5,400 ps/nm

-1,200 to +3,300 ps/nm

-1,200 to +3,300 ps/nm

Maximum bit rate

2.5 Gb/s

2.5 Gb/s

2.5 Gb/s

2.5 Gb/s

Regeneration

3R1

3R

2R2

3R

FEC

Yes

No

No

No

Threshold

Average

Average

Average

Average

Maximum BER3

10-15

10-12

10-12

10-12

Power overload

-9 dBm

-9 dBm

-9 dBm

-9 dBm

Transmitted power range4

TXP_MR_2.5G

-1.0 to 1.0 dBm

-1.0 to 1.0 dBm

1.0 to 1.0 dBm

-2.0 to 0 dBm

TXPP_MR_2.5G

-4.5 to -2.5 dBm

-4.5 to -2.5 dBm

-4.5 to -2.5 dBm

-2.0 to 0 dBm

MXP_MR_2.5G

+2.0 to +4.0 dBm

-2.0 to 0 dBm

MXPP_MR_2.5G

-1.5 to +0.5 dBm

-2.0 to 0 dBm

1 3R = retime, reshape, regenerate

2 2R = reshape and regenerate

3 BER = biter error rate

4 These values, decreased by patch cord and connector losses, are also the input power values for the OADM cards.


2.5 Gbps card interface performances are listed in Table 4-23 and Table 4-24.

Table 4-24 2.5 Gbps Interface Optical Performances—Part Two

Parameter
Class H
Class J
Type
Power Limited
OSNR Limited
Power Limited

Optical signal to noise ratio (OSNR) sensitivity

13 dB

8 dB

12 dB

Power sensitivity

-28 dBm

-18 dBm

12 dBm

Dispersion compensation tolerance

-1,000 to +3,600 ps/nm

-1,000 to +3,200 ps/nm

Maximum bit rate

1.25 Gbps

2.5 Gbps

Regeneration

3R

3R

FEC

No

No

Threshold

Average

Average

Maximum BER

10-12

10-12

Power overload

-7 dBm

-17 dBm

Transmitted power range1

2 and 4 port GE Transponder (GBIC WDM 100 GHz)

+2.5 to 3.5 dBm

1 These values, decreased by patch cord and connector losses, are also the input power values for the OADM cards.


DWDM Node Configurations

The ONS 15454 supports the following DWDM node configurations:

Hub

Terminal

OADM

ROADM

Anti-ASE

Line Amplifier

OSC Regeneration Line


Note The MetroPlanner tool creates a plan for amplifier placement and proper node equipment.


Hub Node

A hub node is a single ONS 15454 node equipped with two TCC2/TCC2P cards and one of the following combinations:

Two 32MUX-O (32-Channel Multiplexer) and two 32DMX-O (32-Channel Demultiplexer) or 32DMX cards

Two 32WSS (32-Channel Wavelength Selective Switch) and two 32DMX or 32DMX-O cards


Note The 32WSS and 32DMX are normally installed in reconfigurable OADM (ROADM) nodes, but they can be installed in hub and terminal nodes. If the cards are installed in a hub node, the 32WSS express (EXP RX and EXP TX) ports are not cabled.


A dispersion compensation unit (DCU) can also be added, if necessary. The hub node does not support both DWDM and TDM applications since the DWDM slot requirements do not leave room for TDM cards. Figure 4-11 shows a hub node configuration with the 32MUX-O and 32DMX-O cards installed.


Note The OADM AD-xC-xx.x or AD-xB-xx.x cards are not part of a hub node because the 32MUXO and 32DMX-O cards drop and add all 32 channels; therefore, no other cards are necessary.


Figure 4-11 Hub Node Configuration Example

Figure 4-12 shows the channel flow for a hub node. Up to 32-channels from the client ports are multiplexed and equalized onto one fiber using the 32MUX-O card. Then, multiplexed channels are transmitted on the line in the eastward direction and fed to the Optical Booster (OPT-BST) amplifier. The output of this amplifier is combined with an output signal from the optical service channel modem (OSCM) card, and transmitted toward the east line.

Received signals from the east line port are split between the OSCM card and an Optical Preamplifier (OPT-PRE). Dispersion compensation is applied to the signal received by the OPTPRE amplifier, and it is then sent to the 32DMX-O card, which demultiplexes and attenuates the input signal. The west receive fiber path is identical through the west OPT-BST amplifier, the west OPT-PRE amplifier, and the west 32DMX-O card.

Figure 4-12 Hub Node Channel Flow Example

Terminal Node

A terminal node is a single ONS 15454 node equipped with two TCC2/TCC2P cards and one of the following combinations:

One 32MUX-O card and one 32DMX-O card

One 32WSS and either a 32DMX or a 32DMX-O cards

Terminal nodes can be either east or west. In west terminal nodes, the cards are installed in the east slots (Slots 1 through 6). In east terminal nodes, cards are installed in the west slots (Slots 12 through 17). A hub node can be changed into a terminal node by removing either the east or west cards. Figure 4-13 shows an example of an east terminal configuration with a 32MUX-O and 32DMX-O cards installed. The channel flow for a terminal node is the same as the hub node (see Figure 4-12).


Note AD-xC-xx.x or AD-xB-xx.x cards are not part of a terminal node because pass-through connections are not allowed. However the AD-4C-xx.x card does support linear end nodes (terminals) in Software Release 4.6.


Figure 4-13 Terminal Node Configuration Example

OADM Node

An OADM node is a single ONS 15454 node equipped with at least one AD-xC-xx.x card or one AD-xB-xx.x card and two TCC2/TCC2P cards. The 32MUX-O or 32DMX-O cards cannot be provisioned. In an OADM node, channels can be added or dropped independently from each direction, passed through the reflected bands of all OADMs in the DWDM node (called express path), or passed through one OADM card to another OADM card without using a TDM ITU line card (called optical pass through) if an external patchcord is installed.

Unlike express path, an optical pass-through channel can be converted later to an add/drop channel in an altered ring without affecting another channel. OADM amplifier placement and required card placement is determined by the MetroPlanner tool or your site plan.

There are different categories of OADM nodes, such as amplified, passive, and anti-ASE. For anti-ASE node information, see the "Anti-ASE Node" section in this chapter. Figure 4-14 shows an example of an amplified OADM node configuration.

Figure 4-14 OADM Node Configuration Example

Figure 4-15 shows an example of the channel flow on the amplified OADM node. Since the 32-wavelength plan is based on eight bands (each band contains four channels), optical adding and dropping can be performed at the band level and/or at the channel level (meaning individual channels can be dropped).

Figure 4-15 Amplified OADM Node Channel Flow Example

Figure 4-16 shows an example of a passive OADM node configuration. The passive OADM node is equipped with a band filter, one four-channel multiplexer/demultiplexer, and a channel filter on each side of the node.

Figure 4-16 Passive OADM Node Configuration Example

Figure 4-17 shows an example of traffic flow on the passive OADM node. The signal flow of the channels is the same as that described in Figure 4-15 except that the Optical Service Channel and Combiner/Separator Module (OSC-CSM) card is being used instead of the OPT-BST amplifier and the OSCM card.

Figure 4-17 Passive OADM Node Channel Flow Example

ROADM Node

A reconfigurable OADM (ROADM) node allows you to add and drop wavelengths without changing the physical fiber connections. ROADM nodes are equipped with two 32WSS cards. 32DMX or 32DMX-O demultiplexers are typically installed, but are not required. Transponders (TXPs) and muxponders (MXPs) can be installed in Slots 6 and 12 and, if amplification is not used, in any open slot. Figure 4-18 shows an example of an amplified ROADM node configuration.

Figure 4-18 ROADM Node with BST-PRE, OPT-BST, and 32DMX Cards Installed

If the ROADM node receives a tilted optical signal, you can replace the single-slot 32DMX card with the double-slot 32DMX-O card to equalize the signal at the optical channel layer instead of the transport section layer. However, if 32DMX-O cards are installed, Slots 6 and 12 cannot be used for TXP or MXP cards.

Figure 4-19 shows an example of an ROADM with 32DMX-O cards installed.

Figure 4-19 ROADM Node with BST-PRE, OPT-BST, and 32DMX-O Cards Installed

Figure 4-20 shows an example of a reconfigurable OADM east-to-west optical signal flow. The west-to-east optical signal flow follows an identical path through the west OSC-CSM and west 32WSS modules. In this example, OSC-CSM modules are installed so OPT-BST modules are not needed.

Figure 4-20 ROADM East to West Optical Signal Flow Example

1. The OSC-CSM receives the optical signal. It separates the optical service channel from the optical payload and sends the payload to the OPT-PRE module.

2. The OPT-PRE compensates for chromatic dispersion, amplifies the optical payload, and sends it to the 32WSS.

3. The 32WSS splits the signal into two components, one is sent to the DROP-TX port and the other is sent to the EXP-TX port.

4. The drop component goes to the 32DMX where it is attenuated, de-multiplexed, and dropped.

5. The express wavelength set goes to the 32WSS on the other side where it is demultiplexed. Channels are stopped or forwarded based upon their switch states. Forwarded wavelengths are multiplexed and sent to the OSC-CSM module.

6. The OSC-CSM combines the multiplexed payload with the OSC and sends the signal out the transmission line.

Anti-ASE Node

In a meshed ring network, the ONS 15454 requires a node configuration that prevents amplified spontaneous emission (ASE) accumulation and lasing. An anti-ASE node can be created by configuring a hub node or an OADM node with some modifications. No channels can travel through the express path, but they can be demultiplexed and dropped at the channel level on one side and added and multiplexed on the other side.

The hub node is the preferred node configuration when some channels are connected in passthrough mode. For rings that require a limited number of channels, combine AD-xB-xx.x and 4MD-xx.x cards, or cascade AD-xC-xx.x cards.

Figure 4-21 shows an example of traffic flow on an anti-ASE node that uses all wavelengths in the pass-through mode. Use MetroPlanner or another network planning tool to determine the best configuration for anti-ASE nodes.

Figure 4-21 Anti-ASE Node Channel Flow Example

Line Amplifier Node

A line node is a single ONS 15454 node equipped with OPT-PRE amplifiers or OPT-BST amplifiers and TCC2/TCC2P cards. Attenuators might also be required between each preamplifier and booster amplifier to match the optical input power value and to maintain the amplifier gain tilt value.

Two OSCM cards are connected to the east or west ports of the booster amplifiers to multiplex the optical service channel (OSC) signal with the pass-though channels. If the node does not contain OPT-BST amplifiers, you must use OSC-CSM cards rather than OSCM cards in your configuration. Figure 4-22 shows an example of a line node configuration.

Figure 4-22 Line Node Configuration Example

OSC Regeneration Node

The OSC regeneration node is added to the DWDM networks for two purposes:

To electrically regenerate the OSC channel whenever the span links are 37 dB or longer and payload amplification and add/drop capabilities are not present. Cisco MetroPlanner places an OSC regeneration node in spans longer than 37 dB. 31 dB is the longest span between the OSC regeneration node and the next DWDM network site.

To add data communications network (DCN) capability wherever needed within the network.

OSC regeneration nodes require two OSC-CSM cards, as shown in Figure 4-23.

Figure 4-23 OSC Regeneration Line Node Configuration Example

Figure 4-24 shows the OSC regeneration node OSC signal flow.

Figure 4-24 OSC Regeneration Line Site Example

DWDM and TDM Hybrid Node Configurations

The node configuration is determined by the type of card that is installed in an ONS 15454 hybrid node. The ONS 15454 supports the following DWDM and TDM hybrid node configurations:

1+1 Protected Flexible Terminal

Scalable Terminal

Hybrid Terminal

Hybrid OADM

Hybrid Line Amplifier

Amplified TDM


Note The MetroPlanner tool creates a plan for amplifier placement and proper equipment for DWDM node configurations. Although TDM cards can be used with DWDM node configurations, the MetroPlanner tool does not create a plan for TDM card placement. MetroPlanner will support TDM configurations in a future release.


1+1 Protected Flexible Terminal Node

The 1+1 protected flexible terminal node is a single ONS 15454 node equipped with a series of OADM cards acting in a hub node configuration. This configuration uses a single hub or OADM node connected directly to the far-end hub or OADM node through four fiber links. This node configuration is used in a ring configured with two point-to-point links. The advantage of the 1+1 protected flexible terminal node configuration is that it provides path redundancy for 1+1 protected TDM networks (two transmit paths and two receive paths) using half of the DWDM equipment that is usually required. In the example shown in Figure 4-25, one node transmits traffic to the other node on both east and west sides of the ring for protection purposes. If the fiber is damaged on one side of the ring, traffic still arrives safely through fiber on the other side of the ring.

Figure 4-25 Double Terminal Protection Configuration

Figure 4-26 shows a 1+1 protected single-span link with hub nodes. 1+1 protected single-span link with hub nodes cannot be used in a hybrid configurations.

Figure 4-26 1+1 Protected Single-Span Link with Hub Nodes

Figure 4-27 shows a 1+1 protected single-span link with active OADM nodes. 1+1 protected single-span link with active OADM nodes can be used in a hybrid configurations.

Figure 4-27 1+1 Protected Single-Span Link with Active OADM Nodes

Figure 4-28 shows a 1+1 protected single-span link with passive OADM nodes. 1+1 protected single-span link with passive OADM nodes can be used in a hybrid configurations.

Figure 4-28 1+1 Protected Single-Span Link with Passive OADM Nodes

Scalable Terminal Node

The scalable terminal node is a single ONS 15454 node equipped with a series of OADM cards and amplifier cards. This node type is more cost effective if a maximum of 16 channels are used (see Table 4-25). This node type does not support a terminal configuration exceeding 16 channels, because the 32-channel terminal site is more cost effective for 17 channels and beyond.

Table 4-25 Typical AD Configurations for Scalable Terminal Nodes

Number of Channels
Terminal Configuration Options
Option 1
Option 2

1

AD-1C-xx.x

2

AD-2C-xx.x

3

AD-4C-xx.x

AD-1B-xx.x + 4MD-xx.x

4

AD-4C-xx.x

AD-1B-xx.x + 4MD-xx.x

5

AD-1C-xx.x + AD-4C-xx.x

AD-1C-xx.x + AD-1B-xx.x + 4MD-xx.x

6

AD-2C-xx.x + AD-4C-xx.x

AD-2C-xx.x + AD-1B-xx.x + 4MD-xx.x

7

2 x AD-4C-xx.x

2 x (AD-1B-xx.x + 4MD-xx.x)

8

2 x AD-4C-xx.x

2 x (AD-1B-xx.x + 4MD-xx.x)

9

AD-1C-xx.x + (2 x AD-4C-xx.x)

AD-1C-xx.x + 2 x (AD-1B-xx.x + 4MD-xx.x)

10

AD-2C-xx.x + (2 x AD-4C-xx.x)

AD-2C-xx.x + 2 x (AD-1B-xx.x + 4MD-xx.x)

11

3 x AD-4C-xx.x

AD-4B-xx.x + (3 x 4MD-xx.x)

12

3 x AD-4C-xx.x

AD-4B-xx.x + (3 x 4MD-xx.x)

13

AD-4B-xx.x + (3 x 4MD-xx.x) + AD-1C-xx.x

AD-4B-xx.x + (3 x 4MD-xx.x)

14

AD-4B-xx.x + (3 x 4MD-xx.x) + AD-1C-xx.x

AD-4B-xx.x + (3 x 4MD-xx.x)

15

AD-4B-xx.x + (3 x 4MD-xx.x)

16

AD-4B-xx.x + (3 x 4MD-xx.x)


The OADM cards that can be used in this type of configuration are: AD-1C-xx.x, AD-2C-xx.x, AD-4C-xx.x, and AD-1B-xx.x. You can also use AD-4B-xx.x and up to four 4MD-xx.x cards. The OPT-PRE and/or OPT-BST amplifiers can be used. The OPT-PRE or OPT-BST configuration depends on the node loss and the span loss. When the OPT-BST is not installed, the OSC-CSM must be used instead of the OSCM card. Figure 4-29 shows a channel flow example of a scalable terminal node configuration.

Figure 4-29 Scalable Terminal Channel Flow Example

A scalable terminal node can be created by using band and/or channel OADM filter cards. This node type is the most flexible of all node types, because the OADM filter cards can be configured to accommodate node traffic. If the node does not contain amplifiers, it is considered a passive hybrid terminal node. Figure 4-30 shows an example of a scalable terminal node configuration. This node type can be used without add or drop cards.

Figure 4-30 Scalable Terminal Example

Hybrid Terminal Node

A hybrid terminal node is a single ONS 15454 node equipped with at least one 32MUX-O card, one 32DMX-O card, two TCC2/TCC2P cards, and TDM cards. If the node is equipped with OPT-PRE or OPT-BST amplifiers, it is considered an amplified terminal node. The node becomes passive if the amplifiers are removed. The hybrid terminal node type is based on the DWDM terminal node type described previously in this chapter. Figure 4-31 shows an example of an amplified hybrid terminal node configuration.

Figure 4-31 Amplified Hybrid Terminal Example

Figure 4-32 shows an example of a passive hybrid terminal node configuration.

Figure 4-32 Passive Hybrid Terminal Example

Hybrid OADM Node

A hybrid OADM node is a single ONS 15454 node equipped with at least one AD-xC-xx.x card or one AD-xB-xx.x card, and two TCC2/TCC2P cards. The hybrid OADM node type is based on the DWDM OADM node type previously described in this chapter. TDM cards can be installed in any available multi-speed slot. Review the plan produced by MetroPlanner to determine slot availability.Figure 4-33 shows an example of an amplified hybrid OADM node configuration. The hybrid OADM node can also become passive by removing the amplifier cards.

Figure 4-33 Hybrid Amplified OADM Example

Hybrid Line Amplifier Node

A hybrid line amplifier node is a single ONS 15454 node with open slots for both TDM and DWDM cards. Figure 4-34 shows an example of a hybrid line amplifier node configuration.


Note For DWDM applications, if the OPT-BST is not installed within the node, the OSC-CSM card must be used instead of the OSCM card.


Figure 4-34 Hybrid Line Amplifier Example

A hybrid line node is another example of the hybrid line amplifier OADM node. A hybrid line node is single ONS 15454 node equipped with OPT-PRE amplifiers, OPT-BST amplifiers, and TCC2/TCC2P cards for each line direction. Both types of amplifiers can be used or just one type of amplifier. Attenuators might also be required between each preamplifier and booster amplifier to match the optical input power value and to maintain the amplifier gain tilt value. TDM cards can be installed in any available multi-speed slot. Review the plan produced by MetroPlanner to determine slot availability. Figure 4-35 shows a channel flow example of a hybrid line node configuration. Since this node contains both TDM and DWDM rings, both TDM and DWDM rings should be terminated even if no interactions are present between them.

Figure 4-35 Hybrid Line Amplifier Channel Flow Example

Amplified TDM Node

An amplified TDM node is a single ONS 15454 node that increases the span length between two ONS 15454 nodes that contain TDM cards and optical amplifiers. There are three possible configurations for an amplified TDM node:

Configuration 1 uses client cards and OPT-BST amplifiers.

Configuration 2 uses client cards, OPT-BST amplifiers, OPT-PRE amplifiers, and FlexLayer filters.

Configuration 3 uses client cards, OPT-BST amplifiers, OPT-PRE amplifiers, AD-1Cxx.x cards, and OSC-CSM cards.

The client cards that can be used in an amplified TDM node are:

TXP_MR_10G

MXP_2.5G_10G

TXP_MR_2.5G

TXPP_MR_2.5G

OC-192 LR/STM 64 ITU 15xx.xx

OC-48 ELR/STM 16 EH 100 GHz

Figure 4-36 shows the first amplified TDM node scenario with an OPT-BST amplifier.

Figure 4-36 Amplified TDM Example with an OPT-BST Amplifier

Figure 4-37 shows the first amplified TDM node channel flow configuration with OPT-BST amplifiers.

Figure 4-37 Amplified TDM Channel Flow Example With OPT-BST Amplifiers

Figure 4-38 shows the second amplified TDM node configuration with client cards, AD-1C-xx.x cards, OPT-BST amplifiers, OPT-PRE amplifiers, and FlexLayer filters.

Figure 4-38 Amplified TDM Example with FlexLayer Filters

Figure 4-39 shows the second amplified TDM node channel flow configuration with client cards, OPT-BST amplifiers, OPT-PRE amplifiers, and FlexLayer filters.

Figure 4-39 Amplified TDM Channel Flow Example With FlexLayer Filters

Figure 4-40 shows the third amplified TDM channel flow configuration with client cards, OPT-BST amplifiers, OPT-PRE amplifiers, AD-1C-xx.x cards, and OSC-CSM cards.

Figure 4-40 Amplified TDM Channel Flow Example With Amplifiers, AD-1C-xx.x Cards, and OSC-CSM Cards

DWDM Topologies

There are two main DWDM network types: metro core, where the channel power is equalized and dispersion compensation is applied, and metro access, where the channels are not equalized and dispersion compensation is not applied. Metro Core networks often include multiple spans and amplifiers, thus making optical signal-to-noise ratio (OSNR) the limiting factor for channel performance. Metro Access networks often include a few spans with very low span loss; therefore, the signal link budget is the limiting factor for performance. The DWDM network topologies supported by the ONS 15454 are:

Hubbed Rings

Multi-hubbed Rings

Any-to-Any Rings

Meshed Rings

Linear Configurations

Single-span Links

Hybrid Networks

Hubbed Rings

In the hubbed ring topology (Figure 4-41), a hub node terminates all the DWDM channels. A channel can be provisioned to support protected traffic between the hub node and any node in the ring. Both working and protected traffic use the same wavelength on both sides of the ring. Protected traffic can also be provisioned between any pair of OADM nodes, except that either the working or the protected path must be regenerated in the hub node.

Protected traffic saturates a channel in a hubbed ring, that is, no channel reuse is possible. However, the same channel can be reused in different sections of the ring by provisioning unprotected multi-hop traffic. From a transmission point of view, this network topology is similar to two bidirectional point-to-point links with OADM nodes.

Figure 4-41 Hubbed Ring

Multi-hubbed Rings

A multi-hubbed ring (Figure 4-42) is based on the hubbed ring topology, except that two or more hub nodes are added. Protected traffic can only be established between the two hub nodes. Protected traffic can be provisioned between a hub node and any OADM node only if the allocated wavelength channel is regenerated through the other hub node. Multi-hop traffic can be provisioned on this ring. From a transmission point of view, this network topology is similar to two or more point-to-point links with OADM nodes.

Figure 4-42 Multi-hubbed Ring

Any-to-Any Rings

The any-to-any ring topology shown in Figure 4-43 contains only reconfigurable OADM (ROADM) nodes, or ROADM nodes with Optical Service Channel (OSC) regeneration or amplifier nodes. This topology potentially allows you to route every wavelength from any source to any destination node inside the network.

Figure 4-43 Any-to-Any Ring

Meshed Rings

The meshed ring topology (Figure 4-44 does not use hubbed nodes; only amplified and passive OADM nodes are present. Protected traffic can be provisioned between any two nodes; however, the selected channel cannot be reused in the ring. Unprotected multi-hop traffic can be provisioned in the ring. A meshed ring must be designed to prevent ASE lasing. This is done by configuring a particular node as an anti-ASE node. An anti-ASE node can be created in two ways:

Equip an OADM node with 32MUX-O cards and 32DMX-O cards. This solution is adopted when the total number of wavelengths deployed in the ring is higher than ten. OADM nodes equipped with 32MUX-O cards and 32DMX-O cards are called full OADM nodes.

When the total number of wavelengths deployed in the ring is lower than ten, the anti-ASE node is configured by using an OADM node where all the channels that are not terminated in the node are configured as "optical pass-through." In other words, no channels in the anti-ASE node can travel through the express path of the OADM node.

Figure 4-44 Meshed Ring

Linear Configurations

Linear configurations are characterized by the use of two terminal nodes (west and east). The terminal nodes must be equipped with a 32MUX-O card and a 32DMX-O card, or a 32WSS card with a 32DMX or 32DMX-O card. OADM or line amplifier nodes can be installed between the two terminal nodes. Only unprotected traffic can be provisioned in a linear configuration. Figure 4-45 shows five ONS 15454 nodes in a linear configuration with an OADM node.

Figure 4-45 Linear Configuration with an OADM Node

Figure 4-46 shows five ONS 15454 nodes in a linear configuration without an OADM node.

Figure 4-46 Linear Configuration without an OADM Node

Single-Span Link

Single-span link is a type of linear configuration characterized by a single-span link with preamplification and post-amplification. A span link is also characterized by the use of two terminal nodes (west and east). The terminal nodes are usually equipped with a 32MUX-O card and a 32DMX-O card. However, a 32WSS card and a 32DMX or a 32DMX-O card can be installed. Software R4.6 and higher also supports single-span links with AD-4C-xx.x cards. Only unprotected traffic can be provisioned on a single-span link.

Figure 4-47 shows ONS 15454s in a single-span link. Eight channels are carried on one span. Single-span link losses apply to OC-192 LR ITU cards. The optical performance values are valid assuming that the sum of the OADM passive nodes insertion losses and the span losses does not exceed 35 dB.

Figure 4-47 Single-Span Link

Hybrid Networks

The hybrid network configuration is determined by the type of node that is used in an ONS 15454 network. Along with TDM nodes, the ONS 15454 supports the following hybrid node types: 1+1 protected flexible terminal, scalable terminal, hybrid terminal, hybrid OADM, hybrid line amplifier, and amplified TDM.

Figure 4-48 shows ONS 15454s in a hybrid TDM and DWDM configurations.

Figure 4-48 Hybrid Network Example

DWDM and TDM layers can be mixed in the same node; however they operate and are provisioned independently. The following TDM configurations can be added to a hybrid network:

Point-to-Point

Linear ADM

BLSR

Path protection

Figure 4-49 shows ONS 15454s in a hybrid point-to-point configuration.

Figure 4-49 Hybrid Point-to-Point Network Example

Figure 4-50 shows ONS 15454s in a hybrid linear ADM configuration.

Figure 4-50 Hybrid Linear ADM Network Example

Figure 4-51 shows ONS 15454s in a hybrid BLSR configuration.

Figure 4-51 Hybrid BLSR Network Example

Figure 4-52 shows ONS 15454s in a hybrid path protection configuration.

Figure 4-52 Hybrid Path Protection Network Example

DWDM Network Topology Discovery

Each ONS 15454 DWDM node has a network topology discovery function that can:

Identify other ONS 15454 DWDM nodes in an ONS 15454 DWDM network.

Identify the different types of DWDM networks.

Identify when the DWDM network is complete and when it is incomplete.

ONS 15454 DWDM nodes use node services protocol (NSP) to automatically update nodes whenever a change in the network occurs. NSP uses two information exchange mechanisms: hop-by-hop message protocol and broadcast message protocol. Hop-by-hop message protocol elects a master node and exchanges information between nodes in a sequential manner simulating a token ring protocol as follows:

Each node that receives a hop-by-hop message passes it to the next site according to the ring topology and the line direction from which the token was received.

The message originator always receives the token after it has been sent over the network.

Only one hop-by-hop message can run on the network at any one time.

NSP broadcast message protocol distributes information that is to be shared by all ONS 15454 DWDM nodes on the same network. Broadcast message delivery is managed in an independent way from delivery of the two tokens. Moreover, no synchronization among broadcast messages is required; every node is authorized to send a broadcast message any time it is necessary.

Optical Performance

This section provides optical performance information for ONS 15454 DWDM networks. The performance data is a general guideline based upon the network topology, node type, client cards, fiber type, number of spans, and number of channels. The maximum number of nodes that can be in an ONS 15454 DWDM network is 16. The DWDM topologies and node types covered in this section are shown in Table 4-26.

Table 4-26 Supported Topologies, and Node Types

Number of Channels
Fiber Type
Topologies
Node Type

32

SMF-281

E-LEAF2

TW-RS3

Ring

Linear

Linear without OADM

Hub

Active OADM

Passive OADM

Terminal

Line

OSC regeneration

16

SMF-28

Ring

Linear

Linear without OADM

Hub

Active OADM

Passive OADM

Terminal

Line

OSC regeneration

8

SMF-28

Linear without OADM

Terminal

Line

1 SMF-28 = single-mode fiber 28

2 E-LEAF = enhanced large effective area fiber

3 TW-RS = TrueWave reduced slope fiber


The following tables provide optical performance estimates for open and closed ONS 15454 rings and linear networks with OADM nodes.

Table 4-27 shows the optical performance for a 32-channel hubbed ring SMF fiber. Span losses shown in the table assume:

OADM nodes have a loss of 16 dB and equal span losses.

Optical Preamplifier (OPT-PRE) and Optical Booster (OPT-BST) amplifiers are installed in all nodes.

The OPT-PRE amplifier switches to control power whenever the span loss is higher than 27 dB.

Table 4-27 Span Loss for 32-Channel Ring and Linear Networks with OADM Nodes Using SMF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

34 dB

26 dB

26 dB

36 dB

37 dB

33 dB

30 dB

32 dB

34 db

30 dB

2

28 dB

21 dB

20 dB

30 dB

31 dB

28 dB

25 dB

27 Db

29 dB

25 dB

3

26 dB

17 dB

15 dB

28 dB

29 dB

26 dB

23 dB

25 dB

26 dB

23 dB

4

24 dB

25 dB

26 dB

23 dB

20 dB

22 dB

24 dB

20 dB

5

22 dB

24 dB

25 dB

22 dB

16 dB

20 dB

23 dB

16 dB

6

20 dB

22 dB

24 dB

19 dB

17 dB

21 dB

7

181 dB

21 dB

23 dB

16 dB

19 dB

1 0.5 dB of OSNR impairment recovered by FEC margin @ BER > 10-6


Table 4-28 shows the optical performance for 16-channel networks using SMF fiber. Span loss values assume the following:

OADM nodes have a loss of 16 dB and equal span losses.

All nodes have OPT-PRE and OPT-BST amplifiers installed.

The OPT-PRE amplifier switches to control power whenever the span loss is higher than 27 dB.

Table 4-28 Span Loss for 16-Channel Ring and Linear Networks with OADM Nodes Using SMF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

37dB

29 dB

29 dB

37 dB

37 dB

36 dB

33 dB

35 dB

37 db

33 dB

2

21 dB

25 dB

24 dB

33dB

34 dB

31 dB

28 dB

30 Db

32 dB

28 dB

3

28 dB

22 dB

21 dB

30 dB

31 dB

28 dB

26 dB

27 dB

29 dB

26 dB

4

26 dB

19 dB

17 dB

28 dB

29 dB

26 dB

24dB

25 dB

27 dB

24 dB

5

25 dB

26 dB

27 dB

25 dB

22 dB

24 dB

25 dB

22 dB

6

24 dB

25 dB

26 dB

24 dB

21 dB

23 dB

24 dB

21 dB

7

23 dB

25 dB

25 dB

23 dB

19 dB

22 dB

24 dB

19 dB


Table 4-29 shows the optical performance for 32-channel networks using TW-RS fiber. Span loss values assume the following:

OADM nodes have a loss of 16 dB and equal span losses.

All nodes have OPT-PRE and OPT-BST amplifiers installed.

The OPT-PRE amplifier switches to control power whenever the span loss is higher than 27 dB.

Table 4-29 Span Loss for 32-Channel Ring and Linear Networks with OADM Nodes Using TW-RS Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

37dB

29 dB

29 dB

37 dB

37 dB

36 dB

33 dB

35 dB

37 db

33 dB

2

21 dB

25 dB

24 dB

33dB

34 dB

31 dB

28 dB

30 Db

32 dB

28 dB

3

28 dB

22 dB

21 dB

30 dB

31 dB

28 dB

26 dB

27 dB

29 dB

26 dB

4

26 dB

19 dB

17 dB

28 dB

29 dB

26 dB

24dB

25 dB

27 dB

24 dB

5

25 dB

26 dB

27 dB

25 dB

22 dB

24 dB

25 dB

22 dB

6

24 dB

25 dB

26 dB

24 dB

21 dB

23 dB

24 dB

21 dB

7

23 dB

25 dB

25 dB

23 dB

19 dB

22 dB

24 dB

19 dB


Table 4-30 shows the optical performance for 32-channel networks using E-LEAF fiber. Span loss values assume the following:

OADM nodes have a loss of 16 dB and equal span losses.

All nodes have OPT-PRE and OPT-BST amplifiers installed.

The OPT-PRE amplifier switches to control power whenever the span loss is higher than 27 dB.

Table 4-30 Span Loss for 32-Channel Ring and Linear Networks with OADM Nodes Using E-LEAF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

34dB

26 dB

26 dB

36 dB

34 dB

33 dB

30 dB

32 dB

34 db

30 dB

2

29 dB

21 dB

20 dB

31 dB

32 dB

29 dB

26 dB

28 dB

30 dB

26 dB

3

27 dB

17 dB

15 dB

29 dB

30 dB

26 dB

23 dB

25 dB

27 dB

23 dB

4

23 dB

25 dB

28 dB

23 dB

20 dB

22 dB

24 dB

20 dB

5

21 dB

23 dB

26 dB

22 dB

16 dB

20 dB

23 dB

16 dB

6

18 dB

21 dB

24 dB

19 dB

17 dB

21 dB

7

15 dB

19 dB

23 dB

16 dB

19 dB


Optical Performance for Linear Networks Without OADM Nodes

The following tables list the reference optical performances for linear networks without OADM nodes. Table 4-31 shows the optical performance for 32-channel linear networks using SMF fiber. Span loss values assume the following:

No OADM nodes are installed

Only OPT-PRE amplifiers are installed

Span losses are equal

Table 4-31 Span Loss for 32-Channel Ring and Linear Networks without OADM Nodes Using SMF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

34 dB

26 dB

26 dB

36 dB

37 dB

33 dB

30 dB

32 dB

32 dB

30 dB

2

27 dB

21 dB

20 dB

29 dB

30 dB

27 dB

24 dB

27 dB

26 dB

24 dB

3

24 dB

18 dB

18 dB

26 dB

26 dB

24 dB

21 dB

25 dB

23 dB

21 dB

4

23 dB

17 dB

16 dB

24 dB

24 dB

22 dB

20 dB

22 dB

21 dB

20 dB

5

21 dB

22 dB

23 dB

20 dB

19 dB

20 dB

20 dB

19 dB

6

20 dB

21 dB

22 dB

20 dB

18 dB

17 dB

19 dB

18 dB

7

19 dB

20 dB

21 dB

19 dB

17 dB

18 dB

17 dB


Table 4-32 shows the optical performance for 32-channel linear networks using TW-RS fiber. Span loss values assume the following:

No OADM nodes are installed.

Only OPT-PRE amplifiers are installed.

Span losses are equal.

Table 4-32 Span Loss for 32-Channel Ring and Linear Networks without OADM Nodes Using TW-RS Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

34 dB

26 dB

26 dB

36 dB

34 dB

33 dB

30 dB

32 dB

34 dB

30 dB

2

28 dB

21 dB

21 dB

30 dB

31 dB

28 dB

25 dB

27 dB

28 dB

25 dB

3

26 dB

18 dB

18 dB

27 dB

28 dB

25 dB

23 dB

24 dB

26 dB

23 dB

4

24 dB

17 dB

16 dB

26 dB

26 dB

24 dB

21 dB

23 dB

24 dB

21 dB

5

23 dB

24 dB

25 dB

23 dB

19 dB

22 dB

23 dB

19 dB

6

23 dB

24 dB

24 dB

22 dB

18 dB

21 dB

23 dB

18 dB

7

21 dB

23 dB

23 dB

20 dB

17 dB

19 dB

21 dB

15 dB


Table 4-33 shows the optical performance for 32-channel linear networks using E-LEAF fiber. Span loss values assume the following:

No OADM nodes are installed.

Only OPT-PRE amplifiers are installed.

Span losses are equal.

Table 4-33 Span Loss for 32-Channel Ring and Linear Networks without OADM Nodes Using E-LEAF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

34 dB

26 dB

26 dB

36 dB

34 dB

33 dB

30 dB

32 dB

34 dB

30 dB

2

28 dB

21 dB

21 dB

30 dB

31 dB

28 dB

25 dB

27 dB

28 dB

25 dB

3

26 dB

18 dB

18 dB

27 dB

28 dB

25 dB

23 dB

24 dB

26 dB

23 dB

4

24 dB

17 dB

16 dB

26 dB

26 dB

24 dB

21 dB

23 dB

24 dB

21 dB

5

23 dB

24 dB

25 dB

23 dB

19 dB

22 dB

23 dB

19 dB

6

21 dB

23 dB

24 dB

22 dB

18 dB

21 dB

23 dB

18 dB

7

20 dB

21 dB

23 dB

20 dB

17 dB

19 dB

21 dB

15 dB


Table 4-34 shows the optical performance for 16-channel linear networks using SMF fiber. Span loss values assume the following:

No OADM nodes are installed

Only OPT-PRE amplifiers are installed

Span losses are equal

The minimum channel power is 4 dBm

Wavelengths are picked up without any restriction from Bands 4 and 5 (1542.14 to 1545.51 nm).

Table 4-34 Span Loss for 16-Channel Ring and Linear Networks without OADM Nodes Using SMF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

37 dB

29 dB

29 dB

37 dB

37 dB

36 dB

33 dB

35 dB

37 dB

33 dB

2

32 dB

24 dB

24 dB

33 dB

34 dB

31 dB

28 dB

30 dB

32 dB

28 dB

3

28 dB

21 dB

21 dB

30 dB

31 dB

27 dB

25 dB

27 dB

28 dB

25 dB

4

26 dB

20 dB

19 dB

28 dB

28 dB

25 dB

23 dB

24 dB

26 dB

23 dB

5

25 dB

19 dB

18 dB

26 dB

27 dB

24 dB

22 dB

23 dB

25 dB

22 dB

6

24 dB

18 dB

17 dB

25 dB

26 dB

23 dB

21 dB

22 dB

24 dB

21 dB

7

22 dB

16 dB

15 dB

24 dB

24 dB

22 dB

20 dB

21 dB

22 dB

20 dB


Table 4-35 shows the optical performance for 8-channel linear networks using SMF fiber. Span loss values assume the following:

No OADM nodes are installed

Only OPT-PRE amplifiers are installed

Span losses are equal.

Table 4-35 Span Loss for 8-Channel Ring and Linear Networks without OADM Nodes Using SMF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

37 dB

31 dB

31 dB

37 dB

37 dB

37 dB

35 dB

37 dB

37 dB

35 dB

2

34 dB

27 dB

26 dB

36 dB

37 dB

33 dB

30 dB

32 dB

34 dB

30 dB

3

31 dB

24 dB

23 dB

33 dB

34 dB

30 dB

27 dB

29 dB

31 dB

27 dB

4

29 dB

31 dB

31 dB

28 dB

25 dB

27 dB

29 dB

25 dB

5

27 dB

29 dB

30 dB

27 dB

24 dB

26dB

27 dB

24 dB

6

28 dB


Optical Performance for ROADM Rings and Linear Networks

The following tables list the reference optical performances for ROADM rings and linear networks. Table 4-36 shows the optical performance for 32-channel linear or ring networks using SMF fiber with only ROADM nodes installed. Span loss values assume the following:

All nodes in the ring or linear network are ROADM

OPT-PRE and OPT-BST amplifiers are installed

Span losses are equal

Table 4-36 Span Loss for 32-Channel Ring or Linear Networks with all ROADM Nodes Using SMF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

34 dB

26 dB

26 dB

36 dB

37 dB

33 dB

27 dB

32 dB

34 dB

2

29dB

21 dB

21 dB

32 dB

33 dB

29 dB

27 dB

28 dB

30 dB

3

28 dB

19 dB

18 dB

30 dB

31 dB

27 dB

25 dB

26 dB

27 dB

4

29 dB

28 dB

29 dB

25 dB

23 dB

24 dB

26 dB

5

25 dB

27 dB

28 dB

24 dB

22 dB

22 dB

24 dB

6

24 dB

26 dB

27 dB

22 dB

21 dB

21 dB

23 dB

7

23 dB

25 dB

26 dB

21 dB

20 dB

20 dB

22 dB

8

22 dB

24 dB

25 dB

20 dB

NA

18 dB

20 dB

9

21 dB

23 dB

24 dB

19 dB

27 dB

17 dB

19 dB

10

20 dB

23 dB

23 dB

18 dB

25 dB

14 dB

18 dB

11

19 dB

22 dB

23 dB

16 dB

23 dB

19 dB

12

16 dB

21 dB

22 dB

14 dB

22 dB

18 dB

13

21 dB

22 dB

21 dB

14

20 dB

21 dB

20 dB

15

20 dB

20 dB

20 dB


Table 4-37 shows the optical performance for 32-channel linear or ring network with ROADM and OADM nodes using SMF fiber. Span loss values assume the following:

All nodes in the ring or linear network are ROADM or OADM

OPT-PRE and OPT-BST amplifiers are installed

Span losses are equal

Table 4-37 Span Loss for 32-Channel Ring and Linear Networks with ROADM and OADM Nodes Using SMF Fiber


10 Gb/s
2.5 Gb/s
Number of Spans
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

30 dB

23 dB

24 dB

31 dB

34 dB

31 dB

28 dB

29 dB

30 dB

28 dB

2

26 dB

19 dB

19 dB

27dB

27 dB

26 dB

23 dB

26 dB

27 dB

23 dB

3

23 dB

25 dB

26 dB

23 dB

21 dB

23 dB

24 dB

21 dB

4

21 dB

23 dB

24 dB

22 dB

18 dB

21 dB

22 dB

18 dB

5

20 dB

22 dB

23 dB

20 dB

13 dB

20 dB

21 dB

13 dB

6

17 dB

19 dB

22 dB

18 dB

17 dB

18 dB

7

151 dB

17 dB

21 dB

16 dB

151 dB

16 dB

1 0.5 dB of OSNR impairment recovered by FEC margin @ BER > 10-6


The following tables show the pass/fail criteria for eight and sixteen ROADM nodes. Table 4-38 shows the pass/fail criteria for eight ROADM nodes (seven spans) required for any-to-any node circuit reconfigurations:

All nodes in the ring are ROADM.

Span losses are equal.

Table 4-38 Pass/Fail Criteria for 32-Channel, 8-Node ROADM Rings Using SMF Fiber

Span Loss (dB)
Amplifiers Installed
10 Gb/s
2.5 Gb/s
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

OPT-PRE

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

2

OPT-PRE

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

3

OPT-PRE

Yes

<7

<7

Yes

Yes

Yes

<7

Yes

Yes

4

OPT-PRE

Yes

<7

<7

Yes

Yes

Yes

<7

Yes

Yes

5

OPT-PRE

Yes

<7

<7

Yes

Yes

Yes

<7

Yes

Yes

6

OPT-PRE

Yes

<7

<7

Yes

Yes

Yes

<7

Yes

Yes

7

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

<7

Yes

Yes

8

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

9

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

10

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

11

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

12

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

13

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

14

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes

15

OPT-PRE OPT-BST

Yes

<7

<7

Yes

Yes

Yes

Yes

Yes

Yes


Table 4-39 shows the pass/fail criteria for 16 ROADM nodes (15 spans) required for any-to-any node circuit reconfigurations.

All nodes in the ring are ROADM.

Span losses are equal.

Table 4-39 Pass/Fail Criteria for 32-Channel, 16-Node ROADM Rings Using SMF Fiber

Span Loss (dB)
Amplifiers Installed
10 Gbps
2.5 Gbps
Class A
Class B
Class C
Class I
Class D
Class E
Class F
Class G
Class H
Class J

1

OPT-PRE

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

2

OPT-PRE

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

3

OPT-PRE

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

4

OPT-PRE

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

5

OPT-PRE

<151

<151

<151

Yes

Yes

<15

<15

<15

<15

6

OPT-PRE

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

7

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

8

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

9

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

10

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

11

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

12

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

13

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

14

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

15

OPT-PRE OPT-BST

<151

<151

<151

Yes

Yes

<151

<151

<151

<151

1 Cisco MetroPlanner calculates the maximum ring circumference and number of nodes that can be supported.


Optical Performance for Single-Span Networks

Table 4-40 lists the span loss for a single-span link configuration with eight channels. The optical performance for this special configuration is given only for Classes A and C. This configuration assumes a maximum channel capacity of eight channels (8 dBm nominal channel power) used without any restrictions on the 32 available channels.

Table 4-40 Span Loss for Single-Span Link with Eight Channels

Node Config
Number of Spans
10 Gb/s
2.5 Gb/s
Class A
Class B
Class C
Class D
Class E
Class F
Class G

With OSCM

1

37 dB

37 dB

With OSC-CSM

1

35 dB

35 dB


Table 4-41 lists the span loss for a single-span link configuration with 16 channels. The optical performance for this special configuration is given only for Class A and Class C. This configuration assumes a maximum channel capacity of 16 channels (5 dBm nominal channel power) used without any restrictions on the 32 available channels.

Table 4-41 Span Loss for Single-Span Link with 16 Channels

Node Config
Number of Spans
10 Gb/s
2.5 Gb/s
Class A
Class B
Class C
Class D
Class E
Class F
Class G

With OSCM or OSC-CSM cards

1

35 dB

35 dB


Table 4-42 lists the span loss for a single-span link configuration with AD-1C-x.xx cards, OPTPRE amplifiers, and OPT-BST amplifiers. The single-span link with a flexible channel count is used both for transmitting and receiving. If dispersion compensation is required, a DCU can be used with an OPT-PRE amplifier. The optical performance for this special configuration is given for Classes A through G (8 dBm nominal channel power) used without any restrictions on the 32 available channels.

Table 4-42 Span Loss for Single-Span Link with AD-1C-xx.x Cards, OPT-PRE Amplifiers, and OPT-BST Amplifiers

Node Config
Number of Spans
10 Gb/s
2.5 Gb/s
Class A
Class B
Class C
Class D
Class E
Class F
Class G

With OSCM cards1

1

37 dB

31 dB

31 dB

37 dB

37 dB

37 dB

37 dB

Hybrid with OSC-CSM cards2

1

35 dB

31 dB

31 dB

35 dB

35 dB

35 dB

35 dB

1 OSCM sensitivity limits the performance to 37 dB.

2 OSC-CSM sensitivity limits the performance to 35 dB when it replaces the OSCM.


Table 4-43 lists the span loss for a single-span link configuration with one channel and OPT-BST amplifiers. The optical performance for this special configuration is given for Classes A through G. Classes A, B, and C use 8 dBm nominal channel power. Classes D, E, F, and G use 12 dBm nominal channel power. There are no restriction on the 32 available channels. That is, a line card, transponder, or muxponder wavelength can be extracted from the 32 available wavelengths. Also, the optical service channel is not required.

Table 4-43 Span Loss for Single-Span Link with One Channel and OPT-BST Amplifiers

Number of Spans
10 Gb/s
2.5 Gb/s
Class A
Class B
Class C
Class D
Class E
Class F
Class G

1

20 to 30 dB

17 to 26 dB

17 to 28 dB

Unprotected from 29 to 41 dB Protected from 25 to 41 dB

Unprotected from 28 to 37 dB Protected from 24 to 40 dB

Unprotected from 21 to 34 dB Protected from 18 to 34 dB

From 23 to 36 dB


Automatic Power Control

Each ONS 15454 DWDM node has an automatic power control (APC) feature that performs the following functions:

Increases optical network resilience by keeping the per channel power constant for both expected and unexpected variations in the number of channels.

Compensates for optical network degradation (aging effects).

Simplifies the installation and upgrade of DWDM optical networks by automatically calculating amplifiers set-points.


Note These functions are performed by software algorithms performed on the OPT-BST, OPT-PRE, and the TCC2/TCC2P cards.


Amplifier software uses a control gain loop with fast transient suppression in order to keep the channel power constant regardless of any variation in the number of channels. Amplifiers monitor the input power variation and change the output power according to the calculated gain set point. Shelf controller software emulates the control output power loop to adjust for fiber degradation. To perform this function, the TCC2/TCC2P needs to know the channel distribution, which is provided by a signaling protocol, and the expected per channel power, which is provisioned by user. Using this method, the TCC2/TCC2P is able to compare the actual amplifier output power with the expected amplifier output power that is matched by modifying the set points if there are any discrepancies.

APC at the Amplifier

In constant gain mode, the amplifier power out control loop performs the following input and output power calculations, where G represents the gain and t represents time:

Pout (t) = G * Pin (t) (mW)

Pout (t) = G + Pin (t) (dB)

In a power equalized optical system the total input power is proportional to the number of channels. Amplifier software compensates for any variation of the input power as a variation in the number of channels carried by the incoming signal.

Amplifier software identifies changes in the read input power in two different instances, t1 and t2 as a change in the carried traffic. The letters m and n below represent two different channel numbers. Pin/ch represents the per channel input power as follows:

Pin (t1) = nPin/ch

Pin (t2) = mPin/ch

Amplifier software applies the variation in the input power to the output power with a reaction time that is a fraction of a millisecond. This keeps the power constant on each channel at the output amplifier, even during a channel upgrade or a fiber cut.

Amplifier parameters are configured using east and west conventions for ease of use. Selecting west provisions parameters for the preamplifier receiving from the west and the booster amplifier transmitting to the west. Selecting east provisions parameters for the preamplifiers receiving from the east and the booster amplifier transmitting to the east.

Starting from the expected per channel power, the amplifiers are automatically able to calculate the gain set-point when the first channel is provisioned. An amplifier gain set-point is calculated in order to make it equal to the loss of the span preceding the amplifier itself. Once the gain is calculated, the set point is no longer changed by the amplifier. Amplifier gain is recalculated every time the number of provisioned channels returns to zero. If you need to force a recalculation of the gain, move the number of channels back to zero.

APC at the Node

The amplifier calculates gain set points to compensate for span loss on the preceding node. Changing network conditions that affect span loss (aging fiber, aging components, or changes in operating conditions) makes the gain calculation invalid. The goal of APC at the node layer is to recalculate the gain to make it equal to the span loss.

APC corrects the gain or express variable optical attenuator (VOA) set points by calculating the difference between the power value read by the photodiodes and the expected power value calculated using the following parameters:

Provisioned per channel power value

Channel distribution (the number of express, add, and drop channels in the node)

ASE estimation

Channel distribution is determined by the sum of provisioned and failed channels. Information about provisioned wavelengths is sent to APC on the applicable nodes during the circuit creation phase. Information about failed channels is collected through a signaling protocol that monitors alarms on ports in the applicable nodes and distributes that information to all the other nodes in the network.

ASE calculations purify the noise from the power level reported from the photodiode. Each amplifier can compensate for its own noise (SNR) but cascaded amplifiers cannot compensate for ASE generated by preceding nodes. The ASE effect increases when the number of channels decreases; therefore, a correction factor must be calculated in each amplifier of the ring to compensate for ASE build-up.

APC is a network-level feature. The APC algorithm designates a master node that is responsible for starting APC hourly or every time a new circuit is provisioned or removed. Every time the master node signals for APC to start, gain and VOA set points are evaluated on all nodes in the network. If corrections are needed in different nodes, they are always performed sequentially following the optical paths starting from the master node.

APC corrects the power level only if the variation exceeds the hysteresis thresholds of +/-0.5 dB. Any power level fluctuation within the threshold range is skipped since it is considered negligible. Since APC is designed to follow slow time events, APC skips corrections greater than 3 dB that is the total typical aging margin provisioned by the user during the network design phase. When the first channel is provisioned or amplifiers are turned up for the first time, APC does not apply the 3 dB rule. In this case APC corrects all the power differences to turn-up the node.


Note Software R4.6 and higher does not report corrections that are not performed and exceed the 3 dB correction factor to management interfaces (CTC, CTM, and TL1).


To avoid large power fluctuations, APC adjusts power levels incrementally. The maximum power correction applied each iteration is +/-0.5 dB until the optimal power level is reached. For example a gain deviation of 2 dB is corrected in four steps. Each of the four steps requires a complete APC check on every node in the network. APC can correct up to a maximum of 3 dB on an hourly basis. If degradation occurs in a longer time period, APC will compensate for it by using all margins provisioned by the user during installation.

When no margin is available adjustments cannot be made because set points exceed ranges and APC communicates the event to CTC, CTM, and TL1 through an APC Fail condition. APC will clear the APC fail condition when set-points return to the allowed ranges.

APC cannot be started or disabled by the user. APC automatically disables itself when:

A HW FAIL alarm is raised by any card in any of the network nodes.

An MEA (Mismatch Equipment Alarm) is raised by any card in any of the network nodes.

An Improper Removal alarm is raised by any card in any of the network nodes.

Gain Degrade, Power Degrade, and Power Fail Alarms are raised by the output port of any amplifier card in any of the network nodes.

A VOA degrade or Fail alarm is raised by any of the cards in any of the network nodes.

The APC state (Enable/Disable) is located on every node and can be retrieved by the CTC or TL1 interface. If an event that disables APC occurs in one of the network nodes, APC will be disabled on all the others and the APC state changes to DISABLE - INTERNAL. The DISABLE state is raised only by the node where the problem occurred to simplify troubleshooting.

APC raises the following standing conditions at the port level in CTC, TL1, and SNMP:

APC Out of Range - APC cannot assign a new setpoint for a parameter this is allocated to a port because the new setpoint exceeds the parameter range.

APC Correction Skipped - APC skipped a correction to one parameter allocated to a port because the difference between the expected and current values exceeds the +/- 3 dB security range.

After the error condition is cleared, signaling protocol enables APC on the network and the APC DISABLE - INTERNAL condition is cleared. Because APC is required after channel provisioning to compensate for ASE effects, all optical channel network connection (OCHNC) circuits that you provision during the disabled APC state are kept in the Out-of-Service and Autonomous, Automatic In-Service (OOS-AU,AINS [ANSI]) or Unlocked-disabled,automaticInService (ETSI) service state until APC is enabled. OCHNCs automatically go into the In-Service and Normal (ISNR [ANSI]) or Unlocked-enabled (ETSI) service state only after APC is enabled.

Managing APC

The automatic power control status is indicated by the following four APC states shown in the node view status area:

Enable—APC is enabled.

Disable - Internal—APC has been automatically disabled for an internal cause.

Disable - User—APC was disabled manually by a user.

Not Applicable—The node is provisioned to Metro Access or Not DWDM, which do not support APC.

You can view the automatic power control information and disable and enable APC manually on the Maintenance > DWDM > APC subtab shown in Figure 4-53.


Caution When APC is disabled, aging compensation is not applied and circuits cannot be activated. Do not disable APC unless it is required for specific maintenance or troubleshooting tasks. Always enable APC as soon as the tasks are completed.

Figure 4-53 Automatic Power Control

The APC subtab provides the following information:

Slot ID—The ONS 15454 slot number for which APC information is shown.

Port—The port number for which APC information is shown.

Card—The card for which power control information is shown.

Last Modification—Date and time APC last modified a setpoint for the parameters shown in Table 4-44.

Last Check—Date and time APC last verified the setpoints for the parameters shown in Table 15-2.

Table 4-44 APC-Managed Parameters

Card
Port
Parameters

OPT-BST

LINE-3-TX

Gain

Total Signal Output Power

OPT-PRE

LINE-1-TX

Gain

Total Signal Output Power

AD-xB-xx.x

LINE-1-TX

BAND-i-TX

VOA Target Attenuation

AD-1C-xx.x

AD-2C-xx.x

LINE-1-TX

VOA Target Attenuation

AD-4C-xx.x

LINE-1-TX

CHAN-i-TX

VOA Target Attenuation

32DMX

LINE-1-TX

VOA Target Attenuation


ROADM Power Equalization Monitoring

Reconfigurable OADM (ROADM) nodes allow you to monitor the 32WSS card equalization functions on the Maintenance > DWDM > Power Monitoring subtab as shown in Figure 4-54. The tab shows the input channel power (Padd), the express or pass-through (Ppt) power and the power level at output (Pout).

Figure 4-54 Power Monitoring Subtab

Span Loss Verification

Span loss measurements can be performed from the Maintenance > DWDM > WDM Span Check subtab as shown in Figure 4-55. The CTC span check compares the far-end OSC power with the near-end OSC power. A "Span Loss Out of Range" condition is raised when the measured span loss is higher than the maximum expected span loss. It is also raised when the measured span loss is lower than the minimum expected span loss and the difference between the minimum and maximum span loss values is greater than 1 dB. The minimum and maximum expected span loss values are calculated by Cisco MetroPlanner for the network and imported into CTC. However, you can manually change the minimum and expected span loss values.

CTC span loss measurements provide a quick span loss check and are useful whenever changes to the network occur, for example after you install equipment or repair a broken fiber. CTC span loss measurement resolutions are:

+/- 1.5 dB for measured span losses between 0 and 25 dB

+/- 2.5 dB for measured span losses between 25 and 38 dB

For ONS 15454 span loss measurements with higher resolutions, an optical time domain reflectometer (OTDR) must be used.

Figure 4-55 Span Loss Verification

Automatic Node Setup

Automatic node setup (ANS) is a TCC2/TCC2P function that adjusts values of the VOAs on the DWDM channel paths to equalize the per-channel power at the amplifier input. This power equalization means that at launch, all the channels have the same amplifier power level, independent from the input signal on the client interface and independent from the path crossed by the signal inside the node. This equalization is needed for two reasons:

1. Every path introduces a different penalty on the signal that crosses it.

2. Client interfaces add their signal to the ONS 15454 DWDM ring with different power levels.

To support ANS, the integrated VOAs and photodiodes are provided in the following ONS 15454 DWDM cards:

OADM band cards (AD-xB-xx.x) express and drop path

OADM channel cards (AD-xC-xx.x) express and add path

4-Channel Terminal Multiplexer/Demultiplexer (4MD-xx.x) input port

32-Channel Terminal Multiplexer (32MUX-O) input port

32-Channel Wavelength Selective Switch (32WSS) input port

32-Channel Terminal Demultiplexer (32DMX-O and 32DMX) output port

Optical power is equalized by regulating the VOAs. Based on the expected per-channel power, ANS automatically calculates the VOA values by:

Reconstructing the different channels paths

Retrieving the path insertion loss (stored in each DWDM transmission element)

VOAs operate in one of three working modes:

Automatic VOA Shutdown - In this mode, the VOA is set at maximum attenuation value. Automatic VOA shutdown mode is set when the channel is not provisioned to ensure system reliability in the event that power is accidentally inserted.

Constant Attenuation Value - In this mode, the VOA is regulated to a constant attenuation independent from the value of the input signal. Constant attenuation value mode is set on the following VOAs:

OADM band card VOAs on express and drop paths (as operating mode)

OADM channel card VOAs during power insertion startup

The multiplexer/demultiplexer card VOAs during power insertion startup

AD-xC cards on EXP-TX ports

AD-4C cards on CHAN-TX ports

AD-xB cards on all port where a VOA is present

32DMX cards on COM-RX

Constant Power Value - In this mode, the VOA values are automatically regulated to keep a constant output power when changes occur to the input power signal. This working condition is set on OADM channel card VOAs as "operating" and on 32MUXO, 32WSS, 32DMX-O, and 32DMX card VOAs as "operating mode."

In the normal operating mode, OADM band card VOAs are set to a constant attenuation, while OADM channel card VOAs are set to a constant power. ANS requires the following VOA provisioning parameters to be specified:

Target attenuation (OADM band card VOA and OADM channel card startup)

Target power (channel VOA)

To allow you to modify ANS values based on your DWDM deployment, provisioning parameters are divided into two contributions:

Reference Contribution (read only) - Set by ANS.

Calibration Contribution (read and write) - Set by user.

The ANS equalization algorithm requires knowledge of the DWDM transmission element layout as follows:

The order in which the DWDM elements are connected together on the express paths

Channels that are dropped and added

Channels or bands that have been configured as pass through

ANS assumes that every DWDM port has a line direction parameter that is either West to East (W-E) or East to West (E-W). ANS automatically configures the mandatory optical connections according to following main rules:

Cards equipped in Slots 1 to 6 have a drop section facing west.

Cards equipped in Slots 12 to 17 have a drop section facing east.

Contiguous cards are cascaded on the express path.

4MD-xx.x and AD-xB-xx.x are always optically coupled.

A 4MD-xx.x absence forces an optical pass-through connection.

Transmit (Tx) ports are always connected to receive (Rx) ports.

Optical patch cords are passive devices that are not autodiscovered by ANS. However, optical patch cords are used to build the alarm correlation graph. ANS uses CTC and TL1 as the user interfaces to:

Calculate the default connections on the NE.

Retrieve the list of existing connections.

Retrieve the list of free ports.

Create new connections or modify existing ones.

Launch ANS.

After you launch ANS, the following statuses are provided for each ANS parameter:

Success - Changed - The parameter setpoint was recalculated successfully.

Success - Unchanged - The parameter setpoint did not need recalculation.

Not Applicable - The parameter setpoint does not apply to this node type.

Fail - Out of Range - The calculated setpoint is outside the expected range.

Fail - Port in IS State - The parameter could not be calculated because the port is in service.

Optical connections are identified by the two termination points, each with an assigned slot and port. ANS checks that a new connection is feasible (according to embedded connection rules) and returns a denied message in the case of a violation.

ANS requires provisioning of the expected wavelength. When provisioning the expected wavelength, the following rules apply:

The card name is generically characterized by the card family, and not the particular wavelengths supported (for example, AD-2C for all 2-channel OADMs).

At the provisioning layer, you can provision a generic card for a specific slot using CTC or TL1.

Wavelength assignment is done at the port level.

An equipment mismatch alarm is raised when a mismatch between the identified and provisioned value occurs. The default value for the provisioned attribute is AUTO.

Automatic Node Setup Parameters

All ONS 15454 ANS parameters are calculated by Cisco MetroPlanner for nodes configured for metro core networks. (Parameters must be configured manually for metro access nodes.) Cisco MetroPlanner exports the calculated parameters to an ASCII file called "NE Update." In CTC, you can import the NE Update file to automatically provision the node. Table 4-45 shows ANS parameters arranged in east and west, transmit and receive groups.

Table 4-45 ANS Parameters

Direction
ANS Parameters

West Side - Receive

West Side Rx Min Expected Span Loss

West Side Rx Amplifier Working Mode

West Side Rx Amplifier Ch Power

West Side Rx Amplifier Gain

West Side Rx Amplifier Tilt

West Side OSC LOS Threshold

West Side Channel LOS Threshold

West Side Rx Amplifier Input Power Fail Th

West Side Add and Drop Stage Input Power

West Side Add and Drop Stage Drop Power

West Side Add and Drop Stage Band (i) Drop Power (i = 1 through 8)

West Side Add and Drop Stage Channel (i) Drop Power (i = 1 through 32)

East Side - Receive

East Side Rx Max Expected Span Loss

East Side Rx Min Expected Span Loss

East Side Rx Amplifier Working Mode

East Side Rx Amplifier Ch Power

East Side Rx Amplifier Gain

East Side Rx Amplifier Tilt

East Side OSC LOS Threshold

East Side Channel LOS Threshold

East Side Rx Amplifier Input Power Fail Th

East Side Add and Drop Stage Input Power

East Side Add and Drop Stage Drop Power

East Side Add and Drop Stage Band (i) Drop Power (i = 1 through 8

East Side Add and Drop Stage Channel (i) Drop Power (i = 1 through 32)

West Side - Transmit

West Side Tx Amplifier Working Mode

West Side Tx Amplifier Ch Power

West Side Tx Amplifier Gain

West Side Tx Amplifier Tilt

West Side Fiber Stage Input Threshold

West Side Add and Drop Stage Output Power

West Side Add and Drop Stage By-Pass Power

East Side - Transmit

East Side Tx Amplifier Working Mode

East Side Tx Amplifier Ch Power

East Side Tx Amplifier Gain

East Side Tx Amplifier Tilt

East Side Fiber Stage Input Threshold

East Side Add and Drop Stage Output Power

East Side Add and Drop Stage By-Pass Power


Viewing and Provisioning ANS Parameters

All ANS parameters can be viewed and provisioned from the node view Provisioning > WDMANS > Provisioning subtab, shown in Figure 4-56. The WDM-ANS > Provisioning > Provisioning subtab presents the parameters in the following tree view:

root

+/- East

+/- Receiving

+/- Amplifier

+/- Power

+/- Threshold

+/- Transmitting

+/- Amplifier

+/- Power

+/- Threshold

+/- West

+/- Receiving

+/- Amplifier

+/- Power

+/- Threshold

+/- Transmitting

+/- Amplifier

+/- Power

+/- Threshold

Figure 4-56 WDM-ANS Provisioning

Table 4-46 ANS-WDM > Provisioning Subtab Parameters

Tree Element
Parameters

root

Network Type (dwdm)

root +/- East +/- Receiving

East Side Rx Max Expected Span Loss

East Side Rx Min Expected Span Loss

root +/- East +/- Receiving +/- Amplifier

East Side Rx Amplifier Working Mode

East Side Rx Amplifier Ch Power

East Side Rx Amplifier Gain

East Side Rx Amplifier Tilt

root +/- East +/- Receiving +/- Power

East Side Add and Drop Input Power

East Side Add and Drop Drop Power

East Side Band n Drop Power (n = 1-8)

East Side Channel n Drop Power East (n = 1-32)

root +/- East +/- Receiving +/- Thresholds

East Side OSC LOS Threshold

East Side Channel LOS Threshold

East Side Rx Amplifier In Power Fail Threshold

root +/- East +/- Transmitting +/- Amplifier

East Side Tx Amplifier Working Mode

East Side Tx Amplifier Ch Power

East Side Tx Amplifier Gain

East Side Tx Amplifier Tilt

root +/- East +/- Transmitting +/- Power

East Side Add and Drop Output Power

East Side Add and Drop By-Pass Power

root +/- East +/- Transmitting +/- Thresholds

East Side Fiber Stage Input Threshold

root +/- West +/- Receiving

West Side Rx Max Expected Span Loss

West Side Rx Min Expected Span Loss

root +/- West +/- Receiving +/- Amplifier

West Side Rx Amplifier Working Mode

West Side Rx Amplifier Ch Power

West Side Rx Amplifier Gain

West Side Rx Amplifier Tilt

root +/- West +/- Receiving +/- Power

West Side Add and Drop Input Power

West Side Add and Drop Drop Power

West Side Band n Drop Power (n = 1-8)

West Side Channel n Drop Power (n = 1-32)

root +/- West +/- Receiving +/- Thresholds

West Side OSC LOS Threshold

West Side Channel LOS Threshold

West Side Rx Amplifier In Power Fail Threshold

root +/- West +/- Transmitting +/- Amplifier

West Side Tx Amplifier Working Mode

West Side Tx Amplifier Ch Power

West Side Tx Amplifier Gain

West Side Tx Amplifier Tilt

root +/- East +/- Transmitting +/- Power

West Side Add and Drop Output Power

West Side Add and Drop By-Pass Power

root +/- West +/- Transmitting +/- Thresholds

West Side Fiber Stage Input Threshold


The ANS parameters that appear in the WDM-ANS > Provisioning subtab depend on the node type. Table 4-47 shows the DWDN node configurations and their ANS parameters.

Table 4-47 ANS Parameters By Node Configuration

Node Configuration
Parameter Group
Parameter

Hub

Network

Network Type

Span Loss

East and West Expected Span Loss

Amplifier Tx

East and West Side Transmit Amplifier Working Mode

East and West Side Transmit Amplifier Channel Power

East and West Side Transmit Amplifier Gain

East and West Side Transmit Amplifier Tilt

Amplifier Rx

East and West Side Receive Amplifier Working Mode

East and West Side Receive Amplifier Channel Power

East and West Side Receive Amplifier Gain

East and West Side Receive Amplifier Tilt

Thresholds Tx

East and West Side Fiber Stage Input Threshold

Thresholds Rx

East and West Side Osc Los Threshold

East and West Side Channel Los Threshold

East and West Side Receive Amplifier Input Power Fail

Power

East and West Side Add and Drop Input Power

East and West Side Add and Drop Output Power

East and West Side Add and Drop By-Pass Power

East and West Side Channel (n) Drop Power

Terminal

Network

Network Type

Span Loss

East and West Expected Span Loss

Amplifier Tx

East and West Side Transmit Amplifier Working Mode

East and West Side Transmit Amplifier Channel Power

East and West Side Transmit Amplifier Gain

East and West Side Transmit Amplifier Tilt

Amplifier Rx

East and West Side Receive Amplifier Working Mode

East and West Side Receive Amplifier Channel Power

East and West Side Receive Amplifier Gain

East and West Side Receive Amplifier Tilt

Thresholds Tx

East and West Side Fiber Stage Input Threshold

Thresholds Rx

East and West Side Osc Los Threshold

East and West Side Channel Los Threshold

East and West Side Receive Amplifier Input Power Fail

Power

East and West Side Add and Drop Input Power

East and West Side Add and Drop Output Power

East or West Side Channel (n) Drop Power (n = 1-32)

Flexible Channel Count Terminal

Network

Network Type

Span Loss

East and West Expected Span Loss

Amplifier Tx

East and West Side Transmit Amplifier Working Mode

East and West Side Transmit Amplifier Channel Power

East and West Side Transmit Amplifier Gain

East and West Side Transmit Amplifier Tilt

Amplifier Rx

East and West Side Receive Amplifier Working Mode

East and West Side Receive Amplifier Channel Power

East and West Side Receive Amplifier Gain

East and West Side Receive Amplifier Tilt

Thresholds Tx

East and West Side Fiber Stage Input Threshold

Thresholds Rx

East and West Side Osc Los Threshold

East and West Side Channel Los Threshold

East and West Side Receive Amplifier Input Power Fail

Power

East and West Side Add and Drop Input Power

East and West Side Add and Drop Output Power

East or West Side Channel (n) Drop Power (n = 1-8)

OADM

Network

Network Type

Span Loss

East and West Expected Span Loss

Amplifier Tx

East and West Side Transmit Amplifier Working Mode

East and West Side Transmit Amplifier Channel Power

East and West Side Transmit Amplifier Gain

East and West Side Transmit Amplifier Tilt

Amplifier Rx

East and West Side Receive Amplifier Working Mode

East and West Side Receive Amplifier Channel Power

East and West Side Receive Amplifier Gain

East and West Side Receive Amplifier Tilt

Thresholds Tx

East and West Side Fiber Stage Input Threshold

Thresholds Rx

East and West Side Osc Los Threshold

East and West Side Channel Los Threshold

East and West Side Receive Amplifier Input Power Fail

Power

East and West Side Add and Drop Input Power

East and West Side Add and Drop Output Power

East or West Side Channel (n) Drop Power (n = 1-8)

Line Amplifier

Network

Network Type

Span Loss

East and West Expected Span Loss

Amplifier Tx

East and West Side Transmit Amplifier Working Mode

East and West Side Transmit Amplifier Channel Power

East and West Side Transmit Amplifier Gain

East and West Side Transmit Amplifier Tilt

Amplifier Rx

East and West Side Receive Amplifier Working Mode

East and West Side Receive Amplifier Channel Power

East and West Side Receive Amplifier Gain

East and West Side Receive Amplifier Tilt

Thresholds Tx

East and West Side Fiber Stage Input Threshold

Thresholds Rx

East and West Side Osc Los Threshold

East and West Side Channel Los Threshold

East and West Side Receive Amplifier Input Power Fail

ROADM

Network

Network Type

Span Loss

East and West Expected Span Loss

Amplifier Tx

East and West Side Transmit Amplifier Working Mode

East and West Side Transmit Amplifier Channel Power

East and West Side Transmit Amplifier Gain

East and West Side Transmit Amplifier Tilt

Amplifier Rx

East and West Side Receive Amplifier Working Mode

East and West Side Receive Amplifier Channel Power

East and West Side Receive Amplifier Gain

East and West Side Receive Amplifier Tilt

Thresholds Tx

East and West Side Fiber Stage Input Threshold

Thresholds Rx

East and West Side Osc Los Threshold

East and West Side Channel Los Threshold

East and West Side Receive Amplifier Input Power Fail

Power

East and West Side Add and Drop Input Power (if

32DMX East/West is installed)

East and West Side Add and Drop Output Power

East and West Side Add and Drop Drop Power (if

32DMX East/West is installed)

East and West Side Channel (n) Drop Power (if 32DMXO

East/West is installed)


Table 4-48 shows the following information for all ONS 15454 ANS parameters:

Min - Minimum value in decibels.

Max - Maximum value in decibels.

Def - Default value in decibels. Other defaults include MC (metro core), CG (control gain), U (unknown).

Group - Group(s) to which the parameter belongs: ES (east side), WS (west side), Rx (receive), Tx (transmit), Amp (amplifier), P (power), DB (drop band), DC (drop channel), A (attenuation), Th (threshold).

Network Type - Parameter network type: MC (metro core), MA (metro access), ND (not DWDM)

Optical Type - Parameter optical type: TS (32 channel terminal), FC (flexible channel count terminal), O (OADM), H (hub), LS (line amplifier), R (ROADM), U (unknown)

Table 4-48 ANS Parameters Summary

Name
Min
Max
Default
Group
Network Type
Optical Type

Network Type

MC

Root

MC, MA, ND

U, TS, FC, O, H, LS, R

West Side Rx Max Expected Span Loss

0

60

60

WS, Rx

MC, MA

TS, FC, O, H, LS, R

East Side Rx Max Expected Span Loss

0

60

60

ES, Rx

MC, MA

TS, FC, O, H, LS, R

West Side Rx Min Expected Span Loss

0

60

60

WS, Rx

MC, MA

TS, FC, O, H, LS, R

East Side Rx Min Expected Span Loss

0

60

60

ES, Rx

MC, MA

TS, FC, O, H, LS, R

West Side Tx Amplifier Working Mode

0

CG

WS, Tx, Amp

MC, MA, ND

TS, FC, O, H, LS, R

East Side Tx Amplifier Working Mode

0

CG

ES, Rx

MC, MA

TS, FC, O, H, LS, R

West Side Rx Amplifier Working Mode

0

CG

WS, Tx, Amp

MC, MA, ND

TS, FC, O, H, LS, R

East Side Rx Amplifier Working Mode

0

CG

ES, Rx

MC, MA

TS, FC, O, H, LS, R

West Side Tx Amplifier Ch Power

-10

17

2

WS, Tx, Amp

MC, MA, ND

TS, FC, O, H, LS, R

East Side Tx Amplifier Ch Power

-10

17

2

WS, Tx, Amp

MC, MA, ND

TS, FC, O, H, LS, R

West Side Rx Amplifier Ch Power

-10

17

2

WS, Tx, Amp

MC, MA, ND

TS, FC, O, H, LS, R

East Side Rx Amplifier Ch Power

-10

17

2

WS, Tx, Amp

MC, MA, ND

TS, FC, O, H, LS, R

West Side Tx Amplifier Gain

0

30

0

WS, Tx, Amp

MA

TS, FC, O, H, LS, R

East Side Tx Amplifier Gain

0

30

0

WS, Tx, Amp

MA

TS, FC, O, H, LS, R

West Side Rx Amplifier Gain

0

30

0

WS, Tx, Amp

MA

TS, FC, O, H, LS, R

East Side Rx Amplifier Gain

0

30

0

WS, Tx, Amp

MA

TS, FC, O, H, LS, R

West Side Tx Amplifier Tilt

0

30

0

WS, Tx, Amp

MC, MA

TS, FC, O, H, LS, R

East Side Tx Amplifier Tilt

0

30

0

WS, Tx, Amp

MC, MA

TS, FC, O, H, LS, R

West Side Rx Amplifier Tilt

0

30

0

WS, Rx, Amp

MC, MA

TS, FC, O, H, LS, R

East Side Rx Amplifier Tilt

0

30

0

WS, Rx, Amp

MC, MA

TS, FC, O, H, LS, R

West Side OSC LOS Threshold

-50

30

U

WS, Rx, Th

MC, MA

TS, FC, O, H, LS, R

East Side OSC LOS Threshold

-50

30

U

WS, Rx, Th

MC, MA

TS, FC, O, H, LS, R

West Side Channel LOS Threshold

-50

30

U

WS, Rx, Th

MC, MA

TS, FC, O, H, LS, R

East Side Channel LOS Threshold

-50

30

U

ES, Rx, Th

MC, MA, ND

TS, FC, O, H, LS, R

West Side Fiber State Input Threshold

-50

30

U

WS, Tx, Th

MC, MA, ND

TS, FC, O, H, LS, R

East Side Fiber State Input Threshold

-50

30

U

ES, Tx, Th

MC, MA, ND

TS, FC, O, H, LS, R

West Side Add and Drop Output Power

-50

30

-14

WS, Tx, P

MC

TS, FC, O, H, R

East Side Add and Drop Output Power

-50

30

-14

ES, Tx, P

MC

TS, FC, O, H, R

West Side Add and Drop Input Power

-50

30

-14

WS, Tx, P

MC

TS, FC, O, H, R

East Side Add and Drop Input Power

-50

30

-14

ES, Tx, P

MC

TS, FC, O, H, R

West Side Add and Drop By-Pass Power

-50

30

-14

WS, Tx, P

MC

H

East Side Add and Drop By-Pass Power

-50

30

-14

ES, Tx, P

MC

H

West Side Add and Drop Drop Power

-50

30

-14

WS, Tx, P

MC

R

East Side Add and Drop Drop Power

-50

30

-14

ES, Tx, P

MC

R

West Side Band 1...8 Drop Power

-50

30

-14

WS, Rx, P, DB

MC

FC, O

East Side Band 1...8 Drop Power

-50

30

-14

ES, Rx, P, DB

MC

FC, O

West Side Channel 1...32 Drop Power

-50

30

-14

WS, Rx, P, DC, B1

MC, MA

TS, H, R

East Side Channel 1...32 Drop Power

-50

30

-14

ES, Rx, P, DC, B1

MC, MA

TS, H, R
