Shelf and Backplane Hardware

Table Of Contents

Shelf and Backplane Hardware

1.1  Overview

1.2  Rack Installation

1.2.1  Reversible Mounting Bracket

1.2.2  Mounting a Single Node

1.2.3  Mounting Multiple Nodes

1.2.4  ONS 15454 Bay Assembly

1.2.5  Typical DWDM Rack Layouts

1.3  Front Door

1.4  Backplane Covers

1.4.1  Lower Backplane Cover

1.4.2  Rear Cover

1.4.3  Alarm Interface Panel

1.4.4  Alarm Interface Panel Replacement

1.5  Electrical Interface Assemblies

1.5.1  EIA Installation

1.5.2  EIA Configurations

1.5.3  BNC EIA

1.5.4  High-Density BNC EIA

1.5.5  SMB EIA

1.5.6  AMP Champ EIA

1.5.7  EIA Replacement

1.6  Coaxial Cable

1.7  DS-1 Cable

1.7.1  Twisted Pair Wire-Wrap Cables

1.7.2  Electrical Interface Adapters

1.8  Cable Routing and Management

1.8.1  Fiber Management

1.8.2  Fiber Boots

1.8.3  Fiber Management using the Optional DWDM Fiber Tray

1.8.4  Coaxial Cable Management

1.8.5  DS-1 Twisted-Pair Cable Management

1.8.6  AMP Champ Cable Management

1.9  Alarm Expansion Panel

1.9.1  Wire-Wrap and Pin Connections

1.9.2  AEP Specifications

1.10  Fan-Tray Assembly

1.10.1  Fan Speed

1.10.2  Air Filter

1.11  Power and Ground Description

1.12  Alarm, Timing, LAN, and Craft Pin Connections

1.12.1  Alarm Contact Connections

1.12.2  Timing Connections

1.12.3  LAN Connections

1.12.4  TL1 Craft Interface Installation

1.13  Cards and Slots

1.13.1  Card Slot Requirements

1.13.2  Card Replacement

1.14  Ferrites

1.15  Software and Hardware Compatibility


Shelf and Backplane Hardware



Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration. Cisco does not recommend using its path protection feature in any particular topological network configuration.


This chapter provides a description of Cisco ONS 15454 shelf and backplane hardware. Card descriptions are provided in "Common Control Cards," Chapter 3, "Electrical Cards," Chapter 4, "Optical Cards," Chapter 5, "Ethernet Cards," and Chapter 6, "DWDM Cards." To install equipment, refer to the Cisco ONS 15454 Procedure Guide.

Chapter topics include:

Overview

Rack Installation

Front Door

Backplane Covers

Electrical Interface Assemblies

Coaxial Cable

DS-1 Cable

Cable Routing and Management

Alarm Expansion Panel

Fan-Tray Assembly

Power and Ground Description

Alarm, Timing, LAN, and Craft Pin Connections

Cards and Slots

Ferrites

Software and Hardware Compatibility


Note The Cisco ONS 15454 assembly is intended for use with telecommunications equipment only.



Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.



Warning This equipment must be installed and maintained by service personnel as defined by AS/NZS 3260. Incorrectly connecting this equipment to a general purpose outlet could be hazardous. The telecommunications lines must be disconnected 1) before unplugging the main power connector and/or 2) while the front door is open.



Warning The ONS 15454 is intended for installation in restricted access areas. A restricted access area is where access can only be gained by service personnel through the use of a special tool, lock, key, or other means of security. A restricted access area is controlled by the authority responsible for the location.



Warning The ONS 15454 is suitable for mounting on concrete or other non-combustible surfaces only.



Caution Unused card slots should be filled with a blank faceplate (Cisco P/N 15454-BLANK). The blank faceplate ensures proper airflow when operating the ONS 15454 without the front door attached, although Cisco recommends that the front door remain attached.


Note The ONS 15454 is designed to comply with GR-1089-CORE Type 2 and Type 4. Install and operate the ONS 15454 only in environments that do not expose wiring or cabling to the outside plant. Acceptable applications include Central Office Environments (COEs), Electronic Equipment Enclosures (EEEs), Controlled Environment Vaults (CEVs), huts, and Customer Premise Environments (CPEs).



Note You can search for cross-referenced Cisco part numbers and CLEI (Common Language Equipment Identification) codes at the following link: http://www.cisco.com/cgi-bin/front.x/clei/code_search.cgi


1.1  Overview

When installed in an equipment rack, the ONS 15454 assembly is typically connected to a fuse and alarm panel to provide centralized alarm connection points and distributed power for the ONS 15454. Fuse and alarm panels are third-party equipment and are not described in this documentation. If you are unsure about the requirements or specifications for a fuse and alarm panel, consult the user documentation for the related equipment. The front door of the ONS 15454 allows access to the shelf assembly, fan-tray assembly, and cable-management area. The backplanes provide access to alarm contacts, external interface contacts, power terminals, and BNC/SMB connectors.


Warning The ONS 15454 relies on the protective devices in the building installation to protect against short circuit, overcurrent, and grounding faults. Ensure that the protective devices are properly rated to protect the system, and that they comply with national and local codes.



Warning Incorporate a readily-accessible, two-poled disconnect device in the fixed wiring.


You can mount the ONS 15454 in a 19- or 23-inch rack. The shelf assembly weighs approximately 55 pounds with no cards installed. The shelf assembly includes a front door for added security, a fan tray module for cooling, and extensive cable-management space.

ONS 15454 optical cards have SC and LC connectors on the card faceplate. Fiber optic cables are routed into the front of the destination cards. Electrical cards (DS-1, DS-3, DS3XM-6, and EC-1) require electrical interface assemblies (EIAs) to provide the cable connection points for the shelf assembly. In most cases, EIAs are ordered with the ONS 15454 and come pre-installed on the backplane. See the "Electrical Interface Assemblies" section for more information about the EIAs.

The ONS 15454 is powered using -48 VDC power. Negative, return, and ground power terminals are accessible on the backplane.


Note In this chapter, the terms "ONS 15454" and "shelf assembly" are used interchangeably. In the installation context, these terms have the same meaning. Otherwise, shelf assembly refers to the physical steel enclosure that holds cards and connects power, and ONS 15454 refers to the entire system, both hardware and software.


Install the ONS 15454 in compliance with your local and national electrical codes:

United States: National Fire Protection Association (NFPA) 70; United States National Electrical Code

Canada: Canadian Electrical Code, Part I, CSA C22.1

Other countries: If local and national electrical codes, are not available, refer to IEC 364, Part 1 through Part 7.


Warning Dispose of this product according to all national laws and regulations.


1.2  Rack Installation


Warning To prevent the equipment from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 131°F (55°C) unless configured for industrial temperature (I-temp). All I-temp rated components are -40°C to +65°C. To prevent airflow restriction, allow at least 1 inch (25.4 mm) of clearance around the ventilation openings.


The ONS 15454 is mounted in a 19- or 23-inch equipment rack. The shelf assembly projects five inches (127 mm) from the front of the rack. It mounts in both EIA-standard and Telcordia-standard racks. The shelf assembly is a total of 17 inches (431.8 mm) wide with no mounting ears attached. Ring runs are not provided by Cisco and may hinder side-by-side installation of shelves where space is limited.

The ONS 15454 measures 18.5 inches (469.9 mm) high, 19 or 23 inches (482.6 or 584.2 mm) wide (depending on which way the mounting ears are attached), and 12 inches (304.8 mm) deep. You can install up to four ONS 15454s in a seven-foot (2133.6 mm) equipment rack. The ONS 15454 must have one inch (25.4 mm) of airspace below the installed shelf assembly to allow air flow to the fan intake. If a second ONS 15454 is installed underneath the shelf assembly, the air ramp on top of the lower shelf assembly provides the air spacing needed and should not be modified in any way. Figure 1-1 shows the dimensions of the ONS 15454.


Note The 10 Gbps compatible shelf assembly (15454-SA-ANSI) and fan-tray assembly (15454-FTA3 or 15454-FTA3-T) are required if ONS 15454 XC10G cards are installed in the shelf.



Warning The ONS 15454 should be installed in the lower rack position or mounted above another ONS 15454 shelf assembly.



Warning The ONS 15454 must have 1 inch (25.4 mm) of airspace below the installed shelf assembly to allow air flow to the fan intake. The air ramp (the angled piece of sheet metal on top of the shelf assembly) provides this spacing and should not be modified in any way.


Figure 1-1 Cisco ONS 15454 Dimensions

1.2.1  Reversible Mounting Bracket


Caution Use only the fastening hardware provided with the ONS 15454 to prevent loosening, deterioration, and electromechanical corrosion of the hardware and joined material.


Caution When mounting the ONS 15454 in a frame with a non-conductive coating (such as paint, lacquer, or enamel) either use the thread-forming screws provided with the ONS 15454 shipping kit, or remove the coating from the threads to ensure electrical continuity.

The shelf assembly comes preset for installation in a 23-inch rack, but you can reverse the mounting bracket to fit the smaller 19-inch rack.

1.2.2  Mounting a Single Node

Mounting the ONS 15454 in a rack requires a minimum of 18.5 inches (469.9 mm) of vertical rack space and one additional inch (25.4 mm) for air flow. To ensure the mounting is secure, use two to four #12-24 mounting screws for each side of the shelf assembly. Figure 1-2 shows the rack mounting position for the ONS 15454.

Figure 1-2 Mounting an ONS 15454 in a Rack

Two people should install the shelf assembly; however, one person can install it using the temporary set screws included. The shelf assembly should be empty for easier lifting. The front door can also be removed to lighten the shelf assembly.


Note If you are installing the fan-tray air filter using the bottom (external) brackets provided, mount the brackets on the bottom of the shelf assembly before installing the ONS 15454 in a rack.


1.2.3  Mounting Multiple Nodes

Most standard (GR-63-CORE, 19-inch or 23-inch) seven-foot racks can hold four ONS 15454s and a fuse and alarm panel. However, unequal flange racks are limited to three ONS 15454s and a fuse and alarm panel or four ONS 15454s and a fuse and alarm panel from an adjacent rack.

If you are using the external (bottom) brackets to install the fan-tray air filter, you can install three shelf assemblies in a standard seven-foot rack. If you are not using the external (bottom) brackets, you can install four shelf assemblies in a rack. The advantage to using the bottom brackets is that you can replace the filter without removing the fan tray.

1.2.4  ONS 15454 Bay Assembly

The Cisco ONS 15454 Bay Assembly simplifies ordering and installing the ONS 15454 because it allows you to order shelf assemblies pre-installed in a seven-foot rack. The Bay Assembly is available in a three- or four-shelf configuration. The three-shelf configuration includes three ONS 15454 shelf assemblies, a pre-wired fuse and alarm panel, and two cable-management trays. The four-shelf configuration includes four ONS 15454 shelf assemblies and a pre-wired fuse and alarm panel. You can order optional fiber channels with either configuration. Installation procedures are included in the Unpacking and Installing the Cisco ONS 15454 Four-Shelf and Zero-Shelf Bay Assembly document that ships with the Bay Assembly.

1.2.5  Typical DWDM Rack Layouts

Typical DWDM applications may include:

3 ONS 15454 shelves

1 DCUs

7 Patch Panels (or Fiber Storage tray(s))

Or, alternatively:

3 ONS 15454 shelves

2 DCUs

6 Patch Panels (or Fiber Storage tray(s)

See Figure 1-3 for a typical rack layout. If you are installing a patch panel or fiber storage tray below the ONS 15454 shelf you must install the air ramp between the shelf and patch panel/fiber tray, or leave one RMU space open.

Figure 1-3 Typical DWDM Equipment Layout

1.3  Front Door

The Critical, Major, and Minor alarm LEDs visible through the front door indicate whether a critical, major, or minor alarm is present anywhere on the ONS 15454. These LEDs must be visible so technicians can quickly determine if any alarms are present on the ONS 15454 shelf or the network. You can use the LCD to further isolate alarms.

The ONS 15454 features a locked door to the front compartment. A pinned hex key that unlocks the front door ships with the ONS 15454. A button on the right side of the shelf assembly releases the door. The front door (Figure 1-4) provides access to the shelf assembly, cable-management tray, fan-tray assembly, and LCD screen.

Figure 1-4 The ONS 15454 Front Door

You can remove the front door of the ONS 15454 to provide unrestricted access to the front of the shelf assembly. Before you remove the front door, you have to remove the ground strap of the front door (Figure 1-5).

Figure 1-5 ONS 15454 Front Door Ground Strap

Figure 1-6 shows how to remove the front door.

Figure 1-6 Removing the ONS 15454 Front Door

An erasable label is pasted on the inside of the front door (Figure 1-7). You can use the label to record slot assignments, port assignments, card types, node ID, rack ID, and serial number for the ONS 15454.

Figure 1-7 Front-Door Erasable Label


Note The front door label also includes the Class I and Class 1M laser warning (Figure 1-8).


Figure 1-8 Laser Warning on the Front-Door Label

1.4  Backplane Covers

If a backplane does not have an EIA panel installed, it should have two sheet metal backplane covers (one on each side of the backplane). See Figure 1-9. Each cover is held in place with nine 6-32 x 3/8 inch Phillips screws.


Note See the "Electrical Interface Assemblies" section for information on EIAs.


Figure 1-9 Backplane Covers

1.4.1  Lower Backplane Cover

The lower section of the ONS 15454 backplane is covered by a clear plastic protector, which is held in place by five 6-32 x 1/2 inch screws. Remove the lower backplane cover to access the alarm interface panel (AIP), alarm pin fields, frame ground, and power terminals (Figure 1-10).

Figure 1-10 Removing the Lower Backplane Cover

1.4.2  Rear Cover

The ONS 15454 has an optional clear plastic rear cover. This clear plastic cover provides additional protection for the cables and connectors on the backplane. Figure 1-11 shows the rear cover screw locations.

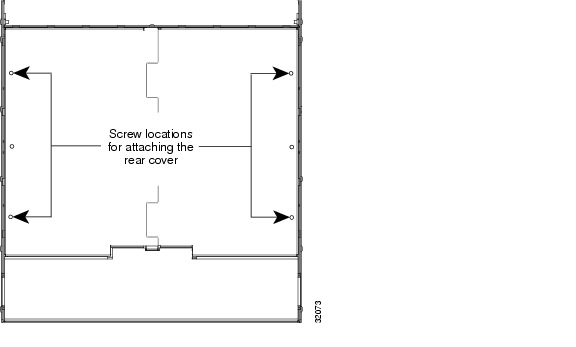

Figure 1-11 Backplane Attachment for Cover

You can also install the optional spacers if more space is needed between the cables and rear cover (Figure 1-12).

Figure 1-12 Installing the Plastic Rear Cover with Spacers

1.4.3  Alarm Interface Panel

The AIP is located above the alarm contacts on the lower section of the backplane. The AIP provides surge protection for the ONS 15454. It also provides an interface from the backplane to the fan-tray assembly and LCD. The AIP plugs into the backplane using a 96-pin DIN connector and is held in place with two retaining screws. The panel has a non-volatile memory chip that stores the unique node address (MAC address).


Note The 5-A AIP (73-7665-XX) is required when installing the new fan-tray assembly (15454-FTA3), which comes preinstalled on the shelf assembly (15454-SA-ANSI).



Note The MAC address identifies the nodes that support circuits. It allows CTC to determine circuit sources, destinations, and spans. The TCC+ or TCC2 cards in the ONS 15454 also use the MAC address to store the node database.



Note A blown fuse on the AIP board can cause the LCD display to go blank.


1.4.4  Alarm Interface Panel Replacement

If the alarm interface panel (AIP) fails, a MAC Fail alarm displays on the CTC Alarms menu and/or the LCD display on the fan-tray assembly will go blank. To perform an in-service replacement of the AIP, you must contact Cisco Technical Assistance Center (TAC). For contact information, go to the TAC website at http://www.cisco.com/tac.

You can replace the AIP on an in-service system without affecting traffic (except Ethernet traffic on nodes running a software release earlier than Release 4.0). The circuit repair feature allows you to repair circuits affected by MAC address changes on one node at a time. Circuit repair will work when all nodes are running the same software version. Each individual AIP upgrade requires an individual circuit repair; if AIPs are replaced on two nodes, the circuit repair must be performed twice.


Caution Do not use a 2-A AIP with a 5-A fan-tray assembly; doing so will cause a blown fuse on the AIP.


Note Ensure that all nodes in the affected network are running the same software version before replacing the AIP and repairing circuits. If you need to upgrade nodes to the same software version, no hardware should be changed or circuit repair performed until after the software upgrade is complete.



Note Replace an AIP during a maintenance window. Resetting the active TCC+/TCC2 can cause a service disruption of less then 50 ms to optical (OC-N) or electrical (DS-N) traffic. Resetting the active TCC+/TCC2 will cause a service disruption of 3 to 5 minutes on all E-Series Ethernet traffic due to spanning tree reconvergence.


1.5  Electrical Interface Assemblies

Optional EIA backplane covers are typically pre-installed when ordered with the ONS 15454. EIAs must be ordered when using DS-1, DS-3, DS3XM-6, or EC-1 cards. This section describes each EIA.

Four different EIA backplane covers are available for the ONS 15454: BNC, High-Density BNC, SMB, and AMP Champ. This section describes each EIA in detail. If the shelf was not shipped with the correct EIA interface, you must order and install the correct EIA.

EIAs are attached to the shelf assembly backplane to provide electrical interface cable connections. EIAs are available with SMB and BNC connectors for DS-3 or EC-1 cards. EIAs are available with AMP Champ connectors for DS-1 cards. You must use SMB EIAs for DS-1 twisted-pair cable installation. You can install EIAs on one or both sides of the ONS 15454 backplane in any combination (in other words, AMP Champ on Side A and BNC on Side B or High-Density BNC on side A and SMB on side B, and so forth).

As you face the rear of the ONS 15454 shelf assembly, the right-hand side is the A side and the left-hand side is the B side. The top of the EIA connector columns are labeled with the corresponding slot number, and EIA connector pairs are marked transmit (Tx) and receive (Rx) to correspond to transmit and receive cables.

1.5.1  EIA Installation

Optional EIA backplane covers are typically pre-installed when ordered with the ONS 15454. A minimum amount of assembly may be required when EIAs are ordered separately from the ONS 15454. If you are installing EIAs after the shelf assembly is installed, plug the EIA into the backplane. The EIA has six electrical connectors that plug into six corresponding backplane connectors. The EIA backplane must replace the standard sheet metal cover to provide access to the coaxial cable connectors. The EIA sheet metal covers use the same screw holes as the solid backplane panels, but they have 12 additional 6-32 x 1/2 inch Phillips screw holes so you can screw down the cover and the board using standoffs on the EIA board.

When using the RG-179 coaxial cable on an EIA, the maximum distance available (122 feet) is less than the maximum distance available with standard RG-59 (735A) cable (306 feet). The maximum distance when using the RG-59 (734A) cable is 450 feet. The shorter maximum distance available with the RG179 is due to a higher attenuation rate for the thinner cable. Attenuation rates are calculated using a DS-3 signal:

For RG-179, the attenuation rate is 59 dB/kft at 22 MHz.

For RG-59 (735A) the attenuation rate is 23 dB/kft at 22 MHz.

1.5.2  EIA Configurations

Table 1-1 gives the product numbers and common names for EIAs.

Table 1-1 EIA Configurations

EIA Type
Cards Supported
A Side Hosts
A Side Columns Map to
A Side Product Number
B Side Hosts
B Side Columns Map to
B Side Product Number

BNC

DS-3 DS3XM-6 EC-1

24 pairs of BNC connectors

Slot 2

Slot 4

15454-EIA-BNC-A24

24 pairs of

BNC connectors

Slot 14

Slot 16

15454-EIA-BNC-B24

High- Density BNC

DS-3 DS3XM-6 EC-1

48 pairs of BNC connectors

Slot 1

Slot 2

Slot 4

Slot 5

15454-EIA-BNC-A48

48 pairs of

BNC connectors

Slot 13

Slot 14

Slot 16

Slot 17

15454-EIA-BNC-B48

SMB

DS-1
DS-3
EC-1
DS3XM-6

84 pairs of SMB connectors

Slot 1

Slot 2

Slot 3

Slot 4

Slot 5

Slot 6

15454-EIA-SMB-A84

84 pairs of SMB connectors

Slot 12

Slot 13

Slot 14

Slot 15

Slot 16

Slot 17

15454-EIA-SMB-B84

AMP Champ

DS-1

6 AMP Champ
connectors

Slot 1

Slot 2

Slot 3

Slot 4

Slot 5

Slot 6

15454-EIA-AMP-A84

6 AMP Champ
connectors

Slot 12

Slot 13

Slot 14

Slot 15

Slot 16

Slot 17

15454-EIA-AMP-B84


1.5.3  BNC EIA

The ONS 15454 BNC EIA supports 24 DS-3 circuits on each side of the ONS 15454 (24 transmit and 24 receive connectors). If you install BNC EIAs on both sides of the shelf assembly, the ONS 15454 hosts up to 48 circuits. The BNC connectors on the EIA supports Trompeter UCBJ224 (75 ohm) 4 leg connectors (King or ITT are also compatible). Right-angle mating connectors for the connecting cable are AMP 413588-2 (75 Ohm) connectors. If preferred, you can also use a straight connector of the same type. Use RG-59/U cable to connect to the ONS 15454 BNC EIA. These cables are recommended to connect to a patch panel and are designed for long runs. You can use BNC EIAs for DS-3 (including the DS3XM-6) or EC-1 cards.

Figure 1-13 shows the ONS 15454 with pre-installed BNC EIAs.

To install coaxial cable with BNC connectors, refer to the Cisco ONS 15454 Procedure Guide.

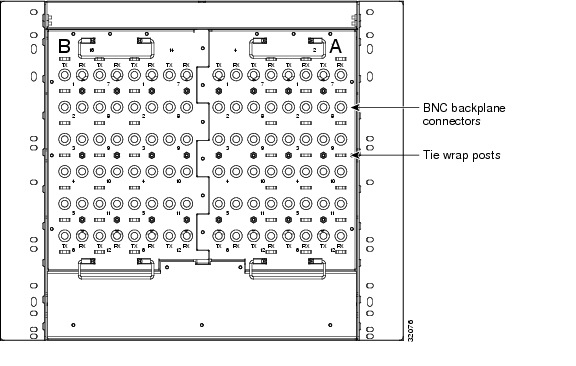

Figure 1-13 BNC Backplane for use in 1:1 Protection Schemes

1.5.3.1  BNC Connectors

The EIA side marked "A" has 24 pairs of BNC connectors. The first 12 pairs of BNC connectors correspond to Ports 1 to 12 for a 12-port card and map to Slot 2 on the shelf assembly. The BNC connector pairs are marked "Tx" and "Rx" to indicate transmit and receive cables for each port. You can install an additional card in Slot 1 as a protect card for the card in Slot 2. The second 12 BNC connector pairs correspond to Ports 1 to 12 for a 12-port card and map to Slot 4 on the shelf assembly. You can install an additional card in Slot 3 as a protect card for the card in Slot 4. Slots 5 and 6 do not support DS-3 cards when the standard BNC EIA panel connectors are used.

The EIA side marked "B" provides an additional 24 pairs of BNC connectors. The first 12 BNC connector pairs correspond to Ports 1 to 12 for a 12-port card and map to Slot 14 on the shelf assembly. The BNC connector pairs are marked "Tx" and "Rx" to indicate transmit and receive cables for each port. You can install an additional card in Slot 15 as a protect card for the card in Slot 14. The second 12 BNC connector pairs correspond to Ports 1 to 12 for a 12-port card and map to Slot 16 on the shelf assembly. You can install an additional card in Slot 17 as a protect card for the card in Slot 16. Slots 12 and 13 do not support DS-3 cards when the standard BNC EIA panel connectors are used.

When BNC connectors are used with a DS3N-12 card in Slot 3 or 15, the 1:N card protection extends only to the two slots adjacent to the 1:N card due to BNC wiring constraints.

1.5.3.2  BNC Insertion and Removal Tool

Due to the large number of BNC connectors on the High-Density BNC EIA, you might require a special tool for inserting and removing BNC EIAs (Figure 1-14). This tool also helps with ONS 15454 patch panel connections.

Figure 1-14 BNC Insertion and Removal Tool

This tool can be obtained with P/N 227-T1000 from:

Amphenol USA (www.amphenol.com)
One Kennedy Drive
Danbury, CT 06810
Phone: 203-743-9272 Fax: 203-796-2032

This tool can be obtained with P/N RT-1L from:

Trompeter Electronics Inc. (www.trompeter.com)
31186 La Baya Drive
Westlake Village, CA 91362-4047
Phone: (800) 982-2629 Fax: (818) 706-1040

1.5.4  High-Density BNC EIA

The ONS 15454 high-density BNC EIA supports 48 DS-3 circuits on each side of the ONS 15454 (48 transmit and 48 receive connectors). If you install BNC EIAs on both sides of the unit, the ONS 15454 hosts up to 96 circuits. The high-density BNC EIA supports Trompeter UCBJ224 (75 ohm) 4 leg connectors (King or ITT are also compatible). Use straight connectors on RG-59/U cable to connect to the high-density BNC EIA. Cisco recommends these cables for connection to a patch panel; they are designed for long runs. You can use high-density BNC EIAs for DS-3 (including the DS3XM-6) or EC-1 cards. Figure 1-15 shows the ONS 15454 with pre-installed high-density BNC EIAs.

To install coaxial cable with high-density BNC connectors, refer to the Cisco ONS 15454 Procedure Guide.

Figure 1-15 High-Density BNC Backplane for use in 1:N Protection Schemes

The EIA side marked "A" hosts 48 pairs of BNC connectors. Each column of connector pairs is numbered and corresponds to the slot of the same number. The first column (12 pairs) of BNC connectors corresponds to Slot 1 on the shelf assembly, the second column to Slot 2, the third column to Slot 4, and the fourth column to Slot 5. The rows of connectors correspond to Ports 1 to 12 of a 12-port card.

The EIA side marked "B" provides an additional 48 pairs of BNC connectors. The first column (12 pairs) of BNC connectors corresponds to Slot 13 on the shelf assembly, the second column to Slot 14, the third column to Slot 16, and the fourth column to Slot 17. The rows of connectors correspond to Ports 1 to 12 of a 12-port card. The BNC connector pairs are marked "Tx" and "Rx" to indicate transmit and receive cables for each port. The High-Density BNC EIA supports both 1:1 and 1:N protection across all slots except Slots 6 and 12.

1.5.5  SMB EIA

The ONS 15454 SMB EIA supports AMP 415484-1 75 ohm 4 leg connectors. Right-angle mating connectors for the connecting cable are AMP 415484-2 (75 ohm) connectors. Use RG-179/U cable to connect to the ONS 15454 EIA. Cisco recommends these cables for connection to a patch panel; they are not designed for long runs. Range does not affect loopback testing.

You can use SMB EIAs with DS-1, DS-3 (including the DS3XM-6), and EC-1 cards. If you use DS-1 cards, use the DS-1 electrical interface adapter (balun) to terminate the twisted pair DS-1 cable to the SMB EIA (see the "Electrical Interface Adapters" section). SMB EIAs support 14 ports per slot when used with a DS-1 card, 12 ports per slot when used with a DS-3 or EC-1 card, and 6 ports per slot when used with a DS3XM-6 card.

Figure 1-16 shows the ONS 15454 with pre-installed SMB EIAs and the sheet metal cover and screw locations for the EIA. The SMB connectors on the EIA are AMP 415504-3 (75 ohm) 4 leg connectors.

To install SMB connectors, refer to the Cisco ONS 15454 Procedure Guide.

Figure 1-16 SMB EIA Backplane

The SMB EIA has 84 transmit and 84 receive connectors on each side of the ONS 15454 for a total of 168 SMB connectors (84 circuits).

The EIA side marked "A" hosts 84 SMB connectors in six columns of 14 connectors. The "A" side columns are numbered 1 to 6 and correspond to Slots 1 to 6 on the shelf assembly. The EIA side marked "B" hosts an additional 84 SMB connectors in six columns of 14 connectors. The "B" side columns are numbered 12 to 17 and correspond to Slots 12 to 17 on the shelf assembly. The connector rows are numbered 1 to 14 and correspond to the 14 ports on a DS-1 card.

For DS-3 or EC-1, the EIA supports 72 transmit and 72 receive connectors, for a total of 144 SMB connectors (72 circuits). If you use a DS-3 or EC-1 card, only Ports 1 to 12 are active. If you use a DS3XM-6 card, only Ports 1 to 6 are active. The SMB connector pairs are marked "Tx" and "Rx" to identify transmit and receive cables for each port. If you use SMB connectors, you can install DS-1, DS-3, or EC-1 cards in any multispeed slot (Slots 1 to 4 or 14 to 17).

1.5.6  AMP Champ EIA

The ONS 15454 AMP Champ EIA supports 64-pin (32 pair) AMP Champ connectors for each slot on both sides of the shelf assembly where the EIA is installed. Cisco AMP Champ connectors are female AMP # 552246-1 with AMP # 552562-2 bail locks. Each AMP Champ connector supports 14 DS-1 ports. You can use AMP Champ EIAs with DS-1 cards only. Figure 1-17 shows the ONS 15454 with pre-installed AMP Champ EIAs and the corresponding sheet metal cover and screw locations for the EIA.

To install AMP Champ connector DS-1 cables, you must use 64-pin bundled cable connectors with a 64-pin male AMP Champ connector. You need an AMP Champ connector #552276-1 for the receptacle side and #1-552496-1 (for cable diameter .475in.-.540in.) or #2-552496-1 (for cable diameter .540in.-.605in.) for the right-angle shell housing (or their functional equivalent). The corresponding 64-pin female AMP Champ connector on the AMP Champ EIA supports one receive and one transmit for each DS-1 port for the corresponding card slot.

Because each DS1-14 card supports 14 DS-1 ports, only 56 pins (28 pairs) of the 64-pin connector are used. Prepare one 56-wire cable for each DS-1 facility installed.

Figure 1-17 AMP Champ EIA Backplane

Table 1-2 shows the pin assignments for the AMP Champ connectors on the ONS 15454 AMP Champ EIA. The EIA side marked "A" hosts six AMP Champ connectors. The connectors are numbered 1 to 6 for the corresponding slots on the shelf assembly. Each AMP Champ connector on the backplane supports 14 DS-1 ports for a DS1-14 card, and each connector features 28 live pairs—one transmit pair and one receive pair—for each DS-1 port.

The EIA side marked "B" hosts six AMP Champ connectors. The connectors are labeled 12 to 17 for the corresponding slots on the shelf assembly. Each AMP Champ connector on the backplane supports 14 DS-1 ports for a DS1-14 card, and each connector features 28 live pairs—one transmit pair and one receive pair—for each DS-1 port.


Note EIAs are hot-swappable. You do not need to disconnect power to install or remove EIAs.



Caution Always use an electrostatic discharge (ESD) wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.

Table 1-2 AMP Champ Connector Pin Assignments

Signal/Wire
Pin
Pin
Signal/Wire
Signal/Wire
Pin
Pin
Signal/Wire

Tx Tip 1
white/blue

1

33

Tx Ring 1
blue/white

Rx Tip 1
yellow/orange

17

49

Rx Ring 1
orange/yellow

Tx Tip 2 white/orange

2

34

Tx Ring 2
orange/white

Rx Tip 2
yellow/green

18

50

Rx Ring 2
green/yellow

Tx Tip 3
white/green

3

35

Tx Ring 3
green/white

Rx Tip 3
yellow/brown

19

51

Rx Ring 3
brown/yellow

Tx Tip 4
white/brown

4

36

Tx Ring 4
brown/white

Rx Tip 4
yellow/slate

20

52

Rx Ring 4
slate/yellow

Tx Tip 5
white/slate

5

37

Tx Ring 5
slate/white

Rx Tip 5
violet/blue

21

53

Rx Ring 5
blue/violet

Tx Tip 6
red/blue

6

38

Tx Ring 6
blue/red

Rx Tip 6
violet/orange

22

54

Rx Ring 6
orange/violet

Tx Tip 7
red/orange

7

39

Tx Ring 7
orange/red

Rx Tip 7
violet/green

23

55

Rx Ring 7
green/violet

Tx Tip 8
red/green

8

40

Tx Ring 8
green/red

Rx Tip 8
violet/brown

24

56

Rx Ring 8
brown/violet

Tx Tip 9
red/brown

9

41

Tx Ring 9
brown/red

Rx Tip 9
violet/slate

25

57

Rx Ring 9
slate/violet

Tx Tip 10
red/slate

10

42

Tx Ring 10
slate/red

Rx Tip 10
white/blue

26

58

Rx Ring 10
blue/white

Tx Tip 11
black/blue

11

43

Tx Ring 11
blue/black

Rx Tip 11
white/orange

27

59

Rx Ring 11
orange/white

Tx Tip 12
black/orange

12

44

Tx Ring 12
orange/black

Rx Tip 12
white/green

28

60

Rx Ring 12
green/white

Tx Tip 13
black/green

13

45

Tx Ring 13
green/black

Rx Tip 13
white/brown

29

61

Rx Ring 13
brown/white

Tx Tip 14
black/brown

14

46

Tx Ring 14
brown/black

Rx Tip 14
white/slate

30

62

Rx Ring 14
slate/white

Tx Spare0+ N/A

15

47

Tx Spare0- N/A

Rx Spare0+ N/A

31

63

Rx Spare0- N/A

Tx Spare1+ N/A

16

48

Tx Spare1- N/A

Rx Spare1+ N/A

32

64

Rx Spare1- N/A


Table 1-3 shows the pin assignments for the AMP Champ connectors on the ONS 15454 AMP Champ EIA for a shielded DS-1 cable.

Table 1-3 AMP Champ Connector Pin Assignments (Shielded DS-1 Cable)

64-Pin Blue Bundle
64-Pin Orange Bundle
Signal/Wire
Pin
Pin
Signal/Wire
Signal/Wire
Pin
Pin
Signal/Wire

Tx Tip 1
white/blue

1

33

Tx Ring 1
blue/white

Rx Tip 1
white/blue

17

49

Rx Ring 1
blue/white

Tx Tip 2 white/orange

2

34

Tx Ring 2
orange/white

Rx Tip 2
white/orange

18

50

Rx Ring 2
orange/white

Tx Tip 3
white/green

3

35

Tx Ring 3
green/white

Rx Tip 3
white/green

19

51

Rx Ring 3
green/white

Tx Tip 4
white/brown

4

36

Tx Ring 4
brown/white

Rx Tip 4
white/brown

20

52

Rx Ring 4
brown/white

Tx Tip 5
white/slate

5

37

Tx Ring 5
slate/white

Rx Tip 5
white/slate

21

53

Rx Ring 5
slate/white

Tx Tip 6
red/blue

6

38

Tx Ring 6
blue/red

Rx Tip 6
red/blue

22

54

Rx Ring 6
blue/red

Tx Tip 7
red/orange

7

39

Tx Ring 7
orange/red

Rx Tip 7
red/orange

23

55

Rx Ring 7
orange/red

Tx Tip 8
red/green

8

40

Tx Ring 8
green/red

Rx Tip 8
red/green

24

56

Rx Ring 8
green/red

Tx Tip 9
red/brown

9

41

Tx Ring 9
brown/red

Rx Tip 9
red/brown

25

57

Rx Ring 9
brown/red

Tx Tip 10
red/slate

10

42

Tx Ring 10
slate/red

Rx Tip 10
red/slate

26

58

Rx Ring 10
slate/red

Tx Tip 11
black/blue

11

43

Tx Ring 11
blue/black

Rx Tip 11
black/blue

27

59

Rx Ring 11
blue/black

Tx Tip 12
black/orange

12

44

Tx Ring 12
orange/black

Rx Tip 12
black/orange

28

60

Rx Ring 12
orange/black

Tx Tip 13
black/green

13

45

Tx Ring 13
green/black

Rx Tip 13
black/green

29

61

Rx Ring 13
green/black

Tx Tip 14
black/brown

14

46

Tx Ring 14
brown/black

Rx Tip 14
black/brown

30

62

Rx Ring 14
brown/black

Tx Tip 15
black/slate

15

47

Tx Tip 15
slate/black

Rx Tip 15
black/slate

31

63

Rx Tip 15
slate/black

Tx Tip 16
yellow/blue

16

48

Tx Tip 16
blue/yellow

Rx Tip 16
yellow/blue

32

64

Rx Tip 16
blue/yellow


When using DS-1 AMP Champ cables, you must equip the ONS 15454 with an AMP Champ connector EIA on each side of the backplane where DS-1 cables will terminate. Each AMP Champ connector on the EIA corresponds to a slot in the shelf assembly and is numbered accordingly. The AMP Champ connectors have screw-down tooling at each end of the connector.

1.5.7  EIA Replacement

The replacement procedure is the same for all the EIA types. However, installing the AMP Champ EIA requires the additional step of attaching the fastening plate to the bottom of the connector row. Before you attach a new EIA, you must remove the backplane cover or EIA already attached to the ONS 15454.

1.6  Coaxial Cable


Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.

When using ONS 15454 DS-3 electrical cables, the cables must terminate on an EIA installed on the ONS 15454 backplane. All DS-3 cables connected to the ONS 15454 DS-3 card must terminate with coaxial cables using the desired connector type to connect to the specified EIA.

The electromagnetic compatibility (EMC) performance of the node depends on good-quality DS-3 coaxial cables, such as Shuner Type G 03233 D, or the equivalent.

1.7  DS-1 Cable

DS-1 cables support AMP Champ connectors and twisted-pair wire-wrap cabling. Twisted-pair wire-wrap cables require SMB EIAs.

1.7.1  Twisted Pair Wire-Wrap Cables

Installing twisted-pair, wire-wrap DS-1 cables requires separate pairs of grounded twisted-pair cables for receive (in) and transmit (out). Prepare four cables, two for receive and two for transmit, for each DS-1 facility to be installed.


Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.

If you use DS-1 electrical twisted-pair cables, equip the ONS 15454 with an SMB EIA on each side of the backplane where DS-1 cables will terminate. You must install special DS-1 electrical interface adapters, commonly referred to as a balun, on every transmit and receive connector for each DS-1 termination.

1.7.2  Electrical Interface Adapters


Note DS-1 electrical interface adapters project an additional 1.72 inches (43.7 mm) from the ONS 15454 backplane.


If you install DS-1 cards in the ONS 15454, you must fit the corresponding transmit and receive SMB connectors on the EIA with a DS-1 electrical interface adapter. You can install the adapter on the SMB connector for the port. The adaptor has wire-wrap posts for DS-1 transmit and receive cables. Figure 1-18 shows the DS-1 electrical interface adapter.


Note "EIA" refers to electrical interface assemblies and not electrical interface adapters. Electrical interface adapters are also known as baluns.


Figure 1-18 DS-1 Electrical Interface Adapter (Balun)

Each DS-1 electrical interface adapter has a female SMB connector on one end and a pair of 0.045 inch (1.14 mm) square wire-wrap posts on the other end. The wire-wrap posts are 0.200 inches (5.08 mm) apart.


Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.

1.8  Cable Routing and Management

The ONS 15454 cable management facilities include the following:

A cable-routing channel (behind the fold-down door) that runs the width of the shelf assembly, Figure 1-19

Plastic horseshoe-shaped fiber guides at each side opening of the cable-routing channel that ensure the proper bend radius is maintained in the fibers, Figure 1-20


Note You can remove the fiber guide if necessary to create a larger opening (if you need to route CAT-5 Ethernet cables out the side, for example). To remove the fiber guide, take out the three screws that anchor it to the side of the shelf assembly.


A fold-down door that provides access to the cable-management tray

Cable tie-wrap facilities on EIAs that secure cables to the cover panel

Reversible jumper routing fins that enable you to route cables out either side by positioning the fins as desired

Jumper slack storage reels (2) on each side panel that reduce the amount of slack in cables that are connected to other devices


Note To remove the jumper slack storage reels, take out the screw in the center of each reel.


Optional Fiber management tray (recommended for DWDM nodes)

Figure 1-19 shows the cable management facilities that you can access through the fold-down front door, including the cable-routing channel and the jumper routing fins.

Figure 1-19 Managing Cables on the Front Panel

1.8.1  Fiber Management

The jumper routing fins are designed to route fiber jumpers out of both sides of the shelf. Slots 1 to 6 exit to the left, and slots 12 to 17 exit to the right. Figure 1-20 shows fibers routed from cards in the left slots, down through the fins, then exiting out the fiber channel to the left. The maximum capacity of the fiber routing channel depends on the size of the fiber jumpers. Table 1-4 gives the maximum capacity of the fiber channel for each side of the shelf, for the different fiber sizes.

Figure 1-20 Fiber Capacity

Table 1-4 Fiber Capacity

Fiber Diameter
Maximum Number of Fibers Exiting Each Side

1.6 mm

224

2 mm

144

3 mm

64


Plan your fiber size according to the number of cards/ports installed in each side of the shelf. For example, if your port combination requires 36 fibers, 3 mm fiber is adequate. If your port combination requires 68 fibers, you must use 2 mm or smaller fibers.

1.8.2  Fiber Boots

The fiber boot, shown in Figure 1-21, serves to hold the fiber cable bend radius in a non flexible position. The fiber boot is a rigid plastic sleeve with circular slots that allow you to insert the fiber boot over the fiber cable, and position over the strain relief shroud, next to the cable connector.

Figure 1-21 Fiber boot

1.8.3  Fiber Management using the Optional DWDM Fiber Tray

Cisco recommends installing a fiber storage tray in multi-node racks to facilitate fiber management for DWDM applications. Refer to Figure 1-3 for typical mounting locations.

The fiber capacity for each tray is listed in Table 1-5.

Table 1-5 Fiber Tray Capacity

Fiber Diameter
Maximum Number of Fibers Exiting Each Side

1.6 mm

62

2 mm

48

3 mm

32


1.8.4  Coaxial Cable Management

Coaxial cables connect to EIAs on the ONS 15454 backplane using cable connectors. EIAs feature cable-management eyelets for tie wrapping or lacing cables to the cover panel.

1.8.5  DS-1 Twisted-Pair Cable Management

Connect twisted pair/DS-1cables to SMB EIAs on the ONS 15454 backplane using cable connectors and DS-1 electrical interface adapters (baluns).

1.8.6  AMP Champ Cable Management

EIAs have cable management eyelets to tiewrap or lace cables to the cover panel. Tie wrap or lace the AMP Champ cables according to local site practice and route the cables. If you configure the ONS 15454 for a 23-inch rack, two additional inches (50.8 mm) of cable management area is available on each side of the shelf assembly.

1.9  Alarm Expansion Panel

The optional ONS 15454 alarm expansion panel (AEP) can be used with the Alarm Interface Controller card (AIC-I) card to provide an additional 48 dry alarm contacts for the ONS 15454, 32 of which are inputs and 16 are outputs. The AEP is a printed circuit board assembly that is installed on the backplane. Figure 1-22 shows the AEP board. In Figure 1-22, the left connector is the input connector and the right connector is the output connector.

The AIC-I without an AEP already contains direct alarm contacts. These direct AIC-I alarm contacts are routed through the backplane to wire-wrap pins accessible from the back of the shelf. If you install an AEP, you cannot use the alarm contacts on the wire-wrap pins. For further information about the AIC-I, see the "AIC-I Card" section.

Figure 1-22 AEP Printed Circuit Board Assembly

Figure 1-23 shows the AEP block diagram.

Figure 1-23 AEP Block Diagram

Each AEP alarm input port has provisionable label and severity. The alarm inputs have optocoupler isolation.They have one common 32 VDC output and a maximum of 2 mA per input. Each opto metal oxide semiconductor (MOS) alarm output can operate by definable alarm condition, a maximum open circuit voltage of 60 VDC, anda maximum current of 100 mA. See the "External Alarms and Controls" section for further information.

1.9.1  Wire-Wrap and Pin Connections

Figure 1-24 shows the wire-wrapping connections on the backplane.

Figure 1-24 Wire-Wrapping Connections on the Backplane

Table 1-6 shows the wire-wrap pins and corresponding signals on the AIC-I and AEP.

Table 1-6 AEP Wire-Wrap Connections

Wire-Wrap Pin
Signal on AIC-I
Signal on AEP
P1-pins on AEP

TIP_1

GND

AEP_GND

7

TIP_2

AE_+5V

AEP_+5V

8

TIP_3

VBAT-

VBAT-

9

TIP_4

VB+

VB+

10

TIP_6

AE_CLK_P

AE_CLK_P

6

TIP_7

AE_CLK_N

AE_CLK_N

5

TIP_8

AE_DIN_P

AE_DOUT_P

4

TIP_9

AE_DIN_N

AE_DOUT_P

3

TIP_10

AE_DOUT_P

AE_DIN_P

2

TIP_11

AE_DOUT_N

AE_DIN_N

1


Figure 1-25 is a circuit diagram of the alarm inputs (inputs #1 and #32 are shown in the example).

Figure 1-25 Alarm Input Circuit Diagram

Table 1-7 lists the connections to the external alarm sources.

Table 1-7 Alarm Input Pin Association

AMP Champ Pin Number
Signal name
AMP Champ Pin Number
Signal name

1

ALARM_IN_1-

27

GND

2

GND

28

ALARM_IN_2-

3

ALARM_IN_3-

29

ALARM_IN_4-

4

ALARM_IN_5-

30

GND

5

GND

31

ALARM_IN_6-

6

ALARM_IN_7-

32

ALARM_IN_8-

7

ALARM_IN_9-

33

GND

8

GND

34

ALARM_IN_10-

9

ALARM_IN_11-

35

ALARM_IN_12-

10

ALARM_IN_13-

36

GND

11

GND

37

ALARM_IN_14-

12

ALARM_IN_15-

38

ALARM_IN_16-

13

ALARM_IN_17-

39

GND

14

GND

40

ALARM_IN_18-

15

ALARM_IN_19-

41

ALARM_IN_20-

16

ALARM_IN_21-

42

GND

17

GND

43

ALARM_IN_22-

18

ALARM_IN_23-

44

ALARM_IN_24-

19

ALARM_IN_25-

45

GND

20

GND

46

ALARM_IN_26-

21

ALARM_IN_27-

47

ALARM_IN_28-

22

ALARM_IN_29-

48

GND

23

GND

49

ALARM_IN_30-

24

ALARM_IN_31-

50

N.C.

25

ALARM_IN_+

51

GND1

26

ALARM_IN_0-

52

GND2


Figure 1-26 is a circuit diagram of the alarm outputs (outputs #1 and #16 are shown in the example).

Figure 1-26 Alarm Output Circuit Diagram

Use the pin numbers in Table 1-8 to connect to the external elements being switched by external alarms.

Table 1-8 Pin Association for Alarm Output Pins

AMP Champ Pin Number
Signal name
AMP Champ Pin Number
Signal name

1

N.C.

27

COM_0

2

COM_1

28

N.C.

3

NO_1

29

NO_2

4

N.C.

30

COM_2

5

COM_3

31

N.C.

6

NO_3

32

NO_4

7

N.C.

33

COM_4

8

COM_5

34

N.C.

9

NO_5

35

NO_6

10

N.C.

36

COM_6

11

COM_7

37

N.C.

12

NO_7

38

NO_8

13

N.C.

39

COM_8

14

COM_9

40

N.C.

15

NO_9

41

NO_10

16

N.C.

42

COM_10

17

COM_11

43

N.C.

18

NO_11

44

NO_12

19

N.C.

45

COM_12

20

COM_13

46

N.C.

21

NO_13

47

NO_14

22

N.C.

48

COM_14

23

COM_15

49

N.C.

24

NO_15

50

N.C.

25

N.C.

51

GND1

26

NO_0

52

GND2


1.9.2  AEP Specifications

Alarm inputs

Number of inputs: 32

Optocoupler isolated

Label customer provisionable

Severity customer provisionable

Common 32 V output for all alarm-inputs

Each input limited to 2 mA

Termination: 50-pin AMP champ connector

Alarm outputs

Number of outputs: 16

Switched by opto MOS (metal oxide semiconductor)

Triggered by definable alarm condition

Maximum allowed open circuit voltage: 60 VDC

Maximum allowed closed circuit current: 100 mA

Termination: 50-pin AMP champ connector

Environmental

Overvoltage protection: as in ITU-T G.703 Annex B

Operating temperature: -40 to +65 degrees Celsius

Operating humidity: 5 to 95%, non-condensing

Power consumption: 3.00 W max., from +5 VDC from AIC-I, 10.2 BTU/Hr. max.

Dimensions of AEP board

Height: 20 mm (0.79 in.)

Width: 330 mm (13.0 in.)

Depth: 89 mm (3.5 in.)

Weight: 0.18 kg (0.4 lb.)

Compliance
Installed ONS 15454 cards comply with these standards:

Safety: IEC 60950, EN 60950, UL 60950, CSA C22.2 No. 60950, TS 001, AS/NZS 3260

1.10  Fan-Tray Assembly

The fan-tray assembly is located at the bottom of the ONS 15454 fan-tray assembly. The fan tray is a removable drawer that holds fans and fan-control circuitry for the ONS 15454. The front door can be left in place or removed before installing the fan-tray assembly. After you install the fan tray, you should only need to access it if a fan failure occurs or you need to replace or clean the fan-tray air filter.

The front of the fan-tray assembly has an LCD screen that provides slot and port-level information for all ONS 15454 card slots, including the number of Critical, Major, and Minor alarms. The LCD also tells you whether the software load is SONET or SDH and the software version number.

The fan-tray assembly features an air filter at the bottom of the tray that you can install and remove by hand. Remove and visually inspect this filter every 30 days and keep spare filters in stock. Refer to the Cisco ONS 15454 Troubleshooting Guide for information about cleaning and maintaining the fan-tray air filter.


Note The 15454-SA-ANSI shelf assembly and 15454-FTA3 fan-tray assembly are required with any ONS 15454 that has XC10G cards.



Caution Do not operate an ONS 15454 without the mandatory fan-tray air filter.


Caution The 15454-FTA3-T fan-tray assembly can only be installed in ONS 15454 Release 3.1 and later shelf assemblies (15454-SA-ANSI, P/N: 800-19857). It includes a pin that does not allow it to be installed in ONS 15454 shelf assemblies released before ONS 15454 Release 3.1 (15454-SA-NEBS3E, 15454-SA-NEBS3, and 15454-SA-R1, P/N: 800-07149). Equipment damage can result from attempting to install the 15454-FTA3 in a non-compatible shelf assembly.


Note The 15454-FTA3 is not I-temp. To obtain an I-temp fan tray, install the 15454-FTA3-T fan-tray assembly in an ONS 15454 Release 3.1 shelf assembly (15454-SA-ANSI). However, do not install the ONS 15454 XC10G cross-connect cards with the 15454-FTA2 fan-tray assembly.


1.10.1  Fan Speed

If one or more fans fail on the fan-tray assembly, replace the entire assembly. You cannot replace individual fans. The red Fan Fail LED on the front of the fan tray illuminates when one or more fans fail. For fan tray replacement instructions, refer to the Cisco ONS 15454 Troubleshooting Guide. The red Fan Fail LED clears after you install a working fan tray.

Fan speed is controlled by TCC+/TCC2 card temperature sensors. The sensors measure the input air temperature at the fan-tray assembly. Fan speed options are low, medium, and high. If the TCC+/TCC2 card fails, the fans automatically shift to high speed. The temperature measured by the TCC+/TCC2 sensors is displayed on the LCD screen.

Table 1-9 lists power requirements for the fan-tray assembly.

Table 1-9 Fan Tray Assembly Power Requirements

Fan Tray Assembly
Watts
Amps
BTU/Hr.
FTA2

53

1.21

198

FTA3 -T

86.4

1.8

295


1.10.2  Air Filter

The ONS 15454 contains a reusable air filter; Model 15454-FTF2, that is installed either beneath the fan-tray assembly or in the optional external filter brackets. Earlier versions of the ONS 15454 used a disposable air filter that is installed beneath the fan-tray assembly only. However, the reusable air filter is backward compatible.


Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard.


The reusable filter is made of a gray, open-cell, polyurethane foam that is specially coated to provide fire and fungi resistance. All versions of the ONS 15454 can use the reusable air filter. Spare filters should be kept in stock.

1.11  Power and Ground Description

Ground the equipment according to Telcordia standards or local practices.

Cisco recommends the following wiring conventions, but customer conventions prevail:

Red wire for battery connections (-48 VDC)

Black wire for battery return connections (0 VDC)

The ONS 15454 has redundant -48 VDC #8 power terminals on the shelf-assembly backplane. The terminals are labeled BAT1, RET1, BAT2, and RET2 and are located on the lower section of the backplane behind a clear plastic cover.

To install redundant power feeds, use four power cables and one ground cable. For a single power feed, only two power cables (#10 AWG, 2.588 mm², copper conductor, 194°F [90°C]) and one ground cable (#6 AWG, 4.115 mm²) are required. Use a conductor with low impedance to ensure circuit overcurrent protection. However, the conductor must have the capability to safely conduct any faulty current that might be imposed.


Note If you are installing power on a Release 3.0 ONS 15454 shelf assembly (15454-SA-NEBS3E, 15454-SA-NEBS3, and 15454-SA-R1, P/N: 800-07149), the #12 to #14 AWG (2.053 to 1.628 mm²) power cable and #14 AWG (1.628 mm²) ground cable are required.


The existing ground post is a #10-32 bolt. The nut provided for a field connection is also a #10 AWG (2.588 mm²), with an integral lock washer. The lug must be a dual-hole type and rated to accept the #6 AWG (4.115 mm²) cable. Two posts are provided on the Cisco ONS 15454 to accommodate the dual-hole lug. Figure 1-27 shows the location of the ground posts.

Figure 1-27 Ground Posts on the ONS 15454 Backplane

For information about attaching ferrites to power cabling, refer to the "Ferrites" section.

1.12  Alarm, Timing, LAN, and Craft Pin Connections


Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.

The ONS 15454 has a backplane pin field located at the bottom of the backplane. The backplane pin field provides 0.045 square inch wire-wrap pins for enabling external alarms, timing input and output, and craft interface terminals. This section describes the backplane pin field and the pin assignments for the field. Figure 1-28 shows the wire-wrap pins on the backplane pin field. Beneath each wire-wrap pin is a frame ground pin. Frame ground pins are labeled FG1, FG2, FG3, etc. Install the ground shield of the cables connected to the backplane to the ground pin that corresponds to the pin field used.


Note The AIC-I requires a shelf assembly running Software Release 3.4.0 or higher. The backplane of the ANSI shelf contains a wire-wrap field with pin assignment according to the layout in Figure 1-28. The shelf assembly may be an existing shelf that has been upgraded to 3.4 or higher. In this case the backplane pin labeling will appear as indicated in Figure 1-29. But you must use the pin assignments provided by the AIC-I as shown in Figure 1-28.


Figure 1-28 ONS 15454 Backplane Pinouts (Release 3.4 or Higher)


Note The Modem pin field is not active.


Figure 1-29 ONS 15454 Backplane Pinouts (Release 3.3 and Earlier)


Note The X.25, Modem, and TBOS pin fields are not active.


1.12.1  Alarm Contact Connections

The alarm pin field supports up to 17 alarm contacts, including four audible alarms, four visual alarms, one alarm cutoff (ACO), and four user-definable alarm input and output contacts.

Audible alarm contacts are in the LOCAL ALARM AUD pin field and visual contacts are in the LOCAL ALARM VIS pin field. Both of these alarms are in the LOCAL ALARMS category. User-definable contacts are in the ENVIR ALARM IN (external alarm) and ENVIR ALARM OUT (external control) pin fields. These alarms are in the ENVIR ALARMS category; you must have the AIC card installed to use the ENVIR ALARMS. Alarm contacts are Normally Open (N/O), meaning that the system closes the alarm contacts when the corresponding alarm conditions are present. Each alarm contact consists of two wire-wrap pins on the shelf assembly backplane. Visual and audible alarm contacts are classified as critical, major, minor, and remote. Figure 1-29 shows alarm pin assignments.

Visual and audible alarms are typically wired to trigger an alarm light or bell at a central alarm collection point when the corresponding contacts are closed. You can use the Alarm Cutoff pins to activate a remote ACO for audible alarms. You can also activate the ACO function by pressing the ACO button on the TCC+/TCC2 card faceplate. The ACO function clears all audible alarm indications. After clearing the audible alarm indication, the alarm is still present and viewable in the Alarms tab in CTC.

1.12.2  Timing Connections

The ONS 15454 backplane supports two Building Integrated Timing Supply (BITS) clock pin fields. The first four BITS pins, rows 3 and 4, support output and input from the first external timing device. The last four BITS pins, rows 1 and 2, perform the identical functions for the second external timing device. Table 1-10 lists the pin assignments for the BITS timing pin fields.


Note For timing connection, use 100-ohm shielded BITS clock cable pair #22 or #24 AWG (0.51 mm² or 0.64 mm²), twisted-pair T1-type.


Table 1-10 BITS External Timing Pin Assignments

External Device
Contact
Tip and Ring
Function

First external device

A3 (BITS 1 Out)

Primary ring (-)

Output to external device

B3 (BITS 1 Out)

Primary tip (+)

Output to external device

A4 (BITS 1 In)

Secondary ring (-)

Input from external device

B4 (BITS 1 In)

Secondary tip (+)

Input from external device

Second external device

A1 (BITS 2 Out)

Primary ring (-)

Output to external device

B1 (BITS 2 Out)

Primary tip (+)

Output to external device

A2 (BITS 2 In)

Secondary ring (-)

Input from external device

B2 (BITS 2 In)

Secondary tip (+)

Input from external device



Note Refer to Telcordia SR-NWT-002224 for rules about provisioning timing references.


1.12.3  LAN Connections

Use the LAN pins on the ONS 15454 backplane to connect the ONS 15454 to a workstation or Ethernet LAN, or to a LAN modem for remote access to the node. You can also use the LAN port on the TCC+/TCC2 faceplate to connect a workstation or to connect the ONS 15454 to the network. Table 1-11 shows the LAN pin assignments.

Before you can connect an ONS 15454 to other ONS 15454s or to a LAN, you must change the default IP address that is shipped with each ONS 15454 (192.1.0.2).

Table 1-11 LAN Pin Assignments

Pin Field
Backplane Pins
RJ-45 Pins

LAN 1
Connecting to data circuit-terminating equipment (DCE1 ) (a hub or switch)

B2

1

A2

2

B1

3

A1

6

LAN 1
Connecting to data terminal equipment (DTE) (a PC/workstation or router)

B1

1

A1

2

B2

3

A2

6

1 The Cisco ONS 15454 is DCE.


1.12.4  TL1 Craft Interface Installation

You can use the craft pins on the ONS 15454 backplane or the EIA/TIA-232 port on the TCC+/TCC2 faceplate to create a VT100 emulation window to serve as a TL1 craft interface to the ONS 15454. Use a straight-through cable to connect to the EIA/TIA-232 port. Table 1-12 shows the pin assignments for the CRAFT pin field.


Note You cannot use the craft backplane pins and the EIA/TIA-232 port on the TCC+/TCC2 card simultaneously.


Table 1-12 Craft Interface Pin Assignments

Pin Field
Contact
Function

Craft

A1

Receive

A2

Transmit

A3

Ground

A4

DTR


1.13  Cards and Slots

ONS 15454 cards have electrical plugs at the back that plug into electrical connectors on the shelf- assembly backplane. When the ejectors are fully closed, the card plugs into the assembly backplane. Figure 1-30 shows card installation.

Figure 1-30 Installing Cards in the ONS 15454

1.13.1  Card Slot Requirements

The ONS 15454 shelf assembly has 17 card slots numbered sequentially from left to right. Slots 1 to 4 and 14 to 17 are multispeed slots. They can host any ONS 15454 card, except the OC48 IR 1310, OC48 LR 1550, OC48 ELR 1550, and OC192 LR 1550 cards. Slots 5, 6, 12, and 13 are high-speed slots. They can host all ONS 15454 cards, except the OC12/STM4-4 and OC3-8 cards. You can install the OC48 IR/STM16 SH AS 1310 and the OC48 LR/STM16 LH AS 1550 cards in any multispeed or high-speed card slot.

Slots 7 and 11 are dedicated to TCC+/TCC2 cards. Slots 8 and 10 are dedicated to cross-connect (XC, XCVT, XC10G) cards. Slot 9 is reserved for the optional Alarm Interface Controller (AIC or AIC-I) card. Slots 3 and 15 can also host DS1N-14 and DS3N-12 cards that are used in 1:N protection.


Caution Do not operate the ONS 15454 with a single TCC+ or TCC2 card or a single XC/XCVT/XC10G card installed. Always operate the shelf assembly with one working and one protect card of the same type.

Shelf assembly slots have symbols indicating the type of cards that you can install in them. Each ONS 15454 card has a corresponding symbol. The symbol on the card must match the symbol on the slot.

Table 1-13 shows the slot and card symbol definitions.


Note Protection schemes and EIA types can affect slot compatibility. Refer to the "Card Compatibility" section for more detailed compatibility information.


Table 1-13 Slot and Card Symbols

Symbol Color/Shape
Definition

Orange/Circle

Slots 1 to 6 and 12 to 17. Only install ONS 15454 cards with a circle symbol on the faceplate.

Blue/Triangle

Slots 5, 6, 12, and 13. Only install ONS 15454 cards with circle or a triangle symbol on the faceplate.

Purple/Square

TCC+/TCC2 slot, Slots 7 and 11. Only install ONS 15454 cards with a square symbol on the faceplate.

Green/Cross

Cross-connect (XC/XCVT/XC10G) slot, i.e. Slots 8 and 10. Only install ONS 15454 cards with a cross symbol on the faceplate.

Red/P

Protection slot in 1:N protection schemes.

Red/Diamond

AIC slot, that is Slot 9. Only install ONS 15454 cards with a diamond symbol on the faceplate.

Gold/Star

Slots 1 to 4 and 14 to 17. Only install ONS 15454 cards with a star symbol on the faceplate.


Table 1-14 lists the number of ports, line rates, connector options, and connector locations for ONS 15454 optical and electrical cards.

Table 1-14 Card Ports, Line Rates, and Connectors

Card
Ports
Line Rate per Port
Connector Types
Connector Location

DS1-14

14

1.544 Mbps

SMB w/wire wrap adapter, AMP Champ Connector

Backplane

DS1N-14

14

1.544 Mbps

SMB w/wire wrap1 adapter, AMP Champ Connector

DS3-12

12

44.736 Mbps

SMB or BNC1

Backplane

DS3N-12

12

44.736 Mbps

SMB or BNC1

DS3-12E

12

44.736 Mbps

SMB or BNC1

Backplane

DS3N-12E

12

44.736 Mbps

SMB or BNC1

DS3XM-6

6

44.736 Mbps

SMB or BNC1

Backplane

EC1-12

12

51.84 Mbps

SMB or BNC1

Backplane

E100T-12

12

100 Mbps

RJ-45

Faceplate

E1000-2

2

1 Gbps

SC (GBIC)

Faceplate

E100T-G

12

100 Mbps

RJ-45

Faceplate

E1000-2-G

2

1 Gbps

SC (GBIC)

Faceplate

G1000-4

4

1 Gbps

SC (GBIC)

Faceplate

G1K-4

4

1 Gbps

SC (GBIC)

Faceplate

ML100T-12

12

100 Mbps

RJ-45

Faceplate

ML1000-2

2

1 Gbps

LC (SFP)

Faceplate

OC-3 IR

4

155.52 Mbps (STS-3)

SC

Faceplate

OC3 IR/STM4 SH 1310-8

8

155.52 Mbps (STS-3)

LC

Faceplate

OC-12/STM4-4 (IR/LR)

4

622.08 Mbps (STS-12)

SC

Faceplate

OC-12 (IR/LR)

1

622.08 Mbps (STS-12)

SC

Faceplate

OC-48 (IR/LR/ELR)

1

2488.32 Mbps (STS-48)

SC

Faceplate

OC-48 AS (IR/LR)

1

2488.32 Mbps (STS-48)

SC

Faceplate

OC-48 ELR (100GHz, 200GHz)

1

2488.32 Mbps (STS-48)

SC

Faceplate

OC192 SR/STM64 IO 1310

1

9.95 Gbps (STS-192)

SC

Faceplate

OC192 IR/STM64 SH 1550

1

9.95 Gbps (STS-192)

SC

Faceplate

OC192 LR/STM64 LH 1550

1

9.95 Gbps (STS-192)

SC

Faceplate

OC192 LR/STM64 LH ITU 15xx.xx

1

9.95 Gbps (STS-192)

SC

Faceplate

TXP_MR_10G

1 (client)

1 (trunk)

9.95 Gbps (STS-192)

9.95 Gbps (STS-192)

SC

SC

Faceplate

MXP_2.5G_10G

4 (client)

1 (trunk)

2488.32 Mbps (STS-48)

9.95 Gbps (STS-192)

LC SFP

SC

Faceplate

1 When used as a protect card, the card does not have a physical external connection. The protect card connects to the working card(s) through the backplane and becomes active when the working card fails. The protect card then uses the physical connection of the failed card.


1.13.2  Card Replacement

To replace an ONS 15454 card with another card of the same type, you do not need to make any changes to the database; remove the old card and replace it with a new card. To replace a card with a card of a different type, physically remove the card and replace it with the new card, then delete the original card from CTC. For specifics, refer to the Cisco ONS 15454 Procedure Guide.


Caution Removing any active card from the ONS 15454 can result in traffic interruption. Use caution when replacing cards and verify that only inactive or standby cards are being replaced. If the active card needs to be replaced, switch it to standby prior to removing the card from the node. For traffic switching procedures, refer to the Cisco ONS 15454 Procedure Guide.


Note An improper removal (IMPROPRMVL) alarm is raised whenever a card pull (reseat) is performed, unless the card is deleted in CTC first. The alarm will clear after the card replacement is complete.



Note In a path protection, pulling the active XC/XCVT/XC10G without a lockout will cause path protection circuits to switch.



Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard.


1.14  Ferrites

Place third-party ferrites on certain cables to dampen electromagnetic interference (EMI) from the ONS 15454. Ferrites must be added to meet the requirements of Telcordia GR-1089-CORE. Refer to the ferrite manufacturer documentation for proper use and installation of the ferrites. Ferrite placements on the ONS 15454 can include power cables, AMP Champ connectors, baluns, BNC/SMB connectors, and the wire-wrap pin field.

1.15  Software and Hardware Compatibility

Table 1-15 shows ONS 15454 software and hardware compatibility for systems configured with XC/XCVT cards for Releases 2.0, 2.1, 2.2.0, 3.0, 3.1, 3.2, 3.3, 3.4, 4.0, and 4.1.


Note The XC10G card is not supported before Release 3.1. Release 4.5 is not supported by x-connect cards.


Table 1-15 ONS 15454 Software and Hardware Compatibility—XC/XCVT Configurations

Hardware
2.00.0x (2.0)
2.10.0x (2.1)
2.20.0x (2.2.0)
3.00.0x (3.0)
3.10.0x (3.1)
3.20.0x (3.2)
3.30.0x (3.3)
3.40.0x (3.4)
4.0.0x (4.0)
4.1.0x (4.1)

XC1

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

XCVT

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

TCC

Required

Required

Fully Compatible

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

TCC+

Not Supported

Not Supported

Fully Compatible

Required

Required

Required

Required

Required

Fully Compatible

TCC2

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

AIC

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

AIC-I

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Fully Compatible

DS1-14

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

DS1N-14

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

DS3-12

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

DS3N-12

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

DS3-12E

Supported 2

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

DS3N-12E

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

DS3XM-6

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

EC1-12

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

E100T-12

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

E1000-2

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

E100T-12-G

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

E1000-2-G

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

G1000-4

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

G1K-4

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Supported in Slots 5, 6, 12, 13

ML100T-12

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Supported in Slots 5, 6, 12, 13

ML1000-2

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Supported in Slots 5, 6, 12, 13

OC3 IR 4/STM1 SH 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC3IR/STM1SH 1310-8

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

OC12 IR 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC12 IR/4 1310

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

OC12 LR 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC12 LR 1550

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC48 IR 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC48 LR 1550

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC48 ELR DWDM

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC48 IR/STM16 SH AS 1310

Supported3

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC48 LR/STM16 LH AS 1550

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

OC192 SR/STM64 IO 1310

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

OC192 IR/STM64 SH 1550

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

OC192 LH/STM64 LH 1550

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

OC192 LR/STM64 LH ITU 15xx.xx

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

TXP_MR_2.5G

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Supported

TXPP_MR_2.5G

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Supported

TXP_MR_10G

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Supported

MXP_2.5G_10G

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Supported

1 VT 1.5 provisioning is not supported for the XC.

2 In Software R2.0 - 2.2, extended features are not supported for the DS3-12E and DS3N-12E cards.

3 You must use the XC10G card (Table 1-16), the TCC+/TCC2 card, and Software R3.1 or higher to enable the any slot function on the OC48 IR/STM16 SH AS 1310 and OC48 LR/STM16 LH AS 1550 cards.

3 Table 1-16 shows the ONS 15454 software and hardware compatibility for nodes configured with XC10G cards for Releases 3.1, 3.2, 3.3, 3.4, and 4.0. The 15454-SA-ANSI shelf assembly is required to operate the XC10G card.


Table 1-16 ONS 15454 Software and Hardware Compatibility—XC10G Configurations

Hardware
3.10.0x (3.1)
3.20.0x (3.2)
3.30.0x (3.3)
3.40.0x (3.4)
4.0.0x (4.0)
4.1.0x (4.1)
4.5.0x (4.5)

TCC+

TCC+ Required

TCC+ Required

TCC+ Required

TCC+ Required

TCC+ or TCC2 Required

TCC+ or TCC2 Required

Not Supported

TCC2

Not Supported

Not Supported

Not Supported

Not Supported

TCC+ or TCC2 Required

TCC+ or TCC2 Required

Required

XC10G

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

AIC

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

AIC-I

Not Supported

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

DS1-14

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

DS1N-14

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

DS3-12

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

DS3N-12

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

DS3-12E

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

DS3N-12E

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

DS3XM-6

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

EC1-12

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

E100T

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

E1000

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

E100T-12-G

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

E1000-2-G

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

G1000-4

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

G1K-4

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

ML100T-12

Not Supported

Not Supported

Not Supported

Not Supported

Fully Supported

Fully Supported

Not Supported

ML1000-2

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Not Supported

OC3 IR 4/STM1 SH 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC3IR/STM1SH 1310-8

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible, Slots 1-4, 14-17

Fully Compatible
Slots 1-4, 14-17

Not Supported

OC12/STM4-4

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC12 IR 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC12 LR 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC12 LR 1550

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC48 IR 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC48 LR 1550

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC48 ELR DWDM

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC48 IR/STM16 SH AS 1310

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC48 LR/STM16 LH AS 1550

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC192 SR/STM64 IO 1310

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Not Supported

OC192 IR/STM64 SH 1550

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Not Supported

OC192 LR/STM64 LH 1550

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Fully Compatible

Not Supported

OC192 LR/STM64 LH ITU 15xx.xx

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Fully Compatible

Not Supported

TXP_MR_10G

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Not Supported

Not Supported

MXP_2.5G_10G

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Not Supported

Not Supported

TXP_MR_10G

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Not Supported

Not Supported

MXP_2.5G_10G

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

Not Supported

Not Supported

MR-L1-xx.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

MRP-L1-xx.xx

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

OSC

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

OSC-CSM

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

OPT-PRE

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

OPT-BST

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

32MUX-O

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

32DMX-O

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

4MD-xx.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

AD-1C-xx.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

AD-2C-xx.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

AD-4C-xx.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

AD-1B-xx.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible

AD-4B-xx.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Fully Compatible


If an upgrade is required for compatibility, contact the Technical Assistance Center (TAC). For contact information, go to http://www.cisco.com/tac.
