Cisco ONS 15454 Reference Manual, Releases 4.1.x and 4.5
Chapter 6, DWDM Cards
Downloads: This chapterpdf (PDF - 704.0KB) The complete bookPDF (PDF - 6.72MB) | Feedback

DWDM Cards

Table Of Contents

DWDM Cards

6.1  DWDM Card Overview

6.1.1  DWDM Cards

6.1.2  Card Power Requirements

6.1.3  Card Temperature Ranges

6.1.4  Demultiplexer, Combiner, and OADM Card Interface Classes

6.1.5  DWDM Card Channel Allocation Plan

6.2  OSCM Card

6.2.1  OSCM Card-Level Indicators

6.2.2  OSCM Port-Level Indicators

6.2.3  OSCM Card Specifications

6.3  OSC-CSM Card

6.3.1  OSC-CSM Card-Level Indicators

6.3.2  OSC-CSM Port-Level Indicators

6.3.3  OSC-CSM Card Specifications

6.4  OPT-PRE Amplifier

6.4.1  OPT-PRE Amplifier-Level Indicators

6.4.2  OPT-PRE Port-Level Indicators

6.4.3  OPT-PRE Amplifier Specifications

6.5  OPT-BST Amplifier

6.5.1  OPT-BST Amplifier-Level Indicators

6.5.2  OPT-BST Port-Level Indicators

6.5.3  OPT-BST Amplifier Specifications

6.6  32 MUX-O Card

6.6.1  32 MUX-O Card-Level Indicators

6.6.2  32 MUX-O Port-Level Indicators

6.6.3  32 MUX-O Card Specifications

6.7  32 DMX-O Card

6.7.1  32 DMX-O Card-Level Indicators

6.7.2  32 DMX-O Port-Level Indicators

6.7.3  32 DMX-O Card Specifications

6.8  4MD-xx.x Card

6.8.1  4MD-xx.x Card-Level Indicators

6.8.2  4MD-xx.x Port-Level Indicators

6.8.3  4MD-xx.x Card Specifications

6.9  AD-1C-xx.x Card

6.9.1  AD-1C-xx.x Card-Level Indicators

6.9.2  AD-1C-xx.x Port-Level Indicators

6.9.3  AD-1C-xx.x Card Specifications

6.10  AD-2C-xx.x Card

6.10.1  AD-2C-xx.x Card-Level Indicators

6.10.2  AD-2C-xx.x Port-Level Indicators

6.10.3  AD-2C-xx.x Card Specifications

6.11  AD-4C-xx.x Card

6.11.1  AD-4C-xx.x Card-Level Indicators

6.11.2  AD-4C-xx.x Port-Level Indicators

6.11.3  AD-4C-xx.x Card Specifications

6.12  AD-1B-xx.x Card

6.12.1  AD-1B-xx.x Card-Level Indicators

6.12.2  AD-1B-xx.x Port-Level Indicators

6.12.3  AD-1B-xx.x Card Specifications

6.13  AD-4B-xx.x Card

6.13.1  AD-4B-xx.x Card-Level Indicators

6.13.2  AD-4B-xx.x Port-Level Indicators

6.13.3  AD-4B-xx.x Card Specifications


DWDM Cards


This chapter describes Cisco ONS 15454 dense wavelength-division multiplexing (DWDM) card features and functions. For installation and card turn-up procedures, refer to the Cisco ONS 15454 Procedure Guide. For card safety and compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

Chapter topics include:

DWDM Card Overview

OSCM Card

OSC-CSM Card

OPT-PRE Amplifier

OPT-BST Amplifier

32 MUX-O Card

32 DMX-O Card

4MD-xx.x Card

AD-1C-xx.x Card

AD-2C-xx.x Card

AD-4C-xx.x Card

AD-1B-xx.x Card

AD-4B-xx.x Card

6.1  DWDM Card Overview

The DWDM card overview section summarizes card functions, power consumption, and temperature ranges. DWDM cards are compatible with Software Release 4.5 only. They are not compatible with cross-connect (XC), cross-connect VT (XCVT), or cross-connect 10 Gbps (XC10G) cards.


Note Each card is marked with a symbol that corresponds to a slot (or slots) on the ONS 15454 shelf assembly. The cards are then installed into slots displaying the same symbols. See the "Card Slot Requirements" section for a list of slots and symbols.


6.1.1  DWDM Cards

ONS 15454 DWDM cards are grouped into the following categories:

Optical service channel cards provide bidirectional channels that connect all the ONS 15454 DWDM nodes and transport general-purpose information without affecting the client traffic. ONS 15454 optical service channel cards include the Optical Service Channel Module (OSCM) and the Optical Service Channel and Combiner/Separator Module (OSC-CSM).

Optical amplifier cards are used in amplified DWDM nodes, including hub nodes, amplified OADM nodes, and line amplified nodes. The cards are composed of three main modules: an optical plug-in, a microprocessor, and a DC/DC converter. Optical amplifier cards include the Optical Pre-amplifier (OPT-PRE) and Optical Booster (OPT-BST) amplifier.

Dispersion compensation units are installed in the ONS 15454 dispersion compensation shelf when optical pre-amplifier cards are installed in the DWDM node. Each DCU module can compensate a maximum of 65 km of single-mode fiber (SMF-28) span. DCUs can be cascaded to extend the compensation to 130 km.

Multiplexer and demultiplexer cards multiplex and demultiplex DWDM optical channels. The cards are composed of three main modules: optical plug-in, microprocessor, and the DC/DC converter. ONS 15454 multiplexer and demultiplexer cards include the 32-Channel Multiplexer (32 MUX-O), the 32-Channel Demultiplexer (32 DMX-O), and the 4-Channel Multiplexer/Demultiplexer (4MD-xx.x).

Optical Add/Drop multiplexers (OADM) cards are mainly divided into two groups: band OADM and channel OADM cards. Band OADM cards add and drop one or four bands of adjacent channels; they include the 4-Band OADM (AD-4B-xx.x) and the 1-Band OADM (AD-1B-xx.x). Channel OADM cards add and drop one, two or four adjacent channels; they include the 4-Channel OADM (AD-4C-xx.x), the 2-Channel OADM (AD-2C-xx.x) and the 1-Channel OADM (AD-1C-xx.x). The cards are composed of three main modules: optical plug-in, microprocessor, and the DC/DC converter.

Table 6-1 lists the Cisco ONS 15454 DWDM cards.

Table 6-1 DWDM Cards for the ONS 15454

Card
Port Description
For Additional Information...
Optical Service Channel Modules
OSCM

The OSCM has one set of optical ports and one Ethernet port located on the faceplate.

See the "OSCM Card" section.

OSC-CSM

The OSC-CSM has three sets of optical ports and one Ethernet port located on the faceplate.

See the "OSC-CSM Card" section.

Optical Amplifiers
OPT-PRE

The OPT-PRE amplifier has five optical ports (three sets) located on the faceplate.

See the "OPT-PRE Amplifier" section.

OPT-BST

The OPT-BST amplifier has four sets of optical ports located on the faceplate.

See the "OPT-BST Amplifier" section.

Multiplexer and Demultiplexer Cards
32 MUX-O

The 32 MUX-O has five sets of ports located on the faceplate.

See the "32 MUX-O Card" section.

32 DMX-O

The 32 DMX-O has five sets of ports located on the faceplate.

See the "32 DMX-O Card" section.

4MD-xx.x

The 4MD-xx.x card has five sets of ports located on the faceplate.

See the "4MD-xx.x Card" section.

Optical Add Drop Multiplexer Cards
AD-1C-xx.x

The AD-1C-xx.x card has three sets of ports located on the faceplate.

See the "AD-1C-xx.x Card" section.

AD-2C-xx.x

The AD-2C-xx.x card has four sets of ports located on the faceplate.

See the "AD-2C-xx.x Card" section.

AD-4C-xx.x

The AD-4C-xx.x card has six sets of ports located on the faceplate.

See the "AD-4C-xx.x Card" section.

AD-1B-xx.x

The AD-1B-xx.x card has three sets of ports located on the faceplate.

See the "AD-1B-xx.x Card" section.

AD-4B-xx.x

The AD-4B-xx.x card has six sets of ports located on the faceplate.

See the "AD-4B-xx.x Card" section.


6.1.2  Card Power Requirements

Table 6-2 lists power requirements for individual cards.

Table 6-2 Individual Card Power Requirements

Card Name
Watts
Amperes
BTU/Hr
OSCM

Nominal 23 W

Maximum 26 W

Nominal 0.48 A

Maximum 0.54 A

Nominal 78.48 BTUs

Maximum 88.71 BTUs

OSC-CSM

Nominal 24 W

Maximum 27 W

Nominal 0.5 A

Maximum 0.56 A

Nominal 81.89 BTUs

Maximum 92.12 BTUs

OPT-PRE

Minimum 25 W

Nominal 30 W

Maximum39 W

Minimum 0.52 A

Nominal 0.56 A

Maximum 0.81 A

Minimum 85.3 BTUs

Nominal 102.36  BTUs

Maximum 88.71 BTUs

OPT-BST

Nominal 30 W

Maximum 39 W

Nominal 0.63 A

Maximum 0.81 A

Nominal 102.36  BTUs Maximum 88.71 BTUs

32 MUX-O

Nominal 16 W

Maximum 25 W

Nominal 0.33 A

Maximum 0.52 A

Nominal 54.59  BTUs

Maximum 85.3 BTUs

32 DMX-O

Nominal 16 W

Maximum 25 W

Nominal 0.33 A

Maximum 0.52 A

Nominal 54.59  BTUs

Maximum 85.3 BTUs

4MD-xx.x

Nominal 17 W

Maximum 25 W

Nominal 0.35 A

Maximum 0.52 A

Nominal 58.0 BTUs

Maximum 85.3 BTUs

AD-1C-xx.x

Nominal 17 W

Maximum 25 W

Nominal 0.35 A

Maximum 0.52 A

Nominal 58.0 BTUs

Maximum 85.3 BTUs

AD-2C-xx.x

Nominal 17 W

Maximum 25 W

Nominal 0.35 A

Maximum 0.52 A

Nominal 58.0 BTUs

Maximum 85.3 BTUs

AD-4C-xx.x

Nominal 17 W

Maximum 25 W

Nominal 0.35 A

Maximum 0.52 A

Nominal 58.0 BTUs

Maximum 85.3 BTUs

AD-1B-xx.x

Nominal 17 W

Maximum 25 W

Nominal 0.35 A

Maximum 0.52 A

Nominal 58.0 BTUs

Maximum 85.3 BTUs

AD-4B-xx.x

Nominal 17 W

Maximum 25 W

Nominal 0.35 A

Maximum 0.52 A

Nominal 58.0 BTUs

Maximum 85.3 BTUs


6.1.3  Card Temperature Ranges

Table 6-3 shows C-Temp and I-Temp compliant cards and their product names.


Note The I-Temp symbol is displayed on the faceplate of an I-Temp compliant card. A card without this symbol is C-Temp compliant.


Table 6-3 Optical Card Temperature Ranges and Product Names for the ONS 15454

Card
C-Temp Product Name
(+23 to +131 degrees Fahrenheit, -5 to +55 degrees Celsius)
I-Temp Product Name
(-40 to +149 degrees Fahrenheit, -40 to +65 degrees Celsius)
OSCM

OSCM

OSC-CSM

OSC-CSM

OPT-PRE

OPT-PRE

OPT-BST

OPT-BST

32 MUX-O

32 MUX-O

32 DMX-O

32 DMX-O

4MD-xx.x

4MD-xx.x

AD-1B-xx.x

AD-1B-xx.x

AD-2C-xx.x

AD-2C-xx.x

AD-4B-xx.x

AD-4B-xx.x

AD-1C-xx.x

AD-1C-xx.x

AD-4C-xx.x

AD-4C-xx.x


6.1.4  Demultiplexer, Combiner, and OADM Card Interface Classes

The 32 DMX-O, 4MD-xx.x, AD-1C-xx.x, AD-2C-xx.x, and AD-4C-xx.x cards have different input and output power values depending upon the optical power of the interface card where the input signal originates. The input interface cards have been grouped in classes listed in Table 6-4. The subsequent tables list the optical performances and output power of each interface class.

Table 6-4 ONS 15454 Card Interfaces Assigned to Input Power Classes

Input Power Class
Card

A

10-Gbps multirate transponder with forward error correction (FEC) or 10-Gbps muxponder with FEC.

B

10-Gbps multirate transponder without FEC.

C

OC-192 LR ITU.

D

2.5-Gbps multirate transponder, both protected and unprotected, with FEC enabled.

E

2.5-Gbps multirate transponder, both protected and unprotected, without FEC enabled.

F

2.5-Gbps multirate transponder, both protected and unprotected, in regenerate and reshape (2R) mode.

G

OC-48 ELR 100 GHz.


10-Gb/s cards that provide signal input to OADM cards have the optical performances listed in Table 6-5. 2.5-Gb/s card interface performances are listed in Table 6-6.

Table 6-5 10-Gb/s Interface Optical Performances

Parameter
Class A
Class B
Class C

Type

Power limited

OSNR1 limited

Power limited

OSNR limited

Power limited

OSNR limited

OSNR sensitivity

23 dB

9 dB

23 dB

9 dB

23 dB

9 dB

Power sensitivity

-24 dBm

-18 dBm

-20 dBm

-20 dBm

-22 dBm

-22 dBm

Dispersion power penalty

2 dB

0 dB

3 dB

4 dB

2 dB

2 dB

Dispersion OSNR penalty

0 dB

2 dB

0 dB

0 dB

0 dB

0 dB

Dispersion compensation tolerance

±800 ps/nm

±1,000 ps/nm

±800 ps/nm

±1,200 ps/nm

±1,000 ps/nm

Maximum bit rate

10 Gb/s

10 Gb/s

10 Gb/s

Regeneration

3R2

3R

3R

FEC

Yes

Yes

Yes

Threshold

Optimum

Average

Average

Maximum BER3

10-15

10-12

10-12

Power overload

-8 dBm

-8 dBm

-9 dBm

Transmitted power range

0 ³ +2 dBm

0 ³ +2 dBm

+3 ³ +6 dBm

1 OSNR = optical signal-to-noise ratio

2 3R = retime, reshape, and regenerate

3 BER = bit error rate


Table 6-6 2.5-Gb/s Interface Optical Performances

Parameter
Class D
Class E
Class F
Class G

Type

Power limited

OSNR limited

Power limited

OSNR limited

Power limited

OSNR limited

Power limited

OSNR limited

OSNR sensitivity

14 dB

7 dB

14 dB

11 dB

15 dB

15 dB

14 dB

14 dB

Power sensitivity

-31 dBm

-23 dBm

-28 dBm

-23 dBm

-24 dBm

-24 dBm

-27 dBm

-24 dBm

Dispersion power penalty

2 dB

0 dB

2 dB

0 dB

3 dB

3 dB

2 dB

2 dB

Dispersion OSNR penalty

0 dB

2 dB

0 dB

2 dB

0 dB

0 dB

0 dB

0 dB

Dispersion compensating tolerance

-1,200/ +5,400 ps/nm

-1,200/ +5,400 ps/nm

-1,200/ +2,720 ps/nm

-1,200/ +5,400 ps/nm

Maximum bit rate

2.5 Gbps

2.5 Gbps

2.5 Gbps

2.5 Gbps

Regeneration

3R

3R

3R

3R

FEC

Yes

No

No

No

Threshold

Average

Average

Average

Average

Maximum BER

10-15

10-12

10-12

10-12

Power overload

-9 dBm

-10 dBm

-9 dBm

-9 dBm

Transmitted power range

-4.5/+1 dBm

-4.5/+1 dBm

-4.5/+1 dBm

-2/0 dBm


Table 6-7 and Table 6-8 give the transmit output power ranges of 10-Gb/s and 2.5-Gb/s interfaces, respectively. These values, decreased by patch cord and connector losses, are also the input power values for the OADM cards.

Table 6-7 10-Gb/s Interface Transmit Output Power Range or OADM Input Power Range

Parameter
Value

Class A
Class B
Class C

Min.

Max.

Min.

Max.

Min.

Max.

Power at Tx

0 dBm

+2 dBm

0 dBm

+2 dBm

+3 dBm

+6 dBm


Table 6-8 2.5-Gb/s Interface Transmit Output Power Range or Input Power Range

Parameter
Value

Class A
Class B
Class C
Class D

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Max.

Power at Tx

-4.5 dBm

+1 dBm

-4.5 dBm

+1 dBm

-4.5 dBm

+1 dBm

-2 dBm

0 dBm


6.1.5  DWDM Card Channel Allocation Plan

ONS 15454 DWDM multiplexers, demultiplexers, channel OADM, and band OADM cards are designed for use with specific channels. In most cases, the channels for these cards are either numbered (1 to 32) or delimited (odd or even). Client interfaces must comply with these channel assignments to be compatible with ONS 15454.

Table 6-9 lists the channel IDs and wavelengths assigned to the DWDM channels.

Table 6-9 DWDM Channel Allocation Plan

Channel Number
Channel ID
Frequency (THz)
Wavelength (nm)

1

30.3

195.9

1530.33

2

31.2

195.8

1531.12

3

31.9

195.7

1531.90

4

32.6

195.6

1532.68

5

34.2

195.4

1534.25

6

35.0

195.3

1535.04

7

35.8

195.2

1535.82

8

36.6

195.1

1536.61

9

38.1

194.9

1538.19

10

38.9

194.8

1538.98

11

39.7

194.7

1539.77

12

40.5

194.6

1540.56

13

42.1

194.4

1542.14

14

42.9

194.3

1542.94

15

43.7

194.2

1543.73

16

44.5

194.1

1544.53

17

46.1

193.9

1546.12

18

46.9

193.8

1546.92

19

47.7

193.7

1547.72

20

48.5

193.6

1548.51

21

50.1

193.4

1550.12

22

50.9

193.3

1550.92

23

51.7

193.2

1551.72

24

52.5

193.1

1552.52

25

54.1

192.9

1554.13

26

54.9

192.8

1554.94

27

55.7

192.7

1555.75

28

56.5

192.6

1556.55

29

58.1

192.4

1558.17

30

58.9

192.3

1558.98

31

59.7

192.2

1559.79

32

60.6

192.1

1560.61


6.2  OSCM Card

An optical service channel (OSC) is a bidirectional channel connecting all the nodes in a ring. The channel transports OSC overhead that is used to manage ONS 15454 DWDM networks. The OSC uses the 1510-nm wavelength and does not affect client traffic. The primary purpose of this channel is to carry clock synchronization and orderwire channel communications for the DWDM network. It also provides transparent links between each node in the network. The OSC is an OC-3 formatted signal.

There are two versions of the OSC modules: the OSCM, and the OSC-CSM which contains a combiner and separator module in addition to the OSC module. For information about the OSC-CSM, see the "OSC-CSM Card" section. Figure 6-1 shows the OSCM faceplate.

Figure 6-1 OSCM Faceplate

Figure 6-2 shows the OSCM block diagram.

Figure 6-2 OSCM Block Diagram

The OSCM is used in amplified nodes that include the OPT-BST booster amplifier. The OPT-BST includes the required OSC wavelength combiner and separator component. The OSCM cannot be used in nodes where you use OC-N cards, electrical cards, or cross-connect cards. The OSCM uses Slots 8 and 10, which are also cross-connect card slots.


Note Software R4.5 does not support DWDM cards and features in the same node as cross-connect, OC-N, and electrical cards.


The OSCM supports the following features:

OC-3 formatted OSC

Supervisory data channel (SDC) forwarded to the TCC2 cards for processing

Distribution of the synchronous clock to all nodes in the ring

100BaseT FE user data channel (UDC)

Monitoring functions such as orderwire support and optical safety

The OC-3 section data communications channel (SDCC) overhead bytes are used for network communications. An optical transceiver terminates the OC-3, then it is regenerated and converted into an electrical signal. The SDCC bytes are forwarded to the active and standby TCC2 cards for processing via the system communication link (SCL) bus on the backplane. Orderwire bytes (E1, E2, F1) are also forwarded via the SCL bus to the TCC2 for forwarding to the AIC-I card.

The payload portion of the OC-3 is used to carry the fast Ethernet UDC. The frame is sent to a POS processing block that extracts the Ethernet packets and makes them available at the RJ-45 connector.

The OSCM, which resides in the cross-connect slots and follows the ONS 15454 backplane architecture, distributes the reference clock information by removing it from the incoming OC-3 signal and then sending it to the DWDM cards. The DWDM cards then forward the clock information to the active and standby TCC2 cards.

6.2.1  OSCM Card-Level Indicators

The OSCM card has three card-level LED indicators, described in Table 6-10.

Table 6-10 OSCM Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the OSCM is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure or condition such as LOS, LOF, AIS-L, or high BER on one or more of the card's ports. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.2.2  OSCM Port-Level Indicators

You can find the status of the card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The OSCM has three OC3 optical ports located on the faceplate. One long-reach OCS transmits and receives the OSC to and from another DWDM node. Both data communications network (DCN) data and far-end (FE) payload are carried on this link. Two intermediate-reach OC3s are used for DCN extension.

6.2.3  OSCM Card Specifications

The OSCM card has the following specifications:

Line

Bit rate: 155 Mbps

Code: Scrambled non-return to zero (NRZ)

Loopback modes: None

Connector: Duplex LC

Compliance: Telcordia GR-253-CORE, ITU-T G.957

Transmitter OSC Signal

Maximum transmitter output power: -1 dBm

Minimum transmitter output power: -5 dBm

Nominal wavelength: 1510-nm +/-10 nm

Variable optical attenuator (VOA) is necessary in the transmit path to adjust the in-fiber optical power level

Receiver OSC Signal

Maximum receiver level: -8 dBm at 10-10 BER

Minimum receiver level: -40 dBm at 10-10 BER

Span budget: 40 dB span budget (about 150 km assuming fiber path loss equals 0.25 dB/km)

Jitter Tolerance: GR-253/G.823 Compliant

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: 5 to 95%, noncondensing

Dimensions

Height: 12.65 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.00 in. (228.6 mm)

Compliance

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.3  OSC-CSM Card

An optical service channel (OSC) is a bidirectional channel connecting all the nodes in a ring. The channel transports OSC overhead that is used to manage ONS 15454 DWDM networks. The OSC uses the 1510-nm wavelength and does not affect client traffic. The primary purpose of this channel is to carry clock synchronization and orderwire channel communications for the DWDM network. It also provides transparent links between each node in the network. The OSC is an OC-3 formatted signal.

There are two versions of the OSC modules: the OSCM, and the OSC-CSM which contains a combiner and separator module in addition to the OSC module. For information about the OSCM, see the "OSCM Card" section. Figure 6-3 shows the OSC-CSM faceplate.

Figure 6-3 OSC-CSM Faceplate

Figure 6-4 shows the OSC-CSM block diagram.

Figure 6-4 OSC-CSM Block Diagram

The OSC-CSM is used in unamplified nodes. This means that the booster amplifier with the OSC wavelength combiner and separator is not required for OSC-CSM operation. The OSC-CSM can be installed in Slots 1 to 6 and 12 to 17. If you are planning to use OC-N cards, electrical cards, or cross-connect cards in the same node in a future software release, the OSC-CSM will support this functionality. The cross-connect cards enable functionality on the OC-N cards and electrical cards.


Note Software R4.5 does not support DWDM cards and features in the same node as cross-connect, OC-N, and electrical cards.


The OSC-CSM supports the following features:

Optical combiner and separator module for multiplexing and demultiplexing the optical service channel to or from the wave division multiplexing (WDM) signal

OC-3 formatted OSC

Supervisory data channel (SDC) forwarded to the TCC2 cards for processing

Distribution of the synchronous clock to all nodes in the ring

100BaseT FE UDC

Monitoring functions such as orderwire support and optical safety

Optical safety: signal loss detection and alarming, fast transmitted power shut down by means of an optical 1x1 switch

Optical safety remote interlock (OSRI), a feature capable of shutting down the optical output power

Automatic laser shutdown (ALS), a safety mechanism used in the event of a fiber cut

The WDM signal coming from the line is passed through the OSC combiner and separator, where the OSC signal is extracted from the WDM signal. The WDM signal is sent along with the remaining channels to the COM port (label on the front panel) for routing to the OADM or amplifier units, while the OSC signal is sent to an optical transceiver.

The OSC is an OC-3 formatted signal. The OC-3 SDCC overhead bytes are used for network communications. An optical transceiver terminates the OC-3, and then it is regenerated and converted into an electrical signal. The SDCC bytes are forwarded to the active and standby TCC2 cards for processing via the SCL bus on the backplane. Orderwire bytes (E1, E2, F1) are also forwarded via the SCL bus to the TCC2 for forwarding to the AIC-I card.

The payload portion of the OC-3 is used to carry the fast Ethernet UDC. The frame is sent to a POS processing block that extracts the Ethernet packets and makes them available at the RJ-45 front panel connector.

The OSC-CSM distributes the reference clock information by removing it from the incoming OC-3 signal and then sending it to the active and standby TCC2s. The clock distribution is different from the OSCM card because the OSC-CSM does not use Slot 8 or 10 (cross-connect card slots).

6.3.1  OSC-CSM Card-Level Indicators

The OSC-CSM card has three card-level LED indicators, described in Table 6-11.

Table 6-11 OSC-CSM Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the OSC-CSM is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure or condition such as LOS, LOF, AIS-L, or high BER on one or more of the card's ports. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.3.2  OSC-CSM Port-Level Indicators

You can find the status of the card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The OSC-CSM has a UC port and three sets of ports located on the faceplate.

6.3.3  OSC-CSM Card Specifications

The OSC-CSM card has the following specifications:

Line

Bit rate: 155 Mbps

Code: Scrambled NRZ

Loopback modes: None

Connector: Duplex LC

Compliance: Telcordia GR-253-CORE, ITU-T G.957

Transmitter OSC Signal

Maximum transmitter output power: -2 dBm

Minimum transmitter output power: -24 dBm

Nominal wavelength: 1510-nm +/-10 nm

VOA is necessary in the transmit path to adjust the in-fiber optical power level

Receiver OSC Signal

Maximum receiver level: -8 dBm at 10-10 BER

Minimum receiver level: -40 dBm at 10-10 BER

Span loss budget: 35 dB span budget (approximately 140 km assuming that the fiber path loss is equal to 0.25 dB/km

Jitter tolerance: GR-253/G.823 Compliant

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: 5 to 95%, noncondensing

Dimensions

Height: 12.65 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.00 in. (228.6 mm)

Compliance

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.4  OPT-PRE Amplifier

Optical amplifiers are used in amplified nodes, such as hub nodes, amplified OADM nodes, and line amplifier nodes. There are two forms of amplifiers, the Optical Preamplifier (OPT-PRE) and the Optical Booster (OPT-BST) amplifier. For more information about the OPT-BST card, see the "OPT-BST Amplifier" section. The optical amplifier card architecture includes an optical plug-in module with a controller that manages optical power, laser current, and temperature control loops. The amplifier also manages communication with the TCC2, and operations, administration, maintenance, and provisioning (OAM&P) functions such as provisioning, controls, and alarms.

Optical amplifiers have a linear power feature that enables them to be kept in the constant gain mode if the gain is less than 28 dB. However, for longer span solutions it is necessary to place the amplifier in constant power mode. In constant power mode, automatic power control (APC) requirements change. This is because span loss degradation does not effect the system and amplifiers are not able to automatically modify the output power for variations in the number of channels when provisioning changes and a failure occurs.

Figure 6-5 shows the OPT-PRE amplifier faceplate.

Figure 6-5 OPT-PRE Faceplate

Figure 6-6 shows the OPT-PRE block diagram.

Figure 6-6 OPT-PRE Block Diagram

Figure 6-7 shows the OPT-PRE optical function block diagram.

Figure 6-7 OPT-PRE Optical Function Diagram

The OPT-PRE is designed to support 64 channels at 50-GHz channel spacing, but currently, Software R4.5 supports 32 channels at 100 GHz. The OPT-PRE is a C-band DWDM, two-stage erbium-doped fiber amplifier (EDFA) with mid-amplifier loss (MAL) for allocation to a dispersion compensation unit (DCU). To control the gain tilt, the OPT-PRE is equipped with a built-in VOA. The VOA can also be used to pad the DCU to a reference value. You can install the OPT-PRE in Slots 1 to 6 and 12 to 17.

The OPT-PRE features:

Fixed gain mode with programmable tilt

True variable gain

Fast transient suppression

Nondistorting low-frequency transfer function

Settable maximum output power

Fixed output power mode (mode used during provisioning)

Constant drive current mode (test mode)

MAL for fiber-based DCU

Amplified spontaneous emissions (ASE) compensation in fixed gain mode

Full monitoring and alarm handling with settable thresholds

Optical safety features that include signal loss detection and alarming, fast power down control and reduced maximum output power in safe power mode

Four signal photodiodes to monitor the input and output optical power of the two amplifier stages through CTC

An optical output port for external monitoring

6.4.1  OPT-PRE Amplifier-Level Indicators

The OPT-PRE amplifier has three card-level LED indicators, described in Table 6-12.

Table 6-12 OPT-PRE Amplifier-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the OPT-PRE is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure or condition such as LOS on one or more of the card's ports. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.4.2  OPT-PRE Port-Level Indicators

You can find the status of the card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The OPT-PRE amplifier has five optical ports located on the faceplate. MON is the output monitor port. COM Rx is the input signal port. COM Tx is the output signal port. DCC Rx is the MAL input signal port. DCC Tx is the MAL output signal port.

6.4.3  OPT-PRE Amplifier Specifications

The OPT-PRE amplifier has the following specifications:

Optical characteristics:

Total operating wavelength range: 1530 nm to 1561.3

Gain ripple (peak to valley): 1.5 dB

MAL range (for DCU): 3 to 9 dB

Gain range: 5 to 38.5 dBm in constant power mode, 5 to 28 dBm in constant gain mode Minimum gain (standard range): 5.0 dBm

Maximum gain (standard range with programmable gain tilt): 21 dBm

Maximum gain (extended range with uncontrolled gain tilt): 38.5 dBm

Gain and power regulation over/undershoot: 0.5 dB

Limited Max output power: 17.5 dBm

Maximum output power (with full channel load): 17 dB

Minimum output power (with one channel): -1 dBm

Input power (Pin) range at full channel load: -21.5 dBm to 12 dBm

Input power (Pin) range at single channel load: -39.5 dBm to -6 dBm

Noise figure at G3 21 dB = 6.5 dB

OSC filter drop (channels) insertion loss maximum: 1 dB

OSC filter drop (OSC) insertion loss maximum: 1.8 dB

OSC filter add (OSC) insertion loss maximum: 1.3 dB

Optical connectors: LC-UPC/2

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: 5 to 85%, noncondensing

Dimensions

Height: 12.65 in. (332 mm)

Width: 0.92 in. (24 mm)

Depth: 9.00 in. (240 mm)

Compliance

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.5  OPT-BST Amplifier

Optical amplifiers are used in amplified nodes such as hub nodes, amplified OADM nodes, and line amplifier nodes. There are two forms of amplifiers, the Optical Preamplifier (OPT-PRE) and the Optical Booster (OPT-BST) amplifier. The optical amplifier card architecture includes an optical plug-in module with a controller that manages optical power, laser current, and temperature control loops. The amplifier also manages communication with the TCC2 and OAM&P functions such as provisioning, controls, and alarms.

Optical amplifiers have a linear power feature that enables them to be kept in the constant gain mode. The OPT-BST gain range is 5 to 20 dB in constant gain mode and output power mode. In constant power mode, automatic power control (APC) requirements change. This is because span loss degradation does not effect the system and amplifiers are not able to automatically modify the output power for variations in the number of channels when provisioning changes and a failure occurs.

Figure 6-8 shows the OPT-BST amplifier faceplate.

Figure 6-8 OPT-BST Faceplate

Figure 6-9 shows the OPT-BST amplifier block diagram.

Figure 6-9 OPT-BST Block Diagram

Figure 6-10 shows the OPT-BST optical function block diagram.

Figure 6-10 OPT-BST Optical Function Diagram

The OPT-BST is designed to support 64 channels at 50-GHz channel spacing, but currently, Software R4.5 supports 32 channels at 100 GHz. The OPT-BST is a C-band DWDM EDFA with OSC add-and-drop capability. When an ONS 15454 has an OPT-BST installed, it is only necessary to have the OSCM to process the OSC. You can install the OPT-BST in Slots 1 to 6 and 12 to 17. To control the gain tilt, the OPT-BST is equipped with a built-in VOA.

The OPT-BST features include:

Fixed gain mode (with programmable tilt)

True variable gain

Fast transient suppression

Nondistorting low-frequency transfer function

Settable maximum output power

Fixed output power mode (mode used during provisioning)

Constant drive current mode (test mode)

MAL for fiber based DCU

ASE compensation in fixed gain mode

Full monitoring and alarm handling with settable thresholds

Optical safety features, including signal loss detection and alarming, fast power down control, and reduced maximum output power in safe power mode

OSRI is a feature capable of shutting down the optical output power or reducing the power to a safe level (automatic power reduction).

ALS is a safety mechanism used in the event of a fiber cut.

6.5.1  OPT-BST Amplifier-Level Indicators

The OPT-BST amplifier has three card-level LED indicators, described in Table 6-13.

Table 6-13 OPT-BST Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the OPT-BST is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure or condition such as LOS on one or more of the card's ports. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.5.2  OPT-BST Port-Level Indicators

You can find the status of the card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The OPT-BST amplifier has eight optical ports located on the faceplate. MON Rx is the output monitor port (receive section). MON Tx is the output monitor port. COM Rx is the input signal port. LINE Tx is the output signal port. LINE Rx is the input signal port (receive section). COM Tx is the output signal port (receive section). OSC Rx is the OSC add input port. OSC Tx is the OSC drop output port.

6.5.3  OPT-BST Amplifier Specifications

The OPT-BST amplifier has the following specifications:

Optical characteristics:

Total operating wavelength range: 1530-nm to 1561.3-nm

Gain ripple (peak to valley): 1.5 dB

Gain range: 5 to 20 dBm with programmable gain tilt

Gain and power regulation over/undershoot: 0.5 dB

Limited Max output power: 17.5 dBm

Maximum output power (with full channel load): 17 dB

Minimum output power (with one channel): -1 dBm

Input power (Pin) range at full channel load: -3 dBm to 12 dBm

Input power (Pin) range at single channel load: -21 dBm to -6 dBm

Noise figure at G3 20 dB = 6 dB

OSC filter drop (channels) insertion loss maximum: 1 dB

OSC filter drop (OSC) insertion loss maximum: 1.8 dB

OSC filter add (OSC) insertion loss maximum: 1.3 dB

Optical connectors: LC-UPC/2

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: 5 to 85%, noncondensing

Dimensions

Height: 12.65 in. (332 mm)

Width: 0.92 in. (24 mm)

Depth: 9.00 in. (240 mm)

Compliance

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.6  32 MUX-O Card

The 32-channel multiplexer card (32 MUX-O) multiplexes 32 100-GHz-spaced channels identified in the channel plan. The 32 MUX-O card takes up two slots in an ONS 15454 and can be installed in Slots 1 to 5 and 12 to 16. The 32 MUX-O features include:

Arrayed waveguide grating (AWG) that enables full multiplexing functions for the channels.

Each single-channel port is equipped with VOAs for automatic optical power regulation prior to multiplexing. In the case of electrical power failure, the VOA is set to its maximum attenuation for safety purposes. A manual VOA setting is also available.

Each single-channel port is monitored using a photodiode to enable automatic power regulation.

An additional optical monitoring port with 1/99 splitting ratio is available.

Figure 6-11 shows the 32 MUX-O faceplate.

Figure 6-11 32 MUX-O Faceplate

Figure 6-12 shows the 32 MUX-O block diagram.

Figure 6-12 32 MUX-O Block Diagram

Figure 6-13 shows the 32 MUX-O optical function block diagram.

Figure 6-13 32 MUX-O Optical Function Diagram

6.6.1  32 MUX-O Card-Level Indicators

The 32 MUX-O card has three card-level LED indicators, described in Table 6-14.

Table 6-14 32 MUX-O Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the 32 MUX-O is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure on one or more of the card's ports. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.6.2  32 MUX-O Port-Level Indicators

You can find the status of the card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The 32 MUX-O card has five sets of ports located on the faceplate.

COM Tx is the line output. MON is the optical monitoring port. The xx.x-yy.y Rx ports represent the four groups of 8 channels ranging from xx.x wavelength to yy.y wavelength according to the channel plan.

6.6.3  32 MUX-O Card Specifications

The 32 MUX-O card has the following specifications:


Note For power specifications, refer to the "Demultiplexer, Combiner, and OADM Card Interface Classes" section.


Table 6-15 32 MUX-O Optical Specifications

Parameter
Note
Condition
Min
Max
Units

Tx filter shape (-1 dB bandwidth)

All SOP and within whole operating temperature range

In 1/32 - Out BOL

+/- 180

+/- 300

pm

In 1/32 - Out EOL

+/- 160

Insertion Loss

All SOP and within whole operating temperature range

In 1/32 - Out BOL

4

8.0

dB

In 1/32 - Out EOL

8.5

VOA dynamic range

25



dB

Optical monitor tap splitting ratio on monitor port

Optical monitor port with respect to output port in multiplexer only

19

21

dB

Maximum optical input power

300

mW


Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: 5 to 95% relative humidity (RH)

Dimensions

Height: 12.65 in. (321.3 mm)

Width: 1.84 in. (46.8 mm)

Depth: 9.00 in. (228.6 mm)

Compliance

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.7  32 DMX-O Card

The 32-Channel Demultiplexer (32 DMX-O) card demultiplexes 32 100-GHz-spaced channels identified in the channel plan. The 32 DMX-O takes up two slots in an ONS 15454 and can be installed in Slots 1 to 5 and 12 to 16. The DMX-O features include:

AWG that enables the full demultiplexing functions.

Each single-channel port is equipped with VOAs for automatic optical power regulation after demultiplexing. In the case of electrical power failure, the VOA is set to its maximum attenuation for safety purposes. A manual VOA setting is also available.

Each single-channel port is monitored using a photodiode to enable automatic power regulation.

Figure 6-14 shows the 32 DMX-O card faceplate.

Figure 6-14 32 DMX-O Faceplate

Figure 6-15 shows the 32 DMX-O block diagram.

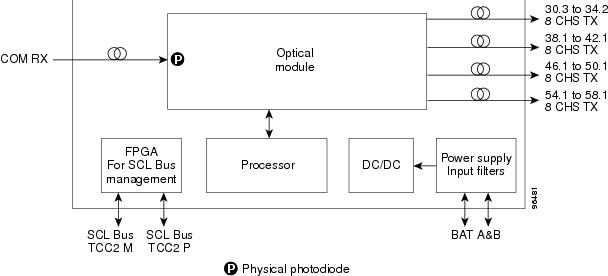

Figure 6-15 32 DMX-O Block Diagram

Figure 6-16 shows the 32 DMX-O optical function block diagram.

Figure 6-16 32 DMX-O Optical Function Diagram

6.7.1  32 DMX-O Card-Level Indicators

The 32 DMX-O card has three card-level LED indicators, described in Table 6-16.

Table 6-16 32 DMX-O Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the 32 DMX-O is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure on one or more of the card's ports. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.7.2  32 DMX-O Port-Level Indicators

You can find the status of the card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The 32 DMX-O card has five sets of ports located on the faceplate. MON is the output monitor port. COM Rx is the line output. The xx.x-yy.y Tx ports represent the four groups of eight channels ranging from xx.x wavelength to yy.y wavelength according to the channel plan.

6.7.3  32 DMX-O Card Specifications

The 32 DMX-O card specifications are listed in Table 6-18.


Note For power specifications, refer to the "Demultiplexer, Combiner, and OADM Card Interface Classes" section.


Table 6-17 32 DMX-O Optical Specifications

Parameter
Note
Condition
Min
Max
Units

Rx filter shape (-1 dB bandwidth)

All SOP and within whole operating temperature range

In 1/32 - Out BOL

+/- 180

+/- 300

pm

In 1/32 - Out EOL

+/- 160

Insertion Loss

All SOP and within whole operating temperature range

In 1/32 - Out BOL

4

8.0

dB

In 1/32 - Out EOL

8.5

VOA dynamic range

25

dB

Maximum optical input power

300

mW


Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: 5 to 95% RH

Dimensions

Height: 12.65 in. (321.3 mm)

Width: 1.84 in. (46.8 mm)

Depth: 9.00 in. (228.6 mm)

Compliance

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.8  4MD-xx.x Card

The 4-Channel Multiplexer/Demultiplexer (4MD-xx.x) card multiplexes and demultiplexes four 100-GHz-spaced channels identified in the channel plan. The 4MD-xx.x card is designed to be used with band OADMs (both AD-1B-xx.x and AD-4B-xx.x). There are eight versions of this card that correspond with the eight, sub-bands specified in Table 6-18. The 4MD-xx.x can be installed in Slots 1 to 6 and 12 to 17.

The 4MD-xx.x has the following features implemented inside a plug-in optical module:

Passive cascade of interferential filters that perform the channel multiplex/demultiplex function.

Software controlled VOAs at every port of the multiplex section to regulate the optical power of each multiplexed channel.

Software monitored photodiodes at the input and output multiplexer and demultiplexer ports for power control and safety purposes.

Software-monitored "virtual photodiodes" at the common DWDM output and input ports. A "virtual photodiode" is a firmware calculation of the optical power at that port. This calculation is based on the single channel photodiode reading and insertion losses of the appropriated paths.

Table 6-18 shows the band IDs and the add/drop channel IDs for the 4MD-xx.x card.

Table 6-18 4MD-xx.x Channel Sets

Band IDs
Add/Drop Channel IDs

Band 30.3 (A)

30.3, 31.2, 31.9, 32.6

Band 34.2 (B)

34.2, 35.0, 35.8, 36.6

Band 38.1 (C)

38.1, 38.9, 39.7, 40.5

Band 42.1 (D)

42.1, 42.9, 43.7, 44.5

Band 46.1 (E)

46.1, 46.9, 47.7, 48.5

Band 50.1 (F)

50.1, 50.9, 51.7, 52.5

Band 54.1 (G)

54.1, 54.9, 55.7, 56.5

Band 58.1 (H)

58.1, 58.9, 59.7, 60.6


Figure 6-17 shows the 4MD-xx.x faceplate.

Figure 6-17 4MD-xx.x Faceplate

Figure 6-18 shows the 4MD-xx.x block diagram.

Figure 6-18 4MD-xx.x Block Diagram

Figure 6-19 shows the 4MD-xx.x optical function block diagram.

Figure 6-19 4MD-xx.x Optical Function Diagram

6.8.1  4MD-xx.x Card-Level Indicators

The 4MD-xx.x card has three card-level LED indicators, described in Table 6-19.

Table 6-19 4MD-xx.x Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the 4MD-xx.x card is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure on one or more of the card's ports. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.8.2  4MD-xx.x Port-Level Indicators

You can find the status of the card ports using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The 4MD-xx.x card has five sets of ports located on the faceplate. COM Rx is the line input. COM Tx is the line output. The 15xx.x Tx ports represent demultiplexed channel output 1 to 4. The 15xx.x Rx ports represent multiplexed channel input 1 to 4.

6.8.3  4MD-xx.x Card Specifications

The 4MD-xx.x card specifications are listed in Figure 6-20.


Note For power specifications, refer to the "Card Power Requirements" section.


Table 6-20 32 MUX-O Optical Specifications

Parameter
Note
Condition
Min
Max
Units

Trx filter shape (-0.5 dB bandwidth TrxBW2)

All SOP and within whole operating temperature range

COM Rx - xx.xx Tx

COM Rx - yy.yy Tx

COM Rx - zz.zz Tx

COM Rx - kk.kk Tx

+/- 180

pm

xx.xx Rx - COM Tx

yy.yy Rx - COM Tx

zz.zz Rx - COM Tx

kk.kk Rx - COM Tx

Insertion loss demultiplexer section

All SOP and within whole operating temperature range

COM Rx - xx.xx Tx

1.9

dB

COM Rx - yy.yy Tx

2.4

dB

COM Rx - zz.zz Tx

2.8

dB

COM Rx - kk.kk Tx

3.3

dB

Insertion loss multiplexer section

All SOP and within whole operating temperature range

(Two connectors included)

xx.xx Rx - COM Tx

3.6

dB

yy.yy Rx - COM Tx

3.2

dB

zz.zz Rx - COM Tx

3.0

dB

kk.kk Rx - COM Tx

2.6

dB

VOA dynamic range

25

dB

Maximum Optical Input power

300

mW


Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: 5 to 95% RH

Dimensions

Height: 12.65 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.00 in. (228.6 mm)

Compliance

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.9  AD-1C-xx.x Card

The 1-Channel OADM (AD-1C-xx.x) card passively adds or drops one of the 32 channels utilized within the 100-GHz-spacing of the DWDM card system. Thirty-two versions of this card—each designed only for use with one wavelength—are used in the ONS 15454 DWDM system. Each wavelength version of the card has a different part number.

The AD-1C-xx.x can be installed in Slots 1 to 6 and 12 to 17.

The AD-1C-xx.x has the following internal features:

Two passive optical interferential filters perform the channel add and drop functions.

One software-controlled VOA regulates the optical power of the inserted channel.

Software-controlled VOA regulates the insertion loss of the express optical path.

Internal control of the VOA settings and functions, photodiode detection, and alarm thresholds.

Software- monitored virtual photodiodes (firmware calculations of port optical power) at the common DWDM output and input ports.

Figure 6-20 shows the AD-1C-xx.x faceplate.

Figure 6-20 AD-1C-xx.x Faceplate

Figure 6-21 shows the AD-1C-xx.x optical function block diagram.

Figure 6-21 AD-1C-xx.x Optical Function Block Diagram

6.9.1  AD-1C-xx.x Card-Level Indicators

The AD-1C-xx.x card has three card-level LED indicators, described in Table 6-21.

Table 6-21 AD-1C-xx.x Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the AD-1C-xx.x card is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure. The SF LED also illuminates when the transmitting and receiving fibers are incorrectly connected. When the fibers are properly connected, the LED turns off.


6.9.2  AD-1C-xx.x Port-Level Indicators

You can find the status of the card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The AD-1C-xx.x has six LC-PC-II optical ports: two for add/drop channel client input and output, two for express channel input and output, and two for communication.

6.9.3  AD-1C-xx.x Card Specifications

Table 6-22 lists the AD-1C-xx.x specifications.

Table 6-22 AD-1C-xx.x Specifications

Parameter
Condition
Note
Min.
Max
Unit

Trx filter shape
(-0.5 dB bandwidth)
TrxBW2

COM Rx - xx.xx Tx
xx.xx Rx - COM Tx

All SOP and within whole operating temperature range

+/- 180

pm

Rfx filter shape
(-0.5 dB bandwidth)
RfxBW2

COM Rx - Exp Tx
Exp Rx - COM Tx

All SOP and within whole operating temperature range

+/- 180

pm

Insertion loss
(DROP section)

COM Rx - xx.xx Tx

All SOP and within whole operating temperature range (two connectors included)

2.0

dB

Insertion loss
(EXPRESS section)

COM Rx - Exp Tx
Exp Rx - COM Tx

VOA at minimum attenuation; all SOP and within whole operating temperature range (two connectors included)

2.4 or 1.2

dB

Insertion Loss
(ADD section)

xx.xx Rx - COM Tx

VOA at minimum attenuation; all SOP and within whole operating temperature range (two connectors included)

2.6

dB

VOA dynamic range

30

dB

Maximum optical input power

300

mW


AD-1C-xx.x optical input and output power vary with amplifier output levels and the class of transponder interfaces used. See Table 6-4 through Table 6-8 for this information.

Other AD-1C-xx.x specifications are listed below:

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: GR-63 5.1.1.3 compliant; 5 to 95% RH

Dimensions

Height: 12.650 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.0 in. (228.6 mm)

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.10  AD-2C-xx.x Card

The 2-Channel OADM (AD-2C-xx.x) card passively adds or drops two adjacent 100-GHz channels within the same band. Sixteen versions of this card—each designed for use with one pair of wavelengths—are used in the ONS 15454 DWDM system. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions.

Each version of the card has a different part number.

The AD-2C-xx.x has the following features:

Passive cascade of interferential filters that perform the channel add and drop functions.

Two software-controlled VOAs in the add section, one for each add port, regulate the optical power of inserted channels.

Software-controlled VOA regulate insertion loss on express channels.

Internal control of the VOA settings and functions, photodiode detection, and alarm thresholds.

Software-monitored virtual photodiodes (firmware calculation of port optical power) at the common DWDM output and input ports.

The AD-2C-xx.x cards are provisioned for the wavelength pairs in Table 6-23. In this table, channel IDs are given rather than wavelengths. To compare channel IDs with the actual wavelengths they represent, see Table 6-9.

Table 6-23 AD-2C-xx.x Channel Pairs

Band ID
Add/Drop Channel ID

Band 30.3 (A)

30.3, 31.2

31.9, 32.6

Band 34.2 (B)

34.2, 35.0

35.8, 36.6

Band 38.1 (C)

38.1, 38.9

39.7, 40.5

Band 42.1 (D)

42.1, 42.9

43.7, 44.5

Band 46.1 (E)

46.1, 46.9

47.7, 48.5

Band 50.1 (F)

50.1, 50.9

51.7, 52.5

Band 54.1 (G)

54.1, 54.9

55.7, 56.5

Band 58.1 (H)

58.1, 58.9

59.7, 60.6


Figure 6-22 shows the AD-2C-xx.x faceplate.

Figure 6-22 AD-2C-xx.x Faceplate

Figure 6-23 shows the AD-2C-xx.x block diagram.

Figure 6-23 AD-2C-xx.x Block Diagram

Figure 6-24 shows the AD-2C-xx.x optical function block diagram.

Figure 6-24 AD-2C-xx.x Optical Function Diagram

6.10.1  AD-2C-xx.x Card-Level Indicators

The AD-2C-xx.x card has three card-level LED indicators, described in Table 6-24.

Table 6-24 AD-2C-xx.x Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the AD-2C-xx.x card is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.10.2  AD-2C-xx.x Port-Level Indicators

You can find the status of the card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The AD-2C-xx.x card has eight LC-PC-II optical ports: four for add/drop channel client input and output, two for express channel input and output, and two for communication.

6.10.3  AD-2C-xx.x Card Specifications

Table 6-25 lists the AD-2C-xx.x specifications.

Table 6-25 AD-2C-xx.x Specifications

Parameter
Note
Condition
Min.
Max
Unit

Trx filter shape
(-0.5 dB bandwidth)
TrxBW2

All SOP and within whole operating temperature range

COM Rx - xx.xx Tx
COM Rx - yy.yy Tx

+/- 180

pm

xx.xx Rx - COM Tx
yy.yy Rx - COM Tx

Rfx filter shape
(-0.5 dB bandwidth)
RfxBW2

All SOP and within whole operating temperature range

COM Rx - Exp Tx
Exp Rx - COM Tx

+/- 180

pm

Insertion loss
(DROP section)

All SOP and within whole operating temperature range (two connectors included)

COM Rx - xx.xx Tx

2.0

dB

COM Rx - yy.yy Tx

2.4

Insertion loss
(EXPRESS section)

VOA at minimum attenuation; all SOP and within whole operating temperature range (two connectors included)

COM Rx - Exp Tx

2.7

dB

Exp Rx - COM Tx

1.6

Insertion Loss
(ADD section)

VOA at minimum attenuation; all SOP and within whole operating temperature range (two connectors included)

xx.xx Rx - COM Tx

3.1

dB

yy.yy Rx - COM Tx

2.7

VOA dynamic range

30

dB

Maximum optical input power

300

mW


AD-2C-xx.x optical input and output power vary with amplifier output levels and the class of transponder interfaces used. See Table 6-4 through Table 6-8 for this information.

Other AD-2C-xx.x specifications are listed below:

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: GR-63 5.1.1.3 compliant; 5 to 95% RH

Dimensions

Height: 12.650 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.0 in. (228.6 mm)

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.11  AD-4C-xx.x Card

The 4-Channel OADM (AD-4C-xx.x) card passively adds or drops all four 100-GHz-spaced channels within the same band. Eight versions of this card—each designed for use with one band of wavelengths—are used in the ONS 15454 DWDM system. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions. There are eight versions of this card with eight part numbers.

The AD-4C-xx.x has the following features:

Passive cascade of interferential filters that perform the channel add and drop functions.

Four software-controlled VOAs in the add section, one for each add port, regulate the optical power of inserted channels.

Two software-controlled VOAs regulate insertion loss on express and drop path, respectively.

Internal control of the VOA settings and functions, photodiode detection, and alarm thresholds.

Software-monitored virtual photodiodes (firmware calculation of port optical power) at the common DWDM output and input ports.

The AD-4C-xx.x cards are provisioned for the wavelength pairs in Table 6-26. In this table, channel IDs are given rather than wavelengths. To compare channel IDs with the actual wavelengths they represent, see Table 6-9.

Table 6-26 AD-4C-xx.x Channel Sets

Band ID
Add/Drop Channel IDs

Band 30.3 (A)

30.3, 31.2, 31.9, 32.6

Band 34.2 (B)

34.2, 35.0, 35.8, 36.6

Band 38.1 (C)

38.1, 38.9, 39.7 40.5

Band 42.1 (D)

42.1, 42.9, 43.7, 44.5

Band 46.1 (E)

46.1, 46.9, 47.7, 48.5

Band 50.1 (F)

50.1, 50.9, 51.7, 52.5

Band 54.1 (G)

54.1, 54.9, 55.7, 56.5

Band 58.1 (H)

58.1, 58.9, 59.7, 60.6


Figure 6-25 shows the AD-4C-xx.x faceplate.

Figure 6-25 AD-4C-xx.x Faceplate

Figure 6-26 shows the AD-4C-xx.x optical function block diagram.

Figure 6-26 AD-4C-xx.x Optical Function Block Diagram

6.11.1  AD-4C-xx.x Card-Level Indicators

The AD-4C-xx.x card has three card-level LED indicators, described in Table 6-27.

Table 6-27 AD-4C-xx.x Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the AD-4C-xx.x card is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure or condition. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.11.2  AD-4C-xx.x Port-Level Indicators

You can find the status of the card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The AD-4C-xx.x card has 12 LC-PC-II optical ports: eight for add/drop channel client input and output, two for express channel input and output, and two for communication.

6.11.3  AD-4C-xx.x Card Specifications

Table 6-28 lists the AD-4C-xx.x specifications.

Table 6-28 AD-4C-xx.x Specifications

Parameter
Note
Condition
Min.
Max
Unit

Channel grid

See Table 6-9

Trx filter shape
(-0.5 dB bandwidth)
TrxBW2

All SOP and within whole operating temperature range

COM Rx - xx.xx Tx
COM Rx - yy.yy Tx
COM Rx - zz.zz Tx
COM Rx - kk.kk Tx

+/- 180

pm

xx.xx Rx - COM Tx
yy.yy Rx - COM Tx

Rfx filter shape
(-1 dB bandwidth)
RfxBW2

All SOP and within whole operating temperature range

COM Rx - Exp Tx
Exp Rx - COM Tx

pm

Insertion loss
(DROP section)

All SOP and within whole operating temperature range (two connectors included)

COM Rx - xx.xx Tx

5.5

dB

COM Rx - yy.yy Tx

5.0

COM Rx - zz.zz Tx

4.5

COM Rx - kk.kk Tx

4.1

Insertion loss
(EXPRESS section)

VOA at minimum attenuation; all SOP and within whole operating temperature range (two connectors included)

COM Rx - Exp Tx

2.7

dB

Exp Rx - COM Tx

1.2

Insertion Loss
(ADD section)

VOA at minimum attenuation; all SOP and within whole operating temperature range (two connectors included)

xx.xx Rx - COM Tx

3.9

dB

yy.yy Rx - COM Tx

4.3

zz.zz Rx - COM Tx

4.5

kk.kk Rx - COM Tx

4.9

VOA dynamic range

30

dB

Maximum optical input power

300

mW


AD-4C-xx.x optical input and output power vary with amplifier output levels and the class of transponder interfaces used. See Table 6-4 through Table 6-8 for this information.

Other AD-4C-xx.x specifications are listed below:

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: GR-63 5.1.1.3 compliant; 5 to 95% RH

Dimensions

Height: 12.650 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.0 in. (228.6 mm)

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.12  AD-1B-xx.x Card

The 1-Band OADM (AD-1B-xx.x) card passively adds or drops a single band of four adjacent 100-GHz-spaced channels. Eight versions of this card with eight different part numbers—each version designed for use with one band of wavelengths—are used in the ONS 15454 DWDM system. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions. This card can be used when there is asymmetric adding and dropping on each side (east or west) of the node; a band can be added or dropped on one side but not on the other.

The AD-1B xx.x can be installed in Slots 1 to 6 and 12 to17.

The AD-1B-xx.x has the following features:

Passive interferential filters that perform the channel add and drop functions.

Two software-controlled VOAs regulate the optical power flowing in the express and drop OADM paths (drop section).

Output power of the dropped band is set by changing the attenuation of the VOA drop.

The VOA express is used to regulate the insertion loss of the express path.

Internal controlled VOA settings and functions, photodiode detection, and alarm thresholds.

Software-monitored virtual photodiode (firmware calculation of port optical power) at the common DWDM output.

Figure 6-27 shows the AD-1B-xx.x faceplate.

Figure 6-27 AD-1B-xx.x Faceplate

Figure 6-28 shows the AD-1B-xx.x optical function block diagram.

Figure 6-28 AD-1B-xx.x Optical Function Block Diagram

6.12.1  AD-1B-xx.x Card-Level Indicators

The AD-1B-xx.x card has three card-level LED indicators, described in Table 6-29.

Table 6-29 AD-1B-xx.x Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that the AD-1B-xx.x card is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.12.2  AD-1B-xx.x Port-Level Indicators

You can find the status of the card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The AD-1B-xx.x has six LC-PC-II optical ports: two for add/drop channel client input and output, two for express channel input and output, and two for communication.

6.12.3  AD-1B-xx.x Card Specifications

Table 6-30 lists the band IDs, unit names, and channels assigned to the eight versions of the AD-1B-xx.x card.

Table 6-30 AD-1B-xx.x Channel Allocation Plan by Band

Unit Name
Band ID
Channel ID
Frequency (GHz)
Wavelength (nm)

AD-1B-30.3

B30.3

30.3

195.9

1530.33

30.7

195.85

1530.72

31.1

195.8

1531.12

31.5

195.75

1531.51

31.9

195.7

1531.90

32.2

195.65

1532.29

32.6

195.6

1532.68

33.3

195.55

1533.07

AD-1B-34.2

B34.2

34.2

195.4

151534.25

34.6

195.35

1534.64

35.0

195.3

1535.04

35.4

195.25

1535.43

35.8

195.2

1535.82

36.2

195.15

1536.22

36.6

195.1

1536.61

37.0

195.05

1537.00

AD-1B-38.1

B38.1

38.1

194.9

1538.19

38.5

194.85

1538.58

38.9

194.8

1538.98

39.3

194.75

1539.37

39.7

194.7

1539.77

40.1

194.65

1540.16

40.5

194.6

1540.56

40.9

194.55

1540.95

AD-1B-42.2

B42.1

42.1

194.4

1542.14

42.5

194.35

1542.54

42.9

194.3

1542.94

43.3

194.25

1543.33

43.7

194.2

1543.73

44.1

194.15

1544.13

44.5

194.1

1544.53

44.9

194.05

1544.92

AD-1B-46.1

B46.1

46.1

193.9

1546.12

46.5

193.85

1546.52

46.9

193.8

1546.92

47.3

193.75

1547.32

47.7

193.7

1547.72

48.1

193.65

1548.11

48.5

193.6

1548.51

48.9

193.55

1548.91

AD-1B-50.1

B50.1

50.1

193.4

1550.12

50.5

193.35

1550.52

50.9

193.3

1550.92

51.3

193.25

1551.32

51.7

193.2

1551.72

52.1

193.15

1552.12

52.5

193.1

1552.52

52.9

193.05

1552.93

AD-1B-54.1

B54.1

54.1

192.9

1554.13

54.5

192.85

1554.54

54.9

192.8

1554.94

55.3

192.75

1555.34

55.7

192.7

1555.75

56.1

192.65

1556.15

56.5

192.6

1556.96

56.9

192.55

1556.96

AD-1B-58.1

B58.1

58.1

192.4

1558.17

58.5

192.35

1558.58

58.9

192.3

1558.98

59.3

192.25

1559.39

59.7

192.2

1559.79

60.2

192.15

1560.20

60.6

192.1

1560.61

61.0

192.05

1561.01


Table 6-31 lists AD-1B-xx.x optical specifications.

Table 6-31 AD-1B-xx.x Optical Specifications

Parameter
Note
Condition
Min.
Max
Unit

-1 dB Bandwidth

All SOP and within whole operating environmental range

COM Rx - Band Tx
Band Rx - COM Tx

3.6

nm

-1 dB Bandwidth

All SOP and within whole operating temperature range

COM Rx - Exp Tx
Exp Rx - COM Tx

Refer to Table 6-32

nm

Insertion loss
(DROP section)

All SOP and within whole operating environmental range; two connectors included, VOA set at minimum attenuation

COM Rx - Band Tx

3.0

dB

Insertion loss
(EXPRESS section)

All SOP and within whole operating environmental range; two connectors included

Exp Rx - COM Tx

1.6

dB

All SOP and within whole operating environmental range; two connectors included, VOA set at its minimum attenuation

COM Rx - Exp Tx

2.2

Insertion Loss
(ADD section)

All SOP and within whole operating environmental range; two connectors included

Band Rx - COM Tx

2.2

dB

VOA dynamic range

30

dB

Maximum optical input power

300

mW


Table 6-32 lists the range of wavelengths for the receive (express) band.

Table 6-32 AD-1B-xx.x Transmit and Receive Dropped Band Wavelength Ranges

Tx (Dropped) Band
Rx (Express) Band
Left Side (nm)
Right Side (nm)

B30.3

Wavelengths1533.825 or greater

B34.2

Wavelengths 1533.395 or lower

Wavelengths 1537.765 or greater

B38.1

Wavelengths 1537.325 or lower

Wavelengths 1541.715 or greater

42.1

Wavelengths 1541.275 or lower

Wavelengths 1545.695 or higher

46.1

Wavelengths 1545.245 or lower

Wavelengths 1549.695 or higher

50.1

Wavelengths 1549.235 or lower

Wavelengths 1553.705 or higher

54.1

Wavelengths 1553.255 or lower

Wavelengths 1557.745 or higher

58.1

Wavelengths 1557.285 or lower


AD-1B-xx.x optical input and output power vary with amplifier output levels and the class of transponder interfaces used. See Table 6-4 through Table 6-8 for this information.

Other AD-1B-xx.x specifications are listed below:

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: GR-63 5.1.1.3 compliant; 5 to 95% RH

Dimensions

Height: 12.650 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.0 in. (228.6 mm)

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.

6.13  AD-4B-xx.x Card

The 4-Band OADM (AD-4B-xx.x) card passively adds or drops four bands of four adjacent 100-GHz-spaced channels. Two versions of this card with different part numbers—each version designed for use with one set of bands—are used in the ONS 15454 DWDM system. The card bidirectionally adds and drops in two different sections on the same card to manage signal flow in both directions. This card can be used when there is asymmetric adding and dropping on each side (east or west) of the node; a band can be added or dropped on one side but not on the other.

The AD1B-xx.x can be installed in Slots 1 to 6 and 12 to 17.

The AD-4B-xx.x has the following features:

Five software-controlled VOAs regulate the optical power flowing in the OADM paths.

Output power of each dropped band is set by changing the attenuation of each VOA drop.

The VOA express is used to regulate the insertion loss of the express path.

Internal controlled VOA settings and functions, photodiode detection, and alarm thresholds.

Software-monitored virtual photodiode (firmware calculation of port optical power) at the common DWDM output port.

Figure 6-29 shows the AD-4B-xx.x faceplate.

Figure 6-29 AD-4B-xx.x Faceplate

Figure 6-30 shows the AD-4B-xx.x optical function block diagram.

Figure 6-30 AD-4B-xx.x Optical Function Block Diagram

6.13.1  AD-4B-xx.x Card-Level Indicators

The AD-4B-xx.x card has three card-level LED indicators, described in Table 6-33.

Table 6-33 AD-4B-xx.x Card-Level Indicators

Card-Level Indicators
Description
Red FAIL LED

The red FAIL LED indicates that the card's processor is not ready or that there is an internal hardware failure. Replace the card if the red FAIL LED persists.

Green ACT LED

The green ACT LED indicates that theAD-4B-xx.x card is carrying traffic or is traffic-ready.

Amber SF LED

The amber SF LED indicates a signal failure. The amber SF LED also illuminates when the transmit and receive fibers are incorrectly connected. When the fibers are properly connected, the light turns off.


6.13.2  AD-4B-xx.x Port-Level Indicators

You can find the status of the card port using the LCD screen on the ONS 15454 fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot. The AD-4B-xx.x has 12 LC-PC-II optical ports: eight for add/drop band client input and output, two for express channel input and output, and two for communication.

6.13.3  AD-4B-xx.x Card Specifications

Table 6-34 lists the band IDs, unit names, and channels assigned to the four versions of the card.

Table 6-34 AD-4B-xx.x Channel Allocation Plan by Band

Unit Name
Band ID
Channel ID
Frequency (GHz)
Wavelength (nm)

AD-4B-30.3

B30.3

30.3

195.9

1530.33

30.7

195.85

1530.72

31.1

195.8

1531.12

31.5

195.75

1531.51

31.9

195.7

1531.90

32.2

195.65

1532.29

32.6

195.6

1532.68

33.3

195.55

1533.07

(Same)

B34.2

34.2

195.4

151534.25

34.6

195.35

1534.64

35.0

195.3

1535.04

35.4

195.25

1535.43

35.8

195.2

1535.82

36.2

195.15

1536.22

36.6

195.1

1536.61

37.0

195.05

1537.00

(Same)

B38.1

38.1

194.9

1538.19

38.5

194.85

1538.58

38.9

194.8

1538.98

39.3

194.75

1539.37

39.7

194.7

1539.77

40.1

194.65

1540.16

40.5

194.6

1540.56

40.9

194.55

1540.95

(Same)

B42.1

42.1

194.4

1542.14

42.5

194.35

1542.54

42.9

194.3

1542.94

43.3

194.25

1543.33

43.7

194.2

1543.73

44.1

194.15

1544.13

44.5

194.1

1544.53

44.9

194.05

1544.92

AD-4B-46.1

B46.1

46.1

193.9

1546.12

46.5

193.85

1546.52

46.9

193.8

1546.92

47.3

193.75

1547.32

47.7

193.7

1547.72

48.1

193.65

1548.11

48.5

193.6

1548.51

48.9

193.55

1548.91

(Same)

B50.1

50.1

193.4

1550.12

50.5

193.35

1550.52

50.9

193.3

1550.92

51.3

193.25

1551.32

51.7

193.2

1551.72

52.1

193.15

1552.12

52.5

193.1

1552.52

52.9

193.05

1552.93

(Same)

B54.1

54.1

192.9

1554.13

54.5

192.85

1554.54

54.9

192.8

1554.94

55.3

192.75

1555.34

55.7

192.7

1555.75

56.1

192.65

1556.15

56.5

192.6

1556.96

56.9

192.55

1556.96

(Same)

B58.1

58.1

192.4

1558.17

58.5

192.35

1558.58

58.9

192.3

1558.98

59.3

192.25

1559.39

59.7

192.2

1559.79

60.2

192.15

1560.20

60.6

192.1

1560.61

61.0

192.05

1561.01


Table 6-35 lists AD-4B-xx.x optical specifications.

Table 6-35 AD-4B-xx.x Optical Specifications

Parameter
Note
Condition
Min.
Max
Unit

-1 dB Bandwidth

All SOP and within whole operating environmental range

COM Rx - Band Tx
Band Rx - COM Tx

3.6

nm

-1 dB Bandwidth

All SOP and within whole operating temperature range

COM Rx - Exp Tx
Exp Rx - COM Tx

Refer to Table 6-36

nm

Insertion loss
(DROP section)

All SOP and within whole operating environmental range; two connectors included, VOA set at minimum attenuation

COM Rx - Band Tx
30.3/46.1

2.9

dB

COM Rx - Band Tx
34.2/50.1

3.3

COM Rx - Band Tx
38.1/54.1

3.8

COM Rx - Band Tx
42.1/58.1

4.5

Insertion loss
(EXPRESS section)

All SOP and within whole operating environmental range; two connectors included

Exp Rx - COM Tx

4.9

dB

All SOP and within whole operating environmental range; two connectors included, VOA set at its minimum attenuation

COM Rx - Exp Tx

3

Insertion Loss
(ADD section)

All SOP and within whole operating environmental range; two connectors included

Band Rx 30.3/46.1 - COM Tx

3.5

dB

Band Rx 34.2/50.1 - COM Tx

2.8

Band Rx 38.1/54.1 - COM Tx

2.3

Band Rx 42.1/58.1 - COM Tx

1.8

VOA dynamic range

30

dB

Maximum optical input power

300

mW


Table 6-36 lists the range of wavelengths for the receive (express) band.

Table 6-36 AD-4B-xx.x Transmit and Receive Dropped Band Wavelength Ranges

Tx (Dropped) Band
Rx (Express) Band
Left Side (nm)
Right Side (nm)

B30.3

Wavelengths1533.825 or greater

B34.2

Wavelengths 1533.395 or lower

Wavelengths 1537.765 or greater

B38.1

Wavelengths 1537.325 or lower

Wavelengths 1541.715 or greater

B42.1

Wavelengths 1541.275 or lower

Wavelengths 1545.695 or higher

B46.1

Wavelengths 1545.245 or lower

Wavelengths 1549.695 or higher

B50.1

Wavelengths 1549.235 or lower

Wavelengths 1553.705 or higher

B54.1

Wavelengths 1553.255 or lower

Wavelengths 1557.745 or higher

B58.1

Wavelengths 1557.285 or lower


AD-4B-xx.x optical input and output power vary with amplifier output levels and the class of transponder interfaces used. See Table 6-4 through Table 6-8 for this information.

Other AD-4B-xx.x specifications are listed below:

Environmental

Operating temperature:

C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)

Operating humidity: GR-63 5.1.1.3 compliant; 5 to 95% RH

Dimensions

Height: 12.650 in. (321.3 mm)

Width: 0.92 in. (23.4 mm)

Depth: 9.0 in. (228.6 mm)

For compliance information, refer to the Cisco Optical Transport Products Safety and Compliance Information.
