Change Port Settings
Before You Begin
NTP-B88 Modify Line Settings and PM Parameter Thresholds for Electrical Ports
DLP-B165 Change Line and Threshold Settings for the DS-1 Ports
DLP-B166 Change Line and Threshold Settings for the DS-3 Ports
NTP-B89 Modify Line Settings and PM Parameter Thresholds for Optical Ports
DLP-B170 Change Line Settings for OC-N Cards

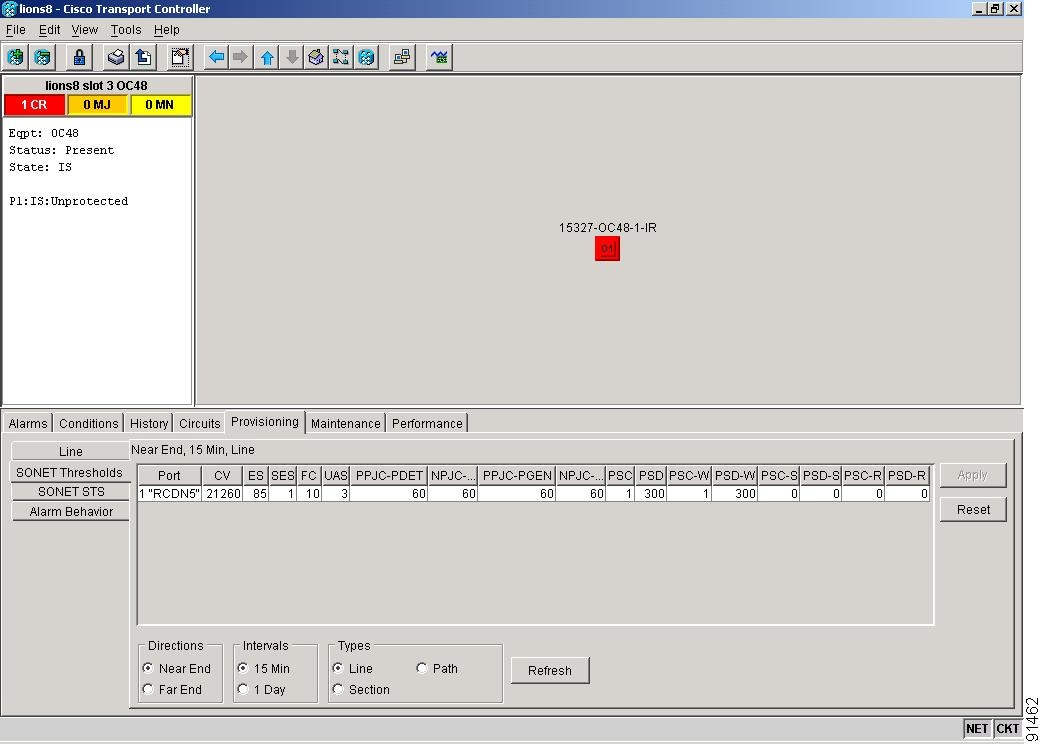

DLP-B171 Change SONET Thresholds Settings for OC-N Cards
Purpose |
This task changes SONET thresholds settings for OC-N cards. |
Tools/Equipment |
None |
Prerequisite Procedures |
60 Log into CTC |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
DLP-B172 Change an Optical Port to SDH
Change Port Settings
This chapter explains how to change transmission settings on electrical and optical ports in a Cisco ONS 15327.
Before You Begin
Before performing any of the following procedures, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15327 Troubleshooting Guide as necessary.
Caution
Changing card or port settings can be service affecting. You should make all changes during a scheduled maintenance window.
This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
1. 88 Modify Line Settings and PM Parameter Thresholds for Electrical Ports—Complete as needed.
2. 89 Modify Line Settings and PM Parameter Thresholds for Optical Ports—Complete as needed.
NTP-B88 Modify Line Settings and PM Parameter Thresholds for Electrical Ports
Purpose |
This procedure changes the line and threshold settings for electrical ports; default values are listed in the "Card Default Settings" section. |
Tools/Equipment |
None |
Prerequisite Procedures |
None |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
Step 1 Complete the "DLP-B60 Log into CTC" task at the node where you want to change the card/port settings.
Step 2 Complete the "108 Back Up the Database" procedure to preserve the existing database.
Step 3 Perform either of the following tasks as needed:
•165 Change Line and Threshold Settings for the DS-1 Ports
•166 Change Line and Threshold Settings for the DS-3 Ports
Step 4 When you are finished changing the port settings, complete the "108 Back Up the Database" procedure.
Stop. You have completed this procedure.
DLP-B165 Change Line and Threshold Settings for the DS-1 Ports
Purpose |
This task changes the line and threshold settings for the DS-1 ports. The default DS-1 port settings are listed in Table C-1. |
Tools/Equipment |
None |
Prerequisite Procedures |
60 Log into CTC |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
Note The ONS 15327 XTC cards provide 14 (XTC-14) or 28 (XTC-28-3) DS-1 ports. Each port operates at 1.544 Mbps. Default thresholds are based on recommendations in GR-820-CORE, Section 4.0.
Step 1 In node view, double-click the XTC card where you want to change the DS-1 line or threshold settings.
Step 2 Click the Provisioning > DS-1 tabs (Figure 10-1).

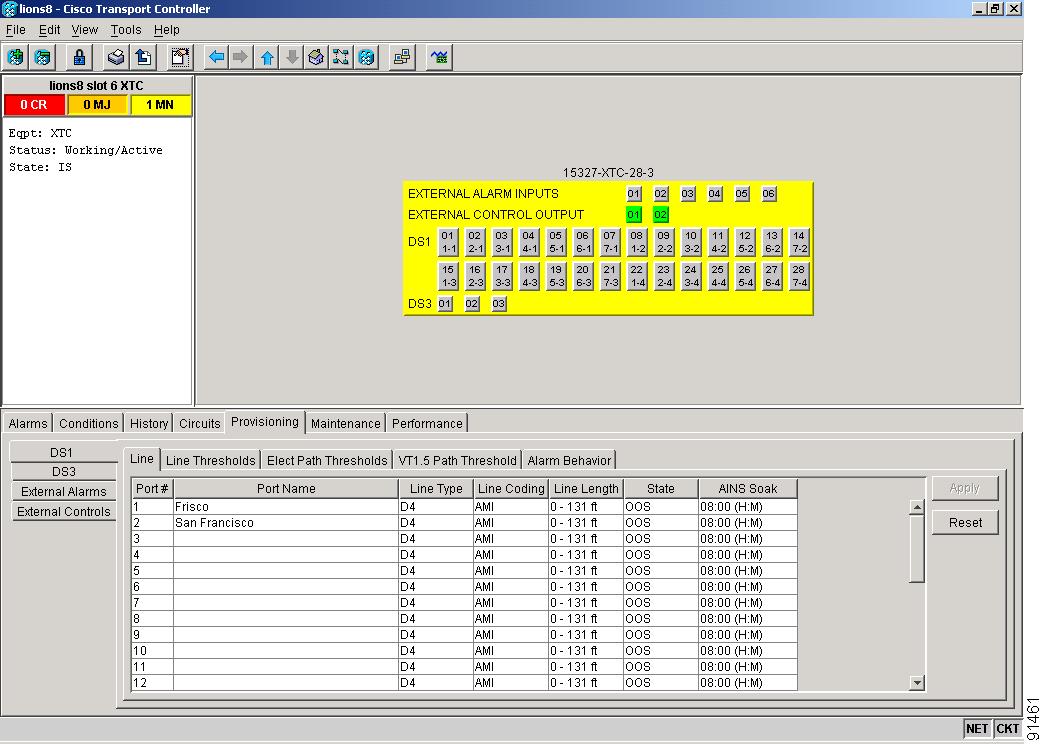

Figure 10-1 Provisioning Line Parameters on the DS-1 Ports
Step 3 Depending on the setting you need to modify, click the Line, Line Thresholds, Elect Path Thresholds, VT1.5 Path Threshold, or Alarm Behavior subtab.
Note See "Manage Alarms" for information about the Alarm Behavior subtab.
Step 4 Modify any of the settings found under these subtabs.
For definitions of the line settings, see Table 10-1. For definitions of the line threshold settings, see Table 10-2. For definitions of the electrical path settings, see Table 10-3.
For the factory default settings for the DS-1 ports, see Table C-1.
Step 5 Click Apply.
Step 6 Repeat Steps 4 and 5 for each subtab that has parameters you want to provision.
Table 10-1 describes the values on the Provisioning > Line subtab for the DS-1 ports.
Table 10-1 Line Options for DS-1 Ports
|
Parameter
|
Description
|
Options
|
Port # |
Port number |
•1 to 14 (XTC-14) •1 to 28 (XTC-28-3) |
Port |
Port name |
User-defined, up to 32 alphanumeric/special characters. Blank by default See 314 Assign a Name to a Port. |
Line Type |
Defines the line framing type |
•D4 •ESF - Extended Super Frame •Unframed |
Line Coding |
Defines the DS-1 transmission coding type |
•AMI - Alternate Mark Inversion (default) •B8ZS - Bipolar 8 Zero Substitution |
Line Length |
Defines the distance (in feet) from backplane connection to the next termination point |
•0 - 131 (default) •132 - 262 •263 - 393 •394 - 524 •525 - 655 |
State |
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service. |
•IS •OOS •OOS_MT •OOS_AINS |
AINS Soak |
Automatic in-service soak |
•Duration of valid input signal in hh.mm after which the port is set in service by the software. •0 to 48 hours, 15 minutes increments. |
Table 10-2 describes the values on the Provisioning > Line Thresholds subtab for the DS-1 ports.
Table 10-2 Line Thresholds Options for DS-1 Ports
|
Parameter
|
Description
|
Options
|
Port |
Port number |
•1 to 14 (XTC-14) •1 to 28 (XTC-28-3) |
CV |
Coding violations |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
ES |
Errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
SES |
Severely errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
LOSS |
Number of one-second intervals containing one or more loss of signal (LOS) defects |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
Table 10-3 describes the values on the Provisioning > Elect Path Thresholds subtab for the DS-1 ports.
Table 10-3 Electrical Path Threshold Options for DS-1 Ports
|
Parameter
|
Description
|
Options
|
Port |
Port number |
•1 to 14 (XTC-14) •1 to 28 (XTC-28-3) |
CV |
Coding violations |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
ES |
Errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
SES |
Severely errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
SAS |
Severely errored frame/alarm indication signal |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
AISS |
Alarm indication signal seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
UAS |
Unavailable seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
Table 10-4 describes the values on the Provisioning > VT1.5 Path Thresholds subtab for the DS-1 ports.
Table 10-4 VT1.5 Path Thresholds Options for DS-1 ports
|
Parameter
|
Description
|
Options
|
Port # |
DS-1 ports partitioned for STS |
Read-only Line 1, STS 1, Line 2, STS 1 Line 3, STS 1, Line 4 STS 1 |
CV |
Coding violations |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End, STS termination). |
ES |
Errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End, STS termination). |
FC |
Failure count |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End, STS termination). |
SES |
Severely errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End, STS termination). |
UAS |
Unavailable seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End, STS termination). |
Note The threshold value displays after the circuit is created.
Step 7 Return to your originating procedure (NTP).
DLP-B166 Change Line and Threshold Settings for the DS-3 Ports
Purpose |
This task changes the line and threshold settings for the DS-3 ports. The default DS-3 values are listed in Table C-2. |
Tools/Equipment |
None |
Prerequisite Procedures |
60 Log into CTC |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
Step 1 In the node view, double-click the XTC-28-3 card where you want to change the DS-3 line or threshold settings.
Step 2 Click the Provisioning tab.
Step 3 Click the DS-3 tab.
Step 4 Depending on the setting you need to modify, click the Line, Line Thresholds, STS-1 Path Threshold, or Alarm Behavior subtab.
Note See "Manage Alarms" for information about the Alarm Behavior subtab.
Step 5 Modify any of the settings found under these subtabs. For definitions of the Line settings, see Table 10-5. For definitions of the Line Threshold settings, see Table 10-6. For definitions of the SONET Threshold settings, see Table 10-7.
For the factory default settings for the DS-3 ports, see Table C-2.
Step 6 Click Apply.
Step 7 Repeat Steps 5 and 6 for each subtab that has parameters you want to provision.
Table 10-5 describes the values on the Provisioning > Line subtab for the DS-3 ports.
Table 10-5 Line Options for DS-3 Ports
|
Parameter
|
Description
|
Options
|
Port # |
Port number |
1 to 3 |
Port |
Port name |
User-defined, up to 32 alphanumeric/ special characters. Blank by default.
See 314 Assign a Name to a Port. |
Line Length |
Defines the distance (in feet) from backplane connection to the next termination point |
•0 - 225 (default) •226 - 450 |
State |
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service. |
•IS •OOS •OOS_MT •OOS_AINS |
AINS Soak |
Automatic in-service soak |
Time of presence of valid input signal in hh.mm after which the port is set in service by the software. 0 to 48 hours, 15 minutes increments. |
Table 10-6 describes the values on the Provisioning > Line Thresholds subtab for the DS-3 ports.
Table 10-6 Line Threshold Options for DS-3 Ports
|
Parameter
|
Description
|
Options
|
Port # |
Port number |
1 to 3 |
CV |
Coding violations |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
ES |
Errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
SES |
Severely errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
LOSS |
Loss of signal; number of one-second intervals containing one or more LOS defects |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button. |
Table 10-7 describes the values on the Provisioning > STS-1 Path Threshold subtab for the DS-3 ports.
Table 10-7 STS-1 Path Threshold Options for DS-3 Ports
|
Parameter
|
Description
|
Options
|
Port # |
DS-3 ports partitioned for STS |
Read-only DS-3 ports 1 to 3 any available STS |
CV |
Coding violations |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, STS termination only). |
ES |
Errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, STS termination only). |
FC |
Failure count |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, STS termination only). |
SES |
Severely errored seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, STS termination only). |
UAS |
Unavailable seconds |
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, STS termination only). |
Note The threshold value displays after the circuit is created.
Step 8 Return to your originating procedure (NTP).
NTP-B89 Modify Line Settings and PM Parameter Thresholds for Optical Ports
Purpose |
This procedure changes the line and threshold settings for optical cards and ports. The default OC-N card settings are provided in the "Card Default Settings" section. |
Tools/Equipment |
None |
Prerequisite Procedures |
None |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
Step 1 Complete the "DLP-B60 Log into CTC" task at the node where you want to change the card settings. If you are already logged in, continue with Step 2.
Step 2 Complete the "108 Back Up the Database" procedure.
Step 3 Perform any of the following tasks as needed:
•170 Change Line Settings for OC-N Cards
•171 Change SONET Thresholds Settings for OC-N Cards
•172 Change an Optical Port to SDH
Step 4 Complete the "108 Back Up the Database" procedure.
Stop. You have completed this procedure.
DLP-B170 Change Line Settings for OC-N Cards
Purpose |
This task changes the line settings for OC-N cards. |
Tools/Equipment |
None |
Prerequisite Procedures |
60 Log into CTC |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
Step 1 Double-click the OC-N card where you want to change the line settings.
Step 2 Click the Provisioning > Line tabs.
Step 3 Modify any of the settings listed in Table 10-8.
See Table C-3 for OC-3 card default settings, Table C-4 for OC-12 card default settings, or Table C-5 for OC-48 card default settings.
Note The STS subtab is used to provision intermediate path performance monitoring (IPPM). To provision IPPM, circuits must be provisioned on the card.
Table 10-8 OC-N Card Line Settings
|
Parameter
|
Description
|
Options
|
Port # |
Port number (read-only) |
•1 to 4 (OC-3) •1 (OC-12, OC-48) |
Port Name |
Provides the ability to assign the specified port a name |
User-defined, up to 32 alphanumeric/ special characters. Blank by default.
See 314 Assign a Name to a Port. |
SF BER |
Sets the signal fail bit error rate |
•1E-3 •1E-4 (default) •1E-5 |
SD BER |
Sets the signal degrade bit error rate |
•1E-5 •1E-6 •1E-7 (default) •1E-8 •1E-9 |
Provides Synch |
If checked, the card is provisioned as a network element timing reference |
•Yes (checked) •No (unchecked) (Read-only) |
EnableSync Msg |
Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source |
•Yes (checked, default) •No (unchecked) |
Send DoNotUse |
When checked, sends a DUS (do not use) message on the S1 byte |
•Yes (checked) •No (unchecked, default) |
PJSTSMon # |
Sets the STS that will be used for pointer justification. If set to 0, no STS is monitored. Only one STS can be monitored on each OC-N port. |
•0 - 3 (OC-3, per port) •0 - 12 (OC-12) •0 - 48 (OC-48) |
State |
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service. |
•IS •OOS •OOS_MT •OOS_AINS |
AINS Soak |
Automatic in-service soak |
•Duration of valid input signal in hh.mm after which the card is set in service by the software. •0 to 48 hours, 15 minutes increments. |
Type |
Defines the port as SONET or SDH. The Enable Sync Msg field and the Send Do Not Use field must be disabled before the port can be set to SDH. |
•Sonet •SDH |
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-B171 Change SONET Thresholds Settings for OC-N Cards
Purpose |
This task changes SONET thresholds settings for OC-N cards. |
Tools/Equipment |
None |
Prerequisite Procedures |
60 Log into CTC |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
Step 1 In node view, double-click the OC-N card where you want to change the SONET thresholds settings (Figure 10-2).
Step 2 Click the Provisioning > SONET Thresholds tabs (Figure 10-2).
Figure 10-2 Provisioning SONET Thresholds for the OC48 IR 1310 Card
Step 3 Modify any of the settings listed in Table 10-9.
See Table C-3 for OC-3 card default settings, Table C-4 for OC-12 card default settings, or Table C-5 for OC-48 card default settings.
Table 10-9 OC-N SONET Thresholds Options
|
Parameter
|
Description
|
Options
|
|
Port
|
Port number |
•1 to 4 (OC-3) •1 (OC-12, OC-48) |
|
CV
|
Coding violations |
Numeric. Can be set for 15-minute or one-day intervals for Line, Section, or Path (Near and Far End). Select the bullet and click the Refresh button. |
|
ES
|
Errored seconds |
Numeric. Can be set for 15-minute or one-day intervals for Line, Section, or Path (Near and Far End). Select the bullet and click the Refresh button. |
|
SES
|
Severely errored seconds |
Numeric. Can be set for 15-minute or one-day intervals for Line, Section, or Path (Near and Far End). Select the bullet and click the Refresh button. |
|
SEFS
|
Severely errored framing seconds |
Numeric. Can be set for 15-minute or one-day intervals for Line, Section, or Path (Near and Far End). Select the bullet and click the Refresh button. |
|
FC
|
Failure count |
Numeric. Can be set for 15-minute or one-day intervals for Line. Select the bullet and click the Refresh button. or Path (Near and Far End) |
|
UAS
|
Unavailable seconds |
Numeric. Can be set for 15-minute or one-day intervals for Line or Path (Near and Far End). Select the bullet and click the Refresh button. |
|
PPJC-PDET
|
Positive Pointer Justification Count, STS Path detected. |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
|
NPJC-PDET
|
Negative Pointer Justification Count, STS Path detected. |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
|
PPJC-PGEN
|
Positive Pointer Justification Count, STS Path generated. |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
|
NPJC-PGEN
|
Negative Pointer Justification Count, STS Path generated. |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
|
PSC
|
Protection Switching Count (Line) |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
|
PSD
|
Protection Switch Duration (Line) |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
|
PSC-W
|
Protection Switching Count - Working line BLSR is not supported on the OC-3 card; therefore, the PSC-W, PSC-S, and PSC-R PMs do not increment. |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
|
PSD-W
|
Protection Switching Duration - Working line BLSR is not supported on the OC-3 card; therefore, the PSD-W, PSD-S, and PSD-R PMs do not increment. |
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button. |
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-B172 Change an Optical Port to SDH
Purpose |
Use this task to provision a port on an OC-N card for SDH. |
Tools/Equipment |
None |
Prerequisite Procedures |
60 Log into CTC |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite or remote |
Security Level |
Provisioning or higher |
Step 1 Double-click the OC-N card where you want to provision a port for SDH.
Before you can change the port type to SDH, ensure the following:
•The EnableSyncMsg and SendDoNotUse fields are unchecked.
•The card is not part of a BLSR or 1+1 protection group.
•The card is not part of an orderwire channel.
•The card is not a SONET DCC termination point.
Step 2 Click the Provisioning > Line tabs.
Step 3 In the Type field, specify the port and choose SDH.
Step 4 Click Apply.
Step 5 If the card is a multiport OC-N card, such as an OC-3, you can repeat Steps 3 and 4 for any other ports on the card.
Step 6 Return to your originating procedure (NTP).
Feedback
