This chapter provides an overview of the CRS Back-to-Back System and describes what is required to interconnect system components.
The chapter covers the following topics:
The CRS system consists of either a single chassis, back-to-back chassis, or multichassis. In a CRS Back-to-Back System, you can connect two single, 16-slot chassis together using fabric cards and cables. The two chassis then act as a single routing entity, expanding the system from 16 to 32 slots.

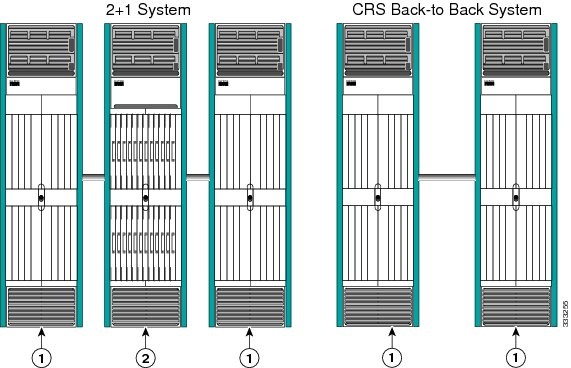

The CRS Back-to-Back System uses the same LCCs as in a multichassis system. Compared to a 2+1 multichassis system, the CRS Back-to-Back System connects two LCCs without the fabric card chassis (FCC) or S2 cards. Instead, two LCCs are connected using a set of back-to-back cables. See the figure below. This system has all of the benefits of a 2+1 multichassis system without an FCC. It provides the same functionality and scale of a 2+1 multichassis system. The CRS Back-to-Back System supports seamless migration to the larger multichassis system.
The CRS Back-to-Back System is supported only on CRS-3 and CRS-X with Performance Router Processors or PRP s. You can upgrade a CRS-1 or a CRS-3 single chassis to a CRS 140G Back-to-Back System. You can upgrade a CRS-1, CRS-3, or CRS-X single chassis to a CRS 400G Back-to-Back System.
Note | Throughout this document, the generic term CRS Back-to-Back System refers to the CRS 140G Back-to-Back System and CRS 400G Back-to-Back System unless otherwise specified. |
1 |
Cisco CRS 16-Slot Line Card Chassis |
2 |
Cisco CRS Fabric Card Chassis |
CRS Back-to-Back System cabling can be divided into the following groups:
You should cable a CRS Back-to-Back System in this order.
Cabling for System Management, Alarms, and Network Clocking describes the cabling for system management connections, the optional network clock feature, and the optional external alarm feature. You must cable at least one form of system management connection before system configuration can start.
Chapter 3, “Cabling the CRS Back-to-Back System” describes the cabling between the fabric components in the two LCCs. The fabric cabling provides the data connection for traffic between two LCCs. You must complete the fabric cabling to enable data communications through the CRS Back-to-Back System. There are two types of fabric cables: Trimese and Riser.
All router data traffic enters the CRS Back-to-Back System through lines connected to the physical layer interface modules (PLIMs). For information about PLIM cards and connectors, see the PLIM notes and installation guides on http://www.cisco.com.
The prerequisites for cabling a CRS Back-to-Back System include the following:
These prerequisites are explained in the following sections:
Space, power, and environmental specifications are cited in the Cisco CRS Carrier Routing System 16-Slot Line Card Chassis Site Planning Guide and the Cisco CRS Carrier Routing System 16-Slot Line Card Chassis Enhanced Router Site Planning Guide .
The following tools and supplies are required to cable the CRS Back-to-Back System:
The cables listed in the below table are required for each LCC in a CRS Back-to-Back System installation.
Cable Product ID |
Description |
Purpose |
||
---|---|---|---|---|
Trimese: CRS-B2B-CAB-xx = (where xx is the length in meters) Riser: CRS-B2B-CAB-xx R= (where xx is the length in meters) |
Trimese: Carrier Routing System-Back-to-Back-Cable (Optical) Riser: Carrier Routing System-Back-to-Back-Cable (Optical), riser-rate |
To interconnect fabric cards between the LCCs.
|
||
|
Gigabit Ethernet cables |
To connect the PRP cards between two chassis To connect console cables to the router |
For more information on the range of lengths available for the Cisco CRS fabric cables, refer to the table Table 1 that lists the product ID numbers for Cisco CRS fabric cables. Evaluate your installation for the appropriate length of fabric cable needed before ordering.
In the CRS Back-to-Back System, two LCCs are cabled together. Whether the cables are run overhead or under the floor, consider the airflow and cable characteristics of the combined cable sets. Ensure that your cable management structures match or exceed the total capacity of cables for the CRS Back-to-Back System installation.
The following sections provide some cable routing guidelines:
To plan cable routing in an installation with a raised floor, consider all the characteristics of each cable required for the installation. Allow slack for cabling so that cables can be pooled under the floor for future expansion without exceeding bend radius or cable length limitations. Only use Riser cables in an installation with a raised floor. Riser cables are not rated for installation in air plenum passages, nor are they designed for use in LSZH (low smoke zero halogen) applications.
To plan your cable runs, consider the characteristics of each cable, such as the cable length limitations, combined diameter of bundled cables (such as power cables), weight of the cable groups, and bend radius of the cable or cables. Couple these considerations with the cable infrastructure available (or needed) at your facility. The infrastructure could include structures like the overhead cabling monorail or J-hook system, sleeve and riser diameters, and distances between floors or elements of the CRS Back-to-Back System.
Analyze the cabling infrastructures, risers, and racking available in your facility to determine if the capacity of the cabling management systems at your facility will accommodate the required capacities of the CRS Back-to-Back System cabling.
Note | Trimese fabric (CRS-B2B-CAB-xx) carries a dual flame rating: general purpose and LSZH (low smoke zero halogen). These cables are designed to connect two LCCs in the free air of the room. Route fabric cables within a room. Fabric cables are not rated for installation above ceilings, below floors, or through walls. Riser fabric cables (CRS-B2B-CAB-xxR) meet the OFNR riser cable flame rating. These cables are designed to connect two LCCs, either in the free air within a room, or, through a riser access between building floors. Riser cables are not rated for installation in air plenum passages, nor are they designed for use in LSZH (low smoke zero halogen) applications. |
The limit of the cables is 100 m (328 ft). Consider this distance when planning the physical locations of the LCCs. For more information on the range of lengths available for the Cisco CRS fabric cables, refer to the table Table 1 that lists the product ID numbers for Cisco CRS fabric cables. Evaluate your installation for the appropriate length of fabric cable needed before ordering.
Exceeding the bend radius allowed for a cable can break the glass in the cable or cause attenuation or loss of signal. Do not bend a cable more than the allowable bend radius.
The below figure shows an example of how a bend radius is measured for Trimese cables. In this figure, the cable has a 1 in (2.54 cm) radius. If the cable is specified to wrap around the arc that is formed by the circle with the 1-inch radius, the cable is said to have a 1-inch bend radius . Note the following:
Observe these procedures as you attach every cable:
Handle all cables carefully. Fiber-optic cables require special care as follows:
Before you perform any procedure in this document, review the safety guidelines in this section to avoid injuring yourself or damaging the equipment.
The following guidelines are for your safety and to protect equipment. The guidelines do not include all hazards. Be alert.
Note | Review the Document Conventions and the Understanding Warning Statement Numbers. In addition, review the safety warnings listed in Regulatory Compliance and Safety Information for the Cisco CRS Carrier Routing System before installing, configuring, or troubleshooting any installed card. This booklet is shipped with your system. |
