Firewall Support for SIP


The Firewall Support for SIP feature integrates Cisco IOS firewalls, Voice over IP (VoIP) protocol, and Session Initiation Protocol (SIP) within a Cisco IOS-based platform, enabling better network convergence.


Note Some Cisco IOS versions earlier than 12.2(11)YU and 12.2(15)T may accept the configuration commands for SIP that are shown in this document; however, those earlier versions will not function properly.


Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the "Feature Information for Firewall SIP Support" section.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Contents

Restrictions for Firewall Support for SIP

Information About Firewall Support for SIP

How to Configure Your Firewall for SIP

Configuration Examples for Firewall SIP Support

Additional References

Feature Information for Firewall SIP Support

Restrictions for Firewall Support for SIP

DNS Name Resolution

Although SIP methods can have Domain Name System (DNS) names instead of raw IP addresses, this feature currently does not support DNS names.

SIP UDP Support Only

This feature supports only the SIP User Datagram Protocol (UDP) format for signaling; the TCP format is not supported.

SIP Abbreviated Header

This feature does not support the compact form of SIP header fields.

Earlier Versions of Cisco IOS

Some Cisco IOS versions earlier than 12.2(11)YU and 12.2(15)T may accept the configuration commands for SIP that are shown in this document; however, those earlier versions will not function properly.

Information About Firewall Support for SIP

Cisco IOS Firewall

SIP (Session Initiation Protocol)

SIP Messages

Firewall for SIP Functionality Description

SIP Message Treatment by the Firewall

Call Database

Cisco IOS Firewall

SIP (Session Initiation Protocol)

Cisco IOS Firewall

The Cisco IOS firewall extends the concept of static access control lists (ACLs) by introducing dynamic ACL entries that open on the basis of the necessary application ports on a specific application and close these ports at the end of the application session. The Cisco IOS firewall achieves this functionality by inspecting the application data, checking for conformance of the application protocol, extracting the relevant port information to create the dynamic ACL entries, and closing these ports at the end of the session. The Cisco IOS firewall is designed to easily allow a new application inspection whenever support is needed.

SIP (Session Initiation Protocol)

SIP is an ASCII-based, application-layer control protocol that can be used to establish, maintain, and terminate calls between two or more endpoints. Like other VoIP protocols, SIP is designed to address the functions of signaling and session management within a packet telephony network. Signaling allows call information to be carried across network boundaries. Session management provides the ability to control the attributes of an end-to-end call.

SIP Messages

SIP has two types of messages—requests and responses—that have the following generic structure:

generic-message   =   Request-Line | Status-Line

                                 * ( general-header | request-header

                                 | response-header | entity-header )

                                 CRLF

                                 [ message-body]


Note Any of these message components may contain embedded IP addresses.


Table 1 identifies the six available SIP request messages.

Table 1 SIP Request Messages

SIP Message
Purpose

ACK

Confirms receipt of a final response to INVITE

BYE

Is sent by either side to end the call

CANCEL

Is sent to end a call that has not yet been connected

INVITE

Is a request from a User Agent Client (UAC) to initiate a session

OPTIONS

Are sent to query capabilities of the user agents and network servers

REGISTER

Is sent by the client to register the address with a SIP proxy


Table 2 identifies the available SIP response methods.

Table 2 SIP Response Messages

SIP Message
Purpose

1xx Informational

100 = Trying

180 = Ringing

181 = Call Is Being Forwarded

182 = Queued

183 = Session Progress

2xx Successful

200 = OK

3xx Redirection

300 = Multiple Choices

301 = Moved Permanently

302 = Moved Temporarily

303 = See Other

305 = Use Proxy

380 = Alternative Service

4xx Request Failure

400 = Bad Request

401 = Unauthorized

402 = Payment Required

403 = Forbidden

404 = Not Found

405 = Method Not Allowed

406 = Not Acceptable

407 = Proxy Authentication Required

408 = Request Timeout

409 = Conflict

410 = Gone

411 = Length Required

413 = Request Entity Too Large

414 = Request URI Too Large

415 = Unsupported Media Type

420 = Bad Extension

480 = Temporarily Not Available

481 = Call Leg/Transaction Does Not Exist

4xx Request Failure (continued)

482 = Loop Detected

483 = Too Many Hops

484 = Address Incomplete

485 = Ambiguous

486 - Busy Here

5xx Server Failure

500 = Internal Server Error

501 = Not Implemented

502 = Bad Gateway

503 = Service Unavailable

504 = Gateway Timeout

505 = SIP Version Not Supported

6xx Global Failure

600 = Busy Anywhere

603 = Decline

604 = Does Not Exist Anywhere

606 = Not Acceptable


Firewall for SIP Functionality Description

The Firewall for SIP Support feature allows SIP signaling requests to traverse directly between gateways or through a series of proxies to the destination gateway or phone. After the initial request, if the Record-Route header field is not used, subsequent requests can traverse directly to the destination gateway address as specified in the Contact header field. Thus, the Cisco IOS firewall is aware of all surrounding proxies and gateways and allows the following functionality:

SIP signaling responses can travel the same path as SIP signaling requests.

Subsequent signaling requests can travel directly to the endpoint (destination gateway).

Media endpoints can exchange data between each other.

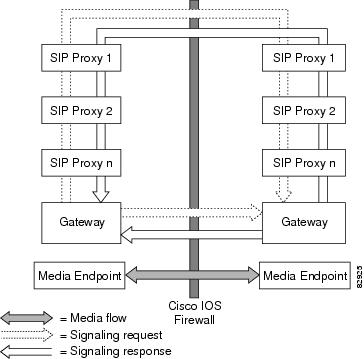

See Figure 1 for a sample topology that displays these functionalities.

Figure 1 Cisco IOS Firewall for SIP Awareness Sample Topology

SIP Message Treatment by the Firewall

See Table 3 for information on the treatment of SIP methods by the Cisco IOS firewall.

Table 3 Treatment of SIP Methods by the Cisco IOS Firewall

SIP Message
Purpose

200 OK

Signifies the end of the call creation phase. The packet is checked for validity against the call database, and the contact information of the server is taken from it. Temporary call-flow-based openings in the firewall are created for allowing the BYE message, which can be initiated from the inside or outside.

200 OK for BYE

Signifies the graceful termination of the call and is in response to the BYE message. The same action as the CANCEL message is taken.

ACK

Signifies that the message is passed after checking for validity.

BYE

Signifies the intent to terminate the call. The database state is updated and temporary openings in the firewall are created for response to the BYE message.

CANCEL

Signifies abnormal data termination. The signaling sessions, media sessions, pregenerated temporary openings in the firewall, and the call database entry for the call are removed.

INVITE

Occurs typically at the start of the call. The firewall will create a database entry upon receipt of this method and fill the database with relevant information extracted from this message. Temporary openings in the firewall will allow for a series of responses to the INVITE request. The temporary openings will be call-flow sensitive and will allow for responses for a fixed amount of time (t = 30 secs).

NO MATCH

Signifies a signaling message that is not present in the database.

Other Methods

Signifies that the message is passed if the call ID is present in the call database.

REGISTER

Results in the creation of an entry in the call database. Time-based, flow-control ACL firewall openings will allow for the response to the REGISTER and subsequent INVITE messages.

SESSION PROGRESS

Contains a response to the INVITE message, and it is a packet during the call creation phase. The packet is checked against the call database for validity of call ID and the media ports; the server proxy information is gathered from the packet. Media channels should be created in this phase.


Call Database

A call database, which contains the details of a call leg, is maintained for all call flows. A call database is created and maintained because there can be numerous signaling sessions for each call. Table 4 identifies the information available in the call database.

Table 4 Call Database Information

Type
Purpose

call_int_over

Checks to see whether or not call initialization is over, and if so, checks to see of the call is in the teardown phase

C con ip & C con port

Signifies the IP address and port in the contact field of the initiator; for example, "Contact:<sip:1111@172.16.0.3:5060;user=phone>"

C media ip & C media port

Signifies the IP address in the media field of the initiator; for example, "c=IN IP4 172.16.0.3"

C media port

Signifies the port in the media field of the initiator; for example, "m=audio 20758 RTP/AVP 0"

C src ip & C src port

Signifies the actual IP address and port of the initiator

C via ip & C via port

Signifies the IP address and port in the via field of the initiator (the first via line); for example, "Via: SIP/2.0/UDP 172.16.0.3:5060"

current sip state

Is the current state of the call (which helps to avoid retransmission)

from/to/callid

Is extracted from the "INVITE" SIP request message to identify the call

media header

Keeps the list of media sessions for the call

media opened

Signifies multiple messages that may have media information, so you need to check to see whether or not the media has been opened for the call

prev sip state

Signifies the previous state of the call (which helps to avoid retransmission)

S con ip & S con port

Signifies the IP address and port in the contact field for the responder

S media ip

Signifies the IP address in the media field for the responder

S media port

Signifies the port in the media field for the responder

S src ip & S src port

Signifies the actual IP address and port of the responder

S via ip & S via port

Signifies the IP address and port in the via field for the responder

signal header

Keeps the list of signaling sessions for the call

sip_proxy_traversed

Makes the firewall topologically aware of whether the call has traversed through proxies


How to Configure Your Firewall for SIP

Configuring Firewall for SIP Support (required)

Verifying Firewall for SIP Support (optional)

Monitoring Firewall for SIP Support (optional)

Configuring Firewall for SIP Support

To enable a firewall to support SIP, use the following commands.

Prerequisite

Before you configure Cisco IOS firewall support for SIP on your router, you first need to configure access lists, whose purpose normally is to block SIP traffic from unprotected networks for which the firewall will create temporary openings for specific traffic.

SUMMARY STEPS

1. enable

2. configure terminal

3. ip inspect name inspection-name sip [alert {on | off}] [audit-trail {on | off}] [timeout seconds]

4. interface type number

5. ip inspect inspection-name {in | out}

6. Repeat Steps 3 through 5 (Optional)

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

ip inspect name inspection-name sip [alert {on | off}] [audit-trail {on |off}] [timeout seconds]

Example:

Router(config)# ip inspect name voip sip

Turns on inspection for SIP.

alert—Alert messages are generated. This function is on by default.

audit-trail—Audit trail messages are generated. This function is off by default.

timeout—Overrides the global channel inactivity timeout value.

Step 4

interface type number

Example:
Router(config)# interface FastEthernet 0/0

Configures an interface type and enters interface configuration mode.

Step 5

ip inspect inspection-name {in | out}

Example:
Router(config-if)# ip inspect voip in

Applies inspection configurations to an interface and for a particular traffic direction.

Step 6

If SIP calls are coming from other interfaces, repeat Steps 3 through 5 and apply SIP inspections for the calls that are coming from those interfaces.

Note The inspection of protocols other than SIP may not be desirable for traffic that comes from external networks, so it may be necessary to configure an additional inspection rule specifying only SIP.


Verifying Firewall for SIP Support

To verify Cisco IOS firewall session information, perform the following optional steps:

SUMMARY STEPS

1. enable

2. show ip inspect name inspection-name

3. show ip inspect session [detail]

4. show ip access-list

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

show ip inspect name inspection-name

Example:
Router# show ip inspect name voip

(Optional) Displays the configured inspection rule.

Step 3

show ip inspect session [detail]

Example:

Router# show ip inspect session

(Optional) Displays existing sessions that are currently being tracked and inspected by the Cisco IOS firewall.

The optional detail keyword causes additional details about these sessions to be shown.

Step 4

show ip access-list

Example:
Router# show ip access-list

(Optional) Displays the contents of all current IP access lists.


Monitoring Firewall for SIP Support

To monitor firewall events, perform the following optional steps:


Note Effective with Cisco IOS Release 12.4(20)T, the debug ip inspect command is replaced by the debug policy-firewall command. See the Cisco IOS Debug Command Reference for more information.


SUMMARY STEPS

1. enable

2. debug ip inspect sip

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

debug ip inspect sip

Example:
Router# debug ip inspect sip

(Optional) Displays the operations of the SIP inspection engine for debugging purposes.


Configuration Examples for Firewall SIP Support

Example: Firewall and SIP Configuration

Example: Firewall and SIP Configuration

The following example shows how to allow outside initiated calls and internal calls. For outside initiated calls, an ACL needs to be punched to allow for the traffic from the initial signaling packet from outside. Subsequent signaling and media channels will be allowed by the inspection module.

ip inspect name voip sip
interface FastEthernet0/0
 ip inspect voip in
!
!
interface FastEthernet0/1
 ip inspect voip in
 ip access-group 100 in
!
!
access-list 100 permit udp host <gw ip> any eq 5060
access-list 100 permit udp host <proxy ip> any eq 5060
access-list deny ip any any

Additional References

Related Documents

Related Topic
Document Title

Cisco IOS firewall information and configuration tasks

"Configuring Context-Based Access Control"

Cisco IOS firewall commands

Cisco IOS Security Command Reference


Standards

Standards
Title

None


MIBs

MIBs
MIBs Link

None

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs


RFCs

RFCs 1
Title

RFC 2543

SIP: Session Initiation Protocol

1 Not all supported RFCs are listed.


Technical Assistance

Description
Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html


Feature Information for Firewall SIP Support

Table 5 lists the features in this module and provides links to specific configuration information.

Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.


Note Table 5 lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.


Table 5 Feature Information for Firewall SIP Support

Feature Name
Releases
Feature Information

Firewall SIP Support

12.2(11)YU
12.2(15)T

The Firewall Support for SIP feature integrates Cisco IOS firewalls, Voice over IP (VoIP) protocol, and Session Initiation Protocol (SIP) within a Cisco IOS-based platform, enabling better network convergence.

The following commands were introduced or modified: debug ip inspect, ip inspect name.


Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

© 2007 Cisco Systems, Inc. All rights reserved.
