16- and 36-Port Ethernet Switch Module for Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700 Series

Table Of Contents

16- and 36-Port Ethernet Switch Module for Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700 Series

Feature Overview

Layer 2 Ethernet Interfaces

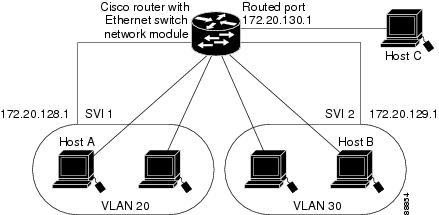

Switch Virtual Interfaces

Routed Ports

VLAN Trunk Protocol

EtherChannel

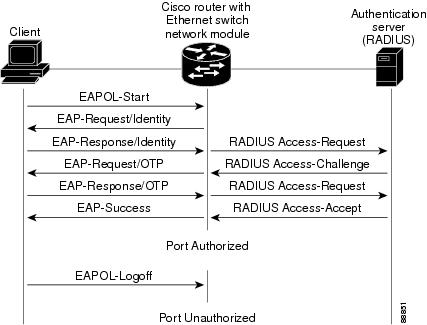

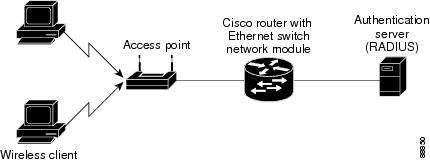

802.1x Port-Based Authentication

Spanning Tree Protocol

Cisco Discovery Protocol

Switched Port Analyzer

Network Security with ACLs

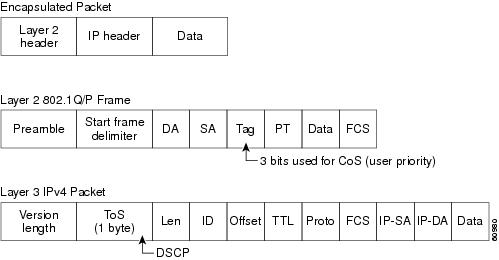

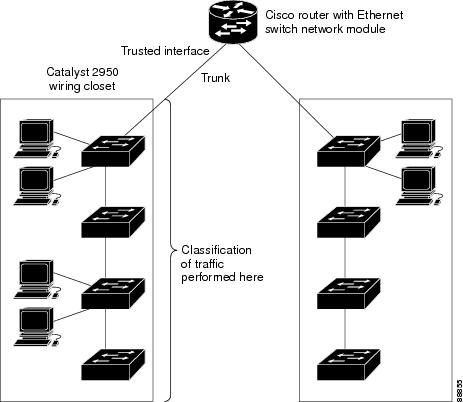

Quality of Service

Maximum Number of VLAN and Multicast Groups

IP Multicast Support

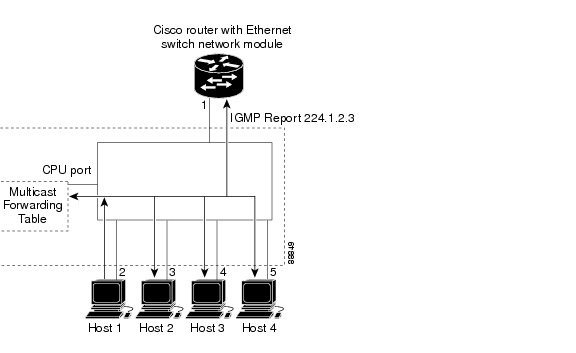

IGMP Snooping

Global Storm-Control

Per-Port Storm-Control

Port Security

Ethernet Switching in Cisco AVVID Architecture

Stacking

Flow Control

Using Flow-Control Keywords

Fallback Bridging

Benefits

Restrictions

Related Features and Technologies

Related Documents

Supported Platforms

Supported Standards, MIBs, and RFCs

Prerequisites

Configuration Tasks

Configuring Layer 2 Interfaces

Configuring a Range of Interfaces

Defining a Range Macro

Verifying Configuration of a Range of Interfaces

Configuring Layer 2 Optional Interface Features

Interface Speed and Duplex Configuration Guidelines

Configuring the Interface Speed

Configuring the Interface Duplex Mode

Verifying Interface Speed and Duplex Mode Configuration

Configuring a Description for an Interface

Configuring an Ethernet Interface as a Layer 2 Trunk

Verifying an Ethernet Interface as a Layer 2 Trunk

Configuring an Ethernet Interface as a Layer 2 Access

Verifying an Ethernet Interface as a Layer 2 Access

Configuring VLANs

Configuring VLANs

Verifying the VLAN Configuration.

Deleting a VLAN from the Database

Verifying VLAN Deletion

Configuring VLAN Trunking Protocol

Configuring the VTP Server

Configuring a VTP Client

Disabling VTP (VTP Transparent Mode)

Configuring VTP version 2

Verifying VTP

Configuring Layer 2 EtherChannels (Port-Channel Logical Interfaces)

Configuring Layer 2 EtherChannels (Port-Channel Logical Interfaces)

Verifying Layer 2 EtherChannels

Configuring EtherChannel Load Balancing

Verifying EtherChannel Load Balancing

Removing an Interface from an EtherChannel

Configuring Removing an EtherChannel

Verify Removing an EtherChannel

Configuring 802.1x Authentication

Understanding the Default 802.1x Configuration

Enabling 802.1x Authentication

Configuring the Switch-to-RADIUS-Server Communication

Enabling Periodic Reauthentication

Changing the Quiet Period

Changing the Switch-to-Client Retransmission Time

Setting the Switch-to-Client Frame-Retransmission Number

Enabling Multiple Hosts

Resetting the 802.1x Configuration to the Default Values

Displaying 802.1x Statistics and Status

Configuring Spanning Tree

Enabling Spanning Tree

Verify Spanning Tree

Configuring Spanning Tree Port Priority

Verify Spanning Tree Port Priority

Configuring Spanning Tree Port Cost

Verifying Spanning Tree Port Cost

Configuring the Bridge Priority of a VLAN

Verifying the Bridge Priority of a VLAN

Configuring the Hello Time

Configuring the Forward-Delay Time for a VLAN

Configuring the Maximum Aging Time for a VLAN

Configuring the Root Bridge

Configuring BackboneFast

Disabling Spanning Tree

Verifying that Spanning Tree is Disabled

Configuring MAC Table Manipulation — Port Security

Enabling Known MAC Address Traffic

Verifying the MAC Address Secure Configuration

Creating a Static or Dynamic Entry in the MAC Address Table

Verifying the MAC Address Table

Configuring Aging Timer-timer

Verifying the Aging Timer

Configuring Cisco Discovery Protocol

Enabling Cisco Discovery Protocol

Verifying the CDP Global Configuration

Enabling CDP on an Interface

Verifying the CDP Interface Configuration

Verifying CDP Neighbors

Monitoring and Maintaining CDP

Configuring Switched Port Analyzer

Specifying the Switched Port Analyzer Session

Configuring SPAN Destinations

Removing Sources or Destinations from a SPAN Session

Configuring Network Security with ACLs

Unsupported Features

Creating Standard and Extended IP ACLs

ACL Numbers

Creating a Numbered Standard ACL

Creating a Numbered Extended ACL

Creating Named Standard and Extended ACLs

Including Comments About Entries in ACLs

Applying the ACL to an Interface

Displaying ACLs

Configuring Quality of Service (QoS)

Understanding the Default QoS Configuration

Configuring Classification Using Port Trust States

Configuring the Trust State on Ports and SVIs within the QoS Domain

Configuring the CoS Value for an Interface

Configuring a QoS Policy

Classifying Traffic by Using ACLs

Classifying Traffic by Using Class Maps

Classifying, Policing, and Marking Traffic by Using Policy Maps

Configuring CoS Maps

Configuring the CoS-to-DSCP Map

Configuring the DSCP-to-CoS Map

Displaying QoS Information

Configuring Power Management on the Interface

Verifying Power Management on the Interface

Configuring IP Multicast Layer 3 Switching

Enabling IP Multicast Routing Globally

Enabling IP PIM on Layer 3 Interfaces

Verifying IP Multicast Layer 3 Hardware Switching Summary

Verifying the IP Multicast Routing Table

Configuring IGMP Snooping

Enabling or Disabling IGMP Snooping

Enabling IGMP Immediate-Leave Processing

Statically Configuring an Interface to Join a Group

Configuring a Multicast Router Port

Configuring Global Storm-Control

Enabling Global Storm-Control

Verifying Global Storm-Control

Configuring Per-Port Storm-Control

Enabling Per-Port Storm-Control

Disabling Per-Port Storm-Control

Configuring Separate Voice and Data Subnets

Voice Traffic and VVID

Configuring a Single Subnet for Voice and Data

Verifying Switchport Configuration

Configuring Ethernet Ports to Support Cisco IP Phones with Multiple Ports

IP Addressing

Managing the Ethernet Switch Network Module

Adding Trap Managers

Verifying Trap Managers

Configuring IP Information

Assigning IP Information to the Switch

Specifying a Domain Name and Configuring the DNS

Configuring Voice Ports

Configuring a Port to Connect to a Cisco 7960 IP phone

Disabling Inline Power on a Ethernet switch network module

Verifying Inline Power Configuration

Enabling Switch Port Analyzer

Managing the ARP Table

Managing the MAC Address Tables

Understanding MAC Addresses and VLANs

Changing the Address Aging Time

Configuring the Aging Time

Verifying Aging-Time Configuration

Removing Dynamic Addresses

Verifying Dynamic Addresses

Adding Secure Addresses

Verifying Secure Addresses

Configuring Static Addresses

Verifying Static Addresses

Clearing all MAC Address Tables

Configuring Intrachassis Stacking

Verifying Intra-chassis Stacking

Configuring Flow Control on Gigabit Ethernet Ports

Configuring Layer 3 Interfaces

Configuring Fallback Bridging

Understanding the Default Fallback Bridging Configuration

Creating a Bridge Group

Preventing the Forwarding of Dynamically Learned Stations

Configuring the Bridge Table Aging Time

Filtering Frames by a Specific MAC Address

Adjusting Spanning-Tree Parameters

Monitoring and Maintaining the Network

Configuration Examples for the 16- and 36-Port Ethernet Switch Module

Range of Interface Examples

Single Range Configuration Example

Multiple Range Configuration Example

Range Macro Definition Example

Optional Interface Feature Examples

Interface Speed Example

Setting the Interface Duplex Mode Example

Adding a Description for an Interface Example

Configuring an Ethernet Interface as a Layer 2 Trunk Example

VLAN Configuration Example

VTP Examples

VTP Server Example

VTP Client Example

Disabling VTP (VTP Transparent Mode) Example

VTP version 2 Example

EtherChannel Load Balancing Example

Layer 2 EtherChannels Example

EtherChannel Load Balancing Example

Removing an EtherChannel Example

802.1x Authentication Examples

Enabling 802.1x Authentication Example

Configuring the Switch-to-RADIUS-Server Communication Example

Enabling Periodic Re-Authentication Example

Changing the Quiet Period Example

Changing the Switch-to-Client Retransmission Time Example

Setting the Switch-to-Client Frame-Retransmission Number Example

Enabling Multiple Hosts Example

Spanning Tree Examples

Spanning-Tree Interface and Spanning-Tree Port Priority Example

Spanning-Tree Port Cost Example

Bridge Priority of a VLAN

Hello Time Example

Forward-Delay Time for a VLAN Example

Maximum Aging Time for a VLAN Example

BackboneFast Example

Spanning Tree Examples

Spanning Tree Root Example

Mac Table Manipulation Examples

Cisco Discovery Protocol (CDP) Example

Switched Port Analyzer (SPAN) Source Examples

SPAN Source Configuration Example

SPAN Destinations Example

Removing Sources or Destinations from a SPAN Session Example

Network Security and ACL Configuration Examples

Creating Numbered Standard and Extended ACLs Example

Creating Named Standard and Extended ACLs Example

Including Comments About Entries in ACLs Example

Applying the ACL to an Interface Example

Displaying Standard and Extended ACLs Example

Displaying Access Groups Example

Compiling ACLs Example

QoS Configuration Examples

Classifying Traffic by Using ACL Example

Classifying Traffic by Using Class Maps Example

Classifying, Policing, and Marking Traffic by Using Policy Maps Example

Configuring the CoS-to-DSCP Map Example

Configuring the DSCP-to-CoS Map Example

Displaying QoS Information Example

IGMP Snooping Example

Storm-Control Example

Ethernet Switching Examples

Subnets for Voice and Data Example

Inter-VLAN Routing Example

Single Subnet Configuration Example

Ethernet Ports on IP Phones with Multiple Ports Example

Intrachassis Stacking Example

Flow Control on Gigabit Ethernet Ports Example

Configuring Layer 3 Interfaces Example

Fallback Bridging Example

Creating a Bridge Group Example

Preventing the Forwarding of Dynamically Learned Stations Example

Configuring the Bridge Table Aging Time Example

Filtering Frames by a Specific MAC Address Example

Adjusting Spanning-Tree Parameters Examples

Command Reference

aaa authentication dot1x

class

class-map

debug dot1x

debug eswilp

debug ip igmp snooping

debug spanning-tree

deny (access-list configuration)

dot1x default

dot1x max-req

dot1x multiple-hosts

dot1x port-control

dot1x re-authenticate

dot1x re-authentication

dot1x timeout quiet-period

dot1x timeout re-authperiod

dot1x timeout tx-period

ip access-group

ip access-list

ip igmp snooping

ip igmp snooping vlan

ip igmp snooping vlan immediate-leave

ip igmp snooping vlan mrouter

ip igmp snooping vlan static

match (class-map configuration)

mls qos cos

mls qos map

mls qos trust

permit (access-list configuration)

police

policy-map

service-policy

show access-lists

show class-map

show dot1x

show ip access-lists

show ip igmp snooping

show ip igmp snooping mrouter

show mls masks

show mls qos interface

show mls qos maps

show policy-map

show spanning-tree

show storm-control

spanning-tree backbonefast

storm-control

switchport

Glossary


16- and 36-Port Ethernet Switch Module for Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700 Series


Feature History

Release
Modification

12.2(2)XT

This feature was introduced on the Cisco 2600 series, Cisco 3600 series, and Cisco 3700 series routers.

12.2(8)T

This feature was integrated into Cisco IOS Release 12.2(8)T.

12.2(15)ZJ

Added switching software enhancements: IEEE 802.1x, QoS (including Layer 2/Layer 3 CoS/DSCP mapping and rate limiting), security ACL, IGMP snooping, per-port storm control, and fallback bridging support for switch virtual interfaces (SVIs).


This feature module describes the 16- and 36-Port Ethernet Switch Module (NM-16ESW and NM-36ESW) for Cisco 2600 series, Cisco 3600 series, and Cisco 3700 series routers in Cisco IOS Release 12.2(2)XT and Cisco IOS Release 12.2(8)T and above. Enhancements were added in Cisco IOS Release 12.2(15)ZJ.

This document includes the following sections:

Feature Overview

Supported Platforms

Supported Standards, MIBs, and RFCs

Prerequisites

Configuration Tasks

Configuration Examples for the 16- and 36-Port Ethernet Switch Module

Command Reference

Glossary

Feature Overview

This document explains how to configure the 16- and 36-port Ethernet switch network modules. This network module is supported on Cisco 2600 series, Cisco 3600 series, and Cisco 3700 series routers. The Ethernet switch network module is a modular, high-density voice network module that provides Layer 2 switching across Ethernet ports. The 16-port Ethernet switch network module has 16 10/100BASE-TX ports and an optional 10/100/1000BASE-T Gigabit Ethernet port. The 36-port Ethernet switch network module has 36 10/100BASE-TX ports and two optional 10/100/1000BASE-T Gigabit Ethernet ports. The gigabit Ethernet can be used as an uplink port to a server or as a stacking link to another 16- or 36-port Ethernet switch network modules in the same system. The 36-port Ethernet switch network module requires a double-wide slot. An optional power module can also be added to provide inline power for IP telephones.

The 16- and 36-port Ethernet switch network modules support the following:

Layer 2 Ethernet Interfaces

Switch Virtual Interfaces

Routed Ports

VLAN Trunk Protocol

EtherChannel

802.1x Port-Based Authentication

Spanning Tree Protocol

Cisco Discovery Protocol

Switched Port Analyzer

Network Security with ACLs

Quality of Service

Maximum Number of VLAN and Multicast Groups

IP Multicast Support

IGMP Snooping

Global Storm-Control

Per-Port Storm-Control

Port Security

Ethernet Switching in Cisco AVVID Architecture

Stacking

Flow Control

Fallback Bridging

Layer 2 Ethernet Interfaces

Layer 2 Ethernet Switching

Ethernet switch network modules support simultaneous, parallel connections between Layer 2 Ethernet segments. Switched connections between Ethernet segments last only for the duration of the packet. New connections can be made between different segments for the next packet.

The Ethernet switch network module solves congestion problems caused by high-bandwidth devices and a large number of users by assigning each device (for example, a server) to its own 10-, 100-, or 1000-Mbps segment. Because each Ethernet interface on the switch represents a separate Ethernet segment, servers in a properly configured switched environment achieve full access to the bandwidth.

Because collisions are a major bottleneck in Ethernet networks, an effective solution is full-duplex communication. Normally, Ethernet operates in half-duplex mode, which means that stations can either receive or transmit. In full-duplex mode, two stations can transmit and receive at the same time. When packets can flow in both directions simultaneously, effective Ethernet bandwidth doubles to 20 Mbps for 10-Mbps interfaces and to 200 Mbps for Fast Ethernet interfaces.

Switching Frames Between Segments

Each Ethernet interface on an Ethernet switch network module can connect to a single workstation or server, or to a hub through which workstations or servers connect to the network.

On a typical Ethernet hub, all ports connect to a common backplane within the hub, and the bandwidth of the network is shared by all devices attached to the hub. If two stations establish a session that uses a significant level of bandwidth, the network performance of all other stations attached to the hub is degraded.

To reduce degradation, the switch treats each interface as an individual segment. When stations on different interfaces need to communicate, the switch forwards frames from one interface to the other at wire speed to ensure that each session receives full bandwidth.

To switch frames between interfaces efficiently, the switch maintains an address table. When a frame enters the switch, it associates the MAC address of the sending station with the interface on which it was received.

Building the Address Table

The Ethernet switch network module builds the address table by using the source address of the frames received. When the switch receives a frame for a destination address not listed in its address table, it floods the frame to all interfaces of the same virtual local area network (VLAN) except the interface that received the frame. When the destination station replies, the switch adds its relevant source address and interface ID to the address table. The switch then forwards subsequent frames to a single interface without flooding to all interfaces. The address table can store at least 8,191 address entries without flooding any entries. The switch uses an aging mechanism, defined by a configurable aging timer; so if an address remains inactive for a specified number of seconds, it is removed from the address table.


Note Default parameters on the aging timer are recommended.


VLAN Trunks

A trunk is a point-to-point link between one or more Ethernet switch interfaces and another networking device such as a router or a switch. Trunks carry the traffic of multiple VLANs over a single link and allow you to extend VLANs across an entire network and supports only one encapsulation on all Ethernet interfaces: 802.1Q-802.1Q is an industry-standard trunking encapsulation.

You can configure a trunk on a single Ethernet interface or on an EtherChannel bundle. For more information about EtherChannel, see the "Configuring Layer 2 EtherChannels (Port-Channel Logical Interfaces)" section.

Layer 2 Interface Modes

Table 1 Default Layer 2 Ethernet Interface Configuration

Feature
Default Value

Interface mode

switchport mode access / trunk

Trunk encapsulation

switchport trunk encapsulation dot1q

Allowed VLAN range

VLANs 1-1005

Default VLAN (for access ports)

VLAN 1

Native VLAN (for 802.1Q trunks)

VLAN 1

Spanning Tree Protocol (STP)

Enabled for all VLANs

STP port priority

128

STP port cost



When you connect a Cisco switch to a device other than a Cisco device through an 802.1Q trunk, the Cisco switch combines the spanning tree instance of the VLAN trunk with the spanning tree instance of the other 802.1Q switch. However, spanning tree information for each VLAN is maintained by Cisco switches separated by a cloud of 802.1Q switches that are not Cisco switches. The 802.1Q cloud separating the Cisco switches that is not Cisco devised, is treated as a single trunk link between the switches.

Make sure that the native VLAN for an 802.1Q trunk is the same on both ends of the trunk link. If the VLAN on one end of the trunk is different from the VLAN on the other end, spanning tree loops might result. Inconsistencies detected by a Cisco switch mark the line as broken and block traffic for the specific VLAN.

Disabling spanning tree on the VLAN of an 802.1Q trunk without disabling spanning tree on every VLAN in the network can potentially cause spanning tree loops. Cisco recommends that you leave spanning tree enabled on the VLAN of an 802.1Q trunk or that you disable spanning tree on every VLAN in the network. Make sure that your network is loop-free before disabling spanning tree.

Layer 2 Interface Configuration Guidelines and Restrictions

Switch Virtual Interfaces

A switch virtual interface (SVI) represents a VLAN of switch ports as one interface to the routing or bridging function in the system. Only one SVI can be associated with a VLAN, but it is necessary to configure an SVI for a VLAN only when you wish to route between VLANs, fallback-bridge nonroutable protocols between VLANs, or to provide IP host connectivity to the switch. By default, an SVI is created for the default VLAN (VLAN 1) to permit remote switch administration. Additional SVIs must be explicitly configured. You can configure routing across SVIs.

SVIs are created the first time that you enter the vlan interface configuration command for a VLAN interface. The VLAN corresponds to the VLAN tag associated with data frames on an ISL or 802.1Q encapsulated trunk or the VLAN ID configured for an access port. Configure a VLAN interface for each VLAN for which you want to route traffic, and assign it an IP address.

SVIs support routing protocol and bridging configurations. For more information about configuring IP routing, see the "Configuring IP Multicast Layer 3 Switching" section.

Routed Ports

A routed port is a physical port that acts like a port on a router; it does not have to be connected to a router. A routed port is not associated with a particular VLAN, as is an access port. A routed port behaves like a regular router interface, except that it does not support subinterfaces. Routed ports can be configured with a Layer 3 routing protocol.

Configure routed ports by putting the interface into Layer 3 mode with the no switchport interface configuration command. Then assign an IP address to the port, enable routing, and assign routing protocol characteristics by using the ip routing and router protocol global configuration commands.


Caution Entering a no switchport interface configuration command shuts the interface down and then reenables it, which might generate messages on the device to which the interface is connected. Furthermore, when you use this command to put the interface into Layer 3 mode, you are deleting any Layer 2 characteristics configured on the interface. (Also, when you return the interface to Layer 2 mode, you are deleting any Layer 3 characteristics configured on the interface.)

The number of routed ports and SVIs that you can configure is not limited by software; however, the interrelationship between this number and the number of other features being configured might have an impact on CPU utilization because of hardware limitations.

Routed ports support only CEF switching (IP fast switching is not supported).

VLAN Trunk Protocol

VLAN Trunk Protocol (VTP) is a Layer 2 messaging protocol that maintains VLAN configuration consistency by managing the addition, deletion, and renaming of VLANs within a VTP domain. A VTP domain (also called a VLAN management domain) is made up of one or more switches that share the same VTP domain name and that are interconnected with trunks. VTP minimizes misconfigurations and configuration inconsistencies that can result in a number of problems, such as duplicate VLAN names, incorrect VLAN-type specifications, and security violations. Before you create VLANs, you must decide whether to use VTP in your network. With VTP, you can make configuration changes centrally on one or more switches and have those changes automatically communicated to all the other switches in the network.

VTP Domain

A VTP domain (also called a VLAN management domain) is made up of one or more interconnected switches that share the same VTP domain name. A switch can be configured to be in one and only one VTP domain. You make global VLAN configuration changes for the domain using either the command-line interface (CLI) or Simple Network Management Protocol (SNMP).

By default, the switch is in VTP server mode and is in an un-named domain state until the switch receives an advertisement for a domain over a trunk link or until you configure a management domain. You cannot create or modify VLANs on a VTP server until the management domain name is specified or learned.

If the switch receives a VTP advertisement over a trunk link, it inherits the management domain name and the VTP configuration revision number. The switch ignores advertisements with a different management domain name or an earlier configuration revision number.

If you configure the switch as VTP transparent, you can create and modify VLANs but the changes affect only the individual switch.

When you make a change to the VLAN configuration on a VTP server, the change is propagated to all switches in the VTP domain. VTP advertisements are transmitted out all trunk connections using IEEE 802.1Q encapsulation.

VTP maps VLANs dynamically across multiple LAN types with unique names and internal index associations. Mapping eliminates excessive device administration required from network administrators.

VTP Modes

You can configure a switch to operate in any one of these VTP modes:

Server-In VTP server mode, you can create, modify, and delete VLANs and specify other configuration parameters (such as VTP version) for the entire VTP domain. VTP servers advertise their VLAN configuration to other switches in the same VTP domain and synchronize their VLAN configuration with other switches based on advertisements received over trunk links. VTP server is the default mode.

Client-VTP clients behave the same way as VTP servers, but you cannot create, change, or delete VLANs on a VTP client.

Transparent-VTP transparent switches do not participate in VTP. A VTP transparent switch does not advertise its VLAN configuration and does not synchronize its VLAN configuration based on received advertisements. However, in VTP version 2, transparent switches do forward VTP advertisements that they receive out their trunk interfaces.

VTP Advertisements

Each switch in the VTP domain sends periodic advertisements out each trunk interface to a reserved multicast address. VTP advertisements are received by neighboring switches, which update their VTP and VLAN configurations as necessary.

The following global configuration information is distributed in VTP advertisements:

VLAN IDs (801.Q)

VTP domain name

VTP configuration revision number

VLAN configuration, including maximum transmission unit (MTU) size for each VLAN

Frame format

VTP Version 2

If you use VTP in your network, you must decide whether to use VTP version 1 or version 2. VTP version 2 supports the following features not supported in version 1:

Unrecognized Type-Length-Value (TLV) Support—A VTP server or client propagates configuration changes to its other trunks, even for TLVs it is not able to parse. The unrecognized TLV is saved in NVRAM.

Version-Dependent Transparent Mode—In VTP version 1, a VTP transparent switch inspects VTP messages for the domain name and version, and forwards a message only if the version and domain name match. Since only one domain is supported in the NM-16ESW software, VTP version 2 forwards VTP messages in transparent mode, without checking the version.

Consistency Checks—In VTP version 2, VLAN consistency checks (such as VLAN names and values) are performed only when you enter new information through the CLI or SNMP. Consistency checks are not performed when new information is obtained from a VTP message, or when information is read from NVRAM. If the digest on a received VTP message is correct, its information is accepted without consistency checks.

VTP Configuration Guidelines and Restrictions

Follow these guidelines and restrictions when implementing VTP in your network:

All switches in a VTP domain must run the same VTP version.

You must configure a password on each switch in the management domain when in secure mode.

A VTP version 2-capable switch can operate in the same VTP domain as a switch running VTP version 1, provided that VTP version 2 is disabled on the VTP version 2-capable switch. (VTP version 2 is disabled by default).

Do not enable VTP version 2 on a switch unless all switches in the same VTP domain are version 2-capable. When you enable VTP version 2 on a switch, all version 2-capable switches in the domain enable VTP version 2

The Cisco IOS end and Ctrl-Z commands are not supported in VLAN database mode.

The VLAN database stored on internal flash is supported.

Use the squeeze flash command to remove old copies of overwritten VLAN databases.

EtherChannel

EtherChannel bundles up to eight individual Ethernet links into a single logical link that provides bandwidth of up to 1600 Mbps (Fast EtherChannel full duplex) between the network module and another switch or host.

A Ethernet switch network module system supports a maximum of six EtherChannels. All interfaces in each EtherChannel must have the same speed duplex and mode.

Load Balancing

EtherChannel balances traffic load across the links in a channel by reducing part of the binary pattern formed from the addresses in the frame to a numerical value that selects one of the links in the channel.

EtherChannel load balancing can use MAC addresses, or IP addresses; either source or destination or both source and destination. The selected mode applies to all EtherChannels configured on the switch.

Use the option that provides the greatest variety in your configuration. For example, if the traffic on a channel is going only to a single MAC address, using the destination MAC address always chooses the same link in the channel; using source addresses or IP addresses may result in better load balancing.

EtherChannel Configuration Guidelines and Restrictions

If improperly configured, some EtherChannel interfaces are disabled automatically to avoid network loops and other problems. Follow these guidelines and restrictions to avoid configuration problems:

All Ethernet interfaces on all modules support EtherChannel (maximum of eight interfaces) with no requirement that interfaces be physically contiguous or on the same module.

Configure all interfaces in an EtherChannel to operate at the same speed and duplex mode.

Enable all interfaces in an EtherChannel. If you shut down an interface in an EtherChannel, it is treated as a link failure and its traffic is transferred to one of the remaining interfaces in the EtherChannel.

An EtherChannel will not form if one of the interfaces is a Switched Port Analyzer (SPAN) destination port.

For Layer 2 EtherChannels:

Assign all interfaces in the EtherChannel to the same VLAN, or configure them as trunks.

An EtherChannel supports the same allowed range of VLANs on all interfaces in a trunking Layer 2 EtherChannel. If the allowed range of VLANs is not the same, the interfaces do not form an EtherChannel.

Interfaces with different Spanning Tree Protocol (STP) port path costs can form an EtherChannel as long they are otherwise compatibly configured. Setting different STP port path costs does not, by itself, make interfaces incompatible for the formation of an EtherChannel.

After you configure an EtherChannel, configuration that you apply to the port-channel interface affects the EtherChannel.

802.1x Port-Based Authentication

This section describes how to configure IEEE 802.1x port-based authentication to prevent unauthorized devices (clients) from gaining access to the network. As LANs extend to hotels, airports, and corporate lobbies, insecure environments could be created.

Understanding 802.1x Port-Based Authentication

The IEEE 802.1x standard defines a client/server-based access control and authentication protocol that restricts unauthorized devices from connecting to a LAN through publicly accessible ports. The authentication server authenticates each client connected to a switch port before making available any services offered by the switch or the LAN.

Until the client is authenticated, 802.1x access control allows only Extensible Authentication Protocol over LAN (EAPOL) traffic through the port to which the client is connected. After authentication is successful, normal traffic can pass through the port.

Device Roles

With 802.1x port-based authentication, the devices in the network have specific roles as shown in Figure 1.

Figure 1 802.1x Device Roles

Client—the device (workstation) that requests access to the LAN and switch services and responds to the requests from the switch. The workstation must be running 802.1x-compliant client software such as that offered in the Microsoft Windows XP operating system. (The client is the supplicant in the IEEE 802.1x specification.)


Note To resolve Windows XP network connectivity and 802.1x authentication issues, read the Microsoft Knowledge Base article at this URL:
http://support.microsoft.com/support/kb/articles/Q303/5/97.ASP


Authentication server—performs the actual authentication of the client. The authentication server validates the identity of the client and notifies the switch whether or not the client is authorized to access the LAN and switch services. Because the switch acts as the proxy, the authentication service is transparent to the client. In this release, the Remote Authentication Dial-In User Service (RADIUS) security system with Extensible Authentication Protocol (EAP) extensions is the only supported authentication server; it is available in Cisco Secure Access Control Server version 3.0. RADIUS operates in a client/server model in which secure authentication information is exchanged between the RADIUS server and one or more RADIUS clients.

Switch (edge switch or wireless access point)—controls the physical access to the network based on the authentication status of the client. The switch acts as an intermediary (proxy) between the client and the authentication server, requesting identity information from the client, verifying that information with the authentication server, and relaying a response to the client. The switch includes the RADIUS client, which is responsible for encapsulating and decapsulating the Extensible Authentication Protocol (EAP) frames and interacting with the authentication server.

When the switch receives EAPOL frames and relays them to the authentication server, the Ethernet header is stripped and the remaining EAP frame is reencapsulated in the RADIUS format. The EAP frames are not modified or examined during encapsulation, and the authentication server must support EAP within the native frame format. When the switch receives frames from the authentication server, the server's frame header is removed, leaving the EAP frame, which is then encapsulated for Ethernet and sent to the client.

The devices that can act as intermediaries include the Catalyst 3550 multilayer switch, Catalyst 2950 switch, or a wireless access point. These devices must be running software that supports the RADIUS client and 802.1x.

Authentication Initiation and Message Exchange

The switch or the client can initiate authentication. If you enable authentication on a port by using the dot1x port-control auto interface configuration command, the switch must initiate authentication when it determines that the port link state changes from down to up. It then sends an EAP-request/identity frame to the client to request its identity (typically, the switch sends an initial identity/request frame followed by one or more requests for authentication information). Upon receipt of the frame, the client responds with an EAP-response/identity frame.

However, if during bootup, the client does not receive an EAP-request/identity frame from the switch, the client can initiate authentication by sending an EAPOL-start frame, which prompts the switch to request the client's identity.


Note If 802.1x is not enabled or supported on the network access device, any EAPOL frames from the client are dropped. If the client does not receive an EAP-request/identity frame after three attempts to start authentication, the client transmits frames as if the port is in the authorized state. A port in the authorized state effectively means that the client has been successfully authenticated. For more information, see the "Ports in Authorized and Unauthorized States" section.


When the client supplies its identity, the switch begins its role as the intermediary, passing EAP frames between the client and the authentication server until authentication succeeds or fails. If the authentication succeeds, the switch port becomes authorized. For more information, see the "Ports in Authorized and Unauthorized States" section.

The specific exchange of EAP frames depends on the authentication method being used. Figure 2 shows a message exchange initiated by the client using the One-Time-Password (OTP) authentication method with a RADIUS server.

Figure 2 Message Exchange

Ports in Authorized and Unauthorized States

The switch port state determines whether or not the client is granted access to the network. The port starts in the unauthorized state. While in this state, the port disallows all ingress and egress traffic except for 802.1x packets. When a client is successfully authenticated, the port changes to the authorized state, allowing all traffic for the client to flow normally.

If a client that does not support 802.1x is connected to an unauthorized 802.1x port, the switch requests the client's identity. In this situation, the client does not respond to the request, the port remains in the unauthorized state, and the client is not granted access to the network.

In contrast, when an 802.1x-enabled client connects to a port that is not running 802.1x, the client initiates the authentication process by sending the EAPOL-start frame. When no response is received, the client sends the request for a fixed number of times. Because no response is received, the client begins sending frames as if the port is in the authorized state.

You control the port authorization state by using the dot1x port-control interface configuration command and these keywords:

force-authorized—disables 802.1x and causes the port to change to the authorized state without any authentication exchange required. The port transmits and receives normal traffic without 802.1x-based authentication of the client. This is the default setting.

force-unauthorized—causes the port to remain in the unauthorized state, ignoring all attempts by the client to authenticate. The switch cannot provide authentication services to the client through the interface.

auto—enables 802.1x and causes the port to begin in the unauthorized state, allowing only EAPOL frames to be sent and received through the port. The authentication process begins when the link state of the port changes from down to up, or when an EAPOL-start frame is received. The switch requests the identity of the client and begins relaying authentication messages between the client and the authentication server. Each client attempting to access the network is uniquely identified by the switch by using the client's MAC address.

If the client is successfully authenticated (receives an Accept frame from the authentication server), the port state changes to authorized, and all frames from the authenticated client are allowed through the port. If the authentication fails, the port remains in the unauthorized state, but authentication can be retried. If the authentication server cannot be reached, the switch can retransmit the request. If no response is received from the server after the specified number of attempts, authentication fails, and network access is not granted.

When a client logs off, it sends an EAPOL-logoff message, causing the switch port to change to the unauthorized state.

If the link state of a port changes from up to down, or if an EAPOL-logoff frame is received, the port returns to the unauthorized state.

Supported Topologies

The 802.1x port-based authentication is supported in two topologies:

Point-to-point

Wireless LAN

In a point-to-point configuration (see Figure 1), only one client can be connected to the 802.1x-enabled switch port. The switch detects the client when the port link state changes to the up state. If a client leaves or is replaced with another client, the switch changes the port link state to down, and the port returns to the unauthorized state.

Figure 3 shows 802.1x-port-based authentication in a wireless LAN. The 802.1x port is configured as a multiple-host port that becomes authorized as soon as one client is authenticated. When the port is authorized, all other hosts indirectly attached to the port are granted access to the network. If the port becomes unauthorized (reauthentication fails or an EAPOL-logoff message is received), the switch denies access to the network to all of the attached clients. In this topology, the wireless access point is responsible for authenticating the clients attached to it, and the wireless access point acts as a client to the switch.

Figure 3 Wireless LAN Example

Spanning Tree Protocol

This section describes how to configure the Spanning Tree Protocol (STP) on Ethernet switch network module systems.

Spanning tree is a Layer 2 link management protocol that provides path redundancy while preventing undesirable loops in the network. For a Layer 2 Ethernet network to function properly, only one active path can exist between any two stations. Spanning tree operation is transparent to end stations, which cannot detect whether they are connected to a single LAN segment or to a switched LAN of multiple segments.

The Ethernet switch network module uses STP (the IEEE 802.1D bridge protocol) on all VLANs. By default, a single instance of STP runs on each configured VLAN (provided that you do not manually disable STP). You can enable and disable STP on a per-VLAN basis.

When you create fault-tolerant internetworks, you must have a loop-free path between all nodes in a network. The spanning tree algorithm calculates the best loop-free path throughout a switched Layer 2 network. Switches send and receive spanning tree frames at regular intervals. The switches do not forward these frames, but use the frames to construct a loop-free path.

Spanning Tree Protocol defines a tree with a root switch and a loop-free path from the root to all switches in the Layer 2 network. Spanning tree forces redundant data paths into a standby (blocked) state. If a network segment in the spanning tree fails and a redundant path exists, the spanning tree algorithm recalculates the spanning tree topology and activates the standby path.

When two ports on a switch are part of a loop, the spanning tree port priority and port path cost setting determine which port is put in the forwarding state and which port is put in the blocking state. The spanning tree port priority value represents the location of an interface in the network topology and how well located it is to pass traffic. The spanning tree port path cost value represents media speed.

Bridge Protocol Data Units

The stable active spanning tree topology of a switched network is determined by the following:

The unique bridge ID (bridge priority and MAC address) associated with each VLAN on each switch

The spanning tree path cost to the root bridge

The port identifier (port priority and MAC address) associated with each Layer 2 interface

The Bridge Protocol Data Units (BPDU) are transmitted in one direction from the root switch, and each switch sends configuration BPDUs to communicate and compute the spanning tree topology. Each configuration BPDU contains the following minimal information:

The unique bridge ID of the switch that the transmitting switch believes to be the root switch

The spanning tree path cost to the root

The bridge ID of the transmitting bridge

Message age

The identifier of the transmitting port

Values for the hello, forward delay, and max-age protocol timers

When a switch transmits a bridge packet data unit (BPDU) frame, all switches connected to the LAN on which the frame is transmitted receive the BPDU. When a switch receives a BPDU, it does not forward the frame but instead uses the information in the frame to calculate a BPDU, and, if the topology changes, initiate a BPDU transmission.

A BPDU exchange results in the following:

One switch is elected as the root switch.

The shortest distance to the root switch is calculated for each switch based on the path cost.

A designated bridge for each LAN segment is selected. This is the switch closest to the root bridge through which frames is forwarded to the root.

A root port is selected. This is the port providing the best path from the bridge to the root bridge.

Ports included in the spanning tree are selected.

Election of the Root Bridge.

For each VLAN, the switch with the highest bridge priority (the lowest numerical priority value) is elected as the root switch. If all switches are configured with the default priority (32768), the switch with the lowest MAC address in the VLAN becomes the root switch.

The spanning tree root switch is the logical center of the spanning tree topology in a switched network. All paths that are not needed to reach the root switch from anywhere in the switched network are placed in spanning tree blocking mode.

BPDUs contain information about the transmitting bridge and its ports, including bridge and MAC addresses, bridge priority, port priority, and path cost. Spanning tree uses this information to elect the root bridge and root port for the switched network, as well as the root port and designated port for each switched segment.

STP Timers

Table 2 describes the STP timers that affect the entire spanning tree performance:

Table 2

Timer
Purpose

Hello timer

Determines how often the switch broadcasts hello messages to other switches.

Forward delay timer

Determines how long each of the listening and learning states will last before the port begins forwarding

Maximum age timer

Determines the amount of time protocol information received on a port is stored by the switch.


STP Timers

Spanning Tree Port States

Propagation delays can occur when protocol information passes through a switched LAN. As a result, topology changes can take place at different times and at different places in a switched network. When a Layer 2 interface changes directly from nonparticipation in the spanning tree topology to the forwarding state, it can create temporary data loops. Ports must wait for new topology information to propagate through the switched LAN before starting to forward frames. They must allow the frame lifetime to expire for frames that have been forwarded using the old topology.

Each Layer 2 interface on a switch using spanning tree exists in one of the following five states:

Blocking—The Layer 2 interface does not participate in frame forwarding.

Listening—First transitional state after the blocking state when spanning tree determines that the Layer 2 interface should participate in frame forwarding.

Learning—The Layer 2 interface prepares to participate in frame forwarding.

Forwarding—The Layer 2 interface forwards frames.

Disabled—The Layer 2 interface does not participate in spanning tree and is not forwarding frames.

A Layer 2 interface moves through these five states as follows:

From initialization to blocking

From blocking to listening or to disabled

From listening to learning or to disabled

From learning to forwarding or to disabled

From forwarding to disabled

Figure 4 illustrates how a port moves through the five stages.

Figure 4 STP Port States

When you enable spanning tree, every port in the switch, VLAN, or network goes through the blocking state and the transitory states of listening and learning at power up. If properly configured, each Layer 2 interface stabilizes to the forwarding or blocking state.

When the spanning tree algorithm places a Layer 2 interface in the forwarding state, the following process occurs:

1. The Layer 2 interface is put into the listening state while it waits for protocol information that suggests that it should go to the blocking state.

2. The Layer 2 interface waits for the forward delay timer to expire, moves the Layer 2 interface to the learning state, and resets the forward delay timer.

3. In the learning state, the Layer 2 interface continues to block frame forwarding as it learns end station location information for the forwarding database.

4. The Layer 2 interface waits for the forward delay timer to expire and then moves the Layer 2 interface to the forwarding state, where both learning and frame forwarding are enabled.


Blocking State

A Layer 2 interface in the blocking state does not participate in frame forwarding, as shown in Figure 5. After initialization, a BPDU is sent out to each Layer 2 interface in the switch. A switch initially assumes it is the root until it exchanges BPDUs with other switches. This exchange establishes which switch in the network is the root or root bridge. If only one switch is in the network, no exchange occurs, the forward delay timer expires, and the ports move to the listening state. A port always enters the blocking state following switch initialization.

Figure 5 Interface 2 in Blocking State

A Layer 2 interface in the blocking state performs as follows:

Discards frames received from the attached segment.

Discards frames switched from another interface for forwarding.

Does not incorporate end station location into its address database. (There is no learning on a blocking Layer 2 interface, so there is no address database update.)

Receives BPDUs and directs them to the system module.

Does not transmit BPDUs received from the system module.

Receives and responds to network management messages.

Listening State

The listening state is the first transitional state a Layer 2 interface enters after the blocking state. The Layer 2 interface enters this state when STP determines that the Layer 2 interface should participate in frame forwarding. Figure 6 shows a Layer 2 interface in the listening state.

Figure 6 Interface 2 in Listening State

A Layer 2 interface in the listening state performs as follows:

Discards frames received from the attached segment.

Discards frames switched from another interface for forwarding.

Does not incorporate end station location into its address database. (There is no learning at this point, so there is no address database update.)

Receives BPDUs and directs them to the system module.

Receives, processes, and transmits BPDUs received from the system module.

Receives and responds to network management messages.

Learning State

A Layer 2 interface in the learning state prepares to participate in frame forwarding. The Layer 2 interface enters the learning state from the listening state. Figure 7 shows a Layer 2 interface in the learning state.

Figure 7 Interface 2 in Learning State

A Layer 2 interface in the learning state performs as follows:

Discards frames received from the attached segment.

Discards frames switched from another interface for forwarding.

Incorporates end station location into its address database.

Receives BPDUs and directs them to the system module.

Receives, processes, and transmits BPDUs received from the system module.

Receives and responds to network management messages.

Forwarding State

A Layer 2 interface in the forwarding state forwards frames, as shown in Figure 8. The Layer 2 interface enters the forwarding state from the learning state.

Figure 8 Interface 2 in Forwarding State

A Layer 2 interface in the forwarding state performs as follows:

Forwards frames received from the attached segment.

Forwards frames switched from another Layer 2 interface for forwarding.

Incorporates end station location information into its address database.

Receives BPDUs and directs them to the system module.

Processes BPDUs received from the system module.

Receives and responds to network management messages.

Disabled State

A Layer 2 interface in the disabled state does not participate in frame forwarding or spanning tree, as shown in Figure 9. A Layer 2 interface in the disabled state is virtually nonoperational.

Figure 9 Interface 2 in Disabled State

A disabled Layer 2 interface performs as follows:

Discards frames received from the attached segment.

Discards frames switched from another Layer 2 interface for forwarding.

Does not incorporate end station location into its address database. (There is no learning, so there is no address database update.)

Does not receive BPDUs.

Does not receive BPDUs for transmission from the system module.

MAC Address Allocation

The MAC address allocation manager has a pool of MAC addresses that are used as the bridge IDs for the VLAN spanning trees. In Table 3 you can view the number of VLANs allowed for each platform.

Table 3 Number of VLANs Allowed by Platform

Platform
Maximum number of VLANs allowed

Cisco 3640 or higher

64 VLANS

Cisco 3620

32 VLANs

Cisco 2600

32 VLANs


MAC addresses are allocated sequentially, with the first MAC address in the range assigned to VLAN 1, the second MAC address in the range assigned to VLAN 2, and so forth.

For example, if the MAC address range is 00-e0-1e-9b-2e-00 to 00-e0-1e-9b-31-ff, the VLAN 1 bridge ID is 00-e0-1e-9b-2e-00, the VLAN 2 bridge ID is 00-e0-1e-9b-2e-01, the VLAN 3 bridge ID is 00-e0-1e-9b-2e-02, and so forth.

Default Spanning Tree Configuration

In Table 4 you can view the default Spanning Tree configuration values.

Table 4 Spanning Tree Default Configuration

Feature
Default Value

Enable state

Spanning tree enabled for all VLANs

Bridge priority

32768

Spanning tree port priority (configurable on a per-interface basis; used on interfaces configured as Layer 2 access ports)

128

Spanning tree port cost (configurable on a per-interface basis; used on interfaces configured as Layer 2 access ports)

Fast Ethernet: 19

Ethernet: 100

Gigabit Ethernet: 19 when operated in 100-Mb mode, and 4 when operated in 1000-Mb mode

Spanning tree VLAN port priority (configurable on a per-VLAN basis; used on interfaces configured as Layer 2 trunk ports)

128

Spanning tree VLAN port cost (configurable on a per-VLAN basis; used on interfaces configured as Layer 2 trunk ports)

Fast Ethernet: 10

Ethernet: 10

Hello time

2 seconds

Forward delay time

15 seconds

Maximum aging time

20 seconds


Spanning Tree Port Priority

In the event of a loop, spanning tree considers port priority when selecting an interface to put into the forwarding state. You can assign higher priority values to interfaces that you want spanning tree to select first, and lower priority values to interfaces that you want spanning tree to select last. If all interfaces have the same priority value, spanning tree puts the interface with the lowest interface number in the forwarding state and blocks other interfaces. The possible priority range is 0 to 255, configurable in increments of 4 (the default is 128).

Cisco IOS software uses the port priority value when the interface is configured as an access port and uses VLAN port priority values when the interface is configured as a trunk port.

Spanning Tree Port Cost

The spanning tree port path cost default value is derived from the media speed of an interface. In the event of a loop, spanning tree considers port cost when selecting an interface to put into the forwarding state. You can assign lower cost values to interfaces that you want spanning tree to select first and higher cost values to interfaces that you want spanning tree to select last. If all interfaces have the same cost value, spanning tree puts the interface with the lowest interface number in the forwarding state and blocks other interfaces.

The possible cost range is 0 to 65535 (the default is media-specific).

Spanning tree uses the port cost value when the interface is configured as an access port and uses VLAN port cost values when the interface is configured as a trunk port.

BackboneFast

BackboneFast is initiated when a root port or blocked port on a switch receives inferior BPDUs from its designated bridge. An inferior BPDU identifies one switch as both the root bridge and the designated bridge. When a switch receives an inferior BPDU, it means that a link to which the switch is not directly connected (an indirect link) has failed (that is, the designated bridge has lost its connection to the root switch). Under STP rules, the switch ignores inferior BPDUs for the configured maximum aging time specified by the spanning-tree max-age global configuration command.

The switch tries to determine if it has an alternate path to the root switch. If the inferior BPDU arrives on a blocked port, the root port and other blocked ports on the switch become alternate paths to the root switch. (Self-looped ports are not considered alternate paths to the root switch.) If the inferior BPDU arrives on the root port, all blocked ports become alternate paths to the root switch. If the inferior BPDU arrives on the root port and there are no blocked ports, the switch assumes that it has lost connectivity to the root switch, causes the maximum aging time on the root to expire, and becomes the root switch according to normal STP rules.

If the switch has alternate paths to the root switch, it uses these alternate paths to transmit a new kind of Protocol Data Unit (PDU) called the Root Link Query PDU. The switch sends the Root Link Query PDU on all alternate paths to the root switch. If the switch determines that it still has an alternate path to the root, it causes the maximum aging time on the ports on which it received the inferior BPDU to expire. If all the alternate paths to the root switch indicate that the switch has lost connectivity to the root switch, the switch causes the maximum aging times on the ports on which it received an inferior BPDU to expire. If one or more alternate paths can still connect to the root switch, the switch makes all ports on which it received an inferior BPDU its designated ports and moves them out of the blocking state (if they were in the blocking state), through the listening and learning states, and into the forwarding state.

Figure 10 shows an example topology with no link failures. Switch A, the root switch, connects directly to Switch B over link L1 and to Switch C over link L2. The interface on Switch C that connects directly to Switch B is in the blocking state.

Figure 10 BackboneFast Example Before Indirect Link Failure

If link L1 fails, Switch C cannot detect this failure because it is not connected directly to link L1. However, because Switch B is directly connected to the root switch over L1, it detects the failure, elects itself the root, and begins sending BPDUs to Switch C, identifying itself as the root. When Switch C receives the inferior BPDUs from Switch B, Switch C assumes that an indirect failure has occurred. At that point, BackboneFast allows the blocked port on Switch C to move immediately to the listening state without waiting for the maximum aging time for the port to expire. BackboneFast then changes the interface on Switch C to the forwarding state, providing a path from Switch B to Switch A. This switchover takes approximately 30 seconds, twice the Forward Delay time if the default Forward Delay time of 15 seconds is set. Figure 11 shows how BackboneFast reconfigures the topology to account for the failure of link L1.

Figure 11 BackboneFast Example After Indirect Link Failure

If a new switch is introduced into a shared-medium topology as shown in Figure 12, BackboneFast is not activated because the inferior BPDUs did not come from the recognized designated bridge (Switch B). The new switch begins sending inferior BPDUs that say it is the root switch. However, the other switches ignore these inferior BPDUs, and the new switch learns that Switch B is the designated bridge to Switch A, the root switch.

Figure 12 Adding a Switch in a Shared-Medium Topology

Cisco Discovery Protocol

Cisco Discovery Protocol (CDP) is a protocol that runs over Layer 2 (the data link layer) on all Cisco routers, bridges, access servers, and switches. CDP allows network management applications to discover Cisco devices that are neighbors of already known devices, in particular, neighbors running lower-layer, transparent protocols. With CDP, network management applications can learn the device type and the SNMP agent address of neighboring devices. This feature enables applications to send SNMP queries to neighboring devices.

CDP runs on all LAN and WAN media that support Subnetwork Access Protocol (SNAP). Each CDP-configured device sends periodic messages to a multicast address. Each device advertises at least one address at which it can receive SNMP messages. The advertisements also contain the time-to-live, or hold-time information, which indicates the length of time a receiving device should hold CDP information before discarding it.

Switched Port Analyzer

Switched Port Analyzer Session

A Switched Port Analyzer (SPAN) session is an association of a destination interface with a set of source interfaces. You configure SPAN sessions using parameters that specify the type of network traffic to monitor. SPAN sessions allow you to monitor traffic on one or more interfaces and to send either ingress traffic, egress traffic, or both to one destination interface. You can configure one SPAN session with separate or overlapping sets of SPAN source interfaces or VLANs. Only switched interfaces can be configured as SPAN sources or destinations on the same network module.

SPAN sessions do not interfere with the normal operation of the switch. You can enable or disable SPAN sessions with command-line interface (CLI) or SNMP commands. When enabled, a SPAN session might become active or inactive based on various events or actions, and this would be indicated by a syslog message. The show monitor session SPAN session number command displays the operational status of a SPAN session.

A SPAN session remains inactive after system power-up until the destination interface is operational.

Destination Interface

A destination interface (also called a monitor interface) is a switched interface to which SPAN sends packets for analysis. You can have one SPAN destination interface. Once an interface becomes an active destination interface, incoming traffic is disabled. You cannot configure a SPAN destination interface to receive ingress traffic. The interface does not forward any traffic except that required for the SPAN session.

An interface configured as a destination interface cannot be configured as a source interface. EtherChannel interfaces cannot be SPAN destination interfaces.

Specifying a trunk interface as a SPAN destination interface stops trunking on the interface.

Source Interface

A source interface is an interface monitored for network traffic analysis. One or more source interfaces can be monitored in a single SPAN session with user-specified traffic types (ingress, egress, or both) applicable for all the source interfaces.

You can configure source interfaces in any VLAN. You can configure EtherChannel as source interfaces, which means that all interfaces in the specified VLANs are source interfaces for the SPAN session.

Trunk interfaces can be configured as source interfaces and mixed with nontrunk source interfaces; however, the destination interface never encapsulates.

Traffic Types

Ingress SPAN (Rx) copies network traffic received by the source interfaces for analysis at the destination interface. Egress SPAN (Tx) copies network traffic transmitted from the source interfaces. Specifying the configuration option both copies network traffic received and transmitted by the source interfaces to the destination interface.

SPAN Traffic

Network traffic, including multicast, can be monitored using SPAN. Multicast packet monitoring is enabled by default. In some SPAN configurations, multiple copies of the same source packet are sent to the SPAN destination interface. For example, a bidirectional (both ingress and egress) SPAN session is configured for sources a1 and a2 to a destination interface d1. If a packet enters the switch through a1 and gets switched to a2, both incoming and outgoing packets are sent to destination interface d1; both packets would be the same (unless a Layer-3 rewrite had occurred, in which case the packets would be different).


Note Monitoring of VLANs is not supported.


SPAN Configuration Guidelines and Restrictions

Follow these guidelines and restrictions when configuring SPAN:

Enter the no monitor session session number command with no other parameters to clear the SPAN session number.

EtherChannel interfaces can be SPAN source interfaces; they cannot be SPAN destination interfaces.

If you specify multiple SPAN source interfaces, the interfaces can belong to different VLANs.

Monitoring of VLANs is not supported

Only one SPAN session may be run at any given time.

Outgoing CDP and BPDU packets will not be replicated.

SPAN destinations never participate in any spanning tree instance. SPAN includes BPDUs in the monitored traffic, so any BPDUs seen on the SPAN destination are from the SPAN source.

Use a network analyzer to monitor interfaces.

You can have one SPAN destination interface.

You can mix individual source interfaces within a single SPAN session.

You cannot configure a SPAN destination interface to receive ingress traffic.

When enabled, SPAN uses any previously entered configuration.

When you specify source interfaces and do not specify a traffic type (Tx, Rx, or both), both is used by default.

Network Security with ACLs

Network security on your Ethernet switch network module can be implemented using access control lists (ACLs), which are also referred to in commands and tables as access lists.

Understanding ACLs

Packet filtering can limit network traffic and restrict network use by certain users or devices. ACLs can filter traffic as it passes through a switch and permit or deny packets from crossing specified interfaces. An ACL is a sequential collection of permit and deny conditions that apply to packets. When a packet is received on an interface, the switch compares the fields in the packet against any applied ACLs to verify that the packet has the required permissions to be forwarded, based on the criteria specified in the access lists. The switch tests the packet against the conditions in an access list one by one. The first match determines whether the switch accepts or rejects the packet. Because the switch stops testing conditions after the first match, the order of conditions in the list is critical. If no conditions match, the switch rejects the packet. If there are no restrictions, the switch forwards the packet; otherwise, the switch drops the packet.

You configure access lists on a Layer 2 switch to provide basic security for your network. If you do not configure ACLs, all packets passing through the switch could be allowed onto all parts of the network. You can use ACLs to control which hosts can access different parts of a network or to decide which types of traffic are forwarded or blocked at switch interfaces. For example, you can allow e-mail traffic to be forwarded but not Telnet traffic. ACLs can be configured to block inbound traffic.

An ACL contains an ordered list of access control entries (ACEs). Each ACE specifies permit or deny and a set of conditions the packet must satisfy in order to match the ACE. The meaning of permit or deny depends on the context in which the ACL is used.

The Ethernet switch network module supports IP ACLs to filter IP traffic, including TCP or User Datagram Protocol (UDP) traffic (but not both traffic types in the same ACL).

ACLs

You can apply ACLs on physical Layer 2 interfaces. ACLs are applied on interfaces only on the inbound direction.

Standard IP access lists use source addresses for matching operations.

Extended IP access lists use source and destination addresses and optional protocol type information for matching operations.

The switch examines access lists associated with features configured on a given interface and a direction. As packets enter the switch on an interface, ACLs associated with all inbound features configured on that interface are examined.

ACLs permit or deny packet forwarding based on how the packet matches the entries in the ACL. For example, you can use ACLs to allow one host to access a part of a network, but to prevent another host from accessing the same part. In Figure 13, ACLs applied at the switch input allow Host A to access the Human Resources network, but prevent Host B from accessing the same network.

Figure 13 Using ACLs to Control Traffic to a Network

Handling Fragmented and Unfragmented Traffic

IP packets can be fragmented as they cross the network. When this happens, only the fragment containing the beginning of the packet contains the Layer 4 information, such as TCP or UDP port numbers, ICMP type and code, and so on. All other fragments are missing this information.

Some ACEs do not check Layer 4 information and therefore can be applied to all packet fragments. ACEs that do test Layer 4 information cannot be applied in the standard manner to most of the fragments in a fragmented IP packet. When the fragment contains no Layer 4 information and the ACE tests some Layer 4 information, the matching rules are modified:

Permit ACEs that check the Layer 3 information in the fragment (including protocol type, such as TCP, UDP, and so on) are considered to match the fragment regardless of what the missing Layer 4 information might have been.

Deny ACEs that check Layer 4 information never match a fragment unless the fragment contains Layer 4 information.

Consider access list 102, configured with these commands, applied to three fragmented packets:

Switch (config)# access-list 102 permit tcp any host 10.1.1.1 eq smtp
Switch (config)# access-list 102 deny tcp any host 10.1.1.2 eq telnet
Switch (config)# access-list 102 deny tcp any any


Note In the first and second ACEs in the examples, the eq keyword after the destination address means to test for the TCP-destination-port well-known numbers equaling Simple Mail Transfer Protocol (SMTP) and Telnet, respectively.


Packet A is a TCP packet from host 10.2.2.2, port 65000, going to host 10.1.1.1 on the SMTP port. If this packet is fragmented, the first fragment matches the first ACE (a permit), as if it were a complete packet because all Layer 4 information is present. The remaining fragments also match the first ACE, even though they do not contain the SMTP port information because the first ACE only checks Layer 3 information when applied to fragments. (The information in this example is that the packet is TCP and that the destination is 10.1.1.1.)

Packet B is from host 10.2.2.2, port 65001, going to host 10.1.1.2 on the Telnet port. If this packet is fragmented, the first fragment matches the second ACE (a deny) because all Layer 3 and Layer 4 information is present. The remaining fragments in the packet do not match the second ACE because they are missing Layer 4 information.

Because the first fragment was denied, host 10.1.1.2 cannot reassemble a complete packet, so packet B is effectively denied. However, the later fragments that are permitted will consume bandwidth on the network and resources of host 10.1.1.2 as it tries to reassemble the packet.

Fragmented packet C is from host 10.2.2.2, port 65001, going to host 10.1.1.3, port FTP. If this packet is fragmented, the first fragment matches the third ACE (a deny). All other fragments also match the third ACE because that ACE does not check any Layer 4 information and because Layer 3 information in all fragments shows that they are being sent to host 10.1.1.3, and the earlier permit ACEs were checking different hosts.

Understanding Access Control Parameters

Before configuring ACLs on the Ethernet switch network module, you must have a thorough understanding of the Access Control Parameters (ACPs). ACPs are referred to as masks in the switch CLI commands, and output.

Each ACE has a mask and a rule. The Classification Field or mask is the field of interest on which you want to perform an action. The specific values associated with a given mask are called rules.

Packets can be classified on these Layer 3 and Layer 4 fields.

Layer 3 fields:

IP source address (Specify all 32 IP source address bits to define the flow, or specify a user-defined subnet. There are no restrictions on the IP subnet to be specified.)

IP destination address (Specify all 32 IP destination address bits to define the flow, or specify a user-defined subnet. There are no restrictions on the IP subnet to be specified.)

You can use any combination or all of these fields simultaneously to define a flow.

Layer 4 fields:

TCP (You can specify a TCP source, destination port number, or both at the same time.)

UDP (You can specify a UDP source, destination port number, or both at the same time.)


Note A mask can be a combination of multiple Layer 3 and Layer 4 fields.


There are two types of masks:

User-defined mask—masks that are defined by the user.

System-defined mask—these masks can be configured on any interface:

Switch (config-ext-nacl)# permit tcp any any
Switch (config-ext-nacl)# deny tcp any any
Switch (config-ext-nacl)# permit udp any any
Switch (config-ext-nacl)# deny udp any any
Switch (config-ext-nacl)# permit ip any any
Switch (config-ext-nacl)# deny ip any any
Switch (config-ext-nacl)# deny any any
Switch (config-ext-nacl)# permit any any

Note In an IP extended ACL (both named and numbered), a Layer 4 system-defined mask cannot precede a Layer 3 user-defined mask. For example, a Layer 4 system-defined mask such as permit tcp any any or deny udp any any cannot precede a Layer 3 user-defined mask such as permit ip 10.1.1.1 any. If you configure this combination, the ACL is not configured. All other combinations of system-defined and user-defined masks are allowed in security ACLs.


The Ethernet switch network module ACL configuration is consistent with Cisco Catalyst switches. However, there are significant restrictions as well as differences for ACL configurations on the Ethernet switch network module.

Guidelines for Configuring ACLs on the Ethernet Switch Network Module

These configuration guidelines apply to ACL filters:

Only one ACL can be attached to an interface. For more information, refer to the ip access-group interface command.

All ACEs in an ACL must have the same user-defined mask. However, ACEs can have different rules that use the same mask. On a given interface, only one type of user-defined mask is allowed, but you can apply any number of system-defined masks. For more information on system-defined masks, see the "Understanding Access Control Parameters" section.

The following example shows the same mask in an ACL:

Switch (config)#ip access-list extended acl2
Switch (config-ext-nacl)# permit tcp 10.1.1.1 0.0.0.0 any eq 80
Switch (config-ext-nacl)# permit tcp 20.1.1.1 0.0.0.0 any eq 23

In this example, the first ACE permits all the TCP packets coming from the host 10.1.1.1 with a destination TCP port number of 80. The second ACE permits all TCP packets coming from the host 20.1.1.1 with a destination TCP port number of 23. Both the ACEs use the same mask; therefore, a Ethernet switch network module supports this ACL.

Only four user-defined masks can be defined for the entire system. These can be used for either security or quality of service (QoS) but cannot be shared by QoS and security. You can configure as many ACLs as you require. However, a system error message appears if ACLs with more than four different masks are applied to interfaces.

Table 5 lists a summary of the ACL restrictions on Ethernet switch network modules.

Table 5 Summary of ACL Restrictions

Restriction
Number Permitted

Number of user-defined masks allowed in an ACL

1

Number of ACLs allowed on an interface

1

Total number of user-defined masks for security and QoS allowed on a switch

4


Quality of Service

Quality of service (QoS) can be implemented on your Ethernet switch network module. With this feature, you can provide preferential treatment to certain types of traffic. Without QoS, the switch offers best-effort service to each packet, regardless of the packet contents or size. It transmits the packets without any assurance of reliability, delay bounds, or throughput.

Understanding Quality of Service (QoS)

Typically, networks operate on a best-effort delivery basis, which means that all traffic has equal priority and an equal chance of being delivered in a timely manner. When congestion occurs, all traffic has an equal chance of being dropped.

With the QoS feature configured on your switch, you can select specific network traffic, prioritize it according to its relative importance, and use congestion-management and congestion-avoidance techniques to provide preferential treatment. Implementing QoS in your network makes network performance more predictable and bandwidth utilization more effective.

The QoS implementation for this release is based on the DiffServ architecture, an emerging standard from the Internet Engineering Task Force (IETF). This architecture specifies that each packet is classified upon entry into the network. The classification is carried in the IP packet header, using 6 bits from the deprecated IP type of service (ToS) field to carry the classification (class) information. Classification can also be carried in the Layer 2 frame. These special bits in the Layer 2 frame or a Layer 3 packet are described here and shown in Figure 14:

Prioritization values in Layer 2 frames:

Layer 2 802.1Q frame headers have a 2-byte Tag Control Information field that carries the CoS value in the three most-significant bits, which are called the User Priority bits. On interfaces configured as Layer 2 802.1Q trunks, all traffic is in 802.1Q frames except for traffic in the native VLAN.

Other frame types cannot carry Layer 2 CoS values.

Layer 2 CoS values range from 0 for low priority to 7 for high priority.

Prioritization bits in Layer 3 packets:

Layer 3 IP packets can carry a Differentiated Services Code Point (DSCP) value. The supported DSCP values are 0, 8, 10, 16, 18, 24, 26, 32, 34, 40, 46, 48, and 56.

Figure 14 QoS Classification Layers in Frames and Packets


Note Layer 2 ISL Frame is not supported in this release.



Note Layer 3 IPv6 packets are dropped when received by the switch.


All switches and routers across the Internet rely on the class information to provide the same forwarding treatment to packets with the same class information and different treatment to packets with different class information. The class information in the packet can be assigned by end hosts or by switches or routers along the way, based on a configured policy, detailed examination of the packet, or both. Detailed examination of the packet is expected to happen closer to the edge of the network so that the core switches and routers are not overloaded.

Switches and routers along the path can use the class information to limit the amount of resources allocated per traffic class. The behavior of an individual device when handling traffic in the DiffServ architecture is called per-hop behavior. If all devices along a path provide a consistent per-hop behavior, you can construct an end-to-end QoS solution.

Implementing QoS in your network can be a simple or complex task and depends on the QoS features offered by your internetworking devices, the traffic types and patterns in your network, and the granularity of control you need over incoming and outgoing traffic.

The Ethernet switch network module can function as a Layer 2 switch connected to a Layer 3 router. When a packet enters the Layer 2 engine directly from a switch port, it is placed into one of four queues in the dynamic, 32-MB shared memory buffer. The queue assignment is based on the dot1p value in the packet. Any voice bearer packets that come in from the Cisco IP phones on the voice VLAN are automatically placed in the highest priority (Queue 3) based on the 802.1p value generated by the IP phone. The queues are then serviced on a weighted round robin (WRR) basis. The control traffic, which uses a CoS or ToS of 3, is placed in Queue 2.

Table 6 summarizes the queues, CoS values, and weights for Layer 2 QoS on the Ethernet switch network module.

Table 6 Queues, CoS values, and Weights for Layer 2 QoS

Queue Number
CoS Value
Weight

3

5,6,7

255

2

3,4

64

1

2

16

0

0,1

1


The weights specify the number of packets that are serviced in the queue before moving on to the next queue. Voice Realtime Transport Protocol (RTP) bearer traffic marked with a CoS or ToS of 5 and Voice Control plane traffic marked with a CoS/ToS of 3 are placed into the highest priority queues. If the queue has no packets to be serviced, it is skipped. Weighted Random Early Detection (WRED) is not supported on the Fast Ethernet ports.

You cannot configure port-based QoS on the Layer 2 switch ports.

Basic QoS Model

Figure 15 shows the basic QoS model. Actions at the ingress interface include classifying traffic, policing, and marking:

Classifying distinguishes one kind of traffic from another. For more information, see the "Classification" section.

Policing determines whether a packet is in or out of profile according to the configured policer, and the policer limits the bandwidth consumed by a flow of traffic. The result of this determination is passed to the marker. For more information, see the "Policing and Marking" section.

Marking evaluates the policer and configuration information for the action to be taken when a packet is out of profile and decides what to do with the packet (pass through a packet without modification, mark down the DSCP value in the packet, or drop the packet). For more information, see the "Policing and Marking" section.

Actions at the egress interface include queueing and scheduling:

Queueing evaluates the CoS value and determines which of the four egress queues in which to place the packet.

Scheduling services the four egress queues based on their configured WRR weights.

Figure 15 Basic QoS Model

Classification

Classification is the process of distinguishing one kind of traffic from another by examining the fields in the packet.

Classification occurs only on a physical interface basis. No support exists for classifying packets at the VLAN or the switched virtual interface level.

You specify which fields in the frame or packet that you want to use to classify incoming traffic.

Classification Based on QoS ACLs

You can use IP standard or IP extended ACLs to define a group of packets with the same characteristics (class). In the QoS context, the permit and deny actions in the access control entries (ACEs) have different meanings than with security ACLs:

If a match with a permit action is encountered (first-match principle), the specified QoS-related action is taken.

If no match with a permit action is encountered and all the ACEs have been examined, no QoS processing occurs on the packet.

If multiple ACLs are configured on an interface, the packet matches the first ACL with a permit action, and QoS processing begins.

Configuration of a deny action is not supported in QoS ACLs on the 16- and 36-port Ethernet switch network modules.

System-defined masks are allowed in class maps with these restrictions:

A combination of system-defined and user-defined masks cannot be used in the multiple class maps that are a part of a policy map.

System-defined masks that are a part of a policy map must all use the same type of system mask. For example, a policy map cannot have a class map that uses the permit tcp any any ACE and another that uses the permit ip any any ACE.

A policy map can contain multiple class maps that all use the same user-defined mask or the same system-defined mask.


Note For more information on the system-defined mask, see the "Understanding Access Control Parameters" section.


For more information on ACL restrictions, see the "Guidelines for Configuring ACLs on the Ethernet Switch Network Module" section.

After a traffic class has been defined with the ACL, you can attach a policy to it. A policy might contain multiple classes with actions specified for each one of them. A policy might include commands to rate-limit the class. This policy is then attached to a particular port on which it becomes effective.

You implement IP ACLs to classify IP traffic by using the access-list global configuration command.

Classification Based on Class Maps and Policy Maps

A class map is a mechanism that you use to isolate and name a specific traffic flow (or class) from all other traffic. The class map defines the criteria used to match against a specific traffic flow to further classify it; the criteria can include matching the access group defined by the ACL. If you have more than one type of traffic that you want to classify, you can create another class map and use a different name. After a packet is matched against the class-map criteria, you further classify it through the use of a policy map.

A policy map specifies which traffic class to act on. Actions can include setting a specific DSCP value in the traffic class or specifying the traffic bandwidth limitations and the action to take when the traffic is out of profile. Before a policy map can be effective, you must attach it to an interface.

You create a class map by using the class-map global configuration command or the class policy-map configuration command. You should use the class-map global configuration command when the map is shared among many ports. When you enter the class-map global configuration command, the switch enters the class-map configuration mode. In this mode, you define the match criterion for the traffic by using the match class-map configuration command.

You create and name a policy map by using the policy-map global configuration command. When you enter this command, the switch enters the policy-map configuration mode. In this mode, you specify the actions to take on a specific traffic class by using the class policy-map configuration command and the police policy-map class configuration command. To make the policy map effective, you attach it to an interface by using the service-policy interface configuration command.

The policy map can also contain commands that define the policer, the bandwidth limitations of the traffic, and the action to take if the limits are exceeded. For more information, see the "Policing and Marking" section.

A policy map also has these characteristics:

A policy map can contain multiple class statements.

A separate policy-map class can exist for each type of traffic received through an interface.

A policy-map configuration state supersedes any actions due to an interface trust state.

For configuration information, see the "Configuring a QoS Policy" section.

Policing and Marking

Policing involves creating a policer that specifies the bandwidth limits for the traffic. Packets that exceed the limits are out of profile or nonconforming. Each policer specifies the action to take for packets that are in or out of profile. These actions, carried out by the marker, include dropping the packet, or marking down the packet with a new value that is user-defined.

You can create this type of policer:

Individual—QoS applies the bandwidth limits specified in the policer separately to each matched traffic class. You configure this type of policer within a policy map by using the policy-map configuration command.

For non-IP traffic, you have these marking options:

Use the port default. If the frame does not contain a CoS value, assign the default port CoS value to the incoming frame.

Trust the CoS value in the incoming frame (configure the port to trust CoS). Layer 2 802.1Q frame headers carry the CoS value in the three most-significant bits of the Tag Control Information field. CoS values range from 0 for low priority to 7 for high priority.

The trust DSCP configuration is meaningless for non-IP traffic. If you configure a port with this option and non-IP traffic is received, the switch assigns the default port CoS value and classifies traffic based on the CoS value.

For IP traffic, you have these classification options:

Trust the IP DSCP in the incoming packet (configure the port to trust DSCP), and assign the same DSCP to the packet for internal use. The IETF defines the six most-significant bits of the 1-byte type of service (ToS) field as the DSCP. The priority represented by a particular DSCP value is configurable. The supported DSCP values are 0, 8, 10, 16, 18, 24, 26, 32, 34, 40, 46, 48, and 56.

Trust the CoS value (if present) in the incoming packet, and generate the DSCP by using the CoS-to-DSCP map.

When configuring policing and policers, keep these items in mind:

By default, no policers are configured.

Policers can only be configured on a physical port. There is no support for policing at a VLAN or switched virtual interface (SVI) level.

Only one policer can be applied to a packet in the input direction.

Only the average rate and committed burst parameters are configurable.

Policing occurs on the ingress interfaces:

60 policers are supported on ingress Gigabit-capable Ethernet ports.

6 policers are supported on ingress 10/100 Ethernet ports.

Granularity for the average burst rate is 1 Mbps for 10/100 ports and 8 Mbps for Gigabit Ethernet ports.

On an interface configured for QoS, all traffic received through the interface is classified, policed, and marked according to the policy map attached to the interface. On a trunk interface configured for QoS, traffic in all VLANs received through the interface is classified, policed, and marked according to the policy map attached to the interface.

VLAN-based egress DSCP-to-COS mapping is supported. DSCP-to-COS mapping occurs for all packets with a specific VLAN ID egressing from the CPU to the physical port. The packets can be placed in the physical port egress queue depending on the COS value. Packets are handled according to type of service.


Note No policers can be configured on the egress interface on Ethernet switch network modules.


Mapping Tables

The Ethernet switch network modules support these types of marking to apply to the switch:

CoS value to the DSCP value

DSCP value to CoS value


Note An interface can be configured to trust either CoS or DSCP, but not both at the same time.


Before the traffic reaches the scheduling stage, QoS uses the configurable DSCP-to-CoS map to derive a CoS value from the internal DSCP value.

The CoS-to-DSCP and DSCP-to-CoS map have default values that might or might not be appropriate for your network.

For configuration information, see the "Configuring CoS Maps" section.

Maximum Number of VLAN and Multicast Groups

The maximum number is less than or equal to 242. The number of VLANs is determined by multiplying the number of VLANs by the number of multicast groups. For example, the maximum number for 10 VLANs and 20 groups would be 200, under the 242 limit.

IP Multicast Support

The maximum number of multicast groups is related to the maximum number of VLANs. The product of the number of multicast groups and the number of VLANs cannot exceed 242. This feature also provides support for Protocol Independent Multicast (PIM) sparse mode/dense mode sparse-dense mode.

IGMP Snooping

Understanding IGMP Snooping

Internet Group Management Protocol (IGMP) snooping constrains the flooding of multicast traffic by dynamically configuring the interfaces so that multicast traffic is forwarded only to those interfaces associated with IP multicast devices. The LAN switch snoops on the IGMP traffic between the host and the router and keeps track of multicast groups and member ports. When the switch receives an IGMP join report from a host for a particular multicast group, the switch adds the host port number to the associated multicast forwarding table entry. When it receives an IGMP Leave Group message from a host, it removes the host port from the table entry. After it relays the IGMP queries from the multicast router, it deletes entries periodically if it does not receive any IGMP membership reports from the multicast clients.

When IGMP snooping is enabled, the multicast router sends out periodic IGMP general queries to all VLANs. The switch responds to the router queries with only one join request per MAC multicast group, and the switch creates one entry per VLAN in the Layer 2 forwarding table for each MAC group from which it receives an IGMP join request. All hosts interested in this multicast traffic send join requests and are added to the forwarding table entry.

Layer 2 multicast groups learned through IGMP snooping are dynamic. However, you can statically configure MAC multicast groups by using the ip igmp snooping vlan static command. If you specify group membership for a multicast group address statically, your setting supersedes any automatic manipulation by IGMP snooping. Multicast group membership lists can consist of both user-defined and IGMP snooping-learned settings.

Ethernet switch network modules support a maximum of 255 IP multicast groups and support both IGMP version 1 and IGMP version 2.

If a port spanning-tree, a port group, or a VLAN ID change occurs, the IGMP snooping-learned multicast groups from this port on the VLAN are deleted.

In the IP multicast-source-only environment, the switch learns the IP multicast group from the IP multicast data stream and only forwards traffic to the multicast router ports.

Immediate-Leave Processing

IGMP snooping Immediate-Leave processing allows the switch to remove an interface that sends a leave message from the forwarding table without first sending out MAC-based general queries to the interface. The VLAN interface is pruned from the multicast tree for the multicast group specified in the original leave message. Immediate-Leave processing ensures optimal bandwidth management for all hosts on a switched network, even when multiple multicast groups are in use simultaneously.


Note You should use the Immediate-Leave processing feature only on VLANs where only one host is connected to each port. If Immediate-Leave is enabled on VLANs where more than one host is connected to a port, some hosts might be inadvertently dropped. Immediate Leave is supported only with IGMP version 2 hosts.


Setting the Snooping Method

Multicast-capable router ports are added to the forwarding table for every IP multicast entry. The switch learns of such ports through one of these methods:

Snooping on PIM and DVMRP packets

Statically connecting to a multicast router port with the ip igmp snooping mrouter global configuration command

You can configure the switch to snoop on PIM/Distance Vector Multicast Routing Protocol (PIM/DVMRP) packets. By default, the switch snoops on PIM/DVMRP packets on all VLANs. To learn of multicast router ports through PIM-DVMRP packets, use the ip igmp snooping vlan vlan-id mrouter learn pim-dvmrp interface command.

Joining a Multicast Group

When a host connected to the switch wants to join an IP multicast group, it sends an IGMP join message, specifying the IP multicast group it wants to join. When the switch receives this message, it adds the port to the IP multicast group port address entry in the forwarding table.

Refer to Figure 16. Host 1 wants to join multicast group 224.1.2.3 and multicasts an unsolicited IGMP membership report (IGMP join message) to the group with the equivalent MAC destination address of 0100.5E01.0203. The switch recognizes IGMP packets and forwards them to the CPU. When the CPU receives the IGMP report multicast by Host 1, the CPU uses the information to set up a multicast forwarding table entry as shown in Table 7 that includes the port numbers of Host 1 and the router.

Figure 16 Initial IGMP Join Message

Table 7 IP Multicast Forwarding Table

Destination Address
Type of Packet
Ports

0100.5e01.0203

!IGMP

1, 2


Note that the switch architecture allows the CPU to distinguish IGMP information packets from other packets for the multicast group. The switch recognizes the IGMP packets through its filter engine. This prevents the CPU from becoming overloaded with multicast frames.

The entry in the multicast forwarding table tells the switching engine to send frames addressed to the 0100.5E01.0203 multicast MAC address that are not IGMP packets (!IGMP) to the router and to the host that has joined the group.

If another host (for example, Host 4) sends an IGMP join message for the same group (Figure 17), the CPU receives that message and adds the port number of Host 4 to the multicast forwarding table as shown in Table 8.

Figure 17 Second Host Joining a Multicast Group

Table 8 Updated Multicast Forwarding Table

Destination Address
Type of Packet
Ports

0100.5e01.0203

!IGMP

1, 2, 5


Leaving a Multicast Group

The router sends periodic IP multicast general queries, and the switch responds to these queries with one join response per MAC multicast group. As long as at least one host in the VLAN needs multicast traffic, the switch responds to the router queries, and the router continues forwarding the multicast traffic to the VLAN. The switch only forwards IP multicast group traffic to those hosts listed in the forwarding table for that IP multicast group.

When hosts need to leave a multicast group, they can either ignore the periodic general-query requests sent by the router, or they can send a leave message. When the switch receives a leave message from a host, it sends out a group-specific query to determine if any devices behind that interface are interested in traffic for the specific multicast group. If, after a number of queries, the router processor receives no reports from a VLAN, it removes the group for the VLAN from its multicast forwarding table.

Global Storm-Control

Global storm-control prevents switchports on a LAN from being disrupted by a broadcast, multicast, or unicast storm on one of the interfaces. A LAN storm occurs when packets flood the LAN, creating excessive traffic and degrading network performance. Errors in the protocol-stack implementation or in the network configuration can cause a storm.

Global storm-control monitors incoming traffic statistics over a time period and compares the measurement with a predefined suppression level threshold. The threshold represents the percentage of the total available bandwidth of the port. If the threshold of a traffic type is reached, further traffic of that type is suppressed until the incoming traffic falls below the threshold level. Global storm-control is disabled by default.

The switch supports global storm-control for broadcast, multicast, and unicast traffic. This example of broadcast suppression can also be applied to multicast and unicast traffic.

The graph in Figure 18 shows broadcast traffic patterns on an interface over a given period of time. In this example, the broadcast traffic exceeded the configured threshold between time intervals T1 and T2 and between T4 and T5. When the amount of specified traffic exceeds the threshold, all traffic of that kind is dropped. Therefore, broadcast traffic is blocked during those intervals. At the next time interval, if broadcast traffic does not exceed the threshold, it is again forwarded.

Figure 18 Broadcast Suppression Example

When global storm-control is enabled, the switch monitors packets passing from an interface to the switching bus and determines if the packet is unicast, multicast, or broadcast. The switch monitors the number of broadcast, multicast, or unicast packets received within the 1-second time interval, and when a threshold for one type of traffic is reached, that type of traffic is dropped. This threshold is specified as a percentage of total available bandwidth that can be used by broadcast (multicast or unicast) traffic.

The combination of broadcast suppression threshold numbers and the 1-second time interval control the way the suppression algorithm works. A higher threshold allows more packets to pass through. A threshold value of 100 percent means that no limit is placed on the traffic.


Note Because packets do not arrive at uniform intervals, the 1-second time interval during which traffic activity is measured can affect the behavior of global storm-control.


The switch continues to monitor traffic on the port, and when the utilization level is below the threshold level, the type of traffic that was dropped is forwarded again.

You use the storm-control broadcast, storm-control multicast, and storm-control unicast interface configuration commands to set up the global storm-control threshold value.

Global storm-control and per-port storm-control cannot be enabled at the same time.

Per-Port Storm-Control

A packet storm occurs when a large number of broadcast, unicast, or multicast packets are received on a port. Forwarding these packets can cause the network to slow down or to time out. By default, per-port storm-control is disabled.

Per-port storm-control uses rising and falling thresholds to block and then restore the forwarding of broadcast, unicast, or multicast packets. You can also set the switch to shut down the port when the rising threshold is reached.

Per-port storm-control uses a bandwidth-based method to measure traffic activity. The thresholds are expressed as a percentage of the total available bandwidth that can be used by the broadcast, multicast, or unicast traffic.

The rising threshold is the percentage of total available bandwidth associated with multicast, broadcast, or unicast traffic before forwarding is blocked. The falling threshold is the percentage of total available bandwidth below which the switch resumes normal forwarding. In general, the higher the level, the less effective the protection against broadcast storms.

Per-port storm control and global storm-control cannot be enabled at the same time.

Port Security

You can use port security to block input to an Ethernet, Fast Ethernet, or Gigabit Ethernet port when the MAC address of the station attempting to access the port is different from any of the MAC addresses specified for that port. Alternatively, you can use port security to filter traffic destined to or received from a specific host based on the host MAC address.

Ethernet Switching in Cisco AVVID Architecture

This section describes the Ethernet switching capabilities of the Ethernet switch network module, which is designed to work as part of the Cisco Architecture for Voice, Video, and Integrated Data (AVVID) solution.

The section outlines some of the concepts involved in configuring Ethernet ports on the Ethernet switch network module to support Cisco IP phones in a branch office on your network. Also included is a section describing the default settings on the Ethernet switch network module.

The following topics are included:

Configuring the Ethernet Switch Network Module for Cisco AVVID/IP Telephony

Default Switch Configuration

Configuring the Ethernet Switch Network Module for Cisco AVVID/IP Telephony

The Ethernet switch network module has sixteen 10/100 switched Ethernet ports with integrated inline power and QoS features that make it an ideal choice for extending Cisco AVVID (Architecture for Voice, Video and Integrated Data) based voice-over-IP (VoIP) networks to small branch offices.

As an access gateway switch, the Ethernet switch network module can be deployed as a component of a centralized call-processing network using a centrally deployed Cisco CallManager (CCM). Instead of deploying and managing key systems or PBXs in small branch offices, applications are centrally located at the corporate headquarters or data center and are accessed via the IP WAN.

Default Switch Configuration

By default, the Ethernet switch network module provides the following settings with respect to Cisco AVVID:

All switch ports are in access VLAN 1.

All switch ports are static access ports, not 802.1Q trunk ports.

Default voice VLAN is not configured on the switch.

Inline power is automatically supplied on the 10/100 ports.

Stacking

Layer 2 switching may be extended in the router by connecting the Gigabit Ethernet (GE) ports of the Ethernet switch network module. This connection sustains a line-rate traffic similar to the switch fabric found in Cisco Catalyst switches and forms a single VLAN consisting of all ports in multiple Ethernet switch network modules.

MAC address entries learned via intrachassis stacking are not displayed.

Link status of intrachassis stacked ports are filtered.

Flow Control

Flow-control is a feature that Gigabit Ethernet ports use to inhibit the transmission of incoming packets. If a buffer on a Gigabit Ethernet port runs out of space, the port transmits a special packet that requests remote ports to delay sending packets for a period of time. This special packet is called a pause frame.

Using Flow-Control Keywords

Table 9 describes guidelines for using different configurations of the send and receive keywords with the set port flowcontrol command.

Table 9 Gigabit Ethernet Flow-Control Keyword Functions

Configuration
Description

send on

Enables a local port to send pause frames to a remote port. Use send on when a remote port is set to receive on or receive desired.

send off

Prevents a local port from sending pause frames to a remote port. Use send off when a remote port is set to receive off or receive desired.

send desired

Indicates preference to send pause frames, but autonegotiates flow control. You can use send desired when a remote port is set to receive on, receive off, or receive desired.

receive on

Enables a local port to process pause frames that a remote port sends. Use receive on when a remote port is set to send on or send desired.

receive off

Prevents a local port from processing pause frames. Use receive off when a remote port is set to send off or send desired.

receive desired

Indicates preference to process pause frames, but autonegotiates flow control. You can use receive desired when a remote port is set to send on, send off, or send desired.


Fallback Bridging

With fallback bridging, the switch bridges together two or more VLANs or routed ports, essentially connecting multiple VLANs within one bridge domain. Fallback bridging forwards traffic that the multilayer switch does not route and forwards traffic belonging to a nonroutable protocol such as DECnet.

Fallback bridging does not allow the spanning trees from the VLANs being bridged to collapse; each VLAN has its own Spanning Tree Protocol (STP) instance and a separate spanning tree, called the VLAN-bridge spanning tree, which runs on top of the bridge group to prevent loops.

A VLAN bridge domain is represented using the switch virtual interface (SVI). A set of SVIs and routed ports (which do not have any VLANs associated with them) can be configured to form a bridge group.

Recall that an SVI represents a VLAN of switch ports as one interface to the routing or bridging function in the system. Only one SVI can be associated with a VLAN, and it is only necessary to configure an SVI for a VLAN when you want to route between VLANs, to fallback-bridge nonroutable protocols between VLANs, or to provide IP host connectivity to the switch. A routed port is a physical port that acts like a port on a router, but it is not connected to a router. A routed port is not associated with a particular VLAN, does not support subinterfaces, but behaves like a normal routed interface.

A bridge group is an internal organization of network interfaces on a switch. Bridge groups cannot be used to identify traffic switched within the bridge group outside the switch on which they are defined. Bridge groups on the same switch function as distinct bridges; that is, bridged traffic and bridge protocol data units (BPDUs) cannot be exchanged between different bridge groups on a switch. An interface can be a member of only one bridge group. Use a bridge group for each separately bridged (topologically distinct) network connected to the switch.

The purpose of placing network interfaces into a bridge group is twofold:

To bridge all nonrouted traffic among the network interfaces making up the bridge group. If the packet destination address is in the bridge table, it is forwarded on a single interface in the bridge group. If the packet destination address is not in the bridge table, it is flooded on all forwarding interfaces in the bridge group. The bridge places source addresses in the bridge table as it learns them during the bridging process.

To participate in the spanning-tree algorithm by receiving, and in some cases sending, BPDUs on the LANs to which they are attached. A separate spanning process runs for each configured bridge group. Each bridge group participates in a separate spanning-tree instance. A bridge group establishes a spanning-tree instance based on the BPDUs it receives on only its member interfaces.

Figure 19 shows a fallback bridging network example. The multilayer switch has two interfaces configured as SVIs with different assigned IP addresses and attached to two different VLANs. Another interface is configured as a routed port with its own IP address. If all three of these ports are assigned to the same bridge group, non-IP protocol frames can be forwarded among the end stations connected to the switch.

Figure 19 Fallback Bridging Network Example

Benefits

Statistical gains by combining multiple traffic types over a common IP infrastructure.

Long distance savings

Support for Intra-chassis stacking

Voice connectivity over data applications

IPSEC, ACL, VPN and Firewall options

New broadband WAN options

The Interface Range Specification feature makes configuration easier for these reasons:

Identical commands can be entered once for a range of interfaces, rather than being entered separately for each interface.

Interface ranges can be saved as macros.

Restrictions

The following functions are not supported in this release:

CGMP client, CGMP fast-leave

Dynamic ports

Dynamic access ports

Secure ports

Dynamic trunk protocol

Dynamic VLANs

GARP, GMRP, and GVRP

ISL tagging (The chip does not support ISL.)

Layer 3 switching onboard

Monitoring of VLANs

Multi-VLAN ports Network Port

Shared STP instances

STP uplink fast for clusters

VLAN-based SPAN

VLAN Query Protocol

VTP Pruning Protocol

Web-based management interface

Related Features and Technologies

IP Phone Telephony

Voice over IP (VoIP)

Wireless LAN

Related Documents

For information about installing voice network modules and voice interface cards in Cisco 2600 series, Cisco 3600 series, and Cisco 3700 series routers refer to these documents:

Cisco 2600 Series Modular Routers Quick Start Guide

Cisco 2600 Series Hardware Installation Guide

Quick Start Guides for Cisco 3600 series routers

Cisco 3600 Series Hardware Installation Guide

Quick start guides for Cisco 3700 series routers

Hardware installation documents for Cisco 3700 series

WAN Interface Card Hardware Installation Guide

For information about configuring Voice over IP features, refer to these documents:

Cisco 2600 Series Software Configuration Guide

Cisco IOS Voice, Video, and Fax Configuration Guide,  Release 12.2

Cisco IOS Voice, Video, and Fax Command Reference,  Release 12.2

For more information on Flow control, refer to the following document:

Configuring Gigabit Ethernet Switching

Supported Platforms

Cisco 2600 series

Cisco 3600 series

Cisco 3700 series

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Supported Standards, MIBs, and RFCs

Standards

802.1d

802.1p

802.1q

802.1x

MIBs

RFC 1213

IF MIB

RFC 2037 ENTITY MIB

CISCO-CDP-MIB

CISCO-IMAGE-MIB

CISCO-FLASH-MIB

OLD-CISCO-CHASSIS-MIB

CISCO-VTP-MIB

CISCO-HSRP-MIB

OLD-CISCO-TS-MIB

CISCO-ENTITY-ASSET-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

BRIDGE MIB (RFC 1493)

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB

RMON1-MIB

PIM-MIB

CISCO-STP-EXTENSIONS-MIB

OSPF MIB (RFC 1253)

IPMROUTE-MIB

CISCO-MEMORY-POOL-MIB

ETHER-LIKE-MIB (RFC 1643)

CISCO-ENTITY-FRU-CONTROL-MIB.my

CISCO-RTTMON-MIB

CISCO-PROCESS-MIB

CISCO-COPS-CLIENT-MIB

To obtain lists of supported MIBs by platform and Cisco IOS release, and to download MIB modules, go to the Cisco MIB website on Cisco.com at the following URL:

http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

RFCs

RFC 2284, PPP Extensible Authentication Protocol (EAP)

Prerequisites

Cisco IOS Release 12.2 or later release

Basic configuration of the Cisco 2600 series, Cisco 3600 series, or Cisco 3700 series router

In addition, complete the following tasks before configuring this feature:

Configure IP routing

For more information on IP routing, refer to the Cisco IOS IP Configuration Guide,  Release 12.2.

Set up the call agents

For more information on setting up call agents, refer to the documentation that accompanies the call agents used in your network configuration.

Configuration Tasks

See the following sections for configuration tasks for the Ethernet switch network module.

Configuring Layer 2 Interfaces

Configuring VLANs

Configuring VLAN Trunking Protocol

Configuring Layer 2 EtherChannels (Port-Channel Logical Interfaces)

Configuring 802.1x Authentication

Configuring Spanning Tree

Configuring MAC Table Manipulation — Port Security

Configuring Cisco Discovery Protocol

Configuring Switched Port Analyzer

Configuring Network Security with ACLs

Configuring Quality of Service (QoS)

Configuring Power Management on the Interface

Configuring IP Multicast Layer 3 Switching

Configuring IGMP Snooping

Configuring Global Storm-Control

Configuring Per-Port Storm-Control

Configuring Separate Voice and Data Subnets

Configuring Intrachassis Stacking

Configuring Flow Control on Gigabit Ethernet Ports

Configuring Layer 3 Interfaces

Configuring Fallback Bridging

Configuring Layer 2 Interfaces

Configuring a Range of Interfaces (required)

Defining a Range Macro (optional)

Configuring Layer 2 Optional Interface Features (optional)

Configuring an Ethernet Interface as a Layer 2 Trunk (optional)

Configuring an Ethernet Interface as a Layer 2 Access (optional)

Configuring a Range of Interfaces

To configure a range of interfaces, use the interface range command in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface range {vlan vlan-id -
vlan-id} | {{ethernet | fastethernet | macro
macro-name} slot/interface - interface}[,
{{ethernet | fastethernet | macro macro-name}
slot/interface - interface}]

Selects the range of interfaces to be configured.

The space before the dash is required. For example, the command interface range fastethernet 1 - 5 is valid; the command interface range fastethernet 1-5 is not valid.

You can enter one macro or up to five comma-separated ranges.

Comma-separated ranges can include both VLANs and physical interfaces.

You are not required to enter spaces before or after the comma.

The interface range command only supports VLAN interfaces that are configured with the interface vlan command.

Defining a Range Macro


Command
Purpose

Step 1

Router(config)# define interface-range macro-name {vlan vlan-id - vlan-id} | {{ethernet | fastethernet} slot/interface - interface} [, {{ethernet | fastethernet} slot/interface - interface}]

Defines the interface-range macro and save it in NVRAM.

Verifying Configuration of a Range of Interfaces


Step 1 Use the show running-configuration command to show the defined interface-range macro configuration:

Router# show running-configuration | include define define interface-range enet_list
FastEthernet5/1 - 4

Configuring Layer 2 Optional Interface Features

Interface Speed and Duplex Configuration Guidelines

Configuring the Interface Speed

Configuring the Interface Duplex Mode

Configuring a Description for an Interface

Configuring an Ethernet Interface as a Layer 2 Trunk

Configuring an Ethernet Interface as a Layer 2 Access

Interface Speed and Duplex Configuration Guidelines

When configuring an interface speed and duplex mode, note these guidelines:

If both ends of the line support autonegotiation, Cisco highly recommends the default autonegotiation settings.

If one interface supports autonegotiation and the other end does not, configure duplex and speed on both interfaces; do not use the auto setting on the supported side.

Both ends of the line need to be configured to the same setting. For example, both hard-set or both auto-negotiate. Mismatched settings are not supported.


Caution Changing the interface speed and duplex mode configuration might shut down and reenable the interface during the reconfiguration.

Configuring the Interface Speed


Command
Purpose

Step 1

Router(config)# interface fastethernet slot/interface

Specifies the interface to be configured.

Step 2

Router(config-if)# speed [10 | 100 | auto]

Sets the interface speed of the interface.


Note If you set the interface speed to auto on a 10/100-Mbps Ethernet interface, both speed and duplex are autonegotiated.


Configuring the Interface Duplex Mode

To set the duplex mode of an Ethernet or Fast Ethernet interface, use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface fastethernet slot/interface

Selects the interface to be configured.

Step 2

Router(config-if)# duplex [auto | full | half]

Sets the duplex mode of the interface.


Note If you set the port speed to auto on a 10/100-Mbps Ethernet interface, both speed and duplex are autonegotiated. You cannot change the duplex mode of autonegotiation interfaces.


Router(config)# interface fastethernet 5/4
Router(config-if)# duplex full

Verifying Interface Speed and Duplex Mode Configuration


Step 1 Use the show interfaces command to verify the interface speed and duplex mode configuration for an interface:

Router# show interfaces fastethernet 1/4

FastEthernet1/4 is up, line protocol is down
  Hardware is Fast Ethernet, address is 0000.0000.0c89 (bia 0000.0000.0c89)
  MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  Auto-duplex, Auto-speed
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input never, output never, output hang never
  Last clearing of "show interface" counters never
  Queueing strategy: fifo
  Output queue 0/40, 0 drops; input queue 0/75, 0 drops
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     0 packets input, 0 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
     0 input packets with dribble condition detected
     3 packets output, 1074 bytes, 0 underruns(0/0/0)
     0 output errors, 0 collisions, 5 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
Router#

Configuring a Description for an Interface

You can add a description about an interface to help you remember its function. The description appears in the output of the following commands: show configuration, show running-config, and show interfaces.

To add a description for an interface, use the description command in interface configuration mode:


Command
Purpose

Step 1

Router(config-if)# description string


Configuring an Ethernet Interface as a Layer 2 Trunk

To configure an Ethernet interface as a Layer 2 trunk, use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface {ethernet |
fastethernet} slot/port

Selects the interface to configure.

Step 2

Router(config-if)# shutdown

(Optional) Shuts down the interface to prevent traffic flow until configuration is complete.

Note Encapsulation is always dot1q.

Step 3

Router(config-if)# switch port mode trunk

Configures the interface as a Layer 2 trunk.

Step 4

Router(config-if)# switch port trunk native vlan
vlan-num

For 802.1Q trunks, specifies the native VLAN.

Step 5

Router(config-if)# switch port trunk allowed vlan
{add | except | none | remove}
vlan1[,vlan[,vlan[,...]]

(Optional) Configures the list of VLANs allowed on the trunk. All VLANs are allowed by default. You cannot remove any of the default VLANs from a trunk.

Step 6

Router(config-if)# no shutdown

Activates the interface. (Required only if you shut down the interface.)

Step 7

Router(config-if)# end

Exits configuration mode.


Note Ports do not support Dynamic Trunk Protocol (DTP). Ensure that the neighboring switch is set to a mode that will not send DTP.


Verifying an Ethernet Interface as a Layer 2 Trunk


Step 1 Use the following show commands to verify the configuration of an Ethernet interface as a Layer 2 trunk:

Router# show running-config interface fastethernet 5/8

Building configuration...
Current configuration:
!
interface FastEthernet5/8
 no ip address
 switchport
 switchport trunk encapsulation dot1q
end


Step 2 Router# show interfaces fastethernet 5/8 switchport

Name: Fa5/8
Switchport: Enabled
Administrative Mode: static access
Operational Mode: static access
Administrative Trunking Encapsulation: dot1q
Operational Trunking Encapsulation: native
Negotiation of Trunking: Disabled
Access Mode VLAN: 1 (default)
Trunking Native Mode VLAN: 1 (default)
Trunking VLANs Enabled: ALL
Pruning VLANs Enabled: 2-1001
Protected: false
Unknown unicast blocked: false
Unknown multicast blocked: false
Broadcast Suppression Level: 100
Multicast Suppression Level: 100
Unicast Suppression Level: 100
Voice VLAN: none
Appliance trust: none

Step 3 Router# show interfaces fastethernet 5/8 trunk


Port      Mode         Encapsulation  Status        Native vlan
Fa1/15    off          802.1q         not-trunking  1
Port      Vlans allowed on trunk
Fa1/15    1
Port      Vlans allowed and active in management domain
Fa1/15    1
Port      Vlans in spanning tree forwarding state and not pruned
Fa1/15    1

Configuring an Ethernet Interface as a Layer 2 Access

To configure an Ethernet Interface as a Layer 2 access use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface {ethernet |
fastethernet} slot/port

Selects the interface to configure.

Step 2

Router(config-if)# shutdown

(Optional) Shuts down the interface to prevent traffic flow until configuration is complete.

Encapsulation is always dot1q.

Step 3

Router(config-if)# switchport mode access

Configures the interface as a Layer 2 access.

Step 4

Router(config-if)# switchport access vlan vlan-num

For access ports, specifies the access VLAN.

Step 5

Router(config-if)# no shutdown

Activates the interface. (Required only if you shut down the interface.)

Step 6

Router(config-if)# end

Exits configuration mode.

Verifying an Ethernet Interface as a Layer 2 Access


Step 1 Use the show running-config interface command to verify the running configuration of the interface:

Router# show running-config interface {ethernet | fastethernet} slot/port


Step 1 Use the show interfaces command to verify the switch port configuration of the interface:

Router# show interfaces [ethernet | fastethernet] slot/port switchport

Configuring VLANs

This section describes how to configure the VLANs on the Ethernet switch network modules, and it contains the following sections:

Configuring VLANs (optional)

Deleting a VLAN from the Database (optional)

Configuring VLANs

To configure an Ethernet Interface as a Layer 2 access, use the following commands beginning in EXEC mode:


Command
Purpose

Step 1

Router# vlan database


Step 2

Router(vlan)# vlan vlan-id

Adds an Ethernet VLAN.

Step 3

Router(vlan)# exit

Updates the VLAN database, propagates it throughout the administrative domain, and returns to privileged EXEC mode.

Verifying the VLAN Configuration.


Step 1 Use the show vlan name command to verify the VLAN configuration:

Router# show vlan name VLAN0003

VLAN Name                             Status    Ports
---- -------------------------------- --------- -------------------------------
1    default                          active    Fa1/0, Fa1/1, Fa1/2, Fa1/3
                                                Fa1/4, Fa1/5, Fa1/6, Fa1/7
                                                Fa1/8, Fa1/9, Fa1/10, Fa1/11
                                                Fa1/12, Fa1/13, Fa1/14, Fa1/15
1002 fddi-default                     active
1003 token-ring-default               active
1004 fddinet-default                  active
1005 trnet-default                    active

VLAN Type  SAID       MTU   Parent RingNo BridgeNo Stp  BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
1    enet  100001     1500  -      -      -        -    -        1002   1003
1002 fddi  101002     1500  -      -      -        -    -        1      1003
1003 tr    101003     1500  1005   0      -        -    srb      1      1002
1004 fdnet 101004     1500  -      -      1        ibm  -        0      0
1005 trnet 101005     1500  -      -      1        ibm  -        0      0
Router#

Deleting a VLAN from the Database


Command
Purpose

Step 1

Router# vlan database

Enters VLAN configuration mode.

Step 2

Router(vlan)# no vlan vlan-id


Step 3

Router(vlan)# exit


Verifying VLAN Deletion


Step 1 Use the show vlan-switch brief command to verify that a VLAN has been deleted from a switch:

Router# show vlan-switch brief

VLAN Name                             Status    Ports
---- -------------------------------- --------- -------------------------------
1    default                          active    Fa0/2, Fa0/9, Fa0/14, Gi0/0
2    VLAN0002                         active
3    VLAN0003                         active    Fa0/4, Fa0/5, Fa0/10, Fa0/11
4    VLAN0004                         active    Fa0/6, Fa0/7, Fa0/12, Fa0/13
5    VLAN0005                         active
40   VLAN0040                         active    Fa0/15
50   VLAN0050                         active
1000 VLAN1000                         active
1002 fddi-default                     active
1003 token-ring-default               active
1004 fddinet-default                  active
1005 trnet-default                    active
Router#

Configuring VLAN Trunking Protocol

This section describes how to configure the VLAN Trunking Protocol (VTP) on the Ethernet switch network module, and contains the following sections:

Configuring the VTP Server

Configuring a VTP Client

Disabling VTP (VTP Transparent Mode)

Configuring VTP version 2

Configuring the VTP Server

When a switch is in VTP server mode, you can change the VLAN configuration and have it propagate throughout the network.

To configure the switch as a VTP server, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# vlan database

Enters VLAN configuration mode.

Step 2

Router(vlan)# vtp server

Configures the switch as a VTP server.

Step 3

Router(vlan)# vtp domain domain-name

Defines the VTP domain name, which can be up to 32 characters long.

Step 4

Router(vlan)# vtp password password-value

(Optional) Sets a password, which can be from 8 to 64 characters long, for the VTP domain.

Step 5

Router(vlan)# exit

Exits VLAN configuration mode.

Configuring a VTP Client

When a switch is in VTP client mode, you cannot change the VLAN configuration on the switch. The client switch receives VTP updates from a VTP server in the management domain and modifies its configuration accordingly.


Command
Purpose

Step 1

Router# vlan database

Enters VLAN configuration mode.

Step 2

Router(vlan)# vtp client

Configures the switch as a VTP client.

Step 3

Router(vlan)# exit

Exits VLAN configuration mode.

Disabling VTP (VTP Transparent Mode)

When you configure the switch as VTP transparent, you disable VTP on the switch. A VTP transparent switch does not send VTP updates and does not act on VTP updates received from other switches. However, a VTP transparent switch running VTP version 2 does forward received VTP advertisements out all of its trunk links.

To disable VTP on the switch, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# vlan database

Enters VLAN configuration mode.

Step 2

Router(vlan)# vtp transparent

Configures VTP transparent mode.

Step 3

Router(vlan)# exit

Exits VLAN configuration mode.

Configuring VTP version 2

To enable VTP version 2, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# vlan database


Step 2

Router(vlan)# [no] vtp v2-mode


Step 3

Router(vlan)# exit


Verifying VTP


Step 1 Use the show vtp status to verify VTP status:

Router# show vtp status

VTP Version                     : 2
Configuration Revision          : 247
Maximum VLANs supported locally : 1005
Number of existing VLANs        : 33
VTP Operating Mode              : Client
VTP Domain Name                 : Lab_Network
VTP Pruning Mode                : Enabled
VTP V2 Mode                     : Disabled
VTP Traps Generation            : Disabled
MD5 digest                      : 0x45 0x52 0xB6 0xFD 0x63 0xC8 0x49 0x80
Configuration last modified by 0.0.0.0 at 8-12-99 15:04:49
Router#

Configuring Layer 2 EtherChannels (Port-Channel Logical Interfaces)

Configuring Layer 2 EtherChannels (Port-Channel Logical Interfaces)

Configuring EtherChannel Load Balancing

Removing an Interface from an EtherChannel

Configuring Removing an EtherChannel

Configuring Layer 2 EtherChannels (Port-Channel Logical Interfaces)

To configure Layer 2 EtherChannels, configure the Ethernet interfaces with the channel-group command, which creates the port-channel logical interface.


Note Cisco IOS software creates port-channel interfaces for Layer 2 EtherChannels when you configure Layer 2 Ethernet interfaces with the channel-group command. You cannot put Layer 2 Ethernet interfaces into a manually created port-channel interface.



Note Layer 2 interfaces must be connected and functioning for Cisco IOS software to create port-channel interfaces for Layer 2 EtherChannels.


To configure Layer 2 Ethernet interfaces as a Layer 2 EtherChannel, use the following commands beginning in global configuration mode for each interface:


Command
Purpose

Step 1

Router(config)# interface fastethernet slot/port

Selects a physical interface to configure.

Step 2

Router(config-if)# channel-group port-channel-number
mode {on}

Configures the interface in a port-channel.

Step 3

Router(config-if)# end

Exits configuration mode.

Verifying Layer 2 EtherChannels

Use the following show commands to verify Layer 2 EtherChannels:


Step 1 Router# show running-config interface fastethernet 5/6

Building configuration...

Current configuration:
!
interface FastEthernet5/6
 no ip address
 switchport
 switchport access vlan 10
 switchport mode access
 channel-group 2 mode on
end

Step 2 Router# show interfaces fastethernet 5/6 etherchannel


Port state    = EC-Enbld Up In-Bndl Usr-Config
Channel group = 2           Mode = Desirable     Gcchange = 0
Port-channel  = Po2         GC   = 0x00020001
Port indx     = 1           Load = 0x55

Flags:  S - Device is sending Slow hello.  C - Device is in Consistent state.
        A - Device is in Auto mode.        P - Device learns on physical port.
Timers: H - Hello timer is running.        Q - Quit timer is running.
        S - Switching timer is running.    I - Interface timer is running.
Local information:
                                Hello    Partner  PAgP     Learning  Group
Port      Flags State   Timers  Interval Count   Priority   Method  Ifindex
Fa5/6     SC    U6/S7           30s      1        128        Any      56

Partner's information:

          Partner              Partner          Partner         Partner Group
Port      Name                 Device ID        Port       Age  Flags   Cap.
Fa5/6     JAB031301            0050.0f10.230c   2/47        18s SAC     2F

Age of the port in the current state: 00h:10m:57s

Step 3 Router# show running-config interface port-channel 2


Building configuration...

Current configuration:
!
interface Port-channel2
 no ip address
 switchport
 switchport access vlan 10
 switchport mode access
end

Router#

Step 4 Router# show etherchannel 2 port-channel


                Port-channels in the group:
                ----------------------

Port-channel: Po2
------------

Age of the Port-channel   = 00h:23m:33s
Logical slot/port   = 10/2           Number of ports in agport = 2
GC                  = 0x00020001      HotStandBy port = null
Port state          = Port-channel Ag-Inuse

Ports in the Port-channel:

Index   Load   Port
-------------------
  1     55      Fa5/6
  0     AA      Fa5/7

Time since last port bundled:    00h:23m:33s    Fa5/6


Configuring EtherChannel Load Balancing

To configure EtherChannel load balancing, use the following commands in global configuration mode:


Command
Purpose

Step 1

Router(config)# port-channel load-balance
{src-mac | dst-mac | src-dst-mac | src-ip |
dst-ip | src-dst-ip}

Configures EtherChannel load balancing, use the no form of this command to return EtherChannel load balancing to the default configuration.

Step 2

Router(config)# end

Exits configuration mode.


Note For new load balancing to take affect, the EtherChannel must be first configured to the default configuration.


Verifying EtherChannel Load Balancing


Step 1 Use the show etherchannel load-balance command to verify Layer 2 EtherChannel load balancing:

Router# show etherchannel load-balance

Source XOR Destination IP address
Router#

Removing an Interface from an EtherChannel

To remove an Ethernet interface from an EtherChannel, use the following commands in global configuration mode:


Command
Purpose

Step 1

Router(config)# [no] port-channel load-balance
{src-mac | dst-mac | src-dst-mac | src-ip |
dst-ip | src-dst-ip}

Configures EtherChannel load balancing. Use the no keyword to return EtherChannel load balancing to the default configuration.

Step 2

Router(config)# end

Exits configuration mode.

Configuring Removing an EtherChannel

To remove an EtherChannel, use the following commands in global configuration mode:


Command
Purpose

Step 1

Router(config)# no interface port-channel
port-channel-number

Removes the port-channel interface.

Step 2

Router(config)# end

Exits configuration mode.

Verify Removing an EtherChannel


Step 1 Use the show etherchannel summary command to verify that the Etherchannel is removed:

Router# show etherchannel summary

Flags:  D - down        P - in port-channel
        I - stand-alone s - suspended
        R - Layer3      S - Layer2
        U - in use
Group Port-channel  Ports
-----+------------+-----------------------------------------------------------

Router#

Configuring 802.1x Authentication

This section describes how to configure 802.1x port-based authentication on the Ethernet switch network module:

Understanding the Default 802.1x Configuration

Enabling 802.1x Authentication

Configuring the Switch-to-RADIUS-Server Communication

Enabling Periodic Reauthentication

Changing the Quiet Period

Changing the Switch-to-Client Retransmission Time

Setting the Switch-to-Client Frame-Retransmission Number

Enabling Multiple Hosts

Understanding the Default 802.1x Configuration

Table 10 shows the default 802.1x configuration.

Table 10 Default 802.1x Configuration

Feature
Default Setting

Authentication, authorization, and accounting (AAA)

Disabled.

RADIUS server

IP address

UDP authentication port

Key

None specified.

1645.

None specified.

Per-interface 802.1x enable state

Disabled (force-authorized).

The port transmits and receives normal traffic without 802.1x-based authentication of the client.

Periodic reauthentication

Disabled.

Number of seconds between reauthentication attempts

3600 seconds.

Quiet period

60 seconds (number of seconds that the switch remains in the quiet state following a failed authentication exchange with the client).

Retransmission time

30 seconds (number of seconds that the switch should wait for a response to an EAP request/identity frame from the client before retransmitting the request).

Maximum retransmission number

2 times (number of times that the switch will send an EAP-request/identity frame before restarting the authentication process).

Multiple host support

Disabled.

Client timeout period

30 seconds (when relaying a request from the authentication server to the client, the amount of time the switch waits for a response before retransmitting the request to the client). This setting is not configurable.

Authentication server timeout period

30 seconds (when relaying a response from the client to the authentication server, the amount of time the switch waits for a reply before retransmitting the response to the server). This setting is not configurable.


802.1x Configuration Guidelines

These are the 802.1x authentication configuration guidelines:

When the 802.1x protocol is enabled, ports are authenticated before any other Layer 2 feature is enabled.

The 802.1x protocol is supported on Layer 2 static-access ports, but it is not supported on these port types:

Trunk port—If you try to enable 802.1x on a trunk port, an error message appears, and 802.1x is not enabled. If you try to change the mode of an 802.1x-enabled port to trunk, the port mode is not changed.

EtherChannel port—Before enabling 802.1x on the port, you must first remove the port from the EtherChannel before enabling 802.1x on it. If you try to enable 802.1x on an EtherChannel or on an active port in an EtherChannel, an error message appears, and 802.1x is not enabled. If you enable 802.1x on a not-yet active port of an EtherChannel, the port does not join the EtherChannel.

Switch Port Analyzer (SPAN) destination port—You can enable 802.1x on a port that is a SPAN destination port; however, 802.1x is disabled until the port is removed as a SPAN destination. You can enable 802.1x on a SPAN source port.

Enabling 802.1x Authentication

To enable 802.1x port-based authentication, you must enable AAA and specify the authentication method list. A method list describes the sequence and authentication methods to be queried to authenticate a user.

The software uses the first method listed to authenticate users; if that method fails to respond, the software selects the next authentication method in the method list. This process continues until there is successful communication with a listed authentication method or until all defined methods are exhausted. If authentication fails at any point in this cycle, the authentication process stops, and no other authentication methods are attempted.

Beginning in privileged EXEC mode, follow these steps to configure 802.1x port-based authentication. This procedure is required.


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

aaa new-model

Enables AAA.

Step 3

aaa authentication dot1x {default | listname} method1 [method2...]

Creates an 802.1x authentication method list.

To create a default list that is used when a named list is not specified in the authentication command, use the default keyword followed by the methods that are to be used in default situations. The default method list is automatically applied to all interfaces.

Enter at least one of these keywords:

group radius—Use the list of all RADIUS servers for authentication.

none—Use no authentication. The client is automatically authenticated without the switch using the information supplied by the client.

Step 4

interface interface-id

Enters interface configuration mode, and specify the interface to be enabled for 802.1x authentication.

Step 5

dot1x port-control auto

Enables 802.1x on the interface.

For feature interaction information with trunk, dynamic, dynamic-access, EtherChannel, secure, and SPAN ports see the "802.1x Configuration Guidelines" section.

Step 6

end

Returns to privileged EXEC mode.

Step 7

show dot1x

Verifies your entries.

Check the Status column in the 802.1x Port Summary section of the display. An enabled status means the port-control value is set either to auto or to force-unauthorized.

Step 8

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To disable AAA, use the no aaa new-model global configuration command. To disable 802.1x AAA authentication, use the no aaa authentication dot1x {default | list-name} method1 [method2...] global configuration command. To disable 802.1x, use the dot1x port-control force-authorized or the no dot1x port-control interface configuration command.

Configuring the Switch-to-RADIUS-Server Communication

RADIUS security servers are identified by their host name or IP address, host name and specific UDP port numbers, or IP address and specific UDP port numbers. The combination of the IP address and UDP port number creates a unique identifier, which enables RADIUS requests to be sent to multiple UDP ports on a server at the same IP address. If two different host entries on the same RADIUS server are configured for the same service—for example, authentication—the second host entry configured acts as the fail-over backup to the first one. The RADIUS host entries are tried in the order that they were configured.

Beginning in privileged EXEC mode, follow these steps to configure the RADIUS server parameters on the switch. This procedure is required.


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

radius-server host {hostname | ip-address} auth-port port-number key string

Configures the RADIUS server parameters on the switch.

For hostname | ip-address, specify the host name or IP address of the remote RADIUS server.

For auth-port port-number, specify the UDP destination port for authentication requests. The default is 1645.

For key string, specify the authentication and encryption key used between the switch and the RADIUS daemon running on the RADIUS server. The key is a text string that must match the encryption key used on the RADIUS server.

Note Always configure the key as the last item in the radius-server host command syntax because leading spaces are ignored, but spaces within and at the end of the key are used. If you use spaces in the key, do not enclose the key in quotation marks unless the quotation marks are part of the key. This key must match the encryption used on the RADIUS daemon.

If you want to use multiple RADIUS servers, repeat this command.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To delete the specified RADIUS server, use the no radius-server host {hostname | ip-address} global configuration command.

You can globally configure the timeout, retransmission, and encryption key values for all RADIUS servers by using the radius-server host global configuration command. If you want to configure these options on a per-server basis, use the radius-server timeout, radius-server retransmit, and the radius-server key global configuration commands.

You also need to configure some settings on the RADIUS server. These settings include the IP address of the switch and the key string to be shared by both the server and the switch. For more information, refer to the RADIUS server documentation.

Enabling Periodic Reauthentication

You can enable periodic 802.1x client reauthentication and specify how often it occurs. If you do not specify a time period before enabling reauthentication, the number of seconds between reauthentication attempts is 3600 seconds.

Automatic 802.1x client reauthentication is a global setting and cannot be set for clients connected to individual ports.

Beginning in privileged EXEC mode, follow these steps to enable periodic reauthentication of the client and to configure the number of seconds between reauthentication attempts:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

dot1x re-authentication

Enables periodic reauthentication of the client, which is disabled by default.

Step 3

dot1x timeout re-authperiod seconds

Sets the number of seconds between reauthentication attempts.

The range is 1 to 4294967295; the default is 3600 seconds.

This command affects the behavior of the switch only if periodic reauthentication is enabled.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show dot1x

Verifies your entries.

Step 6

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To disable periodic reauthentication, use the no dot1x re-authentication global configuration command. To return to the default number of seconds between reauthentication attempts, use the no dot1x timeout re-authperiod global configuration command.

Changing the Quiet Period

When the switch cannot authenticate the client, the switch remains idle for a set period of time, and then tries again. The idle time is determined by the quiet-period value. A failed authentication of the client might occur because the client provided an invalid password. You can provide a faster response time to the user by entering smaller number than the default.

Beginning in privileged EXEC mode, follow these steps to change the quiet period:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

dot1x timeout quiet-period seconds

Sets the number of seconds that the switch remains in the quiet state following a failed authentication exchange with the client.

The range is 0 to 65535 seconds; the default is 60.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show dot1x

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To return to the default quiet time, use the no dot1x timeout quiet-period global configuration command.

Changing the Switch-to-Client Retransmission Time

The client responds to the EAP-request/identity frame from the switch with an EAP-response/identity frame. If the switch does not receive this response, it waits a set period of time (known as the retransmission time), and then retransmits the frame.


Note You should change the default value of this command only to adjust for unusual circumstances such as unreliable links or specific behavioral problems with certain clients and authentication servers.


Beginning in privileged EXEC mode, follow these steps to change the amount of time that the switch waits for client notification:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

dot1x timeout tx-period seconds

Sets the number of seconds that the switch waits for a response to an EAP-request/identity frame from the client before retransmitting the request.

The range is 1 to 65535 seconds; the default is 30.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show dot1x

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To return to the default retransmission time, use the no dot1x timeout tx-period global configuration command.

Setting the Switch-to-Client Frame-Retransmission Number

In addition to changing the switch-to-client retransmission time, you can change the number of times that the switch sends an EAP-request/identity frame (assuming no response is received) to the client before restarting the authentication process.


Note You should change the default value of this command only to adjust for unusual circumstances such as unreliable links or specific behavioral problems with certain clients and authentication servers.


Beginning in privileged EXEC mode, follow these steps to set the switch-to-client frame-retransmission number:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

dot1x max-req count

Sets the number of times that the switch sends an EAP-request/identity frame to the client before restarting the authentication process. The range is 1 to 10; the default is 2.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show dot1x

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To return to the default retransmission number, use the no dot1x max-req global configuration command.

Enabling Multiple Hosts

You can attach multiple hosts to a single 802.1x-enabled port as shown in Figure 3. In this mode, only one of the attached hosts must be successfully authorized for all hosts to be granted network access. If the port becomes unauthorized (reauthentication fails, and an EAPOL-logoff message is received), all attached clients are denied access to the network.

Beginning in privileged EXEC mode, follow these steps to allow multiple hosts (clients) on an 802.1x-authorized port that has the dot1x port-control interface configuration command set to auto.


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface-id

Enters interface configuration mode, and specify the interface to which multiple hosts are indirectly attached.

Step 3

dot1x multiple-hosts

Allows multiple hosts (clients) on an 802.1x-authorized port.

Make sure that the dot1x port-control interface configuration command is set to auto for the specified interface.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show dot1x interface interface-id

Verifies your entries.

Step 6

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To disable multiple hosts on the port, use the no dot1x multiple-hosts interface configuration command.

Resetting the 802.1x Configuration to the Default Values

You can reset the 802.1x configuration to the default values with a single command.

Beginning in privileged EXEC mode, follow these steps to reset the 802.1x configuration to the default values:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

dot1x default

Resets the configurable 802.1x parameters to the default values.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show dot1x

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

Displaying 802.1x Statistics and Status

To display 802.1x statistics for all interfaces, use the show dot1x statistics privileged EXEC command. To display 802.1x statistics for a specific interface, use the show dot1x statistics interface interface-id privileged EXEC command.

To display the 802.1x administrative and operational status for the switch, use the show dot1x privileged EXEC command. To display the 802.1x administrative and operational status for a specific interface, use the show dot1x interface interface-id privileged EXEC command.

Configuring Spanning Tree

Enabling Spanning Tree

Configuring Spanning Tree Port Priority

Configuring Spanning Tree Port Cost

Configuring the Bridge Priority of a VLAN

Configuring the Hello Time

Configuring the Forward-Delay Time for a VLAN

Configuring the Maximum Aging Time for a VLAN

Configuring BackboneFast

Disabling Spanning Tree

Enabling Spanning Tree

You can enable spanning tree on a per-VLAN basis. The switch maintains a separate instance of spanning tree for each VLAN (except on VLANs on which you disable spanning tree).


Command
Purpose

Step 1

Router(config)# spanning-tree vlan vlan-id


Step 2

Router(config)# end

Exits configuration mode.

Verify Spanning Tree


Step 1 Use the show spanning-tree vlan command to verify spanning tree configuration:

Router# show spanning-tree vlan 200
 VLAN200 is executing the ieee compatible Spanning Tree protocol
  Bridge Identifier has priority 32768, address 0050.3e8d.6401
  Configured hello time 2, max age 20, forward delay 15
  Current root has priority 16384, address 0060.704c.7000
  Root port is 264 (FastEthernet5/8), cost of root path is 38
  Topology change flag not set, detected flag not set
  Number of topology changes 0 last change occurred 01:53:48 ago
  Times:  hold 1, topology change 24, notification 2
          hello 2, max age 14, forward delay 10
  Timers: hello 0, topology change 0, notification 0
 Port 264 (FastEthernet5/8) of VLAN200 is forwarding
   Port path cost 19, Port priority 128, Port Identifier 129.9.
   Designated root has priority 16384, address 0060.704c.7000
   Designated bridge has priority 32768, address 00e0.4fac.b000
   Designated port id is 128.2, designated path cost 19
   Timers: message age 3, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   BPDU: sent 3, received 3417

Configuring Spanning Tree Port Priority

To configure the spanning tree port priority of an interface, use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface {{ethernet |
fastethernet} slot/port} | {port-channel
port-channel-number}

Selects an interface to configure.

Step 2

Router(config-if)# [no] spanning-tree
port-priority port-priority

Configures the port priority for an interface. The of port-priority value can be from 1 to 255 in increments of 4.

Use the no form of this command to restore the defaults.

Step 3

Router(config-if)# [no] spanning-tree vlan
vlan-id port-priority port-priority

Configures the VLAN port priority for an interface. The port-priority value can be from 1 to 255 in increments of 4.

Use the no form of this command to restore the defaults.

Step 4

Router(config-if)# end

Exits configuration mode.

Verify Spanning Tree Port Priority


Step 1 Use the show spanning-tree interface command to verify spanning-tree interface and the spanning-tree port priority configuration:

Router# show spanning-tree interface fastethernet 5/8

 Port 264 (FastEthernet5/8) of VLAN200 is forwarding
   Port path cost 19, Port priority 100, Port Identifier 129.8.
   Designated root has priority 32768, address 0010.0d40.34c7
   Designated bridge has priority 32768, address 0010.0d40.34c7
   Designated port id is 128.1, designated path cost 0
   Timers: message age 2, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   BPDU: sent 0, received 13513
Router#

Configuring Spanning Tree Port Cost

To configure the spanning tree port cost of an interface, use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface {{ethernet |
fastethernet} slot/port} | {port-channel
port-channel-number}

Selects an interface to configure.

Step 2

Router(config-if)# [no] spanning-tree cost
port-cost

Configures the port cost for an interface. The value of port-cost can be from 1 to 200,000,000 (1 to 65,535 in Cisco IOS Releases 12.1(2)E and earlier).

Use the no form of this command to restore the defaults.

Step 3

Router(config-if)# [no] spanning-tree vlan
vlan-id cost port-cost

Configures the VLAN port cost for an interface. The value of port-cost can be from 1 to 65,535.

Use the no form of this command to restore the defaults.

Step 4

Router(config-if)# end

Exits configuration mode.

Verifying Spanning Tree Port Cost


Step 1 Use the show spanning-tree vlan command to verify the spanning-tree port cost configuration:

Router# show spanning-tree vlan 200

Port 264 (FastEthernet5/8) of VLAN200 is forwarding
Port path cost 17, Port priority 64, Port Identifier 129.8.
   Designated root has priority 32768, address 0010.0d40.34c7
   Designated bridge has priority 32768, address 0010.0d40.34c7
   Designated port id is 128.1, designated path cost 0
   Timers: message age 2, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   BPDU: sent 0, received 13513
Router#

Configuring the Bridge Priority of a VLAN


Caution Exercise care when using this command. For most situations spanning-tree vlan vlan-id root primary and the spanning-tree vlan vlan-id root secondary are the preferred commands to modify the bridge priority.

To configure the spanning tree bridge priority of a VLAN, use the following commands in global configuration mode:


Command
Purpose

Step 1

Router(config)# [no] spanning-tree vlan
vlan-id priority bridge-priority

Configures the bridge priority of a VLAN. The bridge-priority value can be from 1 to 65535.

Use the no keyword to restore the defaults.

Step 2

Router(config)# end

Exits configuration mode.

Verifying the Bridge Priority of a VLAN


Step 1 Use the show spanning-tree vlan bridge command to verify the bridge priority:

Router# show spanning-tree vlan 200 bridge brief

	Hello Max  Fwd
Vlan                   Bridge ID      Time  Age Delay  Protocol
---------------- -------------------- ---- ---- -----  --------
VLAN200          33792 0050.3e8d.64c8    2   20    15  ieee

Configuring the Hello Time

To configure the hello interval for the spanning tree, use the following commands in global configuration mode:


Command
Purpose

Step 1

Router(config)# [no] spanning-tree vlan vlan-id
hello-time hello-time

Configures the hello time of a VLAN. The hello-time value can be from 1 to 10 seconds.

Use the no form of this command to restore the defaults.

Step 2

Router(config)# end

Exits configuration mode.

Configuring the Forward-Delay Time for a VLAN


Command
Purpose

Step 1

Router(config)# [no] spanning-tree vlan vlan-id
forward-time forward-time


Step 2

Router(config)# end

Exits configuration mode.

Configuring the Maximum Aging Time for a VLAN

To configure the maximum age interval for the spanning tree, use the following commands in global configuration mode:


Command
Purpose

Step 1

Router(config)# [no] spanning-tree vlan vlan-id
max-age max-age

Configures the maximum aging time of a VLAN. The value of max-age can be from 6 to 40 seconds.

Use the no form of this command to restore the defaults.

Step 2

Router(config)# end

Exits configuration mode.

Configuring the Root Bridge

The Ethernet switch network module maintains a separate instance of spanning tree for each active VLAN configured on the switch. A bridge ID, consisting of the bridge priority and the bridge MAC address, is associated with each instance. For each VLAN, the switch with the lowest bridge ID will become the root bridge for that VLAN.

To configure a VLAN instance to become the root bridge, the bridge priority can be modified from the default value (32768) to a significantly lower value so that the bridge becomes the root bridge for the specified VLAN. Use the spanning-tree vlan vlan-id root command to alter the bridge priority.

The switch checks the bridge priority of the current root bridges for each VLAN. The bridge priority for the specified VLANs is set to 8192 if this value will cause the switch to become the root for the specified VLANs.

If any root switch for the specified VLANs has a bridge priority lower than 8192, the switch sets the bridge priority for the specified VLANs to 1 less than the lowest bridge priority.

For example, if all switches in the network have the bridge priority for VLAN 100 set to the default value of 32768, entering the spanning-tree vlan 100 root primary command on a switch will set the bridge priority for VLAN 100 to 8192, causing the switch to become the root bridge for VLAN 100.


Note The root switch for each instance of spanning tree should be a backbone or distribution switch. Do not configure an access switch as the spanning tree primary root.


Use the diameter keyword to specify the Layer 2 network diameter (that is, the maximum number of bridge hops between any two end stations in the Layer 2 network). When you specify the network diameter, the switch automatically picks an optimal hello time, forward delay time, and maximum age time for a network of that diameter, which can significantly reduce the spanning tree convergence time. You can use the hello keyword to override the automatically calculated hello time.


Note You should avoid configuring the hello time, forward delay time, and maximum age time manually after configuring the switch as the root bridge.


To configure the switch as the root, use the following commands in global configuration mode:


Command
Purpose

Step 1

Router(config)# [no] spanning-tree vlan vlan-id
root primary [diameter hops [hello-time seconds]]

Configures a switch as the root switch.

Use the no form of this command to restore the defaults.

Step 2

Router(config)# end

Exits configuration mode.

Configuring BackboneFast

You can enable BackboneFast to detect indirect link failures and to start the spanning-tree reconfiguration sooner.


Note If you use BackboneFast, you must enable it on all switches in the network. BackboneFast is not supported on Token Ring VLANs. This feature is supported for use with third-party switches.


Beginning in privileged EXEC mode, follow these steps to enable BackboneFast:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

spanning-tree backbonefast

Enables BackboneFast on the switch.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show spanning-tree vlan vlan-id

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To disable the BackboneFast feature, use the no spanning-tree backbonefast global configuration command.

Disabling Spanning Tree


Command
Purpose

Step 1

Router(config)# no spanning-tree vlan vlan-id

Disables spanning tree on a per-VLAN basis.

Step 2

Router(config)# end

Exits configuration mode.

Verifying that Spanning Tree is Disabled


Step 1 Use the show spanning-tree vlan command to verify the that the spanning tree is disabled:

Router# show spanning-tree vlan 200
<...output truncated...>
Spanning tree instance for VLAN 200 does not exist.
Router#

Configuring MAC Table Manipulation — Port Security

Enabling Known MAC Address Traffic

Creating a Static or Dynamic Entry in the MAC Address Table

Configuring Aging Timer-timer

Enabling Known MAC Address Traffic

To enable the MAC address secure option, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal


Step 2

Router# mac-address-table secure mac-address
fastethernet slot/port [vlan vlan id]

Secures the MAC address traffic on the port. Use the no form of this command to restore the defaults.

Step 3

Router(config)# end

Exits configuration mode.

Verifying the MAC Address Secure Configuration


Step 1 Use the show mac-address-table secure command to verify the configuration:

Router# show mac-address-table secure

Secure Address Table:
Destination Address  Address Type  VLAN  Destination Port
-------------------  ------------  ----  --------------------
0003.0003.0003          Secure 1  FastEthernet    2/8


Creating a Static or Dynamic Entry in the MAC Address Table

To create a static or dynamic entry in the mac address table, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal


Step 2

Router# mac-address-table [dynamic | static]
mac-address fastethernet slot/port [vlan vlan id>]

Creates static or dynamic entry in the MAC address table.

Step 3

Router(config)# end

Exits configuration mode.


Note Only the port where the link is up will see the dynamic entry validated in the Ethernet switch network module.


Verifying the MAC Address Table


Step 1 Use the show mac command to verify the MAC Address Table:

Router# show mac

Destination Address  Address Type  VLAN  Destination Port
-------------------  ------------  ----  --------------------
0001.6443.6440          Static       1      Vlan1
0004.c16d.9be1          Dynamic      1      FastEthernet2/13
0004.ddf0.0282          Dynamic      1      FastEthernet2/13
0006.0006.0006          Dynamic      1      FastEthernet2/13
001b.001b.ad45          Dynamic      1      FastEthernet2/13

Configuring Aging Timer-timer

To configure the aging timer, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# mac-address-table aging-time
seconds

Configures the MAC address aging-timer age in seconds

Step 3

Router(config)# end

Exits configuration mode.


Caution Cisco advises that you not change the aging timer because the Ethernet switch network module could go out of synchronization.

Verifying the Aging Timer


Step 1 Use the show mac-address-table aging-time command to verify the aging timer:

Router # show mac-address-table aging-time

Mac address aging time 23

Configuring Cisco Discovery Protocol

Enabling Cisco Discovery Protocol

Enabling CDP on an Interface

Enabling Cisco Discovery Protocol

To enable Cisco Discovery Protocol (CDP) globally, use the following command in global configuration mode:


Command
Purpose

Step 1

Router(config)# cdp run

Enables CDP globally.

Verifying the CDP Global Configuration


Step 1 Use the show cdp command to verify the CDP configuration:

Router# show cdp

Global CDP information:
        Sending CDP packets every 120 seconds
        Sending a holdtime value of 180 seconds
        Sending CDPv2 advertisements is enabled
Router#

Enabling CDP on an Interface

To enable CDP on an interface, use the following command in interface configuration mode:


Command
Purpose

Step 1

Router(config-if)# cdp enable

Enables CDP on an interface.

The following example shows how to enable CDP on Fast Ethernet interface 5/1:

Router(config)# interface fastethernet 5/1
Router(config-if)# cdp enable

Verifying the CDP Interface Configuration


Step 1 Use the show cdp interface command to verify the CDP configuration for an interface:

Router# show cdp interface fastethernet 5/1

FastEthernet5/1 is up, line protocol is up
  Encapsulation ARPA
  Sending CDP packets every 120 seconds
  Holdtime is 180 seconds
Router#

Verifying CDP Neighbors


Step 1 Use the show cdp neighbors command to verify information about the neighboring equipment:

Router# show cdp neighbors

Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                  S - Switch, H - Host, I - IGMP, r - Repeater
Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
JAB023807H1      Fas 5/3            127         T S       WS-C2948  2/46
JAB023807H1      Fas 5/2            127         T S       WS-C2948  2/45
JAB023807H1      Fas 5/1            127         T S       WS-C2948  2/44
JAB023807H1      Gig 1/2            122         T S       WS-C2948  2/50
JAB023807H1      Gig 1/1            122         T S       WS-C2948  2/49
JAB03130104      Fas 5/8            167         T S       WS-C4003  2/47
JAB03130104      Fas 5/9            152         T S       WS-C4003  2/48

Monitoring and Maintaining CDP

Command
Purpose

Router# clear cdp counters

Resets the traffic counters to zero.

Router# clear cdp table

Deletes the CDP table of information about neighbors.

Router# show cdp

Verifies global information such as frequency of transmissions and the holdtime for packets being transmitted.

Router# show cdp entry entry_name [protocol | version]

Verifies information about a specific neighbor. The display can be limited to protocol version information.

Router# show cdp interface [slot/port]

Verifies information about interfaces on which CDP is enabled.

Router# show cdp neighbors [slot/port] [detail]

Verifies information about neighbors. The display can be limited to neighbors on a specific interface and can be expanded to provide more detailed information.

Router# show cdp traffic

Verifies CDP counters, including the number of packets sent and received and checksum errors.


Configuring Switched Port Analyzer

Specifying the Switched Port Analyzer Session

Configuring SPAN Destinations

Removing Sources or Destinations from a SPAN Session

Specifying the Switched Port Analyzer Session

To configure the source for a Switched Port Analyzer (SPAN) session, use the following command in global configuration mode:


Command
Purpose

Step 1

Router(config)# monitor session {session-number} {source {interface slot/port} | {vlan vlan-id}} [, | - | rx | tx | both]

Specifies the SPAN session number (1 or 2), the source interfaces or VLANs, and the traffic direction to be monitored.


Note Multiple SPAN sessions can be configured. But only one SPAN session is supported at a time.


The following example shows how to configure SPAN session 1 to monitor bidirectional traffic from source interface Fast Ethernet 5/1:

Router(config)# monitor session 1 source interface fastethernet 5/1

Configuring SPAN Destinations

To configure the destination for a SPAN session, use the following command in global configuration mode:


Command
Purpose

Step 1

Router(config)# monitor session {session-number} {destination {interface type/num} [, | -] | {vlan vlan-id}}

Specifies the SPAN session number (1 or 2) and the destination interfaces or VLANs.

Removing Sources or Destinations from a SPAN Session

To remove sources or destinations from a SPAN session, use the following command in global configuration mode:


Command
Purpose

Step 1

Router(config)# no monitor session session-number

Clears existing SPAN configuration for a session.

Configuring Network Security with ACLs

Configuring ACLs on Layer 2 interfaces is the same as configuring ACLs on Cisco routers. The process is briefly described here. For more detailed information on configuring router ACLs, refer to the "Configuring IP Services" chapter in the Cisco IP Configuration Guide for Cisco IOS Release 12.2. For detailed information about the commands, refer to Cisco IOS IP Command Reference for Cisco IOS Release 12.2. For a list of Cisco IOS features not supported on the Ethernet switch network module, see the following section.

Unsupported Features

The Ethernet switch network module does not support these Cisco IOS router ACL-related features:

Non-IP protocol ACLs (see Table 11).

Bridge-group ACLs.

IP accounting.

ACL support on the outbound direction.

Inbound and outbound rate limiting (except with QoS ACLs).

IP packets with a header length of less than five are not be access-controlled.

Reflexive ACLs.

Dynamic ACLs.

ICMP-based filtering.

IGMP-based filtering.

Creating Standard and Extended IP ACLs

This section describes how to create switch IP ACLs. An ACL is a sequential collection of permit and deny conditions. The switch tests packets against the conditions in an access list one by one. The first match determines whether the switch accepts or rejects the packet. Because the switch stops testing conditions after the first match, the order of the conditions is critical. If no conditions match, the switch denies the packet.

An ACL must first be created by specifying an access list number or name and access conditions. The ACL can then be applied to interfaces or terminal lines.

The software supports these styles of ACLs or IP access lists:

Standard IP access lists use source addresses for matching operations.

Extended IP access lists use source and destination addresses for matching operations and optional protocol-type information for finer granularity of control.

The next sections describe access lists and the steps for using them.

ACL Numbers

The number you use to denote your ACL shows the type of access list that you are creating. Table 11 lists the access list number and corresponding type and shows whether or not they are supported by the switch. The Ethernet switch network module supports IP standard and IP extended access lists, numbers 1 to 199 and 1300 to 2699.

Table 11 Access List Numbers

ACL Number
Type
Supported

1-99

IP standard access list

Yes

100-199

IP extended access list

Yes

200-299

Protocol type-code access list

No

300-399

DECnet access list

No

400-499

XNS standard access list

No

500-599

XNS extended access list

No

600-699

AppleTalk access list

No

700-799

48-bit MAC address access list

No

800-899

IPX standard access list

No

900-999

IPX extended access list

No

1000-1099

IPX SAP access list

No

1100-1199

Extended 48-bit MAC address access list

No

1200-1299

IPX summary address access list

No

1300-1999

IP standard access list (expanded range)

Yes

2000-2699

IP extended access list (expanded range)

Yes



Note In addition to numbered standard and extended ACLs, you can also create standard and extended named IP ACLs by using the supported numbers. That is, the name of a standard IP ACL can be 1 to 99; the name of an extended IP ACL can be 100 to 199. The advantage of using named ACLs instead of numbered lists is that you can delete individual entries from a named list.



Note An attempt to apply an unsupported ACL feature to an interface produces an error message.


Creating a Numbered Standard ACL

Beginning in privileged EXEC mode, follow these steps to create a numbered standard ACL:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

access-list access-list-number {deny | permit | remark} {source source-wildcard | host source | any}

Defines a standard IP ACL by using a source address and wildcard.

The access-list-number is a decimal number from 1 to 99 or 1300 to 1999.

Enter deny or permit to specify whether to deny or permit access if conditions are matched.

The source is the source address of the network or host from which the packet is being sent:

The 32-bit quantity in dotted-decimal format.

The keyword any as an abbreviation for source and source-wildcard of 0.0.0.0 255.255.255.255. You do not need to enter a source-wildcard.

The keyword host as an abbreviation for source and source-wildcard of source 0.0.0.0.

(Optional) The source-wildcard applies wildcard bits to the source. (See first bullet item.)

Note The log option is not supported on Ethernet switch network modules.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show access-lists [number | name]

Displays the access list configuration.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

Use the no access-list access-list-number global configuration command to delete the entire ACL. You cannot delete individual ACEs from numbered access lists.


Note When creating an ACL, remember that, by default, the end of the ACL contains an implicit deny statement for all packets that it did not find a match for before reaching the end. With standard access lists, if you omit the ask from an associated IP host address ACL specification, 0.0.0.0 is assumed to be the mask.


Creating a Numbered Extended ACL

Although standard ACLs use only source addresses for matching, you can use an extended ACL source and destination addresses for matching operations and optional protocol type information for finer granularity of control. Some protocols also have specific parameters and keywords that apply to that protocol.

These IP protocols are supported (protocol keywords are in parentheses in bold): Internet Protocol (ip), Transmission Control Protocol (tcp), or User Datagram Protocol (udp).

Supported parameters can be grouped into these categories:

TCP

UDP

Table 12 lists the possible filtering parameters for ACEs for each protocol type.

Table 12 Filtering Parameter ACEs Supported by Different IP Protocols

Filtering Parameter
TCP
UDP
Layer 3 Parameters:



IP ToS byte1

No

No



Differentiated Services Code Point (DSCP)

No

No



IP source address

Yes

Yes



IP destination address

Yes

Yes



Fragments

No

No



TCP or UDP

Yes

Yes

Layer 4 Parameters



Source port operator

Yes

Yes



Source port

Yes

Yes



Destination port operator

Yes

Yes



Destination port

Yes

Yes



TCP flag

No

No

1 No support for type of service (TOS) minimize monetary cost bit.


For more details on the specific keywords relative to each protocol, refer to the Cisco IP Command Reference for Cisco IOS Release 12.2.


Note The Ethernet switch network module does not support dynamic or reflexive access lists. It also does not support filtering based on the minimize-monetary-cost type of service (TOS) bit.


When creating ACEs in numbered extended access lists, remember that after you create the list, any additions are placed at the end of the list. You cannot reorder the list or selectively add or remove ACEs from a numbered list.

Beginning in privileged EXEC mode, follow these steps to create an extended ACL:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

access-list access-list-number
{deny | permit | remark} protocol
{source source-wildcard | host source | any} [operator port] {destination destination-wildcard | host destination | any} [operator port]

Defines an extended IP access list and the access conditions.

The access-list-number is a decimal number from 100 to 199 or 2000 to 2699.

Enter deny or permit to specify whether to deny or permit the packet if conditions are matched.

For protocol, enter the name or number of an IP protocol: ip, tcp, or udp. To match any Internet protocol (including TCP and UDP), use the keyword ip.

Note This step includes options for most IP protocols.

The source is the number of the network or host from which the packet is sent.

The source-wildcard applies wildcard bits to the source.

The destination is the network or host number to which the packet is sent.

Defines a destination or source port.

The operator can be only eq (equal).

If operator is after source source-wildcard, conditions match when the source port matches the defined port.

If operator is after destination destination-wildcard, conditions match when the destination port matches the defined port.

The port is a decimal number or name of a TCP or UDP port. The number can be from 0 to 65535.

Use TCP port names only for TCP traffic.

Use UDP port names only for UDP traffic.

The destination-wildcard applies wildcard bits to the destination.

Source, source-wildcard, destination, and destination-wildcard can be specified in three ways:

The 32-bit quantity in dotted-decimal format.

The keyword any as an abbreviation for source and source-wildcard of 0.0.0.0 255.255.255.255 or any source host.

The keyword host, followed by the 32-bit quantity in dotted-decimal format, as an abbreviation for a single host with source and source-wildcard of source 0.0.0.0.

Note Only the ip, tcp, and udp protocols are supported on Ethernet switch interfaces.

Step 3

show access-lists [number | name]

Verifies the access list configuration.

Step 4

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

Use the no access-list access-list-number global configuration command to delete the entire access list. You cannot delete individual ACEs from numbered access lists.

After an ACL is created, any additions (possibly entered from the terminal) are placed at the end of the list. You can add ACEs to an ACL, but deleting any ACE deletes the entire ACL.


Note When creating an ACL, remember that, by default, the end of the access list contains an implicit deny statement for all packets if it did not find a match before reaching the end.


After creating an ACL, you must apply it to an interface, as described in the "Applying the ACL to an Interface" section.

Creating Named Standard and Extended ACLs

You can identify IP ACLs with an alphanumeric string (a name) rather than a number. You can use named ACLs to configure more IP access lists on a switch than if you use numbered access lists. If you identify your access list with a name rather than a number, the mode and command syntax are slightly different. However, not all commands that use IP access lists accept a named ACL.


Note The name you give to a standard ACL or extended ACL can also be a number in the supported range of access list numbers. That is, the name of a standard IP ACL can be 1 to 99; the name of an extended IP ACL can be 100 to 199. The advantage of using named ACLs instead of numbered lists is that you can delete individual entries from a named list.


Consider these guidelines and limitations before configuring named ACLs:

A standard ACL and an extended ACL cannot have the same name.

Numbered ACLs are also available, as described in the "Creating Standard and Extended IP ACLs" section.

Beginning in privileged EXEC mode, follow these steps to create a standard access list using names:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

ip access-list standard {name | access-list-number}

Defines a standard IP access list using a name, and enter access-list configuration mode.

Note The name can be a number from 1 to 99.

Step 3

deny {source source-wildcard | host source | any}

or

permit {source source-wildcard | host source | any}

In access-list configuration mode, specifies one or more conditions denied or permitted to determine if the packet is forwarded or dropped.

host source represents a source and source wildcard of source 0.0.0.0.

any represents a source and source wildcard of 0.0.0.0 255.255.255.255.

Note The log option is not supported on Ethernet switch interfaces.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show access-lists [number | name]

Displays the access list configuration.

Step 6

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

Beginning in privileged EXEC mode, follow these steps to create an extended ACL using names:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

ip access-list extended {name | access-list-number}

Defines an extended IP access list by using a name, and enter access-list configuration mode.

Note The name can be a number from 100 to 199.

Step 3

{deny | permit} protocol
{source source-wildcard | host source | any} [operator port] {destination destination-wildcard | host destination | any} [operator port]

In access-list configuration mode, specifies the conditions allowed or denied.

See the "Creating a Numbered Extended ACL" section for definitions of protocols and other keywords.

host source represents a source and source wildcard of source 0.0.0.0, and host destination represents a destination and destination wildcard of destination 0.0.0.0.

any represents a source and source wildcard or destination and destination wildcard of 0.0.0.0 255.255.255.255.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show access-lists [number | name]

Displays the access list configuration.

Step 6

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

When making the standard and extended ACL, remember that, by default, the end of the ACL contains an implicit deny statement for everything if it did not find a match before reaching the end. For standard ACLs, if you omit the mask from an associated IP host address access list specification, 0.0.0.0 is assumed to be the mask.

After you create an ACL, any additions are placed at the end of the list. You cannot selectively add ACEs to a specific ACL. However, you can use no permit and no deny commands to remove ACEs from a named ACL. Being able to selectively remove lines from a named ACL is one reason you might use named ACLs instead of numbered ACLs.

After creating an ACL, you must apply it to a line or interface, as described in the "Applying the ACL to an Interface" section.

Including Comments About Entries in ACLs

You can use the remark command to include comments (remarks) about entries in any IP standard or extended ACL. The remarks make the ACL easier for you to understand and scan. Each remark line is limited to 100 characters.

The remark can go before or after a permit or deny statement. You should be consistent about where you put the remark so that it is clear which remark describes which permit or deny statement. For example, it would be confusing to have some remarks before the associated permit or deny statements and some remarks after the associated statements.

For IP numbered standard or extended ACLs, use the access-list access-list number remark remark global configuration command to include a comment about an access list. To remove the remark, use the no form of this command.

For an entry in a named IP ACL, use the remark access-list global configuration command. To remove the remark, use the no form of this command.

Applying the ACL to an Interface

After you create an ACL, you can apply it to one or more interfaces. ACLs can be applied on inbound interfaces. This section describes how to accomplish this task for network interfaces. Note these guidelines:

When controlling access to a line, you must use a number. Numbered ACLs can be applied to lines.

When controlling access to an interface, you can use a name or number.

Beginning in privileged EXEC mode, follow these steps to control access to a Layer 2 or Layer 3 interface:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface-id

Identifies a specific interface for configuration and enter interface configuration mode.

The interface must be a Layer 2 interface or routed port.

Step 3

ip access-group {access-list-number | name} {in}

Controls access to the specified interface.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show running-config

Displays the access list configuration.

Step 6

copy running-config startup-config

(Optional) Saves your entries in the configuration file.


Note The ip access-group interface configuration command is only valid when applied to a Layer 2 interface or a Layer 3 interface. If applied to a Layer 3 interface, the interface must have been configured with an IP address. ACLs cannot be applied to interface port-channels.


For inbound ACLs, after receiving a packet, the switch checks the packet against the ACL. If the ACL permits the packet, the switch continues to process the packet. If the ACL rejects the packet, the switch discards the packet.

When you apply an undefined ACL to an interface, the switch acts as if the ACL has not been applied to the interface and permits all packets. Remember this behavior if you use undefined ACLs for network security.

Displaying ACLs

You can display existing ACLs by using show commands.

Beginning in privileged EXEC mode, follow these steps to display access lists:


Command
Purpose

Step 1

show access-lists [number | name]

Displays information about all IP access lists or about a specific access list (numbered or named).

Step 2

show ip access-list [number | name]

Displays information about all IP address access lists or about a specific IP ACL (numbered or named).

Configuring Quality of Service (QoS)

Before configuring QoS, you must have a thorough understanding of these items:

The types of applications used and the traffic patterns on your network.

Traffic characteristics and needs of your network. Is the traffic bursty? Do you need to reserve bandwidth for voice and video streams?

Bandwidth requirements and speed of the network.

Location of congestion points in the network.

This section describes how to configure QoS on your Ethernet switch network module:

Understanding the Default QoS Configuration

Configuring Classification Using Port Trust States

Configuring a QoS Policy

Configuring CoS Maps

Displaying QoS Information

Understanding the Default QoS Configuration

The default port CoS value is 0.

The default port trust state is untrusted.

No policy maps are configured.

No policers are configured.

The default CoS-to-DSCP map is shown in Table 13.

The default DSCP-to-CoS map is shown in Table 14.

Configuration Guidelines

Before beginning the QoS configuration, you should be aware of this information:

If you have EtherChannel ports configured on your switch, you must configure QoS classification, policing, mapping, and queueing on the individual physical ports that comprise the EtherChannel. You must decide whether the QoS configuration should match on all ports in the EtherChannel.

It is not possible to match IP fragments against configured IP extended ACLs to enforce QoS. IP fragments are transmitted as best-effort. IP fragments are denoted by fields in the IP header.

Control traffic (such as spanning-tree Bridge Protocol Data Units (BPDUs) and routing update packets) received by the switch are subject to all ingress QoS processing.

Only one ACL per class map and only one match command per class map are supported. The ACL can have multiple access control entries, which are commands that match fields against the contents of the packet.

Policy maps with ACL classification in the egress direction are not supported and cannot be attached to an interface by using the service-policy input policy-map-name interface configuration command.

In a policy map, the class named class-default is not supported. The switch does not filter traffic based on the policy map defined by the class class-default policy-map configuration command.

For more information on guidelines for configuring ACLs, see the "Classification Based on QoS ACLs" section.

Configuring Classification Using Port Trust States

This section describes how to classify incoming traffic by using port trust states:

Configuring the Trust State on Ports and SVIs within the QoS Domain

Configuring the CoS Value for an Interface

Configuring the Trust State on Ports and SVIs within the QoS Domain

Packets entering a QoS domain are classified at the edge of the QoS domain. When the packets are classified at the edge, the switch port within the QoS domain can be configured to one of the trusted states because there is no need to classify the packets at every switch within the QoS domain. Figure 20 shows a sample network topology.

Figure 20 Port Trusted States within the QoS Domain

Beginning in privileged EXEC mode, follow these steps to configure the port to trust the classification of the traffic that it receives:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface-id

Enters interface configuration mode and specify the interface to be trusted.

Valid interfaces include physical interfaces and SVIs.

Step 3

mls qos trust {cos | dscp}

Configures the port trust state.

By default, the port is not trusted.

Use the cos keyword setting if your network is composed of Ethernet LANs, Catalyst 2950 switches, and has no more than two types of traffic.

Use the dscp keyword if your network is not composed of only Ethernet LANs and if you are familiar with sophisticated QoS features and implementations.

Enter the cos keyword if you want ingress packets to be classified with the packet CoS values. For tagged IP packets, the DSCP value of the packet is modified based on the CoS-to-DSCP map. The egress queue assigned to the packet is based on the packet CoS value.

Enter the dscp keyword if you want ingress packets to be classified with packet DSCP values. For non-IP packets, the packet CoS value is used for tagged packets; the default port CoS is used for untagged packets. Internally, the switch modifies the CoS value by using the DSCP-to-CoS map.

Enter the dscp keyword if you are using an SVI that is a VLAN interface that you created by using the interface vlan vlan-id global configuration command. The DCSP-to-CoS map will be applied to packets arriving from a router to the Ethernet switch network module through an SVI.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show mls qos interface [interface-id] [policers]

Verifies your entries.

Step 6

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To return a port to its untrusted state, use the no mls qos trust interface configuration command.

For information on how to change the default CoS value, see the "Configuring the CoS Value for an Interface" section. For information on how to configure the CoS-to-DSCP map, see the "Configuring the CoS-to-DSCP Map" section.

Configuring the CoS Value for an Interface

QoS assigns the CoS value specified with the mls qos cos interface configuration command to untagged frames received on trusted and untrusted ports.

Beginning in privileged EXEC mode, follow these steps to define the default CoS value of a port or to assign the default CoS to all incoming packets on the port:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface-id

Enters interface configuration mode, and specify the interface to be trusted.

Valid interfaces include physical interfaces.

Step 3

mls qos cos {default-cos | override}

Configures the default CoS value for the port.

For default-cos, specify a default CoS value to be assigned to a port. If the port is CoS trusted and packets are untagged, the default CoS value becomes the CoS value for the packet. The CoS range is 0 to 7. The default is 0.

Use the override keyword to override the previously configured trust state of the incoming packets and to apply the default port CoS value to all incoming packets. By default, CoS override is disabled.

Use the override keyword when all incoming packets on certain ports deserve higher priority than packets entering from other ports. Even if a port was previously set to trust DSCP, this command overrides the previously configured trust state, and all the incoming CoS values are assigned the default CoS value configured with this command. If an incoming packet is tagged, the CoS value of the packet is modified with the default CoS of the port at the ingress port.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show mls qos interface

Verifies your entries.

Step 6

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To return to the default setting, use the no mls qos cos {default-cos | override} interface configuration command.


Note The mls qos cos command replaced the switchport priority command in Cisco IOS Release 12.1(6)EA2.


Configuring a QoS Policy

Configuring a QoS policy typically requires classifying traffic into classes, configuring policies applied to those traffic classes, and attaching policies to interfaces.

For background information, see the "Classification" section and the "Policing and Marking" section.

This section contains this configuration information:

Classifying Traffic by Using ACLs

Classifying Traffic by Using Class Maps

Classifying, Policing, and Marking Traffic by Using Policy Maps

Classifying Traffic by Using ACLs

You can classify IP traffic by using IP standard or IP extended ACLs.

Beginning in privileged EXEC mode, follow these steps to create an IP standard ACL for IP traffic:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

access-list access-list-number {deny | permit | remark} {source source-wildcard | host source | any}

Creates an IP standard ACL, repeating the command as many times as necessary.

For access-list-number, enter the ACL number. The range is 1 to 99 and 1300 to 1999.

Enter deny or permit to specify whether to deny or permit access if The source is the source address of the network or host from which the packet is being sent, specified in one of three ways:

The 32-bit quantity in dotted-decimal format.

The keyword any as an abbreviation for source and source-wildcard of 0.0.0.0 255.255.255.255. You do not need to enter a source-wildcard.

The keyword host as an abbreviation for source and source-wildcard of source 0.0.0.0.

(Optional) The source-wildcard applies wildcard bits to the source (see first bullet item).

Note Deny statements are not supported for QoS ACLS. See the "Classification Based on QoS ACLs" section for more details.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show access-lists

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To delete an ACL, use the no access-list access-list-number global configuration command.


Beginning in privileged EXEC mode, follow these steps to create an IP extended ACL for IP traffic:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

access-list access-list-number
{deny | permit | remark} protocol
{source source-wildcard | host source | any}[operator port] {destination destination-wildcard | host destination | any} [operator port]

Creates an IP extended ACL, repeating the command as many times as necessary.

For access-list-number, enter the ACL number. The range is 100 to 199 and 2000 to 2699.

Enter deny or permit to specify whether to deny or permit access if conditions are matched.

For protocol, enter the name or number of an IP protocol. Use the question mark (?) to see a list of available protocol keywords.

For source, enter the network or host from which the packet is being sent. You specify this by using dotted decimal notation by using the any keyword as an abbreviation for source 0.0.0.0 source-wildcard 255.255.255.255, or by using the host keyword for source 0.0.0.0.

For source-wildcard, enter the wildcard bits by placing ones in the bit positions that you want to ignore. You specify the wildcard by using dotted decimal notation, by using the any keyword as an abbreviation for source 0.0.0.0 source-wildcard 255.255.255.255, or by using the host keyword for source 0.0.0.0.

For destination, enter the network or host to which the packet is being sent. You have the same options for specifying the destination and destination-wildcard as those described by source and source-wildcard.

Defines a destination or source port.

The operator can be only eq (equal).

If operator is after source source-wildcard, conditions match when the source port matches the defined port.

If operator is after destination destination-wildcard, conditions match when the destination port matches the defined port.

The port is a decimal number or name of a TCP or UDP port. The number can be from 0 to 65535.

Use TCP port names only for TCP traffic.

Use UDP port names only for UDP traffic.

Note Deny statements are not supported for QoS ACLS. See the "Classification Based on QoS ACLs" section for more details.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show access-lists

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To delete an ACL, use the no access-list access-list-number global configuration command.

Classifying Traffic by Using Class Maps

You use the class-map global configuration command to isolate a specific traffic flow (or class) from all other traffic and to name it. The class map defines the criteria to use to match against a specific traffic flow to further classify it. Match statements can include criteria such as an ACL. The match criterion is defined with one match statement entered within the class-map configuration mode.


Note You can also create class maps during policy map creation by using the class policy-map configuration command. For more information, see the "Classifying, Policing, and Marking Traffic by Using Policy Maps" section.


Beginning in privileged EXEC mode, follow these steps to create a class map and to define the match criterion to classify traffic:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

access-list access-list-number {deny | permit} {source source-wildcard | host source | any}

or

access-list access-list-number
{deny | permit | remark} protocol
{source source-wildcard | host source | any} [operator port] {destination destination-wildcard | host destination | any} [operator port]

Creates an IP standard or extended ACL for IP traffic, repeating the command as many times as necessary.

For more information, see the "Classifying Traffic by Using ACLs" section.

Note Deny statements are not supported for QoS ACLS. See the "Classification Based on QoS ACLs" section for more details.

Step 3

class-map class-map-name

Creates a class map, and enter class-map configuration mode.

By default, no class maps are defined.

For class-map-name, specify the name of the class map.

Step 4

match access-group acl-index-or-name

Defines the match criterion to classify traffic.

By default, no match criterion is supported.

Only one match criterion per class map is supported, and only one ACL per class map is supported.

For access-group acl-index-or-name, specify the number or name of the ACL created in Step 3.

Step 5

end

Returns to privileged EXEC mode.

Step 6

show class-map [class-map-name]

Verifies your entries.

Step 7

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To delete an existing class map, use the no class-map class-map-name global configuration command. To remove a match criterion, use the no match access-group acl-index-or-name class-map configuration command.

Classifying, Policing, and Marking Traffic by Using Policy Maps

A policy map specifies which traffic class to act on. Actions can include trusting the CoS or DSCP values in the traffic class; setting a specific DSCP value in the traffic class; and specifying the traffic bandwidth limitations for each matched traffic class (policer) and the action to take when the traffic is out of profile (marking).

A separate policy-map class can exist for each type of traffic received through an interface. You can attach only one policy map per interface in the input direction.

Beginning in privileged EXEC mode, follow these steps to create a policy map:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

access-list access-list-number {deny | permit} {source source-wildcard | host source | any}

or

access-list access-list-number
{deny | permit | remark} protocol
{source source-wildcard | host source | any}[operator port] {destination destination-wildcard | host destination | any} [operator port]

Creates an IP standard or extended ACL for IP traffic, repeating the command as many times as necessary.

For more information, see the "Classifying Traffic by Using ACLs" section.

Note Deny statements are not supported for QoS ACLS. See the "Classification Based on QoS ACLs" section for more details.

Step 3

policy-map policy-map-name

Creates a policy map by entering the policy map name, and enter policy-map configuration mode.

By default, no policy maps are defined.

The default behavior of a policy map is to set the DSCP to 0 if the packet is an IP packet and to set the CoS to 0 if the packet is tagged. No policing is performed.

Step 4

class class-map-name [access-group acl-index-or-name]

Defines a traffic classification, and enter policy-map class configuration mode.

By default, no policy map class maps are defined.

If a traffic class has already been defined by using the class-map global configuration command, specify its name for class-map-name in this command.

For access-group acl-index-or-name, specify the number or name of the ACL created in Step 2.

Note In a policy map, the class named class-default is not supported. The switch does not filter traffic based on the policy map defined by the class class-default policy-map configuration command.

Step 5

police {bps | cir bps} [burst-byte | bc burst-byte] conform-action transmit [exceed-action {drop | dscp dscp-value}]

Defines a policer for the classified traffic.

You can configure up to 60 policers on ingress Gigabit-capable Ethernet ports and up to 6 policers on ingress 10/100 Ethernet ports.

For bps, specify average traffic rate or committed information rate in bits per second (bps). The range is 1 Mbps to 100 Mbps for 10/100 Ethernet ports and 8 Mbps to 1000 Mbps for the Gigabit-capable Ethernet ports.

For burst-byte, specify the normal burst size or burst count in bytes.

(Optional) Specify the action to take when the rates are exceeded. Use the exceed-action drop keywords to drop the packet. Use the exceed-action dscp dscp-value keywords to mark down the DSCP value and transmit the packet.

Step 6

exit

Returns to policy-map configuration mode.

Step 7

exit

Returns to global configuration mode.

Step 8

interface interface-id

Enters interface configuration mode, and specify the interface to attach to the policy map.

Valid interfaces include physical interfaces.

Step 9

service-policy input policy-map-name

Applies a policy map to the input of a particular interface.

Only one policy map per interface per direction is supported.

Use input policy-map-name to apply the specified policy map to the input of an interface.

Step 10

end

Returns to privileged EXEC mode.

Step 11

show policy-map [policy-map-name class class-name]

Verifies your entries.

Step 12

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To delete an existing policy map, use the no policy-map policy-map-name global configuration command. To delete an existing class map, use the no class class-map-name policy-map configuration command. To remove an existing policer, use the no police rate-bps burst-byte [exceed-action {drop | dscp dscp-value}] policy-map configuration command. To remove the policy map and interface association, use the no service-policy input policy-map-name interface configuration command.

Configuring CoS Maps

This section describes how to configure the DSCP maps:

Configuring the CoS-to-DSCP Map

Configuring the DSCP-to-CoS Map

All the maps are globally defined.

Configuring the CoS-to-DSCP Map

You use the CoS-to-DSCP map to map CoS values in incoming packets to a DSCP value that QoS uses internally to represent the priority of the traffic.

Table 13 shows the default CoS-to-DSCP map.

Table 13 Default CoS-to-DSCP Map

CoS value

0

1

2

3

4

5

6

7

DSCP value

0

8

16

26

32

46

48

56


If these values are not appropriate for your network, you need to modify them. These CoS-to-DSCP mapping numbers follow the numbers used in deploying Cisco AVVID and may be different from the mapping numbers used by the Catalyst 2950, Catalyst 3550, and other switches.

Beginning in privileged EXEC mode, follow these steps to modify the CoS-to-DSCP map:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

mls qos map cos-dscp dscp1...dscp8

Modifies the CoS-to-DSCP map.

For dscp1...dscp8, enter 8 DSCP values that correspond to CoS values 0 to 7. Separate each DSCP value with a space.

The supported DSCP values are 0, 8, 10, 16, 18, 24, 26, 32, 34, 40, 46, 48, and 56.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show mls qos maps cos-dscp

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To return to the default map, use the no mls qos map cos-dscp global configuration command.

Configuring the DSCP-to-CoS Map

You use the DSCP-to-CoS map to map DSCP values in incoming packets to a CoS value, which is used to select one of the four egress queues.

The Ethernet switch network modules support these DSCP values: 0, 8, 10, 16, 18, 24, 26, 32, 34, 40, 46, 48, and 56.

Table 14 shows the default DSCP-to-CoS map.

Table 14 Default DSCP-to-CoS Map

DSCP values

0

8, 10

16, 18

24, 26

32, 34

40, 46

48

56

CoS values

0

1

2

3

4

5

6

7


If these values are not appropriate for your network, you need to modify them.

Beginning in privileged EXEC mode, follow these steps to modify the DSCP-to-CoS map:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

mls qos map dscp-cos dscp-list to cos

Modifies the DSCP-to-CoS map.

For dscp-list, enter up to 13 DSCP values separated by spaces. Then enter the to keyword.

For cos, enter the CoS value to which the DSCP values correspond.

The supported DSCP values are 0, 8, 10, 16, 18, 24, 26, 32, 34, 40, 46, 48, and 56. The CoS range is 0 to 7.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show mls qos maps dscp-to-cos

Verifies your entries.

Step 5

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To return to the default map, use the no mls qos map dscp-cos global configuration command.

Displaying QoS Information

To display the current QoS information, use one or more of the privileged EXEC commands in Table 15:

Table 15 Commands for Displaying QoS Information

Command
Purpose

show class-map [class-map-name]

Displays QoS class maps, which define the match criteria to classify traffic.

show policy-map [policy-map-name [class class-name]]

Displays QoS policy maps, which define classification criteria for incoming traffic.

show mls qos maps [cos-dscp | dscp-cos]

Displays QoS mapping information. Maps are used to generate an internal DSCP value, which represents the priority of the traffic.

show mls qos interface [interface-id] [policers]

Displays QoS information at the interface level.

show mls masks [qos | security]

Displays details regarding the masks1 used for QoS and security ACLs.

1 Access Control Parameters are called masks in the switch CLI commands and output.


Configuring Power Management on the Interface

To manage the powering of the Cisco IP phones, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# int fastethernet port/slot

Selects a particular Fast Ethernet interface for configuration.

Step 3

Router(config)# power inline {auto | never}

Configures the port to supply inline power automatically to a Cisco IP phone. Use never to permanently disable inline power on the port.

Verifying Power Management on the Interface


Step 1 Use the show power inline command to verify the power configuration on the ports:

Router# show power inline

PowerSupply   SlotNum.   Maximum   Allocated       Status
-----------   --------   -------   ---------       ------
 EXT-PS          1       165.000    20.000         PS1 GOOD PS2 ABSENT

Interface           Config   Phone    Powered    PowerAllocated
---------           ------   -----    -------    --------------
FastEthernet1/0      auto    no          off      0.000 Watts
FastEthernet1/1      auto    no          off      0.000 Watts
FastEthernet1/2      auto    no          off      0.000 Watts
FastEthernet1/3      auto    no          off      0.000 Watts
FastEthernet1/4      auto    unknown     off      0.000 Watts
FastEthernet1/5      auto    unknown     off      0.000 Watts
FastEthernet1/6      auto    unknown     off      0.000 Watts
FastEthernet1/7      auto    unknown     off      0.000 Watts
FastEthernet1/8      auto    unknown     off      0.000 Watts
FastEthernet1/9      auto    unknown     off      0.000 Watts
FastEthernet1/10     auto    unknown     off      0.000 Watts
FastEthernet1/11     auto    yes         on       6.400 Watts
FastEthernet1/12     auto    yes         on       6.400 Watts
FastEthernet1/13     auto    no          off      0.000 Watts
FastEthernet1/14     auto    unknown     off      0.000 Watts
FastEthernet1/15     auto    unknown     off      0.000 Watts

Configuring IP Multicast Layer 3 Switching

These sections describe how to configure IP multicast Layer 3 switching:

Enabling IP Multicast Routing Globally

Enabling IP PIM on Layer 3 Interfaces

Verifying IP Multicast Layer 3 Hardware Switching Summary

Verifying the IP Multicast Routing Table

Enabling IP Multicast Routing Globally

You must enable IP multicast routing globally before you can enable IP multicast Layer 3 switching on Layer 3 interfaces.

For complete information and procedures, refer to these publications:

Cisco IOS IP Configuration Guide, Release 12.2, at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fipr_c/

Cisco IOS IP Command Reference, Volume 1 of 3: Addressing and Services, Release 12.2 at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fipras_r/index.htm

Cisco IOS IP Command Reference, Volume 2 of 3: Routing Protocols, Release 12.2 at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fiprrp_r/index.htm

Cisco IOS IP Command Reference, Volume 3 of 3: Multicast, Release 12.2 at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fiprmc_r/index.htm

To enable IP multicast routing globally, Use the following command in global configuration mode:

Command
Purpose

Router(config)# ip multicast-routing

Enables IP multicast routing globally.


Enabling IP PIM on Layer 3 Interfaces

You must enable PIM on the Layer 3 interfaces before IP multicast Layer 3 switching functions on those interfaces.

To enable IP PIM on a Layer 3 interface, use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface vlan vlan-id
slot/port

Selects the interface to be configured.

Step 2

Router(config-if)# ip pim {dense-mode |
sparse-mode | sparse-dense-mode}

Enables IP PIM on a Layer 3 interface.

The following example shows how to enable PIM on an interface using the default mode (sparse-dense-mode):

Router(config-if)# ip pim
Router(config-if)#

The following example shows how to enable PIM sparse mode on an interface:

Router(config-if)# ip pim sparse-mode
Router(config-if)#

Verifying IP Multicast Layer 3 Hardware Switching Summary


Note The show interface statistics command does not verify hardware-switched packets, only packets switched by software.


The show ip pim interface count command verifies the IP multicast Layer 3 switching enable state on IP PIM interfaces and the number of packets received and sent on the interface.

Use the following show commands to verify IP multicast Layer 3 switching information for an IP PIM Layer 3 interface:


Step 1 Router# show ip pim interface count


State:* - Fast Switched, D - Distributed Fast Switched
      H - Hardware Switching Enabled
Address          Interface          FS  Mpackets In/Out
10.15.1.20       GigabitEthernet4/8 * H 952/4237130770
10.20.1.7        GigabitEthernet4/9 * H 1385673757/34
10.25.1.7        GigabitEthernet4/10* H 0/34
10.11.1.30       FastEthernet6/26   * H 0/0
10.37.1.1        FastEthernet6/37   * H 0/0
1.22.33.44       FastEthernet6/47   * H 514/68

Step 2 Router# show ip mroute count


IP Multicast Statistics
56 routes using 28552 bytes of memory
13 groups, 3.30 average sources per group
Forwarding Counts:Pkt Count/Pkts per second/Avg Pkt Size/Kilobits per second
Other counts:Total/RPF failed/Other drops(OIF-null, rate-limit etc)

Group:224.2.136.89, Source count:1, Group pkt count:29051
  Source:132.206.72.28/32, Forwarding:29051/-278/1186/0, Other:85724/8/56665
Router#

Note The negative counter means that the outgoing interface list of the corresponding entry is NULL, and this indicates that this flow is still active.


Step 3 Router# show ip interface vlan 10


Vlan10 is up, line protocol is up
  Internet address is 10.0.0.6/8
  Broadcast address is 255.255.255.255
  Address determined by non-volatile memory
  MTU is 1500 bytes
  Helper address is not set
  Directed broadcast forwarding is disabled
  Multicast reserved groups joined: 224.0.0.1 224.0.0.2 224.0.0.13 224.0.0.10
  Outgoing access list is not set
  Inbound  access list is not set
  Proxy ARP is enabled
  Security level is default
  Split horizon is enabled
  ICMP redirects are always sent
  ICMP unreachables are never sent
  ICMP mask replies are never sent
  IP fast switching is enabled
  IP fast switching on the same interface is disabled
  IP Flow switching is disabled
  IP CEF switching is enabled
  IP Fast switching turbo vector
  IP Normal CEF switching turbo vector
  IP multicast fast switching is enabled
  IP multicast distributed fast switching is disabled
  IP route-cache flags are Fast, CEF
  Router Discovery is disabled
  IP output packet accounting is disabled
  IP access violation accounting is disabled
  TCP/IP header compression is disabled
  RTP/IP header compression is disabled
  Probe proxy name replies are disabled
  Policy routing is disabled
  Network address translation is disabled
  WCCP Redirect outbound is disabled
  WCCP Redirect exclude is disabled
  BGP Policy Mapping is disabled
IP multicast multilayer switching is enabled
IP mls switching is enabled
Router#

Verifying the IP Multicast Routing Table


Step 1 Use the show ip mroute command to verify the IP multicast routing table:

Router# show ip mroute 230.13.13.1

IP Multicast Routing Table
Flags:D - Dense, S - Sparse, s - SSM Group, C - Connected, L - Local,
       P - Pruned, R - RP-bit set, F - Register flag, T - SPT-bit set,
       J - Join SPT, M - MSDP created entry, X - Proxy Join Timer Running
       A - Advertised via MSDP, U - URD, I - Received Source Specific Host
           Report
Outgoing interface flags:H - Hardware switched
Timers:Uptime/Expires
Interface state:Interface, Next-Hop or VCD, State/Mode

(*, 230.13.13.1), 00:16:41/00:00:00, RP 10.15.1.20, flags:SJC
  Incoming interface:GigabitEthernet4/8, RPF nbr 10.15.1.20
  Outgoing interface list:
 GigabitEthernet4/9, Forward/Sparse-Dense, 00:16:41/00:00:00, H

(*, 230.13.13.2), 00:16:41/00:00:00, RP 10.15.1.20, flags:SJC
 Incoming interface:GigabitEthernet4/8, RPF nbr 10.15.1.20, RPF-MFD
  Outgoing interface list:
    GigabitEthernet4/9, Forward/Sparse-Dense, 00:16:41/00:00:00, H

(10.20.1.15, 230.13.13.1), 00:14:31/00:01:40, flags:CJT
 Incoming interface:GigabitEthernet4/8, RPF nbr 10.15.1.20, RPF-MFD
  Outgoing interface list:
    GigabitEthernet4/9, Forward/Sparse-Dense, 00:14:31/00:00:00, H
(132.206.72.28, 224.2.136.89), 00:14:31/00:01:40, flags:CJT
  Incoming interface:GigabitEthernet4/8, RPF nbr 10.15.1.20, RPF-MFD
 Outgoing interface list:Null
Router#

Note The RPF-MFD flag indicates that the flow is completely hardware switched. The H flag indicates that the flow is hardware-switched on the outgoing interface.


Configuring IGMP Snooping

This section describes how to configure IGMP snooping on your router and consists of the following configuration information and procedures:

Enabling or Disabling IGMP Snooping

Enabling IGMP Immediate-Leave Processing

Statically Configuring an Interface to Join a Group

Configuring a Multicast Router Port

Enabling or Disabling IGMP Snooping

By default, IGMP snooping is globally enabled on the Ethernet switch network module. When globally enabled or disabled, it is also enabled or disabled in all existing VLAN interfaces. By default, IGMP snooping is enabled on all VLANs, but it can be enabled and disabled on a per-VLAN basis.

Global IGMP snooping overrides the per-VLAN IGMP snooping capability. If global snooping is disabled, you cannot enable VLAN snooping. If global snooping is enabled, you can enable or disable snooping on a VLAN basis.

Beginning in privileged EXEC mode, follow these steps to globally enable IGMP snooping on the Ethernet switch network module:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

ip igmp snooping

Globally enables IGMP snooping in all existing VLAN interfaces.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show ip igmp snooping

Displays snooping configuration.

Step 5

copy running-config startup-config

(Optional) Saves your configuration to the startup configuration.

To globally disable IGMP snooping on all VLAN interfaces, use the no ip igmp snooping global command.

Beginning in privileged EXEC mode, follow these steps to enable IGMP snooping on a VLAN interface:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

ip igmp snooping vlan vlan-id

Enables IGMP snooping on the VLAN interface.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show ip igmp snooping [vlan vlan-id]

Displays snooping configuration.

(Optional) vlan-id is the number of the VLAN.

Step 5

copy running-config startup-config

(Optional) Saves your configuration to the startup configuration.

To disable IGMP snooping on a VLAN interface, use the no ip igmp snooping vlan vlan-id global configuration command for the specified VLAN number (for example, vlan1).

Enabling IGMP Immediate-Leave Processing

When you enable IGMP Immediate-Leave processing, the Ethernet switch network module immediately removes a port from the IP multicast group when it detects an IGMP version 2 leave message on that port. Immediate-Leave processing allows the switch to remove an interface that sends a leave message from the forwarding table without first sending out group-specific queries to the interface. You should use the Immediate-Leave feature only when there is only a single receiver present on every port in the VLAN.

Beginning in privileged EXEC mode, follow these steps to enable IGMP Immediate-Leave processing:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

ip igmp snooping vlan vlan-id immediate-leave

Enables IGMP Immediate-Leave processing on the VLAN interface.

Step 3

end

Returns to privileged EXEC mode.

To disable Immediate-Leave processing, follow Steps 1 and 2 to enter interface configuration mode, and use the no ip igmp snooping vlan vlan-id immediate-leave global configuration command.

Statically Configuring an Interface to Join a Group

Ports normally join multicast groups through the IGMP report message, but you can also statically configure a host on an interface.

Beginning in privileged EXEC mode, follow these steps to add a port as a member of a multicast group:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode

Step 2

ip igmp snooping vlan vlan-id static mac-address interface interface-id

Statically configures a port as a member of a multicast group:

vlan-id is the multicast group VLAN ID.

mac-address is the group MAC address.

interface-id is the member port.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show mac-address-table multicast [vlan vlan-id] [user | igmp-snooping] [count]

Displays MAC address table entries for a VLAN.

vlan-id is the multicast group VLAN ID.

user displays only the user-configured multicast entries.

igmp-snooping displays entries learned via IGMP snooping.

count displays only the total number of entries for the selected criteria, not the actual entries.

Step 5

copy running-config startup-config

(Optional) Saves your configuration to the startup configuration.

Configuring a Multicast Router Port

Beginning in privileged EXEC mode, follow these steps to enable a static connection to a multicast router:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

ip igmp snooping vlan vlan-id mrouter {interface interface-id | learn pim-dvmrp}

Specify the multicast router VLAN ID (1 to 1001).

Specify the interface to the multicast router.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show ip igmp snooping [vlan vlan-id]

Verifies that IGMP snooping is enabled on the VLAN interface.

Step 5

show ip igmp snooping mrouter [vlan vlan-id]

Displays information on dynamically learned and manually configured multicast router interfaces.

Step 6

copy running-config startup-config

(Optional) Saves your configuration to the startup configuration.

Configuring Global Storm-Control

This section describes how to configure global storm-control and characteristics on your router and consists of the following configuration procedures:

Enabling Global Storm-Control

Verifying Global Storm-Control

By default, unicast, broadcast, and multicast suppression is disabled on the switch.

Enabling Global Storm-Control

Enable global storm-control globally and enter the percentage of total available bandwidth that you want to be used by all traffic (multicast, unicast,); entering 100 percent would allow all traffic.

To enable a particular type of global storm-control, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# [no] storm-control broadcast level level

Specifies the broadcast suppression level for an interface as a percentage of total bandwidth. A threshold value of 100 percent means that no limit is placed on broadcast traffic.

Use the no keyword to restore the defaults.

Step 3

Router(config)# [no] storm-control multicast level level

Specifies the multicast suppression level for an interface as a percentage of total bandwidth.

Use the no keyword to restore the defaults.

Step 4

Router(config)# [no] storm-control unicast level level

Specifies the unicast suppression level for an interface as a percentage of total bandwidth.

Use the no keyword to restore the defaults.

Step 5

Router(config)# end

Returns to privileged EXEC mode.

Verifying Global Storm-Control


Step 1 Use the show storm-control command to view switchport characteristics, including storm-control levels set on the interface:

Router# show storm-control

Step 2 Use the show interface counters privileged EXEC commands to display the count of discarded packets.


To verify global storm-control statistics on an interface, use the following commands beginning in privileged EXEC mode:

Command
Purpose

show interface [interface-id] counters broadcast

Verifies the broadcast suppression discard counter for all interfaces or a specific interface. Verifies the number of packets discarded.

show interface [interface-id] counters multicast

Verifies the multicast suppression discard counter for all interfaces or a specific interface. Verifies the number of packets discarded.

show interface [interface-id] counters unicast

Verifies the unicast suppression discard counter for all interfaces or a specific interface. Verifies the number of packets discarded.


The following is sample output from the show interface counters broadcast privileged EXEC command:

Router# show interface counters broadcast

Port      BcastSuppDiscards
Fa0/1                     0
Fa0/2                     0

Configuring Per-Port Storm-Control

You can use these techniques to block the forwarding of unnecessary flooded traffic. This section describes how to configure per-port storm-control and characteristics on your router and consists of the following configuration procedures:

Enabling Per-Port Storm-Control

Disabling Per-Port Storm-Control

By default, unicast, broadcast, and multicast suppression is disabled.

Enabling Per-Port Storm-Control

Beginning in privileged EXEC mode, follow these steps to enable per-port storm-control:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface

Enters interface configuration mode, and enter the port to configure.

Step 3

storm-control {broadcast | multicast | unicast} level level [level-low]

Configures broadcast, multicast, or unicast per-port storm-control.

Specify the rising threshold level for either broadcast, multicast, or unicast traffic. The storm control action occurs when traffic utilization reaches this level.

(Optional) Specify the falling threshold level. The normal transmission restarts (if the action is filtering) when traffic drops below this level.

Step 4

storm-control action shutdown

Selects the shutdown keyword to disable the port during a storm.

The default is to filter out the traffic.

Step 5

end

Returns to privileged EXEC mode.

Step 6

show storm-control [interface] [{broadcast | multicast | unicast | history}]

Verifies your entries.

Disabling Per-Port Storm-Control

Beginning in privileged EXEC mode, follow these steps to disable per-port storm-control:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface

Enters interface configuration mode, and enter the port to configure.

Step 3

no storm-control {broadcast | multicast | unicast} level

Disables per-port storm control.

Step 4

no storm-control action shutdown

Disables the specified storm control action.

Step 5

end

Returns to privileged EXEC mode.

Step 6

show storm-control {broadcast | multicast | unicast}

Verifies your entries.

Configuring Separate Voice and Data Subnets

For ease of network administration and increased scalability, network managers can configure the Ethernet switch network module to support Cisco IP phones such that the voice and data traffic reside on separate subnets. You should always use separate VLANs when you are able to segment the existing IP address space of your branch office.

User priority bits in the 802.1p portion of the 802.1Q standard header are used to provide prioritization in Ethernet switches. This is a vital component in designing Cisco AVVID networks.

The Ethernet switch network module provides the performance and intelligent services of Cisco IOS software for branch office applications. The Ethernet switch network module can identify user applications—such as voice or multicast video—and classify traffic with the appropriate priority levels. QoS policies are enforced using Layer 2 and 3 information such as 802.1p, IP precedence, and DSCP.


Note Refer to the Cisco AVVID QoS Design Guide for more information on how to implement end-to-end QoS as you deploy Cisco AVVID solutions.


To automatically configure Cisco IP phones to send voice traffic on the voice VLAN ID (VVID) on a per-port basis (see the "Voice Traffic and VVID" section), use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# enable

Enters the privileged EXEC mode. A preset password may be required to enter this mode.

Step 2

Router(config)# configure terminal

Enters global configuration mode.

Step 3

Router(config)# interface interface

Enters the interface configuration mode and the port to be configured (for example, interface fa5/1).

Step 4

Router(config)# switchport access vlan vlan-id

Configures the port as "access" and assigns a data VLAN.

Step 5

Router(config)# switchport voice vlan vlan-id

Configures the voice port with a VVID that will be used exclusively for voice traffic.

Voice Traffic and VVID

The Ethernet switch network module can automatically configure voice VLAN. This capability overcomes the management complexity of overlaying a voice topology onto a data network while maintaining the quality of voice traffic. With the automatically configured voice VLAN feature, network administrators can segment phones into separate logical networks, even though the data and voice infrastructure is physically the same. The voice VLAN feature places the phones into their own VLANs without the need for end-user intervention. A user can plug the phone into the switch, and the switch provides the phone with the necessary VLAN information.

Configuring a Single Subnet for Voice and Data

For network designs with incremental IP telephony deployment, network managers can configure the Ethernet switch network module so that the voice and data traffic coexist on the same subnet. This might be necessary when it is impractical either to allocate an additional IP subnet for IP phones or to divide the existing IP address space into an additional subnet at the remote branch, it might be necessary to use a single IP address space for branch offices. (This is one of the simpler ways to deploy IP telephony.) When this is the case, you must still prioritize voice above data at both Layer 2 and Layer 3.

Layer 3 classification is already handled because the phone sets the Type of Service (ToS) bits in all media streams to an IP Precedence value of 5. (With Cisco CallManager Release 3.0(5), this marking changed to a Differentiated Services Code Point ([DSCP]) value of EF.) However, to ensure that there is
Layer 2 classification for admission to the multiple queues in the branch office switches, the phone must also use the User Priority bits in the Layer 2 802.1p header to provide Class of Service (CoS) marking. Setting the bits to provide marking can be done by having the switch look for 802.1p headers on the native VLAN.

This configuration approach must address two key considerations:

Network managers should ensure that existing subnets have enough available IP addresses for the new Cisco IP phones, each of which requires a unique IP address.

Administering a network with a mix of IP phones and workstations on the same subnet might pose a challenge.

To automatically configure Cisco IP phones to send voice and data traffic on the same VLAN, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# interface interface

Enters the interface configuration mode and the port to be configured (e.g., interface fa5/1).

Step 3

Router(config)# switchport access vlan vlan-id

Sets the native VLAN for untagged traffic.

The value of vlan-id represents the ID of the VLAN that is sending and receiving untagged traffic on the port. Valid IDs are from 1 to 1001. Leading zeroes are not accepted.

Step 4

Router(config)# switchport voice vlan dot1p

Configures the Cisco IP phone to send voice traffic with higher priority (CoS=5 on 802.1Q tag) on the access VLAN. Data traffic (from an attached PC) is sent untagged for lower priority (port default=0).

Step 5

Router# end

Returns to the privileged EXEC mode.

Verifying Switchport Configuration


Step 1 Use the show run interface command to verify the switch port configuration and the write memory command to save the current configuration in flash memory:

Router# show run interface interface

Step 2 Router# write memory


Configuring Ethernet Ports to Support Cisco IP Phones with Multiple Ports

You might want to use multiple ports to connect the Cisco IP phones if any of the following conditions apply to your Cisco IP telephony network:

You are connecting Cisco IP phones that do not have a second Ethernet port for attaching a PC.

You want to create a physical separation between the voice and data networks.

You want to provide in-line power easily to the IP phones without having to upgrade the data infrastructure.

You want to limit the number of switches that need Uninterruptible Power Supply (UPS) power.

IP Addressing

The recommended configuration for using multiple cables to connect IP phones to the Cisco AVVID network is to use a separate IP subnet and separate VLANs for IP telephony.

Managing the Ethernet Switch Network Module

This section describes how to perform basic management tasks on the Ethernet switch network module with the Cisco IOS CLI. You might find this information useful when you configure the switch for the previous scenarios.

The following topics are included:

Adding Trap Managers

Configuring IP Information

Configuring Voice Ports

Enabling Switch Port Analyzer

Managing the ARP Table

Managing the MAC Address Tables

Adding Trap Managers

A trap manager is a management station that receives and processes traps. When you configure a trap manager, community strings for each member switch must be unique. If a member switch has an IP address assigned to it, the management station accesses the switch by using its assigned IP address.

By default, no trap manager is defined, and no traps are issued.

To add a trap manager and community string, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# config terminal

Enters global configuration mode.

Step 2

Router(config)# snmp-server host 172.2.128.263 traps1 snmp vlan-membership

Enters the trap manager IP address, community string, and the traps to generate.

Step 3

Router(config)# end

Returns to privileged EXEC mode.

Verifying Trap Managers


Step 1 Use the show running-config command to verify that the information was entered correctly by displaying the running configuration:

Router# show running-config


Configuring IP Information

This section describes how to assign IP information on the Ethernet switch network module. The following topics are included:

Assigning IP Information to the Switch

Specifying a Domain Name and Configuring the DNS

Assigning IP Information to the Switch

You can use a BOOTP server to automatically assign IP information to the switch; however, the BOOTP server must be set up in advance with a database of physical MAC addresses and corresponding IP addresses, subnet masks, and default gateway addresses. In addition, the switch must be able to access the BOOTP server through one of its ports. At startup, a switch without an IP address requests the information from the BOOTP server; the requested information is saved in the switch running the configuration file. To ensure that the IP information is saved when the switch is restarted, save the configuration by entering the write memory command in privileged EXEC mode.

You can change the information in these fields. The mask identifies the bits that denote the network number in the IP address. When you use the mask to subnet a network, the mask is then referred to as a subnet mask. The broadcast address is reserved for sending messages to all hosts. The CPU sends traffic to an unknown IP address through the default gateway.

To enter the IP information, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# interface vlan 1

Enters interface configuration mode, and enter the VLAN to which the IP information is assigned.
VLAN 1 is the management VLAN, but you can configure any VLAN from IDs 1 to 1001.

Step 3

Router(config)# ip address ip-address subnet-mask

Enters the IP address and subnet mask.

Step 4

Router(config)# exit

Returns to global configuration mode.

Step 5

Router# ip default-gateway ip-address

Enters the IP address of the default router.

Step 6

Router# end

Returns to privileged EXEC mode.

Use the following procedure to remove the IP information from a switch.


Note Using the no ip address command in configuration mode disables the IP protocol stack and removes the IP information. Cluster members without IP addresses rely on the IP protocol stack being enabled.


To remove an IP address, use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# interface vlan 1

Enters interface configuration mode, and enters the VLAN to which the IP information is assigned.
VLAN 1 is the management VLAN, but you can configure any VLAN from IDs 1 to 1001.

Step 2

Router(config-subif)# no ip address

Removes the IP address and subnet mask.

Step 3

Router(config-subif)# end

Returns to privileged EXEC mode.


Caution If you are removing the IP address through a telnet session, your connection to the switch will be lost.

Specifying a Domain Name and Configuring the DNS

Each unique IP address can have a host name associated with it. The Cisco IOS software maintains a EC mode, and related Telnet support operations. This cache speeds the process of converting names to addresses.

IP defines a hierarchical naming scheme that allows a device to be identified by its location or domain. Domain names are pieced together with periods (.) as the delimiting characters. For example, Cisco Systems is a commercial organization that IP identifies by a com domain name, so its domain name is cisco.com. A specific device in this domain, the FTP system, for example, is identified as ftp.cisco.com.

To track domain names, IP has defined the concept of a domain name server (DNS), the purpose of which is to hold a cache (or database) of names mapped to IP addresses. To map domain names to IP addresses, you must first identify the host names and then specify a name server and enable the DNS, the Internet's global naming scheme that uniquely identifies network devices.

Specifying the Domain Name

You can specify a default domain name that the software uses to complete domain name requests. You can specify either a single domain name or a list of domain names. When you specify a domain name, any IP host name without a domain name has that domain name appended to it before being added to the host table.

Specifying a Name Server

You can specify up to six hosts that can function as a name server to supply name information for the DNS.

Enabling the DNS

If your network devices require connectivity with devices in networks for which you do not control name assignment, you can assign device names that uniquely identify your devices within the entire internetwork. The Internet's global naming scheme, the DNS, accomplishes this task. This service is enabled by default.

Configuring Voice Ports

This section describes how to configure voice ports on the Ethernet switch network module. The following topics are included:

Configuring a Port to Connect to a Cisco 7960 IP phone

Disabling Inline Power on a Ethernet switch network module

The Ethernet switch network module can connect to a Cisco 7960 IP phone and carry IP voice traffic. If necessary, the Ethernet switch network module can supply electrical power to the circuit connecting it to the Cisco 7960 IP phone.

Because the sound quality of an IP telephone call can deteriorate if the data is unevenly transmitted, the current release of the Cisco IOS software supports QoS based on IEEE 802.1p CoS. QoS uses classification and scheduling to transmit network traffic from the switch in a predictable manner.

The Cisco 7960 IP phone contains an integrated three-port 10/100 switch. The ports are dedicated to connect to the following devices:

Port 1 connects to the Ethernet switch network module switch or other voice-over-IP device

Port 2 is an internal 10/100 interface that carries the phone traffic

Port 3 connects to a PC or other device

Configuring a Port to Connect to a Cisco 7960 IP phone

Because a Cisco 7960 IP phone also supports connection to a PC or other device, a port connecting a Ethernet switch network module to a Cisco 7960 IP phone can carry a mix of traffic. There are three ways to configure a port connected to a Cisco 7960 IP phone:

All traffic is transmitted according to the default COS priority (0) of the port. This is the default.

Voice traffic is given a higher priority by the phone, and all traffic is in the same VLAN.

Voice and data traffic are carried on separate VLANs, and voice traffic always has a CoS priority of 5.

To instruct the phone to give voice traffic a higher priority and to forward all traffic through the 802.1Q native VLAN, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# interface interface-id

Enters interface configuration mode, and enter the port to be configured.

Step 3

Router(config-if)# switchport voice vlan dot1p

Instructs the switch to use 802.1p priority tagging for voice traffic and to use VLAN 0 (default native VLAN) to carry all traffic.

Step 4

Router(config-if)# end

Returns to privileged EXEC mode.

Step 5

Router# show interface switchport

Displays the administrative and operational status of a switching (nonrouting) port.

Disabling Inline Power on a Ethernet switch network module

The Ethernet switch network module can supply inline power to a Cisco 7960 IP phone, if necessary. The Cisco 7960 IP phone can also be connected to an AC power source and supply its own power to the voice circuit. When the Cisco 7960 IP phone is supplying its own power, a Ethernet switch network module can forward IP voice traffic to and from the phone.

A detection mechanism on the Ethernet switch network module determines whether it is connected to a Cisco 7960 IP phone. If the switch senses that there is no power on the circuit, the switch supplies the power. If there is power on the circuit, the switch does not supply it.

You can configure the switch to never supply power to the Cisco 7960 IP phone and to disable the detection mechanism.

To configure a port to never supply power to Cisco 7960 IP phones, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# interface interface-id

Enters interface configuration mode, and enter the port to be configured.

Step 3

Router(config-if)# power inline never

Permanently disables inline power on the port.

Step 4

Router(config-if)# end

Returns to privileged EXEC mode.

Verifying Inline Power Configuration


Step 1 Use the show power inline interface configured command to verifies the change by displaying the setting as configured:

Router# show power inline interface configured


Enabling Switch Port Analyzer

You can monitor traffic on a given port by forwarding incoming and outgoing traffic on the port to another port in the same VLAN. A Switch Port Analyzer (SPAN) port cannot monitor ports in a different VLAN, and a SPAN port must be a static-access port. Any number of ports can be defined as SPAN ports, and any combination of ports can be monitored. SPAN is supported for up to 2 sessions.

To enable SPAN, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# monitor session session-id {destination | source} {interface | vlan interface-id | vlan-id}} [, | - | both | tx | rx]

Enables port monitoring for a specific session ("number").
Optionally, supply a SPAN destination interface, and a source interface.

Step 3

Router(config)# end

Returns to privileged EXEC mode.

To disable SPAN, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# no monitor session session-id

Disables port monitoring for a specific session.

Step 3

Router(config)# end

Returns to privileged EXEC mode.

Managing the ARP Table

To communicate with a device (on Ethernet, for example), the software first must determine the 48-bit MAC or local data link address of that device. The process of determining the local data link address from an IP address is called address resolution.

The Address Resolution Protocol (ARP) associates a host IP address with the corresponding media or MAC addresses and VLAN ID. Taking an IP address as input, ARP determines the associated MAC address. Once a MAC address is determined, the IP-MAC address association is stored in an ARP cache for rapid retrieval. Then the IP datagram is encapsulated in a link-layer frame and sent over the network. Encapsulation of IP datagrams and ARP requests and replies on IEEE 802 networks other than Ethernet is specified by the Subnetwork Access Protocol (SNAP). By default, standard Ethernet-style ARP encapsulation (represented by the arpa keyword) is enabled on the IP interface.

When you manually add entries to the ARP Table by using the CLI, you must be aware that these entries do not age and must be manually removed.

Managing the MAC Address Tables

This section describes how to manage the MAC address tables on the Ethernet switch network module. The following topics are included:

Understanding MAC Addresses and VLANs

Changing the Address Aging Time

Configuring the Aging Time

The switch uses the MAC address tables to forward traffic between ports. All MAC addresses in the address tables are associated with one or more ports. These MAC tables include the following types of addresses:

Dynamic address—a source MAC address that the switch learns and then drops when it is not in use.

Secure address—a manually entered unicast address that is usually associated with a secured port. Secure addresses do not age.

Static address—a manually entered unicast or multicast address that does not age and that is not lost when the switch resets.

The address tables list the destination MAC address and the associated VLAN ID, module, and port number associated with the address. The following shows an example of a list of addresses as they would appear in the dynamic, secure, or static address table.

Router# show mac

4d01h:%SYS-5-CONFIG_I:Configured from console by consolec
Slot # :0
--------------
Destination Address  Address Type  VLAN  Destination Port
-------------------  ------------  ----  --------------------
0004.272f.49de          Dynamic      1      FastEthernet0/8
0004.2762.3235          Dynamic      1      FastEthernet0/3
0004.4d07.6960          Dynamic      1      FastEthernet0/0
0004.ddbb.6700          Self         1      Vlan1
0020.18d7.4304          Dynamic      1      FastEthernet0/2
beef.beef.beef          Static       1      FastEthernet0/11
0004.2762.3235          Dynamic      2      FastEthernet0/3
0004.ddbb.6700          Self         2      Vlan2
0002.7e48.cc38          Dynamic      3      FastEthernet0/4
	0002.7e48.cc39          Dynamic      3      FastEthernet0/5

Understanding MAC Addresses and VLANs

All addresses are associated with a VLAN. An address can exist in more than one VLAN and have different destinations in each. Multicast addresses, for example, could be forwarded to port 1 in VLAN 1 and ports 9, 10, and 11 in VLAN 5.

Each VLAN maintains its own logical address table. A known address in one VLAN is unknown in another until it is learned or statically associated with a port in the other VLAN. An address can be secure in one VLAN and dynamic in another. Addresses that are statically entered in one VLAN must be static addresses in all other VLANs.

Changing the Address Aging Time

Dynamic addresses are source MAC addresses that the switch learns and then drops when they are not in use. Use the Aging Time field to define how long the switch retains unseen addresses in the table. This parameter applies to all VLANs.

Configuring the Aging Time

Setting too short an aging time can cause addresses to be prematurely removed from the table. Then when the switch receives a packet for an unknown destination, it floods the packet to all ports in the same VLAN as the receiving port. This unnecessary flooding can impact performance. Setting too long an aging time can cause the address table to be filled with unused addresses; it can cause delays in establishing connectivity when a workstation is moved to a new port.

To configure the dynamic address table aging time, use the following commands beginning in global configuration mode:


Command
Purpose

Step 1

Router(config)# configure terminal

Enters global configuration mode.

Step 2

Router(config)# mac-address-table aging-time seconds

Enters the number of seconds that dynamic addresses are to be retained in the address table. Valid entries are from 10 to 1000000.

Step 3

Router(config)# end

Returns to privileged EXEC mode.

Verifying Aging-Time Configuration


Step 1 Use the show mac-address-table aging-time command to verify configuration:

Router# show mac-address-table aging-time


Removing Dynamic Addresses

To remove a dynamic address entry, follow these steps beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# no mac-address-table dynamic hw-addr

Enters the MAC address to be removed from dynamic MAC address table.

Step 3

Router(config)# end

Returns to privileged EXEC mode.

You can remove all dynamic entries by using the clear mac-address-table dynamic command in privileged EXEC mode.

Verifying Dynamic Addresses


Step 1 Use the show mac-address-table dynamic command to verify configuration:

Router# show mac-address-table dynamic

Adding Secure Addresses

The secure address table contains secure MAC addresses and their associated ports and VLANs. A secure address is a manually entered unicast address that is forwarded to only one port per VLAN. If you enter an address that is already assigned to another port, the switch reassigns the secure address to the new port.

You can enter a secure port address even when the port does not yet belong to a VLAN. When the port is later assigned to a VLAN, packets destined for that address are forwarded to the port.

To add a secure address, use the following commands beginning in privileged EXEC mode:




Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# mac-address-table secure address hw-addr interface interface-id vlan vlan-id

Enters the MAC address, its associated port, and the VLAN ID.

Step 3

Router(config)# end

Returns to privileged EXEC mode.



To remove a secure address, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# no mac-address-table secure hw-addr vlan vlan-id

Enters the secure MAC address, its associated port, and the VLAN ID to be removed.

Step 3

Router(config)# end

Returns to privileged EXEC mode.



You can remove all secure addresses by using the clear mac-address-table secure command in privileged EXEC mode.

Verifying Secure Addresses


Step 1 Use the show mac-address-table secure command to verify configuration:

Router# show mac-address-table secure

Configuring Static Addresses

A static address has the following characteristics:

It is manually entered in the address table and must be manually removed.

It can be a unicast or multicast address.

It does not age and is retained when the switch restarts.

Because all ports are associated with at least one VLAN, the switch acquires the VLAN ID for the address from the ports that you select on the forwarding map. A static address in one VLAN must be a static address in other VLANs. A packet with a static address that arrives on a VLAN where it has not been statically entered is flooded to all ports and not learned.

To add a static address, use the following commands beginning in privileged EXEC mode:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# mac-address-table static hw-addr [interface] interface-id [vlan] vlan-id

Enters the static MAC address, the interface, and the VLAN ID of those ports.

Step 3

Router(config)# end

Returns to privileged EXEC mode.

To remove a static address, use the following commands beginning in privileged EXEC mode

:


Command
Purpose

Step 1

Router# configure terminal

Enters global configuration mode.

Step 2

Router(config)# no mac-address-table static hw-addr [interface] interface-id [vlan] vlan-id

Enters the static MAC address, the interface, and the VLAN ID of the port to be removed.

Step 3

Router(config)# end

Returns to privileged EXEC mode.

You can remove all secure addresses by using the clear mac-address-table static command in privileged EXEC mode.

Verifying Static Addresses


Step 1 Use the show mac-address-table static command to verify configuration:

Router # show mac-address-table static

4d01h:%SYS-5-CONFIG_I:Configured from console by consolec
Slot # :0
--------------
Destination Address  Address Type  VLAN  Destination Port
-------------------  ------------  ----  --------------------
0004.272f.49de          Dynamic      1      FastEthernet0/8
0004.2762.3235          Dynamic      1      FastEthernet0/3
0004.4d07.6960          Dynamic      1      FastEthernet0/0
0004.ddbb.6700          Self         1      Vlan1
0020.18d7.4304          Dynamic      1      FastEthernet0/2
beef.beef.beef          Static       1      FastEthernet0/11
0004.2762.3235          Dynamic      2      FastEthernet0/3
0004.ddbb.6700          Self         2      Vlan2
0002.7e48.cc38          Dynamic      3      FastEthernet0/4
0002.7e48.cc39          Dynamic      3      FastEthernet0/5


Clearing all MAC Address Tables

To remove all addresses, use the clear mac-address command in privileged EXEC mode:


Command
Purpose

Step 1

Router# clear mac-address-table

Enters to clear all MAC address tables.

Step 2

Router# end

Returns to privileged EXEC mode.

Configuring Intrachassis Stacking


Command
Purpose

Step 1

Router(config)# interface Gigabit slot/port


Step 1

Router(config-if)# [no] switchport
stacking-link interface Gigabit slot/port


Step 2

Router(config)# end

Exits configuration mode.

Verifying Intra-chassis Stacking


Step 1 Use the show interface command to verify configuration:


Configuring Flow Control on Gigabit Ethernet Ports

To configure flow control on a Gigabit Ethernet port, use the following commands in privileged mode:


Command
Purpose

Step 1

Router# set port flowcontrol {receive | send} mod-num/port-num {off | on | desired}

Sets the flow control parameters on a Gigabit Ethernet port.

Step 2

Router# show port flowcontrol

Verifies the flow control configuration.

Configuring Layer 3 Interfaces

The Ethernet switch network module supports two types of Layer 3 interfaces for routing and bridging:

SVIs: You should configure SVIs for any VLANs for which you want to route traffic. SVIs are created when you enter a VLAN ID following the interface vlan global configuration command. To delete an SVI, use the no interface vlan global configuration command.

Routed ports: Routed ports are physical ports configured to be in Layer 3 mode by using the no switchport interface configuration command.


Note A Layer 3 switch can have an IP address assigned to each routed port and SVI. The number of routed ports and SVIs that you can configure is not limited by software; however, the interrelationship between this number and the number of other features being configured might have an impact on CPU utilization because of hardware limitations.


All Layer 3 interfaces require an IP address to route traffic (a routed port cannot obtain an IP address from a DHCP server, but the router can act as a DHCP server and serve IP addresses through a routed port). The following procedure shows how to configure an interface as a Layer 3 interface and how to assign an IP addresses to an interface.

Routed ports support only CEF switching (IP fast switching is not supported).


Note If the physical port is in Layer 2 mode (the default), you must enter the no switchport interface configuration command to put the interface into Layer 3 mode. Entering a no switchport command disables and then reenables the interface, which might generate messages on the device to which the interface is connected. When you use this command to put the interface into Layer 3 mode, you are also deleting any Layer 2 characteristics configured on the interface. (Also, when you return the interface to Layer 2 mode, you are deleting any Layer 3 characteristics configured on the interface.)


Beginning in privileged EXEC mode, follow these steps to configure a Layer 3 interface:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface {{fastethernet | gigabitethernet} interface-id} | {vlan vlan-id} | {port-channel port-channel-number}

Enters interface configuration mode, and enter the interface to be configured as a Layer 3 interface.

Step 3

no switchport

For physical ports only, enters Layer 3 mode.

Step 4

ip address ip-address subnet-mask

Configures the IP address and IP subnet.

Step 5

no shutdown

Activates the interface. (Required only if you shut down the interface.)

Step 6

end

Returns to privileged EXEC mode.

Step 7

show interfaces [interface-id]

show ip interface [interface-id]

show running-config interface [interface-id]

Verifies the configuration.

Step 8

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To remove an IP address from an interface, use the no ip address interface configuration command.

Configuring Fallback Bridging

This section describes how to configure fallback bridging on your switch. It contains this configuration information:

Understanding the Default Fallback Bridging Configuration

Creating a Bridge Group

Preventing the Forwarding of Dynamically Learned Stations

Configuring the Bridge Table Aging Time

Filtering Frames by a Specific MAC Address

Adjusting Spanning-Tree Parameters

Monitoring and Maintaining the Network

Understanding the Default Fallback Bridging Configuration

Table 16 shows the default fallback bridging configuration.

Table 16 Default Fallback Bridging Configuration

Feature
Default Setting

Bridge groups

None are defined or assigned to an interface. No VLAN-bridge STP is defined.

Switch forwards frames for stations that it has dynamically learned

Enabled.

Bridge table aging time for dynamic entries

300 seconds.

MAC-layer frame filtering

Disabled.

Spanning tree parameters:

Switch priority

Interface priority

Interface path cost

Hello BPDU interval

Forward-delay interval

Maximum idle interval

32768.

128.

10 Mbps: 100.
100 Mbps: 19.
1000 Mbps: 4.

2 seconds.

20 seconds.

30 seconds.


Creating a Bridge Group

To configure fallback bridging for a set of SVIs or routed ports, these interfaces must be assigned to bridge groups. All interfaces in the same group belong to the same bridge domain. Each SVI or routed port can be assigned to only one bridge group. A maximum of 31 bridge groups can be configured on the switch.


Note The protected port feature is not compatible with fallback bridging. When fallback bridging is enabled, it is possible for packets to be forwarded from one protected port on a switch to another protected port on the same switch if the ports are in different VLANs.


Beginning in privileged EXEC mode, follow these steps to create a bridge group and assign an interface to it:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

bridge bridge-group protocol vlan-bridge

Assigns a bridge group number, and specify the VLAN-bridge spanning-tree protocol to run in the bridge group. The ibm and dec keywords are not supported.

For bridge-group, specify the bridge group number. The range is 1 to 255. You can create up to 31 bridge groups.

Frames are bridged only among interfaces in the same group.

Step 3

interface interface-id

Enters interface configuration mode, and specify the interface on which you want to assign the bridge group.

The specified interface must be one of these:

A routed port: a physical port that you have configured as a Layer 3 port by entering the no switchport interface configuration command.

An SVI: a VLAN interface that you created by using the interface vlan vlan-id global configuration command.

These ports must have IP addresses assigned to them.

Step 4

bridge-group bridge-group

Assigns the interface to the bridge group created in Step 2.

By default, the interface is not assigned to any bridge group. An interface can be assigned to only one bridge group.

Step 5

end

Returns to privileged EXEC mode.

Step 6

show running-config

Verifies your entries.

Step 7

copy running-config startup-config

(Optional) Saves your entries in the configuration file.

To remove a bridge group, use the no bridge bridge-group protocol vlan-bridge global configuration command. To remove an interface from a bridge group, use the no bridge-group bridge-group interface configuration command.

Preventing the Forwarding of Dynamically Learned Stations

By default, the switch forwards any frames for stations that it has dynamically learned. By disabling this activity, the switch only forwards frames whose addresses have been statically configured into the forwarding cache.

Beginning in privileged EXEC mode, follow these steps to prevent the switch from forwarding frames for stations that it has dynamically learned:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

no bridge bridge-group acquire

Enables the switch to stop forwarding any frames for stations that it has dynamically learned through the discovery process and to limit frame forwarding to statically configured stations.

The switch filters all frames except those whose destined-to addresses have been statically configured into the forwarding cache. To configure a static address, use the bridge bridge-group address mac-address {forward | discard} global configuration command.

For bridge-group, specify the bridge group number. The range is 1 to 255.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entry.

Step 5

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To cause the switch to forward frames to stations that it has dynamically learned, use the bridge bridge-group acquire global configuration command.

Configuring the Bridge Table Aging Time

A switch forwards, floods, or drops packets based on the bridge table. The bridge table maintains both static and dynamic entries. Static entries are entered by you or learned by the switch. Dynamic entries are entered by the bridge learning process. A dynamic entry is automatically removed after a specified length of time, known as aging time, from the time the entry was created or last updated.

If you are likely to move hosts on a switched network, decrease the aging-time to enable the switch to quickly adapt to the change. If hosts on a switched network do not continuously send packets, increase the aging time to keep the dynamic entries for a longer time and thus reduce the possibility of flooding when the hosts send again.

Beginning in privileged EXEC mode, follow these steps to configure the aging time:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

bridge bridge-group aging-time seconds

Specifies the length of time that a dynamic entry remains in the bridge table from the time the entry was created or last updated.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For seconds, enter a number from 0 to 1000000. The default is 300 seconds.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entry.

Step 5

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To return to the default aging-time interval, use the no bridge bridge-group aging-time global configuration command.

Filtering Frames by a Specific MAC Address

A switch examines frames and sends them through the internetwork according to the destination address; a switch does not forward a frame back to its originating network segment. You can use the software to configure specific administrative filters that filter frames based on information other than the paths to their destinations.

You can filter frames with a particular MAC-layer station destination address. Any number of addresses can be configured in the system without a performance penalty.

Beginning in privileged EXEC mode, follow these steps to filter by the MAC-layer address:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

bridge bridge-group address mac-address {forward | discard} [interface-id]

Specifies the MAC address to discard or forward.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For address mac-address, specify the MAC-layer destination address to be filtered.

Specify forward if you want the frame destined to the specified interface to be forwarded. Specify discard if you want the frame to be discarded.

(Optional) For interface-id, specify the interface on which the address can be reached.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entry.

Step 5

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To disable the frame forwarding ability, use the no bridge bridge-group address mac-address global configuration command.

Adjusting Spanning-Tree Parameters

You might need to adjust certain spanning-tree parameters if the default values are not suitable for your switch configuration. Parameters affecting the entire spanning tree are configured with variations of the bridge global configuration command. Interface-specific parameters are configured with variations of the bridge-group interface configuration command.

You can adjust spanning-tree parameters by performing any of the tasks in these sections:

Changing the Switch Priority

Changing the Interface Priority

Assigning a Path Cost

Adjusting BPDU Intervals

Disabling the Spanning Tree on an Interface


Note Only network administrators with a good understanding of how switches and STP function should make adjustments to spanning-tree parameters. Poorly planned adjustments can have a negative impact on performance. A good source on switching is the IEEE 802.1d specification; for more information, refer to the "References and Recommended Reading" appendix in the Cisco IOS Configuration Fundamentals Command Reference, Release 12.2.


Changing the Switch Priority

You can globally configure the priority of an individual switch when two switches tie for position as the root switch, or you can configure the likelihood that a switch will be selected as the root switch. This priority is determined by default; however, you can change it.

Beginning in privileged EXEC mode, follow these steps to change the switch priority:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

bridge bridge-group priority number

Changes the priority of the switch.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For number, enter a number from 0 to 65535. The default is 32768. The lower the number, the more likely the switch will be chosen as the root.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entry.

Step 5

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

No no form of this command exists. To return to the default setting, use the bridge bridge-group priority number global configuration command, and set the priority to the default value. To change the priority on an interface, use the bridge-group priority interface configuration command (described in the next section).

Changing the Interface Priority

You can change the priority for an interface. When two switches tie for position as the root switch, you configure an interface priority to break the tie. The switch with the lowest interface value is elected.

Beginning in privileged EXEC mode, follow these steps to change the interface priority:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface-id

Enters interface configuration mode, and specifies the interface to set the priority.

Step 3

bridge-group bridge-group priority number

Changes the priority of an interface.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For number, enter a number from 0 to 255. The lower the number, the more likely that the interface on the switch will be chosen as the root. The default is 128.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show running-config

Verifies your entry.

Step 6

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To return to the default setting, use the bridge-group bridge-group priority number interface configuration command.

Assigning a Path Cost

Each interface has a path cost associated with it. By convention, the path cost is 1000/data rate of the attached LAN, in Mbps.

Beginning in privileged EXEC mode, follow these steps to assign a path cost:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface-id

Enters interface configuration mode, and specify the interface to set the path cost.

Step 3

bridge-group bridge-group path-cost cost

Assigns the path cost of an interface.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For cost, enter a number from 1 to 65536. The higher the value, the higher the cost.

For 10 Mbps, the default path cost is 100.

For 100 Mbps, the default path cost is 19.

For 1000 Mbps, the default path cost is 4.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show running-config

Verifies your entry.

Step 6

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To return to the default path cost, use the no bridge-group bridge-group path-cost cost interface configuration command.

Adjusting BPDU Intervals

You can adjust BPDU intervals as described in these sections:

Adjusting the Interval between Hello BPDUs

Changing the Forward-Delay Interval

Changing the Maximum-Idle Interval


Note Each switch in a spanning tree adopts the interval between hello BPDUs, the forward delay interval, and the maximum idle interval parameters of the root switch, regardless of what its individual configuration might be.


Adjusting the Interval between Hello BPDUs

Beginning in privileged EXEC mode, follow these step to adjust the interval between hello BPDUs:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

bridge bridge-group hello-time seconds

Specifies the interval between hello BPDUs.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For seconds, enter a number from 1 to 10. The default is 2 seconds.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entry.

Step 5

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To return to the default setting, use the no bridge bridge-group hello-time global configuration command.

Changing the Forward-Delay Interval

The forward-delay interval is the amount of time spent listening for topology change information after an interface has been activated for switching and before forwarding actually begins.

Beginning in privileged EXEC mode, follow these steps to change the forward-delay interval:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

bridge bridge-group forward-time seconds

Specifies the forward-delay interval.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For seconds, enter a number from 10 to 200. The default is 20 seconds.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entry.

Step 5

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To return to the default setting, use the no bridge bridge-group forward-time seconds global configuration command.

Changing the Maximum-Idle Interval

If a switch does not hear BPDUs from the root switch within a specified interval, it recomputes the spanning-tree topology.

Beginning in privileged EXEC mode, follow these steps to change the maximum-idle interval (maximum aging time):


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

bridge bridge-group max-age seconds

Specifies the interval the switch waits to hear BPDUs from the root switch.

For bridge-group, specify the bridge group number. The range is 1 to 255.

For seconds, enter a number from 10 to 200. The default is 30 seconds.

Step 3

end

Returns to privileged EXEC mode.

Step 4

show running-config

Verifies your entry.

Step 5

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To return to the default setting, use the no bridge bridge-group max-age global configuration command.

Disabling the Spanning Tree on an Interface

When a loop-free path exists between any two switched subnetworks, you can prevent BPDUs generated in one switching subnetwork from impacting devices in the other switching subnetwork, yet still permit switching throughout the network as a whole. For example, when switched LAN subnetworks are separated by a WAN, BPDUs can be prevented from traveling across the WAN link.

Beginning in privileged EXEC mode, follow these steps to disable spanning tree on an interface:


Command
Purpose

Step 1

configure terminal

Enters global configuration mode.

Step 2

interface interface-id

Enters interface configuration mode, and specify the interface ID.

Step 3

bridge-group bridge-group spanning-disabled

Disables spanning tree on the interface.

For bridge-group, specify the bridge group number. The range is 1 to 255.

Step 4

end

Returns to privileged EXEC mode.

Step 5

show running-config

Verifies your entry.

Step 6

copy running-config startup-config

(Optional) Saves your entry in the configuration file.

To reenable spanning tree on the interface, use the no bridge-group bridge-group spanning-disabled interface configuration command.

Monitoring and Maintaining the Network

To monitor and maintain the network, use one or more of the privileged EXEC commands in Table 17:

Table 17 Fallback Bridging Commands for Monitoring and Maintaining the Network

Command
Purpose

clear bridge bridge-group

Removes any learned entries from the forwarding database and clears the transmit and receive counts for any statically configured entries.

show bridge [bridge-group]

Displays details about the bridge group.

show bridge [bridge-group] [interface-id] [address] [group] [verbose]

Displays classes of entries in the bridge forwarding database.


Configuration Examples for the 16- and 36-Port Ethernet Switch Module

This section provides the following configuration examples:

Range of Interface Examples

Optional Interface Feature Examples

VLAN Configuration Example

VTP Examples

EtherChannel Load Balancing Example

802.1x Authentication Examples

Spanning Tree Examples

Mac Table Manipulation Examples

Cisco Discovery Protocol (CDP) Example

Switched Port Analyzer (SPAN) Source Examples

Network Security and ACL Configuration Examples

QoS Configuration Examples

IGMP Snooping Example

Storm-Control Example

Ethernet Switching Examples

Intrachassis Stacking Example

Flow Control on Gigabit Ethernet Ports Example

Configuring Layer 3 Interfaces Example

Fallback Bridging Example

Range of Interface Examples

Single Range Configuration Example

Multiple Range Configuration Example

Range Macro Definition Example

Single Range Configuration Example

The following example shows all Fast Ethernet interfaces 5/1 to 5/5 being reenabled:

Router(config)# interface range fastethernet 5/1 - 5
Router(config-if)# no shutdown
Router(config-if)#
*Oct  6 08:24:35: %LINK-3-UPDOWN: Interface FastEthernet5/1, changed state to up
*Oct  6 08:24:35: %LINK-3-UPDOWN: Interface FastEthernet5/2, changed state to up
*Oct  6 08:24:35: %LINK-3-UPDOWN: Interface FastEthernet5/3, changed state to up
*Oct  6 08:24:35: %LINK-3-UPDOWN: Interface FastEthernet5/4, changed state to up
*Oct  6 08:24:35: %LINK-3-UPDOWN: Interface FastEthernet5/5, changed state to up
*Oct  6 08:24:36: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet5/5, changed
state to up
*Oct  6 08:24:36: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet5/3, changed
state to up
*Oct  6 08:24:36: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet5/4, changed
state to up
Router(config-if)#

Multiple Range Configuration Example

The following example shows how to use a comma to add different interface type strings to the range to reenable all Fast Ethernet interfaces in the range 5/1 to 5/5 and both Gigabit Ethernet interfaces 1/1 and 1/2:

Router(config-if)# interface range fastethernet 5/1 - 5, gigabitethernet 1/1 - 2
Router(config-if)# no shutdown
Router(config-if)#
*Oct  6 08:29:28: %LINK-3-UPDOWN: Interface FastEthernet5/1, changed state to up
*Oct  6 08:29:28: %LINK-3-UPDOWN: Interface FastEthernet5/2, changed state to up
*Oct  6 08:29:28: %LINK-3-UPDOWN: Interface FastEthernet5/3, changed state to up
*Oct  6 08:29:28: %LINK-3-UPDOWN: Interface FastEthernet5/4, changed state to up
*Oct  6 08:29:28: %LINK-3-UPDOWN: Interface FastEthernet5/5, changed state to up
*Oct  6 08:29:28: %LINK-3-UPDOWN: Interface GigabitEthernet1/1, changed state to up
*Oct  6 08:29:28: %LINK-3-UPDOWN: Interface GigabitEthernet1/2, changed state to up
*Oct  6 08:29:29: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet5/5, changed
state to up
*Oct  6 08:29:29: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet5/3, changed
state to up
*Oct  6 08:29:29: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet5/4, changed
state to up
Router(config-if)#

Range Macro Definition Example

The following example shows an interface-range macro named enet_list being defined to select Fast Ethernet interfaces 5/1 through 5/4:

Router(config)# define interface-range enet_list fastethernet 5/1 - 4

Router(config)#
Router(config)# interface range macro enet_list

Router(config-if)#

Optional Interface Feature Examples

Interface Speed Example

Setting the Interface Duplex Mode Example

Adding a Description for an Interface Example

Configuring an Ethernet Interface as a Layer 2 Trunk Example

Interface Speed Example

The following example shows the interface speed being set to 100 Mbps on the Fast Ethernet interface 5/4:

Router(config)# interface fastethernet 5/4

Router(config-if)# speed 100

Setting the Interface Duplex Mode Example

The following example shows the interface duplex mode being set to full on Fast Ethernet interface 5/4:

Router(config)# interface fastethernet 5/4

Router(config-if)# duplex full

Adding a Description for an Interface Example

The following example shows how to add a description on Fast Ethernet interface 5/5:

Router(config)# interface fastethernet 5/5
Router(config-if)# description Channel-group to "Marketing"

Configuring an Ethernet Interface as a Layer 2 Trunk Example

Router# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)# interface fastethernet 5/8
Router(config-if)# shutdown
Router(config-if)# switchport trunk encapsulation dot1q
Router(config-if)# switchport mode trunk
Router(config-if)# no shutdown
Router(config-if)# end
Router# exit

VLAN Configuration Example

The following example shows how to configure the VLAN:

Router# vlan database
Router(vlan)# vlan 3
VLAN 3 added:
Name: VLAN0003
Router(vlan)# exit
APPLY completed.
Exiting....

VTP Examples

VTP Server Example

VTP Client Example

Disabling VTP (VTP Transparent Mode) Example

VTP version 2 Example

VTP Server Example

The following example shows how to configure the switch as a VTP server:

Router# vlan database
Router(vlan)# vtp server
Setting device to VTP SERVER mode.
Router(vlan)# vtp domain Lab_Network
Setting VTP domain name to Lab_Network
Router(vlan)# vtp password WATER
Setting device VLAN database password to WATER.
Router(vlan)# exit
APPLY completed.
Exiting....
Router#

VTP Client Example

The following example shows how to configure the switch as a VTP client:

Router# vlan database
Router(vlan)# vtp client
Setting device to VTP CLIENT mode.
Router(vlan)# exit

In CLIENT state, no apply attempted.
Exiting....
Router#

Disabling VTP (VTP Transparent Mode) Example

The following example shows how to configure the switch as VTP transparent:

Router# vlan database
Router(vlan)# vtp transparent
Setting device to VTP TRANSPARENT mode.
Router(vlan)# exit
APPLY completed.
Exiting....
Router#

VTP version 2 Example

The following example shows VTP version 2 being enabled:

Router# vlan database

Router(vlan)# vtp v2-mode

V2 mode enabled.
Router(vlan)# exit

APPLY completed.
Exiting....
Router#

EtherChannel Load Balancing Example

Layer 2 EtherChannels Example

EtherChannel Load Balancing Example

Removing an EtherChannel Example

Layer 2 EtherChannels Example

Router# configure terminal
Router(config)# interface range fastethernet 5/6 -7
Router(config-if)# channel-group 2 mode desirable
Router(config-if)# end

EtherChannel Load Balancing Example

Router# configure terminal
Router(config)# port-channel load-balance src-dst-ip
Router(config)# end
Router(config)#

Removing an EtherChannel Example

The following example shows port-channel 1 being removed:

Router# configure terminal
Router(config)# no interface port-channel 1
Router(config)# end

Note Removing the port-channel also removes the channel-group command from the interfaces belonging to it.


802.1x Authentication Examples

Enabling 802.1x Authentication Example

Configuring the Switch-to-RADIUS-Server Communication Example

Enabling Periodic Re-Authentication Example

Changing the Quiet Period Example

Changing the Switch-to-Client Retransmission Time Example

Setting the Switch-to-Client Frame-Retransmission Number Example

Enabling Multiple Hosts Example

Enabling 802.1x Authentication Example

The following example shows how to enable AAA and 802.1x on Fast Ethernet port 0/1:

Switch# configure terminal
Switch(config)# aaa new-model
Switch(config)# aaa authentication dot1x default group radius
Switch(config)# interface fastethernet0/1
Switch(config-if)# dot1x port-control auto
Switch(config-if)# end

Configuring the Switch-to-RADIUS-Server Communication Example

The following example shows how to specify the server with IP address 172.20.39.46 as the RADIUS server, to use port 1612 as the authorization port, and to set the encryption key to rad123, matching the key on the RADIUS server:

Switch(config)# radius-server host 172.l20.39.46 auth-port 1612 key rad123

Enabling Periodic Re-Authentication Example

The following example shows how to enable periodic reauthentication and set the number of seconds between reauthentication attempts to 4000:

Switch(config)# dot1x re-authentication
Switch(config)# dot1x timeout re-authperiod 4000

Changing the Quiet Period Example

The following example shows how to set the quiet time on the switch to 30 seconds:

Switch(config)# dot1x timeout quiet-period 30

Changing the Switch-to-Client Retransmission Time Example

The following example shows how to set 60 seconds as the number of seconds that the switch waits for a response to an EAP-request/identity frame from the client before retransmitting the request:

Switch(config)# dot1x timeout tx-period 60

Setting the Switch-to-Client Frame-Retransmission Number Example

The following example shows how to set 5 as the number of times that the switch sends an EAP-request/identity request before restarting the authentication process:

Switch(config)# dot1x max-req 5

Enabling Multiple Hosts Example

The following example shows how to enable 802.1x on Fast Ethernet interface 0/1 and to allow multiple hosts:

Switch(config)# interface fastethernet0/1
Switch(config-if)# dot1x port-control auto
Switch(config-if)# dot1x multiple-hosts

Spanning Tree Examples

Spanning-Tree Interface and Spanning-Tree Port Priority Example

Spanning-Tree Port Cost Example

Bridge Priority of a VLAN

Hello Time Example

Forward-Delay Time for a VLAN Example

Maximum Aging Time for a VLAN Example

BackboneFast Example

Spanning Tree Examples

Spanning-Tree Interface and Spanning-Tree Port Priority Example

The following example shows the VLAN port priority of an interface being configured:

Router# configure terminal
Router(config)# interface fastethernet 5/8
Router(config-if)# spanning-tree vlan 200 port-priority 64
Router(config-if)# end
Router#

The following example shows how to verify the configuration of VLAN 200 on the interface when it is configured as a trunk port:

Router# show spanning-tree vlan 200
!
!
!
Port 264 (FastEthernet5/8) of VLAN200 is forwarding
Port path cost 19, Port priority 64, Port Identifier 129.8.
   Designated root has priority 32768, address 0010.0d40.34c7
   Designated bridge has priority 32768, address 0010.0d40.34c7
   Designated port id is 128.1, designated path cost 0
   Timers: message age 2, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   BPDU: sent 0, received 13513
Router#
!
!
!

Spanning-Tree Port Cost Example

The following example shows how to change the spanning-tree port cost of a Fast Ethernet interface:

Router# configure terminal
Router(config)# interface fastethernet 5/8
Router(config-if)# spanning-tree cost 18
Router(config-if)# end
Router#

The following example shows how to verify the configuration of the interface when it is configured as an access port:

Router# show spanning-tree interface fastethernet 5/8
 Port 264 (FastEthernet5/8) of VLAN200 is forwarding
   Port path cost 18, Port priority 100, Port Identifier 129.8.
   Designated root has priority 32768, address 0010.0d40.34c7
   Designated bridge has priority 32768, address 0010.0d40.34c7
   Designated port id is 128.1, designated path cost 0
   Timers: message age 2, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   BPDU: sent 0, received 13513
Router#

The following example shows how to configure the spanning-tree VLAN port cost of a Fast Ethernet interface:

Router# configure terminal
Router(config)# interface fastethernet 5/8
Router(config-if)# spanning-tree vlan 200 cost 17
Router(config-if)# exit
Router(config)# exit
Router#

Bridge Priority of a VLAN

The following example shows the bridge priority of VLAN 200 being configured to 33792:

Router# configure terminal
Router(config)# spanning-tree vlan 200 priority 33792
Router(config)# end
Router#

Hello Time Example

The following example shows the hello time for VLAN 200 being configured to 7 seconds:

Router# configure terminal
Router(config)# spanning-tree vlan 200 hello-time 7
Router(config)# end
Router#

Forward-Delay Time for a VLAN Example

Router# configure terminal
Router(config)# spanning-tree vlan 200 forward-time 21
Router(config)# end
Router#

Maximum Aging Time for a VLAN Example

Router# configure terminal
Router(config)# spanning-tree vlan 200 max-age 36
Router(config)# end
Router#

BackboneFast Example

Router# configure terminal
Router(config)# spanning-tree backbonefast
Router(config)# end
Router#

Spanning Tree Examples

Router# configure terminal
Router(config)# spanning-tree vlan 200
Router(config)# end
Router#

Note Because spanning tree is enabled by default, issuing a show running command to view the resulting configuration will not display the command you entered to enable spanning tree.


Router# configure terminal
Router(config)# no spanning-tree vlan 200
Router(config)# end
Router#

Spanning Tree Root Example

The following example shows the switch being configured as the root bridge for VLAN 10, with a network diameter of 4:

Router# configure terminal
Router(config)# spanning-tree vlan 10 root primary diameter 4
Router(config)# exit
Router#

Mac Table Manipulation Examples

Router# configure terminal
Router (config)# mac-address-table dynamic 6.6.6 fastEthernet 2/13 vlan 1
Router (config)# end

Router(config)# mac-address-table static beef.beef.beef int fa0/11 vlan 1

Router(config)# end

Cisco Discovery Protocol (CDP) Example

Switched Port Analyzer (SPAN) Source Examples

SPAN Source Configuration Example

SPAN Destinations Example

Removing Sources or Destinations from a SPAN Session Example

SPAN Source Configuration Example

The following example shows SPAN session 1 being configured to monitor bidirectional traffic from source interface Fast Ethernet 5/1:

Router(config)# monitor session 1 source interface fastethernet 5/1

SPAN Destinations Example

The following example shows interface Fast Ethernet 5/48 being configured as the destination for SPAN session 1:

Router(config)# monitor session 1 destination interface fastethernet 5/48

Removing Sources or Destinations from a SPAN Session Example

The following example shows interface Fast Ethernet 5/2 being removed as a SPAN source for SPAN session 1:

Router(config)# no monitor session 1 source interface fastethernet 5/2

Network Security and ACL Configuration Examples

Creating Numbered Standard and Extended ACLs Example

Creating Named Standard and Extended ACLs Example

Including Comments About Entries in ACLs Example

Applying the ACL to an Interface Example

Displaying Standard and Extended ACLs Example

Displaying Access Groups Example

Compiling ACLs Example

Creating Numbered Standard and Extended ACLs Example

The following example shows how to create a standard ACL to deny access to IP host 171.69.198.102, permit access to any others, and display the results:

Switch (config)# access-list 2 deny host 171.69.198.102
Switch (config)# access-list 2 permit any
Switch(config)# end
Switch# show access-lists
Standard IP access list 2
    deny   171.69.198.102
    permit any

The following example shows that the switch accepts addresses on network 36.0.0.0 subnets and denies all packets coming from 56.0.0.0 subnets. The ACL is then applied to packets entering Gigabit Ethernet interface 0/1:

Switch(config)# access-list 2 permit 36.0.0.0 0.255.255.255
Switch(config)# access-list 2 deny 56.0.0.0 0.255.255.255
Switch(config)# interface gigabitethernet0/1
Switch(config-if)# ip access-group 2 in

The following example shows how to create and display an extended access list to deny Telnet access from any host in network 171.69.198.0 to any host in network 172.20.52.0 and permit any others (the eq keyword after the destination address means to test for the TCP destination port number equaling Telnet):

Switch(config)# access-list 102 deny tcp 171.69.198.0 0.0.0.255 172.20.52.0 0.0.0.255 eq
telnet
Switch(config)# access-list 102 permit tcp any any
Switch(config)# end
Switch# show access-lists
Extended IP access list 102
    deny tcp 171.69.198.0 0.0.0.255 172.20.52.0 0.0.0.255 eq telnet
    permit tcp any any

The following example shows an extended ACL with a network connected to the Internet, and any host on the network being able to form TCP Telnet and SMTP connections to any host on the Internet:

Switch(config)# access-list 102 permit tcp any 128.88.0.0 0.0.255.255 eq 23
Switch(config)# access-list 102 permit tcp any 128.88.0.0 0.0.255.255 eq 25
Switch(config)# interface gigabitethernet0/1
Switch(config-if)# ip access-group 102 in

SMTP uses TCP port 25 on one end of the connection and a random port number on the other end. The same port numbers are used throughout the life of the connection. Mail packets coming in from the Internet have a destination port of 25. Because the secure system behind the switch always accepts mail connections on port 25, the incoming services are controlled.

Creating Named Standard and Extended ACLs Example

The following example shows how you can delete individual ACEs from a named ACL:

Switch(config)# ip access-list extended border-list
Switch(config-ext-nacl)# no permit ip host 10.1.1.3 any

The following example shows the Marketing_group ACL allowing any TCP Telnet traffic to the destination address and wildcard 171.69.0.0 0.0.255.255 and denying any other TCP traffic. It permits any other IP traffic:

Switch(config)# ip access-list extended marketing_group
Switch(config-ext-nacl)# permit tcp any 171.69.0.0 0.0.255.255 eq telnet
Switch(config-ext-nacl)# deny tcp any any
Switch(config-ext-nacl)# permit ip any any

The ACLs are applied to permit Gigabit Ethernet port 0/1, which is configured as a Layer 2 port, with the Marketing_group ACL applied to incoming traffic.

Switch(config)# interface gigabitethernet0/1
Switch(config-if)# ip access-group marketing_group in
...

Including Comments About Entries in ACLs Example

The following example shows an IP numbered standard ACL using the access-list access-list number remark remark global configuration command to include a comment about an access list. In this example, the workstation belonging to Jones is allowed access, and the workstation belonging to Smith is not allowed access:

Switch(config)# access-list 1 remark Permit only Jones workstation through
Switch(config)# access-list 1 permit 171.69.2.88
Switch(config)# access-list 1 remark Do not allow Smith workstation through
Switch(config)# access-list 1 deny 171.69.3.13

The following example shows an entry in a named IP ACL using the remark access-list global configuration command to include a comment about an access list. In this example, the Jones subnet is not allowed to use outbound Telnet:

Switch(config)# ip access-list extended telnetting
Switch(config-ext-nacl)# remark Do not allow Jones subnet to telnet out
Switch(config-ext-nacl)# deny tcp host 171.69.2.88 any eq telnet

In this example of a numbered ACL, the workstation belonging to Jones is allowed access, and the workstation belonging to Smith is not allowed access:

Switch(config)# access-list 1 remark Permit only Jones workstation through
Switch(config)# access-list 1 permit 171.69.2.88
Switch(config)# access-list 1 remark Do not allow Smith workstation through
Switch(config)# access-list 1 deny 171.69.3.13

In this example of a numbered ACL, the Winter and Smith workstations are not allowed to browse the web:

Switch(config)# access-list 100 remark Do not allow Winter to browse the web
Switch(config)# access-list 100 deny host 171.69.3.85 any eq www
Switch(config)# access-list 100 remark Do not allow Smith to browse the web
Switch(config)# access-list 100 deny host 171.69.3.13 any eq www

Applying the ACL to an Interface Example

The following example shows how to apply access list 2 on Gigabit Ethernet interface 0/3 to filter packets entering the interface:

Switch(config)# interface gigabitethernet0/3
Router(config-if)# ip access-group 2 in

Displaying Standard and Extended ACLs Example

The following example displays all standard and extended ACLs:

Switch# show access-lists
Standard IP access list 1
    permit 172.20.10.10
Standard IP ACL 10
    permit 12.12.12.12
Standard IP access list 12
    deny   1.3.3.2
Standard IP access list 32
    permit 172.20.20.20
Standard IP access list 34
    permit 10.24.35.56
    permit 23.45.56.34
Extended IP access list 120

The following example displays only IP standard and extended ACLs:

Switch# show ip access-lists
Standard IP access list 1
    permit 172.20.10.10
Standard IP access list 10
    permit 12.12.12.12
Standard IP access list 12
    deny   1.3.3.2
Standard IP access list 32
    permit 172.20.20.20
Standard IP access list 34
    permit 10.24.35.56
    permit 23.45.56.34
Extended IP access list 120

Displaying Access Groups Example

You use the ip access-group interface configuration command to apply ACLs to a Layer 3 interface. When IP is enabled on an interface, you can use the show ip interface interface-id privileged EXEC command to view the input and output access lists on the interface, as well as other interface characteristics. If IP is not enabled on the interface, the access lists are not shown.

The following example shows how to view all access groups configured for VLAN 1 and for Gigabit Ethernet interface 0/2:

Switch# show ip interface vlan 1
GigabitEthernet0/2 is up, line protocol is down
  Internet address is 10.20.30.1/16
  Broadcast address is 255.255.255.255
  Address determined by setup command
  MTU is 1500 bytes
  Helper address is not set
  Directed broadcast forwarding is disabled
  Outgoing access list is permit Any
  Inbound  access list is 13

<information truncated>

Switch# show ip interface f0/9
FastEthernet0/9 is down, line protocol is down
  Inbound  access list is ip1

The only way to ensure that you can view all configured access groups under all circumstances is to use the show running-config privileged EXEC command. To display the ACL configuration of a single interface, use the show running-config interface interface-id command.

The following example shows how to display the ACL configuration of Gigabit Ethernet interface 0/1:

Switch# show running-config interface gigabitethernet0/1
Building configuration...

Current configuration :112 bytes
!
interface GigabitEthernet0/1
 ip access-group 11 in
 snmp trap link-status
 no cdp enable
end!

Compiling ACLs Example

For detailed information about compiling ACLs, refer to the Security Configuration Guide and the "IP Services" chapter of the Cisco IOS IP and IP Routing Configuration Guide for Cisco IOS Release 12.2.

Figure 21 shows a small networked office with a stack of Catalyst 2950 switches that are connected to a Cisco router with an Ethernet switch network module installed. A host is connected to the network through the Internet using a WAN link.

Use switch ACLs to do these:

Create a standard ACL, and filter traffic from a specific Internet host with an address 172.20.128.64.

Create an extended ACL, and filter traffic to deny HTTP access to all Internet hosts but allow all other types of access.

Figure 21 Using Switch ACLs to Control Traffic

The following example uses a standard ACL to allow access to a specific Internet host with the address 172.20.128.64:

Switch(config)# access-list 6 permit 172.20.128.64 0.0.0.0
Switch(config)# end
Switch(config)# interface gigabitethernet0/1
Switch(config-if)# ip access-group 6 in

The following example uses an extended ACL to deny traffic from port 80 (HTTP). It permits all other types of traffic:

Switch(config)# access-list 106 deny tcp any any eq 80
Switch(config)# access-list 106 permit ip any any
Switch(config)# interface gigabitethernet0/2
Switch(config-if)# ip access-group 106 in

QoS Configuration Examples

Classifying Traffic by Using ACL Example

Classifying Traffic by Using Class Maps Example

Classifying, Policing, and Marking Traffic by Using Policy Maps Example

Configuring the CoS-to-DSCP Map Example

Configuring the DSCP-to-CoS Map Example

Displaying QoS Information Example

Classifying Traffic by Using ACL Example

The following example shows how to allow access for only those hosts on the two specified networks. The wildcard bits apply to the host portions of the network addresses. Any host with a source address that does not match the ACL statements is rejected.

Switch(config)# access-list 1 permit 192.5.255.0 0.0.0.255
Switch(config)# access-list 1 permit 36.0.0.0 0.0.0.255

Classifying Traffic by Using Class Maps Example

The following example shows how to configure the class map called class1. The class1 has one match criterion, which is an ACL called 103.

Switch(config)# access-list 103 permit any any tcp eq 80
Switch(config)# class-map class1
Switch(config-cmap)# match access-group 103
Switch(config-cmap)# end
Switch#

Classifying, Policing, and Marking Traffic by Using Policy Maps Example

The following example shows how to create a policy map and attach it to an ingress interface. In the configuration, the IP standard ACL permits traffic from network 10.1.0.0. For traffic matching this classification, the DSCP value in the incoming packet is trusted. If the matched traffic exceeds an average traffic rate of 48000 bps and a normal burst size of 8000 bytes, its DSCP is marked down to a value of 10 and transmitted.

Switch(config)# access-list 1 permit 10.1.0.0 0.0.255.255
Switch(config)# class-map ipclass1
Switch(config-cmap)# match access-group 1
Switch(config-cmap)# exit
Switch(config)# policy-map flow1t
Switch(config-pmap)# class ipclass1
Switch(config-pmap-c)# police 5000000 8192 exceed-action dscp 10
Switch(config-pmap-c)# exit
Switch(config-pmap)# exit
Switch(config)# interface gigabitethernet0/1
Switch(config-if)# switchport mode access
Switch(config-if)# service-policy input flow1t

Configuring the CoS-to-DSCP Map Example

The following example shows how to modify and display the CoS-to-DSCP map:

Switch# configure terminal
Switch(config)# mls qos map cos-dscp 8 8 8 8 24 32 56 56
Switch(config)# end
Switch# show mls qos maps cos-dscp

Cos-dscp map:
        cos:  0  1  2  3  4  5  6  7
     --------------------------------
       dscp:  8  8  8  8 24 32 56 56

Configuring the DSCP-to-CoS Map Example

The following example shows how the DSCP values 26 and 48 are mapped to CoS value 7. For the remaining DSCP values, the DSCP-to-CoS mapping is the default.

Switch(config)# mls qos map dscp-cos 26 48 to 7
Switch(config)# exit

Switch# show mls qos maps dscp-cos

Dscp-cos map:
       dscp:  0  8 10 16 18 24 26 32 34 40 46 48 56
     -----------------------------------------------
        cos:  0  1  1  2  2  3  7  4  4  5  5  7  7

Displaying QoS Information Example

The following example shows how to display the DSCP-to-CoS maps:

Switch# show mls qos maps dscp-cos

Dscp-cos map:
       dscp:  0  8 10 16 18 24 26 32 34 40 46 48 56
     -----------------------------------------------
        cos:  0  1  1  2  2  3  3  4  4  5  5  6  7

IGMP Snooping Example

Default IGMP Snooping Configuration

IGMP Snooping is enabled by default on a VLAN or subnet basis. Multicast routing has to be enabled on the router first and then PIM (Multicast routing protocol) has to be enabled on the VLAN interface so that the Ethernet switch network module acknowledges the IGMP join and leave messages that are sent from the hosts connected to the Ethernet switch network module.

Router(config)# ip multicast-routing
Router(config-if)# interface VLAN1
Router(config-if)# ip-address 192.168.10.1 255.255.255.0
Router(config-if)# ip pim sparse-mode

The following example shows the output from configuring IGMP snooping:

Router# show mac-address-table multicast igmp-snooping

Slot # :3
--------------
    MACADDR     VLANID     INTERFACES

0100.5e00.0001    1
0100.5e00.0002    1
0100.5e00.000d    1
0100.5e00.0016    1
0100.5e05.0505    1        Fa3/12
0100.5e06.0606    1        Fa3/13
0100.5e7f.ffff    1        Fa3/13
0100.5e00.0001    2
0100.5e00.0002    2
0100.5e00.000d    2
0100.5e00.0016    2
0100.5e00.0128    2
0100.5e05.0505    2        Fa3/10
0100.5e06.0606    2        Fa3/11
Router#

The following example shows output from the show running-config interface privileged EXEC command for VLAN 1:

Router# show running-config interface vlan 1

Building configuration...

Current configuration :82 bytes
!
interface Vlan1
 ip address 192.168.4.90 255.255.255.0
 ip pim sparse-mode
end

The following example shows output from the show running-config interface privileged EXEC command for VLAN 2:

Router# show running-config interface vlan 2

Building configuration...

Current configuration :82 bytes
!
interface Vlan2
 ip address 192.168.5.90 255.255.255.0
 ip pim sparse-mode
end

The following example shows output verifying multicasting support:

Router# show ip igmp group

IGMP Connected Group Membership
Group Address    Interface                Uptime    Expires   Last Reporter
239.255.255.255  Vlan1                    01:06:40  00:02:20  192.168.41.101
224.0.1.40       Vlan2                    01:07:50  00:02:17  192.168.5.90
224.5.5.5        Vlan1                    01:06:37  00:02:25  192.168.41.100
224.5.5.5        Vlan2                    01:07:40  00:02:21  192.168.31.100
224.6.6.6        Vlan1                    01:06:36  00:02:22  192.168.41.101
224.6.6.6        Vlan2                    01:06:39  00:02:20  192.168.31.101

The following example shows output from the multicast routing table:

Router# show ip mroute

IP Multicast Routing Table
Flags:D - Dense, S - Sparse, B - Bidir Group, s - SSM Group, C -
Connected,
       L - Local, P - Pruned, R - RP-bit set, F - Register flag,
       T - SPT-bit set, J - Join SPT, M - MSDP created entry,
       X - Proxy Join Timer Running, A - Candidate for MSDP Advertisement,
       U - URD, I - Received Source Specific Host Report
Outgoing interface flags:H - Hardware switched
Timers:Uptime/Expires
Interface state:Interface, Next-Hop or VCD, State/Mode

(*, 239.255.255.255), 01:06:43/00:02:17, RP 0.0.0.0, flags:DC
  Incoming interface:Null, RPF nbr 0.0.0.0
  Outgoing interface list:
    Vlan1, Forward/Sparse, 01:06:43/00:02:17

(*, 224.0.1.40), 01:12:42/00:00:00, RP 0.0.0.0, flags:DCL
  Incoming interface:Null, RPF nbr 0.0.0.0
  Outgoing interface list:
    Vlan2, Forward/Sparse, 01:07:53/00:02:14

(*, 224.5.5.5), 01:07:43/00:02:22, RP 0.0.0.0, flags:DC
  Incoming interface:Null, RPF nbr 0.0.0.0
  Outgoing interface list:
    Vlan1, Forward/Sparse, 01:06:40/00:02:22
    Vlan2, Forward/Sparse, 01:07:44/00:02:17

(*, 224.6.6.6), 01:06:43/00:02:18, RP 0.0.0.0, flags:DC
  Incoming interface:Null, RPF nbr 0.0.0.0
  Outgoing interface list:
    Vlan1, Forward/Sparse, 01:06:40/00:02:18
    Vlan2, Forward/Sparse, 01:06:43/00:02:16

Storm-Control Example

The following example shows global bandwidth-based multicast suppression being enabled at 70 percent on Gigabit Ethernet interface 1 and the configuration being verified:

Router# configure terminal
Router(config)# interface gigabitethernet0/2
Router(config-if)# storm-control threshold 70
Router(config-if)# end
Router# show storm-control

Name: Gi0/2
Switchport: Enabled
Administrative Mode: dynamic desirable
Operational Mode: down
Administrative Trunking Encapsulation: dot1q
Negotiation of Trunking: On
Access Mode VLAN: 1 (default)
Trunking Native Mode VLAN: 1 (default)
Trunking VLANs Enabled: ALL
Pruning VLANs Enabled: 2-1001

Port Protected: Off
Unknown Unicast Traffic: Allowed
Unknown Multicast Traffic: Not Allowed

Broadcast Suppression Level: 100
Multicast Suppression Level: 70
Unicast Suppression Level: 100

Ethernet Switching Examples

Subnets for Voice and Data Example

Inter-VLAN Routing Example

Single Subnet Configuration Example

Ethernet Ports on IP Phones with Multiple Ports Example

Subnets for Voice and Data Example

The following example shows separate subnets being configured for voice and data on the Ethernet switch network module:


interface FastEthernet5/1
     description DOT1Q port to IP Phone
     switchport native vlan 50
     switchport mode trunk
     switchport voice vlan 150

interface Vlan 150
description voice vlan
ip address 10.150.1.1 255.255.255.0
ip helper-address 172.20.73.14 (See Note below)

interface Vlan 50
description data vlan
ip address 10.50.1.1 255.255.255.0

This configuration instructs the IP phone to generate a packet with an 802.1Q VLAN ID of 150 with an 802.1p value of 5 (default for voice bearer traffic).


Note In a centralized CallManager deployment model, the DHCP server might be located across the WAN link. If so, an ip helper-address command pointing to the DHCP server should be included on the voice VLAN interface for the IP phone. This is done to obtain its IP address as well as the address of the TFTP server required for its configuration.
Cisco IOS supports a DHCP server function. If this function is used, the Ethernet switch network module serves as a local DHCP server and a helper address would not be required.


Inter-VLAN Routing Example

Configuring inter-VLAN routing is identical to the configuration on a Ethernet switch network module with an MSFC. Configuring an interface for WAN routing is consistent with other Cisco IOS platforms.

The following example provides a sample configuration:

interface Vlan 160
     description voice vlan
     ip address 10.6.1.1 255.255.255.0

interface Vlan 60
description data vlan
ip address 10.60.1.1 255.255.255.0

interface Serial1/0
ip address 160.3.1.2 255.255.255.0


Note Standard IGP routing protocols such as RIP, IGRP, EIGRP, and OSPF are supported on the Ethernet switch network module. Multicast routing is also supported for PIM dense mode, sparse mode, and sparse-dense mode.


Single Subnet Configuration Example

The Ethernet switch network module supports the use of an 802.1p-only option when configuring the voice VLAN. Using this option allows the IP phone to tag VoIP packets with a CoS of 5 on the native VLAN, while all PC data traffic is sent untagged.

The following example shows a single subnet configuration for the Ethernet switch network module switch:

Router# FastEthernet 5/2
description Port to IP Phone in single subnet
     switchport access vlan 40
     switchport voice vlan dot1p
     spanning-tree portfast

The Ethernet switch network module instructs the IP phone to generate an 802.1Q frame with a null VLAN ID value but with an 802.1p value (default is COS of 5 for bearer traffic). The voice and data VLANs are both 40 in this example.

Ethernet Ports on IP Phones with Multiple Ports Example

The following example illustrates the configuration on the IP phone:

interface FastEthernet2/2
     switchport voice vlan 5
     switchport mode trunk

The following example illustrates the configuration on the PC:

interface FastEthernet2/3
     switchport access vlan 10

Note Using a separate subnet, and possibly a separate IP address space, may not be an option for some small branch offices due to the IP routing configuration. If the IP routing can handle an additional subnet at the remote branch, you can use Cisco Network Registrar and secondary addressing.


Intrachassis Stacking Example

The following example shows how to stack GE port 2/0 to GE port 3/0 to form an extended VLAN within one chassis:

Router #config terminal
Router(config)# interface Gigabit 2/0
Router(config-if)# switchport stacking-link interface Gigabit3/0

The following example shows interchassis stacking being verified between GE port 2/0 and GE port
3/0:

 GigabitEthernet2/0 is up, line protocol is down
   Internal Stacking Link Active : Gi2/0 is stacked with Gi3/0
   Hardware is Gigabit Ethernet, address is 001b.3f2b.2c24 (bia 001b.3f2b.2c24)
   MTU 1500 bytes, BW 1000000 Kbit, DLY 10 usec,
      reliability 255/255, txload 1/255, rxload 1/255
   Encapsulation ARPA, loopback not set
   Keepalive set (10 sec)
   Full-duplex mode, link type is force-up, media type is unknown 0
   output flow-control is off, input flow-control is off
   Full-duplex, 1000Mb/s
   ARP type: ARPA, ARP Timeout 04:00:00
   Last input 1d22h, output never, output hang never
   Last clearing of "show interface" counters 1d22h
   Queueing strategy: fifo
   Output queue 0/40, 0 drops; input queue 0/75, 0 drops
   5 minute input rate 0 bits/sec, 0 packets/sec
   5 minute output rate 0 bits/sec, 0 packets/sec
      250707 packets input, 19562597 bytes, 0 no buffer
      Received 7 broadcasts, 0 runts, 0 giants, 0 throttles
      0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
      0 watchdog, 0 multicast, 0 pause input
      0 input packets with dribble condition detected
      7469804 packets output, 582910831 bytes, 0 underruns(0/0/0)
      0 output errors, 0 collisions, 0 interface resets
      0 babbles, 0 late collision, 0 deferred
      0 lost carrier, 0 no carrier, 0 pause output
      0 output buffer failures, 0 output buffers swapped out

Flow Control on Gigabit Ethernet Ports Example

The following examples show how to turn transmit and receive flow control on and how to verify the flow-control configuration:

Port 4/0 flow control send administration status set to on (port will send flowcontrol to far end):

Switch# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)# interface gigabitethernet4/0
Switch(config-if)# flowcontrol send on
Switch(config-if)# end

Port 4/0 flow control receive administration status set to on (port will require far end to send flowcontrol):

Switch# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)# interface gigabitethernet4/0
Switch(config-if)# flowcontrol receive on
Switch(config-if)# end

The following example shows flow control configuration being verified:

Switch# show interface gigabitethernet4/0
GigabitEthernet4/0 is up, line protocol is up
  Hardware is Gigabit Ethernet, address is 0087.c08b.4824 (bia
0087.c08b.4824)
  MTU 1500 bytes, BW 1000000 Kbit, DLY 10 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  output flow-control is off, input flow-control is on
  0 pause input, 0 pause output
  Full-duplex, 1000Mb/s
  ARP type:ARPA, ARP Timeout 04:00:00
  Last input 00:00:01, output never, output hang never
  Last clearing of "show interface" counters never
  Input queue:0/75/0/0 (size/max/drops/flushes); Total output drops:0
  Queueing strategy:fifo
  Output queue:0/40 (size/max)
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 1 packets/sec
     398301 packets input, 29528679 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
     0 input packets with dribble condition detected
     790904 packets output, 54653461 bytes, 0 underruns
     0 output errors, 0 collisions, 5 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out

The following example shows how to configure Gigabit Ethernet interface 0/10 as a routed port and to assign it an IP address:

Switch# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)# interface gigabitethernet0/10
Switch(config-if)# no switchport
Switch(config-if)# ip address 10.1.2.3 255.255.0.0
Switch(config-if)# no shutdown
Switch(config-if)# end

The following is sample output from the show interfaces privileged EXEC command for Gigabit Ethernet interface 0/2:

Switch(config)# show interfaces gigabitethernet0/2
GigabitEthernet0/2 is up, line protocol is up
  Hardware is Gigabit Ethernet, address is 0002.4b29.4400 (bia 0002.4b29.4400)
  Internet address is 192.20.135.21/24
  MTU 1500 bytes, BW 100000 Kbit, DLY 10 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  Full-duplex, 100Mb/s
  input flow-control is off, output flow-control is off
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input 00:00:02, output 00:00:08, output hang never
  Last clearing of "show interface" counters never
  Queueing strategy: fifo
  Output queue 0/40, 0 drops; input queue 0/75, 0 drops
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     89604 packets input, 8480109 bytes, 0 no buffer
     Received 81848 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
     0 input packets with dribble condition detected
     60665 packets output, 6029820 bytes, 0 underruns
     0 output errors, 0 collisions, 16 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out

The following is sample output from the show ip interface privileged EXEC command for Gigabit Ethernet interface 0/2:

Switch# show ip interface gigabitethernet0/2
GigabitEthernet0/2 is up, line protocol is up
  Internet address is 192.20.135.21/24
  Broadcast address is 255.255.255.255
  Address determined by setup command
  MTU is 1500 bytes
  Helper address is not set
  Directed broadcast forwarding is disabled
  Multicast reserved groups joined: 224.0.0.5 224.0.0.6
  Outgoing access list is not set
  Inbound  access list is not set
  Proxy ARP is enabled
  Local Proxy ARP is disabled
  Security level is default
  Split horizon is enabled
  ICMP redirects are always sent
  ICMP unreachables are always sent
  ICMP mask replies are never sent
  IP fast switching is enabled
  IP fast switching on the same interface is disabled
  IP Flow switching is disabled
  IP CEF switching is enabled
  IP CEF Fast switching turbo vector
  IP multicast fast switching is enabled
  IP multicast distributed fast switching is disabled
  IP route-cache flags are Fast, CEF
  Router Discovery is disabled
  IP output packet accounting is disabled
  IP access violation accounting is disabled
  TCP/IP header compression is disabled
  RTP/IP header compression is disabled
  Probe proxy name replies are disabled
  Policy routing is disabled
  Network address translation is disabled
  WCCP Redirect outbound is disabled
  WCCP Redirect exclude is disabled
  BGP Policy Mapping is disabled


The following is sample output for the show running-config privileged EXEC command for Gigabit Ethernet interface 0/2:

Switch# show running-config interface gigabitethernet0/2
Building configuration...

Current configuration : 122 bytes
!
interface GigabitEthernet0/2
 no switchport
 ip address 192.20.135.21 255.255.255.0
 speed 100
 mls qos trust dscp
end

Configuring Layer 3 Interfaces Example

The following example shows how to configure Gigabit Ethernet interface 0/10 as a routed port and to assign it an IP address:

Switch# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)# interface gigabitethernet0/10
Switch(config-if)# no switchport
Switch(config-if)# ip address 10.1.2.3 255.255.0.0
Switch(config-if)# no shutdown
Switch(config-if)# end

The following is sample output from the show interfaces privileged EXEC command for Gigabit Ethernet interface 0/2:

Switch(config)# show interfaces gigabitethernet0/2
GigabitEthernet0/2 is up, line protocol is up
  Hardware is Gigabit Ethernet, address is 0002.4b29.4400 (bia 0002.4b29.4400)
  Internet address is 192.20.135.21/24
  MTU 1500 bytes, BW 100000 Kbit, DLY 10 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  Full-duplex, 100Mb/s
  input flow-control is off, output flow-control is off
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input 00:00:02, output 00:00:08, output hang never
  Last clearing of "show interface" counters never
  Queueing strategy: fifo
  Output queue 0/40, 0 drops; input queue 0/75, 0 drops
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     89604 packets input, 8480109 bytes, 0 no buffer
     Received 81848 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
     0 input packets with dribble condition detected
     60665 packets output, 6029820 bytes, 0 underruns
     0 output errors, 0 collisions, 16 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out

The following is sample output from the show ip interface privileged EXEC command for Gigabit Ethernet interface 0/2:

Switch# show ip interface gigabitethernet0/2
GigabitEthernet0/2 is up, line protocol is up
  Internet address is 192.20.135.21/24
  Broadcast address is 255.255.255.255
  Address determined by setup command
  MTU is 1500 bytes
  Helper address is not set
  Directed broadcast forwarding is disabled
  Multicast reserved groups joined: 224.0.0.5 224.0.0.6
  Outgoing access list is not set
  Inbound  access list is not set
  Proxy ARP is enabled
  Local Proxy ARP is disabled
  Security level is default
  Split horizon is enabled
  ICMP redirects are always sent
  ICMP unreachables are always sent
  ICMP mask replies are never sent
  IP fast switching is enabled
  IP fast switching on the same interface is disabled
  IP Flow switching is disabled
  IP CEF switching is enabled
  IP CEF Fast switching turbo vector
  IP multicast fast switching is enabled
  IP multicast distributed fast switching is disabled
  IP route-cache flags are Fast, CEF
  Router Discovery is disabled
  IP output packet accounting is disabled
  IP access violation accounting is disabled
  TCP/IP header compression is disabled
  RTP/IP header compression is disabled
  Probe proxy name replies are disabled
  Policy routing is disabled
  Network address translation is disabled
  WCCP Redirect outbound is disabled
  WCCP Redirect exclude is disabled
  BGP Policy Mapping is disabled


The following is sample output for the show running-config privileged EXEC command for Gigabit Ethernet interface 0/2:

Switch# show running-config interface gigabitethernet0/2
Building configuration...

Current configuration : 122 bytes
!
interface GigabitEthernet0/2
 no switchport
 ip address 192.20.135.21 255.255.255.0
 speed 100
 mls qos trust dscp
end

Fallback Bridging Example

This section describes how to configure fallback bridging on your switch. It contains this configuration information:

Creating a Bridge Group Example

Preventing the Forwarding of Dynamically Learned Stations Example

Configuring the Bridge Table Aging Time Example

Filtering Frames by a Specific MAC Address Example

Adjusting Spanning-Tree Parameters Examples

Creating a Bridge Group Example

The following example shows how to create bridge group 10, specify the VLAN-bridge STP to run in the bridge group, and assign an interface to the bridge group:

Switch(config)# bridge 10 protocol vlan-bridge
Switch(config)# interface gigabitethernet0/1
Switch(config-if)# no switchport
Switch(config-if)# bridge-group 10

Preventing the Forwarding of Dynamically Learned Stations Example

The following example shows how to prevent the switch from forwarding frames for stations that it has dynamically learned in bridge group 10:

Switch(config)# no bridge 10 acquire

Configuring the Bridge Table Aging Time Example

The following example shows how to change the bridge table aging time to 200 seconds for bridge group 10:

Switch(config)# bridge 10 aging-time 200

Filtering Frames by a Specific MAC Address Example

The following example shows how to forward a frame with MAC address 0800.cb00.45e9 through an interface in bridge group 1:

Switch(config)# bridge 1 address 0800.cb00.45e9 forward gigabitethernet0/1

Adjusting Spanning-Tree Parameters Examples

The following examples show how to adjust spanning-tree parameters:

Changing the Switch Priority Example

Changing the Interface Priority Example

Assigning a Path Cost Example

Adjusting BPDU Intervals Example

Disabling the Spanning Tree on an Interface Example

Changing the Switch Priority Example

The following example shows how to set the switch priority to 100 for bridge group 10:

Switch(config)# bridge 10 priority 100

Changing the Interface Priority Example

The following example shows how to change the priority of an interface to 20 in bridge group 10:

Switch(config)# interface gigabitethernet0/1
Switch(config-if)# bridge-group 10 priority 20

Assigning a Path Cost Example

The following example shows how to change the path cost on an interface to 10 in bridge group 10:

Switch(config)# interface gigabitethernet0/1
Switch(config-if)# bridge-group 10 path-cost 20

Adjusting BPDU Intervals Example

You can adjust BPDU intervals as described in these sections:

Adjusting the Interval between Hello BPDUs Example

Changing the Forward-Delay Interval Example

Changing the Maximum-Idle Interval Example

Adjusting the Interval between Hello BPDUs Example

The following example shows how to change the hello interval to 5 seconds in bridge group 10:

Switch(config)# bridge 10 hello-time 5

Changing the Forward-Delay Interval Example

The following example shows how to change the forward-delay interval to 10 seconds in bridge group 10:

Switch(config)# bridge 10 forward-time 10

Changing the Maximum-Idle Interval Example

The following example shows how to change the maximum-idle interval to 30 seconds in bridge group 10:

Switch(config)# bridge 10 max-age 30

Disabling the Spanning Tree on an Interface Example

The following example shows how to disable spanning tree on an interface in bridge group 10:

Switch(config)# interface gigabitethernet0/1
Switch(config-if)# bridge group 10 spanning-disabled

Command Reference

This section documents new commands or existing commands that are newly ported to the 16- and 36-port Ethernet switch module. All other commands used with this feature are documented in the Cisco IOS Release 12.2 command reference publications.

aaa authentication dot1x

class

class-map

debug dot1x

debug eswilp

debug ip igmp snooping
