Cisco IOS IPS 5.x Signature Format Support and Usability Enhancements

The Cisco IOS Intrusion Prevention System (IPS) acts as an in-line intrusion prevention sensor that scans packets and sessions as they flow through the router to match any Cisco IOS IPS 5.x signature. These signatures are defined in Extensible Markup Language (XML) format and provide the following functionality:

  • Automatic signature updates from local servers. Network administrators can either preserve the user’s current configuration of signature actions or override the user’s current configuration of signature actions with the current IPS configuration.
  • Top-level signature categories to classify signatures for easy grouping and tuning. Group-wide parameters, such as signature event action, can be applied to a group through CLI, so the user does not have to modify each individual signature.
  • Encrypted (NDA) signature support.
  • Direct Download from CCO capability in IOS IPS feature allows an administrator to use the CLI to specify, download and upgrade to new signatures posted for the IOS directly from Cisco.com. An administrator can also configure the router through the CLI to receive future periodic signature downloads automatically to eliminate the manual maintenance efforts and costs of changing or tuning IPS signatures whenever a new update is posted.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Prerequisites for Cisco IOS IPS 5.x Signature Format Support and Usability Enhancements

System and Image Requirements for Cisco IOS IPS 5.x

  • For Cisco IOS Intrusion Prevention System (IPS) signatures, see the “Cisco IOS Signature Package” section for more information.
  • Cisco IOS IPS system requirements depend on the type of deployment, bandwidth requirements, and security requirements. The larger the number of signatures, the larger the amount of memory consumed.
  • You must generate a Rivest, Shamir and Adleman (RSA) crypto key and load the public signature on your device for signature decryption.

This following Cisco public key configuration can be cut and pasted directly into your device configuration:

crypto key pubkey-chain rsa
named-key realm-cisco.pub signature
key-string
30820122 300D0609 2A864886 F70D0101 01050003 82010F00 3082010A 02820101
00C19E93 A8AF124A D6CC7A24 5097A975 206BE3A2 06FBA13F 6F12CB5B 4E441F16
17E630D5 C02AC252 912BE27F 37FDD9C8 11FC7AF7 DCDD81D9 43CDABC3 6007D128
B199ABCB D34ED0F9 085FADC1 359C189E F30AF10A C0EFB624 7E0764BF 3E53053E
5B2146A9 D7A5EDE3 0298AF03 DED7A5B8 9479039D 20F30663 9AC64B93 C0112A35
FE3F0C87 89BCB7BB 994AE74C FA9E481D F65875D6 85EAF974 6D9CC8E3 F0B08B85
50437722 FFBE85B9 5E4189FF CC189CB9 69C46F9C A84DFBA5 7A0AF99E AD768C36
006CF498 079F88F8 A3B3FB1F 9FB7B3CB 5539E1D1 9693CCBB 551F78D2 892356AE
2F56D826 8918EF3C 80CA4F4D 87BFCA3B BFF668E9 689782A5 CF31CB6E B4B094D3
F3020301 0001
quit

Note


You can also access the public key (realm-cisco.pub.key.txt) configuration at the following URL: http:/​/​www.cisco.com/​cgi-bin/​tablebuild.pl/​ios-v5sigup. Ensure that you have your Cisco userid, and password to access this URL.


  • You must load one of the following images on your device to install Cisco IOS IPS 5.x: adventerprisek9, advsecurityk9, and advipservicesk9.

Note


To check the current system version, use the show subsys name ips command. IPS 4.x uses the version format of 2.xxx.xxx; IPS 5.x uses a version format of 3.xxx.xxx.


Upgrading from Cisco IOS IPS 4.x to Cisco IOS IPS 5.x Signatures

Cisco IOS IPS 5.x format signatures are not backward compatible with Cisco IOS IPS 4.x. You must reconfigure your Cisco IOS IPS features for use with the IPS 5.x signature format CLI and features.

When reconfiguring Cisco IOS IPS on a device to convert to the 5.x signature format, you must have the following Cisco IOS IPS 4.x information:

  • Cisco IOS IPS rule name (which is specified through the ip ips name ips-name command)
  • Interfaces for which the Cisco IOS IPS rule has been applied

To gather this information, issue the show ip ips configurationcommand, which displays a copy of the existing output.

Device# show ip ips configuration

Configured SDF Locations:
disk2:my-signatures.sdf
Builtin signatures are enabled but not loaded
Last successful SDF load time: 05:31:54 MST Sep 20 2003
IPS fail closed is disabled
Fastpath ips is enabled
Quick run mode is enabled
Event notification through syslog is enabled
Event notification through SDEE is enabled
Total Active Signatures: 13
Total Inactive Signatures: 0
Signature 50000:0 disable
Signature 50000:1 disable
Signature 50000:2 disable
IPS Rule Configuration
IPS name MYIPS
Interface Configuration
Interface GigabitEthernet0/1
Inbound IPS rule is MYIPS
Outgoing IPS rule is not set

Direct Download from Cisco.com Capability in IOS IPS Support

A device must have access to Cisco.com to upgrade IPS signatures directly from Cisco.com. If the device does not have access to Cisco.com, signature file updates can be retrieved from a local server.

Some devices that are configured for IPS signature autoupdate may not have the necessary certificate trustpoints defined to support HTTPS communications to Cisco.com. As a workaround for this issue, you can do the following:

Restrictions for Cisco IOS IPS 5.x Signature Format Support and Usability Enhancements

DANGER

Do not enable all IPS signatures at once. The router may not be able to compile all of the signatures, resulting in high CPU and memory usage, degraded performance, or a system reload.

Backward Compatibility

Cisco IOS IPS 5.x format signatures are not backward compatible with Cisco IOS IPS 4.x SDFs.

Cisco 870 Series Platform Support

The 870 series platform with Cisco IOS IPS in Cisco IOS Release 12.4(11)T may experience lower performance relative to previous releases (CSCsg57228). The Cisco IOS IPS performance on the 870 series platform is enhanced in a later 12.4(11)T image rebuild.

On the 870 series platform, Cisco IOS IPS is supported only on the adv-ipservices and the adv-enterprise images. Cisco IOS IPS is the same on both images.

Information About Cisco IOS IPS 5.x Signature Format Support and Usability Enhancements

Cisco IOS IPS Overview

The Cisco IOS IPS acts as an in-line intrusion prevention sensor, watching packets and sessions as they flow through the router and scanning each packet to match any of the Cisco IOS IPS signatures. When it detects suspicious activity, it responds before network security can be compromised and logs the event through Cisco IOS syslog messages or Security Device Event Exchange (SDEE). The network administrator can configure Cisco IOS IPS to choose the appropriate response to various threats. The Signature Event Action Processor (SEAP) can dynamically control actions that are to be taken by a signature event on the basis of parameters such as fidelity, severity, or target value rating. These parameters have default values but can also be configured through CLI. When packets in a session match a signature, Cisco IOS IPS can take any of the following actions, as appropriate:

  • Send an alarm to a syslog server or a centralized management interface
  • Drop the packet
  • Reset the connection
  • Deny traffic from the source IP address of the attacker for a specified amount of time
  • Deny traffic on the connection for which the signature was seen for a specified amount of time

Cisco developed its Cisco IOS software-based intrusion-prevention capabilities and Cisco IOS Firewall with flexibility in mind, so that individual signatures could be disabled in case of false positives. Generally, it is preferable to enable both the firewall and Cisco IOS IPS to support network security policies. However, each of these features may be enabled independently and on different router interfaces.

Cisco IOS IPS Signature Package

The latest Cisco IOS IPS signature package can be accessed from Cisco.com using the following URL: http:/​/​www.cisco.com/​cisco/​software/​release.html?mdfid=281442967&release=S636&relind=AVAILABLE&flowid=4836&softwareid=280775022&rellifecycle=&reltype=latest

Note


Ensure that you have your Cisco userid, and password to access this URL.


  • The IOS-Sxxx-CLI.pkg file is listed on this web page. See the “Configuring Cisco IOS IPS on Your Router” for more information on creating a directory on the router flash directory where the required signature files and configurations are stored. Alternatively, you can use a Cisco USB flash drive connected to the router's USB port to store the signature files and configurations. The USB flash drive needs to remain connected to the router USB port if it is used as the IOS IPS configuration directory location. IOS IPS also supports any IOS File System as its configuration location with proper write access.

Signature Categories

Cisco IPS appliances and Cisco IOS IPS with Cisco 5.x format signatures operate with signature categories. All signatures are pregrouped into categories; the categories are hierarchical. An individual signature can belong to more than one category. Top-level categories help to define general types of signatures. Subcategories exist beneath each top-level signature category. (For a list of supported top-level categories, use your router CLI help (?).)

Router Configuration Files and Signature Event Action Processor (SEAP)

As of Cisco IOS Release 12.4(11)T, SDFs are no longer used by Cisco IOS IPS. Instead, routers access signature definition information through a directory that contains three configuration files--the default configuration, the delta configuration, and the SEAP configuration. Cisco IOS accesses this directory through the ip ips config location command.


Note


You must issue the ip ips config location command; otherwise, the configuration files are not saved to any location.


SEAP is the control unit responsible for coordinating the data flow of a signature event. It allows for advanced filtering and signature overrides on the basis of the Event Risk Rating (ERR) feedback. ERR is used to control the level in which a user chooses to take actions in an effort to minimize false positives.

Signatures once stored in NVRAM, are now stored in the delta configuration file; thus, support for access control lists (ACLs) is no longer necessary.

Additional Risk Rating Algorithms

The ERR characterizes the risk of an attack and allows users to make decisions on the basis of the risk control signature event actions. To help further control signature event actions, the following additional rating categories are now supportef:

Preserving Configured Signature Tunings on the Local Router

Most IPS devices and applications provide either a single default configuration or multiple default configurations. Using one of these default configurations is an ideal starting point for deploying IPS. When IOS IPS is deployed, parameters such as severity, active status or event actions of certain signatures need to be tuned to meet the requirements of an enterprise network traffic profile.

Once the ip ips enable-clidelta command is enabled, a local cli-delta.xmz file is generated containing the local tuning signatures configured through the CLI. The settings in the clidelta.xmz file take precedence when a globally administered delta signature update, contained in the iosips-sig-delta.xmz file, is sent from a central repository and applied to the configuration of the local router. See "Tuning Signatures per Signature ID" for more information about the configuration of this feature.

Signature Auto Update Configuration

IPS signature auto updates for your router can be configured in one of the following ways:
  • Manually configuring signature updates from Cisco.com. An administrator can use the CLI to specify, download and upgrade to a new signature package posted for the IOS directly from Cisco.com.
  • Configuring the automatic signature updates to be initiated from a local file server.
  • Configuring signature updates to be automatically updated from Cisco.com allows the administrator to configure the router to receive future periodic signature downloads automatically to eliminate the manual maintenance efforts and costs of changing or tuning IPS signatures whenever a new IPS signature update is posted. Automatic signature updates allow users to override the existing configuration and automatically keep signatures up to date on the basis of a preset time, which can be configured to a preferred setting. Time can be updated through the hardware clock or the configurable software clock (which ever option is available on your system). Although Network Time Protocol (NTP) is typically used for automated time synchronization, Cisco IOS IPS updates use the local clock resources as a reference for update intervals. Thus, NTP should be configured to update the local time server of the router, as appropriate.

Note


The manual and automatic updating of IPS signatures was introduced through the Direct Download from CCO capability in IOS IPS feature in Cisco IOS Release 15.1(1)T. This feature was unavailable prior to this release.


How to Use Cisco IOS IPS 5.x Signature Format Support and Usability Enhancements

Retiring All Signatures and Selecting a Category of Signatures

Router memory and resource constraints prevent a router from loading all Cisco IOS IPS signatures. Thus, it is recommended that you load only a selected set of signatures that are defined by the categories. Because the categories are applied in a “top-down” order, you should first retire all signatures, followed by “unretiring” specific categories. Retiring signatures enables the router to load information for all signatures, but the router does not build the parallel scanning data structure.

Retired signatures are not scanned by Cisco IOS IPS, so they do not fire alarms. If a signature is irrelevant to your network or if you want to save router memory, you should retire signatures, as appropriate.

SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    ip ips signature-category

    4.    category category [subcategory]

    5.    retired {true | false}

    6.    exit

    7.    category category [subcategory]

    8.    retired {true | false}

    9.    exit


DETAILED STEPS
      Command or Action Purpose
    Step 1 enable


    Example:
    Router> enable


    Enables privileged EXEC mode.

    • Enter your password if prompted.

    Step 2 configure terminal


    Example:
    Router# configure terminal


    Enters global configuration mode.


    Step 3 ip ips signature-category


    Example:
    Router(config)# ip ips signature-category


    Enters enters IPS category configuration mode.


    Step 4 category category [subcategory]


    Example:
    Router(config-ips-category)# category all


    Specifies that all categories (and all signatures) are retired in the following step and enters IPS category action configuration mode.


    Step 5 retired {true | false}


    Example:
    Router(config-ips-category-action)# retired true


    Specifies that the router should retire all categories (and all signatures).

    • true --Retires all signatures within a given category.
    • false --“Unretires” all signatures within a given category.

    Step 6 exit


    Example:
    Router(config-ips-category-action)# exit


    Exits IPS category action configuration mode.


    Step 7 category category [subcategory]


    Example:
    Router(config-ips-category)# category ios_ips basic


    Specifies the basic category (and a set of signatures) that are to be “unretired” in the following step.


    Step 8 retired {true | false}


    Example:
    Router(config-ips-category-action)# retired false


    Specifies that all signatures within the basic category are to be unretired; that is, signatures are enabled for the basic category.


    Step 9 exit


    Example:
    Router(config-ips-category-action)# exit


    Exits IPS category action and IPS category configuration modes.



    What to Do Next

    After you have configured the basic category, you should enable IPS on your router. See "Configuring Cisco IOS IPS on Your Router" for more information.

    You can customize (or tune) either the entire category or individual signatures within a category to addresses the needs of your network. See "Tuning Signature Parameters", for more information.

    Configuring Cisco IOS IPS on Your Router

    After you have set up a “load definition” for the signatures to be copied to the idconf, you must configure an IPS rule name. Use this task to configure an IPS rule name and start the IPS configuration.

    You can also use this task to configure a Cisco IOS IPS signature location, which tells Cisco IOS IPS where to save signature information.

    The configuration location is used to restore the IPS configuration in case the router reboots or IPS is disabled or reenabled. Files, such as signature definition, signature-type definitions, and signature category information, are written in XML format, compressed, and saved to the specified IPS signature location.

    SUMMARY STEPS

      1.    enable

      2.    mkdir flash:/ips5

      3.    configure terminal

      4.    ip ips name ips-name

      5.    ip ips config location url

      6.    interface type name

      7.    ip ips ips-name {in | out}

      8.    exit

      9.    show ip ips configuration

      10.    show ip ips signature count


    DETAILED STEPS
        Command or Action Purpose
      Step 1 enable


      Example:
      Router> enable


      Enables privileged EXEC mode.

      • Enter your password if prompted.

      Step 2 mkdir flash:/ips5


      Example:
      Router# mkdir flash:/ips5


      Create a directory for which Cisco IOS IPS saves signature information.

      Note

      The directory location is specified through the ip ips config location command.


      Step 3 configure terminal


      Example:
      Router# configure terminal


      Enters global configuration mode.


      Step 4 ip ips name ips-name


      Example:
      Router(config)# ip ips name myips


      Creates an IPS rule.


      Step 5 ip ips config location url


      Example:
      Router(config)# ip ips config location flash:/ips5



      Specifies the location where Cisco IOS IPS saves the signature information, and, if necessary, access the signature configuration information.

      Note

      You must specify a location; otherwise, the signatures are not saved.

      Note

      If the specified location is a URL, such as an FTP server, the user must have writer privileges.


      Step 6 interface type name


      Example:
      Router(config)# interface gigbitEthernet 0/0


      Identifies the interface in which to enable Cisco IOS IPS and enters interface configuration mode.


      Step 7 ip ips ips-name {in | out}


      Example:
      Router(config-if)# ip ips MYIPS in


      Applies an IPS rule at an interface and automatically loads the signatures and builds the signature engines.

      Note

      Whenever signatures are replaced or merged, the router prompt is suspended while the signature engines for the newly added or merged signatures are being built. The router prompt is available again after the engines are built. Depending on your platform and how many signatures are being loaded, building the engine can take up to several minutes. It is recommended that you enable logging messages to monitor the engine building status.


      Step 8 exit


      Example:
      Router(config-if)# exit


      Example:
      Router(config)# exit


      Exits interface and global configuration modes.


      Step 9 show ip ips configuration


      Example:
      Router# show ip ips configuration


      (Optional) Verifies that Cisco IOS IPS is properly configured.


      Step 10 show ip ips signature count


      Example:
      Router# show ip ips signature


      (Optional) Verifies the number of signatures that are loaded into each signature micro engine (SME).



      Examples

      The following sample output displays the number of signatures that have been loaded into each SME:

      Router# show ip ips signature count
      Cisco SDF release version S247.0
      Trend SDF release version V1.2
      Signature Micro-Engine: multi-string
      Total Signatures: 7
      Enablef: 7
      Retiref: 2
      Compilef: 5
      Signature Micro-Engine: service-http
      Total Signatures: 541
      Enablef: 284
      Retiref: 336
      Compilef: 205
      Signature Micro-Engine: string-tcp
      Total Signatures: 487
      Enablef: 332
      Retiref: 352
      Compilef: 135
      Signature Micro-Engine: string-udp
      Total Signatures: 50
      Enablef: 3
      Retiref: 23
      Compilef: 27
      Signature Micro-Engine: state
      Total Signatures: 26
      Enablef: 15
      Retiref: 23
      Compilef: 3
      Signature Micro-Engine: atomic-ip
      Total Signatures: 140
      Enablef: 87
      Retiref: 93
      Compilef: 46
      Inactive - invalid params: 1
      Signature Micro-Engine: string-icmp
      Total Signatures: 2
      Enablef: 0
      Retiref: 1
      Compilef: 1
      Signature Micro-Engine: service-ftp
      Total Signatures: 3
      Enablef: 3
      Compilef: 3
      Signature Micro-Engine: service-rpc (INACTIVE)
      Signature Micro-Engine: service-dns
      Total Signatures: 1
      Enablef: 1
      Retiref: 1
      Signature Micro-Engine: normalizer
      Total Signatures: 9
      Enablef: 9
      Compilef: 9
      Total Signatures: 1266
      Total Enabled Signatures: 741
      Total Retired Signatures: 831
      Total Compiled Signatures: 434
      Total Signatures with invalid parameters: 1

      Loading a Signature File into Cisco IOS IPS

      Use this task to load signatures into Cisco IOS IPS. You may wish to load new signatures into Cisco IOS IPS if a signature (or signatures) with the current signatures are not providing your network with adequate protection from security threats.

      Prerequisites

      You must enable Cisco IOS IPS. See "Configuring Cisco IOS IPS on Your Router” before loading new signatures.

      Flexible Signatures Ordered and Incremental

      Each signature is compiled incrementally into the scanning tables at the same time. Thus, Cisco IOS IPS can deactivate signatures that fail to compile. (Prior to Cisco IOS Release 12.4(11)T, Cisco IOS IPS deactivated the entire signature microengine (SME) if a single signature failed to compile.)

      Signatures are loaded into the scanning table on the basis of importance. Parameters such as signature severity, signature fidelity rating, and time lapsed since signatures were last released allow Cisco IOS IPS to compile the most important signatures first, followed by less important signatures, thereby, creating a load order and prioritizing which signatures are loaded first.

      SUMMARY STEPS

        1.    enable

        2.    configure terminal

        3.    ip ips config location url

        4.    interface type name

        5.    ip ips ips-name {in | out}

        6.    end

        7.    copy url idconf


      DETAILED STEPS
          Command or Action Purpose
        Step 1 enable


        Example:
        Router> enable


        Enables privileged EXEC mode.

        • Enter your password if prompted.

        Step 2 configure terminal


        Example:
        Router# configure terminal


        Enters global configuration mode.


        Step 3 ip ips config location url


        Example:
        Router(config)# ip ips config location flash:/ips5


        Specifies the location where Cisco IOS IPS saves the signature information, and, if necessary, access the signature configuration information.


        Step 4 interface type name


        Example:
        Router(config)# interface gigbitEthernet 0/0


        Identifies the interface in which to enable Cisco IOS IPS.


        Step 5 ip ips ips-name {in | out}


        Example:
        Router(config-if)# ip ips MYIPS in


        Applies an IPS rule at an interface and automatically loads the signatures and builds the signature engines.


        Step 6 end


        Example:
        Router(config-if)# end


        Exits interface configuration mode.


        Step 7 copy url idconf


        Example:
        Router# copy tftp://tftp_server/sig.xml idconf


        Loads signatures into Cisco IOS IPS.

        After the signatures are loaded, all signature information is saved to the location specified through the ip ips config location command.



        Tuning Signature Parameters

        You can tune signature parameters on the basis of a signature ID (for an individual signature), or you can tune signature parameters on the basis of a category (that is, all signatures that are within a specified category). To tune signature parameters, use the following tasks, as appropriate:


        Note


        Some changes to the signature definitions are not shown in the run time config because the changes are recorded in the sigdef-delta.xml file, which can be located through the ip ips config locationcommand.


        Tuning Signatures for a Signature ID

        Use this task to change default signature parameters for a specified signature ID.

        SUMMARY STEPS

          1.    enable

          2.    configure terminal

          3.    ip ips enable-clidelta

          4.    ip ips signature-definition

          5.    signature signature-id [signature-id]

          6.    engine

          7.    event-action action

          8.    exit

          9.    alert-severity {high | medium | low | informational}

          10.    fidelity-rating rating

          11.    status

          12.    enabled {true | false }

          13.    exit

          14.    show ip ips signature

          15.    show ip ips sig-clidelta


        DETAILED STEPS
            Command or Action Purpose
          Step 1 enable


          Example:
          Router> enable


          Enables privileged EXEC mode.

          • Enter your password if prompted.

          Step 2 configure terminal


          Example:
          Router# configure terminal


          Enters global configuration mode.


          Step 3 ip ips enable-clidelta


          Example:
          Router(config)# ip ips enable-clidelta


          (Optional) Enables the signature tuning settings in the clidelta.xmz file on the router to take precedence over the signature settings in the IPS iosips-sig-delta.xmz file.


          Step 4 ip ips signature-definition


          Example:
          Router(config)# ip ips signature-definition


          Enters signature-definition-signature configuration mode.


          Step 5 signature signature-id [signature-id]


          Example:
          Router(config-sigdef-sig)# signature 9000:0


          Specifies a signature for which the CLI user tunings are changed and enters signature-definition-action configuration mode.


          Step 6 engine


          Example:
          Router(config-sigdef-action)# engine


          (Optional) Enters signature-definition-action-engine configuration mode, which allows you to change router actions for a specified signature.


          Step 7 event-action action


          Example:
          Router(config-sigdef-action-engine)# event-action deny-attacker-inline


          Changes router actions for a specified signature.

          The action argument can be any of the following options:

          • deny-attacker-inline
          • deny-connection-inline
          • deny-packet-inline
          • produce-alert
          • reset-tcp-connection
          Note

          Signature event actions must be entered on a single line.

          Note

          You must enter the engine command before issuing this command.


          Step 8 exit


          Example:
          Router(config-sigdef-action-engine)# exit


          Exits the signature-definition-action-engine configuration mode.

          This step is required only if the engine and event-action commands are issued.


          Step 9 alert-severity {high | medium | low | informational}


          Example:
          Router(config-sigdef-action)# alert-severity medium


          (Optional) Changes the alert severity rating for a given signature.


          Step 10 fidelity-rating rating


          Example:
          Router(config-sigdef-action)# fidelity-rating 2


          (Optional) Changes the signature fidelity rating for a given signature.


          Step 11 status


          Example:
          Router(config-sidef-action)# status


          (Optional) Enters the signature-definition-status configuration mode, which allows you to change the enabled status of a signature.


          Step 12 enabled {true | false }


          Example:
          Router(config-sigdef-status)# enabled true


          (Optional) Changes the enabled status of a given signature or signature category.


          Step 13 exit


          Example:
          Router(config-sigdef-status)# exit


          Returns to EXEC mode.


          Step 14 show ip ips signature


          Example:
          Router# show ip ips signature


          (Optional) Verifies the signature changes that have been made.


          Step 15 show ip ips sig-clidelta


          Example:
          Router# show ip ips sig-clidelta


          (Optional) Displays the signature parameter tunings configured using the CLI, which are stored in the iosips-sig-clidelta.xmz signature file.



          Tuning Signatures per Category

          Use this task to change default signature parameters for a category of signatures. Categories such as operating systems; Layer 2, Layer 3, or Layer 4 protocols; or service-based categories can be configured to provide wider changes to a group of signatures.


          Tip


          Category configuration information is processed in the order that it is entered. Thus, it is recommended that the process of retiring all signatures. See "Retiring All Signatures and Selecting a Category of Signatures” before all other category tuning. If a category is configured more than once, the parameters entered in the second configuration are added to or replace the previous configuration.


          SUMMARY STEPS

            1.    enable

            2.    configure terminal

            3.    ip ips signature-category

            4.    category category [subcategory]

            5.    event-action action

            6.    alert-severity {high | medium | low | informational}

            7.    fidelity-rating rating

            8.    enabled {true | false}

            9.    retired {true | false }

            10.    end

            11.    show ip ips signature


          DETAILED STEPS
              Command or Action Purpose
            Step 1 enable


            Example:
            Router> enable


            Enables privileged EXEC mode.

            • Enter your password if prompted.

            Step 2 configure terminal


            Example:
            Router# configure terminal


            Enters global configuration mode.


            Step 3 ip ips signature-category


            Example:
            Router(config)# ip ips signature-category


            Enters IPS category configuration mode.


            Step 4 category category [subcategory]


            Example:
            Router(config-ips-category)# category attack adware/spyware


            Specifies a category that is to be used for multiple signature actions or conditions and enters IPS category action configuration mode.


            Step 5 event-action action


            Example:
            Router(config-ips-category-action)# event-action produce-alert


            Changes router actions for a specified signature category.

            Theaction argument can be any of the following options:

            • deny-attacker-inline
            • deny-connection-inline
            • deny-packet-inline
            • produce-alert
            • reset-tcp-connection
            Note

            Event actions associated with a category can be entered separately or on a single line.


            Step 6 alert-severity {high | medium | low | informational}


            Example:
            Router(config-ips-category-action)# alert-severity medium


            (Optional) Changes the alert severity rating for a given signature category.


            Step 7 fidelity-rating rating


            Example:
            Router(config-ips-category-action)# fidelity-rating


            (Optional) Changes the signature fidelity rating for a signature given category.


            Step 8 enabled {true | false}


            Example:
            Router(config-ips-category-action)# enabled true


            (Optional) Changes the enabled status of a given signature or signature category.


            Step 9 retired {true | false }


            Example:
            Router(config-ips-category-action)# retired true


            (Optional) Specifies whether or not the router should retire a signature category.


            Step 10 end


            Example:
            Router(config-ips-category-action)# end


            Example:



            Returns to EXEC mode.


            Step 11 show ip ips signature


            Example:
            Router# show ip ips signature


            (Optional) Verifies the signature category changes that have been made.



            Setting the Target Value Rating

            Use this task to set the target value rating, which allows users to develop security policies that can be more strict for some resources than others. The security policy is applied to a table of hosts that are protected by Cisco IOS IPS. A host can be a single IP address or a range of IP addresses with an associated target value rating.


            Note


            Changes to the target value rating is not shown in the run time config because the changes are recorded in the seap-delta.xml file, which can be located through the ip ips config location command.


            SUMMARY STEPS

              1.    enable

              2.    configure terminal

              3.    ip ips event-action-rules

              4.    target-value {mission-critical | high | medium | low} target-address ip-address [/nn | to ip-address]

              5.    exit


            DETAILED STEPS
                Command or Action Purpose
              Step 1 enable


              Example:
              Router> enable


              Enables privileged EXEC mode.

              • Enter your password if prompted.

              Step 2 configure terminal


              Example:
              Router# configure terminal


              Enters global configuration mode.


              Step 3 ip ips event-action-rules


              Example:
              Router(config)# ip ips event-action-rules


              Enters the config-rule configuration mode, which allows users to change the target value rating.


              Step 4 target-value {mission-critical | high | medium | low} target-address ip-address [/nn | to ip-address]


              Example:
              Router(config-rul)# target-value medium target-address 10.12.100.53


              Sets the target value rating for a host to rate how important the system is to the network.

              • The target-address keyword and arguments specify a host, which can consist of a single IP address or range of IP addresses.

              Step 5 exit


              Example:
              Router(config-rul)# exit


              Exits config-rule configuration mode.



              Configuring Signature Auto Updates

              Configuring Signature Auto Updates from a Local Server


              Note


              This functionality was introduced through the Cisco IOS IPS 5.x Signature Format and Usability Enhancements feature in Cisco IOS Release 12.4(11)T.


              SUMMARY STEPS

                1.    enable

                2.    configure terminal

                3.    key config-key password-encrypt

                4.    password encryption aes

                5.    ip ips auto-update

                6.    occur-at {[monthly | weekly] days minutes hours}

                7.    username name password password

                8.    url url

                9.    exit

                10.    show ip ips auto-update


              DETAILED STEPS
                  Command or Action Purpose
                Step 1 enable


                Example:
                Router> enable


                Enables privileged EXEC mode.

                • Enter your password if prompted.

                Step 2 configure terminal


                Example:
                Router# configure terminal


                Enters global configuration mode.


                Step 3 key config-key password-encrypt


                Example:
                Router(config-ips-auto-update)# key config-key password-encrypt


                Stores a type 6 encryption key in private NVRAM.


                Step 4 password encryption aes


                Example:
                Router(config-ips-auto-update)# password encryption aes

                Enables a type 6 encrypted preshared key.
                Note

                Once the key config-key password-encrypt and password encryption aes commands are configured, they enable the password (symmetric cipher Advanced Encryption Standard (AES) encrypts the keys).


                Step 5 ip ips auto-update


                Example:
                Router(config)# ip ips auto-update


                Enables automatic signature updates for Cisco IOS IPS and enters IPS auto-update configuration mode.


                Step 6 occur-at {[monthly | weekly] days minutes hours}


                Example:
                Router(config-ips-auto-update)# occur-at weekly 4 23 23


                (Optional) Defines a preset time for which the Cisco IOS IPS automatically obtains updated signature information.


                Step 7 username name password password


                Example:
                Router(config-ips-auto-update)# username myips password secret


                (Optional) Defines a username and password for the signature update function.


                Step 8 url url


                Example:
                Router(config-ips-auto-update)# url tftp://10.10.10.5/username1/ips-auto-update/



                URL from the local server on which the router retrieves the Cisco IOS IPS signature configuration files.


                Step 9 exit


                Example:
                Router(config-ips-auto-update)# exit
                Router(config)# exit


                Exits IPS auto-update and global configuration modes.


                Step 10 show ip ips auto-update


                Example:
                Router# show ip ips auto-update


                Verifies the signature update configuration.

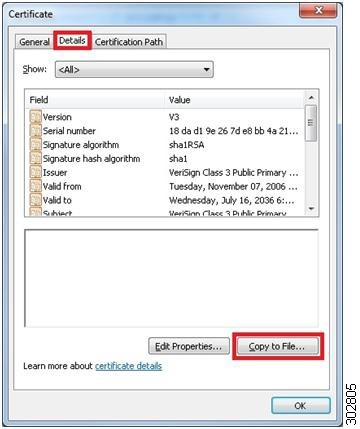

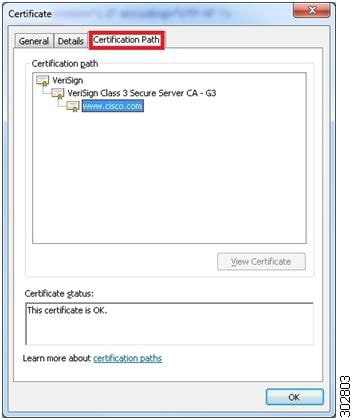

                Preparing SSL Certificates for Cisco.com Signature Auto Updates

                In order for IPS signatures to be automatically upgraded from Cisco.com, the current SSL certificate(s) need to be retrieved and manually installed on the router. Cisco update servers use a mix of Verisign and CyberTrust certificates, so the specific certificate may vary depending on the origin of the update connection. Although the steps are the same, examples in the following configuration show the Verisign certificate chain (which is the most commonly used).

                Note


                SSL certificates are typically valid for a 12 month period. Ensure that this task is repeated periodically to refresh the installed certificates.



                Note

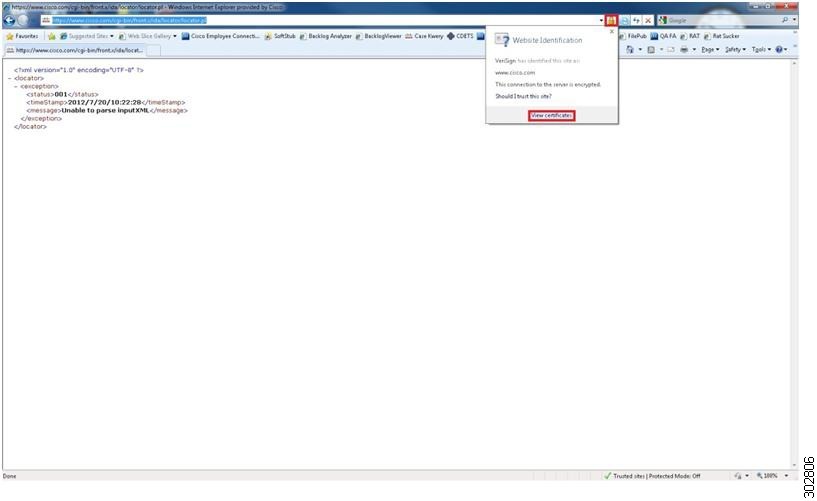

                The examples in this task use Internet Explorer browser. The certificate export process may be different if you are using a different browser.


                SUMMARY STEPS

                  1.    Open your browser and go to the Cisco IDA-server URL.

                  2.    Enter your Cisco user ID and password.

                  3.    To display the website SSL certificate, click on the padlock icon to the right of the URL field and select View Certificates from the drop-down menu.

                  4.    In the Certificate pop-up window, click on the Certification Path tab to view the certification path.

                  5.    To manually export the root and sub-root certificates in the chain, highlight each level individually and then click on the View Certificate button.

                  6.    In the new Certificate pop-up window, click on the Details tab and click on the Copy to File button.

                  7.    Click Next in the Certificate Export Wizard pop-up window. Select the Base-64 encoded X.509 (.CER) format and click Next. Specify a meaningful filename and export location. For this example, you can save the files root and sub-root locally to the desktop. Repeat steps 5 through 7 for any sub-root servers in the chain.


                DETAILED STEPS
                  Step 1   Open your browser and go to the Cisco IDA-server URL.

                  Example:

                  https:/​/​www.cisco.com/​cgi-bin/​front.x/​ida/​locator/​locator.pl

                  Step 2   Enter your Cisco user ID and password.
                  Step 3   To display the website SSL certificate, click on the padlock icon to the right of the URL field and select View Certificates from the drop-down menu.

                  Example:

                  The Certificate pop-up window displays.

                  Step 4   In the Certificate pop-up window, click on the Certification Path tab to view the certification path.

                  Example:

                  Note

                  The identity certificate for www.cisco.com is signed by VeriSign root and sub-root CA servers in the example above.

                  Step 5   To manually export the root and sub-root certificates in the chain, highlight each level individually and then click on the View Certificate button.

                  Example:

                  A new Certificate pop-up window displays.

                  Step 6   In the new Certificate pop-up window, click on the Details tab and click on the Copy to File button.

                  Example:

                  The Certificate Export Wizard pop-up window displays.

                  Step 7   Click Next in the Certificate Export Wizard pop-up window. Select the Base-64 encoded X.509 (.CER) format and click Next. Specify a meaningful filename and export location. For this example, you can save the files root and sub-root locally to the desktop. Repeat steps 5 through 7 for any sub-root servers in the chain.

                  What to Do Next

                  Now you are ready to configure the router so that the upgrading of IPS signatures can be configured automatically from Cisco.com. See the “Upgrading Signatures Automatically from Cisco.com” section for more information.

                  Creating a PKI Trustpoint for Auto Signature Updates

                  Use this task to create PKI trustpoints, which are required for manual and automatic signature updates from Cisco.com.

                  SUMMARY STEPS

                    1.    enable

                    2.    configure terminal

                    3.    crypto pki trustpoint name

                    4.    enrollment terminal [pem]

                    5.    revocation-check none

                    6.    exit

                    7.    crypto pki authenticate name


                  DETAILED STEPS
                      Command or Action Purpose
                    Step 1 enable


                    Example:
                    Router> enable


                    Enables privileged EXEC mode.

                    • Enter your password if prompted.

                    Step 2 configure terminal


                    Example:
                    Router# configure terminal


                    Enters global configuration mode.


                    Step 3 crypto pki trustpoint name


                    Example:
                    Router(config)# crypto pki trustpoint root


                    Creates a trustpoint and enters ca-trustpoint configuration mode.


                    Step 4 enrollment terminal [pem]


                    Example:
                    Router(ca-trustpoint)# enrollment terminal



                    Specifies the manual cut-and-paste certificate enrollment.

                    • pem -- (Optional) Adds privacy-enhanced mail (PEM) boundaries to the certificate request.

                    Step 5 revocation-check none


                    Example:
                    Router(ca-trustpoint)# revocation-check none



                    Specifies that certificate checking of the revocation status is not required.


                    Step 6 exit


                    Example:
                    Router(ca-trustpoint)# exit


                    Exits ca-trustpoint configuration mode and enters global configuration mode.


                    Step 7 crypto pki authenticate name


                    Example:
                    Router(config)# crypto pki authenticate root

                    Enter the base 64 encoded CA certificate.
                    End with a blank


                    Authenticates the CA server (by getting the certificate of the CA server).

                    • name -- The name of the CA.

                    Once you enter the name of the CA, you are prompted to enter the base 64 encoded CA certificate that is in the .CER file that you created in the “Preparing SSL Certificates for Cisco.com Signature Auto Updates” section. To view the certificate in the .CER file, open the .CER file in a text editor such as Wordpad. Copy the certificate details directly into the terminal window. Once pasted, hit "Enter" to go to a new line and then type quit to exit. Type yes to accept the certificate.


                    Certificate Installation Examples

                    In the following example, “root" is defined for the first trustpoint CA:

                    In the following example “sub-root" is defined for the second trustpoint CA:

                    Manually Configuring Signature Auto Updates from Cisco.com

                    Perform this task to manually specify, download and upgrade to a new IPS signature file posted for the IOS from Cisco.com.

                    Note


                    This functionality was introduced through the Direct Download from CCO capability in IOS IPS feature in Cisco IOS Release 15.1(1)T.


                    This task eliminates the need for an administrator to download the latest signature file from CCO manually to a local HTTP, FTP, or TFTP server and next download this signature file to the router (from that local HTTP, FTP, or TFTP server).

                    SUMMARY STEPS

                      1.    enable

                      2.    configure terminal

                      3.    ida-client server url url

                      4.    password encryption aes

                      5.    key config-key password-encrypt

                      6.    exit

                      7.    ips signature update cisco [version {next | latest | release-version} | username name password password]

                      8.    show ip ips configuration

                      9.    show ip ips auto-update


                    DETAILED STEPS
                        Command or Action Purpose
                      Step 1 enable


                      Example:
                      Router> enable


                      Enables privileged EXEC mode.

                      • Enter your password if prompted.

                      Step 2 configure terminal


                      Example:
                      Router# configure terminal


                      Enters global configuration mode.


                      Step 3 ida-client server url url


                      Example:
                      Router(config)# ida-client server url https://www.cisco.com/cgi-bin/front.x/ida/locator/locator.pl


                      Specifies the IDA-server URL that the IDA client communicates with to download files from the Cisco.com server. Enter the following URL:

                      https://www.cisco.com/cgi-bin/front.x/ida/locator/locator.pl


                      Step 4 password encryption aes


                      Example:
                      Router(config)# password encryption aes


                      Enables the encryption of the password with a type 6 encrypted preshared key.


                      Step 5 key config-key password-encrypt


                      Example:
                      Router(config)# key config-key password-encrypt


                      Configures the encrypted preshared key that is used to encrypt all other keys in the router.


                      Step 6 exit


                      Example:
                      Router(config)# exit


                      Exits global configuration mode.


                      Step 7 ips signature update cisco [version {next | latest | release-version} | username name password password]


                      Example:
                      Router# ips signature update cisco


                      Example:
                      Router# ips signature update cisco username myips password secret


                      Initiates a one-time download of an IPS signatures (signature package) from Cisco.com.

                      (Optional) The version keyword with the next keyword specifies the next signature file package version from the current signature file on the router.

                      (Optional) The version keyword with the with the latest keyword specifies the IOS IPS to search for the latest signature package.

                      (Optional) The version keyword with the signature argument specifies a specific version of the signature package on Cisco.com (e.g. S293).

                      (Optional) The username keyword and name argument and password keyword and password argument is for the automatic signature update function.


                      Step 8 show ip ips configuration


                      Example:
                      Router# show ip ips configuration


                      Verifies that Cisco IOS IPS is properly configured.


                      Step 9 show ip ips auto-update


                      Example:
                      Router# show ip ips auto-update


                      Verifies the signature update configuration.



                      Configuring Signature Auto Updates to be Upgraded Automatically from Cisco.com


                      Note


                      The functionality that allows the router to upgrade signatures automatically from Cisco.com was introduced through the Direct Download from CCO capability in IOS IPS feature in Cisco IOS Release 15.1(1)T.


                      The steps in this task create a new trustpoint (Certificate Authority (CA) server) for a certificate. Repeat the steps in this task to create additional trustpoint certificates. Use meaningful names to differentiate trustpoints. See the examples at the end of this task.

                      Before You BeginEnsure that the following pre-requisites are satisfied before configuring the router for upgrading IPS signatures automatically from Cisco.com:
                      • Ensure that the router points to a reliable time source using Network Time Protocol (NTP). See the Cisco IOS Basic System Management Configuration Guide for more information.
                      • Ensure that DNS is enabled on the router to resolve domain names to IP addresses. See the Cisco IOS IP Addressing: DNS Configuration Guide for more information.
                      SUMMARY STEPS

                        1.    enable

                        2.    configure terminal

                        3.    ida-client server url url

                        4.    password encryption aes

                        5.    key config-key password-encrypt

                        6.    ip ips auto-update

                        7.    occur-at {[monthly | weekly] days minutes hours}

                        8.    cisco

                        9.    username name password password

                        10.    exit

                        11.    show ip ips configuration

                        12.    show ip ips auto-update


                      DETAILED STEPS
                          Command or Action Purpose
                        Step 1 enable


                        Example:
                        Router> enable


                        Enables privileged EXEC mode.

                        • Enter your password if prompted.

                        Step 2 configure terminal


                        Example:
                        Router# configure terminal


                        Enters global configuration mode.


                        Step 3 ida-client server url url


                        Example:
                        Router(config)# ida-client server url https://www.cisco.com/cgi-bin/front.x/ida/locator/locator.pl


                        Specifies the IDA-server URL that the IDA client communicates with to download files from the Cisco.com server. Enter the following URL:

                        https://www.cisco.com/cgi-bin/front.x/ida/locator/locator.pl


                        Step 4 password encryption aes


                        Example:
                        Router(config)# password encryption aes


                        Enables the encryption of the password with a type 6 encrypted preshared key.


                        Step 5 key config-key password-encrypt


                        Example:
                        Router(config)# key config-key password-encrypt


                        Configures the encrypted preshared key that is used to encrypt all other keys in the router.


                        Step 6 ip ips auto-update


                        Example:
                        Router(config)# ip ips auto-update


                        Enables automatic signature updates for Cisco IOS IPS and enters IPS auto-update configuration mode.


                        Step 7 occur-at {[monthly | weekly] days minutes hours}


                        Example:
                        Router(config-ips-auto-update)# occur-at weekly 4 23 23


                        (Optional) Defines a preset time for which the Cisco IOS IPS automatically obtains updated signature information.


                        Step 8 cisco


                        Example:
                        Router(config-ips-auto-update)# cisco


                        Enables automatic Cisco IOS IPS signature updates from Cisco.com.


                        Step 9 username name password password


                        Example:
                        Router(config-ips-auto-update)# username myips password secret


                        (Optional) Defines a username and password for the signature update function.


                        Step 10 exit


                        Example:
                        Router(config)# exit


                        Exits global configuration mode.


                        Step 11 show ip ips configuration


                        Example:
                        Router# show ip ips configuration


                        Verifies that Cisco IOS IPS is properly configured.


                        Step 12 show ip ips auto-update


                        Example:
                        Router# show ip ips auto-update


                        Verifies the signature update configuration.



                        Monitoring Cisco IOS IPS Signatures through Syslog Messages or SDEE

                        Cisco IOS IPS provides two methods to report IPS intrusion alerts--Cisco IOS logging (syslog) and SDEE. Perform this task to enable SDEE to report IPS intrusion alerts. See the “Troubleshooting and Fault Management” feature module for more information on configuring syslog messages.

                        SDEE Overview

                        SDEE is an application-level communication protocol that is used to exchange IPS messages between IPS clients and IPS servers. SDEE is always running, but it does not receive and process events from IPS unless SDEE notification is enabled. If SDEE notification is not enabled and a client sends a request, SDEE responds with a fault response message, indicating that notification is not enabled.

                        Storing SDEE Events in the Buffer

                        When SDEE notification is enabled (through the ip ips notify sdee command), 200 events can automatically be stored in the buffer. When SDEE notification is disabled, all stored events are lost. A new buffer is allocated when the notifications are reenabled.

                        When specifying the size of an events buffer, note the following functionality:

                        • It is circular. When the end of the buffer is reached, the buffer starts overwriting the earliest stored events. (If overwritten events have not yet been reported, a buffer overflow notice is received.)
                        • If a new, smaller buffer is requested, all events that are stored in the previous buffer is lost.
                        • If a new, larger buffer is requested, all existing events are saved.
                        Before You Begin

                        To use SDEE, the HTTP server must be enabled (through the ip http server command). If the HTTP server is not enabled, the router cannot respond to the SDEE clients because it cannot not “see” the requests.

                        SUMMARY STEPS

                          1.    enable

                          2.    configure terminal

                          3.    ip ips notify sdee

                          4.    ip sdee events events

                          5.    ip sdee subscriptions subscriptions

                          6.    ip sdee messages messages

                          7.    ip sdee alerts alerts

                          8.    exit

                          9.    show ip sdee [alerts | all | errors | events | configuration | status | subscriptions]


                        DETAILED STEPS
                            Command or Action Purpose
                          Step 1 enable


                          Example:
                          Router> enable


                          Enables privileged EXEC mode.

                          • Enter your password if prompted.

                          Step 2 configure terminal


                          Example:
                          Router# configure terminal


                          Enters global configuration mode.


                          Step 3 ip ips notify sdee


                          Example:
                          Router(config)# ip ips notify sdee


                          Enables SDEE event notification on a router.


                          Step 4 ip sdee events events


                          Example:
                          Router(config)# ip sdee events 500


                          (Optional) Sets the maximum number of SDEE events that can be stored in the event buffer.

                          • Maximum value: 1000 events.
                          Note

                          By default, 200 events can be stored in the buffer when SDEE is enabled. When SDEE is disabled, all stored events are lost; a new buffer is allocated when the notifications are reenabled.


                          Step 5 ip sdee subscriptions subscriptions


                          Example:
                          Router(config)# ip sdee subscriptions 1


                          (Optional) Sets the maximum number of SDEE subscriptions that can be open simultaneously.

                          • Valid value ranges from 1 to 3.

                          Step 6 ip sdee messages messages


                          Example:
                          Router(config)# ip sdee messages 500


                          (Optional) Sets the maximum number of SDEE messages that can be stored in the buffer at one time.


                          Step 7 ip sdee alerts alerts


                          Example:
                          Router(config)# ip sdee alerts 2000


                          (Optional) Sets the maximum number of SDEE alerts that can be stored in the buffer at one time.


                          Step 8 exit


                          Example:
                          Router(config)# exit


                          Exits global configuration mode.


                          Step 9 show ip sdee [alerts | all | errors | events | configuration | status | subscriptions]


                          Example:
                          Router# show ip sdee configuration


                          (Optional) Verifies SDEE configuration information and notification functionality.



                          Troubleshooting Tips

                          To print out new SDEE alerts on the router console, issue the debug ip sdee command.

                          To clear the event buffer or SDEE subscriptions from the router (which helps with error recovery), issue the clear ip sdee command.

                          Configuration Examples for Cisco IOS IPS 5.x Signature Format Support and Usability Enhancements

                          Cisco IOS IPS Configuration Example

                          The following example shows how to enable and verify Cisco IOS IPS on your router:

                          Router# mkdir
                          flash:/ips5
                          Create directory filename [ips5]?
                          Created dir flash:/ips5
                          Router#
                          Router#
                          Router#
                          Router# configure terminal
                          Enter configuration commands, one per line. End with CNTL/Z.
                          Router(config)# ip ips name MYIPS
                          Router(config)# ip ips config location
                          flash:/ips5
                          Router(config)# ip ips signature-category
                          Router(config-ips-category)# category all
                          Router(config-ips-category-action)# retired true
                          Router(config-ips-category-action)# exit
                          Router(config-ips-category)# category ios_ips advanced
                          Router(config-ips-category-action)# retired false
                          Router(config-ips-category-action)# exit

                          Router(config-ips-category)# exit
                          Do you want to accept these changes? [confirm]
                          Router(config)# d
                          *Nov 14 2006 17:16:42 MST: Applying Category configuration to signatures ..
                          Router(config)#
                          Router(config)# do show ip interface brief
                          Interface                IP-Address     OK?    Method  Status                 Protocol
                          GigabitEthernet0/0       10.0.20.120    YES    NVRAM   up                     up
                          GigabitEthernet0/1       10.12.100.120  YES    NVRAM   administratively down  down
                          NVI0                     unassigned     NO     unset   up                     up
                          Router(config)#
                          Router(config)# interface gigabits 0/0
                          Router(config-if)# ip ips MYIPS in
                          Router(config-if)#
                          *Nov 14 2006 17:17:07 MST: %IPS-6-ENGINE_BUILDS_STARTEf: 17:17:07 MST Nov 14 2006
                          *Nov 14 2006 17:17:07 MST: %IPS-6-ENGINE_BUILDING: atomic-ip - 3 signatures - 1 of 13 engines
                          *Nov 14 2006 17:17:07 MST: %IPS-6-ENGINE_READY: atomic-ip - build time 0 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:17:07 MST: %IPS-6-ALL_ENGINE_BUILDS_COMPLETE: elapsed time 0 ms
                          Router(config-if)#
                          Router(config-if)# ip ips MYIPS out
                          Router(config-if)#
                          Router(config-if)#
                          Router(config-if)#^Z
                          Router#
                          *Nov 14 2006 17:17:23 MST: %SYS-5-CONFIG_I: Configured from console by cisco on console
                          Router# wr
                          Building configuration...
                          [OK]
                          Router#
                          Router# show ip ips signature count
                          Cisco SDF release version S0.0
                          Signature Micro-Engine: multi-string (INACTIVE)
                          Signature Micro-Engine: service-http (INACTIVE)
                          Signature Micro-Engine: string-tcp (INACTIVE)
                          Signature Micro-Engine: string-udp (INACTIVE)
                          Signature Micro-Engine: state (INACTIVE)
                          Signature Micro-Engine: atomic-ip
                               Total Signatures: 3
                                 Enablef: 0
                                 Compilef: 3
                          Signature Micro-Engine: string-icmp (INACTIVE)
                          Signature Micro-Engine: service-ftp (INACTIVE)
                          Signature Micro-Engine: service-rpc (INACTIVE)
                          Signature Micro-Engine: service-dns (INACTIVE)
                          Signature Micro-Engine: normalizer (INACTIVE)
                          Signature Micro-Engine: service-smb-advanced (INACTIVE)
                          Signature Micro-Engine: service-msrpc (INACTIVE)
                               Total Signatures: 3
                               Total Enabled Signatures: 0
                               Total Retired Signatures: 0
                               Total Compiled Signatures: 3
                          Router#
                          Router# copy flash:IOS-S258-CLI-kd.pkg idconf
                          *Nov 14 2006 17:19:47 MST: %IPS-6-ENGINE_BUILDS_STARTEf: 17:19:47 MST Nov 14 2006
                          *Nov 14 2006 17:19:47 MST: %IPS-6-ENGINE_BUILDING: multi-string - 3 signatures - 1 of 13 engines
                          *Nov 14 2006 17:19:47 MST: %IPS-6-ENGINE_READY: multi-string - build time 4 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:19:47 MST: %IPS-6-ENGINE_BUILDING: service-http - 611 signatures - 2 of 13 engines
                          *Nov 14 2006 17:20:00 MST: %IPS-6-ENGINE_READY: service-http - build time 12932 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:00 MST: %IPS-6-ENGINE_BUILDING: string-tcp - 864 signatures - 3 of 13 engines
                          *Nov 14 2006 17:20:02 MST: %IPS-6-ENGINE_READY: string-tcp - build time 2692 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:02 MST: %IPS-6-ENGINE_BUILDING: string-udp - 74 signatures - 4 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: string-udp - build time 316 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: state - 28 signatures - 5 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: state - build time 24 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: atomic-ip - 252 signatures - 6 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-4-META_ENGINE_UNSUPPORTEf: atomic-ip 2154:0 - this signature is a component of the unsupported META engine
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: atomic-ip - build time 232 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: string-icmp - 3 signatures - 7 of 13 e
                          Router# engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: string-icmp - build time 12 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: service-ftp - 3 signatures - 8 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: service-ftp - build time 8 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: service-rpc - 75 signatures - 9 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: service-rpc - build time 80 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: service-dns - 38 signatures - 10 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: service-dns - build time 20 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: normalizer - 9 signatures - 11 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: normalizer - build time 0 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_BUILDING: service-msrpc - 22 signatures - 12 of 13 engines
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ENGINE_READY: service-msrpc - build time 8 ms - packets for this engine will be scanned
                          *Nov 14 2006 17:20:03 MST: %IPS-6-ALL_ENGINE_BUILDS_COMPLETE: elapsed time 16344 ms
                          Router#
                          Router#
                          Router# show ip ips signature count
                          Cisco SDF release version S258.0
                          Signature Micro-Engine: multi-string
                               Total Signatures: 3
                                 Enablef: 3
                                 Retiref: 3
                          Signature Micro-Engine: service-http
                               Total Signatures: 611
                                 Enablef: 159
                                 Retiref: 428
                                 Compilef: 183
                          Signature Micro-Engine: string-tcp
                               Total Signatures: 864
                                 Enablef: 414
                                 Retiref: 753
                                 Compilef: 111
                          Signature Micro-Engine: string-udp
                               Total Signatures: 74
                                 Enablef: 1
                                 Retiref: 44
                                 Compilef: 30
                          Signature Micro-Engine: state
                               Total Signatures: 28
                                 Enablef: 16
                                 Retiref: 25
                                 Compilef: 3
                          Signature Micro-Engine: atomic-ip
                               Total Signatures: 252
                                 Enablef: 56
                                 Retiref: 148
                                 Compilef: 103
                                 Inactive - invalid params: 1
                          Signature Micro-Engine: string-icmp
                               Total Signatures: 3
                                 Enablef: 0
                                 Retiref: 2
                                 Compilef: 1
                          Signature Micro-Engine: service-ftp
                               Total Signatures: 3
                                 Enablef: 1
                                 Compilef: 3
                          Signature Micro-Engine: service-rpc
                                      Total Signatures: 75
                                 Enablef: 44
                                 Retiref: 44
                                 Compilef: 31
                          Signature Micro-Engine: service-dns
                               Total Signatures: 38
                                 Enablef: 30
                                 Retiref: 5
                                 Compilef: 33
                          Signature Micro-Engine: normalizer
                               Total Signatures: 9
                                 Enablef: 8
                                 Retiref: 5
                                 Compilef: 4
                          Signature Micro-Engine: service-smb-advanced (INACTIVE)
                          Signature Micro-Engine: service-msrpc
                               Total Signatures: 22
                                 Enablef: 22
                                 Retiref: 22


                          Configuring and Verifying SDEE on your Router Example

                          The following example shows how to configure and verify SDEE on your router:

                          Router(config)# ip ips notify SDEE

                          Router(config)# ip sdee event 500
                          Router(config)# ip sdee subscriptions 1
                          Router(config)# ip sdee messages 500
                          Router(config)# ip sdee alerts 2000
                          router(config)# exit
                          *Nov 9 21:41:33.171: %SYS-5-CONFIG_I: Configured from console by cisco on console
                          Router# show ip sdee all
                          Configured concurrent subscriptions: 1
                          No currently open subscriptions.
                          Alert storage: 2000 alerts using 560000 bytes of memory
                          Message storage: 500 messages using 212000 bytes of memory
                          SDEE Events
                          Time Type Description

                          Router#

                          Configuring IPS Signatures to be Upgraded Automatically from Cisco.com: Example

                          The following example shows the part of the running configuration of a router that is configured to have IPS signatures automatically upgraded from Cisco.com. In this example, the distinct CA trustpoints "root" and "sub-root" are configured.

                          ida-client server url https://www.cisco.com/cgi-bin/front.x/ida/locator/locator.pl
                          ip domain name yourdomain.com
                          ip name-server 192.168.200.10
                          ip ips config location flash:/ips retries 1 timeout 1
                          ip ips notify SDEE
                          ip ips name IPS
                          !
                          ip ips signature-category
                            category all
                             retired true
                            category ios_ips basic
                             retired false
                          !
                          password encryption aes
                          !
                          crypto pki trustpoint root
                           enrollment terminal
                           revocation-check none
                          !
                          crypto pki trustpoint sub-root
                           enrollment terminal
                           revocation-check none
                          !
                          crypto pki certificate chain root
                           certificate ca 18DAD19E267DE8BB4A2158CDCC6B3B4A
                            308204D3 308203BB A0030201 02021018 DAD19E26 7DE8BB4A 2158CDCC 6B3B4A30
                            0D06092A 864886F7 0D010105 05003081 CA310B30 09060355 04061302 55533117
                            30150603 55040A13 0E566572 69536967 6E2C2049 6E632E31 1F301D06 0355040B
                            13165665 72695369 676E2054 72757374 204E6574 776F726B 313A3038 06035504
                            0B133128 63292032 30303620 56657269 5369676E 2C20496E 632E202D 20466F72
                            20617574 686F7269 7A656420 75736520 6F6E6C79 31453043 06035504 03133C56
                            65726953 69676E20 436C6173 73203320 5075626C 69632050 72696D61 72792043
                            65727469 66696361 74696F6E 20417574 686F7269 7479202D 20473530 1E170D30
                            36313130 38303030 3030305A 170D3336 30373136 32333539 35395A30 81CA310B
                            30090603 55040613 02555331 17301506 0355040A 130E5665 72695369 676E2C20
                            496E632E 311F301D 06035504 0B131656 65726953 69676E20 54727573 74204E65
                            74776F72 6B313A30 38060355 040B1331 28632920 32303036 20566572 69536967
                            6E2C2049 6E632E20 2D20466F 72206175 74686F72 697A6564 20757365 206F6E6C
                            79314530 43060355 0403133C 56657269 5369676E 20436C61 73732033 20507562
                            6C696320 5072696D 61727920 43657274 69666963 6174696F 6E204175 74686F72
                            69747920 2D204735 30820122 300D0609 2A864886 F70D0101 01050003 82010F00
                            3082010A 02820101 00AF2408 08297A35 9E600CAA E74B3B4E DC7CBC3C 451CBB2B
                            E0FE2902 F95708A3 64851527 F5F1ADC8 31895D22 E82AAAA6 42B38FF8 B955B7B1
                            B74BB3FE 8F7E0757 ECEF43DB 66621561 CF600DA4 D8DEF8E0 C362083D 5413EB49
                            CA595485 26E52B8F 1B9FEBF5 A191C233 49D84363 6A524BD2 8FE87051 4DD18969
                            7BC770F6 B3DC1274 DB7B5D4B 56D396BF 1577A1B0 F4A225F2 AF1C9267 18E5F406
                            04EF90B9 E400E4DD 3AB519FF 02BAF43C EEE08BEB 378BECF4 D7ACF2F6 F03DAFDD
                            75913319 1D1C40CB 74241921 93D914FE AC2A52C7 8FD50449 E48D6347 883C6983
                            CBFE47BD 2B7E4FC5 95AE0E9D D4D143C0 6773E314 087EE53F 9F73B833 0ACF5D3F
                            3487968A EE53E825 15020301 0001A381 B23081AF 300F0603 551D1301 01FF0405
                            30030101 FF300E06 03551D0F 0101FF04 04030201 06306D06 082B0601 05050701
                            0C046130 5FA15DA0 5B305930 57305516 09696D61 67652F67 69663021 301F3007
                            06052B0E 03021A04 148FE5D3 1A86AC8D 8E6BC3CF 806AD448 182C7B19 2E302516
                            23687474 703A2F2F 6C6F676F 2E766572 69736967 6E2E636F 6D2F7673 6C6F676F
                            2E676966 301D0603 551D0E04 1604147F D365A7C2 DDECBBF0 3009F343 39FA02AF
                            33313330 0D06092A 864886F7 0D010105 05000382 01010093 244A305F 62CFD81A
                            982F3DEA DC992DBD 77F6A579 2238ECC4 A7A07812 AD620E45 7064C5E7 97662D98
                            097E5FAF D6CC2865 F201AA08 1A47DEF9 F97C925A 0869200D D93E6D6E 3C0D6ED8
                            E6069140 18B9F8C1 EDDFDB41 AAE09620 C9CD6415 3881C994 EEA28429 0B136F8E
                            DB0CDD25 02DBA48B 1944D241 7A05694A 584F60CA 7E826A0B 02AA2517 39B5DB7F
                            E784652A 958ABD86 DE5E8116 832D10CC DEFDA882 2A6D281F 0D0BC4E5 E71A2619
                            E1F4116F 10B595FC E7420532 DBCE9D51 5E28B69E 85D35BEF A57D4540 728EB70E
                            6B0E06FB 33354871 B89D278B C4655F0D 86769C44 7AF6955C F65D3208 33A454B6
                            183F685C F2424A85 3854835F D1E82CF2 AC11D6A8 ED636A
                                  quit
                          crypto pki certificate chain sub-root
                           certificate ca 6ECC7AA5A7032009B8CEBCF4E952D491
                            308205EC 308204D4 A0030201 0202106E CC7AA5A7 032009B8 CEBCF4E9 52D49130
                            0D06092A 864886F7 0D010105 05003081 CA310B30 09060355 04061302 55533117
                            30150603 55040A13 0E566572 69536967 6E2C2049 6E632E31 1F301D06 0355040B
                            13165665 72695369 676E2054 72757374 204E6574 776F726B 313A3038 06035504
                            0B133128 63292032 30303620 56657269 5369676E 2C20496E 632E202D 20466F72
                            20617574 686F7269 7A656420 75736520 6F6E6C79 31453043 06035504 03133C56
                            65726953 69676E20 436C6173 73203320 5075626C 69632050 72696D61 72792043
                            65727469 66696361 74696F6E 20417574 686F7269 7479202D 20473530 1E170D31
                            30303230 38303030 3030305A 170D3230 30323037 32333539 35395A30 81B5310B
                            30090603 55040613 02555331 17301506 0355040A 130E5665 72695369 676E2C20
                            496E632E 311F301D 06035504 0B131656 65726953 69676E20 54727573 74204E65
                            74776F72 6B313B30 39060355 040B1332 5465726D 73206F66 20757365 20617420
                            68747470 733A2F2F 7777772E 76657269 7369676E 2E636F6D 2F727061 20286329
                            3130312F 302D0603 55040313 26566572 69536967 6E20436C 61737320 33205365
                            63757265 20536572 76657220 4341202D 20473330 82012230 0D06092A 864886F7
                            0D010101 05000382 010F0030 82010A02 82010100 B187841F C20C45F5 BCAB2597
                            A7ADA23E 9CBAF6C1 39B88BCA C2AC56C6 E5BB658E 444F4DCE 6FED094A D4AF4E10
                            9C688B2E 957B899B 13CAE234 34C1F35B F3497B62 83488174 D188786C 0253F9BC
                            7F432657 5833833B 330A17B0 D04E9124 AD867D64 12DC744A 34A11D0A EA961D0B
                            15FCA34B 3BCE6388 D0F82D0C 948610CA B69A3DCA EB379C00 48358629 5078E845
                            63CD1941 4FF595EC 7B98D4C4 71B350BE 28B38FA0 B9539CF5 CA2C23A9 FD1406E8
                            18B49AE8 3C6E81FD E4CD3536 B351D369 EC12BA56 6E6F9B57 C58B14E7 0EC79CED
                            4A546AC9 4DC5BF11 B1AE1C67 81CB4455 33997F24 9B3F5345 7F861AF3 3CFA6D7F
                            81F5B84A D3F58537 1CB5A6D0 09E4187B 384EFA0F 02030100 01A38201 DF308201
                            DB303406 082B0601 05050701 01042830 26302406 082B0601 05050730 01861868
                            7474703A 2F2F6F63 73702E76 65726973 69676E2E 636F6D30 12060355 1D130101
                            FF040830 060101FF 02010030 70060355 1D200469 30673065 060B6086 480186F8
                            45010717 03305630 2806082B 06010505 07020116 1C687474 70733A2F 2F777777
                            2E766572 69736967 6E2E636F 6D2F6370 73302A06 082B0601 05050702 02301E1A
                            1C687474 70733A2F 2F777777 2E766572 69736967 6E2E636F 6D2F7270 61303406
                            03551D1F 042D302B 3029A027 A0258623 68747470 3A2F2F63 726C2E76 65726973
                            69676E2E 636F6D2F 70636133 2D67352E 63726C30 0E060355 1D0F0101 FF040403
                            02010630 6D06082B 06010505 07010C04 61305FA1 5DA05B30 59305730 55160969
                            6D616765 2F676966 3021301F 30070605 2B0E0302 1A04148F E5D31A86 AC8D8E6B
                            C3CF806A D448182C 7B192E30 25162368 7474703A 2F2F6C6F 676F2E76 65726973
                            69676E2E 636F6D2F 76736C6F 676F2E67 69663028 0603551D 11042130 1FA41D30
                            1B311930 17060355 04031310 56657269 5369676E 4D504B49 2D322D36 301D0603
                            551D0E04 1604140D 445C1653 44C1827E 1D20AB25 F40163D8 BE79A530 1F060355
                            1D230418 30168014 7FD365A7 C2DDECBB F03009F3 4339FA02 AF333133 300D0609
                            2A864886 F70D0101 05050003 82010100 0C8324EF DDC30CD9 589CFE36 B6EB8A80
                            4BD1A3F7 9DF3CC53 EF829EA3 A1E697C1 589D756C E01D1B4C FAD1C12D 05C0EA6E
                            B2227055 D9203340 3307C265 83FA8F43 379BEA0E 9A6C70EE F69C803B D937F47A
                            6DECD018 7D494ACA 99C71928 A2BED877 24F78526 866D8705 404167D1 273AEDDC
                            481D22CD 0B0B8BBC F4B17BFD B499A8E9 762AE11A 2D876E74 D388DD1E 22C6DF16
                            B62B8214 0A945CF2 50ECAFCE FF62370D AD65D306 4153ED02 14C8B558 28A1ACE0
                            5BECB37F 954AFB03 C8AD26DB E6667812 4AD99F42 FBE198E6 42839B8F 8F6724E8
                            6119B5DD CDB50B26 058EC36E C4C875B8 46CFE218 065EA9AE A8819A47 16DE0C28
                            6C2527B9 DEB78458 C61F381E A4C4CB66
                                  quit
                          crypto key pubkey-chain rsa
                          named-key realm-cisco.pub signature
                          key-string
                          30820122 300D0609 2A864886 F70D0101 01050003 82010F00 3082010A 02820101
                          00C19E93 A8AF124A D6CC7A24 5097A975 206BE3A2 06FBA13F 6F12CB5B 4E441F16
                          17E630D5 C02AC252 912BE27F 37FDD9C8 11FC7AF7 DCDD81D9 43CDABC3 6007D128
                          B199ABCB D34ED0F9 085FADC1 359C189E F30AF10A C0EFB624 7E0764BF 3E53053E
                          5B2146A9 D7A5EDE3 0298AF03 DED7A5B8 9479039D 20F30663 9AC64B93 C0112A35
                          FE3F0C87 89BCB7BB 994AE74C FA9E481D F65875D6 85EAF974 6D9CC8E3 F0B08B85
                          50437722 FFBE85B9 5E4189FF CC189CB9 69C46F9C A84DFBA5 7A0AF99E AD768C36
                          006CF498 079F88F8 A3B3FB1F 9FB7B3CB 5539E1D1 9693CCBB 551F78D2 892356AE
                          2F56D826 8918EF3C 80CA4F4D 87BFCA3B BFF668E9 689782A5 CF31CB6E B4B094D3
                          F3020301 0001
                          quit

                          ip ips auto-update
                           occur-at weekly 0-6 10 0-23
                           cisco
                           username ccouserid password ccouserpw
                          !
                          interface GigabitEthernet0/0
                           ip address 192.168.200.1 255.255.255.0
                           ip ips IPS in
                           duplex auto
                           speed auto


                          Additional References

                          Technical Assistance

                          Description

                          Link

                          The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

                          http:/​/​www.cisco.com/​cisco/​web/​support/​index.html

                          Feature Information for Cisco IOS IPS 5.x Signature Format Support and Usability Enhancements

                          The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

                          Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

                          Table 1 Feature Information for Cisco IOS 5.x Signature Format Support and Usability Enhancements

                          Feature Name

                          Releases

                          Feature Information

                          Cisco IOS IPS 5.x Signature Format and Usability Enhancements

                          12.4(11)T

                          This feature introduces support for Cisco IOS Intrusion Prevention System (IPS) version 5.0, which is a version-based signature definition XML format. Cisco IOS IPS 4.x format signatures are replaced by the 5.x format signatures that are used by all other Cisco IPS devices.

                          The following commands were introduced or modified by this feature: alert-severity, category, copy idconf enabled (IPS), engine (IPS), event-action, fidelity-rating, ip ips auto-update, ip ips config location, ip ips event-action-rules, ip ips signature-category, ip ips signature-definition, occur-at (ips-auto-update), retired (IPS), show ip ips auto-update, signature, status, target-value url (ips-auto-update), username (ips-autoupdate).

                          Direct Download from CCO capability in IOS IPS

                          15.1(1)T

                          The following commands were introduced or modified by this feature: cisco, ida-client server url, ip ips auto-update, ip signature update cisco, occur-at.

                          Capability to save local delta changes on IOS routers

                          15.1(2)T

                          This feature was introduced to generate a local cli-delta.xmz file on the router containing the signature tuning settings configured through the CLI. This local file takes precedence when a globally administered delta signature update, contained in the IPS iosips-sig-delta.xmz file, is sent from a central repository and applied to the configuration of the local router.

                          The following commands were introduced or modifief: ip ips enable-clidelta, show ip ips sig-clidelta.

                          Cisco IOS IPS with Lightweight Signatures

                          15.2(1)T and 15.2(2)T

                          This feature was deprecated in Cisco IOS Release 15.2(1)T and 15.2(2)T.

                          The following commands were deprecatef: ip ips inherit-obsolete tunings, ip ips memory regex chaining, ip ips memory threshold.
