show ip rsvp hello client lsp summary through show lane qos database

Contents

show ip rsvp hello client lsp summary through show lane qos database

show ip rsvp hello client lsp summary

To display summary information about Resource Reservation Protocol (RSVP) traffic engineering (TE) client hellos for label-switched paths (LSPs), use theshowiprsvphelloclientlspsummarycommand in user EXEC or privileged EXEC mode.

show ip rsvp hello client lsp summary

Syntax Description

This command has no arguments or keywords.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.2(33)SB

This command was introduced.

12.2(33)SRC

This command was integrated into Cisco IOS Release 12.2(33)SRC.

Usage Guidelines

Use the showiprsvphelloclientlspsummarycommand to display information about the LSPs, including IP addresses and identification numbers.

Examples

The following is sample output from the showiprsvphelloclientlspsummarycommand:

Router# show ip rsvp hello client lsp summary
Local           Remote          tun_id  lsp_id  FLAGS
10.1.1.1        172.16.1.1        14      31      0x32

The table below describes the significant fields shown in the display.

Table 1 show ip rsvp hello client lsp summary Field Descriptions

Field

Description

Local

IP address of the tunnel sender.

Remote

IP address of the tunnel destination.

tun_id

Identification number of the tunnel.

lsp_id

Identification number of the LSP.

FLAGS

Database information.

Related Commands

Command

Description

show ip rsvp hello

Displays hello status and statistics for fast reroute, reroute (hello state timer), and graceful restart.

show ip rsvp hello client nbr detail

To display detailed information about Resource Reservation Protocol (RSVP) traffic engineering (TE) client hellos for neighbors, use theshowiprsvphelloclientnbrdetailcommand in user EXEC or privileged EXEC mode.

show ip rsvp hello client nbr detail [ filter [ destination hostname ] ]

Syntax Description

filter

(Optional) Specifies filters to limit the display of output.

destination

(Optional) Displays the filters configured on the destination (tunnel tail).

hostname

(Optional) IP address or name of destination (tunnel tail).

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.0(33)S

This command was introduced.

12.2(33)SRC

This command was integrated in Cisco IOS Release 12.2(33)SRC.

Usage Guidelines

Use the showiprsvphelloclientnbrdetailcommand to display information about the neighbors (nbr).

Examples

The following is sample output from the showiprsvphelloclientnbrdetailcommand:

Router# show ip rsvp hello client nbr detail
Hello Client Neighbors
  Remote addr 10.0.0.1,  Local addr  10.0.0.3
    Nbr State: Normal    Type: Reroute
    Nbr Hello State: Up
    LSPs protecting: 1
    I/F: Et1/3
  Remote addr 172.16.1.1,  Local addr  192.168.1.1
    Nbr State: Normal    Type: Graceful Restart
    Nbr Hello State: Lost
    LSPs protecting: 1

The table below describes the fields shown in the display

Table 2 show ip rsvp hello client nbr detail Field Descriptions

Field

Description

Remote addr

IP address of the remote neighbor. For graceful restart, this is the neighbor router’s ID; for fast reroute and hello state timer (reroute), this is one of the neighbor’s interface addresses.

Local addr

IP address of the local neighbor. For graceful restart, this is the neighbor router’s ID; for fast reroute and hello state timer (reroute), this is one of the neighbor’s interface addresses.

Nbr state

State of the neighbor; values can be the following:

  • Normal--Neighbor is functioning normally.
  • Restarting--Neighbor is restarting.
  • Recover Nodal--Neighbor is recovering from node failure.
  • HST_GR_LOST--HST (hello state timer for reroute) is lost; waiting to see if GR (graceful restart) is also lost.
  • WAIT PathTear--PathTear message is delayed to allow traffic in the pipeline to be transmitted.

Type

Type of client: graceful restart (GR), reroute RR (hello state timer), or fast reroute (FRR).

Nbr Hello State

State of hello instances for the neighbor. Values are as follows:

  • Up--Node is communicating with its neighbor.
  • Lost--Communication has been lost.
  • Init--Communication is being established.

LSPs protecting

Number of LSPs being protected.

I/F

Interface name and number associated with the hello instance.

Related Commands

Command

Description

show ip rsvp hello

Displays hello status and statistics for fast reroute, reroute (hello state timer), and graceful restart.

show ip rsvp hello client neighbor summary

Displays summary information about RSVP TE client hellos for neighbors.

show ip rsvp hello client neighbor detail

To display detailed information about Resource Reservation Protocol (RSVP) traffic engineering (TE) client hellos for neighbors, use theshowiprsvphelloclientneighbordetailcommand in user EXEC or privileged EXEC mode.

show ip rsvp hello client neighbor detail

Syntax Description

This command has no arguments or keywords.

Command Modes


User EXEC
Privileged EXEC

Command History

Release

Modification

12.0(29)S

This command was introduced.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(33)SXH

This command was integrated into Cisco IOS Release 12.2(33)SXH.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

Usage Guidelines

Use the showiprsvphelloclientneighbordetailcommand to display information about the hello neighbors, including their state and type.

Examples

The following is sample output from the showiprsvphelloclientneighbordetailcommand:

Router# show ip rsvp hello client neighbor detail
Hello Client Neighbors
  Remote addr 10.0.0.1,  Local addr  10.0.0.3
    Nbr State: Normal    Type: Reroute
    Nbr Hello State: Up
    LSPs protecting: 1
    I/F: Et1/3
  Remote addr 172.16.1.1,  Local addr  192.168.1.1
    Nbr State: Normal    Type: Graceful Restart
    Nbr Hello State: Lost
    LSPs protecting: 1

The table below describes the significant fields shown in the display. The fields provide information that uniquely identifies the neighbors. Clients can include graceful restart, reroute (hello state timer), and fast reroute.

Table 3 show ip rsvp hello client neighbor detail Field Descriptions

Field

Description

Remote addr

IP address of the remote neighbor. For graceful restart, this is the neighbor router’s ID; for fast reroute and hello state timer (reroute), this is one of the neighbor’s interface addresses.

Local addr

IP address of the local neighbor. For graceful restart, this is the neighbor router’s ID; for fast reroute and hello state timer (reroute), this is one of the neighbor’s interface addresses.

Nbr State

State of the neighbor; values can be the following:

  • Normal = neighbor is functioning normally.
  • Restarting = neighbor is restarting.
  • Recover Nodal = neighbor is recovering from node failure.
  • HST_GR_LOST = HST (hello state timer for reroute) is lost; waiting to see if graceful restart (GR) is also lost.
  • WAIT PathTear = PathTear message is delayed to allow traffic in the pipeline to be transmitted.

Type

Type of client; graceful restart, Reroute (hello state timer), or Fast Reroute.

Nbr Hello State

State of hellos for the neighbor. Values are as follows:

  • Up--Node is communicating with its neighbor.
  • Lost--Communication has been lost.
  • Init--Communication is being established.

LSPs protecting

Number of LSPs being protected.

I/F

Interface name and number associated with the hello instance.

Related Commands

Command

Description

show ip rsvp hello

Displays hello status and statistics for fast reroute, reroute (hello state timer), and graceful restart.

show ip rsvp hello client neighbor summary

To display summary information about Resource Reservation Protocol (RSVP) traffic engineering (TE) client hellos for neighbors, use theshowiprsvphelloclientneighborsummarycommand in user EXEC or privileged EXEC mode.

show ip rsvp hello client neighbor summary

Syntax Description

This command has no arguments or keywords.

Command Modes


User EXEC
Privileged EXEC

Command History

Release

Modification

12.0(29)S

This command was introduced.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(33)SXH

This command was integrated into Cisco IOS Release 12.2(33)SXH.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

Usage Guidelines

Use the showiprsvphelloclientneighborsummarycommand to display information about the neighbors, including state, type, and hello instance status.

Examples

The following is sample output from theshowiprsvphelloclientneighborsummarycommand:

Router# show ip rsvp hello client neighbor summary
Local	Remote	Type	NBR_STATE	HI_STATE	LSPs
10.0.0.1	10.0.0.3	RR	Normal	Up	1
172.16.1.1	192.168.1.1	GR	Normal	Lost	1

The table below describes the significant fields shown in the display.

Table 4 show ip rsvp hello client neighbor summary Field Descriptions

Field

Description

Local

IP address of the tunnel sender.

Remote

IP address of the tunnel destination.

Type

Type of client; graceful restart (GR), reroute (RR (hello state timer)), or fast reroute (FRR).

NBR_STATE

State of the neighbor; values can be the following:

  • Normal--Neighbor is functioning normally.
  • Restarting--Neighbor is restarting.
  • Recover Nodal--Neighbor is recovering from node failure.
  • HST_GR_LOST--HST (hello state timer for reroute) is lost; waiting to see if graceful restart (GR) is also lost.
  • WAIT PathTear--PathTear message is delayed to allow traffic in the pipeline to be transmitted.

HI_STATE

State of hello instances for the neighbor. Values are as follows:

  • Up--Node is communicating with its neighbor.
  • Lost--Communication has been lost.
  • Init--Communication is being established.

LSPs

Number of LSPs going to or coming from the neighbor.

Related Commands

Command

Description

show ip rsvp hello

Displays hello status and statistics for fast reroute, reroute (hello state timer), and graceful restart.

show ip rsvp hello graceful-restart

To display information about Resource Reservation Protocol (RSVP) traffic engineering (TE) graceful restart hellos, use theshowiprsvphellograceful-restart command in user EXEC or privileged EXEC mode.

show ip rsvp hello graceful-restart

Syntax Description

This command has no arguments or keywords.

Command Modes


User EXEC
Privileged EXEC

Command History

Release

Modification

12.0(29)S

This command was introduced.

12.2(33)SRA

The command output was modified to show whether graceful restart is configured and full mode was added.

12.2(33)SXH

This command was integrated into Cisco IOS Release 12.2(33)SXH.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

Usage Guidelines

Use the showiprsvphellograceful-restart command to display the status of graceful restart and related statistics.

Examples

The following is sample output from the showiprsvphellograceful-restartcommand:

Router# show ip rsvp hello graceful-restart
Graceful Restart: Enabled (full mode)
  Refresh interval: 10000 msecs
  Refresh misses: 4
  DSCP: 0x30
  Advertised restart time: 30000 msecs
  Advertised recovery time: 120000 msecs
  Maximum wait for recovery: 3600000 msecs

The table below describes the significant fields shown in the display.

Table 5 show ip rsvp hello graceful-restart Field Descriptions

Field

Description

Graceful Restart

Restart capability:

  • Enabled--Restart capability is activated for a router (full mode) or its neighbor (help-neighbor).
  • Disabled--Restart capability is not activated.

Refresh interval

Frequency in milliseconds (ms) with which a node sends a hello message to its neighbor.

Refresh misses

Number of missed hello messages that trigger a neighbor down event upon which stateful switchover (SSO) procedures are started.

DSCP

The differentiated services code point (DSCP) value in the IP header of the hello messages.

Advertised restart time

The time, in ms, that is required for the sender to restart the RSVP-TE component and exchange hello messages after a failure.

Advertised recovery time

The time, in ms, within which a recovering node wants its neighbor router to resynchronize the RSVP or Multiprotocol Label Switching (MPLS) forwarding state after SSO.

Note

A zero value indicates that the RSVP or MPLS forwarding state is not preserved after SSO.

Maximum wait for recovery

The maximum amount of time, in ms, that the router waits for a neighbor to recover.

Related Commands

Command

Description

clear ip rsvp high-availability counters

Clears (sets to zero) the RSVP-TE HA counters that are being maintained by an RP.

ip rsvp signalling hello graceful-restart mode

Enables RSVP-TE graceful restart support capability on an RP.

ip rsvp signalling hello graceful-restart neighbor

Enables RSVP-TE graceful restart support capability on a neighboring router.

show ip rsvp hello

Displays hello status and statistics for fast reroute, reroute (hello state timer), and graceful restart.

show ip rsvp hello instance detail

To display detailed information about a hello instance, use the showiprsvphelloinstancedetailcommand in user EXEC or privileged EXEC mode.

show ip rsvp hello instance detail [ filter destination ip-address ]

Syntax Description

filter destination ip-address

(Optional) IP address of the neighbor node.

Command Modes


User EXEC
Privileged EXEC

Command History

Release

Modification

12.0(22)S

This command was introduced.

12.0(29)S

The command output was modified to include graceful restart, hello state timer (reroute), and fast reroute information.

12.2(18)SXD1

This command was integrated into Cisco IOS Release 12.2(18)SXD1.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(31)SB2

This command was integrated into Cisco IOS Release 12.2(31)SB2.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

Usage Guidelines

Use the showiprsvphelloinstancedetail command to display information about the processes (clients) currently configured.

Examples

The following is sample output from the showiprsvphelloinstancedetail command:

Router# show ip rsvp hello instance detail
Neighbor 10.0.0.3  Source  10.0.0.2
    Type: Active    (sending requests)
    I/F:  Serial2/0
    State:   Up        (for 2d19h2d19h)
    Clients: ReRoute
    LSPs protecting: 1
    Missed acks: 4, IP DSCP: 0x30
    Refresh Interval (msec)
      Configured: 6000
      Statistics: (from 40722 samples)
        Min:      6000
        Max:      6064
        Average:  6000
        Waverage: 6000 (Weight = 0.8)
        Current:  6000
    Last sent Src_instance: 0xE617C847
    Last recv nbr's Src_instance: 0xFEC28E95
    Counters:
      Communication with neighbor lost:
        Num times:                    0
        Reasons:
          Missed acks:                0
          Bad Src_Inst received:      0
          Bad Dst_Inst received:      0
          I/F went down:              0
          Neighbor disabled Hello:    0
      Msgs Received:   55590
           Sent:       55854
           Suppressed: 521
  Neighbor 10.0.0.8 Source  10.0.0.7
    Type: Passive   (responding to requests)
    I/F:  Serial2/1
    Last sent Src_instance: 0xF7A80A52
    Last recv nbr's Src_instance: 0xD2F1B7F7
    Counters:
      Msgs Received:   199442
           Sent:       199442

The table below describes the significant fields shown in the display.

Table 6 show ip rsvp hello instance detail Field Descriptions

Field

Description

Neighbor

IP address of the adjacent node.

Source

IP address of the node that is sending the hello message.

Type

Values are Active (node is sending a request) and Passive (node is responding to a request).

I/F

Interface from which hellos are sent for this instance. Any means that the hellos can be sent out any interface.

State

Status of communication. Values are as follows:

  • Up--Node is communicating with its neighbor.
  • Lost--Communication has been lost.
  • Init--Communication is being established.

Clients

Clients that created this hello instance; they include graceful restart, ReRoute (hello state timer), and Fast Reroute.

LSPs protecting

Number of LSPs that are being protected by this hello instance.

Missed acks

Number of times that communication was lost due to missed acknowledgments (ACKs).

IP DSCP

IP differentiated services code point (DSCP) value used in the hello IP header.

Refresh Interval (msec)

The frequency (in milliseconds) with which a node generates a hello message containing a Hello Request object for each neighbor whose status is being tracked.

Configured

Configured refresh interval.

Statistics

Refresh interval statistics from a specified number of samples (packets).

Min

Minimum refresh interval.

Max

Maximum refresh interval.

Average

Average refresh interval.

Waverage

Weighted average refresh interval.

Current

Current refresh interval.

Last sent Src_instance

The last source instance sent to a neighbor.

Last recv nbr’s Src_instance

The last source instance field value received from a neighbor.

(0 means none received.)

Counters

Incremental information relating to communication with a neighbor.

Num times

Total number of times that communication with a neighbor was lost.

Reasons

Subsequent fields designate why communication with a neighbor was lost.

Missed acks

Number of times that communication was lost due to missed ACKs.

Bad Src_Inst received

Number of times that communication was lost due to bad source instance fields.

Bad Dst_Inst received

Number of times that communication was lost due to bad destination instance fields.

I/F went down

Number of times that the interface became unoperational.

Neighbor disabled Hello

Number of times that a neighbor disabled hello messages.

Msgs Received

Number of messages that were received.

Sent

Number of messages that were sent.

Suppressed

Number of messages that were suppressed due to optimization.

Related Commands

Command

Description

ip rsvp signalling hello (configuration)

Enables hello globally on the router.

ip rsvp signalling hello statistics

Enables hello statistics on the router.

show ip rsvp hello

Displays hello status and statistics for Fast reroute, reroute (hello state timer), and graceful restart.

show ip rsvp hello instance summary

Displays summary information about a hello instance.

show ip rsvp hello instance summary

To display summary information about a hello instance, use the showiprsvphelloinstancesummary command in user EXEC or privileged EXEC mode.

show ip rsvp hello instance summary

Syntax Description

This command has no arguments or keywords.

Command Modes


User EXEC
Privileged EXEC

Command History

Release

Modification

12.0(22)S

This command was introduced.

12.0(29)S

The command output was modified to include graceful restart, reroute (hello state timer), and fast reroute information.

12.2(18)SXD1

This command was integrated into Cisco IOS Release 12.2(18)SXD1.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(31)SB2

This command was integrated into Cisco IOS Release 12.2(31)SB2.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

Examples

The following is sample output from the showiprsvphelloinstancesummary command:

Router# show ip rsvp hello instance summary
Active Instances:
  Client  Neighbor        I/F        State      LostCnt  LSPs Interval
  RR      10.0.0.3        Se2/0      Up               0     1 6000
  GR      10.1.1.1        Any        Up              13     1 10000
  GR      10.1.1.5        Any        Lost             0     1 10000
  GR      10.2.2.1        Any        Init             1     0 5000
Passive Instances:
  Neighbor        I/F
  10.0.0.1        Se2/1
Active = Actively tracking neighbor state on behalf of clients:
         RR = ReRoute, FRR = Fast ReRoute, or GR = Graceful Restart
Passive = Responding to hello requests from neighbor

The table below describes the significant fields shown in the display.

Table 7 show ip rsvp hello instance summary Field Descriptions

Field

Description

Active Instances

Active nodes that are sending hello requests.

Client

Clients on behalf of which hellos are sent; they include GR (graceful restart), RR (reroute = hello state timer), and FRR (Fast Reroute).

Neighbor

IP address of the adjacent node. For graceful restart, this is the neighbor router’s ID; for Fast Reroute and hello state timer (reroute), this is one of the neighbor’s interface addresses.

I/F

Interface from which hellos are sent for this instance. Any means that the hellos can be sent out any interface.

State

Status of communication. Values are as follows:

  • Up--Node is communicating with its neighbor.
  • Lost--Communication has been lost.
  • Init--Communication is being established.

LostCnt

Number of times that communication was lost with the neighbor.

LSPs

Number of label-switched paths (LSPs) protected by this hello instance.

Interval

Hello refresh interval in milliseconds.

Passive Instances

Passive nodes that are responding to hello requests.

Neighbor

IP address of adjacent node. For graceful restart, this is the neighbor router’s ID; for Fast Reroute and hello state timer (reroute), this is one of the neighbor’s interface addresses.

I/F

Interface from which hellos are sent for this instance. Any means that the hellos can be sent out any interface.

Related Commands

Command

Description

ip rsvp signalling hello (configuration)

Enables hello globally on the router.

ip rsvp signalling hello statistics

Enables hello statistics on the router.

show ip rsvp hello

Displays hello status and statistics for fast reroute, reroute (hello state timer), and graceful restart.

show ip rsvp hello instance detail

Displays detailed information about a hello instance.

show ip rsvp hello statistics

To display how long hello packets have been in the Hello input queue, use the showiprsvphellostatisticscommand in privileged EXEC mode.

show ip rsvp hello statistics

Syntax Description

This command has no arguments or keywords.

Command Default

Information about how long hello packets have been in the Hello input queue is not displayed.

Command Modes


Privileged EXEC

Command History

Release

Modification

12.0(22)S

This command was introduced.

12.2(18)SXD1

This command was integrated into Cisco IOS Release 12.2(18)SXD1.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(31)SB2

This command was integrated into Cisco IOS Release 12.2(31)SB2.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T

Usage Guidelines

You can use this command to determine if the Hello refresh interval is too small. If the interval is too small, communication may falsely be declared as lost.

Examples

The following is sample output from the showiprsvphellostatistics command:

Router# show ip rsvp hello statistics

Status: Enabled
  Packet arrival queue:
    Wait times (msec)
      Current:0
      Average:0
      Weighted Average:0 (weight = 0.8)
      Max:4
    Current length: 0 (max:500)
  Number of samples taken: 2398525

The table below describes the significant fields shown in the display.

Table 8 show ip rsvp hello statistics Field Descriptions

Field

Description

Status

Indicator of whether Hello has been enabled globally on the router.

Current

Amount of time, in milliseconds, that the current hello packet has been in the Hello input queue.

Average

Average amount of time, in milliseconds, that hello packets are in the Hello input queue.

Max

Maximum amount of time, in milliseconds, that hello packets have been in the Hello input queue.

Current length

Current amount of time, in milliseconds, that hello packets have been in the Hello input queue.

Number of samples taken

Number of packets for which these statistics were compiled.

Related Commands

Command

Description

clear ip rsvp hello instance statistics

Clears Hello statistics for an instance.

clear ip rsvp hello statistics

Globally clears Hello statistics.

ip rsvp signalling hello refresh interval

Configures the Hello request interval.

ip rsvp signalling hello statistics

Enables Hello statistics on the router.

show ip rsvp high-availability counters

To display all Resource Reservation Protocol (RSVP) traffic engineering (TE) high availability (HA) counters that are being maintained by a Route Processor (RP), use the show ip rsvp high-availability counters command in user EXEC or privileged EXEC mode.

show ip rsvp high-availability counters

Syntax Description

This command has no arguments or keywords.

Command Modes

User EXEC (>)

Privileged EXEC (#)

Command History

Release

Modification

12.2(33)SRA

This command was introduced.

12.2(33)SRB

Support for In-Service Software Upgrade (ISSU) was added.

12.2(33)SXH

This command was integrated into Cisco IOS Release 12.2(33)SXH.

15.0(1)S

This command was modified. The output was updated to display information for point-to-point (P2P) and point-to-multipoint traffic engineering (P2MP) counters.

15.2(2)S

This command was modified. The output was enhanced to show checkpoint information for MPLS traffic engineering autotunnel and automesh stateful switchover (SSO) tunnels.

Cisco IOS XE Release 3.6S

This command was modified. The output was enhanced to show checkpoint information for MPLS traffic engineering autotunnel and automesh stateful switchover (SSO) tunnels.

Usage Guidelines

Use the show ip rsvp high-availability counters command to display the HA counters, which include state, ISSU, checkpoint messages, resource failures, and errors.

The command output differs depending on whether the RP is active or standby. (See the “Examples” section for more information.)

Use the clear ip rsvp high-availability counters command to clear all counters.

Examples

The following is sample output from the show ip rsvp high-availability counters command on the active RP:

Router# show ip rsvp high-availability counters

State: Active
P2P LSPs for which recovery:
  Attempted: 1
  Succeeded: 1
  Failed:    0
P2MP subLSPs for which recovery:
  Attempted: 2
  Succeeded: 2
  Failed:    0
Bulk sync
  initiated: 1
Send timer
  started: 2
Checkpoint Messages (Items) Sent
  Succeeded:      2  (8)
    Acks accepted:2  (8)
    Acks ignored:     (0)
    Nacks:        0  (0)
  Failed:         0  (0)
  Buffer alloc:   2
  Buffer freed:   4
ISSU:
  Checkpoint Messages Transformed:
    On Send:
      Succeeded:         2
      Failed:            0
      Transformations:   0
    On Recv:
      Succeeded:         2
      Failed:            0
      Transformations:   0
  Negotiation:
    Started:              2
    Finished:             2
    Failed to Start:      0
    Messages:
      Sent:
        Send succeeded:   14
        Send failed:      0
        Buffer allocated:        14
        Buffer freed:            0
        Buffer alloc failed:     0
      Received:
        Succeeded:        10
        Failed:           0
        Buffer freed:     10
  Init:
    Succeeded:            1
    Failed:               0
  Session Registration:
    Succeeded:            1
    Failed:               0
  Session Unregistration:
    Succeeded:            1
    Failed:               0
Errors:
  None
Historical: (When Active was Standby)
Checkpoint Messages (Items) Received
  Valid:        2  (11)
  Invalid:      0  (0)
Buffer freed: 2

The table below describes the significant fields shown in the display.

Table 9 show ip rsvp high-availability counters—Active RP Field Descriptions

Field

Description

State

The RP state:

  • Active—Active RP.

Bulk sync

The number of requests made by the standby RP to the active RP to resend all write database entries:

  • Initiated—The number of bulk sync operations initiated by the standby RP since reboot.

Send timer

The write database timer.

Checkpoint Messages (Items) Sent

The details of the bundle messages or items sent since booting.

Succeeded

The number of bundle messages or items sent from the active RP to the standby RP since booting. Values are the following:

  • Acks accepted—The number of bundle messages or items sent from the active RP to the standby RP.
  • Acks ignored—The number of bundle messages or items sent by the active RP, but rejected by the standby RP.
  • Nacks—The number of bundle messages or items given to the checkpointing facility (CF) on the active RP for transmitting to the standby RP, but failed to transmit.

Failed

The number of bundle messages or items the active RP attempted to send the standby RP when the send timer updated, but received an error back from CF.

Buffer alloc

Storage space allocated.

Buffer freed

Storage space available.

ISSU

In-Service Software Upgrade (ISSU) counters.

Checkpoint Messages Transformed

The details of the bundle messages or items transformed (upgraded or downgraded for compatibility) since booting so that the active RP and the standby RP can interoperate.

On Send

The number of messages sent by the active RP that succeeded, failed, or were transformations.

On Recv

The number of messages received by the active RP that succeeded, failed, or were transformations.

Negotiation

The number of times that the active RP and the standby RP have negotiated their interoperability parameters.

Started

The number of negotiations started.

Finished

The number of negotiations finished.

Failed to Start

The number of negotiations that failed to start.

Messages

The number of negotiation messages sent and received. These messages can be succeeded or failed.

  • Send succeeded—Number of messages sent successfully.
  • Send failed—Number of messages sent unsuccessfully.
  • Buffer allocated—Storage space allowed.
  • Buffer freed—Storage space available.
  • Buffer alloc failed—No storage space available.

Init

The number of times the RSVP ISSU client has successfully and unsuccessfully (failed) initialized.

Session Registration

The number of session registrations, succeeded and failed, performed by the active RP whenever the standby RP reboots.

Session Unregistration

The number of session unregistrations, succeeded and failed, before the standby RP resets.

Errors

The details of errors or caveats.

The following is sample output from the show ip rsvp high-availability counters command on the standby RP:

Router# show ip rsvp high-availability counters

State: Standby

Checkpoint Messages (Items) Received
  Valid:        1  (2)
  Invalid:      0  (0)
  Buffer freed: 1

ISSU:
  Checkpoint Messages Transformed:
    On Send:
      Succeeded:         0
      Failed:            0
      Transformations:   0
    On Recv:
      Succeeded:         1
      Failed:            0
      Transformations:   0

  Negotiation:
    Started:              1
    Finished:             1
    Failed to Start:      0
    Messages:
      Sent:
        Send succeeded:   5
        Send failed:      0
        Buffer allocated:        5
        Buffer freed:            0
        Buffer alloc failed:     0
      Received:
        Succeeded:        7
        Failed:           0
        Buffer freed:     7

  Init:
    Succeeded:            1
    Failed:               0

  Session Registration:
    Succeeded:            0
    Failed:               0

  Session Unregistration:
    Succeeded:            0
    Failed:               0

Errors:
  None

The table below describes the significant fields shown in the display.

Table 10 show ip rsvp high-availability counters—Standby RP Field Descriptions

Field

Description

State

The RP state:

  • Standby—Standby (backup) RP.

Checkpoint Messages (Items) Received

The details of the messages or items received by the standby RP. Values are the following:

  • Valid—The number of valid messages or items received by the standby RP.
  • Invalid—The number of invalid messages or items received by the standby RP.
  • Buffer freed—Amount of storage space available.

ISSU

ISSU counters.

Note

For descriptions of the ISSU fields, see the table above.

Errors

The details of errors or caveats.

Related Commands

Command

Description

clear ip rsvp high-availability counters

Clears (sets to zero) the RSVP-TE HA counters that are being maintained by an RP.

show ip rsvp high-availability database

Displays the contents of the RSVP-TE HA read and write databases used in TE SSO.

show ip rsvp high-availability summary

Displays summary information for an RSVP-TE HA RP.

show ip rsvp high-availability database

To display contents of Resource Reservation Protocol (RSVP) high availability (HA) read and write databases used in traffic engineering (TE), use the show ip rsvp high-availability database command in user EXEC or privileged EXEC mode.

show ip rsvp high-availability database { hello | if-autotun | link-management { interfaces [ fixed | variable ] | system } | lsp [ filter [ destination ip-address ] | [ lsp-id lsp-id ] | [ source ip-address ] | [ tunnel-id tunnel-id ] ] | lsp-head [ filter number ] | summary }

Syntax Description

hello

Displays information about hello entries in read and write databases.

if-autotun

Displays information about TE HA autotunnel interface entries in read and write databases.

link-management

Displays information about link-management entries in the read and write databases.

interfaces

Displays information about link-management interfaces in the read and write databases.

fixed

(Optional) Displays information about link-management fixed interfaces in the read and write databases.

variable

(Optional) Displays information about link-management variable interfaces in the read and write databases.

system

Displays information about the link-management system in the read and write databases.

lsp

Displays information about label switched path (LSP) entries in the read and write databases.

filter destination ip-address

(Optional) Displays filtered information on the IP address of the destination (tunnel tail).

filter lsp-id lsp-id

(Optional) Displays filtered information on a specific LSP ID designated by a number from 0 to 65535.

filter source ip-address

(Optional) Displays filtered information on the IP address of the source (tunnel head).

filter tunnel-id tunnel-id

(Optional) Displays filtered information on a specific tunnel ID designated by a number from 0 to 65535.

lsp-head

Displays information about LSP-head entries in the read and write databases.

filter number

(Optional) Displays filtered information on a specific LSP-head router designated by a number from 0 to 65535.

summary

Displays cumulative information about entries in read and write databases.

Command Modes

User EXEC (>)

Privileged EXEC (#)

Command History

Release

Modification

12.2(33)SRA

This command was introduced.

12.2(33)SRB

The command output was modified to display the result of a loose hop expansion performed on the router.

12.2(33)SXH

This command was integrated into Cisco IOS Release 12.2(33)SXH.

12.2(33)SRC

This command was integrated into Cisco IOS Release 12.2(33)SRC. The command output was modified to include path protection information specified by the lsp-head keyword.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

15.0(1)S

This command was integrated into Cisco IOS Release 15.0(1)S. The command output was modified to distinguish database-entry information for point-to-point (P2P) tunnels from that for point-to-multipoint (P2MP) tunnels and to display error database information.

12.2(50)SY

This command was integrated into Cisco IOS Release 12.2(50)SY.

Cisco IOS XE Release 3.5S

This command was integrated into Cisco IOS XE Release 3.5S.

15.2(2)S

This command was modified. The if-autotun keyword was added. The output for the show ip rsvp high-availability database lsp, the show ip rsvp high-availability database lsp-head, and the show ip rsvp high-availability database summary commands was enhanced to display checkpoint information for MPLS TE autotunnel and automesh stateful switchover (SSO) tunnels.

Cisco IOS XE Release 3.6S

This command was modified. The if-autotun keyword was added. The output for the show ip rsvp high-availability database lsp, the show ip rsvp high-availability database lsp-head, and the show ip rsvp high-availability database summary commands was enhanced to display checkpoint information for MPLS TE autotunnel and automesh stateful switchover (SSO) tunnels.

Usage Guidelines

Use the show ip rsvp high-availability database command to display information about entries in the read and write databases.

Use the show ip rsvp high-availability database lsp command to display loose hop information. A loose hop expansion can be performed on a router when the router processes the explicit router object (ERO) for an incoming path message. After the router removes all local IP addresses from the incoming ERO, it finds the next hop. If the ERO specifies that the next hop is loose instead of strict, the router consults the TE topology database and routing to determine the next hop and output interface to forward the path message. The result of the calculation is a list of hops; the list is placed in the outgoing ERO and checkpointed with the LSP data as the loose hop information.

In Cisco IOS Release 15.0(1)S and later releases, the show ip rsvp high-availability database lsp command displays sub-LSP information. If any sub-LSP, whether P2MP or P2P, fails to recover after a stateful switchover (SSO), the failure is noted in an error database for troubleshooting. You can use the show ip rsvp high-availability database lsp command to display error database entries.

You can use the show ip rsvp high-availability database lsp-head command only on a headend router; this command gives no information on other routers

Examples

Examples

The following is sample output from the show ip rsvp high-availability database hello command on an active Route Processor (RP):

Router# show ip rsvp high-availability database hello

HELLO WRITE DB
   Header:
     State: Checkpointed     Action: Add
     Seq #: 1                Flags: 0x0
   Data:
     Last sent Src_instance: 0xDE435865
HELLO READ DB

The table below describes the significant fields shown in the display.

Table 11 show ip rsvp high-availability database hello—Active RP Field Descriptions

Field

Description

HELLO WRITE DB

Storage area for active RP hello data consisting of checkpointed RSVP-TE information that is sent to the standby RP when it becomes the active RP and needs to recover LSPs. This field is blank on a standby RP.

Header

Header information.

State

Status of an entry. Values are as follows:

  • Ack-Pending—Entries have been sent but not acknowledged.
  • Checkpointed—Entries have been sent and acknowledged by the standby RP.
  • Send-Pending—Entries are waiting to be sent.

Action

Action taken. Values are as follows:

  • Add—Adding an item to the standby RP.
  • Delete—Deleting an item from the standby RP. This is a temporary action that takes place while the active RP awaits an acknowledgment (ack) of the delete operation.
  • Modify—Modifying an item on the standby RP.
  • Remove—Removing an item from the standby RP.

Seq #

Number used by the active and standby RPs to synchronize message acknowledgments (acks) and negative acknowledgments (nacks) to sent messages.

Flags

Attribute used to identify or track data.

Data

Information about the last transmission.

Last sent Src_instance

Last sent source instance identifier.

HELLO READ DB

Storage area for standby RP hello data. This field is blank on an active RP, except when it is in recovery mode.

Examples

The following is sample output from the show ip rsvp high-availability database hello on a standby RP:

Router# show ip rsvp high-availability database hello

HELLO WRITE DB
HELLO READ DB
   Header:
     State: Checkpointed     Action: Add
     Seq #: 1                Flags: 0x0
   Data:
     Last sent Src_instance: 0xDE435865

These fields are the same as those for the active RP described in the table except they are now in the read database for the standby RP.

Examples

The following is sample output from the show ip rsvp high-availability database if-autotun command on an active RP.

Router# show ip rsvp high-availability database if-autotun
IF_AUTOTUN WRITE DB

  Header:
    State: Checkpointed     Action: Add
    Seq #: 1                Flags: 0x0
  Data:
    Tunnel ID: 1000 (if_handle: 85), prot_if_handle: 14
    template_unit: n/a, dest: 22.22.22.22, flags=0x0

  Header:
    State: Checkpointed     Action: Add
    Seq #: 61               Flags: 0x0
  Data:
    Tunnel ID: 2000 (if_handle: 86), prot_if_handle: 14
    template_unit: n/a, dest: 22.22.22.22, flags=0x1

  Header:
    State: Checkpointed     Action: Add
    Seq #: 1                Flags: 0x0
  Data:
    Tunnel ID: 3000 (if_handle: 87), prot_if_handle: 0
    template_unit: 1, dest: 22.22.22.22, flags=0x2

  Header:
    State: Checkpointed     Action: Add
    Seq #: 1                Flags: 0x0
  Data:
    Tunnel ID: 3001 (if_handle: 88), prot_if_handle: 0
    template_unit: 1, dest: 172.16.255.128, flags=0x2

  Header:
    State: Checkpointed     Action: Add
    Seq #: 1                Flags: 0x0
  Data:
    Tunnel ID: 3002 (if_handle: 89), prot_if_handle: 0
    template_unit: 1, dest: 200.0.0.0, flags=0x2


IF_AUTOTUN READ DB

The table below describes the significant fields shown in the display.

Table 12 show ip rsvp high-availability database if-autotun—Active RP Field Descriptions

Field

Description

IF_AUTOTUN WRITE DB

Storage area for active RP autotunnel interface information. This field is blank on a standby RP.

Header

Header information.

State

Status of an entry. Values are as follows:

  • Ack-Pending—Entries have been sent but not acknowledged.
  • Checkpointed—Entries have been sent and acknowledged by the standby RP.
  • Send-Pending—Entries are still waiting to be sent.

Action

Action taken. Values are as follows:

  • Add—Adding an item to the standby RP.
  • Delete—Deleting an item from the standby RP. This action appears temporarily while the active RP awaits an ack of the delete operation.
  • Modify—Modifying an item on the standby RP.
  • Remove—Removing an item from the standby RP.

Seq #

Number used by the active and standby RPs to synchronize message acks and nacks to sent messages.

Flags

Attributes used to identify or track data.

Data

Information about the last transmission.

Tunnel ID

Tunnel identifier.

if_handle

Internal number representing the autotunnel interface. For the same tunnel ID, this if_handle value should always be the same for the record in the Standby READ DB as in the Active WRITE DB.

prot_if_handle

For autotunnel mesh tunnels, this value should always be zero. For autotunnel primary tunnels, this is an internal number representing the egress interface of the autotunnel primary. For autotunnel backup tunnels, this is an internal number representing the interface that the backup is protecting. In all three cases, for the same tunnel ID, this value should always be the same for the record in the Standby READ DB as in the Active WRITE DB.

template_unit

For autotunnel mesh, this represents the auto-template interface number that the mesh tunnel was created from. For autotunnel primary and backup, this should be "n/a."

dest

Destination IP address of the autotunnel.

flags

Encodings have these values:
  • 0 = autotunnel primary
  • 1 = autotunnel backup
  • 2 = autotunnel mesh

IF_AUTOTUN READ DB

Storage area for standby RP autotunnel interface information. This field is blank on an active RP.

The fields for a standby RP are the same as those described in the table except that they are now in the interface autotunnel read database instead of the interface autotunnel write database that is used by an active RP.

Examples

The following is sample output from the show ip rsvp high-availability database link-management interfaces command on an active RP:

Router# show ip rsvp high-availability database link-management interfaces

TE LINK WRITE DB
Flooding Protocol: ospf  IGP Area ID: 0  Link ID: 0 (GigabitEthernet3/2)
  Header:
    State: Checkpointed     Action: Add
    Seq #: 4                Flags: 0x0
  Data:
        Ifnumber: 5  Link Valid Flags: 0x193B
        Link Subnet Type: Broadcast
        Local Intfc ID: 0  Neighbor Intf ID: 0
        Link IP Address: 172.16.3.1
        Neighbor IGP System ID: 172.16.3.2  Neighbor IP Address: 10.0.0.0
        IGP Metric: 1  TE Metric: 1
        Physical Bandwidth: 1000000 kbits/sec
        Res. Global BW: 3000 kbits/sec
        Res. Sub BW: 0 kbits/sec
        Upstream::
                                 Global Pool   Sub Pool
                                 -----------   ----------
        Reservable Bandwidth[0]:           0            0 kbits/sec
        Reservable Bandwidth[1]:           0            0 kbits/sec
        Reservable Bandwidth[2]:           0            0 kbits/sec
        Reservable Bandwidth[3]:           0            0 kbits/sec
        Reservable Bandwidth[4]:           0            0 kbits/sec
        Reservable Bandwidth[5]:           0            0 kbits/sec
        Reservable Bandwidth[6]:           0            0 kbits/sec
        Reservable Bandwidth[7]:           0            0 kbits/sec
        Downstream::
                                 Global Pool   Sub Pool
                                 -----------   ----------
        Reservable Bandwidth[0]:        3000            0 kbits/sec
        Reservable Bandwidth[1]:        3000            0 kbits/sec
        Reservable Bandwidth[2]:        3000            0 kbits/sec
        Reservable Bandwidth[3]:        3000            0 kbits/sec
        Reservable Bandwidth[4]:        3000            0 kbits/sec
        Reservable Bandwidth[5]:        3000            0 kbits/sec
        Reservable Bandwidth[6]:        3000            0 kbits/sec
        Reservable Bandwidth[7]:        2900            0 kbits/sec
        Affinity Bits: 0x0
        Protection Type: Capability 0,  Working Priority 0
        Number of TLVs: 0

The table below describes the significant fields shown in the display.

Table 13 show ip rsvp high-availability database link-management interfaces—Active RP Field Descriptions

Field

Description

TE LINK WRITE DB

Storage area for active TE RP link data. This field is blank on a standby RP.

Flooding Protocol

Protocol that is flooding information for this area. OSPF = Open Shortest Path First.

IGP Area ID

Interior Gateway Protocol (IGP) identifier for the area being flooded.

Link ID

Link identifier and interface for the area being flooded.

Header

Header information.

State

Status of an entry. Values are as follows:

  • Ack-Pending—Entries have been sent but not acknowledged.
  • Checkpointed—Entries have been sent and acknowledged by the standby RP.
  • Send-Pending—Entries are waiting to be sent.

Action

Action taken. Values are as follows:

  • Add—Adding an item to the standby RP.
  • Delete—Deleting an item from the standby RP. This action appears temporarily while the active RP awaits an ack of the delete operation.
  • Modify—Modifying an item on the standby RP.
  • Remove—Removing an item from the standby RP.

Seq #

Number used by the active and standby RPs to synchronize message acks and nacks to sent messages.

Flags

Attribute used to identify or track data.

Data

Information about the last transmission.

Ifnumber

Interface number.

Link Valid Flags

Attributes used to identify or track links.

Link Subnet Type

Subnet type of the link. Values are as follows:

  • Broadcast—Data for multiple recipients.
  • Nonbroadcast Multiaccess--A network in which data is transmitted directly from one computer to another over a virtual circuit or across a switching fabric.
  • Point-to-Multipoint—Unidirectional connection in which a single source end system (known as a root node) connects to multiple destination end systems (known as leaves).
  • Point-to-Point—Unidirectional or bidirectional connection between two end systems.
  • Unknown subnet type—Subnet type not identified.

Local Intfc ID

Local interface identifier.

Neighbor Intf ID

Neighbor’s interface identifier.

Link IP Address

IP address of the link.

Neighbor IGP System ID

Neighbor system identifier configured using IGP.

Neighbor IP Address

Neighbor’s IP address.

IGP Metric

Metric value for the TE link configured using IGP.

TE Metric

Metric value for the TE link configured using Multiprotocol Label Switching (MPLS) TE.

Physical Bandwidth

Link bandwidth capacity in kilobits per second (kb/s).

Res. Global BW

Amount of reservable global pool bandwidth (in kb/s) on this link.

Res. Sub BW

Amount of reservable subpool bandwidth (in kb/s) on this link.

Upstream

Header for the following section of bandwidth values.

Global Pool

Global pool bandwidth (in kb/s) on this link.

Sub Pool

Subpool bandwidth (in kb/s) on this link.

Reservable Bandwidth [1]

Amount of bandwidth (in kb/s) available for reservations in the global TE topology and subpools.

Downstream

Header for the following section of bandwidth values.

Affinity Bits

Link attributes required in tunnels.

Protection Type

LSPs protected by fast reroute (FRR).

  • Capability = LSPs capable of using FRR.
  • Working Priority = LSPs actually using FRR.

Number of TLVs

Number of type, length, values (TLVs).

The fields for a standby RP are the same as those described in the table except that they are now in the TE link read database instead of the TE link write database that is used by an active RP.

Examples

The following is sample output from the show ip rsvp high-availability database link-management system command on an active RP:

Router# show ip rsvp high-availability database link-management system

TE SYSTEM WRITE DB
Flooding Protocol: OSPF  IGP Area ID: 0
  Header:
    State: Checkpointed     Action: Modify
    Seq #: 4                Flags: 0x0
  Data:
    LM Flood Data::
      LSA Valid flags: 0x0  Node LSA flag: 0x0
      IGP System ID: 172.16.3.1  MPLS TE Router ID: 10.0.0.3
      Flooded links: 1  TLV length: 0 (bytes)
      Fragment id: 0
TE SYSTEM READ DB

The table below describes the significant fields shown in the display.

Table 14 show ip rsvp high-availability database link-management system—Active RP Field Descriptions

Field

Description

TE SYSTEM WRITE DB

Storage area for active TE RP system data. This field is blank on a standby RP.

Flooding Protocol

Protocol that is flooding information for this area. OSPF = Open Shortest Path First.

IGP Area ID

IGP identifier for the area being flooded.

Header

Header information.

State

Status of an entry. Values are as follows:

  • Ack-Pending—Entries have been sent but not acknowledged.
  • Checkpointed—Entries have been sent and acknowledged by the standby RP.
  • Send-Pending—Entries are waiting to be sent.

Action

Action taken. Values are as follows:

  • Add—Adding an item to the standby RP.
  • Delete—Deleting an item from the standby RP. This action appears temporarily while the active RP awaits an ack of the delete operation.
  • Modify—Modifying an item on the standby RP.
  • Remove—Removing an item from the standby RP.

Seq #

Number used by the active and standby RPs to synchronize message acks and nacks to messages sent.

Flags

Attribute used to identify or track data.

Data

Information about the last transmission.

LM Flood Data

Link management (LM) flood data.

LSA Valid flags

Link-state advertisement (LSA) attributes.

Node LSA flag

LSA attributes used by a router.

IGP System ID

Identification (IP address) that IGP flooding uses in this area to identify this node.

MPLS TE Router ID

MPLS TE router identifier (IP address).

Flooded links

Number of flooded links.

TLV length

TLV length in bytes.

Fragment id

Fragment identifier for this link.

TE SYSTEM READ DB

Storage area for standby TE RP system data. This field is blank on a standby RP.

The fields for a standby RP are the same as those described in the table except that they are now in the TE system read database instead of the TE system write database that is used by an active RP.

Examples

The following is sample output from the show ip rsvp high-availability database lsp command on an active RP for a P2P tunnel:

Router# show ip rsvp high-availability database lsp

Tun ID: 0   LSP ID: 10   (P2P)
  SubGrp ID:   -
  SubGrp Orig: -
  Dest:   10.3.0.1
  Sender: 10.1.0.1     Ext. Tun ID: 10.1.0.1
  Header:
    State: Checkpointed     Action: Add
    Seq #: 2                Flags: 0x0
  Data:
    PathSet ID: -
    Lspvif if_num: -
    InLabel: -
    Out I/F: Se2/0
    Next-Hop: 10.1.3.2
    OutLabel: 16
    Loose hop info: None (0)

Examples

The following is sample output from the show ip rsvp high-availability database lsp command on an active RP for a P2MP tunnel:

Router# show ip rsvp high-availability database lsp

Tun ID: 1   LSP ID: 127   (P2MP)
  SubGrp ID:   1
  SubGrp Orig: 10.1.0.1
  Dest:   10.2.0.1
  Sender: 10.1.0.1     Ext. Tun ID: 10.1.0.1
  Header:
    State: Checkpointed     Action: Add
    Seq #: 30               Flags: 0x0
  Data:
    PathSet ID: 0x1A000003
    Lspvif if_num: 35 (Lspvif0)
    InLabel: 19
    Out I/F: None
    Next-Hop: -
    OutLabel: -
    Loose hop info: None (0)

The table below describes the significant fields shown in the display.

Table 15 show ip rsvp high-availability database lsp—Active RP Field Descriptions

Field

Description

P2P/P2MP

Tunnel type.

Subgrp ID

Subgroup identifier (valid only for P2MP TE LSPs).

Subgrp Orig

Subgroup origin IP address (valid only for P2MP TE LSPs).

Lspvif if_num

Interface number of the LSPVIF (valid only for P2MP TE tailends).

PathSet ID

Path set identifier (valid only for P2MP TE LSPs)

LSP WRITE DB

Storage area for active RP LSP data. This field is blank on a standby RP.

Tun ID

Tunnel identifier.

LSP ID

LSP identifier.

Dest

Tunnel destination IP address.

Sender

Tunnel sender IP address.

Ext. Tun ID

Extended tunnel identifier; usually set to 0 or the sender’s IP address.

Header

Header information.

State

Status of an entry. Values are as follows:

  • Ack-Pending—Entries have been sent, but not acknowledged.
  • Checkpointed—Entries have been sent and acknowledged by the standby RP.
  • Send-Pending—Entries are waiting to be sent.

Action

Action taken. Values are as follows:

  • Add—Adding an item to the standby RP.
  • Delete—Deleting an item from the standby RP. This action appears temporarily while the active RP awaits an ack of the delete operation.
  • Modify—Modifying an item on the standby RP.
  • Remove—Removing an item from the standby RP.

Seq #

Number used by the active and standby RPs to synchronize message acks and nacks to messages sent.

Flags

Attribute used to identify or track data.

Data

Information about the last transmission.

InLabel

Incoming label identifier.

Out I/F

Outgoing interface.

Next-Hop

Next hop IP address.

OutLabel

Outgoing label identifier.

Loose hop info

Lists the loose hop expansions performed on the router, or specifies None.

LSP READ DB

Storage area for standby RP LSP data. This field is blank on an active RP.

The fields for a standby RP are the same as those described in the table except that they are now in the LSP read database instead of the LSP write database that is used by an active RP.

Examples

The following is sample output from the show ip rsvp high-availability database lsp-head command on an active RP for a P2P tunnel:

Router# show ip rsvp high-availability database lsp-head

LSP_HEAD WRITE DB
  Tun ID: 0  (P2P)
  Header:
    State: Checkpointed     Action: Add
    Seq #: 2                Flags: 0x0
  Data:
    lsp_id: 10, bandwidth: 5, thead_flags: 0x1, popt: 1
    feature flags: none
    output_if_num: 11, output_nhop: 10.1.3.2
    RRR path setup info
      Destination: 10.3.0.1, Id: 10.3.0.1 Router Node (ospf) flag:0x0
      IGP: ospf, IGP area: 0, Number of hops: 3, metric: 128
      Hop 0: 10.1.3.2, Id: 10.2.0.1 Router Node (ospf), flag:0x0
      Hop 1: 10.2.3.3, Id: 10.3.0.1 Router Node (ospf), flag:0x0
      Hop 2: 10.3.0.1, Id: 10.3.0.1 Router Node (ospf), flag:0x0

Examples

The following is sample output from the show ip rsvp high-availability database lsp-head command on an active RP for a P2MP tunnel:

Router# show ip rsvp high-availability database lsp-head

LSP_HEAD WRITE DB
Tun ID: 1  (P2MP)
  Destination: 10.2.0.1
  Header:
    State: Checkpointed     Action: Add
    Seq #: 3                Flags: 0x0
  Data:
    lsp_id: 11, bandwidth: 100, thead_flags: 0x1, popt: 1
    Subgrp_id: 1
    feature flags: none
    output_if_num: 3, output_nhop: 10.1.2.2
    RRR path setup info
      Destination: 10.2.0.1, Id: 10.2.0.1 Router Node (ospf) flag:0x0
      IGP: ospf, IGP area: 0, Number of hops: 3, metric: 10
      Hop 0: 10.1.2.1, Id: 10.1.0.1 Router Node (ospf), flag:0x0
      Hop 1: 10.1.2.2, Id: 10.2.0.1 Router Node (ospf), flag:0x0
      Hop 2: 10.2.0.1, Id: 10.2.0.1 Router Node (ospf), flag:0x0

The table below describes the significant fields shown in the display.

Table 16 show ip rsvp high-availability database lsp-head—Active RP Field Descriptions

Field

Description

LSP_HEAD WRITE DB

Storage area for active RP LSP-head data. This field is blank on a standby RP.

P2P/P2MP

Tunnel type.

Tun ID

Tunnel identifier.

Header

Header information.

State

Status of an entry. Values are as follows:

  • Ack-Pending—Entries have been sent, but not acknowledged.
  • Checkpointed—Entries have been sent and acknowledged by the standby RP.
  • Send-Pending—Entries are waiting to be sent.

Action

Action taken. Values are as follows:

  • Add—Adding an item to the standby RP.
  • Delete—Deleting an item from the standby RP. This is a temporary action that takes place while the active RP awaits an ack of the delete operation.
  • Modify—Modifying an item on the standby RP.
  • Remove—Removing an item from the standby RP.

Seq #

Number used by the active and standby RPs to synchronize message acks and nacks to messages sent.

Flags

Attribute used to identify or track data.

Data

Information about the last transmission.

lsp_id

LSP identifier.

bandwidth

Bandwidth on the LSP (in kb/s).

thead_flags

Tunnel head attribute used to identify or track data.

popt

Parsing option number.

feature_flags

Indicates whether the LSP being used to forward traffic is the secondary LSP using the path protection path option. Valid values are as follows:

  • none
  • path protection active

output_if_num

Output interface number.

output_nhop

Output next hop IP address.

RRR path setup info

Routing with Resource Reservation (RRR) path information.

Destination

Destination IP address.

Id

IP address and protocol of the routing node. Values are as follows:

  • ISIS = Intermediate System-to-Intermediate System
  • OSPF = Open Shortest Path First

flag

Attribute used to track data.

IGP

Interior Gateway Protocol. OSPF = Open Shortest Path First.

IGP area

IGP area identifier.

Number of hops

Number of connections or routers.

metric

Routing cost.

Hop

Hop’s number and IP address.

LSP_HEAD READ DB

Storage area for standby RP LSP-head data. This field is blank on an active RP.

The fields for a standby RP are the same as those described in the table except that they are now in the LSP_head read database instead of the LSP_head write database that is used by an active RP.

Examples

The following is sample output from the show ip rsvp high-availability database summary command on an active RP:

Router# show ip rsvp high-availability database summary

Write DB:
  Send-Pending:     0
  Ack-Pending :     0
  Checkpointed:    10
  Total       :    10
Read DB:
  Total       :     0

The table below describes the significant fields shown in the display.

Table 17 show ip rsvp high-availability database summary—Active RP Field Descriptions

Field

Description

Write DB

Storage area for active RP summary data. This field is blank on a standby RP.

Send-Pending

Entries are waiting to be sent.

Ack-Pending

Entries have been sent, but are waiting to be acknowledged.

Checkpointed

Entries have been sent and acknowledged.

Total

Total number of entries in the write database.

Total

Total number of entries in the read database.

Examples

The following is sample output from the show ip rsvp high-availability database summary command on a standby RP:

Router# show ip rsvp high-availability database summary

Write DB:
  Send-Pending:     0
  Ack-Pending :     0
  Checkpointed:     0
  Total       :     0
Read DB:
  Total       :    10

The table below describes the significant fields shown in the display.

Table 18 show ip rsvp high-availability database summary—Standby RP Field Descriptions

Field

Description

Write DB

Storage area for active RP summary data.

Send-Pending

Entries are waiting to be sent.

Ack-Pending

Entries have been sent but are waiting to be acknowledged.

Checkpointed

Entries have been sent and acknowledged.

Total

Total number of entries in the write database.

Total

Total number of entries in the read database.

Related Commands

Command

Description

show ip rsvp high-availability counters

Displays all RSVP HA counters that are being maintained by an RP.

show ip rsvp high-availability summary

Displays summary information for an RSVP HA RP.

show ip rsvp high-availability summary

To display summary information for a Resource Reservation Protocol (RSVP) traffic engineering (TE) high availability (HA) Route Processor (RP), use the show ip rsvp high-availability summary command in user EXEC or privileged EXEC mode.

show ip rsvp high-availability summary

Syntax Description

This command has no arguments or keywords.

Command Modes

User EXEC (>)

Privileged EXEC (#)

Command History

Release

Modification

12.2(33)SRA

This command was introduced.

12.2(33)SXH

This command was integrated into Cisco IOS Release 12.2(33)SXH.

15.2(2)S

This command was modified. The output was enhanced to display checkpoint information for MPLS TE autotunnel and automesh stateful switchover (SSO) tunnels.

Cisco IOS XE Release 3.6S

This command was modified. The output was enhanced to display checkpoint information for MPLS TE autotunnel and automesh stateful switchover (SSO) tunnels.

Usage Guidelines

Use the show ip rsvp high-availability summarycommand to display information about the HA parameters currently configured on an RP.

The command output differs depending on whether the RP is active or standby.

Examples

The following is sample output from the show ip rsvp high-availability summary command on an active RP:

Router# show ip rsvp high-availability summary

State:
Graceful-Restart: Enabled, mode: full
HA state: Active
Checkpointing: Allowed
Messages:
Send timer: not running (Interval: 1000 msec)
Items sent per Interval: 200
CF buffer size used: 2000

Note


On a standby RP, only the first three lines of the output are displayed. On an active RP, all lines are displayed.


The table below describes the significant fields shown in the display.

Table 19 show ip rsvp high-availability summary—Field Descriptions

Field

Description

State

Status of graceful restart and HA.

Graceful Restart

Restart capability:

  • Enabled—Restart capability is activated for a router (full mode) or its neighbor (help-neighbor).
  • Disabled—Restart capability is not activated.

HA state

The RP state, which is the following:

  • Active—Active RP.
  • Standby—Standby (backup) RP.
  • Recovering—The active RP is in recovery period.

Checkpointing

The function that copies state information (write database entries) from the active RP to the standby RP. Values are the following:

  • Allowed—Functioning normally.
  • Not Allowed—Checkpointing is not allowed. Reasons may be that the RP is not present or not ready.

Messages

The checkpointed messages that the active RP sends to the standby RP during a specified interval.

Send timer

The write database timer. Values are the following:

  • running—Entries are in the write database in the send-pending state and checkpointing is allowed.
  • not running—Checkpointing is not allowed or the write database is empty.
Note

Entries in the write database can be in the following states:

  • Send-Pending—The entry has not been sent to the standby RP yet.
  • Ack-Pending—The entry was sent to the standby RP, but no acknowledgment was received from the standby RP yet.
  • Checkpointed—The checkpointing facility (CF) message has been acknowledged by the standby RP, which notifies the active RP.

Interval

Time, in milliseconds (ms), when the active RP sends messages to the standby RP.

Items sent per Interval

The number of database entries (data that has been taken from the write database and packed into bundle message for transmitting to the standby RP), which the active RP sends to the standby RP each time the write database timer activates.

CF buffer size used

Amount of storage space, in bytes, used by the checkpointing facility.

In some cases, the checkpointing field displays Not Allowed. Here is an excerpt from sample output:

Checkpointing: Not Allowed
Peer RP Present : No
RF Comm. Up : No
Flow Control On : No
CF Comm. Up : No
RF Ready to Recv: No

Note


If checkpointing is allowed, the attributes displayed in the sample output do not appear. Refer to the show ip rsvp high-availability summary command output on an active RP for more details.


The table below describes the significant fields shown in the display.

Table 20 show ip rsvp high-availability summary—Checkpointing Field Descriptions

Field

Description

Peer RP Present : No

The active RP cannot communicate with any peer RP.

Note

This can happen if the standby RP is removed, or if it is temporarily unavailable, such as during a restart.

RF Comm. Up : No

The redundant facility (RF) on the active RP is unable to communicate with the RF on the standby RP.

Flow Control On : No

The active RP cannot send Internet Protocol communications (IPC) messages (using checkpointing) to the standby RP because flow control is off.

CF Comm. Up : No

The TE CF client on the active RP is unable to communicate with the TE CF client on the standby RP.

RF Ready to Recv : No

The RF on the standby RP is not ready to receive checkpoint messages.

The following is sample output from the show ip rsvp high-availability summary command after a stateful switchover (SSO) has occurred.

Router# show ip rsvp high-availability summary

State:
 Graceful-Restart: Enabled
 HA state: active
Checkpointing: Allowed
Recovery Time (msec)
 Advertised:    120000 msec
 Last recorded: 75012 msec
Messages:
 Send timer: not running (Interval:1000)
 Items sent per Interval: 200

The table below describes the significant fields shown in the display

Table 21 show ip rsvp high-availability summary—After an SSO Field Descriptions

Field

Description

Advertised

The advertised recovery time, in milliseconds.

Last recorded

The last recorded recovery time, in milliseconds.

Related Commands

Command

Description

clear ip rsvp high-availability counters

Clears (sets to zero) the RSVP-TE HA counters that are being maintained by an RP.

show ip rsvp high-availability counters

Displays the RSVP-TE HA counters that are being maintained by an RP.

show ip rsvp high-availability database

Displays the contents of the RSVP-TE HA read and write databases used in TE SSO.

show ip rsvp host

To display specific information for a Resource Reservation Protocol (RSVP) host, use the showiprsvphost command in user EXEC or privileged EXEC mode.

show ip rsvp host { receivers | senders } [ hostname | group-address ]

Syntax Description

senders

RSVP-related sender information currently in the database.

receivers

RSVP-related receiver information currently in the database.

hostname

(Optional) Hostname of the source or destination.

group-address

(Optional) IP address of the source or destination.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.0(3)T

This command was introduced.

12.4(6)T

This command was modified. The command output was modified to display RSVP identity information when configured.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines

Use the showiprsvphost command to display static RSVP senders and receivers. If a router has any local host receivers or senders that have RSVP identities configured, the application IDs that they use are also displayed.

Examples

In the following example from theshowiprsvphostsenderscommand, no RSVP identities are configured for the local sender:

Router# show ip rsvp host senders
To            From          Pro DPort Sport Prev Hop      I/F      BPS
192.168.104.3 192.168.104.1 UDP 1     1                            10K
  Mode(s): Host CLI

The table below describes the significant fields shown in the display.

Table 22 show ip rsvp host senders (No RSVP Identities Configured) Field Descriptions

Field

Description

To

IP address of the receiver.

From

IP address of the sender.

Pro

Protocol code. IP protocol such as TCP or UDP.

DPort

Destination port number. Code 1 indicates an IP protocol such as TCP or UDP.

Sport

Source port number. Code 1 indicates an IP protocol such as TCP or UDP.

Prev Hop

IP address of the previous hop. Blank means no previous hop.

I/F

Interface of the previous hop.

BPS

Reservation rate, in bits per second (bps).

Mode(s)

Any of the following strings:

  • Host--The router is acting as the host system or RSVP endpoint for this reservation.
  • LSP-Tunnel--The reservation is for a traffic engineering (TE) tunnel.
  • MIB--The reservation was created via an Simple Network Management Protocol (SNMP) SET directive from a remote management station.
  • CLI--The reservation was created via a local RSVP command.
  • Host CLI--A combination of the host and command line interface (CLI) strings meaning that the static sender being displayed was created by the iprsvpsender-host command.

In the following example from theshowiprsvphostsenderscommand, an RSVP identity is configured for the local sender:

Router# show ip rsvp host senders
To            From          Pro DPort Sport Prev Hop      I/F      BPS
192.168.104.3 192.168.104.1 UDP 1     1                            10K
  Mode(s): Host CLI
  Identity: voice100
    Locator: GUID=www.cisco.com,APP=voice,VER=100.0
    ID Type: Application

The table below describes the significant fields shown in the display.

Table 23 show ip rsvp host senders (RSVP Identity Configured) Field Descriptions

Field

Description

To

IP address of the receiver.

From

IP address of the sender.

Pro

Protocol code. IP protocol such as TCP or UDP.

DPort

Destination port number. Code 1 indicates IP protocol such as TCP or UDP.

Sport

Source port number. Code 1 indicates IP protocol such as TCP or UDP.

Prev Hop

IP address of the previous hop. Blank means no previous hop.

I/F

Interface of the previous hop.

BPS

Reservation rate in bits per second (bps).

Mode(s)

Any of the following strings:

  • CLI--The reservation was created via a local RSVP command.
  • Host--The router is acting as the host system or RSVP endpoint for this reservation.
  • Host CLI--A combination of the host and CLI strings meaning that the static sender being displayed was created by the iprsvpsender-host command.
  • LSP-Tunnel--The reservation is for a Traffic Engineering (TE) tunnel.
  • MIB--The reservation was created via an SNMP SET directive from a remote management station.

Identity

The alias string for the RSVP application ID.

Locator

The application ID that is being signaled in the RSVP PATH message for this statically-configured sender.

ID Type

Types of identities. RSVP defines two types: application IDs (Application) and user IDs (User). Cisco IOS software and Cisco IOS XE software support application IDs only.

Related Commands

Command

Description

ip rsvp sender-host

Enables a router to simulate a host generating an RSVP PATH message.

show ip rsvp host vrf

To display specific information for a Resource Reservation Protocol (RSVP) host configured with a virtual routing and forwarding (VRF) instance, use the showiprsvphostvrf command in user EXEC or privileged EXEC mode.

show ip rsvp host vrf { * | vrf-name } { receivers | senders } [ group-name | group-address ]

Syntax Description

*

Displays all VRFs.

vrf-name

Name of a specified VRF.

receivers

Displays RSVP-related receiver information currently in the database.

senders

Displays RSVP-related sender information currently in the database.

group-name

(Optional) Hostname of the source or destination.

group-address

(Optional) IP address of the source or destination.

Command Modes


User EXEC (<)
Privileged EXEC (#)

Command History

Release

Modification

15.0(1)M

This command was introduced.

Usage Guidelines

Use the showiprsvphostvrfcommand to display VRFs and static RSVP senders and receivers.

Examples

In the following example from theshowiprsvphostvrf*senderscommand, VRFs are displayed for the local senders:

Router# show ip rsvp host vrf * senders
VRF: vrf2
To                  From                 Pro DPort Sport Prev Hop      I/F      BPS
192.168.104.4       198.168.104.12       UDP 10    10    none          none     10K
  Mode(s): Host CLI
VRF: vrf1
To                  From                 Pro DPort Sport Prev Hop      I/F      BPS
192.168.105.4       198.168.105.12       UDP 10    10    none          none     10K
  Mode(s): Host CLI

The table below describes the significant fields shown in the display.

Table 24 show ip rsvp host vrf senders Field Descriptions

Field

Description

VRF

Name of the VRF.

To

IP address of the receiver.

From

IP address of the sender.

Pro

Protocol code. IP protocol such as TCP or UDP.

DPort

Destination port number. Code 1 indicates an IP protocol such as TCP or UDP.

Sport

Source port number. Code 1 indicates an IP protocol such as TCP or UDP.

Prev Hop

IP address of the previous hop. Blank means no previous hop.

I/F

Interface of the previous hop.

BPS

Reservation rate in bits per second (bps).

Mode(s)

Any of the following strings:

  • Host--The router is acting as the host system or RSVP endpoint for this reservation.
  • LSP-Tunnel--The reservation is for a Traffic Engineering (TE) tunnel.
  • MIB--The reservation was created via an SNMP SET directive from a remote management station.
  • CLI--The reservation was created via a local RSVP CLI command.
  • Host CLI--A combination of the host and CLI strings meaning that the static sender being displayed was created by the iprsvpsender-host CLI command.

Related Commands

Command

Description

show ip rsvp host

Displays specific information for an RSVP host.

show ip rsvp ingress

To display information about the Resource Reservation Protocol (RSVP) ingress bandwidth configured on interfaces, use the showiprsvpingress command in privileged EXEC mode.

show ip rsvp ingress interface [detail] [ type number ]

Syntax Description

interface

Specifies the interface.

type number

(Optional) Interface type and interface or subinterface number.

detail

(Optional) Displays detailed information on the ingress bandwidth.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

15.1(3)T

This command was introduced.

15.1(1)S

This command was integrated into Cisco IOS Release 15.1(1)S.

15.1(1)SY

This command was integrated into Cisco IOS Release 15.1(1)SY.

Usage Guidelines

Use the showiprsvpingress command to display information on the RSVP ingress bandwidth configured on a specific interface or all interfaces. If you do not specify the optional keyword or arguments, the command displays information about the RSVP ingress bandwidth configured on all interfaces. Use the detail keyword to display the detailed information on ingress bandwidth for a specific interface or for all interfaces.

Examples

The following is sample output from the showiprsvpingressdetailethernet1/0 command:

Device# show ip rsvp ingress interface detail ethernet 1/0
interface    rsvp  in-allocated  in-i/f max  in-flow max  VRF
Et1/0        ena   0             7500K       7500K        0

The table below describes the significant fields shown in the display.

Table 25 show ip rsvp ingress Field Descriptions

Field

Description

interface

Displays the interface on which the ingress bandwidth is configured.

rsvp

The state of RSVP. Values are enabled (activated) or disabled (deactivated).

Note

This field is disabled only if an internal error occurs when registering with Routing Information Base (RIB).

in-allocated

Amount of bandwidth, in bits per second, currently allocated.

in-i/f max

Ingress reservable bandwidth, in Kb/s.

in-flow max

Percentage of interface bandwidth configured as RSVP ingress bandwidth.

VRF

VRF name.

Related Commands

Command

Description

ip rsvp bandwidth

Enables RSVP for IP on an interface.

maximum bandwidth ingress

Configures the bandwidth parameters for the ingress policy pool.

show ip rsvp installed

To display Resource Reservation Protocol (RSVP)-related installed filters and corresponding bandwidth information, use the showiprsvpinstalled command in user EXEC or privileged EXEC mode.

show ip rsvp installed [ vrf { * | vrf-name } ] [ interface-type interface-number ] [detail]

Syntax Description

vrf *

(Optional) Displays all the configured virtual routing and forwarding (VRF) instances.

vrf vrf-name

(Optional) Name of a specified VRF.

interface-type

(Optional) Type of the interface.

interface-number

(Optional) Number of the interface.

detail

(Optional) Displays additional information about interfaces and their reservations.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

11.2

This command was introduced.

12.2(2)T

This command was integrated into Cisco IOS Release 12.2(2)T.

12.2(14)S

This command was integrated into Cisco IOS Release 12.2(14)S.

12.2(15)T

This command was modified. The command output was modified to display the resources required for a traffic control state block (TCSB) after compression has been taken into account.

12.2(18)SXF2

This command was integrated into Cisco IOS Release 12.2(18)SXF2.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(33)SRC

This command was modified. The command output was modified to display RSVP aggregation information.

15.0(1)M

This command was modified. The vrfand*keywords and the vrf-name argument were added.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines


Note


The syntax of the command depends on your platform and release. The vrfvrf-namekeyword and argument combination is not supported on Cisco ASR 1000 series routers.


The showiprsvpinstalledcommand displays information about interfaces and their reservations. Enter the optional detail keyword for additional information, including the reservation’s traffic parameters, downstream hop, compression, VRFs, and resources used by RSVP to ensure quality of service (QoS) for this reservation.

Examples

This section provides sample output from the showiprsvpinstalled commands. Depending upon the interface or platform in use and the options enabled, the output that you see may vary slightly from the examples shown below:

Examples

The following is sample output from the showiprsvpinstalledcommand:

Router# show ip rsvp installed
RSVP: Ethernet1: has no installed reservations
RSVP: Serial0:
     kbps   To              From      Protocol DPort Sport Weight Conversation
     0      192.168.0.0     172.16.2.28     UDP 20    30    128   270
     150    192.168.0.1     172.16.2.1      UDP 20    30    128   268
     100    192.168.0.1     172.16.1.1      UDP 20    30    128   267
     200    192.168.0.1     172.16.1.25     UDP 20    30    256   265
     200    192.168.0.2     172.16.1.25     UDP 20    30    128   271
     0      192.168.0.2     172.16.2.28     UDP 20    30    128   269
     150    192.168.0.2     172.16.2.1      UDP 20    30    128   266
     350    192.168.0.3     172.16.0.0      UDP 20    30    128   26

The table below describes the significant fields shown in the display.

Table 26 show ip rsvp installed Field Descriptions

Field

Description

kbps

Reserved rate in kilobits per second.

To

IP address of the source device.

From

IP address of the destination device.

Protocol

Protocol code. Code indicates IP protocol such as TCP or User Datagram Protocol (UDP).

DPort

Destination port number.

Sport

Source port number.

Weight

Weight used in Weighted Fair Queueing (WFQ).

Conversation

WFQ conversation number.

Note

If WFQ is not configured on the interface, weight and conversation will be zero.

Examples

The following sample output from the showiprsvpinstalled detail command shows the compression parameters, including the compression method, the compression context ID, and the bytes saved per packet, on serial interface 3/0 in effect:

Router# show ip rsvp installed detail
RSVP:Ethernet2/1 has no installed reservations
RSVP:Serial3/0 has the following installed reservations
RSVP Reservation. Destination is 10.1.1.2. Source is 10.1.1.1,
  Protocol is UDP, Destination port is 18054, Source port is 19156
  Compression:(method rtp, context ID = 1, 37.98 bytes-saved/pkt avg)
  Admitted flowspec:
    Reserved bandwidth:65600 bits/sec, Maximum burst:328 bytes, Peak rate:80K bits/sec
    Min Policed Unit:164 bytes, Max Pkt Size:164 bytes
  Admitted flowspec (as required if compression were not applied):
    Reserved bandwidth:80K bits/sec, Maximum burst:400 bytes, Peak rate:80K bits/sec
    Min Policed Unit:200 bytes, Max Pkt Size:200 bytes
  Resource provider for this flow:
    WFQ on FR PVC dlci 101 on Se3/0: PRIORITY queue 24.  Weight:0, BW 66 kbps
  Conversation supports 1 reservations [0x1000405]
  Data given reserved service:3963 packets (642085 bytes)
  Data given best-effort service:0 packets (0 bytes)
  Reserved traffic classified for 80 seconds
  Long-term average bitrate (bits/sec):64901 reserved, 0 best-effort
  Policy:INSTALL. Policy source(s):Default

The following sample output from the showiprsvpinstalled detail command shows that compression is not predicted on the serial3/0 interface because no compression context IDs are available:

Router# show ip rsvp installed detail
RSVP:Ethernet2/1 has no installed reservations
RSVP:Serial3/0 has the following installed reservations
RSVP Reservation. Destination is 10.1.1.2. Source is 10.1.1.1,
  Protocol is UDP, Destination port is 18116, Source port is 16594
  Compression:(rtp compression not predicted:no contexts available)
  Admitted flowspec:
    Reserved bandwidth:80K bits/sec, Maximum burst:400 bytes, Peak rate:80K bits/sec
    Min Policed Unit:200 bytes, Max Pkt Size:200 bytes
  Resource provider for this flow:
    WFQ on FR PVC dlci 101 on Se3/0: PRIORITY queue 24.  Weight:0, BW 80 kbps
  Conversation supports 1 reservations [0x2000420]
  Data given reserved service:11306 packets (2261200 bytes)
  Data given best-effort service:0 packets (0 bytes)
  Reserved traffic classified for 226 seconds
  Long-term average bitrate (bits/sec):79951 reserved, 0 best-effort
  Policy:INSTALL. Policy source(s):Default

Note


When no compression context IDs are available, use the iprtpcompression-connectionsnumber command to increase the pool of compression context IDs.


Examples

The following is sample output from the showiprsvpinstalled command when RSVP aggregation is configured:

Router# show ip rsvp installed

RSVP: Ethernet0/0 has no installed reservations
RSVP: Serial1/0
BPS    To              From            Protoc DPort  Sport
300K   192.168.50.1    192.168.40.1    0      46     0
RSVP: RSVP 3175 AggResv 192.168.40.1->192.168.50.1_ef(46)
BPS    To              From            Protoc DPort  Sport
80K    192.168.5.1     192.168.2.1     TCP    222    222
80K    192.168.6.1     192.168.2.1     TCP    223    223

The table below describes the significant fields shown in the display.

Table 27 show ip rsvp installed Field Descriptions with RSVP Aggregation

Field

Description

RSVP

Reservation information for a specified interface.

BPS

Reserved rate in bits per second (BPS).

To

IP address of the source device.

From

IP address of the destination device.

Protoc

Protocol code.

  • Code indicates IP protocol such as TCP or User Datagram Protocol (UDP) for end-to-end (E2E) reservations.
  • Code is 0 for aggregate reservations.

DPort

Destination port number.

  • Number indicates protocol destination port for E2E reservations.
  • Number indicates differentiated services code point (DSCP) for aggregate reservations.

Sport

Source port number.

  • Number indicates protocol source port for E2E reservations.
  • Number is 0 for aggregate reservations.

RSVP

Individual E2E reservations mapped onto an aggregate. Information includes the following:

  • IP address of the aggregate source.
  • IP address of the aggregate destination.
  • Differentiated services code point (DSCP) value.

Examples

The following is sample output from the showiprsvpinstalleddetail command when RSVP aggregation is configured and one E2E reservation that is mapped across an aggregate reservation as seen at the aggregator exists:

Router# show ip rsvp installed detail
RSVP: Ethernet0/0 has no installed reservations
RSVP: Serial1/0 has the following installed reservations
RSVP Reservation. Destination is 192.168.50.1. Source is 192.168.40.1,
  Protocol is 0  , Destination port is 46, Source port is 0
  Traffic Control ID handle: 35000403
  Created: 20:27:14 EST Thu Nov 29 2007
  Admitted flowspec:
    Reserved bandwidth: 300K bits/sec, Maximum burst: 300K bytes, Peak rate: 300K bits/sec
    Min Policed Unit: 20 bytes, Max Pkt Size: 0 bytes
  Resource provider for this flow: None
  Conversation supports 1 reservations [0x3000408]
  Data given reserved service: 0 packets (0 bytes)
  Data given best-effort service: 0 packets (0 bytes)
  Reserved traffic classified for 24558 seconds
  Long-term average bitrate (bits/sec): 0 reserved, 0 best-effort
  Policy: INSTALL. Policy source(s): Default
RSVP: RSVP 3175 AggResv 192.168.40.1->192.168.50.1_ef(46) has the following installed reservations
RSVP Reservation. Destination is 192.168.5.1. Source is 192.168.2.1,
  Protocol is TCP, Destination port is 222, Source port is 222
  Traffic Control ID handle: 0500040B
  Created: 20:27:14 EST Thu Nov 29 2007
  Admitted flowspec:
    Reserved bandwidth: 80K bits/sec, Maximum burst: 5K bytes, Peak rate: 80K bits/sec
    Min Policed Unit: 0 bytes, Max Pkt Size: 0 bytes
  Resource provider for this flow:
    QBM
  Conversation supports 1 reservations [0x600040A]
  Data given reserved service: 0 packets (0 bytes)
  Data given best-effort service: 0 packets (0 bytes)
  Reserved traffic classified for 24558 seconds
  Long-term average bitrate (bits/sec): 0 reserved, 0 best-effort
  Policy: INSTALL. Policy source(s):

The table below describes the significant fields shown in the display.

Table 28 show ip rsvp installed detail Field Descriptions with RSVP Aggregation

Field

Description

RSVP

Reservation information for a specified interface.

RSVP Reservation

Reservation information for the serial 1/0 interface that includes the following:

  • Destination IP address.
    • Deaggregator for aggregate reservations.
  • Source IP address.
    • Aggregator for aggregate reservations.
  • Protocol used.
    • 0 for aggregate reservations.
    • TCP/UDP or protocol for E2E reservations.
  • Destination port.
    • Differentiated services code (DSCP) for aggregate reservations.
    • Protocol port number for E2E reservations.
  • Source port.
    • 0 for aggregate reservations.
    • Protocol port number for E2E reservations.
  • Traffic control identifier assigned by RSVP for bookkeeping purposes.
  • Creation date.
  • Flowspec information that includes bandwidth, maximum burst, peak rate, policed unit size, and maximum packet size.
  • Resource provider information.
    • None for aggregate reservations.
    • QoS bandwidth manager (BM) for E2E reservations.
  • Type of service provided--reserved and best effort (always 0 packets in an RSVP/DiffServ node).
  • Length of time traffic is classified.
    • Bitrate (always 0 on an RSVP/DiffServ node)
  • Policies.

RSVP

Aggregate information that includes the following:

  • IP address of the aggregate source.
  • IP address of the aggregate destination.
  • DSCP.
Note

The remaining fields describe the aggregate’s E2E reservations with values explained in preceding fields.

Examples

The following is sample output when a specific VRF is configured:

Router# show ip rsvp installed vrf myvrf detail
RSVP: FastEthernet2/0 has the following installed reservations
RSVP Reservation. Destination is 10.10.10.10. Source is 10.10.10.12,
  Protocol is UDP, Destination port is 10, Source port is 10
  Traffic Control ID handle: C8000407
  Created: 22:51:26 UTC Sun Feb 17 2008
  Admitted flowspec:
    Reserved bandwidth: 10K bits/sec, Maximum burst: 10K bytes, Peak rate: 10K bits/sec
    Min Policed Unit: 0 bytes, Max Pkt Size: 0 bytes
  Resource provider for this flow: None
  Conversation supports 1 reservations [0xBF000406]
  Data given reserved service: 0 packets (0 bytes)
  Data given best-effort service: 0 packets (0 bytes)
  Reserved traffic classified for 12783 seconds
  Long-term average bitrate (bits/sec): 0 reserved, 0 best-effort
  Policy: INSTALL. Policy source(s): Default
VRF : myvrf

The table below describes the significant fields shown in the display.

Table 29 show ip rsvp installed detail Field Descriptions with VRFs

Field

Description

RSVP

Reservation information for a specified interface.

RSVP Reservation

Reservation information for the serial 1/0 interface that includes the following:

  • Destination IP address.
    • Deaggregator for aggregate reservations.
  • Source IP address.
    • Aggregator for aggregate reservations.
  • Protocol used.
    • 0 for aggregate reservations.
    • TCP/UDP or protocol for E2E reservations.
  • Destination port.
    • Differentiated services code (DSCP) for aggregate reservations.
    • Protocol port number for E2E reservations.
  • Source port.
    • 0 for aggregate reservations.
    • Protocol port number for E2E reservations.
  • Traffic control identifier assigned by RSVP for bookkeeping purposes.
  • Creation date.
  • Flowspec information that includes bandwidth, maximum burst, peak rate, policed unit size, and maximum packet size.
  • Resource provider information.
    • None for aggregate reservations.
    • QoS bandwidth manager (BM) for E2E reservations.
  • Type of service provided--reserved and best effort (always 0 packets in an RSVP/DiffServ node).
  • Length of time traffic is classified.
    • Bitrate (always 0 on an RSVP/DiffServ node)
  • Policies.

RSVP

Aggregate information that includes the following:

  • IP address of the aggregate source.
  • IP address of the aggregate destination.
  • DSCP.
Note

The remaining fields describe the aggregate’s E2E reservations with values explained in preceding fields.

VRF

Name of the VRF.

Related Commands

Command

Description

ip rtp compression-connections

Specifies the total number of RTP header compression connections that can exist on an interface.

show ip rsvp interface

Displays RSVP-related information.

show queueing interface

Displays interface queueing statistics for dataplane information.

show ip rsvp interface

To display information related to Resource Reservation Protocol (RSVP), use the show ip rsvp interface command in user EXEC or privileged EXEC mode.

show ip rsvp interface [ vrf { * | vrf-name } ] [detail] [ interface-type interface-number ]

Syntax Description

vrf *

(Optional) Displays all the configured virtual routing and forwarding (VRF) instances.

vrf vrf-name

(Optional) Displays the specified VRF.

detail

(Optional) Displays additional information about interfaces.

interface-type

(Optional) Type of the interface.

interface-number

(Optional) Number of the interface.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

11.2

This command was introduced.

12.2(2)T

This command was modified. The detail keyword was added.

12.2(4)T

This command was modified. This command was implemented on the Cisco 7500 series and the ATM permanent virtual circuit (PVC) interface.

12.2(14)S

This command was integrated into Cisco IOS Release 12.2(14)S.

12.2(13)T

This command was modified. The following changes were made to this command:

  • Rate-limiting and refresh-reduction information was added to the output display.
  • RSVP global settings display when no keywords or arguments are entered.

12.2(15)T

This command was modified. The following modifications were made to this command:

  • The effects of compression on admission control and the RSVP bandwidth limit counter were added to the display.
  • Cryptographic authentication parameters were added to the display.

12.2(18)SFX2

This command was integrated into Cisco IOS Release 12.2(18)SFX2.

12.2(28)SB

This command was integrated into Cisco IOS Release 12.2(28)SB.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(33)SRB

This command was modified. The command output was enhanced to display fast local repair (FLR) information.

12.2(33)SRC

This command was modified. The command output was enhanced to display RSVP aggregation information.

12.4(20)T

This command was modified. The command output was enhanced to display the RSVP source address configured on a specified interface.

15.0(1)M

This command was modified. The vrf and *keywords and the vrf-name argument were added.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

15.1(3)S1

This command was modified. The show ip rsvp interface command output was enhanced to display the RSVP status configured on all the interfaces.

Usage Guidelines

Use theshow ip rsvp interface command to display information about interfaces on which RSVP is enabled, including the current allocation budget and maximum available bandwidth. Enter the optional detailkeyword for additional information, including bandwidth and signaling parameters and blockade state.

Use the show ip rsvp interface detail command to display information about the RSVP parameters associated with an interface. These parameters include the following:

  • Total RSVP bandwidth.
  • RSVP bandwidth allocated to existing flows.
  • Maximum RSVP bandwidth that can be allocated to a single flow.
  • The type of admission control supported (header compression methods).
  • The compression methods supported by RSVP compression prediction.
  • RSVP aggregation.
  • The RSVP source address.
  • VRFs.

Examples

This section provides sample output from show ip rsvp interfacecommands. Depending upon the interface or platform in use and the options enabled, the output that you see may vary slightly from the examples shown below.

Examples

The following sample output from the show ip rsvp interface command shows information for each interface on which RSVP is enabled:

Router# show ip rsvp interface
interface    rsvp       allocated  i/f max  flow max sub max  VRF
Et0/0        ena        300K       1M       1M       0
Et0/1        ena        100K       1M       1M       0
Et1/0        ena        200K       1M       1M       0
Et1/1        ena        0          1M       1M       0
Et1/2        ena        0          1M       1M       0

The table below describes the fields shown in the display.

Table 30 show ip rsvp interface Field Descriptions

Field

Description

interface

Interface name.

rsvp

Status of RSVP. Indicates if enabled or disabled.

allocated

Current allocation budget.

i/f max

Maximum allocatable bandwidth.

flow max

Largest single flow allocatable on this interface.

sub max

Largest subpool value allowed on this interface.

Examples

The following sample output from the show ip rsvp interfacedetail command shows detailed RSVP information for each interface on which RSVP is enabled:

Router# show ip rsvp interface detail
PO0/0:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):200M bits/sec
     Max. allowed (per flow):200M bits/sec
     Max. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Signalling:
     DSCP value used in RSVP msgs:0x3F
     Number of refresh intervals to enforce blockade state:4
     Number of missed refresh messages:4
     Refresh interval:30
 PO1/0:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):50M bits/sec
     Max. allowed (per flow):50M bits/sec
     Max. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Signalling:
     DSCP value used in RSVP msgs:0x3F
     Number of refresh intervals to enforce blockade state:4
     Number of missed refresh messages:4
     Refresh interval:30
PO1/1:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):50M bits/sec
     Max. allowed (per flow):50M bits/sec
     Max. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Signalling:
     DSCP value used in RSVP msgs:0x3F
     Number of refresh intervals to enforce blockade state:4
     Number of missed refresh messages:4
     Refresh interval:30
 PO1/2:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):50M bits/sec
     Max. allowed (per flow):50M bits/secMax. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Signalling:
     DSCP value used in RSVP msgs:0x3F
     Number of refresh intervals to enforce blockade state:4
     Number of missed refresh messages:4
     Refresh interval:30
 PO1/3:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):50M bits/sec
     Max. allowed (per flow):50M bits/sec
     Max. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Signalling:
     DSCP value used in RSVP msgs:0x3F
     Number of refresh intervals to enforce blockade state:4
     Number of missed refresh messages:4
     Refresh interval:30
 Lo0:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):200M bits/sec
     Max. allowed (per flow):200M bits/sec
     Max. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Signalling:
     DSCP value used in RSVP msgs:0x3F
     Number of refresh intervals to enforce blockade state:4
     Number of missed refresh messages:4
     Refresh interval:30

The table below describes the significant fields shown in the detailed display for PO interface 0/0. The fields for the other interfaces are similar.

Table 31 show ip rsvp interface detail Field Descriptions--Detailed RSVP Information Example

Field

Description

PO0/0

Interface name.

Bandwidth

The RSVP bandwidth parameters in effect are as follows:

  • Curr allocated--Amount of bandwidth currently allocated, in bits per second.
  • Max. allowed (total)--Maximum amount of bandwidth allowed, in bits per second.
  • Max. allowed (per flow)--Maximum amount of bandwidth allowed per flow, in bits per second.
  • Max. allowed for LSP tunnels using sub-pools--Maximum amount of bandwidth allowed for label switched path (LSP) tunnels, in bits per second.
  • Set aside by policy (total)--The amount of bandwidth set aside by the local policy, in bits per second.

Signalling

The RSVP signalling parameters in effect are as follows:

  • DSCP value used in RSVP msgs--Differentiated services code point (DSCP) used in RSVP messages.
  • Number of refresh intervals to enforce blockade state--How long, in milliseconds, before the blockade takes effect.
  • Number of missed refresh messages--How many refresh messages until the router state expires.
  • Refresh interval--How long, in milliseconds, until a refresh message is sent.

Examples

The following sample output from the show ip rsvp interface detail command shows the RSVP compression method prediction configuration for each interface on which RSVP is configured:

Router# show ip rsvp interface detail
 Et2/1:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):1158K bits/sec
     Max. allowed (per flow):128K bits/sec
     Max. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Admission Control:
     Header Compression methods supported:
       rtp (36 bytes-saved), udp (20 bytes-saved)
   Neighbors:
     Using IP encap:0.  Using UDP encap:0
   Signalling:
     Refresh reduction:disabled
   Authentication:disabled
 Se3/0:
   Bandwidth:
     Curr allocated:0 bits/sec
     Max. allowed (total):1158K bits/sec
     Max. allowed (per flow):128K bits/sec
     Max. allowed for LSP tunnels using sub-pools:0 bits/sec
     Set aside by policy (total):0 bits/sec
   Admission Control:
     Header Compression methods supported:
       rtp (36 bytes-saved), udp (20 bytes-saved)
   Neighbors:
     Using IP encap:1.  Using UDP encap:0
   Signalling:
     Refresh reduction:disabled
   Authentication:disabled

The table below describes the significant fields shown in the display for Ethernet interface 2/1. The fields for serial interface 3/0 are similar.

Table 32 show ip rsvp interface detail Field Descriptions--RSVP Compression Method Prediction Example

Field

Description

Et2/1

Interface name and number.

Bandwidth

The RSVP bandwidth parameters in effect are as follows:

  • Curr allocated--Amount of bandwidth currently allocated, in bits per second.
  • Max. allowed (total)--Maximum amount of bandwidth allowed, in bits per second.
  • Max. allowed (per flow)--Maximum amount of bandwidth allowed per flow, in bits per second.
  • Max. allowed for LSP tunnels using sub-pools--Maximum amount of bandwidth allowed for LSP tunnels, in bits per second.
  • Set aside by policy (total)--The amount of bandwidth set aside by the local policy, in bits per second.

Admission Control

The type of admission control in effect is as follows:

  • Header Compression methods supported:
    • Real-Time Transport Protocol (RTP) or User Data Protocol (UDP) compression schemes and the number of bytes saved per packet.

Neighbors

The number of neighbors using IP and UDP encapsulation.

Signalling

The type of signaling in effect; refresh reduction is either enabled (active) or disabled (inactive).

Authentication

Authentication is either enabled (active) or disabled (inactive).

Examples

The following sample output from the show ip rsvp interface detailcommand displays detailed information, including the cryptographic authentication parameters, for all RSVP-configured interfaces on the router:

Router# show ip rsvp interface detail
 Et0/0:
   Bandwidth:
    Curr allocated: 0 bits/sec
    Max. allowed (total): 7500K bits/sec
    Max. allowed (per flow): 7500K bits/sec
    Max. allowed for LSP tunnels using sub-pools: 0 bits/sec
    Set aside by policy (total):0 bits/sec
   Neighbors:
    Using IP encap: 0.  Using UDP encap: 0
   Signalling:
    Refresh reduction: disabled
   Authentication: enabled
    Key:           11223344
    Type:          sha-1
    Window size:   2
    Challenge:     enabled

The table below describes the significant fields shown in the display.

Table 33 show ip rsvp interface detail Field Descriptions--Cryptographic Authentication Example

Field

Description

Et0/0

Interface name and number.

Bandwidth

The RSVP bandwidth parameters in effect are as follows:

  • Curr allocated--Amount of bandwidth currently allocated, in bits per second.
  • Max. allowed (total)--Maximum amount of bandwidth allowed, in bits per second.
  • Max. allowed (per flow)--Maximum amount of bandwidth allowed per flow, in bits per second.
  • Max. allowed for LSP tunnels using sub-pools--Maximum amount of bandwidth allowed for LSP tunnels, in bits per second.
  • Set aside by policy (total)--The amount of bandwidth set aside by the local policy, in bits per second.

Neighbors

The number of neighbors using IP and UDP encapsulation.

Signalling

The type of signaling in effect; Refresh reduction is either enabled (active) or disabled (inactive).

Authentication

Authentication is either enabled (active) or disabled (inactive). The parameters are as follows:

  • Key--The key (string) for the RSVP authentication algorithm displayed in clear text (for example, 11223344) or <encrypted>.
  • Type--The algorithm to generate cryptographic signatures in RSVP messages; possible values are md5 and sha-1.
  • Window size--Maximum number of RSVP authenticated messages that can be received out of order.
  • Challenge--The challenge-response handshake performed with any new RSVP neighbors that are discovered on a network; possible values are enabled (active) or disabled (inactive).

Examples

The following sample output from the show ip rsvp interface detail command displays detailed information for the Ethernet 1/0 interface on which FLR is enabled:

Router# show ip rsvp interface detail ethernet1/0
  Et1/0:
    RSVP: Enabled
    Interface State: Up
    Bandwidth:
      Curr allocated: 9K bits/sec
      Max. allowed (total): 300K bits/sec
      Max. allowed (per flow): 300K bits/sec
      Max. allowed for LSP tunnels using sub-pools (pool 1): 0 bits/sec
      Set aside by policy (total): 0 bits/sec
    Traffic Control:
      RSVP Data Packet Classification is ON via CEF callbacks
    Signalling:
      DSCP value used in RSVP msgs: 0x30
      Number of refresh intervals to enforce blockade state: 4
    FLR Wait Time (IPv4 flows):
      Repair is delayed by 500 msec.
    Authentication: disabled
      Key chain:   <none>
      Type:        md5
      Window size: 1
      Challenge:   disabled
    Hello Extension:
      State: Disabled

The table below describes the significant fields shown in the display.

Table 34 show ip rsvp interface detail Field Descriptions--FLR Example

Field

Description

Et1/0

Interface name and number.

RSVP

Enabled means active; disabled means inactive.

Interface State

Up means that the interface is configured; down means that the interface is not configured.

Bandwidth

The RSVP bandwidth parameters in effect are as follows:

  • Curr allocated--Amount of bandwidth currently allocated, in bits per second.
  • Max. allowed (total)--Maximum amount of bandwidth allowed, in bits per second.
  • Max. allowed (per flow)--Maximum amount of bandwidth allowed per flow, in bits per second.
  • Max. allowed for LSP tunnels using sub-pools--Maximum amount of bandwidth allowed for LSP tunnels, in bits per second.
  • Set aside by policy (total)--The amount of bandwidth set aside by the local policy, in bits per second.

Traffic Control

RSVP Data Packet Classification is ON via CEF callbacks means that RSVP is not processing every packet; therefore, excess overhead is avoided and network performance is improved.

Signalling

The signaling parameters in effect are as follows:

  • DSCP value used in RSVP msgs--Differentiated services code point (DSCP) value used in RSVP messages.
  • Number of refresh intervals to enforce blockade state--How long, in milliseconds, before the blockade takes effect.

FLR Wait Time (IPv4 flows)

Repair is delayed by 500 msec represents the amount of time, in milliseconds, before the FLR procedure begins on the specified interface.

Authentication

Authentication is either enabled (active) or disabled (inactive). The parameters are as follows:

  • Key chain--The key (string) for the RSVP authentication algorithm displayed in clear text (for example, 11223344) or <encrypted>.
  • Type--The algorithm to generate cryptographic signatures in RSVP messages; possible values are md5 and sha-1.
  • Window size--Maximum number of RSVP authenticated messages that can be received out of order.
  • Challenge--The challenge-response handshake performed with any new RSVP neighbors that are discovered on a network; possible values are enabled (active) or disabled (inactive).

Hello Extension

Enables RSVP nodes to detect when a neighboring node is not reachable. The state is either enabled (active) or disabled (inactive).

Examples

The following sample output from the show ip rsvp interface detail command displays the aggregation parameters for each interface on which RSVP is configured:

Router# show ip rsvp interface detail
Se1/0:
   RSVP: Enabled
   Interface State: Up
   Bandwidth:
     Curr allocated: 300K bits/sec
     Max. allowed (total): 400K bits/sec
     Max. allowed (per flow): 400K bits/sec
     Max. allowed for LSP tunnels using sub-pools (pool 1): 0 bits/sec
     Set aside by policy (total): 0 bits/sec
   Traffic Control:
     RSVP Data Packet Classification is OFF
     RSVP resource provider is: none
   Signalling:
     DSCP value used in RSVP msgs: 0x3F
     Number of refresh intervals to enforce blockade state: 4
   Authentication: disabled
     Key chain:   <none>
     Type:        md5
     Window size: 1
     Challenge:   disabled
   FRR Extension:
     Backup Path: Not Configured
   BFD Extension:
     State: Disabled
     Interval: Not Configured
   RSVP Hello Extension:
     State: Disabled
   RFC 3175 Aggregation: Enabled
     Role: interior

The table below describes the significant fields shown in the display.

Table 35 show ip rsvp interface detail Field Descriptions--RSVP Aggregation Example

Field

Description

Se1/0

Interface name and number.

RSVP

Enabled means active; disabled means inactive.

Interface State

Up means that the interface is configured; down means that the interface is not configured.

Bandwidth

The RSVP bandwidth parameters in effect are as follows:

  • Curr allocated--Amount of bandwidth currently allocated, in bits per second.
  • Max. allowed (total)--Maximum amount of bandwidth allowed, in bits per second.
  • Max. allowed (per flow)--Maximum amount of bandwidth allowed per flow, in bits per second.
  • Max. allowed for LSP tunnels using sub-pools--Maximum amount of bandwidth allowed for LSP tunnels, in bits per second.
  • Set aside by policy (total)--The amount of bandwidth set aside by the local policy, in bits per second.

Traffic Control

RSVP Data Packet Classification Is OFF--Disabling data packet classification instructs RSVP not to process every packet, but to perform admission control only.

RSVP Resource Provider is None--Setting the resource provider to none instructs RSVP to not associate any resources, such as weighted fair queueing (WFQ) queues or bandwidth, with a reservation.

These settings are necessary because RSVP aggregation uses RSVP Scalability Enhancements for control plane aggregation only. Traffic control is performed by Class-Based Weighted Fair Queuing (CBWFQ).

Signalling

The signaling parameters in effect are as follows:

  • DSCP value used in RSVP msgs--Differentiated services code point (DSCP) value used in RSVP messages IP headers.
  • Number of refresh intervals to enforce blockade state--How long, in milliseconds, before the blockade takes effect.

Authentication

Authentication is either enabled (active) or disabled (inactive). The parameters are as follows:

  • Key chain--The key (string) for the RSVP authentication algorithm displayed in clear text (for example, 11223344) or <encrypted>.
  • Type--The algorithm to generate cryptographic signatures in RSVP messages; possible values are md5 and sha-1.
  • Window size--Maximum number of RSVP authenticated messages that can be received out of order.
  • Challenge--The challenge-response handshake performed with any new RSVP neighbors that are discovered on a network; possible values are enabled (active) or disabled (inactive).

FRR Extension

Fast Reroute backup path is configured or not configured.

BFD Extension

Bidirectional Forwarding Detection; values are the following:

  • State--Enabled (active) or disabled (inactive).
  • Interval--Configured with a value or Not Configured.

RSVP Hello Extension

Enables RSVP nodes to detect when a neighboring node is not reachable. The state is either enabled (active) or disabled (inactive).

RFC 3175 Aggregation

The state of aggregation as defined in RFC 3175, AggregationofRSVPforIPv4andIPv6Reservations; values are the following:

  • Enabled--Active.
  • Disabled--Inactive.

Role

  • Interior--Interface is facing an aggregation region.
  • Exterior--Interface is facing a classic RSVP region.

Examples

The following sample output from the showiprsvpinterfacedetailethernet1/0 command displays the source address configured for that interface:

Router# show ip rsvp interface detail ethernet1/0
 Et1/0:
   RSVP: Enabled
   Interface State: Up
   Bandwidth:
     Curr allocated: 0 bits/sec
     Max. allowed (total): 7500K bits/sec
     Max. allowed (per flow): 7500K bits/sec
     Max. allowed for LSP tunnels using sub-pools (pool 1): 0 bits/sec
     Set aside by policy (total): 0 bits/sec
   Traffic Control:
     RSVP Data Packet Classification is ON via CEF callbacks
   Signalling:
     DSCP value used in RSVP msgs: 0x3F
     Number of refresh intervals to enforce blockade state: 4
     Ip address used in RSVP objects: 10.1.3.13 <----------source address for Ethernet 0/1
   Authentication: disabled
     Key chain:   <none>
     Type:        md5
     Window size: 1
     Challenge:   disabled
   Hello Extension:
     State: Disabled

The table below describes the significant fields shown in the display.

Table 36 show ip rsvp interface detail Field Descriptions--RSVP Source Address Example

Field

Description

Et1/0

Interface name and number.

RSVP

Enabled means active; disabled means inactive.

Interface State

Up means that the interface is configured; down means that the interface is not configured.

Bandwidth

The RSVP bandwidth parameters in effect are as follows:

  • Curr allocated--Amount of bandwidth currently allocated, in bits per second.
  • Max. allowed (total)--Maximum amount of bandwidth allowed, in bits per second.
  • Max. allowed (per flow)--Maximum amount of bandwidth allowed per flow, in bits per second.
  • Max. allowed for LSP tunnels using sub-pools--Maximum amount of bandwidth allowed for LSP tunnels, in bits per second.
  • Set aside by policy (total)--The amount of bandwidth set aside by the local policy, in bits per second.

Traffic Control

RSVP Data Packet Classification is ON via CEF callbacks means that RSVP is not processing every packet; therefore, excess overhead is avoided and network performance is improved.

Signalling

The signaling parameters in effect are as follows:

  • DSCP value used in RSVP msgs--Differentiated services code point (DSCP) value used in IP headers of RSVP messages.
  • Number of refresh intervals to enforce blockade state--How long, in milliseconds, before the blockade takes effect.
  • IP address used in RSVP objects--The RSVP source address for the specified interface.

Authentication

Authentication is either enabled (active) or disabled (inactive). The parameters are as follows:

  • Key chain--The key (string) for the RSVP authentication algorithm displayed in clear text (for example, 11223344) or <encrypted>.
  • Type--The algorithm to generate cryptographic signatures in RSVP messages; possible values are md5 and sha-1.
  • Window size--Maximum number of RSVP authenticated messages that can be received out of order.
  • Challenge--The challenge-response handshake performed with any new RSVP neighbors that are discovered on a network; possible values are enabled (active) or disabled (inactive).

Hello Extension

Enables RSVP nodes to detect when a neighboring node is not reachable. The state is either enabled (active) or disabled (inactive).

Examples

The following sample output from the show ip rsvp interface vrf my vrf detail command displays information for all the interfaces associated with the VRF named myvrf:

Router# show ip rsvp interface vrf myvrf detail
Se1/0:
   RSVP: Enabled
   Interface State: Up
   Bandwidth:
     Curr allocated: 300K bits/sec
     Max. allowed (total): 400K bits/sec
     Max. allowed (per flow): 400K bits/sec
     Max. allowed for LSP tunnels using sub-pools (pool 1): 0 bits/sec
     Set aside by policy (total): 0 bits/sec
   Traffic Control:
     RSVP Data Packet Classification is OFF
     RSVP resource provider is: none
   Signalling:
     DSCP value used in RSVP msgs: 0x3F
     Number of refresh intervals to enforce blockade state: 4
   Authentication: disabled
     Key chain:   <none>
     Type:        md5
     Window size: 1
     Challenge:   disabled
   FRR Extension:
     Backup Path: Not Configured
   BFD Extension:
     State: Disabled
     Interval: Not Configured
   RSVP Hello Extension:
     State: Disabled
   RFC 3175 Aggregation: Enabled
     Role: interior
   VRF: myvrf

The table below describes the significant fields shown in the display.

Table 37 show ip rsvp interface detail Field Descriptions--RSVP VRF Example

Field

Description

Se1/0

Interface name and number.

RSVP

Enabled means active; disabled means inactive.

Interface State

Up means that the interface is configured; down means that the interface is not configured.

Bandwidth

The RSVP bandwidth parameters in effect are as follows:

  • Curr allocated--Amount of bandwidth currently allocated, in bits per second.
  • Max. allowed (total)--Maximum amount of bandwidth allowed, in bits per second.
  • Max. allowed (per flow)--Maximum amount of bandwidth allowed per flow, in bits per second.
  • Max. allowed for LSP tunnels using sub-pools--Maximum amount of bandwidth allowed for LSP tunnels, in bits per second.
  • Set aside by policy (total)--The amount of bandwidth set aside by the local policy, in bits per second.

Traffic Control

RSVP Data Packet Classification Is OFF--Disabling data packet classification instructs RSVP not to process every packet, but to perform admission control only.

RSVP Resource Provider is None--Setting the resource provider to none instructs RSVP to not associate any resources, such as weighted fair queueing (WFQ) queues or bandwidth, with a reservation.

These settings are necessary because RSVP aggregation uses RSVP Scalability Enhancements for control plane aggregation only. Traffic control is performed by Class-Based Weighted Fair Queuing (CBWFQ).

Signalling

The signaling parameters in effect are as follows:

  • DSCP value used in RSVP msgs--Differentiated services code point (DSCP) value used in RSVP messages IP headers.
  • Number of refresh intervals to enforce blockade state--How long, in milliseconds, before the blockade takes effect.

Authentication

Authentication is either enabled (active) or disabled (inactive). The parameters are as follows:

  • Key chain--The key (string) for the RSVP authentication algorithm displayed in clear text (for example, 11223344) or <encrypted>.
  • Type--The algorithm to generate cryptographic signatures in RSVP messages; possible values are md5 and sha-1.
  • Window size--Maximum number of RSVP authenticated messages that can be received out of order.
  • Challenge--The challenge-response handshake performed with any new RSVP neighbors that are discovered on a network; possible values are enabled (active) or disabled (inactive).

FRR Extension

Fast Reroute backup path is configured or not configured.

BFD Extension

Bidirectional Forwarding Detection; values are the following:

  • State--Enabled (active) or disabled (inactive).
  • Interval--Configured with a value or Not Configured.

RSVP Hello Extension

Enables RSVP nodes to detect when a neighboring node is not reachable. The state is either enabled (active) or disabled (inactive).

RFC 3175 Aggregation

The state of aggregation as defined in RFC 3175, AggregationofRSVPforIPv4andIPv6Reservations; values are the following:

  • Enabled--Active.
  • Disabled--Inactive.

Role

  • Interior--Interface is facing an aggregation region.
  • Exterior--Interface is facing a classic RSVP region.

VRF

Name of the VRF.

Related Commands

Command

Description

show ip rsvp installed

Displays RSVP-related installed filters and corresponding bandwidth information.

show ip rsvp neighbor

Displays current RSVP neighbors.

show ip rsvp interface detail

To display the hello configuration for all interface types, use the show ip rsvp interface detailcommand in user EXEC or privileged EXEC mode.

show ip rsvp interface detail [ type number ]

Syntax Description

type number

(Optional) The type and number of the interface for which you want to display the hello configuration.

Command Default

The hello configuration for all interfaces is displayed.

Command Modes

User EXEC (>) Privileged EXEC (#)

Command History

Release

Modification

12.0(22)S

This command was introduced.

12.2(18)SXD1

This command was integrated into Cisco IOS Release 12.2(18)SXD1.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(31)SB2

This command was integrated into Cisco IOS Release 12.2(31)SB2.

12.2(33)SRC

This command was integrated into Cisco IOS Release 12.2(33)SRC.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

12.2(33)SRE

This command was modified. The output was updated to display the source address used in the PHOP address field.

15.1(2)T

This command was modified. The output was updated to display the overhead percent.

15.1(1)S

This command was integrated into Cisco IOS Release 15.1(1)S.

15.2(2)SNG

This command was implemented on the Cisco ASR 901 Series Aggregation Services Routers.

15.1(1)SY

This command was integrated into Cisco IOS Release 15.1(1)SY.

Usage Guidelines

To display the hello configuration for a specific interface, use the show ip rsvp interface detail command with the type and number arguments.

Examples

The following is sample output from the show ip rsvp interface detail command:

Router# show ip rsvp interface detail GigabitEthernet 9/47
Tu0:
   RSVP: Enabled
   Interface State: Up
   Bandwidth:
     Curr allocated: 10K bits/sec
     Max. allowed (total): 75K bits/sec
     Max. allowed (per flow): 75K bits/sec
     Max. allowed for LSP tunnels using sub-pools: 0 bits/sec
     Set aside by policy (total): 0 bits/sec
   Admission Control:
     Header Compression methods supported:
       rtp (36 bytes-saved), udp (20 bytes-saved)
     Tunnel IP Overhead percent:
       4
     Tunnel Bandwidth considered:
       Yes
   Traffic Control:
     RSVP Data Packet Classification is ON via CEF callbacks
   Signalling:
     DSCP value used in RSVP msgs: 0x3F
     Number of refresh intervals to enforce blockade state: 4
   Authentication: disabled
     Key chain:   <none>
     Type:        md5
     Window size: 1
     Challenge:   disabled
   Hello Extension:
     State: Disabled

The table below describes the significant fields shown in the display.

Table 38 show ip rsvp interface detail Field Descriptions

Field

Description

RSVP

Status of the Resource Reservation Protocol (RSVP) (Enabled or Disabled).

Interface State

Status of the interface (Up or Down).

Curr allocated

Amount of bandwidth (in bits per second [b/s]) currently allocated.

Max. allowed (total)

Total maximum amount of bandwidth (in b/s) allowed.

Max. allowed (per flow)

Maximum amount of bandwidth (in b/s) allowed per flow.

Max. allowed for LSP tunnels using sub-pools

Maximum amount of bandwidth permitted for the label switched path (LSP) tunnels that obtain their bandwidth from subpools.

Tunnel IP Overhead percent

Overhead percent to override the RSVP bandwidth manually.

Tunnel Bandwidth considered

Indicates if the tunnel bandwidth is considered.

DSCP value used in RSVP msgs

Differentiated services code point (DSCP) value in the RSVP messages.

show ip rsvp listeners

To display the Resource Reservation Protocol (RSVP) listeners for a specified port or protocol, use the showiprsvplisteners command in user EXEC or privileged EXEC mode.

show ip rsvp listeners [ ip-address | any | vrf { * | vrf-name } ] [ udp | tcp | any | protocol ] [ dst-port | any ]

Syntax Description

ip-address

(Optional) A particular IP address for an RSVP message.

any

(Optional) Any IP address destination for an RSVP message.

vrf *

(Optional) Displays all the configured virtual routing and forwarding (VRF) instances.

vrf vrf-name

(Optional) Displays information about a specified VRF.

udp

(Optional) User Datagram Protocol (UDP) to be used on the receiving interface and the UDP source port number.

tcp

(Optional) TCP to be used on the receiving interface and the TCP source port number.

any

(Optional) Any protocol to be used on the receiving interface and the UDP or TCP source port number.

protocol

(Optional) The protocol to be used on the receiving interface and the UDP or TCP source port number.

Note

If you select the protocol argument, the range is from 0 to 255 and the protocol used is IP.

dst-port

(Optional) A particular destination port from 0 to 65535 for an RSVP message.

any

(Optional) Any destination for an RSVP message.

Command Default

If you enter the showiprsvplistenerscommand without a keyword or an argument, the command displays all the listeners that were sent and received for each interface on which RSVP is configured.

Command Modes


User EXEC (<)
Privileged EXEC (#)

Command History

Release

Modification

12.2(13)T

This command was introduced.

15.0(1)M

This command was modified. The vrfand*keywords and the vrf-name argument were added.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines


Note


The syntax of the command depends on your platform and release. The vrfand * keywords and vrf-nameargument are not supported on ASR 1000 Series Aggregation Services Routers.


Use the showiprsvplistenerscommand to display the number of listeners that were sent and received for each interface on which RSVP is configured.

Examples

The following example shows the listeners for the VRF named myvrf1:

Router# show ip rsvp listeners vrf myvrf1
VRF : myvrf1

To Protocol DPort Description Action OutIf

10.0.2.1 any any RSVP Proxy reply

The table below describes the significant fields shown in the display.

Table 39 show ip rsvp listeners Command Field Descriptions

Field

Description

VRF

Name of the VRF for which the listeners are displayed.

To

IP address of the receiving interface.

Protocol

Protocol used.

DPort

Destination port on the receiving router.

Description

Cisco IOS component that requested RSVP to do the listening; for example, RSVP proxy and label switched path (LSP) tunnel signaling.

Action

Action taken when a flow arrives at its destination. The values are:

  • announce--The arrival of the flow is announced.
  • reply--After the flow arrives at its destination, the sender receives a reply.

OutIf

Outbound interface on the receiving router.

Note

If this field is blank, it means that the listener was configured in global configuration mode and is not attached to any particular interface. If an interface name appears, then the listener was configured in interface configuration mode and is attached to that interface.

Related Commands

Command

Description

ip rsvp listener outbound

Configures an RSVP router to listen for PATH messages sent through a specific interface.

show ip rsvp neighbor

To display current Resource Reservation Protocol (RSVP) neighbors, use the showiprsvpneighborcommand in user EXEC or privileged EXEC mode.

show ip rsvp neighbor [ detail | inactive [detail] | vrf { * | vrf-name } ]

Syntax Description

detail

(Optional) Displays additional information about RSVP neighbors.

inactive

(Optional) Displays RSVP neighbors that have had no activity for more than an hour.

detail

(Optional) Displays additional information about the inactive RSVP neighbors.

vrf *

(Optional) Displays all the configured virtual routing and forwarding (VRF) instances.

vrf vrf-name

(Optional) Name of a specified VRF.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

11.2

This command was introduced.

12.2(13)T

The interface-typeinterface-number arguments were deleted. The detail keyword was added to the command, and rate-limiting and refresh-reduction information was added to the output.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

15.0(1)M

This command was modified. The vrfand*keywords and the vrf-name argument were added.

Usage Guidelines

Use the showiprsvpneighbor command to show the IP addresses for the current RSVP neighbors. Enter the detailkeyword to display rate-limiting, refresh-reduction, and VRF information for the RSVP neighbors.

Examples

Examples

The following command shows the current RSVP neighbors:

Router# show ip rsvp neighbor
 10.0.0.1        RSVP
 10.0.0.2        RSVP

The table below describes the fields shown in the display.

Table 40 show ip rsvp neighbor Field Descriptions

Field

Description

10.0.0.1

IP address of neighboring router.

RSVP

Type of encapsulation being used.

Examples

The following command shows the rate-limiting and refresh-reduction parameters for the current RSVP neighbors:

Router# show ip rsvp neighbor detail
Neighbor:10.0.0.1
    Encapsulation:RSVP
    Rate-Limiting:
      Dropped messages:0
Refresh Reduction:
      Remote epoch:0x1BFEA5
      Out of order messages:0
      Retransmitted messages:0
      Highest rcvd message id:1059
      Last rcvd message:00:00:04
Neighbor:10.0.0.2
    Encapsulation:RSVP
    Rate-Limiting:
      Dropped messages:0
    Refresh Reduction:
      Remote epoch:0xB26B1
      Out of order messages:0
      Retransmitted messages:0
      Highest rcvd message id:945
      Last rcvd message:00:00:05

The table below describes the fields shown in the display.

Table 41 show ip rsvp neighbor detail Field Descriptions

Field

Description

Neighbor

IP address of the neighboring router.

Encapsulation

Type of encapsulation being used.

Note

Unknown displays if an RSVP message has been sent to an IP address, but no RSVP message has been received from that IP address. This is not an error condition; it simply means that the router does not yet know what RSVP encapsulation (IP or User Data Protocol (UDP)) is preferred and should be used to send RSVP messages.

Rate-Limiting

The rate-limiting parameters in effect are as follows:

  • Dropped messages = number of messages dropped by the neighbor.

Refresh Reduction

The refresh-reduction parameters in effect are as follows:

  • Remote epoch = the RSVP message number space identifier (ID); randomly generated whenever the node reboots or the RSVP process restarts.
  • Out of order messages = messages that were dropped because they are out of sequential order.
  • Retransmitted messages = number of messages retransmitted to the neighbor.
  • Highest rcvd message id = highest message ID number sent by the neighbor.
  • Last rcvd message= time delta in hours, minutes, and seconds when last message was received by the neighbor.

Examples

The following command shows the VRF named myvrf:

Router# show ip rsvp neighbor vrf myvrf
VRF: myvrf
Neighbor        Encapsulation  Time since msg rcvd/sent
10.10.15.3         Raw IP         00:00:14   00:00:06
10.10.16.2         Raw IP         00:00:29   00:00:15

The table below describes the fields shown in the display.

Table 42 show ip rsvp neighbor vrf Field Descriptions

Field

Description

VRF

Name of the VRF.

Neighbor

IP address of neighboring router.

Encapsulation

Type of encapsulation being used.

Time since msg rcvd/sent

Time in hh:mm:ss since a message has been received by or sent to the neighbor.

Related Commands

Command

Description

show ip rsvp interface

Displays RSVP-related interface information.

show ip rsvp p2mp counters

To display any errors associated with the configuration and operation of Multiprotocol Label Switching (MPLS) traffic engineering (TE) point-to-multipoint (P2MP) sublabel switched paths (sub-LSPs), use the showiprsvpp2mpcounterscommand in in user EXEC or privileged EXEC mode.

show ip rsvp p2mp counters

Syntax Description

This command has no arguments or keywords.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.2(33)SRE

This command was introduced.

Examples

The following example shows the error counters for MPLS TE P2MP sub-LSPs:

Router# show ip rsvp p2mp counters
RSVP P2MP Error counters
Missing S2L_SUB_LSP object: 1
Multiple S2L_SUB_LSP objects: 1
Session's required bits are not zero: 1
Signalling attributes inconsistent: 1
IP header's destination is different from S2L_SUB_LSP destination: 1
Failed to enqueue S2L_SUB_LSP object into tmb: 1
Illegal Resv style: 1

The table below describes the significant fields shown in the display.

Table 43 show ip rsvp p2mp counters Field Descriptions

Field

Description

Missing S2L_SUB_LSP object

The S2L_SUB_LSP object includes the sub-LSP destination. If the S2L_SUB_LSP object is not available, it causes an error, which is counted in this field.

Multiple S2L_SUB_LSP objects

The S2L_SUB_LSP object includes the sub-LSP destination. If there are multiple S2L_SUB_LSP objects, it causes an error, which is counted in this field.

Session’s required bits are not zero

Session object protocol field should be zero. If it is not, it causes an error, which is counted in this field.

Signalling attributes inconsistent

When a router signals a P2MP LSP, all sub-LSPs should signal the same attributes. If they do not, it causes an error, which is counted in this field.

IP header's destination is different from S2L_SUB_LSP destination

When a path has an IP header destination address that is different from the S2L_SUB_LSP object address, the destination address in the IP header is ignored, and the destination address in the S2L_SUB_LSP object is used. If the destination address in the path is one of its own addresses, Resource Reservation Protocol (RSVP) terminates the path. The event is counted in this field.

Failed to enqueue S2L_SUB_LSP object into tmb

If the sub-LSP is not sent to the Timer Management block (TMB), it causes an error, which is counted in this field.

Illegal Resv style

The reservation style in all P2MP Resv messages is shared explicit (SE). If a different reservation is used, it causes an error, which is counted in this field.

Related Commands

Command

Description

show mpls traffic-eng forwarding statistics

Displays informtion about MPLS TE P2MP paths and sub-LSPs.

show ip rsvp policy

To display the policies currently configured, use the showiprsvppolicy command in user EXEC or privileged mode.

show ip rsvp policy [ cops | local [acl] ]

Syntax Description

cops | local

(Optional) Displays either the configured Common Open Policy Service (COPS) servers or the local policies.

acl

(Optional) Displays the access control lists (ACLs) whose sessions are governed by COPS servers or the local policies.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.1(1)T

This command was introduced as showiprsvppolicycops.

12.2(13)T

This command was modified to include the localkeyword. This command replaces the showiprsvppolicycops command.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

Use the showiprsvppolicycommand to display current local policies, configured COPS servers, default policies, and the preemption parameter (disabled or enabled).

Examples

The following is sample output from the showiprsvppolicycommand :

Router# show ip rsvp policy
Local policy:
    A=Accept    F=Forward
    Path:-- Resv:-- PathErr:-- ResvErr:-- ACL:104
    Path:-- Resv:-- PathErr:-- ResvErr:-- ACL:None [Default policy]
COPS:
Generic policy settings:
    Default policy: Accept all
    Preemption:     Disabled

The table below describes the fields shown in the display.

Table 44 show ip rsvp policy Command Field Descriptions

Field

Description

Local policy

The local policy currently configured.

A = Accept the message.

F = Forward the message.

Blank (--) means messages of the specified type are neither accepted or forwarded.

COPS

The COPS servers currently in effect.

Generic policy settings

Policy settings that are not specific to COPS or the local policy.

Default policy: Accept all means all RSVP messages are accepted and forwarded. Reject all means all RSVP messages are rejected.

Preemption: Disabled means that RSVP should not implement any preemption decisions required by a particular local or remote policy. Enabled means that RSVP should implement any preemption decisions required by a particular local or remote policy.

Related Commands

Command

Description

ip rsvp signalling initial-retransmit-delay

Creates a local procedure that determines the use of RSVP resources in a network.

show ip rsvp policy cops

The showiprsvppolicycops command is replaced by the showiprsvppolicycommand. See the showiprsvppolicy command for more information.

show ip rsvp policy identity

To display selected Resource Reservation Protocol (RSVP) identities in a router configuration, use the showiprsvppolicyidentitycommand in user EXEC or privileged EXEC mode.

show ip rsvp policy identity [regular-expression]

Syntax Description

regular-expression

(Optional) String of text that allows pattern matching on the alias strings of the RSVP identities to be displayed.

Command Default

All configured RSVP identities are displayed.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.4(6)T

This command was introduced.

12.2(33)SRB

This command was integrated into Cisco IOS Release 12.2(33)SRB.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines

Use theshowiprsvppolicyidentity command with the optional regular-expression argument to perform pattern matching on the alias strings of the RSVP identities to be displayed. Use this filtering capability to search for a small subset of RSVP identities in a configuration with a large number of identities.

Omit the regular-expression argument to display all the configured identities.

Examples

The following sample output from the showiprsvppolicyidentity command displays all the configured identities:

Router# show ip rsvp policy identity
Alias: voice1
  Type:    Application ID
  Locator: GUID=www.cisco.com,APP=voice,VER=1.0
Alias: voice10
  Type:    Application ID
  Locator: GUID=www.cisco.com,APP=voice,VER=10.0
Alias: voice100
  Type:    Application ID
  Locator: GUID=www.cisco.com,APP=voice,VER=100.0
Alias: voice1000
  Type:    Application ID
  Locator: GUID=www.cisco.com,APP=voice,VER=1000.0

The table below describes the significant fields shown in the display.

Table 45 show ip rsvp policy identity Field Descriptions

Field

Description

Alias

Name of the alias string. The string can have as many as 64 printable characters (in the range 0x20 to 0x7E).

The string has no maximum length and must contain printable characters (in the range 0x20 to 0x7E).

Note

If you use the “ ” or ? character as part of the string itself, you must type the CTRL-V key sequence before entering the embedded “ ” or ? character. The alias is never transmitted to other routers.

Type

Types of identities. RSVP defines two types: application IDs (Application) and user IDs (User). Cisco IOS software and Cisco IOS XE software support application IDs only.

Locator

Information used by a router to find the correct policy to apply to RSVP messages that contain application IDs.

The following sample output from the showiprsvppolicyidentitycommand displays all the identities whose aliases contain voice100:

Router# show ip rsvp policy identity voice100
Alias: voice100
  Type:    Application ID
  Locator: GUID=www.cisco.com,APP=voice,VER=100.0
Alias: voice1000
  Type:    Application ID
  Locator: GUID=www.cisco.com,APP=voice,VER=1000.0

The following sample output from the showiprsvppolicyidentitycommand displays all the identities whose aliases contain an exact match on voice100:

Router# show ip rsvp policy identity ^voice100$
Alias: voice100
  Type:    Application ID
  Locator: GUID=www.cisco.com,APP=voice,VER=100.0

Related Commands

Command

Description

ip rsvp listener

Configures an RSVP router to listen for PATH messages.

ip rsvp policy identity

Defines RSVP application IDs.

ip rsvp policy local

Determines how to perform authorization on RSVP requests.

ip rsvp reservation

Enables a router to simulate receiving RSVP RESV messages.

ip rsvp sender

Enables a router to simulate receiving RSVP PATH messages.

show ip rsvp policy local

To display the local policies that are currently configured, use the showiprsvppolicylocal command in user EXEC or privileged EXEC mode.

show ip rsvp policy local [detail] [ interface type number ] [ acl acl-number | dscp-ip value | default | identity alias | origin-as as ]

Syntax Description

detail

(Optional) Displays additional information about the configured local policies including preempt-priority and local-override.

interface typenumber

(Optional) Specifies an interface.

acl acl-number

(Optional) Specifies an Access Control List (ACL). Range is from 1 to 199.

dscp-ip value

(Optional) Specifies a differentiated services code point (DSCP) for aggregate reservations. Values can be the following:

  • 0 to 63--Numerical DSCP values. The default value is 0.
  • af11 to af43--Assured forwarding (AF) DSCP values.
  • cs1 to cs7--Type of service (ToS) precedence values.
  • default--Default DSCP value.
  • ef--Expedited forwarding (EF) DSCP values.

default

(Optional) Displays information about the default policy.

identity alias

(Optional) Specifies an application identity (ID) alias.

origin-as as

(Optional) Specifies an autonomous system. Values are 1 to 65535.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.2(13)T

This command was introduced.

12.0(29)S

This command was modified. The origin-asas keyword and argument combination was added, and the acl-numberargument became optional.

12.4(6)T

This command was modified. The identityaliasand the interfacetypenumberkeyword and argument combinations were added, and the output was modified to include application ID information.

12.2(33)SRB

This command was integrated into Cisco IOS Release 12.2(33)SRB.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

12.2(33)SRC

This command was modified. The dscp-ipvaluekeyword and argument combination was added, and the output was modified to include RSVP aggregation information.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines

Use the showiprsvppolicylocal command to display information about the selected local policies that are currently configured. You can use the default keyword or the interfacetypenumber keyword and argument combination with one or more of the match criteria.

If you omit aclacl-number,theorigin-asas,theidentityalias,orthedscp-ipvaluekeyword and argument combinations, all local policies currently configured appear.

You can specify only one of the ACL, the autonomous system, the application ID, or the DSCP options as a match criterion. However, that parameter can be any ACL, autonomous system, application ID, or DSCP of any local policy that you have created. If you have multiple local policies with a common match criterion, using that parameter displays all local policies that meet the match criterion. If you have created local policies each with multiple ACLs, autonomous systems, application IDs, or DSCPs as the match criteria, you cannot use that parameter to show only a specific policy. You must omit the match criteria and show all the local policies.

Examples

Examples

The following sample output from the showiprsvppolicylocalcommanddisplaysglobal and per-interface local policies based on RSVP identities (application IDs) that have been configured :

Router# show ip rsvp policy local
  A=Accept    F=Forward
  Global:
    Path:AF Resv:AF PathErr:AF ResvErr:AF ACL(s):101
    Path:AF Resv:AF PathErr:AF ResvErr:AF AS(es):3
    Path:AF Resv:AF PathErr:AF ResvErr:AF ID:voice
    Path:AF Resv:AF PathErr:AF ResvErr:AF ID:video

  Serial2/0/0:
    Path:AF Resv:AF PathErr:AF ResvErr:AF ID:voice
    Path:AF Resv:AF PathErr:AF ResvErr:AF ID:video
  Serial2/0/1:
    Path:AF Resv:AF PathErr:AF ResvErr:AF ID:conference
    Path:AF Resv:AF PathErr:AF ResvErr:AF ID:iptv
    Path:-- Resv:-- PathErr:-- ResvErr:-- Default

Generic policy settings:
    Default policy: Accept all
    Preemption:     Disabled

The table below describes the significant fields shown in the display.

Table 46 show ip rsvp policy local Field Descriptions

Field

Description

A=Accept

F=Forward

State of RSVP messages.

  • Accept--Messages being accepted.
  • Forward--Messages being forwarded.

Global

Location of the local policy. Global--Local policy configured for the entire router.

Path, Resv, PathErr, ResvErr, ACL(s), AS(es), ID, Default

Types of RSVP messages being accepted and forwarded and the match criteria for the local policies configured. Blank (--) means that messages of the specified type are neither accepted nor forwarded.

Serial2/0/0 Serial2/0/1

Local policy configured for a specific interface on the router.

Path, Resv, PathErr, ResvErr, ACL(s), AS(es), ID

Types of RSVP messages being accepted and forwarded and the types of local policies configured. Blank (--) means that messages of the specified type are neither accepted nor forwarded.

Generic policy settings

Policy settings that are not specific to any local or remote policy.

  • Default policy: ‘Accept all’ means that all RSVP messages are accepted and forwarded. ‘Reject all’ means that all RSVP messages are rejected.
  • Preemption: ‘Disabled’ means that RSVP should not implement any preemption decisions required by a particular local or remote policy. ‘Enabled’ means that RSVP should implement any preemption decisions required by a particular local or remote policy.

Examples

The following sample output from the showiprsvppolicylocalcommanddisplaysaglobal local policy based on a DSCP EF that has been configured :

Router# show ip rsvp policy local dscp-ip ef

    A=Accept    F=Forward
    Global:
      Path:AF Resv:AF PathErr:AF ResvErr:AF DSCP(s): ef
Generic policy settings:
    Default policy: Accept all
    Preemption:     Enabled

See the table below for a description of the fields.

Examples

The following sample output from the showiprsvppolicylocaldetailcommandshowsthe location of the local policy (such as whether the policy is configured globally or for a specific interface) and the settings for preemption scope and maximum bandwidth. Preemption priorities and sender and receiver limits also appear even if they are set to their defaults.

Router# show ip rsvp policy local detail
Global:
  Policy for ID: voice
    Preemption Scope: Unrestricted.
    Local Override:   Disabled.
    Fast ReRoute:     Accept.
    Handle:           02000409.
                           Accept               Forward
    Path:                  Yes                  Yes
    Resv:                  Yes                  Yes
    PathError:             Yes                  Yes
    ResvError:             Yes                  Yes
                           Setup Priority       Hold Priority
    TE:                    N/A                  N/A
    Non-TE:                N/A                  N/A
                           Current              Limit
    Senders:               0                    40
    Receivers:             0                    N/A
    Conversations:         0                    N/A
    Group bandwidth (bps): 0                    200K
    Per-flow b/w (bps):    N/A                  10M
  Policy for ID: video
    Preemption Scope: Unrestricted.
    Local Override:   Disabled.
    Fast ReRoute:     Accept.
    Handle:           0200040A.

                           Accept               Forward
    Path:                  Yes                  Yes
    Resv:                  Yes                  Yes
    PathError:             Yes                  Yes
    ResvError:             Yes                  Yes
                           Setup Priority       Hold Priority
    TE:                    2                    2
    Non-TE:                5                    4
                           Current              Limit
    Senders:               2                    10
    Receivers:             2                    10
    Conversations:         2                    10
    Group bandwidth (bps): 100K                 200K
    Per-flow b/w (bps):    N/A                  10M
Ethernet2/1:
  Policy for ID: voice
    Preemption Scope: Unrestricted.
    Local Override:   Disabled.
    Fast ReRoute:     Accept.
    Handle:           0200040B.

                           Accept               Forward
    Path:                  Yes                  Yes
    Resv:                  Yes                  Yes
    PathError:             Yes                  Yes
    ResvError:             Yes                  Yes
                           Setup Priority       Hold Priority
    TE:                    2                    2
    Non-TE:                5                    4
                           Current              Limit
    Senders:               2                    10
    Receivers:             2                    10
    Conversations:         2                    10
    Group bandwidth (bps): 100K                 200K
    Per-flow b/w (bps):    N/A                  10M
Generic policy settings:
    Default policy: Accept all
    Preemption:     Disabled

The table below describes the significant fields shown in the display.

Table 47 show ip rsvp policy local detail Field Descriptions

Field

Description

Global

Location of the local policy. Global--Local policy configured for the entire router.

Policy for ID

A global local policy defined for an application ID alias named voice.

Preemption Scope

Describes which classes of RSVP quality of service (QoS) reservations can be preempted by other classes of RSVP QoS reservations on the same interface.

Unrestricted means that a reservation using an application ID such as voice can preempt any other class of reservation on the same interface as that reservation, even other nonvoice reservations.

Local Override

Overrides any remote policy by enforcing the local policy in effect.

  • Disabled--Not active.
  • Enabled--Active.

Fast ReRoute

State of Fast ReRoute for Multiprotocol Label Switching (MPLS)/traffic engineering (TE) label switched paths (LSPs).

  • Accept--Messages being accepted.
  • Do not accept--Messages requesting Fast Reroute service are not being accepted.

Handle

Internal database ID assigned to the security association by RSVP for bookkeeping purposes.

Accept, Forward

State of RSVP messages.

Path, Resv, PathError, ResvError

Types of RSVP messages being accepted and forwarded.

  • Yes--Messages are being accepted and forwarded.
  • No--Messages are not being accepted or forwarded.

Setup Priority, Hold Priority

Preemption priorities. Setup Priority indicates the priority of a reservation when it is initially installed. Hold Priority indicates the priority of a reservation after it has been installed.

N/A means preemption priorities are not configured.

TE

The preemption priority of TE reservations. Values for Setup Priority and Hold Priority range from 0 to 7 where 0 is considered the highest priority.

Non-TE

The preemption priority of non-TE reservations. Values for Setup Priority and Hold Priority range from 0 to 65535 where 65535 is considered the highest priority.

Current, Limit

The present number and the highest number of these parameters allowed.

Senders

The number of current PATH states accepted and/or approved by this policy.

Receivers

The number of current RESV states accepted by this policy.

Conversations

The number of active bandwidth requests approved by the local policy.

Group bandwidth (bps)

Amount of bandwidth configured for a class of reservations in bits per second (bps).

Per-flow b/w (bps)

Amount of bandwidth configured for each reservation in bits per second (bps).

Ethernet2/1

Local policy configured for a specific interface on the router.

Generic policy settings

Policy settings that are not specific to the local policy.

  • Default policy: ‘Accept all’ means that all RSVP messages are accepted and forwarded. ‘Reject all’ means that all RSVP messages are rejected.
  • Preemption: ‘Disabled’ means that RSVP should not implement any preemption decisions required by a particular local or remote policy. ‘Enabled’ means that RSVP should implement any preemption decisions required by a particular local or remote policy.

Related Commands

Command

Description

ip rsvp policy local

Determines how to perform authorization on RSVP requests.

show ip rsvp policy vrf

To display information for a Resource Reservation Protocol (RSVP) policy configured with a virtual routing and forwarding (VRF) instance, use the showiprsvppolicyvrfcommand in user EXEC or privileged EXEC mode.

{ show ip rsvp policy vrf { * | vrf-name } [ identity [alias] ] | local [ acl acl | default | detail [ acl acl | default | identity alias | interface interface-type | origin-as as-number ] ] }

Syntax Description

*

Displays all VRFs.

vrf-name

Name of a specified VRF.

identity

(Optional) Unique information that is conveyed in the POLICY-DATA object for RSVP messages.

alias

(Optional) Specifies a string used within the router to reference the identity in RSVP configuration commands and show displays. The string can have as many as 64 printable characters including quotes and regular expressions (in the range 0x20 to 0x7E).

Note

If you use the “ ” or ? characters as part of the alias or locator string itself, you must type the CTRL/V key sequence before entering the embedded “ ” or ? characters. The alias is never transmitted to other routers.

local

(Optional) A local policy.

acl

(Optional) Access control list (ACL) for the local policy.

acl

(Optional) Specifies an ACL. Values for each ACL are 1 to 199.

default

(Optional) A default policy.

detail

(Optional) Detailed information for the VRF.

acl

(Optional) Access control list (ACL) for the local policy.

acl

(Optional) Specifies an ACL. Values for each ACL are 1 to 199.

default

(Optional) A default policy.

identity

(Optional) An application ID.

alias

(Optional) Specifies a string used within the router to reference the identity in RSVP configuration commands and show displays. The string can have as many as 64 printable characters including quotes and regular expressions (in the range 0x20 to 0x7E).

Note

If you use the “ ” or ? characters as part of the alias or locator string itself, you must type the CTRL/V key sequence before entering the embedded “ ” or ? characters. The alias is never transmitted to other routers.

interface

(Optional) An interface for the VRF.

interface-type

(Optional) An interface name for the VRF.

origin-as

(Optional) An autonomous system (AS) for the VRF.

as-number

(Optional) An AS. Values for each autonomous system are 1 to 65535.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

15.0(1)M

This command was introduced.

Usage Guidelines

Use the showiprsvppolicyvrf command to display the policies configured for VRFs.

Examples

The following example shows an ACL local policy that is configured for a specified VRF:

Router# show ip rsvp policy vrf myVrf1 local acl 101
    A=Accept    F=Forward
VRF: myVrf1
    Global:
      Path:AF Resv:AF PathErr:AF ResvErr:AF ACL(s): 101
    Ethernet0/0:
      Path:AF Resv:AF PathErr:AF ResvErr:AF ACL(s): 101
Generic policy settings:
    Default policy: Accept all
    Preemption:     Disabled

The table below describes the significant fields shown in the display.

Table 48 show ip rsvp policy vrf Field Descriptions

Field

Description

A=Accept

Accept the message.

F=Forward

Forward the message.

VRF

Name of the VRF.

Global: Global policies configured for the VRF.

Path: AF--Accept and forward these messages.

Resv: AF--Accept and forward these messages.

PathErr--Accept and forward these messages.

ResvErr--Accept and forward these messages.

ACL(s)--Access control list number.

Ethernet0/0--The interface configured for the VRF.

Generic policy settings

Policy settings that are not specific to COPS or the local policy.

Default policy: Accept all means all RSVP messages are accepted and forwarded. Reject all means all RSVP messages are rejected.

Preemption: Disabled means that RSVP should not implement any preemption decisions required by a particular local or remote policy. Enabled means that RSVP should implement any preemption decisions required by a particular local or remote policy.

Related Commands

Command

Description

ip rsvp policy vrf

Configures an RSVP policy for a VRF.

show ip rsvp precedence

To display IP precedence information about Resource Reservation Protocol (RSVP) interfaces, use the showiprsvpprecedencecommand in user EXEC or privileged EXEC mode.

show ip rsvp precedence [ type number ]

Syntax Description

type

(Optional) Type of interface.

number

(Optional) Number of the interface.

Command Modes


User EXEC(>)
Privileged EXEC(#)

Command History

Release

Modification

15.0(1)M

This command was introduced.

Usage Guidelines

To obtain IP precedence information about a specific interface configured to use RSVP, specify the interface name with the show ip rsvp precedence command. To obtain IP precedence information about all interfaces enabled for RSVP on the router, use the show ip rsvp precedence command without specifying an interface name.

Examples

The following example shows the IP precedence information for the interaces on which RSVP is enabled:

Router# show ip rsvp precedence ethernet 0/1
Interface name   Precedence  Precedence   TOS          TOS
                   conform    exceed     conform     exceed
Ethernet0/0          -           -         -            -
Ethernet0/1          -           -         -            -
Ethernet1/1          -           -         4            -
Ethernet1/2          3           -         -            -

The table below describes the fields shown in the display.

Table 49 show ip rsvp precedence Field Descriptions

Field

Description

Interface name

Displays the interface details.

Precedence conform

Displays the IP precedence conform information for an interface.

Note

The Precedence conform value specifies an IP precedence value in the range from 0 to 7 for traffic that conforms to the RSVP flowspec.

Precedence exceed

Displays the IP precedence exceed information for an interface.

Note

The Precedence exceed value specifies an IP Precedence value in the range from 0 to 7 for traffic that exceeds the RSVP flowspec.

TOS conform

Displays the IP type of service (ToS) conform information for an interface.

Note

The TOS conform value specifies a ToS value in the range from 0 to 31 for traffic that conforms to the RSVP flowspec.

TOS exceed

Displays the IP type of service (ToS) exceed information for an interface.

Note

The TOS exceed value specifies a ToS value in the range from 0 to 31 for traffic that exceeds the RSVP flowspec.

Related Commands

Command

Description

show ip rsvp

Displays RSVP-related information.

show ip rsvp interface

Displays RSVP-related interface information.

show ip rsvp tos

Displays IP TOS information for RSVP enabled interfaces.

show ip rsvp request

To display Resource Reservation Protocol (RSVP)-related request information currently in the database, use the showiprsvprequestcommand in user EXEC or privileged EXEC mode.

Syntax for T, 12.2S, 12.2SB, 12.2(33)SRD, and Earlier Releases

show ip rsvp request [detail] [ filter [ destination ip-address | hostname ] [ dst-port port-number ] [ source ip-address | hostname ] [ src-port port-number ] ] [ vrf { * | vrf-name } ]

Syntax for 12.2(33)SRE with Filtering Session Type all

show ip rsvp request [detail] [ filter [ session-type all ] ]

Syntax for 12.2(33)SRE with Filtering Session Type 1

show ip rsvp request [detail] [ filter [ session-type session-type-number ] ] [ destination ip-address | hostname ] [ dst-port port-number ] [ source ip-address | hostname ] [ src-port port-number ]

Syntax for 12.2(33)SRE with Filtering Session Type 7 or 13

show ip rsvp request [detail] [ filter [ session-type session-type-number ] ] [ destination ip-address | hostname ] [ lsp-id lsp-id ] [ sender ip-address | hostname ] [ tunnel-id tunnel-id ]

Syntax Description

detail

(Optional) Specifies additional receiver information.

filter

(Optional) Specifies a subset of the receivers to display .

session-type session-type-number

(Optional) Specifies the type of RSVP sessions to display. Valid values are:

  • 1 for IPv4 sessions
  • 7 for IPv4 point-to-point (P2P) traffic engineering (TE) label switched path (LSP) tunnel sessions
  • 13 for IPv4 point-to-multipoint (P2MP) TE LSP tunnel sessions.

all

(Optional) Specifies all types of RSVP sessions.

destination ip-address

(Optional) Specifies the destination IP address.

hostname

(Optional) Hostname of the destination.

dst-port port-number

(Optional) Specifies the destination port number. Valid destination port numbers can be in the range of 0 to 65535.

lsp-id lsp-id

(Optional) Specifies the label switched path ID. Valid numbers can be in the range of 0 to 65535.

sender ip-address

(Optional) Specifies the IP address of the tunnel head.

hostname

(Optional) Hostname of the tunnel head.

source ip-address

(Optional) Specifies the source IP address of the source.

hostname

(Optional) Hostname of the source.

src-port port-number

(Optional) Specifies the source port number. Valid source port numbers can be in the range of 0 to 65535.

tunnel-id tunnel-id

(Optional) Specifies the tunnel ID number. Valid numbers can be in the range of 0 to 65535.

vrf *

(Optional) Displays all the configured virtual routing and forwarding (VRF) instances.

vrf vrf-name

(Optional) Name of a specified VRF.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

11.2

This command was introduced.

12.2

This command was integrated into Cisco IOS Release 12.2. The detail keyword was added to display additional request information.

12.0(22)S

This command was integrated into Cisco IOS Release 12.0(22)S. This command was enhanced to show Fast Reroute information when a link-state packet (LSP) is actively using a backup tunnel that terminates at this node (that is, when a node is the merge point.) The command is supported on the Cisco 10000 series Edge Services Router (ESR).

12.2(18)SXD1

This command was integrated into Cisco IOS Release 12.2(18)SXD1.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(31)SB2

This command was integrated into Cisco IOS Release 12.2(31)SB2.

12.2(33)SRC

The command output was modified to display RSVP aggregation information.

12.4(20)T

This command was integrated into Cisco IOS Release 12.4(20)T.

15.0(1)M

This command was modified. The vrfand*keywords and the vrf-name argument were added.

12.2(33)SRE

This command was modified. Thesession-type keyword was added to display specific types of tunnels. The output was modified to display Multiprotocol (MPLS) TE P2MP information.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines

Use the showiprsvprequest command to display the RSVP reservations currently being requested upstream for a specified interface or all interfaces. The received reservations may differ from requests because of aggregated or refused reservations. If desired, information for only a single tunnel or a subset of tunnels can be displayed.

Limiting the Display

When hundreds or thousands of tunnels exist and you are interested in only a few, you can display the output for only a single tunnel or a subset of tunnels. To request a limited display, enter the showiprsvprequest command with the appropriate keyword (called an output filter): destination, dst-port, source, and src-port. You can enter any or all of the output filters, and you can enter them whether or not you specify the detail keyword.

You can also limit the display to a particular VRF by using the showiprsvprequestvrfvrf-namecommand.

Examples

Examples

The following is sample output from the showiprsvprequest command when RSVP aggregation is configured:

Router# show ip rsvp request
To            From          Pro DPort Sport Next Hop      I/F      Fi Serv BPS
192.168.5.1   192.168.2.1   TCP 222   222   192.168.40.1  Se1/0    FF RATE 80K
192.168.50.1  192.168.40.1  0   46    0     10.10.10.4    Se1/0    FF LOAD 300K

The table below describes the significant fields shown in the display.

Table 50 show ip rsvp request Field Descriptions

Field

Description

To

IP address of the end-to-end (E2E) receiver or deaggregator.

From

IP address of the E2E sender or aggregator.

Pro

Protocol code.

  • TCP indicates Transmission Control Protocol.
  • Code 0 indicates an aggregate reservation.

DPort

Destination port number.

  • DSCP for aggregate reservations.

Sport

Source port number.

  • 0 for aggregate reservations.

Next Hop

IP address of the next hop.

  • Aggregator for E2E reservations mapped onto aggregates.
  • Next hop RSVP node for aggregate or E2E reservations onto an interface.

I/F

Interface of the next hop.

Fi

Filter (Wildcard Filter, Shared Explicit, or Fixed Filter).

Serv

Service (value can be rate or load).

BPS

The rate, in bits per second, in the RSVP reservation request for a reservation.

Note

In the example, the top one is the E2E reservation signaled at 80 bps and the corresponding aggregate request at 300 bps.

Examples

The following is sample output from the showiprsvprequestdetail command when RSVP aggregation is configured:

Router# show ip rsvp request detail

RSVP Reservation. Destination is 192.168.5.1, Source is 192.168.2.1,
  Protocol is TCP, Destination port is 222, Source port is 222
  Prev Hop: 192.168.40.1 on Serial1/0
  Reservation Style is Fixed-Filter, QoS Service is Guaranteed-Rate
  Average Bitrate is 80K bits/sec, Maximum Burst is 5K bytes
  Request ID handle: 0100040E.
  Policy: Forwarding. Policy source(s): Default
    Priorities - preempt: 0, defend: 0
  PSB Handle List [1 elements]: [0x19000407]
  RSB Handle List [1 elements]: [0x17000409]
  3175 Aggregation: RSVP 3175 AggResv 192.168.40.1->192.168.50.1_ef(46)
RSVP Reservation. Destination is 192.168.50.1, Source is 192.168.40.1,
  Protocol is 0  , Destination port is 46, Source port is 0
  Prev Hop: 10.10.10.4 on Serial1/0
  Reservation Style is Fixed-Filter, QoS Service is Controlled-Load
  Average Bitrate is 300K bits/sec, Maximum Burst is 300K bytes
  Request ID handle: 0100040B.
  Policy: Forwarding. Policy source(s): Default
    Priorities - preempt: 0, defend: 0
  PSB Handle List [1 elements]: [0x9000408]
  RSB Handle List [1 elements]: [0x100040A]

The table below describes the significant fields shown in the display.

Table 51 show ip rsvp request detail--RSVP Aggregation Field Descriptions

Field

Description

RSVP Reservation

Destination--Receiver’s IP address of the E2E RESV message.

Source--Sender’s IP address of the E2E RESV message.

Protocol

Protocol--IP protocol used; TCP--Transmission Control Protocol.

  • 0 for aggregate reservations.

Destination port

Receiver’s port number.

  • DSCP for aggregate reservations.

Source port

Sender’s port number.

  • 0 for aggregate reservations.

Previous Hop

IP address of the previous hop on the specified interface.

Note

This is the aggregator’s IP address in the case of an E2E reservation mapped onto an aggregate as seen at the deaggregator.

Reservation Style

Multi-reservations sharing of bandwidth; values include Fixed-Filter, Shared-Explicit, and Wildcard-Filter.

QoS Service

Type of quality of service (QoS) configured; values include Guaranteed-Rate and Controlled-Load.

Average Bitrate

Average rate requested, in bits per second, for the data.

Maximum Burst

Largest amount of data allowed in kilobytes.

Request ID handle

Internal database ID assigned to the request by RSVP for bookkeeping purposes.

Policy

Policy status: Forwarding--RSVP RESV messages are being accepted and forwarded.

Policy source(s)

Type of local policy in effect; values include Default, Local, and MPLS/TE.

Priorities

RSVP preemption and hold priorities of the reservation; default is 0.

PSB Handle List

Path state block (PSB) internal database identifier assigned by RSVP for bookkeeping purposes.

RSB Handle List

Reservation state block (RSB) internal database identifier assigned by RSVP for bookkeeping purposes.

3175 Aggregation

RSVP aggregation as defined in RFC 3175, Aggregation of RSVP for IPv4 and IPv6 Reservations .

Note

This E2E reservation is mapped onto an RSVP aggregate reservation with an aggregator (source) IP address of 192.168.40.1, a destination (deaggregator) IP address of 192.168.50.1, and a DSCP value of expedited forwarding (EF).

Examples

The following is sample output from the showiprsvprequestdetail command when the command is entered on the merge point before and after a failure.

This figure illustrates the network topology for the RSVP configuration example.

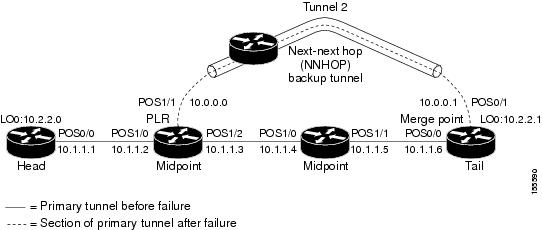

Figure 5. Network Topology for the RSVP Configuration Example

Examples

Router# show ip rsvp request detail

RSVP Reservation. Tun Dest: 10.2.2.1 Tun Sender: 10.2.2.0,
   Tun ID: 1 LSP ID: 126
   Next Hop is 10.1.1.5 on POS0/1
   Label is 0
   Reservation Style is Shared-Explicit, QoS Service is Controlled-Load
   Average Bitrate is 0G bits/sec, Maximum Burst is 1K bytes
   RRO:
    Empty

Examples

Router# show ip rsvp request detail

RSVP Reservation. Tun Dest: 10.2.2.1 Tun Sender: 10.2.2.0,
   Tun ID: 1 LSP ID: 126
   Next Hop is 10.1.1.5 on POS0/1
   Label is 0
   Reservation Style is Shared-Explicit, QoS Service is Controlled-Load
   Average Bitrate is 0G bits/sec, Maximum Burst is 1K bytes
   RRO:
     Empty
   FRR is in progress (we are Merge Point)
 RSVP Reservation. Tun Dest: 10.2.2.1 Tun Sender: 10.2.2.0,
   Tun ID: 1 LSP ID: 126
   Next Hop is 10.0.0.0 on POS0/1
   Label is 0
   Reservation Style is Shared-Explicit, QoS Service is Controlled-Load
   Average Bitrate is 0G bits/sec, Maximum Burst is 1K bytes
   RRO:
     Empty
   FRR is in progress (we are Merge Point)

Notice that after the failure, there are two entries for the rerouted LSP.

The first entry continues to show the prefailure information (that is, RESV messages are being sent to 10.1.1.5 on POS0/1). This state is for the RESV being sent upstream before the failure, in response to path messages sent before the failure. This state may time out quickly, or it may continue to be refreshed for a few minutes if, for example, an upstream node is unaware of the failure.

The second entry shows the post-failure information (that is, RESV messages are being sent to 10.0.0.0 on POS0/1). This state is for the RESV messages being sent upstream after the failure (to the point of local repair [PLR]), and will remain and be refreshed as long as the LSP is rerouted.

In example 2, the merge point is also the tail of the LSP. There is no record route object (RRO) information because there are no nodes downstream.

Examples

The following is sample output from the showiprsvprequestdetail command, which shows MPLS TE P2MP information:

Router# show ip rsvp request detail
Request:
  P2MP ID: 22  Tun ID: 22  Ext Tun ID: 10.1.1.201
  Tun Sender: 10.1.1.201  LSP ID: 1  SubGroup Orig: 10.1.1.201
  SubGroup ID: 1
  S2L Destination : 10.1.1.203
  Prev Hop:10.1.1.205 on Ethernet1/1
  Label: 17 (incoming)
  Reservation Style is Shared-Explicit, QoS Service is Controlled-Load
  Average Bitrate is 500K bits/sec, Maximum Burst is 1K bytes
  Request ID handle: 0100042C.
  Policy: Forwarding. Policy source(s): MPLS/TE
  PSB Handle List [1 elements]: [0x1000427]
  RSB Handle List [1 elements]: [0x100042B]

The table below describes the significant fields shown in the display.

Table 52 show ip rsvp request--MPLS TE P2MP Field Descriptions

Field

Description

P2MP ID

A 32-bit number that identifies the set of destinations of the P2MP tunnel.

Tun ID

Tunnel identification number.

Ext Tun ID

Extended tunnel identification number.

Tun Sender

IP address of the sender.

LSP ID

Label switched path identification number.

SubGroup Orig

LSP headend router ID address.

SubGroup ID

An incremental number assigned to each sub-LSP signaled from the headend router.

S2L Destination

LSP tailend router ID address.

The following is sample output from the showiprsvprequestfiltersession-type13command, which shows RSVP RESV requests for point-to-multipoint traffic:

Router# show ip rsvp request filter session-type 13

Destination   Tun Sender    TunID LSPID P2MP-ID SubID Next Hop      I/F     BPS
192.168.5.1   10.1.1.201    22    1     22      1     192.168.40.1  Se1/0   80K

Related Commands

Command

Description

show ip rsvp reservation

Displays RSVP PATH-related receiver information currently in the database.

show ip rsvp sender

Displays RSVP RESV-related receiver information currently in the database.

show ip rsvp reservation

To display Resource Reservation Protocol (RSVP)-related receiver information currently in the database, use the showiprsvpreservationcommand in user EXEC or privileged EXEC mode.

Syntax for Cisco IOS Release T, 12.2S, 12.2SB, 12.2(33)SRD, Cisco IOS XE Release 2.6, and Earlier Releases

show ip rsvp reservation [detail] [ filter [ destination address ] [ dst-port port-number ] [ source address ] [ src-port port-number ] ] [ vrf { * | vrf-nam e } ]

Syntax for Cisco IOS Release 12.2(33)SRE with Filtering Session Type all

show ip rsvp reservation [detail] [ filter [ session-type all ] ]

Syntax for Cisco IOS Release 12.2(33)SRE with Filtering Session Type 1

show ip rsvp reservation [detail] [ filter [ session-type session-type-number ] ] [ destination address ] [ dst-port port-number ] [ source address ] [ src-port port-number ]

Syntax for Cisco IOS Release 12.2(33)SRE with Filtering Session Type 7 or 13

show ip rsvp reservation [detail] [ filter [ session-type session-type-number ] ] [ destination address ] [ lsp-id lsp-id ] [ sender address ] [ tunnel-id tunnel-id ]

Syntax Description

detail

(Optional) Specifies additional receiver information.

filter

(Optional) Specifies a subset of the receivers to display .

destination address

(Optional) Specifies the destination hostname or IP address of the receiver.

dst-port port-number

(Optional) Specifies the destination port number. The destination port number range is from 0 to 65535.

source address

(Optional) Specifies the source hostname or IP address of the receiver.

src-port port-number

(Optional) Specifies the source port number. The source port number range is from 0 to 65535.

vrf *

(Optional) Displays all the configured virtual routing and forwarding (VRF) instances.

vrf-name

(Optional) Name of a specified VRF.

session-type session-type-number

(Optional) Specifies the type of RSVP sessions to display. Valid values are:

  • 1 for IPv4 sessions
  • 7 for IPv4 point-to-point (P2P) traffic engineering (TE) label switched path (LSP) tunnel sessions
  • 13 for IPv4 point-to-multipoint (P2MP) TE LSP tunnel sessions.

all

(Optional) Specifies all types of RSVP sessions.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

11.2

This command was introduced.

12.2

This command was integrated into Cisco IOS Release 12.2. The detail keyword was added to display additional reservation information.

12.2(18)SXD1

This command was integrated into Cisco IOS Release 12.2(18)SXD1.

12.4(4)T

This command was integrated into Cisco IOS Release 12.4(4)T, and its output was modified to display application ID information.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(31)SB2

This command was integrated into Cisco IOS Release 12.2(31)SB2.

12.2(33)SRC

This command was modified. The command output was modified to display tunnel-based admission control (TBAC) and RSVP aggregation information.

15.0(1)M

This command was modified. The vrfand*keywords and the vrf-name argument were added.

12.2(33)SRE

This command was modified. The session-type keyword was added to display specific types of tunnels. The output was modified to display MPLS TE P2MP information.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines


Note


The syntax of the command depends on your platform and release. The vrfand * keywords and vrf-nameargument are not supported on ASR 1000 Series Aggregation Services Routers.


Use the showiprsvpreservation command to display the current receiver (RESV) information in the database for a specified interface or all interfaces. This information includes reservations aggregated and forwarded from other RSVP routers.

Limiting the Display

When hundreds or thousands of tunnels exist and you are interested in only a few, you can display the output for only a single tunnel or a subset of tunnels. To request a limited display, enter the showiprsvpreservation command with the appropriate keyword (called an output filter): destination, dst-port, source, and src-port. You can enter any or all of the output filters, and you can enter them whether or not you specify the detail keyword.

You can also limit the display to a particular VRF by using the showiprsvpreservationvrfvrf-namecommand.

Examples

Examples

The following is sample output from the showiprsvpreservationcommand:

Router# show ip rsvp reservation
To            From          Pro DPort Sport Next Hop      I/F   Fi Serv
172.16.1.49   172.16.4.53   1   0     0     172.16.1.49   Se1   FF LOAD

The table below describes the significant fields shown in the display.

Table 53 show ip rsvp reservation Field Descriptions

Field

Descriptions

To

IP address of the receiver.

From

IP address of the sender.

Pro

Protocol code.

DPort

Destination port number.

Sport

Source port number.

Next Hop

IP address of the next hop.

I/F

Interface of the next hop.

Fi

Filter (Wildcard Filter, Shared-Explicit, or Fixed-Filter).

Serv

Service (value can be RATE or LOAD).

Examples

The following is sample output from the showiprsvpreservationdetailcommand with application ID information:

Router# show ip rsvp reservation detail

RSVP Reservation. Destination is 192.168.104.3, Source is 192.168.104.1,
  Protocol is UDP, Destination port is 4444, Source port is 4444
  Next Hop is 192.168.106.2, Interface is ATM1/0.1
  Reservation Style is Fixed-Filter, QoS Service is Guaranteed-Rate
  Resv ID handle: 0A00040B.
  Created: 12:18:32 UTC Sat Dec 4 2004
  Average Bitrate is 5K bits/sec, Maximum Burst is 1K bytes
  Min Policed Unit: 0 bytes, Max Pkt Size: 0 bytes
  Status:
  Policy: Forwarding. Policy source(s): Default
    Priorities - preempt: 5, defend: 2
    Application ID: 'GUID=www.cisco.com, VER=10.1.1.2, APP=voice, SAPP=h323'
                    '/usr/local/bin/CallManager'

The table below describes the significant fields shown in the display.

Table 54 show ip rsvp reservation detail--Application ID Field Descriptions

Field

Descriptions

RSVP Reservation

  • Destination--Receiver’s IP address of the RESV message.
  • Source--Sender’s IP address of the RESV message.

Protocol

Protocol--IP protocol used; UDP--User Data Protocol.

Destination port

Receiver’s port number.

Source port

Sender’s port number.

Next Hop

IP address of the next hop.

Interface

Interface type of the next hop.

Reservation Style

Multireservations sharing of bandwidth; values are Fixed-Filter, Shared-Explicit, and Wildcard-Filter.

QoS Service

Type of qulaity of service (QoS) configured; values are Guaranteed-Rate and Controlled Load.

Resv ID handle

Internal database ID assigned to the RESV message by RSVP for bookkeeping purposes.

Created

Time and date when the reservation was created.

Average Bitrate

Average rate, in bits per second, for the data.

Maximum Burst

Largest amount of data allowed, in kilobytes.

Min Policed Unit

Size of the smallest packet generated by the application, in bytes, including the application data and all protocol headers at or above the IP level.

Max Pkt Size

Largest packet allowed in bytes.

Status

Status of the local policy; values are Proxied and Proxy-terminated.

Note

A blank status field means you issued the command on a midpoint for that reservation.

Policy

Policy status: Forwarding--RSVP RESV messages are being accepted and forwarded.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Priorities

Preemption priorities in effect.

  • preempt: the startup priority; values are 0 to 7 for traffic engineering (TE) reservations with 0 being the highest. Values are 0 to 65535 for non-TE reservations, with 0 being the lowest.
  • defend: the hold priority; values are the same as preempt.

Application ID

A quotable string that identifies the sender application and can be used to match on local policies. The string includes the policy locator in the X.500 Distinguished Name format and the application or filename of the sender application.

Examples

The following is sample output from the showiprsvpreservationdetailcommandwhenTBACisconfigured:

Router# show ip rsvp reservation detail

RSVP Reservation. Destination is 10.4.0.1, Source is 10.1.0.1,
  Protocol is UDP, Destination port is 100, Source port is 100
  Next Hop: 10.4.0.1 on Tunnel1, out of band
  Reservation Style is Fixed-Filter, QoS Service is Guaranteed-Rate
  Resv ID handle: 0100040D.
  Created: 11:59:53 IST Tue Mar 20 2007
  Average Bitrate is 10K bits/sec, Maximum Burst is 1K bytes
  Min Policed Unit: 0 bytes, Max Pkt Size: 0 bytes
  Status:
  Policy: Forwarding. Policy source(s): Default

The table below describes the significant fields shown in the display.

Table 55 show ip rsvp reservation detail--TBAC Field Descriptions

Field

Descriptions

RSVP Reservation

  • Destination--Receiver’s IP address of the RESV message.
  • Source--Sender’s IP address of the RESV message.

Protocol

Protocol--IP protocol used; UDP--User Data Protocol.

Destination port

Receiver’s port number.

Source port

Sender’s port number.

Next Hop

IP address of the next hop on tunnel interface with out-of-band signaling .

Reservation Style

Multireservations sharing of bandwidth; values are Fixed-Filter, Shared-Explicit, and Wildcard-Filter.

QoS Service

Type of QoS configured; values are Guaranteed-Rate and Controlled Load.

Resv ID handle

Internal database ID assigned to the RESV message by RSVP for bookkeeping purposes.

Created

Time and date when the reservation was created.

Average Bitrate

Average rate, in bits per second, for the data.

Maximum Burst

Largest amount of data allowed, in kilobytes.

Min Policed Unit

Size of the smallest packet generated by the application, in bytes, including the application data and all protocol headers at or above the IP level.

Max Pkt Size

Largest packet allowed in bytes.

Status

Status of the local policy; values are Proxied and Proxy-terminated.

Note

A blank status field means you issued the command on a midpoint for that reservation.

Policy

Policy status: Forwarding--RSVP RESV messages are being accepted and forwarded.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Examples

The following is sample output from the showiprsvpreservationdetailcommandwhenRSVPaggregationisconfigured:

Router# show ip rsvp reservation detail

RSVP Reservation. Destination is 192.168.5.1, Source is 192.168.2.1,
  Protocol is TCP, Destination port is 222, Source port is 222
  Next Hop: 192.168.50.1 on Serial1/0
  Reservation Style is Fixed-Filter, QoS Service is Guaranteed-Rate
  Resv ID handle: 0600040A.
  Created: 20:27:58 EST Thu Nov 29 2007
  Average Bitrate is 80K bits/sec, Maximum Burst is 5K bytes
  Min Policed Unit: 0 bytes, Max Pkt Size: 0 bytes
  DiffServ Integration:  DSCPs: 46
  Status:
  Policy: Forwarding. Policy source(s): Default
  3175 Aggregation: RSVP 3175 AggResv 192.168.40.1->192.168.50.1_ef(46)
RSVP Reservation. Destination is 192.168.50.1, Source is 192.168.40.1,
  Protocol is 0  , Destination port is 46, Source port is 0
  Next Hop: 10.30.1.1 on Serial1/0
  Reservation Style is Fixed-Filter, QoS Service is Controlled-Load
  Resv ID handle: 03000408.
  Created: 20:27:50 EST Thu Nov 29 2007
  Average Bitrate is 300K bits/sec, Maximum Burst is 300K bytes
  Min Policed Unit: 20 bytes, Max Pkt Size: 0 bytes
  Status:
  Policy: Forwarding. Policy source(s): Default

The table below describes the significant fields shown in the display.

Table 56 show ip rsvp reservation detail--RSVP Aggregation Field Descriptions

Field

Descriptions

RSVP Reservation

  • Destination--Receiver’s IP address of the RESV message.
    • Deaggregator for aggregate reservations.
  • Source--Sender’s IP address of the RESV message.
    • Aggregator for aggregate reservations.

Protocol

Protocol--IP protocol used; TCP--Transmission Control Protocol.

  • 0 for aggregate reservations.

Destination port

Receiver’s port number.

  • Differentiated Services Code Point (DSCP) for aggregate reservations.

Source port

Sender’s port number.

  • 0 for aggregate reservations.

Next Hop

IP address of the next hop on a specified interface.

  • Deaggregator IP address for E2E reservations mapped onto an aggregate as seen at the aggregator.
  • None for aggregate reservations as seen at the deaggregator.

Reservation Style

Multireservations sharing of bandwidth; values are Fixed-Filter, Shared-Explicit, and Wildcard-Filter.

QoS Service

Type of QoS Service configured; values are Guaranteed-Rate and Controlled Load.

Resv ID handle

Internal database ID assigned to the RESV message by RSVP for bookkeeping purposes.

Created

Time and date when the reservation was created.

Average Bitrate

Average rate requested, in bits per second, for the data.

Maximum Burst

Largest amount of data allowed, in kilobytes.

Min Policed Unit

Size of the smallest packet generated by the application, in bytes, including the application data and all protocol headers at or above the IP level.

  • Always 0 or 20 on a node configured for RSVP aggregation.

Max Pkt Size

Largest packet allowed in bytes.

  • Always 0 on a node configured for RSVP aggregation.

Status

Status of the local policy; policy source and preemption values.

Note

A blank status field means you issued the command on a midpoint for that reservation.

Note

Preemption values are shown only if RSVP preemption is enabled on the router.

Policy

Policy status: Forwarding--RSVP RESV messages are being accepted and forwarded.

Policy source(s)

Type of local policy in effect; values are default, local, and Multiprotocol Label Switching (MPLS)/traffic engineering (TE).

3175 Aggregation

Aggregated reservation on which this E2E reservation is mapped with source (aggregator) and destination (deaggregator) endpoints, IP addresses, and aggregate reservation DSCP.

Examples

The following is sample output from the showiprsvpreservationdetailcommand when the command is entered on the PLR before and after a failure.

This figure illustrates the network topology for the RSVP configuration example.

Figure 10. Network Topology for the RSVP Configuration Example

Examples

Router# show ip rsvp reservation detail
RSVP Reservation. Tun Dest: 10.2.2.1 Tun Sender: 10.2.2.0,
   Tun ID: 1 LSP ID: 126
   Next Hop is 10.1.1.4 on POS1/2
   Label is 18
   Reservation Style is Shared-Explicit, QoS Service is Controlled-Load
   Average Bitrate is 0G bits/sec, Maximum Burst is 1K bytes
   RRO:
     10.1.1.5/32, Flags:0x0 (No Local Protection)
       Label record: Flags 0x1, ctype 1, incoming label 18
     10.1.1.6/32, Flags:0x0 (No Local Protection)
       Label record: Flags 0x1, ctype 1, incoming label 0

Examples

Router# show ip rsvp reservation detail
RSVP Reservation. Tun Dest: 10.2.2.1 Tun Sender: 10.2.2.0,
   Tun ID: 1 LSP ID: 126
   FRR is in progress: (we are PLR)
    Bkup Next Hop is  10.0.0.1 on POS1/1
        Label     is  0
    Orig Next Hop was 10.1.1.4 on POS1/2
        Label     was 18
   Reservation Style is Shared-Explicit, QoS Service is Controlled-Load
   Average Bitrate is 0G bits/sec, Maximum Burst is 1K bytes
  RRO:
    10.2.2.1/32, Flags:0x0 (No Local Protection)
      Label record: Flags 0x1, ctype 1, incoming label 0

Notice the following (see italicized text) in Examples 1 and 2:

  • At the PLR, you see “Fast Reroute (FRR) is in progress (we are PLR)” when an LSP has been rerouted (that is, it is actively using a backup tunnel).
  • RESV messages arrive on a different interface and from a different next hop after a failure. The prefailure display shows the original NHOP and arriving interface; the post-failure display shows both the original and the new (Bkup) NHOP and arriving interface. The label is also shown.
  • The Record Route Object (RRO) in arriving RESV messages changes after the failure, given that the RESV messages will avoid the failure (that is, it will traverse different links or hops).

Examples

The following is sample output from the showiprsvpreservationdetailcommand showing point-to-multipoint information:

Router# show ip rsvp reservation detail

Reservation:
  P2MP ID: 22  Tun ID: 22  Ext Tun ID: 10.1.1.201
  Tun Sender: 10.1.1.201  LSP ID: 1  SubGroup Orig: 10.1.1.201
  SubGroup ID: 1
  S2L Destination : 10.1.1.203
  Next Hop: 10.0.0.205 on Ethernet0/0
  Label: 20 (outgoing)
  Reservation Style is Shared-Explicit, QoS Service is Controlled-Load
  Resv ID handle: 0100042A.
  Created: 09:13:16 EST Tue Jun 30 2009
  Average Bitrate is 500K bits/sec, Maximum Burst is 1K bytes
  Min Policed Unit: 0 bytes, Max Pkt Size: 1500 bytes
  RRO:
    10.1.1.205/32, Flags:0x20 (No Local Protection, Node-id)
      Label subobject: Flags 0x1, C-Type 1, Label 20
    10.1.1.202/32, Flags:0x20 (No Local Protection, Node-id)
      Label subobject: Flags 0x1, C-Type 1, Label 17
    10.1.1.203/32, Flags:0x20 (No Local Protection, Node-id)
      Label subobject: Flags 0x1, C-Type 1, Label 16
  Status:
  Policy: Accepted. Policy source(s): MPLS/TE

The table below describes the significant fields shown in the display.

Table 57 show ip rsvp reservation detail--MPLS TE P2MP Field Descriptions

Field

Description

P2MP ID

A 32-bit number that identifies the set of destinations of the P2MP tunnel.

Tun ID

Tunnel identification number.

Ext Tun ID

Extended tunnel identification number.

Tun Sender

IP address of the sender.

LSP ID

Label switched path identification number.

SubGroup Orig

LSP headend router ID address.

SubGroup ID

An incremental number assigned to each sub-LSP signaled from the headend router.

S2L Destination

LSP tailend router ID address.

The following is sample output from the showiprsvpreserverationfiltersession-type13command, which shows RSVP RESV messages for point-to-multipoint traffic:

Router# show ip rsvp reservation filter session-type 13

Destination   Tun Sender    TunID LSPID P2MP-ID SubID Next Hop      I/F     BPS
10.1.1.203     10.1.1.201     22    1     22      1     10.0.0.205    Et0/0   500K
10.1.1.206     10.1.1.201     22    1     22      2     10.0.0.205    Et0/0   500K
10.1.1.213     10.1.1.201     22    1     22      3     10.0.0.205    Et0/0   500K
10.1.1.214     10.1.1.201     22    1     22      4     10.0.1.202    Et0/1   500K
10.1.1.216     10.1.1.201     22    1     22      5     10.0.1.202    Et0/1   500K
10.1.1.217     10.1.1.201     22    1     22      6     10.0.1.202    Et0/1   500K

Related Commands

Command

Description

clear ip rsvp hello instance counters

Clears (refreshes) the values for Hello instance counters.

ip rsvp reservation

Enables a router to simulate RSVP RESV message reception from the sender.

show ip rsvp sender

Displays RSVP RESV-related receiver information currently in the database.

show ip rsvp sbm

To display information about a Subnetwork Bandwidth Manager (SBM) configured for a specific Resource Reservation Protocol (RSVP)-enabled interface or for all RSVP-enabled interfaces on the router, use the showiprsvpsbmcommand in EXEC mode.

show ip rsvp sbm [detail] [ interface-type interface-number ]

Syntax Description

detail

(Optional) Detailed SBM configuration information, including values for the NonResvSendLimit object.

interface-type interface-number

(Optional) Interface name and interface type for which you want to display SBM configuration information.

Command Modes


EXEC

Command History

Release

Modification

12.0(5)T

This command was introduced.

12.1(1)T

The detail keyword was added.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

To obtain SBM configuration information about a specific interface configured to use RSVP, specify the interface name with the showiprsvpsbm command. To obtain information about all interfaces enabled for RSVP on the router, use the showiprsvpsbm command without specifying an interface name.

To view the values for the NonResvSendLimit object, use the detail keyword.

Examples

The following example displays information for the RSVP-enabled Ethernet interfaces 1 and 2 on router1:

Router# show ip rsvp sbm
Interface DSBM Addr      DSBM Priority    DSBM Candidate   My Priority
Et1      10.0.0.0        70               yes              70
Et2      10.2.2.150      100              yes              100

The following example displays information about the RSVP-enabled Ethernet interface e2 on router1:

Router# show ip rsvp sbm e2
Interface DSBM Addr       DSBM Priority    DSBM candidate   My Priority
e2        10.2.2.150      100              yes              100

The table below describes the significant fields shown in the display.

Table 58 show ip rsvp sbm Field Descriptions

Field

Description

Interface

Name of the Designated Subnetwork Bandwidth Manager (DSBM) candidate interface on the router.

DSBM Addr

IP address of the DSBM.

DSBM Priority

Priority of the DSBM.

DSBM Candidate

Yes if the iprsvpdsbmcandidate command was issued for this SBM to configure it as a DSBM candidate. No if it was not so configured.

My Priority

Priority configured for this interface.

The following example displays information about the RSVP-enabled Ethernet interface 2 on router1. In the left column, the local SBM configuration is shown; in the right column, the corresponding information for the current DSBM is shown. In this example, the information is the same because the DSBM won election.

Router# show ip rsvp sbm detailInterface:Ethernet2
Local Configuration             Current DSBM
  IP Address:10.2.2.150         IP Address:10.2.2.150
  DSBM candidate:yes             I Am DSBM:yes
  Priority:100                   Priority:100
  Non Resv Send Limit             Non Resv Send Limit
    Rate:500 Kbytes/sec            Rate:500 Kbytes/sec
    Burst:1000 Kbytes              Burst:1000 Kbytes
    Peak:500 Kbytes/sec            Peak:500 Kbytes/sec
    Min Unit:unlimited             Min Unit:unlimited
    Max Unit:unlimited             Max Unit:unlimited

The table below describes the significant fields shown in the display.

Table 59 show ip rsvp sbm detail Field Descriptions

Field

Description

Local Configuration

The local DSBM candidate configuration.

Current DSBM

The current DSBM configuration.

Interface

Name of the DSBM candidate interface on the router.

IP Address

IP address of the local DSBM candidate or the current DSBM.

DSBM candidate

Yes if the iprsvpdsbmcandidate command was issued for this SBM to configure it as a DSBM candidate. No if it was not so configured.

I am DSBM

Yes if the local candidate is the DSBM. No if the local candidate is not the DSBM.

Priority

Priority configured for the local DSBM candidate or the current SBM.

Rate

The average rate, in kbps, for the DSBM candidate.

Burst

The maximum burst size, in KB, for the DSBM candidate.

Peak

The peak rate, in kbps, for the DSBM candidate.

Min Unit

The minimum policed unit, in bytes, for the DSBM candidate.

Max Unit

The maximum packet size, in bytes, for the DSBM candidate.

Related Commands

Command

Description

debug ip rsvp

Displays information about SBM message processing, the DSBM election process, and standard RSVP enabled message processing information.

debug ip rsvp detail

Displays detailed information about RSVP and SBM.

debug ip rsvp detail sbm

Displays detailed information about SBM messages only, and SBM and DSBM state transitions.

ip rsvp dsbm candidate

Configures an interface as a DSBM candidate.

ip rsvp dsbm non-resv-send-limit

Configures the NonResvSendLimit object parameters.

show ip rsvp sender

To display Resource Reservation Protocol (RSVP) PATH-related sender information currently in the database, use the showiprsvpsendercommand in user EXEC or privileged EXEC mode.

Syntax for Cisco IOS Release T, 12.2S, 12.2SB, 12.2(33)SRD, Cisco IOS XE Release 2.6 and, Earlier Releases

show ip rsvp sender [detail] [ filter [ destination address ] [ dst-port port-number ] [ source address ] [ src-port port-number ] ] [ vrf { * | vrf-name } ]

Syntax for Cisco IOS Release 12.2(33)SRE with Filtering Session Type all

show ip rsvp sender [detail] [ filter [ session-type all ] ]

Syntax for Cisco IOS Release 12.2(33)SRE with Filtering Session Type 1

show ip rsvp sender [detail] [ filter [ session-type session-type-number ] ] [ destination address ] [ dst-port port-number ] [ source address ] [ src-port port-number ]

Syntax for Cisco IOS Release 12.2(33)SRE with Filtering Session Type 7 or 13

show ip rsvp sender [detail] [ filter [ session-type session-type-number ] ] [ destination address ] [ lsp-id lsp-id ] [ sender address ] [ tunnel-id tunnel-id ]

Syntax Description

detail

(Optional) Specifies additional sender information.

filter

(Optional) Specifies a subset of the senders to display .

destination address

(Optional) Specifies the hostname of IP address of the destination of the sender.

dst-port port-number

(Optional) Specifies the destination port number. The range is from 0 to 65535.

source address

(Optional) Specifies the hostname or the IP address of the source of the sender.

src-port port-number

(Optional) Specifies the source port number. The range is from 0 to 65535.

vrf *

(Optional) Displays all the configured virtual routing and forwarding (VRF) instances.

vrf-name

(Optional) Name of a specified VRF.

session-type session-type-number

(Optional) Specifies the type of RSVP sessions to display. Valid values are:

  • 1 for IPv4 sessions.
  • 7 for IPv4 point-to-point (P2P) traffic engineering (TE) label switched path (LSP) tunnel sessions.
  • 13 for IPv4 point-to-multipoint (P2MP) TE LSP tunnel sessions.

all

(Optional) Specifies all types of RSVP sessions.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

11.2

This command was introduced.

12.0(22)S

The command output was modified to display Fast Reroute information, and support was introduced for the Cisco 10000 series Edge Services Router (ESR).

12.2(18)SXD1

This command was integrated into Cisco IOS Release 12.2(18)SXD1.

12.4(4)T

The command output was modified to display application ID information.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2(31)SB2

This command was integrated into Cisco IOS Release 12.2(31)SB2.

12.2(33)SRB

The command output was modified to display fast local repair (FLR) information.

12.2(33)SRC

The command output was modified to display tunnel-based admission control (TBAC) and RSVP aggregation information.

15.0(1)M

This command was modified. The vrfand*keywords and the vrf-name argument were added.

12.2(33)SRE

This command was modified. The session-type keyword was added to display specific types of tunnels. The output was modified to display MPLS TE P2MP information.

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines


Note


The syntax of the command depends on your platform and release. The vrfand * keywords and vrf-nameargument are not supported on ASR 1000 Series Aggregaton Services Routers.


Use the showiprsvpsender command to display the RSVP sender (PATH) information currently in the database for a specified interface or for all interfaces.

The showiprsvpsendercommandis useful for determining the state of RSVP signaling both before and after a label switched path (LSP) has been fast rerouted. The showiprsvpsendercommand is especially useful when used at the point of local repair (PLR) or at the merge point (MP).

Limiting the Display

When hundreds or thousands of tunnels exist and you are interested in only a few, you can display the output for only a single tunnel or a subset of tunnels. To request a limited display, enter the showiprsvpsender command with the appropriate keyword (called an output filter): destination, dst-port, source, and src-port. You can enter any or all of the output filters, and you can enter them whether or not you specify the detail keyword.

FLR Statistics

Use the showiprsvpsenderdetail command to display FLR statistics before, during, and after an FLR procedure. This command shows when a path state block (PSB) was repaired and can be used to determine when the cleanup began after the FLR procedure has finished. However, this command does not display old PLR or MP segments.

Examples

Examples

The following is sample output from the showiprsvpsender command:

Router# show ip rsvp sender
To            From          Pro  DPort  Sport  Prev Hop      I/F    BPS
172.16.1.49   172.16.4.53   1    0      0      172.16.3.53   Et1    80K
172.16.2.51   172.16.5.54   1    0      0      172.16.3.54   Et1    80K
192.168.50.1  192.168.40.1  0    46     0      none          none   17179868160

The tabel below describes the significant fields shown in the display.

Table 60 show ip rsvp sender Field Descriptions

Field

Description

To

IP address of the receiver.

From

IP address of the sender.

Pro

Protocol code.

  • Code 1 indicates an IP protocol such as TCP or User Datagram Protocol (UDP).
  • Code 0 indicates an aggregate reservation.

DPort

Destination port number.

  • The Differentiated Services Code Point (DSCP) for an aggregate reservation.

Sport

Source port number.

  • 0 for an aggregate reservation.

Prev Hop

IP address of the previous hop.

  • None if the node is an aggregator for this reservation.

I/F

Interface of the previous hop.

  • None if the node is an aggregator for this reservation.

BPS

As specified in the sender_tspec characteristics of the sender data flow--specified bit rate, in bits per second.

  • Always 17179868160 for an aggregate reservation.

Examples

The following is sample output from the showiprsvpsenderdetailcommand with application IDs configured:

Router# show ip rsvp sender detail
PATH Session address: 192.168.104.3, port: 4444. Protocol: UDP
  Sender address: 192.168.104.1, port: 4444
     Inbound from: 192.168.104.1 on interface:
  Traffic params - Rate: 5K bits/sec, Max. burst: 1K bytes
                   Min Policed Unit: 0 bytes, Max Pkt Size 4294967295 bytes
  Path ID handle: 09000408.
  Incoming policy: Accepted. Policy source(s): Default
    Priorities - preempt: 5, defend: 2
    Application ID: 'GUID=www.cisco.com, VER=10.1.1.2, APP=voice, SAPP=h323'
                    '/usr/local/bin/CallManager'
  Status: Proxied
  Output on ATM1/0.1. Policy status: Forwarding. Handle: 04000409
    Policy source(s): Default

The table below describes the significant fields shown in the display.

Table 61 show ip rsvp sender detail Field Descriptions

Field

Descriptions

PATH Session address

Destination IP address of the PATH message.

  • port--Number of the destination port.
  • Protocol--IP protocol used.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Inbound from

IP address of the sender and the interface name.

Note

A blank interface field means that the PATH message originated at the router on which the show command is being executed (the headend router). A specified interface means that the PATH message originated at an upstream router.

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
  • Max. burst--Largest amount of data allowed, in kilobytes.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed in bytes.

PATH ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values include Default, Local, and MPLS/TE.

Priorities

Preemption priorities in effect:

  • preempt--The startup priority; values are 0 to 7 for traffic engineering (TE) reservations with 0 being the highest. Values are 0 to 65535 for non-TE reservations with 0 being the lowest.
  • defend--The hold priority; values are the same as for preempt.

Application ID

A quotable string that identifies the sender application and can be used to match on local policies. The string includes the policy locator in the X.500 Distinguished Name format and the application or filename of the sender application.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message has recently been received; therefore, the PSB enters the blockaded state.

Output on ATM1/0/1

Policy status (on the outbound interface):

  • Forwarding--Inbound PATH messages are being forwarded.
  • Not Forwarding--Outbound PATH messages are being rejected.
  • Handle--Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Examples

The following is sample output from the showiprsvpsenderdetail command before FLR has occurred:

Router# show ip rsvp sender detail

PATH:
   Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
   Sender address: 10.10.10.10, port: 1
   Path refreshes:
     arriving: from PHOP 172.16.31.34 on Et0/0 every 30000 msecs
   Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
     Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
   Path ID handle: 01000401.
   Incoming policy: Accepted. Policy source(s): Default
   Status:
   Output on Ethernet1/0. Policy status: Forwarding. Handle: 02000400
     Policy source(s): Default
   Path FLR: Never repaired

The table below describes the significant fields shown in the display.

Table 62 show ip rsvp sender detail Field Descriptions--Before FLR

Field

Descriptions

PATH

PATH message information:

  • Destination IP address.
  • Protocol ID number.
  • Policing.
  • Destination port number.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Path refreshes

Refresh information:

  • IP address of the source (previous hop [PHOP]).
  • Interface name and number.
  • Frequency, in milliseconds (ms).

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
  • Max. burst--Largest amount of data allowed, in kilobytes.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed, in bytes.

PATH ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message have recently been received; therefore, the path state block (PSB) enters the blockaded state.
Note

A blank field means none of the above.

Output on interface

Policy status (on the outbound interface):

  • Forwarding--Inbound PATH messages are being forwarded.
  • Not Forwarding--Outbound PATH messages are being rejected.
  • Handle--Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Path FLR

Never repaired--Indicates that the node has never been a point of local repair (PLR) and, therefore, has never repaired the PSB.

Examples


Note


A node that initiates an FLR procedure is the point of local repair or PLR.


The following is sample output from the showiprsvpsenderdetail command at the PLR during an FLR procedure:

Router# show ip rsvp sender detail

PATH:
   Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
   Sender address: 10.10.10.10, port: 1
   Path refreshes:
     arriving: from PHOP 172.16.31.34 on Et0/0 every 30000 msecs
   Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
     Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
   Path ID handle: 01000401.
   Incoming policy: Accepted. Policy source(s): Default
   Status:
   Path FLR: PSB is currently being repaired...try later
   PLR - Old Segments: 1
    Output on Ethernet1/0, nhop 172.16.36.34
    Time before expiry: 2 refreshes
    Policy status: Forwarding. Handle: 02000400
       Policy source(s): Default

The table below describes the significant fields shown in the display.

Table 63 show ip rsvp sender detail Field Descriptions--at the PLR During FLR

Field

Descriptions

PATH

PATH message information including the following:

  • Destination IP address.
  • Protocol ID number.
  • Policing.
  • Destination port number.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Path refreshes

Refresh information:

  • IP address of the source (previous hop [PHOP]).
  • Interface name and number.
  • Frequency, in milliseconds (ms).

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
  • Max. burst--Largest amount of data allowed, in kilobytes.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed, in bytes.

PATH ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message have recently been received; therefore, the PSB enters the blockaded state.
Note

A blank field means none of the above.

Path FLR

PSB is currently being repaired. FLR is in process.

PLR - Old Segments

The number of old segments or interfaces after the PLR initiated the FLR procedure. For each old segment, the following information displays:

  • Output on interface--Outbound interface after the FLR and the next-hop IP address.
  • Time before expiry--Number of PATH messages sent on a new segment before the old route (segment) expires.
  • Policy status (on the outbound interface):
    • Forwarding--Inbound PATH messages are being forwarded.
    • Not Forwarding--Outbound PATH messages are being rejected.
    • Handle--Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.
  • Policy source(s)--Type of local policy in effect; values are Default, Local, and MPLS/TE.

Examples


Note


The node where the old and new paths (also called segments or interfaces) meet is the merge point (MP).


The following is sample output from the showiprsvpsenderdetail command at the MP during an FLR procedure:

Router# show ip rsvp sender detail

PATH:
   Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
   Sender address: 10.10.10.10, port: 1
   Path refreshes:
     arriving: from PHOP 172.16.37.35 on Et1/0 every 30000 msecs
Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
     Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
   Path ID handle: 09000406.
   Incoming policy: Accepted. Policy source(s): Default
   Status: Proxy-terminated
   Path FLR: Never repaired
   MP - Old Segments: 1
    Input on Serial2/0, phop 172.16.36.35
    Time before expiry: 9 refreshes

The table below describes the significant fields shown in the display.

Table 64 show ip rsvp sender detail Field Descriptions--at the MP During FLR

Field

Descriptions

PATH

PATH message information:

  • Destination IP address.
  • Protocol ID number.
  • Policing.
  • Destination port number.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Path refreshes

Refresh information:

  • IP address of the source (previous hop [PHOP]).
  • Interface name and number.
  • Frequency, in milliseconds (ms).

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
  • Max. burst--Largest amount of data allowed, in kilobytes.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed, in bytes.

PATH ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message have recently been received; therefore, the PSB enters the blockaded state.
Note

A blank field means none of the above.

Path FLR

Never repaired--Indicates that the node has never been a PLR and, therefore, has never repaired the PSB.

MP - Old Segments

The number of old segments or interfaces on the MP before the PLR initiated the FLR procedure. For each old segment,the following information displays:

  • Input on interface--Inbound interface and the previous-hop IP address.
  • Time before expiry--Number of PATH messages to be received on other segments before this segment expires.

Examples

The following is sample output from the showiprsvpsenderdetail command at the PLR after an FLR procedure:

Router# show ip rsvp sender detail

PATH:
   Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
   Sender address: 10.10.10.10, port: 1
   Path refreshes:
     arriving: from PHOP 172.16.31.34 on Et0/0 every 30000 msecs
   Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
     Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
   Path ID handle: 05000401.
   Incoming policy: Accepted. Policy source(s): Default
   Status:
   Output on Serial3/0. Policy status: Forwarding. Handle: 3B000406
     Policy source(s): Default
   Path FLR: Started 12:56:16 EST Thu Nov 16 2006, PSB repaired 532(ms) after.
           Resv/Perr: Received 992(ms) after.

The table below describes the significant fields shown in the display.

Table 65 show ip rsvp sender detail Field Descriptions--At the PLR After FLR

Field

Descriptions

PATH

PATH message information including the following:

  • Destination IP address.
  • Protocol ID number.
  • Policing.
  • Destination port number.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Path refreshes

Refresh information including the following:

  • IP address of the source (previous hop [PHOP]).
  • Interface name and number.
  • Frequency, in milliseconds (ms).

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
  • Max. burst--Largest amount of data allowed, in kilobytes.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed, in bytes.

Path ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message have recently been received; therefore, the PSB enters the blockaded state.
Note

A blank field means none of the above.

Output on Serial3/0

Policy status (on the outbound interface):

  • Forwarding--Inbound PATH messages are being forwarded.
  • Not Forwarding--Outbound PATH messages are being rejected.
  • Handle--Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Path FLR

FLR statistics that show when RSVP received the notification from RIB and how long thereafter the PATH message was sent. This delay can result when the interface on which the PATH message was sent had a wait time configured or when other PSBs were processed before this one or a combination of both. The statistics also show when an associated RESV or PATHERROR message was received.

Note

This delay tells you the time when Quality of Service (QoS) was not honored for the specified flow.

Examples

The following is sample output from the showiprsvpsenderdetail command when TBAC is configured:

Router# show ip rsvp sender detail

PATH:
  Destination 10.0.0.3, Protocol_Id 17, Don't Police , DstPort 2
  Sender address: 10.0.0.1, port: 2
  Path refreshes:
    arriving: from PHOP 10.1.1.1 on Et0/0 every 30000 msecs. Timeout in 189 sec
  Traffic params - Rate: 10K bits/sec, Max. burst: 10K bytes
    Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
  Path ID handle: 02000412.
  Incoming policy: Accepted. Policy source(s): Default
  Status:
  Output on Tunnel1, out of band. Policy status: Forwarding. Handle: 0800040E
    Policy source(s): Default
  Path FLR: Never repaired

The table below describes the significant fields shown in the display.

Table 66 show ip rsvp sender detail Field Descriptions--With TBAC

Field

Descriptions

PATH

PATH message information:

  • Destination IP address.
  • Protocol ID number.
  • Policing.
  • Destination port number.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Path refreshes

Refresh information:

  • IP address of the source (previous hop [PHOP]).
  • Interface name and number.
  • Frequency, in milliseconds (ms).
Note

A blank field means no refreshes have occurred.

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
  • Max. burst--Largest amount of data allowed, in kilobytes.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed, in bytes.

PATH ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message have recently been received; therefore, the PSB enters the blockaded state.
Note

A blank field means none of the above.

Output on Tunnel1

Policy status (on the outbound tunnel with out-of-band signaling):

  • Forwarding--Inbound PATH messages are being forwarded.
  • Not Forwarding--Outbound PATH messages are being rejected.
  • Handle--Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Path FLR

Never repaired--Indicates that the node has never been a point of local repair (PLR) and, therefore, has never repaired the PSB.

Examples

The following is sample output from the showiprsvpsenderdetail command when RSVP aggregation is configured:

Router# show ip rsvp sender detail

PATH:
  Destination 10.10.10.21, Protocol_Id 17, Don't Police , DstPort 1
  Sender address: 10.10.10.11, port: 1
  Path refreshes:
    arriving: from PHOP 10.10.10.34 on Et1/0 every 30000 msecs
  Traffic params - Rate: 10K bits/sec, Max. burst: 10K bytes
    Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
  Path ID handle: 0F000406.
  Incoming policy: Accepted. Policy source(s): Default
  Status:
  3175 Aggregation: agg_info : AggResv 10.10.10.34->10.10.10.2_46
  Output on Serial2/0. Policy status: Forwarding. Handle: 09000405
    Policy source(s): Default
  Path FLR: Never repaired
PATH:
  Deaggregator 10.10.10.2, DSCP 46, Don't Police
  Aggregator address: 10.10.10.34
  Path refreshes:
    arriving: from PHOP 192.168.34.36 on Et1/0 every 30000 msecs
  Traffic params - Rate: 17179868160 bits/sec, Max. burst: 536870784 bytes
    Min Policed Unit: 1 bytes, Max Pkt Size 2147483647 bytes
  Path ID handle: 1500040A.
  Incoming policy: Accepted. Policy source(s): Default
  Status: Proxy-terminated
  Path FLR: Never repaired

The table below describes the significant fields shown in the display.

Table 67 show ip rsvp sender detail Field Descriptions--With RSVP Aggregation

Field

Descriptions

PATH

PATH message information for E2E reservations:

  • Destination IP address.
  • Protocol ID number.
  • Policing.
    • Always Don’t Police.
  • Destination port number.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Path refreshes

Refresh information:

  • IP address of the source (previous hop [PHOP]).
  • Interface name and number.
  • Frequency, in milliseconds (ms).
Note

A blank field means no refreshes have occurred.

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
    • Always MAX rate possible for aggregate reservations.
  • Max. burst--Largest amount of data allowed, in kilobytes.
    • Always MAX burst possible for aggregate reservations.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed, in bytes.

PATH ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message have recently been received; therefore, the PSB enters the blockaded state.
Note

A blank field means none of the above.

3175 Aggregation: agg_info

IP address of the aggregated reservation on which this E2E reservation is mapped with specified source (aggregator) and destination (deaggregator) endpoints and DSCP.

Output on Serial2/0

Policy status (on the outbound interface):

  • Forwarding--Inbound PATH messages are being forwarded.
  • Not Forwarding--Outbound PATH messages are being rejected.
  • Handle--Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Path FLR

Never repaired--Indicates that the node has never been a point of local repair (PLR) and, therefore, has never repaired the PSB.

PATH

PATH message information for aggregate reservations:

  • Deaggregator IP address.
  • Differentiated Services Code Point (DSCP) value.
  • Policing.
    • Always Don’t Police.
  • Aggregator IP address.
Note

Remaining parameters are defined in the preceding fields.

Examples

The following is sample output from the showiprsvpsenderdetail command under these circumstances:

  • The command is entered at the PLR before a failure (Example 1).
  • The command is entered at the PLR after a failure (Example 2).
  • The command is entered at the MP before a failure (Example 3).
  • The command is entered at the MP after a failure (Example 4).
  • The command output shows all senders (Example 5).
  • The command output shows only senders who have a specific destination (Example 6).
  • The command output shows more detail about a sender who has a specific destination (Example 7).

This figure illustrates the network topology for the RSVP configuration example.

Figure 15. Network Topology for the RSVP Configuration Example

Examples

The following is sample output from the showiprsvpsenderdetail command when it is entered at the PLR before a failure:

Router# show ip rsvp sender detail
PATH:
   Tun Dest: 10.2.2.1 Tun ID: 1 Ext Tun ID: 10.2.2.0
   Tun Sender: 10.2.2.0, LSP ID: 126
   Path refreshes arriving on POS1/0 from PHOP 10.1.1.1
   Path refreshes being sent to NHOP 10.1.1.4 on POS1/1
   Session Attr::
     Setup Prio: 0, Holding Prio: 0
     Flags: Local Prot desired, Label Recording, SE Style
     Session Name:tagsw4500-23_t1
   ERO:
     10.1.1.4 (Strict IPv4 Prefix, 8 bytes, /32)
     10.1.1.5 (Strict IPv4 Prefix, 8 bytes, /32)
     10.1.1.6 (Strict IPv4 Prefix, 8 bytes, /32)
     10.2.2.1 (Strict IPv4 Prefix, 8 bytes, /32)
   Traffic params - Rate: 0G bits/sec, Max. burst: 1K bytes
   Fast-Reroute Backup info:
     Inbound  FRR: Not active
     Outbound FRR: Ready -- backup tunnel selected
       Backup Tunnel: Tu2        (label 0)
       Bkup Sender Template:
         Tun Sender: 10.0.0.0, LSP ID: 126
       Bkup FilerSpec:
         Tun Sender: 10.0.0.0, LSP ID 126

The table below describes the significant fields shown in the display.


Note


The Flags field is important for Fast Reroute. For information about flags that must be set, see the Flags field description in the table.


Table 68 show ip rsvp sender detail Field Descriptions--On PLR Before Failure

Field

Description

The first five fields provide information that uniquely identifies the LSP.

The first three fields identify the LSP’s session (that is, the contents of the SESSION object in arriving PATH messages).

Tun Dest

IP address of the destination of the tunnel.

Tun ID

Tunnel identification number.

Ext Tun ID

Extended tunnel identification number.

The next two fields identify the LSP’s sender (SENDER_TEMPLATE object of arriving PATH messages).

Tun Sender

Tunnel sender.

LSP ID

LSP identification number.

The remaining fields indented under PATH provide additional information about this LSP.

Session Attr --Session attributes. Refers to information included in the SESSION_ATTRIBUTE object of arriving PATH messages, such as the Setup and Holding Priorities, Flags, and the Session Name.

Setup Prio

Setup priority.

Holding Prio

Holding priority.

Flags

An LSP must have the “Local protection desired” flag of the SESSION_ATTRIBUTE object set for the LSP to use a backup tunnel (that is, in order to receive local protection). If this flag is not set, you have not enabled Fast Reroute for this tunnel at its headend (by entering the tunnelmplstraffic-engfast-reroute command). Next-next hop (NNHOP) backup tunnels rely on label recording, so LSPs should have the “label recording desired” flag set too. This flag is set if the tunnel was configured for Fast Reroute.

ERO --Refers to the EXPLICIT_ROUTE Object (ERO) of the PATH messages. This field displays the contents of the ERO at this node. As a PATH message travels from the sender (headend) to the receiver (tailend), each node removes its own IP address from the ERO. The displayed value reflects the remainder of hops between this node and the tail.

Fast-Reroute Backup info --Information that is relevant to Fast Reroute for this LSP.

Inbound FRR

If this node is downstream from a rerouted LSP (for example, at a merge point for this LSP), the state is Active.

Outbound FRR

If this node is a PLR for an LSP, there are three possible states:

  • Active--This LSP is actively using its backup tunnel, presumably because there has been a downstream failure.
  • No Backup--This LSP does not have local (Fast Reroute) protection. No backup tunnel has been selected for it to use in case of a failure.
  • Ready--This LSP is ready to use a backup tunnel in case of a downstream link or node failure. A backup tunnel has been selected for it to use.

Backup Tunnel

If the Outbound FRR state is Ready or Active, this field indicates the following:

  • Which backup tunnel has been selected for this LSP to use in case of a failure.
  • The inbound label that will be prepended to the LSP’s data packets for acceptance at the backup tunnel tail (the merge point).

Bkup Sender Template

If the Outbound FRR state is Ready or Active, SENDER_TEMPLATE and FILTERSPEC objects are shown. These objects will be used in RSVP messages sent by the backup tunnel if the LSP starts actively using the backup tunnel. They differ from the original (prefailure) objects only in that the node (the PLR) substitutes its own IP address for that of the original sender. For example, PATH and PATHTEAR messages will contain the new SENDER_TEMPLATE. RESV and RESVTEAR messages will contain the new FILTERSPEC object. If this LSP begins actively using the backup tunnel, the display changes.

Bkup FilerSpec

If the Outbound FRR state is Ready or Active, SENDER_TEMPLATE and FILTERSPEC objects are shown. These objects will be used in RSVP messages sent by the backup tunnel if the LSP starts actively using the backup tunnel. They differ from the original (prefailure) objects only in that the node (the PLR) substitutes its own IP address for that of the original sender. For example, PATH and PATHTEAR messages will contain the new SENDER_TEMPLATE. RESV and RESVTEAR messages will contain the new FILTERSPEC object. If this LSP begins actively using the backup tunnel, the display changes as shown in Example 2.

Examples

If the LSP begins actively using the backup tunnel and the command is entered at the PLR after a failure, the display changes as shown in the following output.

Router# show ip rsvp sender detail
PATH:
   Tun Dest: 10.2.2.1 Tun ID: 1 Ext Tun ID: 10.2.2.0
   Tun Sender: 10.2.2.0, LSP ID: 126
   Path refreshes arriving on POS1/0 from PHOP 10.1.1.1
   Path refreshes being sent to NHOP 10.2.2.1 on Tunnel2
   Session Attr::
     Setup Prio: 0, Holding Prio: 0
     Flags: Local Prot desired, Label Recording, SE Style
     Session Name:tagsw4500-23_t1
   ERO:
     10.2.2.1 (Strict IPv4 Prefix, 8 bytes, /32)
     10.2.2.1 (Strict IPv4 Prefix, 8 bytes, /32)
   Traffic params - Rate: 0G bits/sec, Max. burst: 1K bytes
   Fast-Reroute Backup info:
     Inbound  FRR: Not active
     Outbound FRR: Active -- using backup tunnel
       Backup Tunnel: Tu2        (label 0)
       Bkup Sender Template:
         Tun Sender: 10.0.0.0, LSP ID: 126
       Bkup FilerSpec:
         Tun Sender: 10.0.0.0, LSP ID 126
       Orig Output I/F: Et2
       Orig Output ERO:
         10.1.1.4 (Strict IPv4 Prefix, 8 bytes, /32)
         10.1.1.5 (Strict IPv4 Prefix, 8 bytes, /32)
         10.1.1.6 (Strict IPv4 Prefix, 8 bytes, /32)
         10.2.2.1 (Strict IPv4 Prefix, 8 bytes, /32)

Once an LSP is actively using a backup tunnel, the following changes occur:

  • PATH refreshes are no longer sent to the original NHOP out the original interface. They are sent through the backup tunnel to the node that is the tail of the backup tunnel (NHOP or NNHOP).
  • The ERO is modified so that it will be acceptable upon arrival at the NHOP or NNHOP.
  • The display shows both the original ERO and the new one that is now being used.
  • The display shows the original output interface (that is, the interface from which PATH messages were sent for this LSP before the failure).

Examples

If the same showiprsvpsender command is entered at the merge point (the backup tunnel tail), the display changes from before to after the failure. The following is sample output before a failure:

Router# show ip rsvp sender detail
PATH:
   Tun Dest: 10.2.2.1 Tun ID: 1 Ext Tun ID: 10.2.2.0
   Tun Sender: 10.2.2.0, LSP ID: 126
   Path refreshes arriving on POS0/0 from PHOP 10.1.1.5
   Session Attr::
     Setup Prio: 0, Holding Prio: 0
     Flags: Local Prot desired, Label Recording, SE Style
     Session Name:tagsw4500-23_t1
   Traffic params - Rate: 0G bits/sec, Max. burst: 1K bytes
   Fast-Reroute Backup info:
     Inbound  FRR: Not active
     Outbound FRR: No backup tunnel selected

Examples

After a failure, the following changes occur:

  • The interface and previous hop (PHOP) from which PATH messages are received will change.
  • The inbound FRR becomes Active.
  • The original PHOP and the original input interface are displayed as shown in the following output.

The following is sample output after a failure:

Router# show ip rsvp sender detail
PATH:
   Tun Dest: 10.2.2.1 Tun ID: 1 Ext Tun ID: 10.2.2.0
   Tun Sender: 10.2.2.0, LSP ID: 126
   Path refreshes arriving on POS0/1 from PHOP 10.0.0.0 on Loopback0
   Session Attr::
     Setup Prio: 0, Holding Prio: 0
     Flags: Local Prot desired, Label Recording, SE Style
     Session Name:tagsw4500-23_t1
   Traffic params - Rate: 0G bits/sec, Max. burst: 1K bytes
   Fast-Reroute Backup info:
     Inbound  FRR: Active
       Orig Input I/F: POS0/0
       Orig PHOP: 10.1.1.5
       Now using Bkup Filterspec w/ sender: 10.0.0.0 LSP ID: 126
     Outbound FRR: No backup tunnel selected

Notice the following changes:

  • After a failure, PATH refreshes arrive on a different interface and from a different PHOP.
  • The original PHOP and input interface are shown under Fast-Reroute Backup information, along with the FILTERSPEC object that will now be used when sending messages (such as RESV and RESVTEAR).

Examples

In the following example, information about all senders is displayed:

Router# show ip rsvp sender
To              From              Pro DPort Sport Prev Hop        I/F  BPS  Bytes
10.2.2.1        10.2.2.0          1   1     59    10.1.1.1        Et1   0G     1K
10.2.2.1        172.31.255.255    1   2     9                           0G     1K
10.2.2.1        10.2.2.0          1   3     12    10.1.1.1        Et1   0G     1K
10.2.2.1        172.31.255.255    1   3     20                          0G     1K
172.16.0.0      172.31.255.255    1   0     23                          0G     1K
172.16.0.0      172.31.255.255    1   1     22                          0G     1K
172.16.0.0      172.31.255.255    1   1000  22                          0G     1K

The table below describes the significant fields shown in the display.

Table 69 show ip rsvp sender Field Descriptions

Field

Description

To

IP address of the receiver.

From

IP address of the sender.

Pro

Protocol code. Code 1 indicates Internet Control Message Protocol (ICMP).

DPort

Destination port number.

Sport

Source port number.

Prev Hop

IP address of the previous hop.

I/F

Interface of the previous hop.

BPS

Reservation rate, in bits per second, that the application is advertising it might achieve.

Bytes

Bytes of burst size that the application is advertising it might achieve.

Examples

To show only information about senders having a specific destination, specify the destination filter as shown in the following output. In this example, the destination is 172.16.0.0.

Router# show ip rsvp sender filter destination 172.16.0.0
To          From         Pro DPort Sport Prev Hop    I/F  BPS  Bytes
172.16.0.0  172.31.255   1   0     23                      0G     1K
172.16.0.0  172.31.255   1   1     22                      0G     1K
172.16.0.0  172.31.255   1   1000  22                      0G     1K

Examples

To show more detail about the sender whose destination port is 1000 (as shown in Example 6), specify the command with the destination port filter:

Router# show ip rsvp sender filter detail dst-port 1000
PATH:
  Tun Dest 172.16.0.0 Tun ID 1000 Ext Tun ID 172.31.255.255
  Tun Sender: 172.31.255.255, LSP ID: 22
  Path refreshes being sent to NHOP 10.1.1.4 on Ethernet2
  Session Attr::
    Setup Prio: 7, Holding Prio: 7
    Flags: SE Style
    Session Name:tagsw4500-25_t1000
  ERO:
    10.1.1.4 (Strict IPv4 Prefix, 8 bytes, /32)
    172.16.0.0 (Strict IPv4 Prefix, 8 bytes, /32)
  Traffic params - Rate: 0G bits/sec, Max. burst: 1K bytes
  Fast-Reroute Backup info:
    Inbound  FRR: Not active
    Outbound FRR: No backup tunnel selected

Examples

The following is sample output from the showiprsvpsendervrfmyvrfdetail command showing all the senders associated with the VRF named myvrf:

Router# show ip rsvp sender detail vrf myvrf
PATH:
  Destination 10.10.10.21, Protocol_Id 17, Don't Police , DstPort 1
  Sender address: 10.10.10.11, port: 1
  Path refreshes:
Traffic params - Rate: 10K bits/sec, Max. burst: 10K bytes
    Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
  Path ID handle: 0F000406.
  Incoming policy: Accepted. Policy source(s): Default
  Status: Proxied
Output on Serial2/0. Policy status: Forwarding. Handle: 09000405
    Policy source(s): Default
  Path FLR: Never repaired
  VRF: myvrf

The table below describes the significant fields shown in the display.

Table 70 show ip rsvp sender detail Field Descriptions--With VRF

Field

Descriptions

PATH

PATH message information for E2E reservations:

  • Destination IP address.
  • Protocol ID number.
  • Policing.
    • Always Don’t Police.
  • Destination port number.

Sender address

Source IP address of the PATH message.

  • port--Number of the source port.

Path refreshes

Refresh information:

  • IP address of the source (previous hop [PHOP]).
  • Interface name and number.
  • Frequency, in milliseconds (ms).
Note

A blank field means no refreshes have occurred.

Traffic params

Traffic parameters in effect:

  • Rate--Speed, in kilobits per second.
    • Always MAX rate possible for aggregate reservations.
  • Max. burst--Largest amount of data allowed, in kilobytes.
    • Always MAX burst possible for aggregate reservations.
  • Min Policed Unit--Size, in bytes, of the smallest packet generated by the application, including the application data and all protocol headers at or above the IP level.
  • Max Pkt Size--Largest packet allowed, in bytes.

PATH ID handle

Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Incoming policy

State of the incoming policy:

  • Accepted--RSVP PATH messages are being accepted, but not forwarded.
  • Not Accepted--RSVP PATH messages are being rejected.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Status

Status of the local policy:

  • Proxied--Head.
  • Proxy-terminated--Tail.
  • Blockaded--Tail or midpoint and an RESVERROR message have recently been received; therefore, the PSB enters the blockaded state.
Note

A blank field means none of the above.

Output on Serial2/0

Policy status (on the outbound interface):

  • Forwarding--Inbound PATH messages are being forwarded.
  • Not Forwarding--Outbound PATH messages are being rejected.
  • Handle--Internal database ID assigned to the PATH message by RSVP for bookkeeping purposes.

Policy source(s)

Type of local policy in effect; values are Default, Local, and MPLS/TE.

Path FLR

Never repaired--Indicates that the node has never been a point of local repair (PLR) and, therefore, has never repaired the PSB.

VRF

Name of the VRF for which senders are displayed.

Examples

The following is sample output from the showiprsvpsenderdetailcommand showing point-to-multipoint information:

Router# show ip rsvp sender detail

P2MP ID: 22  Tun ID: 22  Ext Tun ID: 10.1.1.201
  Tun Sender: 10.1.1.201  LSP ID: 1  SubGroup Orig: 10.1.1.201
  SubGroup ID: 1
  S2L Destination : 10.1.1.203
  Path refreshes:
    sent:     to   NHOP 10.0.0.205 on Ethernet0/0
  Session Attr:
    Setup Prio: 7, Holding Prio: 7
    Flags: (0xF) Local Prot desired, Label Recording, SE Style, Bandwidth Prot desired
    Session Name: R201_t22
  ERO: (incoming)
    10.1.1.201 (Strict IPv4 Prefix, 8 bytes, /32)
    10.0.0.201 (Strict IPv4 Prefix, 8 bytes, /32)
    10.0.0.205 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.1.205 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.1.202 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.0.202 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.0.203 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.1.203 (Strict IPv4 Prefix, 8 bytes, /32)
  ERO: (outgoing)
    10.0.0.205 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.1.205 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.1.202 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.0.202 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.0.203 (Strict IPv4 Prefix, 8 bytes, /32)
    10.1.1.203 (Strict IPv4 Prefix, 8 bytes, /32)
  Traffic params - Rate: 500K bits/sec, Max. burst: 1K bytes
    Min Policed Unit: 1 bytes, Max Pkt Size 2147483647 bytes
  Fast-Reroute Backup info:
    Inbound  FRR: Not active
    Outbound FRR: Ready -- backup tunnel selected
      Backup Tunnel: Tu666      (label 20)
      Bkup Sender Template:
        Tun Sender: 10.0.2.201  LSP ID: 1  SubGroup Orig: 10.1.1.201
        SubGroup ID: 1
      Bkup FilerSpec:
        Tun Sender: 10.0.2.201, LSP ID: 1, SubGroup Orig: 10.1.1.201
        SubGroup ID: 1
  Path ID handle: 01000414.
  Incoming policy: Accepted. Policy source(s): MPLS/TE
  Status: Proxied
  Output on Ethernet0/0. Policy status: Forwarding. Handle: 02000413
    Policy source(s): MPLS/TE

The table below describes the significant fields shown in the display.

Table 71 show ip rsvp sender--MPLS TE P2MP Field Descriptions

Field

Description

P2MP ID

A 32-bit number that identifies the set of destinations of the P2MP tunnel.

Tun ID

Tunnel identification number.

Ext Tun ID

Extended tunnel identification number.

Tun Sender

IP address of the sender.

LSP ID

Label switched path identification number.

SubGroup Orig

LSP headend router ID address.

SubGroup ID

An incremental number assigned to each sub-LSP signaled from the headend router.

S2L Destination

LSP tailend router ID address.

The following is sample output from the showiprsvpsenderfiltersession-type13command, which shows RSVP RESV requests for point-to-multipoint traffic:

Router# show ip rsvp sender filter session-type 13

Session Type 13 (te-p2mp-lsp)
Destination     Tun Sender      TunID LSPID P2MP-ID    SubID I/F      BPS
10.1.1.203       10.1.1.201       22    1     22         1     none     500K
10.1.1.206       10.1.1.201       22    1     22         2     none     500K
10.1.1.213       10.1.1.201       22    1     22         3     none     500K
10.1.1.214       10.1.1.201       22    1     22         4     none     500K
10.1.1.216       10.1.1.201       22    1     22         5     none     500K
10.1.1.217       10.1.1.201       22    1     22         6     none     500K

Related Commands

Command

Description

ip rsvp sender

Enables a router to simulate RSVP PATH message reception from the sender.

show ip rsvp reservation

Displays RSVP PATH-related receiver information currently in the database.

show ip rsvp signalling

To display Resource Reservation Protocol (RSVP) signaling information that optionally includes rate-limiting and refresh-reduction parameters for RSVP messages, use the showiprsvpsignallingcommand in EXEC mode.

show ip rsvp signalling [ rate-limit | refresh reduction ]

Syntax Description

rate-limit

(Optional) Rate-limiting parameters for signalling messages.

refresh reduction

(Optional) Refresh-reduction parameters and settings.

Command Modes


EXEC

Command History

Release

Modification

12.2(13)T

This command was introduced.

Usage Guidelines

Use the showiprsvpsignallingcommand witheithertherate-limitor therefreshreduction keyword to display rate-limiting parameters or refresh-reduction parameters, respectively.

Examples

The following command shows rate-limiting parameters:

Router# show ip rsvp signalling rate-limit
Rate Limiting:enabled
  Max msgs per interval:4
  Interval length (msec):20
  Max queue size:500
  Max msgs per second:200
  Max msgs allowed to be sent:37

The table below describes the fields shown in the display.

Table 72 show ip rsvp signalling rate-limit Command Field Descriptions

Field

Description

Rate Limiting: enabled (active) or disabled (not active)

The RSVP rate-limiting parameters in effect including the following:

  • Max msgs per interval = number of messages allowed to be sent per interval (timeframe).
  • Interval length (msecs) = interval (timeframe) length in milliseconds.
  • Max queue size = maximum size of the message queue in bytes.
  • Max msgs per second = maximum number of messages allowed to be sent per second.

The following command shows refresh-reduction parameters:

Router# show ip rsvp signalling refresh reduction
Refresh Reduction:enabled
  ACK delay (msec):250
  Initial retransmit delay (msec):1000
  Local epoch:0x74D040
  Message IDs:in use 600, total allocated 3732, total freed 3132

The table below describes the fields shown in the display.

Table 73 show ip rsvp signalling refresh reduction Command Field Descriptions

Field

Description

Refresh Reduction: enabled (active) or disabled (not active)

The RSVP refresh-reduction parameters in effect including the following:

  • ACK delay (msec) = how long in milliseconds before the receiving router sends an acknowledgment (ACK).
  • Initial retransmit delay (msec) = how long in milliseconds before the sending router retransmits a message.
  • Local epoch = the RSVP process identifier that defines a local router for refresh reduction and reliable messaging; randomly generated each time a node reboots or the RSVP process restarts.
  • Message IDs = the number of message identifiers (IDs) in use, the total number allocated, and the total number available (freed).

Related Commands

Command

Description

clear ip rsvp signalling rate-limit

Clears the counters recording dropped messages.

clear ip rsvp signalling refresh reduction

Clears the counters recording retransmissions and out-of-order messages.

debug ip rsvp rate-limit

Displays debug messages for RSVP rate-limiting events.

ip rsvp signalling rate-limit

Controls the transmission rate for RSVP messages sent to a neighboring router during a specified amount of time.

ip rsvp signalling refresh reduction

Enables refresh reduction.

show ip rsvp signalling blockade

To display the Resource Reservation Protocol (RSVP) sessions that are currently blockaded, use the showiprsvpsignallingblockadecommand in EXEC mode.

show ip rsvp signalling blockade [detail] [ name | address ]

Syntax Description

detail

(Optional) Additional blockade information.

name

(Optional) Name of the router being blockaded.

address

(Optional) IP address of the destination of a reservation.

Command Default

If you enter the showiprsvpsignallingblockadecommand without a keyword or an argument, the command displays all the blockaded sessions on the router.

Command Modes


EXEC

Command History

Release

Modification

12.2(13)T

This command was introduced.

Usage Guidelines

Use the show ip rsvp signalling blockade command to display the RSVP sessions that are currently blockaded.

An RSVP sender becomes blockaded when the corresponding receiver sends a Resv message that fails admission control on a router that has RSVP configured. A ResvError message with an admission control error is sent in reply to the Resv message, causing all routers downstream of the failure to mark the associated sender as blockaded. As a result, those routers do not include that contribution to subsequent Resv refreshes for that session until the blockade state times out.

Blockading solves a denial-of-service problem on shared reservations where one receiver can request so much bandwidth as to cause an admission control failure for all the receivers sharing that reservation, even though the other receivers are making requests that are within the limit.

Examples

The following example shows all the sessions currently blockaded:

Router# show ip rsvp signalling blockade
To              From            Pro DPort Sport Time Left Rate
192.168.101.2   192.168.101.1   UDP 1000  1000  27        5K
192.168.101.2   192.168.101.1   UDP 1001  1001  79        5K
192.168.101.2   192.168.101.1   UDP 1002  1002  17        5K
225.1.1.1       192.168.104.1   UDP 2222  2222  48        5K

The table below describes the fields shown in the display.

Table 74 show ip rsvp signalling blockade Command Field Descriptions

Field

Description

To

IP address of the receiver.

From

IP address of the sender.

Pro

Protocol used.

DPort

Destination port number.

Sport

Source port number.

Time Left

Amount of time, in seconds, before the blockade expires.

Rate

The average rate, in bits per second, for the data.

The following example shows more detail about the sessions currently blockaded:

Router# show ip rsvp signalling blockade detail
Session address: 192.168.101.2, port: 1000. Protocol: UDP
Sender address:  192.168.101.1, port: 1000
  Admission control error location: 192.168.101.1
  Flowspec that caused blockade:
    Average bitrate:      5K bits/second
    Maximum burst:        5K bytes
    Peak bitrate:         5K bits/second
    Minimum policed unit: 0 bytes
    Maximum packet size:  0 bytes
    Requested bitrate:    5K bits/second
    Slack:                0 milliseconds
  Blockade ends in:       99 seconds
Session address: 192.168.101.2, port: 1001. Protocol: UDP
Sender address:  192.168.101.1, port: 1001
  Admission control error location: 192.168.101.1
  Flowspec that caused blockade:
    Average bitrate:      5K bits/second
    Maximum burst:        5K bytes
    Peak bitrate:         5K bits/second
    Minimum policed unit: 0 bytes
    Maximum packet size:  0 bytes
    Requested bitrate:    5K bits/second
    Slack:                0 milliseconds
  Blockade ends in:       16 seconds
Session address: 192.168.101.2, port: 1002. Protocol: UDP
Sender address:  192.168.101.1, port: 1002
  Admission control error location: 192.168.101.1
  Flowspec that caused blockade:
    Average bitrate:      5K bits/second
    Maximum burst:        5K bytes
    Peak bitrate:         5K bits/second
    Minimum policed unit: 0 bytes
    Maximum packet size:  0 bytes
    Requested bitrate:    5K bits/second
    Slack:                0 milliseconds
  Blockade ends in:       47 seconds
Session address: 225.1.1.1, port: 2222. Protocol: UDP
Sender address:  192.168.104.1, port: 2222
  Admission control error location: 192.168.101.1
  Flowspec that caused blockade:
    Average bitrate:      5K bits/second
    Maximum burst:        5K bytes
    Peak bitrate:         5K bits/second
    Minimum policed unit: 0 bytes
    Maximum packet size:  0 bytes
    Requested bitrate:    5K bits/second
    Slack:                0 milliseconds
  Blockade ends in:       124 seconds

The table below describes the fields shown in the display.

Table 75 show ip rsvp signalling blockade detail Command Field Descriptions

Field

Description

Session address

Destination IP address of the reservation affected by the blockade.

port

Destination port number of the reservation affected by the blockade.

Protocol

Protocol used by the reservation affected by the blockade; choices include User Datagram Protocol (UDP) and TCP.

Sender address

Source IP address of the reservation affected by the blockade.

port

Source port number of the reservation affected by the blockade.

Admission control error location

IP address of the router where the admission control error occurred.

Flowspec that caused blockade

Parameters for the flowspec that caused the blockade.

Average bitrate

The average rate, in bits per second, for the flowspec.

Maximum burst

The maximum burst size, in bytes, for the flowspec.

Peak bitrate

The peak rate, in bps, for the flowspec.

Minimum policed unit

The minimum policed unit, in bytes, for the flowspec.

Maximum packet size

The maximum packet size, in bytes, for the flowspec.

Requested bitrate

The requested rate, in bits per second, for the flowspec.

Slack

Time, in milliseconds, allocated to a router for scheduling delivery of packets.

Blockade ends in

Time, in seconds, until the blockade expires.

show ip rsvp signalling fast-local-repair

To display fast-local-repair (FLR)-specific information maintained by Resource Reservation Protocol (RSVP), use the showiprsvpsignallingfast-local-repair command in user EXEC or privileged EXEC mode.

show ip rsvp signalling fast-local-repair [ statistics [detail] ]

Syntax Description

statistics

(Optional) Displays information about FLR procedures.

detail

(Optional) Displays additional information about FLR procedures.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.2(33)SRB

This command was introduced.

15.0(1)M

This command was modified. The output was changed to display the virtual routing and forwarding (VRF) name for which the FLR was triggered on the point of local repair (PLR).

Cisco IOS XE Release 2.6

This command was integrated into Cisco IOS XE Release 2.6.

Usage Guidelines

Use the showiprsvpsignallingfast-local-repair command to display the FLR and RSVP message pacing rates that are configured.

Use the showiprsvpsignallingfast-local-repairstatisticscommand to display the FLR procedures and related information including the following:

  • The process number
  • The state
  • The start time
  • The number of path state blocks (PSBs) repaired
  • The repair rate
  • The Routing Information Base (RIB) notification process time
  • The repair time of the last PSB

Use the showiprsvpsignallingfast-local-repairstatisticsdetailcommand to display detailed information about FLR procedures including the following:

  • The time of the routing notification
  • The elapsed time for processing all notifications in the queue
  • The rate and pacing unit (the refresh spacing in ms) used
  • The number of PSBs repaired
  • The number of times RSVP has suspended

For each run, the following information appears:

  • The time that the run started relative to the start of the procedure
  • The time that RSVP suspended again
  • The number of notifications processed in this run

For each neighbor, the following information appears:

  • The delay of the first PATH message sent to this neighbor
  • The delay of the last PATH message sent to this neighbor

Examples

Examples

The following example displays information about the FLR rate:

Router# show ip rsvp signalling fast-local-repair
Fast Local Repair: enabled
   Max repair rate (paths/sec): 400
   Max processed   (paths/run): 1000

The table below describes the significant fields shown in the display.

Table 76 show ip rsvp signalling fast-local-repair Field Descriptions

Field

Description

Fast Local Repair

FLR state. Values are the following:

  • enabled--FLR is configured.
  • disabled--FLR is not configured.

Max repair rate (paths/sec)

Maximum repair rate, in paths per second.

Max processed (paths/run)

Maximum notification elements processed, in paths per run.

Examples

The following example displays information about FLR procedures:

Router# show ip rsvp signalling fast-local-repair statistics
Fast Local Repair: enabled
   Max repair rate (paths/sec): 1000
   Max processed   (paths/run): 1000
FLR Statistics:
  FLR   State    Start                          #PSB   Repair RIB Proc Last
  Proc.          Time                           Repair Rate   Time     PSB
  1     DONE     15:16:32 MET Wed Oct 25 2006   2496   1000   91(ms)   3111(ms)

The table below describes the significant fields shown in the display.

Table 77 show ip rsvp signalling fast-local-repair statistics Field Descriptions

Field

Description

Fast Local Repair

FLR state. Values are the following:

  • enabled--FLR is configured.
  • disabled--FLR is not configured.

Max repair rate (paths/sec)

Maximum repair rate, in paths per second.

Max processed (paths/run)

Maximum notification elements processed, in paths per run.

FLR Statistics

FLR-related information.

FLR Proc.

FLR procedure number. The last 32 procedures are listed from the most recent to the oldest; they are numbered from 1 to 32.

State

Current state of the FLR procedure. Values are the following:

  • DONE--The FLR procedure is complete.
  • IN PROGRESS--The FLR procedure is incomplete.

Start Time

Time when RSVP received the routing notification.

#PSB Repair

Number of PSBs repaired.

Repair Rate

Repair rate used, in paths per second.

RIB Proc Time

Time that RSVP spent to process all RIB notifications and schedule the path refreshes, in microseconds (us), milliseconds (msec or ms), or seconds (sec).

Note

The value is converted to fit the column width; however, seconds are rarely used because RSVP RIB notification processing is very fast.

Last PSB

Elapsed time, in microseconds (us), milliseconds (msec or ms), or seconds (sec), between the start of an FLR procedure and when RSVP sent the last PATH message.

Note

The value is converted to fit the column width; however, seconds are rarely used because RSVP RIB notification processing is very fast.

Examples

The following example displays detailed information about FLR procedures:

Router# show ip rsvp signalling fast-local-repair statistics detail
Fast Local Repair: enabled
   Max repair rate (paths/sec): 1000
   Max processed   (paths/run): 1000
FLR Statistics:
   FLR 1: DONE
     Start Time: 15:16:32 MET Wed Oct 25 2006
     Number of PSBs repaired:          2496
     Used Repair Rate (msgs/sec):      1000
     RIB notification processing time: 91(ms)
     Time of last PSB refresh:         3111(ms)
     Time of last Resv received:       4355(ms)
     Time of last Perr received:       0(us)
     Suspend count: 2
       Run  Number   Started              Duration
       ID   of ntf.  (time from Start)
       2    498      81(ms)               10(ms)
       1    998      49(ms)               21(ms)
       0    1000     0(us)                22(ms)
     FLR Pacing Unit: 1 msec
     Affected neighbors:
       Nbr Address     Interface    Relative Delay Values (msec) VRF
       10.1.2.12       Et0/3        [500  ,..., 5000  ]          vrf1
       10.1.2.12       Et1/3        [500  ,..., 5000  ]          vrf2

The table below describes the significant fields shown in the display.

Table 78 show ip rsvp signalling fast-local-repair statistics detail Field Descriptions

Field

Description

Fast Local Repair

FLR state. Values are the following:

  • enabled--FLR is configured.
  • disabled--FLR is not configured.

Max repair rate (paths/sec)

Maximum repair rate, in paths per second.

Max processed (paths/run)

Maximum notification elements processed, in paths per run.

FLR Statistics

FLR-related information.

FLR 1

FLR procedure number and current state. The last 32 procedures are listed from the most recent to the oldest; they are numbered from 1 to 32. Values for the state are the following:

  • DONE--The FLR procedure is complete.
  • IN PROGRESS--The FLR procedure is incomplete.

Start Time

Time when RSVP received the routing notification.

Number of PSBs repaired

Total PSBs repaired.

Used Repair Rate (msgs/sec)

Repair rate used, in messages per second.

RIB notification processing time

Time, in milliseconds (ms), that RSVP spent to process all RIB notifications.

Time of last PSB refresh

Elapsed time, in milliseconds (ms), between the start of an FLR procedure and when RSVP sent the last PATH refresh message.

Time of last Resv received

Elapsed time, in milliseconds (ms), between the start of an FLR procedure and when RSVP received the last RESV message.

Time of last Perr received

Elapsed time, in microseconds (us), between the start of an FLR procedure and when RSVP received the last PATHERROR message.

Suspend count

Number of times that RSVP has suspended during a specific procedure.

Note

If this value is nonzero, details for each run are shown.

Run ID

Identifier (number) for each time that RSVP has run.

Number of ntf.

Number of notifications (PSBs) processed in a run.

Started (time from Start)

Time, in milliseconds (ms), that the run began relative to the start of the FLR procedure.

Duration

Length of time, in milliseconds (ms), for the run.

FLR Pacing Unit

Frequency, in milliseconds (msec), for RSVP message pacing; that is, how often a PATH message is sent. The value is rounded down.

Affected neighbors

Neighbors involved in the FLR procedure.

Nbr Address

IP address for each neighbor involved in a procedure.

Interface

Interface for the neighbor.

Relative Delay Values

Times, in milliseconds (msec), when the PSB refreshes were sent.

Note

In the sample display, there is a 1-msec pacing unit; therefore, PSBs to 10.1.2.12 have been sent with delays of 1 msec from 500, 501, 502, 503, ... 2995. If a 5-msec pacing unit were used, the delays would be 500, 505, 510,... 2990, 2995.

VRF

VRF name for which the FLR was triggered on the PLR.

Related Commands

Command

Description

ip rsvp signalling fast-local-repair notifications

Configures the number of notifications that are processed before RSVP suspends.

ip rsvp signalling fast-local-repair rate

Configures the repair rate that RSVP uses for an FLR procedure.

ip rsvp signalling fast-local-repair wait

Configures the delay used to start an FLR procedure.

ip rsvp signalling rate-limit

Controls the transmission rate for RSVP messages sent to a neighboring router during a specified amount of time.

show ip rsvp signalling rate-limit

To display the Resource Reservation Protocol (RSVP) rate-limiting parameters, use the showiprsvpsignallingrate-limit command in user EXEC or privileged EXEC mode.

show ip rsvp signalling rate-limit

Syntax Description

This command has no arguments or keywords.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.2(13)T

This command was introduced.

12.0(24)S

This command was integrated into Cisco IOS Release 12.0(24)S.

12.0(29)S

The command output was modified to show the revised rate-limiting parameters.

12.2(28)SB

This command was integrated into Cisco IOS Release 12.2(28)SB.

12.2(18)SXF5

This command was integrated into Cisco IOS Release 12.2(18)SXF5.

12.2(33)SRB

This command was integrated into Cisco IOS Release 12.2(33)SRB.

Cisco IOS XE Release 2.3

This command was integrated into Cisco IOS XE Release 2.3.

Examples

The following command shows the rate-limiting parameters:

Router# show ip rsvp signalling rate-limit
Rate Limiting:
  Burst: 1
  Limit: 20
  Maxsize: 500
  Period <msec>: 5
  Max rate <msgs/sec>: 2

The table below describes the fields shown in the display.

Table 79 show ip rsvp signalling rate-limit Field Descriptions

Field

Description

Rate Limiting

The RSVP rate-limiting parameters are enabled or disabled. They include the following:

  • Burst-Number of messages sent each period from the queue.
  • Limit-Maximum number of messages sent each period from the queue.
  • Maxsize-Maximum size of the message queue, in bytes.
  • Period (msec)-Interval (time frame) in milliseconds.
  • Max rate (msgs/sec)-Maximum number of messages allowed to be sent per second.

Related Commands

Command

Description

clear ip rsvp signalling rate-limit

Clears (sets to zero) the number of messages that were dropped because of a full queue.

debug ip rsvp rate-limit

Displays debug messages for RSVP rate-limiting events.

ip rsvp signalling rate-limit

Controls the transmission rate for RSVP messages sent to a neighboring router during a specified amount of time.

show ip rsvp signalling refresh

To display the Resource Reservation Protocol (RSVP) signaling refresh behavior parameters for RSVP messages, use the showiprsvpsignallingrefresh command in user EXEC or privileged EXEC mode.

show ip rsvp signalling refresh { interval | misses | reduction }

Syntax Description

interval

Specifies the time interval between steady refresh messages.

misses

Specifies the number of refreshes that are not received during the trigger state timeout.

reduction

Specifies the RSVP refresh reduction parameters and settings.

Command Modes


User EXEC (>)


Privileged EXEC (#)

Command History

Release

Modification

12.2(13)T

This command was introduced.

12.2(24)T

Theinterval and misses keywords were added.

12.2(33)SXH

This command was integrated into Cisco IOS Release 12.2(33)SXH.

12.2(33)SRC

This command was integrated into Cisco IOS Release 12.2(33)SRC.

Usage Guidelines

Use the showiprsvpsignallingrefresh command to display the refresh behavior parameters.

Examples

The following example shows the refresh interval parameters:

Router# show ip rsvp signalling refresh interval

Refresh interval (msec): 30000

The following example shows the refresh misses parameters:

Router# show ip rsvp signalling refresh misses
Refresh misses: 4

The following example shows the refresh reduction parameters:

Router# show ip rsvp signalling refresh reduction
Refresh Reduction: disabled
  ACK delay (msec): 250
  Initial retransmit delay (msec): 1000
  Local epoch: 0x6975F6
  Message IDs: in use 0, total allocated 0, total freed 0

Related Commands

Command

Description

clear ip rsvp signalling rate-limit

Clears the counters recording dropped messages.

debug ip rsvp rate-limit

Displays debug messages for RSVP rate-limiting events.

ip rsvp signalling rate-limit

Controls the transmission rate for RSVP messages sent to a neighboring router during a specified amount of time.

show ip rsvp snooping

To display a list of VLANs in which Resource Reservation Protocol (RSVP) snooping is enabled, use the show ip rsvp snooping command in privileged EXEC mode.

show ip rsvp snooping

Syntax Description

This command has no arguments or keywords.

Command Modes


Privileged EXEC (#)


Command History

Release

Modification

12.2(44)SE

This command was introduced.

Usage Guidelines

You can use the ip rsvp snooping command to enabled RSVP snooping on the required VLANs. The show ip rsvp snooping command allows you to view how many VLANs have RSVP snooping enabled in them. VLAN details are optional and are visible only on platforms that support per-VLAN snooping. If VLAN details are not specified in the ip rsvp snooping command, snooping will be enabled on all VLANs and the show ip rsvp snooping command indicates the same.

Examples

The following sample output displays a list of VLANs in which RSVP snooping is enabled:

Device# show ip rsvp snooping

*May 29 09:06:27.597: %SYS-5-CONFIG_I: Configured from console by consoleoping

RSVP Snooping is enabled on this Vlans
----------------------------------------
VLan 70         VLan 71         VLan 72
VLan 73         VLan 74
----------------------------------------



The following sample output shows that RSVP snooping is enabled on all VLANs:

Device# show ip rsvp snooping

RSVP snooping is enabled globally.


Related Commands

Command

Description

ip rsvp snooping

Enables RSVP snooping in a specific set of VLANs.

show ip rsvp tos

To display IP type of service (ToS) information about Resource Reservation Protocol (RSVP) interfaces, use the showiprsvptoscommand in user EXEC or privileged EXEC mode.

show ip rsvp tos [ type number ]

Syntax Description

type

(Optional) Type of interface.

number

(Optional) Number of the interface.

Command Modes


User EXEC(>)
Privileged EXEC(#)

Command History

Release

Modification

15.0(1)M

This command was introduced.

Usage Guidelines

To obtain IP ToS information about a specific interface configured to use RSVP, specify the interface name with the show ip rsvp tos command. To obtain IP ToS information about all interfaces enabled for RSVP on the router, use the show ip rsvp tos command without specifying an interface name.

Examples

The following example shows the IP ToS information for the interaces on which RSVP is enabled:

Router# show ip rsvp tos ethernet 0/1
Interface name   Precedence  Precedence   TOS          TOS
                   conform    exceed     conform     exceed
Ethernet0/0          -           -         -            -
Ethernet0/1          -           -         -            -
Ethernet1/1          -           -         4            -
Ethernet1/2          3           -         -            -

The table below describes the fields shown in the display.

Table 80 show ip rsvp tos Field Descriptions

Field

Description

Interface name

Displays the interface details.

Precedence conform

Displays the IP precedence conform information for an interface.

Note

The Precedence conform value specifies an IP precedence value in the range from 0 to 7 for traffic that conforms to the RSVP flowspec.

Precedence exceed

Displays the IP precedence exceed information for an interface.

Note

The Precedence exceed value specifies an IP Precedence value in the range from 0 to 7 for traffic that exceeds the RSVP flowspec.

TOS conform

Displays the IP type of service (ToS) conform information for an interface.

Note

The TOS conform value specifies a ToS value in the range from 0 to 31 for traffic that conforms to the RSVP flowspec.

TOS exceed

Displays the IP type of service (ToS) exceed information for an interface.

Note

The TOS exceed value specifies a ToS value in the range from 0 to 31 for traffic that exceeds the RSVP flowspec.

Related Commands

Command

Description

show ip rsvp

Displays RSVP-related information.

show ip rsvp interface

Displays RSVP-related interface information.

show ip rsvp precedence

Displays IP precedence information for RSVP enabled interfaces.

show ip rsvp transport

To display information about Resource Reservation Protocol (RSVP) transport protocol (TP) sessions, use the showiprsvptransport command in user EXEC or privileged EXEC mode.

show ip rsvp transport { clients | statistics }

Syntax Description

clients

Displays information about RSVP clients that initiated the TP sessions.

statistics

Displays statistics for RSVP TP sessions.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

15.1(3)T

This command was introduced.

15.1(1)S

This command was integrated into Cisco IOS Release 15.1(1)S.

Examples

The following is sample output from the showiprsvptransportstatistics command:

Router# show ip rsvp transport statistics
RSVP Transport Statistics:
 Transport Statistics: 2
  Start Time: 05:57:42 IST Thu Nov 5 2009
  Destination: 10.1.1.2, Protocol_Id: 6, DstPort: 22
  Client_id: 1, Initiator_Id: 10.1.1.1
  Source: 10.1.1.1, SrcPort: 11, Instance_Id: 9999
 Outgoing interface: Ethernet1/0
  Event type: RSVP_TP_EVENT_SESSION_DOWN
 Transport Statistics: 1
  Start Time: 05:57:16 IST Thu Nov 5 2009
  Destination: 10.1.1.2, Protocol_Id: 6, DstPort: 22
  Client_id: 1, Initiator_Id: 10.1.1.1
  Source: 10.1.1.1, SrcPort: 11, Instance_Id: 9999
  Incoming interface: Ethernet0/0
  TP data: example1
  Event type: RSVP_TP_EVENT_MSG_RCVD
  Received message type: Path

The table below describes the significant fields shown in the display.

Table 81 show ip rsvp transport statistics Field Descriptions

Field

Description

Transport Statistics

Displays the buffer size, in megabye (MB), which is used to store information about the RSVP TP statistics.

Start Time

Displays the time from when the router started recording RSVP statistics.

Destination

Destination address to where the PATH message is sent.

Protocol_Id

Identifier that is used to configure RSVP as transport protocol.

DstPort

Destination port to which the PATH message is sent.

Client_id

Identification number of the client that initiates RSVP as a transport protocol.

Initiator_Id

Hostname or IP address that identifies the node initiating the transport service request.

Source

Source address from where the PATH message is sent.

SrcPort

Source port from which the PATH message is sent.

Instance_Id

Instance ID that identifies the transport service request from a particular client application and from a particular initiator.

Incoming interface

Interface type and number from which the PATH messages are sent.

TP data

Transport protocol data.

Event type

Type of event that has occurred.

Received message type

Type of messages being sent.

The following example shows how to display the RSVP client ID and client type information:

Router# show ip rsvp transport clients
Client-ID  Type
1          	CLI

Related Commands

Command

Description

show ip rsvp transport sender-host

Displays RSVP PATH state information.

show ip rsvp transport sender

To display Resource Reservation Protocol (RSVP) PATH state information, use the showiprsvptransportsender command in user EXEC or privileged EXEC mode.

show ip rsvp transport sender [ vrf { * | vrf-name } ] [detail] [ filter [ destination dest-address | dst-port dst-port | source source-addr | src-port src-port ] ]

Syntax Description

vrf

(Optional) Specifies the VPN routing and forwarding (VRF) details.

*

(Optional) Displays RSVP PATH state information for all VRFs and global routing domain.

vrf-name

(Optional) VRF name.

detail

(Optional) Displays detailed description of the PATH state information.

filter

(Optional) Filters the display to limit the output.

destination

(Optional) Filters the display to show information related to the destination.

dest-address

(Optional) IP address specifying the destination.

dst-port

(Optional) Filters the display to show information related to the destination port.

dst-port

Destination port or tunnel ID. The range is from 0 to 65535.

source

(Optional) Filters the display to show information related to the source.

source-addr

(Optional) IP address specifying the source.

src-port

(Optional) Filters the display to show information related to the source port.

src-port

(Optional) Destination port or link-state packet (LSP) ID. The range is from 0 to 65535.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

15.1(3)T

This command was introduced.

15.1(1)S

This command was integrated into Cisco IOS Release 15.1(1)S.

Usage Guidelines

You can use the showiprsvptransport command to display information related to RSVP configured as transport protocol.

Examples

The following example shows how to display information about the PATH messages being sent from the sender to the receiver:

Router# show ip rsvp transport sender
To              From            Pro DPort Sport Prev Hop        I/F
10.1.1.1       10.2.2.2         TCP 101   101   none            none

The table below describes the significant fields shown in the display.

Table 82 show ip rsvp transport sender Field Descriptions

Field

Description

To

IP address of the receiver.

From

IP address of the sender or the client.

Pro

Identifier that is used to configure RSVP as transport protocol.

DPort

Destination port to which the PATH message is sent.

Sport

Source port from which the PATH message is sent.

Prev Hop

The hop address used to transport the PATH message from the sender to the receiver.

The following example shows how to display detailed information about RSVP messages:

Router# show ip rsvp transport sender detail
Transport PATH:
  Destination 10.1.1.1, Protocol_Id 6,  DstPort 101
  Sender address: 10.2.2.2, port: 101
  Path refreshes:
     Path ID handle: 01000402.
  Client_id: 251
   Initiator_id: 10.2.2.2
   Instance_id: 3421

The table below describes the significant fields shown in the display.

Table 83 show ip rsvp transport sender detail Field Descriptions

Field

Description

Transport PATH:

Displays information related to the transport path taken to send the PATH messages.

Destination

Destination address to where the PATH message is sent.

Protocol_Id

Identifier that is used to configure RSVP as transport protocol.

DstPort

Destination port to which the PATH message is sent.

Sender address

Source address from where the PATH message is sent.

port

Source port from which the PATH message is sent.

Path refreshes

Displays information about the periodic refreshes of PATH and Resv messages.

Path ID handle

Displays the number of times the PATH and Resv messages have been refreshed.

Client id

Identification number of the client that initiates RSVP as a transport protocol.

Initiator_id

Hostname or IP address that identifies the node initiating the transport service request.

Instance_id

Instance ID that identifies the transport service request from a particular client application and from a particular initiator.

Related Commands

Command

Description

ip rsvp transport

Configures RSVP as transport protocol.

ip rsvp transport sender-host

Configures static RSVP host path.

show ip rsvp transport

Displays information about RSVP TP sessions.

show ip rtp header-compression

To display Real-Time Transport Protocol (RTP) statistics, use the showiprtpheader-compression command in privileged EXEC mode.

show ip rtp header-compression [ interface-type interface-number ] [detail]

Syntax Description

interface-type interface-number

(Optional) The interface type and number.

detail

(Optional) Displays details of each connection.

Command Default

No default behavior or values

Command Modes


Privileged EXEC

Command History

Release

Modification

11.3

This command was introduced.

12.1(5)T

The command output was modified to include information related to the Distributed Compressed Real-Time Transport Protocol (dCRTP) feature.

12.3(11)T

The command output was modified to include information related to the Enhanced Compressed Real-Time Transport Protocol (ECRTP) feature.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The detail keyword is not available with the showiprtpheader-compression command on a Route Switch Processor (RSP). However, the detail keyword is available with the show ip rtp header-compression command on a Versatile Interface Processor (VIP). Enter the show ip rtp header-compression interface-type interface-number detail command on a VIP to retrieve detailed information regarding RTP header compression on a specific interface.

Examples

The following example displays statistics from ECRTP on an interface:

Router# show ip rtp header-compression

RTP/UDP/IP header compression statistics:
  Interface Serial2/0 (compression on, IETF, ECRTP)
    Rcvd:    1473 total, 1452 compressed, 0 errors, 0 status msgs
             0 dropped, 0 buffer copies, 0 buffer failures
    Sent:    1234 total, 1216 compressed, 0 status msgs, 379 not predicted
             41995 bytes saved, 24755 bytes sent
             2.69 efficiency improvement factor
    Connect: 16 rx slots, 16 tx slots,
             6 misses, 0 collisions, 0 negative cache hits, 13 free contexts
             99% hit ratio, five minute miss rate 0 misses/sec, 0 max

The table below describes the significant fields shown in the display.

Table 84 show ip rtp header-compression Field Descriptions

Field

Description

Interface

Type and number of interface.

Rcvd

Received statistics described in subsequent fields.

total

Number of packets received on the interface.

compressed

Number of packets received with compressed headers.

errors

Number of errors.

status msgs

Number of resynchronization messages received from the peer.

dropped

Number of packets dropped.

buffer copies

Number of buffers that were copied.

buffer failures

Number of failures in allocating buffers.

Sent

Sent statistics described in subsequent fields.

total

Number of packets sent on the interface.

compressed

Number of packets sent with compressed headers.

status msgs

Number of resynchronization messages sent from the peer.

not predicted

Number of packets taking a non-optimal path through the compressor.

bytes saved

Total savings in bytes due to compression.

bytes sent

Total bytes sent after compression.

efficiency improvement factor

Compression efficiency.

Connect

Connect statistics described in subsequent fields.

rx slots

Total number of receive slots.

tx slots

Total number of transmit slots.

misses

Total number of misses.

collisions

Total number of collisions.

negative cache hits

Total number of negative cache hits.

free contexts

Number of available context resources.

hit ratio

Percentage of received packets that have an associated context.

five minute miss rate

Number of new flows found per second averaged over the last five minutes.

max

Highest average rate of new flows reported.

Related Commands

Command

Description

ip rtp compression-connections

Specifies the total number of RTP header compression connections supported on the interface.

ip rtp header-compression

Enables RTP header compression.

show ip tcp header-compression

To display TCP/IP header compression statistics, use the show ip tcp header-compression command in user EXEC or privileged EXEC mode.

show ip tcp header-compression [ interface-type interface-number ] [detail]

Syntax Description

interface-type interface-number

(Optional) The interface type and number.

detail

(Optional) Displays details of each connection. This keyword is available only in privileged EXEC mode.

Command Modes

User EXEC (>) Privileged EXEC (#)

Command History

Release

Modification

10.0

This command was introduced.

12.4

This command was integrated into Cisco Release 12.4 and its command output was modified to include additional compression statistics.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

12.4(15)T12

This command was modifed. Support was added for the special Van Jacobson (VJ) format of TCP header compression.

Examples

The following is sample output from the show ip tcp header-compression command:

Router# show ip tcp header-compression

TCP/IP header compression statistics:
  Interface Serial2/0 (compression on, IETF)
    Rcvd:    53797 total, 53796 compressed, 0 errors, 0 status msgs
             0 dropped, 0 buffer copies, 0 buffer failures
    Sent:    53797 total, 53796 compressed, 0 status msgs, 0 not predicted
             1721848 bytes saved, 430032 bytes sent
             5.00 efficiency improvement factor
    Connect: 16 rx slots, 16 tx slots,
             1 misses, 0 collisions, 0 negative cache hits, 15 free contexts
             99% hit ratio, five minute miss rate 0 misses/sec, 0 max

The table below describes the significant fields shown in the display.

Table 85 show ip tcp header-compression Field Descriptions

Field

Description

Interface Serial2/0 (compression on, IETF)

Interface type and number on which compression is enabled.

Rcvd:

Received statistics described in subsequent fields.

total

Total number of TCP packets received on the interface.

compressed

Total number of TCP packets compressed.

errors

Number of packets received with errors.

status msgs

Number of resynchronization messages received from the peer.

dropped

Number of packets dropped due to invalid compression.

buffer copies

Number of packets that needed to be copied into bigger buffers for decompression.

buffer failures

Number of packets dropped due to a lack of buffers.

Sent:

Sent statistics described in subsequent fields.

total

Total number of TCP packets sent on the interface.

compressed

Total number of TCP packets compressed.

status msgs

Number of resynchronization messages sent from the peer.

not predicted

Number of packets taking a nonoptimal path through the compressor.

bytes saved

Total savings in bytes due to compression.

bytes sent

Total bytes sent after compression.

efficiencyimprovement factor

Improvement in line efficiency because of TCP header compression, expressed as the ratio of total packet bytes to compressed packet bytes. The ratio should be greater than 1.00.

Connect:

Connection statistics described in subsequent fields.

rxslots

Total number of receive slots.

txslots

Total number of transmit slots.

misses

Indicates the number of times a match could not be made. If your output shows a large miss rate, then the number of allowable simultaneous compression connections may be too low.

collisions

Total number of collisions.

negative cache hits

Total number of negative cache hits.

Note

This field is not relevant for TCP header compression; it is used for Real-Time Transport Protocol (RTP) header compression.

free contexts

Total number of free contexts.

Note

Free contexts (also known as connections) are an indication of the number of resources that are available, but not currently in use, for TCP header compression.

hit ratio

Percentage of times the software found a match and was able to compress the header.

Five minute miss rate 0 misses/sec

Calculates the miss rate over the previous five minutes for a longer-term (and more accurate) look at miss rate trends.

max

Maximum value of the previous field.

The following example for Cisco IOS Release 12.4(15)T12 shows that the TCP special VJ format is enabled:

Router# show ip tcp header-compression serial 5/0 detail

TCP/IP header compression statistics:
 DLCI 100        Link/Destination info: ip 10.72.72.2
Configured:
 Max Header 60 Bytes, Max Time 50 Secs, Max Period 32786 Packets, Feedback On, Spl-VJ On
Negotiated:
 Max Header 60 Bytes, Max Time 50 Secs, Max Period 32786 Packets, Feedback On, Spl-VJ On
TX contexts:

Related Commands

Command

Description

ip header-compression special-vj

Enables the special VJ format of TCP header compression.

ip tcp compression-connections

Specifies the total number of TCP header compression connections that can exist on an interface

special-vj

Enables the special VJ format of TCP header compression so that context IDs are included in compressed packets.

show ip vrf

To display the set of defined Virtual Private Network (VPN) routing and forwarding (VRF) instances and associated interfaces, use the showipvrf command in user EXEC or privileged EXEC mode.

show ip vrf [ brief | detail | interfaces | id ] [vrf-name]

Syntax Description

brief

(Optional) Displays concise information on the VRFs and associated interfaces.

detail

(Optional) Displays detailed information on the VRFs and associated interfaces.

interfaces

(Optional) Displays detailed information about all interfaces bound to a particular VRF or any VRF.

id

(Optional) Displays the VPN IDs that are configured in a PE router for different VPNs.

vrf-name

(Optional) Name assigned to a VRF.

Command Default

When you do not specify keywords or arguments, the command shows concise information about all configured VRFs.

Command Modes


User EXEC (>)
Privileged EXEC (#)

Command History

Release

Modification

12.0(5)T

This command was introduced.

12.0(17)ST

This command was modified. The id keyword was added. The VPN ID information was added to the output of the show ip vrf detail command.

12.2(4)B

This command was integrated into Cisco IOS Release 12.2(4)B.

12.2(8)T

This command was integrated into Cisco IOS Release 12.2(8)T.

12.3(6)

This command was integrated into Cisco IOS Release 12.3(6). The command shows the downstream VRF for each associated Virtual access interface (VAI).

12.2(27)SBC

This command was integrated into Cisco IOS Release 12.2(27)SBC.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

Use this command to display information about VRFs. Two levels of detail are available:

  • The briefkeyword (or no keyword) displays concise information.
  • The detail keyword displays all information.

To display information about all interfaces bound to a particular VRF, or to any VRF, use the interfaces keyword. To display information about VPN IDs assigned to a PE router, use the id keyword.

When you use the showipvrf command, interface and subinterface names are truncated in the output. For example, GigabitEthernet3/1/0.100 is displayed as Gi3/1/0.100.

Examples

Cisco IOS T Train, Cisco IOS SB Train, Cisco IOS B Train, and Cisco IOS SX Train

The following example displays information about all the VRFs configured on the router, including the downstream VRF for each associated VAI. The lines that are highlighted (for documentation purposes only) indicate the downstream VRF.

Router# show ip vrf
  Name                             Default RD          Interfaces
  v1                               20:20               Gi0/2.4294967291
                                                       Gi0/2.4294967293
                                                       Gi0/2.4294967294
                                                       Gi0/2.4294967295
  vpn152-1                         152:1               Lo1

The table below describes the significant fields shown in the display.

Table 86 show ip vrf Field Descriptions

Field

Description

Name

Specifies the VRF name.

Default RD

Specifies the default route distinguisher.

Interfaces

Specifies the network interface.

The following example displays detailed information about all of the VRFs configured on the router, including all of the VAIs associated with each VRF:

Router# show ip vrf detail vpn152-1
VRF vpn152-1; default RD 152:1; default VPNID <not set>
VRF Table ID = 2
  Interfaces:
    Lo1
  Connected addresses are not in global routing table
  Export VPN route-target communities
    RT:152:1
  Import VPN route-target communities
    RT:152:1
  No import route-map
  No export route-map
  VRF label distribution protocol: not configured

The table below describes the significant fields shown in the display.

Table 87 show ip vrf detail Field Descriptions

Field

Description

default VPNID

Specifies the VPN ID that uniquely identifies every VPN in the network.

VRF Table ID

Uniquely identifies the VRF routing table.

Interfaces

Specifies the network interfaces.

Export VPN route-target communities

Specifies VPN route-target export communities.

Import VPN route-target communities

Specifies VPN route-target import communities.

VRF label distribution protocol

MPLS label distribution protocol in the VRF context. This is required when VRF is configured for Carrier Supporting Carrier (CSC). This could be LDP (enabled via the mplsip command on the VRF interface) or BGP (enabled via the send-label command in the router bgp VRF address-family configuration mode).

The following example shows the interfaces bound to a particular VRF:

Router# show ip vrf interfaces
Interface              IP-Address      VRF                              Protocol
Gi0/2.4294967291       unassigned      v1                               down
Gi0/2.4294967293       unassigned      v1                               down
Gi0/2.4294967294       unassigned      v1                               down
Gi0/2.4294967295       unassigned      v1                               down
Lo1                    10.1.1.1        vpn152-1                         up

The table below describes the significant fields shown in the display.

Table 88 show ip vrf interfaces Field Descriptions

Field

Description

Interface

Specifies the network interfaces for a VRF.

IP-Address

Specifies the IP address of a VRF interface.

VRF

Specifies the VRF name.

Protocol

Displays the state of the protocol (up or down) for each VRF interface.

Cisco IOS SR Train

The following example displays output from the showipvrf command with the detail keyword. The information shown is for a VRF named vpn1.

Router# show ip vrf detail vpn1
VRF vpn1 (VRF Id = 1); default RD 1:1; default VPNID <not set>
 Interfaces:
 Lo1                      Lo99                     Et0/0
VRF Table ID = 1
 Export VPN route-target communities
 RT:1:1
 Import VPN route-target communities
  RT:1:1                   RT:2:1
No import route-map
No export route-map
 VRF label distribution protocol: not configured
 VRF label allocation mode: per-prefix

The table below describes the significant fields shown in the display.

Table 89 show ip vrf detail Field Descriptions

Field

Description

VRF ID

Uniquely identifies the VRF within the router.

VRF label allocation mode

Indicates the type of label mode used based on the route types.

Related Commands

Command

Description

import map

Configures an import route map for a VRF.

ip vrf

Configures a VRF routing table.

ip vrf forwarding (interface configuration)

Associates a VRF with an interface or subinterface.

rd

Creates routing and forwarding tables for a VRF.

route-target

Creates a route-target extended community for a VRF.

vpn id

Assigns a VPN ID to a VRF.

show lane qos database


Note


Effective with Cisco IOS Release 15.1M, the showlaneqosdatabasecommand is not available in Cisco IOS software.


To display the contents of a specific LAN Emulation (LANE) quality of service (QoS) database, use the showlaneqosdatabasecommand in privileged EXEC mode.

show lane qos database name

Syntax Description

name

Specifies the QoS over LANE database to display.

Command Default

This command is not configured by default.

Command Modes


Privileged EXEC

Command History

Release

Modification

12.1(2)E

This command was introduced.

12.2(14)S

This command was integrated into Cisco IOS Release 12.2(14)S.

12.2(33)SRA

This command was integrated into Cisco IOS Release 12.2(33)SRA.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

15.1M

This command was removed.

Examples

This example shows how to display the contents of a QoS over LANE database for a Catalyst 5000 family ATM Module:

ATM# show lane qos database user1
QOS: user1
    configured cos values: 5-7, usage: 1
    dst nsap: 47.0091810000000061705B0C01.00E0B0951A40.0A
    pcr: 500000, mcr: 100000

This example shows how to display the contents of a QoS over LANE database for a Cisco 4500, 7200, or 7500 series router:

Router# show lane qos database user2
QOS: user2
    configured cos values: 5-7, usage: 1
    dst nsap: 47.0091810000000061705B0C01.00E0B0951A40.0A
    pcr: 500000, mcr: 100000

Related Commands

Command

Description

atm-address

Specifies the QoS parameters associated with a particular ATM address.

lane client qos

Applies a QoS over LANE database to an interface.

lane qos database

Begins the process of building a QoS over LANE database.

ubr+ cos

Maps a CoS value to a UBR+ VCC.
