This chapter describes the SPA interface processors (SIPs) and SPA services cards (SSCs) that are supported on the Catalyst 6500 Series switch and contains the following sections:

SIP and SSC Support

Identifying Slots and Subslots for SIPs, SSCs, and SPAs

Cisco 7600 SIP-200 Overview

Cisco 7600 SIP-400 Overview

Cisco 7600-SIP-600 Overview

Cisco 7600-SSC-400 Overview

SIP and SSC Support

Table 2-1 lists the SIPs and SSCs that are supported on the Catalyst 6500 Series switch.


Note The Description column indicates the aggregate bandwidth supported by the SIP across all subslots, not per SPA subslot.


Table 2-1 SIP Support

SIP
Product Number
Description
Maximum Number of SPAs
Minimum Cisco IOS Release

Cisco 7600 SIP-200

7600-SIP-200

622-Mbps SPA interface processor

4

12.2(18)SXE

Cisco 7600 SIP-400

7600-SIP-400

2.5-Gbps SPA interface processor

4

12.2(18)SXE

Cisco 7600 SIP-600

7600-SIP-600

1 x 10-Gbps SPA Interface Processor

1

12.2(18)SXF1

Cisco 7600 SSC-400

7600-SSC-400

SPA services carrier

2

12.2(18)SXE2

1 Support for the Cisco 7600 SIP-600 was removed in Cisco IOS Release 12.2(33)SXH and restored in Cisco IOS Release 12.2(33)SXI and later releases.


Checking For Hardware and Software Compatibility

To check the minimum software requirements of Cisco IOS software with the hardware installed on your router, Cisco maintains the Software Advisor tool on Cisco.com. This tool does not verify whether SIPs or SPAs within a system are compatible, but it does provide the minimum Cisco IOS requirements for individual hardware modules or components.


Note Access to this tool is limited to users with Cisco.com login accounts.


To access Software Advisor, click Login at Cisco.com, type "Software Advisor" in the SEARCH box, and click GO. Click the link for the Software Advisor tool.

Choose a product family or enter a specific product number to search for the minimum supported software release needed for your hardware.

Identifying Slots and Subslots for SIPs, SSCs, and SPAs

This section describes how to specify the physical location of a SIP, SSC, or SPA on the Catalyst 6500 Series switch using the command-line interface (CLI) to configure or monitor those devices.


Note For simplicity, any reference to "SIP" in this section also applies to the SSC.


Specifying the Slot Location for a SIP or SSC

The Catalyst 6500 Series switch supports different chassis models, each of which supports a certain number of chassis slots.


Note The Catalyst 6500 Series switch SIPs are not supported with a Supervisor Engine 1, Supervisor Engine 1A, Supervisor Engine 2, or Supervisor Engine 720-3A.


Figure 2-1 shows an example of a SIP installed in slot 6 on a Catalyst 6509 switch. The Catalyst 6509 switch has nine horizontally-oriented chassis slots, which are numbered 1 to 9 from right to left.

Figure 2-1 SIP and SPA Installed in a Catalyst 6509 Switch

1

SIP subslot 0

4

SIP subslot 3

2

SIP subslot 1

5

Chassis slots 1-9 (numbered from top to bottom)

3

SIP subslot 2



Some commands allow you to display information about the SIP itself, such as the show module, show sip-disk, show idprom module, show hw-module slot, and show diagbus commands. These commands require you to specify the chassis slot location where the SIP that you want information about is installed.

For example, to display status and information about the SIP installed in slot 6 as shown in Figure 2-1, enter the following command:

Router# show module 6

For more information about SIP commands, refer to the Cisco IOS Software Releases 12.2SX Command References.

Specifying the SIP or SSC Subslot Location for a SPA

SIP subslots begin their numbering with 0 and have a horizontal or vertical orientation depending on the orientation of the SIP in the router chassis slot, as shown in the "SIP, SSC, and SPA Product Overview" chapter of the Catalyst 6500 Series Switch SIP, SSC, and SPA Software Configuration Guide.

Figure 2-1 shows an example of a Cisco 7600 SIP-200 installed with a vertical orientation on a Cisco 7609 router. The Cisco 7600 SIP-200 supports four subslots for the installation of SPAs. In this example, the subslot locations are oriented vertically as follows:

SIP subslot 0—Top-right subslot

SIP subslot 1—Bottom-right subslot

SIP subslot 2—Top-left subslot

SIP subslot 3—Bottom-left subslot

Figure 2-2 shows the faceplate for the Cisco 7600 SIP-200 in a horizontal orientation.

Figure 2-2 Cisco 7600 SIP-200 Faceplate

In this view, the subslot locations in a horizontal orientation are as follows:

SIP subslot 0—Top-left subslot

SIP subslot 1—Top-right subslot

SIP subslot 2—Bottom-left subslot

SIP subslot 3—Bottom-right subslot

The SIP subslot numbering is indicated by a small numeric label beside the subslot on the faceplate.

Some commands, such as the show idprom module and show hw-module subslot commands, allow you to display information about the SPA itself. These commands require you to specify both the physical location of the SIP and SPA in the format slot/subslot.

slot—Specifies the chassis slot number in the Catalyst 6500 Series switch where the SIP is installed.

subslot—Specifies the secondary slot of the SIP where the SPA is installed.

For example, to display the operational status for the SPA installed in the first subslot of the SIP in chassis slot 6 shown in Figure 2-1, enter the following command:

Router# show hw-module subslot 6/0 oir

For more information about SIP commands, refer to the Cisco IOS Software Releases 12.2SX Command References.

Cisco 7600 SIP-200 Overview

The following sections describe the 7600-SIP-200:

Cisco 7600 SIP-200 Processor

Cisco 7600 SIP-200 LEDs

Cisco 7600 SIP-200 Physical Specifications

Cisco 7600 SIP-200 Memory Options

Cisco 7600 SIP-200 Default DIP Switch Settings

Cisco 7600 SIP-200 Processor

Table 2-2 describes the processor on a 7600-SIP-200.

Table 2-2 7600-SIP-200 Processor

Type
Speed
Description

CPU

800 megahertz (MHz) internal operating frequency

Broadcom 1125 MIPS-based design


Cisco 7600 SIP-200 LEDs

The 7600-SIP-200 has one LED as shown in Figure 2-3.

Figure 2-3 7600-SIP-200 Faceplate

Table 2-3 describes the 7600-SIP-200 LED.

Table 2-3 7600-SIP-200 LED

LED Label
Color
State
Meaning

STATUS

Red

On

The 7600-SIP-200 has encountered an error.



Green

On

The 7600-SIP-200 is online.



Yellow

On

The 7600-SIP-200 is loading.



Off

Off

The 7600-SIP-200 is powered off.


Cisco 7600 SIP-200 Physical Specifications

Table 2-4 describes the 7600-SIP-200 physical specifications.

Table 2-4 7600-SIP-200 Physical Specifications

Description
Specifications

Physical dimensions

The SIP occupies one module slot and can be operated in Cisco 7600 series routers.

Shipping weight

8 lb (3.64 kg)

Operating temperature

32 to 104°F (0 to 40°C)

Relative humidity

10 to 90 percent, noncondensing

Storage temperature

-4 to 149°F (-20 to 65°C)


Cisco 7600 SIP-200 Memory Options

Table 2-5 lists the memory available for the 7600-SIP-200.

Table 2-5 SIP Memory Options

SIP
Memory Options

7600-SIP-200

512 MB and 1 GB (2 x 256-MB or 2 x 512-MB DIMMs)



Note The SIP DIMMs must be a matched set. A warning message will appear on the console if the DIMMs on the SIP are different sizes. If the sizes are not the same, the following message will appear at bootup/OIR:

C7600_SIP200-3-MEM_MODULE_MISMATCH: Memory modules are not identical


Cisco 7600 SIP-200 Memory Installation and Removal

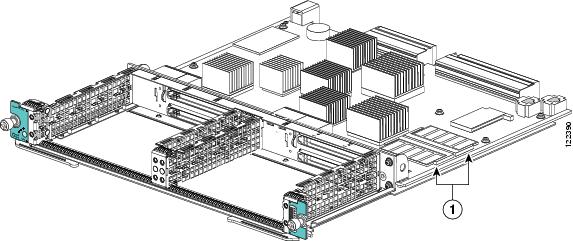

Figure 2-4 shows the location of the DIMMs on a 7600-SIP-200.

To install a DIMM, slide the DIMM into the slot. The retaining clips will secure the DIMM in place.

To remove a DIMM, separate the two retaining clips and pull the DIMM from the slot.

Figure 2-4 SIP DIMM Location

1

DIMMs


Cisco 7600 SIP-200 Default DIP Switch Settings

If SW3 and SW10 switches are present on the board, make sure that they are set to the default settings, as shown in Table 2-6. See Figure 2-5 for the location of the switches.

The switches are set to their defaults during manufacture. However, the switch settings may get inadvertently changed during handling.


Note If the switches are not set to their default settings, there may be momentary packet drops during OIR of the board.


Table 2-6 7600-SIP-200 Default DIP Settings

Switch
Default Position

SW3

Up

SW10

Down

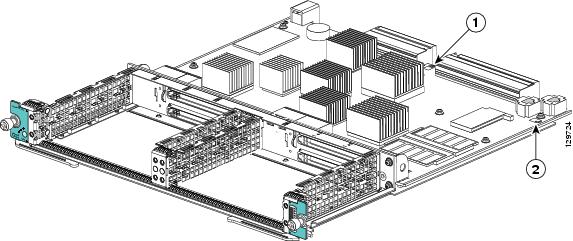

Figure 2-5 7600-SIP-200 DIP Switch Locations

\

1

SW3

2

SW10


Cisco 7600 SIP-400 Overview

The following sections describe the 7600-SIP-400:

Cisco 7600 SIP-400 Processor

Cisco 7600 SIP-400 LEDs

Cisco 7600 SIP-400 Physical Specifications

Cisco 7600 SIP-400 Processor

Table 2-7 describes the processor on a 7600-SIP-400.

Table 2-7 7600-SIP-400 Processor

Type
Speed
Description

CPU

400 megahertz (MHz) internal operating frequency

Broadcom 1125 MIPS-based design


Cisco 7600 SIP-400 LEDs

The 7600-SIP-400 has one LED as shown in Figure 2-6.

Figure 2-6 7600-SIP-400 Faceplate

Table 2-8 describes the 7600-SIP-400 LED.

Table 2-8 7600-SIP-400 LED

LED Label
Color
State
Meaning

STATUS

Red

On

The 7600-SIP-400 has encountered an error.



Green

On

The 7600-SIP-400 is online.



Yellow

On

The 7600-SIP-400 is loading.



Off

Off

The 7600-SIP-400 is powered off.


Cisco 7600 SIP-400 Physical Specifications

Table 2-9 describes the 7600-SIP-400 physical specifications.

Table 2-9 7600-SIP-400 Physical Specifications

Description
Specifications

Physical dimensions

The SIP occupies one module slot and can be operated in Cisco 7600 series routers.

Shipping weight

8 lb (3.64 kg)

Operating temperature

32 to 104°F (0 to 40°C)

Relative humidity

10 to 90 percent, noncondensing

Storage temperature

-4 to 149°F (-20 to 65°C)


Cisco 7600-SIP-600 Overview


Note Support for the Cisco 7600 SIP-600 was removed in Cisco IOS Release 12.2(33)SXH and restored in Cisco IOS Release 12.2(33)SXI and later releases.


The following sections describe the 7600-SIP-600:

7600-SIP-600 Processor

7600-SIP-600 LEDs

7600-SIP-600 Physical Specifications

7600-SIP-600 Processor

Table 2-13 describes the processor on a 7600-SIP-600.

Table 2-10 7600-SIP-600 Processor

Type
Speed
Description

CPU

400 megahertz (MHz) internal operating frequency

Broadcom 1125 MIPS-based design


7600-SIP-600 LEDs

The 7600-SIP-600 has one LED as shown in Figure 2-7.

Figure 2-7 7600-SIP-600 Faceplate

Table 2-11 describes the 7600-SIP-600 LED.

Table 2-11 7600-SIP-600 LED

LED Label
Color
State
Meaning

STATUS

Red

On

The 7600-SIP-600 has encountered an error.



Green

On

The 7600-SIP-600 is online.



Yellow

On

The 7600-SIP-600 is loading.



Off

The 7600-SIP-600 is powered off.


7600-SIP-600 Physical Specifications

Table 2-12 describes the 7600-SIP-600 physical specifications.

Table 2-12 7600-SIP-600 Physical Specifications

Description
Specifications

Physical dimensions

The SIP occupies one module slot and can be operated in Cisco 7600 series routers. The Cisco 7600-SIP-600 supports installation of only a single SPA in the first subslot.

Shipping weight

8 lb (3.64 kg)

Operating temperature

32 to 104°F (0 to 40°C)

Relative humidity

10 to 90 percent, noncondensing

Storage temperature

-4 to 149°F (-20 to 65°C)


Cisco 7600-SSC-400 Overview

The following sections describe the SPA services carrier, 7600-SSC-400:

Cisco 7600 SSC-400 Processor

Cisco 7600 SSC-400 LED

Cisco 7600 SSC-400 Physical Specifications

Cisco 7600 SSC-400 Processor

Table 2-13 describes the processor on a 7600-SSC-400.

Table 2-13 7600-SSC-400 Processor

Type
Speed
Description

CPU

400 megahertz (MHz) internal operating frequency

Broadcom 1125 MIPS-based design


Cisco 7600 SSC-400 LED

The 7600-SSC-400 has one LED as shown in Figure 2-8.

Figure 2-8 7600-SSC-400 Faceplate

Table 2-14 describes the 7600-SSC-400 LED.

Table 2-14 7600-SSC-400 LED

LED Label
Color
State
Meaning

STATUS

Red

On

The 7600-SSC-400 has encountered an error.



Green

On

The 7600-SSC-400 is online.



Yellow

On

The 7600-SSC-400 is loading.



Off

Off

The 7600-SSC-400 is powered off.


Cisco 7600 SSC-400 Physical Specifications

Table 2-15 describes the 7600-SSC-400 physical specifications.

Table 2-15 7600-SSC-400 Physical Specifications

Description
Specifications

Physical dimensions

The Cisco 7600 SSC-400 occupies one module slot and can be operated in Cisco 7600 series routers.

Shipping weight

8 lb (3.64 kg)

Operating temperature

32 to 104°F (0 to 40°C)

Relative humidity

10 to 90 percent, noncondensing

Storage temperature

-4 to 149°F (-20 to 65°C)
