CIMC Express


First Published: April 21, 2011
Last Updated: September 16, 2011

Cisco Integrated Management Controller Express (Cisco CIMC-E) provides the same basic management features as the UCS-C Series Rackmount Server product line on Cisco SRE Internal Service Module-Services Ready Engine (Cisco SRE ISM) and Cisco SRE Service Module-Services Ready Engine (Cisco SRE SM).

Contents

CIMC-E Overview

Embedded Service Engine Overview

Installing CIMC-E on the Embedded Service Engine

Managing the Embedded Service Engine

Managing the Server

Viewing Server Properties

Viewing CIMC-E Information

Managing the Remote Console

Managing User Accounts

Configuring Network-Related Settings

Configuring Communication Services

Managing Certificates

Configuring Platform Event Filters

CIMC-E Firmware Management

Viewing Logs

Server Utilities

CIMC-E Command Reference

Embedded Service Engine Command Reference

CIMC-E Overview

The Cisco Integrated Management Controller Express (CIMC-E) is the management service for the Cisco SRE SM. This section contains the following topics:

Management Interfaces

Tasks You Can Perform in CIMC-E

No Operating System or Application Provisioning or Management

CIMC-E GUI

Management Interfaces

You can use a web-based GUI or SSH-based CLI to access, configure, administer, and monitor the server. Almost all tasks can be performed in either interface, and the results of tasks performed in one interface are displayed in another. However, you cannot do the following:

Use CIMC-E GUI to invoke CIMC-E CLI

View a command that has been invoked through CIMC-E CLI in CIMC-E GUI

Generate CIMC-E CLI output from CIMC-E GUI

Tasks You Can Perform in CIMC-E

You can use CIMC-E to perform the following server management tasks:

Power on, power off, power cycle, reset, and shut down the module

View server and module properties

Manage remote presence

Create and manage local user accounts and enable remote user authentication

Configure network-related settings, including IPv4, VLANs, and network security

Configure communication services, including HTTP and SSH

Manage certificates

Configure platform event filters

Update CIMC-E firmware

Monitor server status

No Operating System or Application Provisioning or Management

CIMC-E provisions servers and, as a result, exists below the operating system on a server. Therefore, you cannot use it to provision or manage operating systems or applications on servers. For example, you cannot do the following:

Deploy an OS, such as Windows or Linux

Deploy patches for software, such as an OS or an application

Install base software components, such as anti-virus software, monitoring agents, or backup clients

Install software applications, such as databases, application server software, or web servers

Perform operator actions, including restarting an Oracle database, restarting printer queues, or handling non-CIMC-E user accounts

Configure or manage external storage on the SAN or NAS storage

CIMC-E GUI

The CIMC-E GUI is a web-based management interface for Cisco SRE SMs. You can launch the CIMC-E GUI and manage the server from any remote host that meets the following minimum requirements:

Java 1.4 or higher.

Cisco recommends Internet Explorer 7.0.

The CIMC-E GUI is described in the following sections:

CIMC-E Elements

Logging In to CIMC-E

Logging Out of CIMC-E

CIMC-E Elements

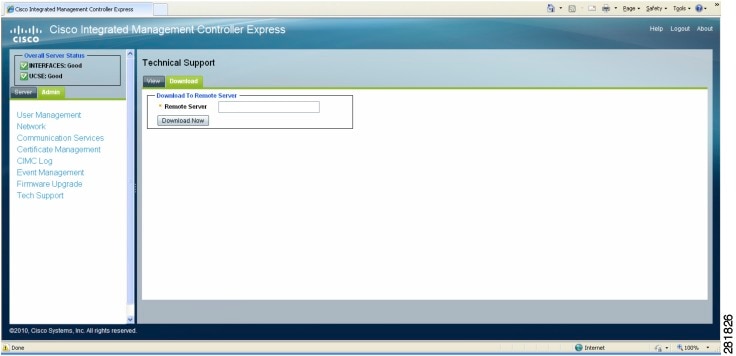

Figure 1 shows the CIMC-E GUI.

Figure 1 Cisco Integrated Management Controller Express GUI

Navigation Pane

The Navigation pane displays on the left side of the CIMC-E GUI. Clicking links on the Server or Admin tabs in the Navigation pane displays the selected pages in the Work pane on the right side of the CIMC-E GUI.

Table 1 describes the elements in the Navigation pane:

Table 1 Navigation Pane Elements

Element Name
Description

Overall Server Status area

The Overall Server Status area is found above the Server and Admin tabs.

Server tab

The Server tab is found in the Navigation pane. It contains links to the following pages:

Summary

CIMC-E Configuration

Remote Console Configuration

System Event Log

Remote Console

Admin tab

The Admin tab is found in the Navigation pane. It contains links to the following pages:

Users Management

Network

Communication Services

Certificate Management

CIMC-E Log

Event Management

Firmware Management

Tech Support


Work Pane

The Work pane displays on the right side of the UI. Different pages appear in the Work pane, depending on what link you click on the Server or Admin tab.

Table 2 describes the elements and pages in the Work pane:

Table 2 Work Pane Elements

Page or Element Name
Description

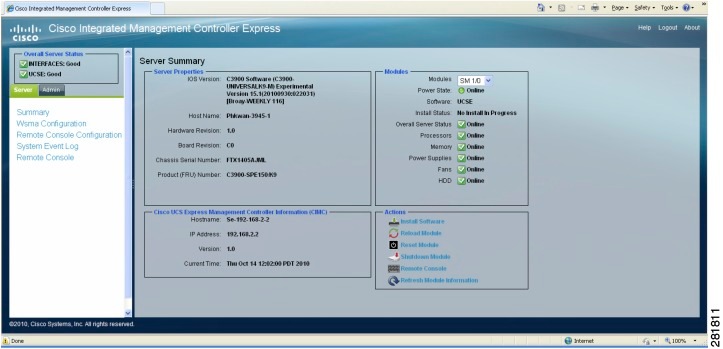

Summary

On the page, you can view server properties, module status, and CIMC-E information. You can also perform actions like reloading and resetting the module.

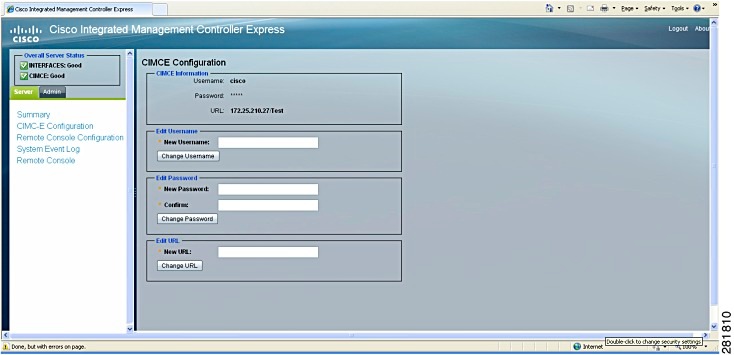

CIMC-E Configuration

On the page, you can change the username, password, and URL.

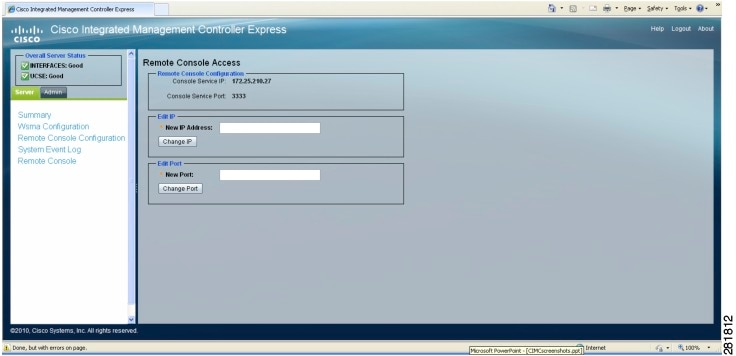

Remote Console Configuration

On the page, you can change the IP address and port of the remote console.

System Event Log

On the page, you can view the system event log.

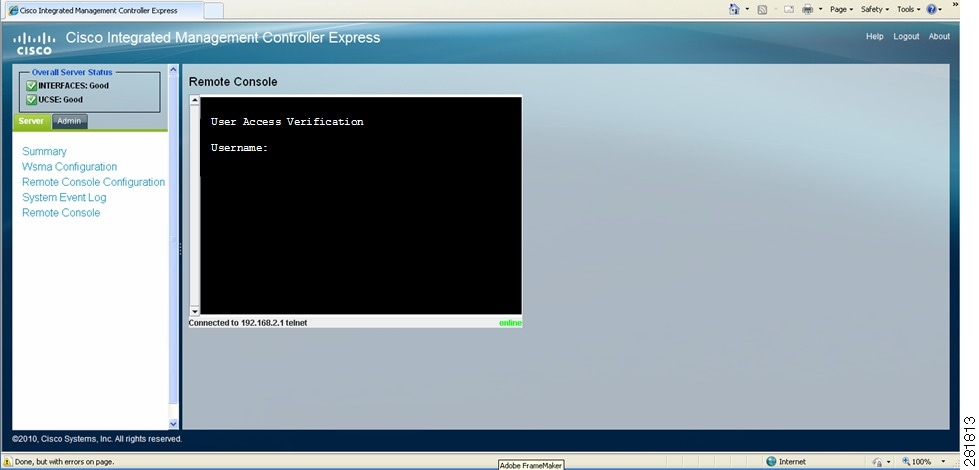

Remote Console

On the page, you can enter CIMC-E commands.

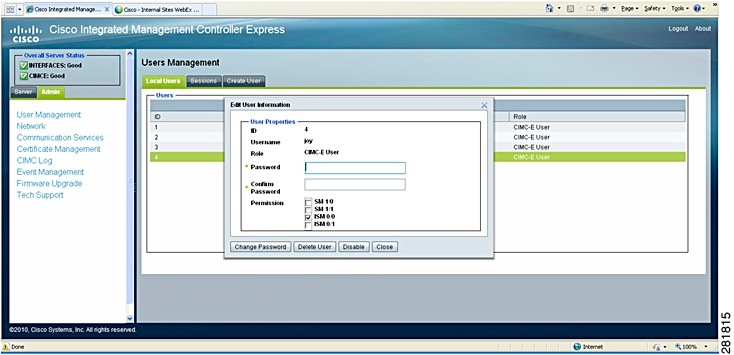

User Management

There are three tabs on the page:

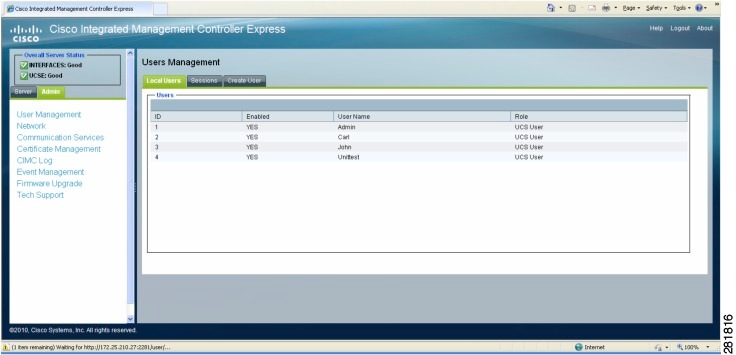

Local Users—Use this tab to view local users.

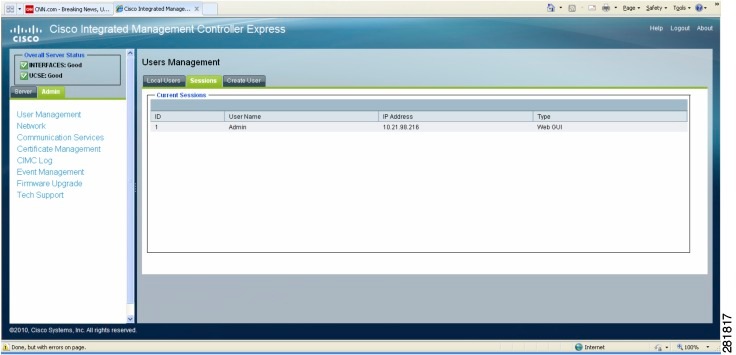

Sessions—Use this tab to view current user sessions.

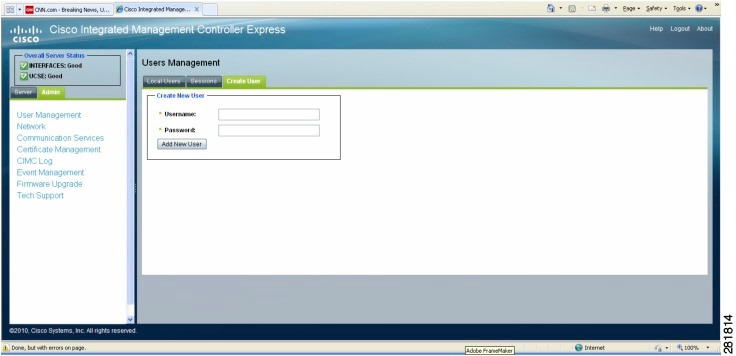

Create Users—Use this tab to create users.

Network

There are two tabs on the page:

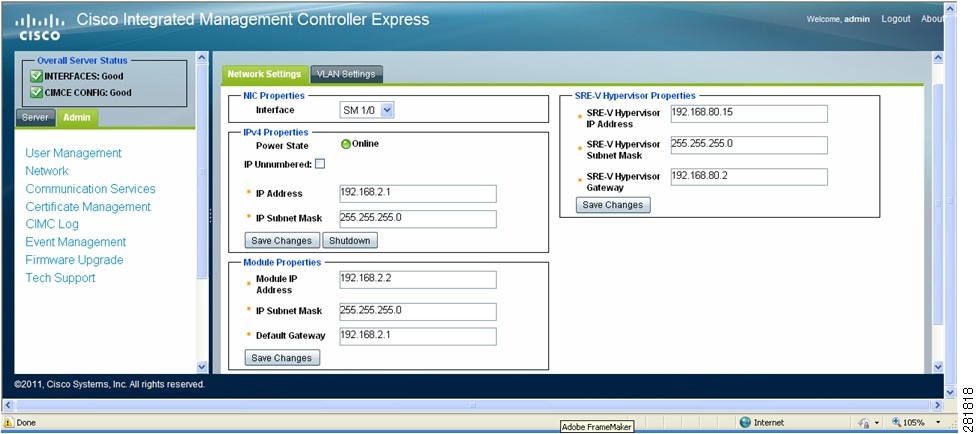

Network Settings—Use this tab to set network properties.

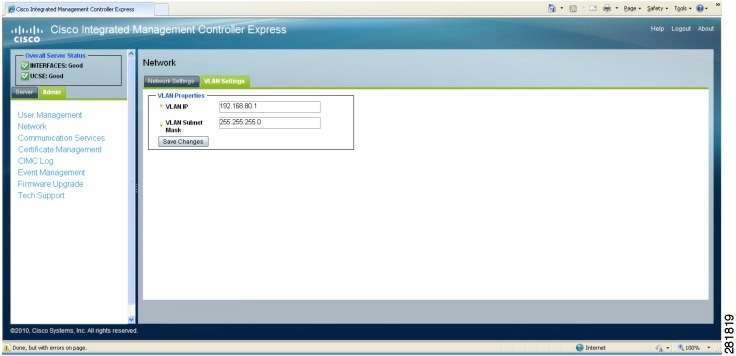

VLAN Settings—Use this tab to set VLAN properties.

Communications Services

There are three areas on this page:

HTTP Properties—Use this area to set HTTP properties.

SSH Properties—Use this area to set SSH properties.

Client Information—This area displays client information.

HTTP Operation—Use this area to restart HTTP operations.

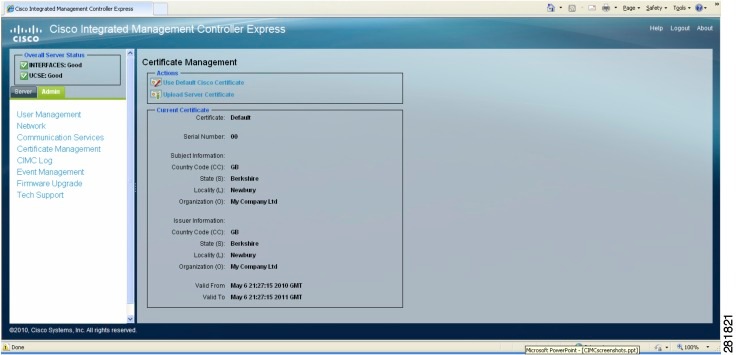

Certificate Management

There are two areas on this page:

Actions—Use this area to generate and upload a certificate.

Current Certificate—Use this area to view the current certificate for the server.

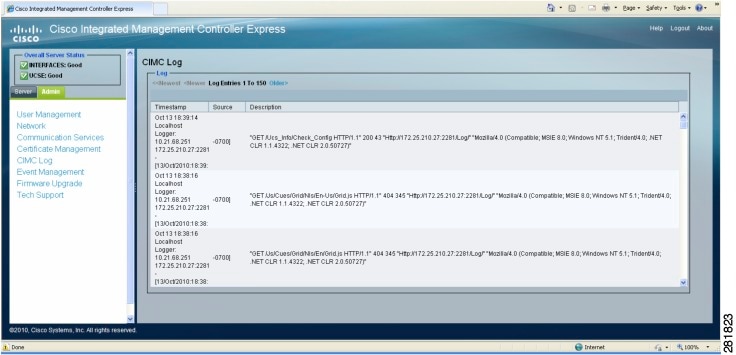

CIMC-E Log

On this page, you can view the CIMC-E Log.

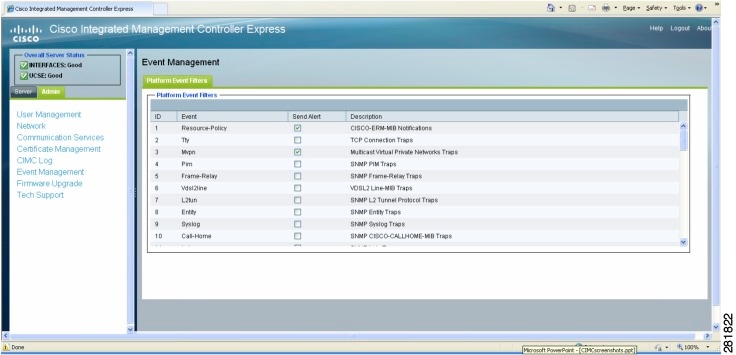

Event Management

On this page, you can set up platform event filters.

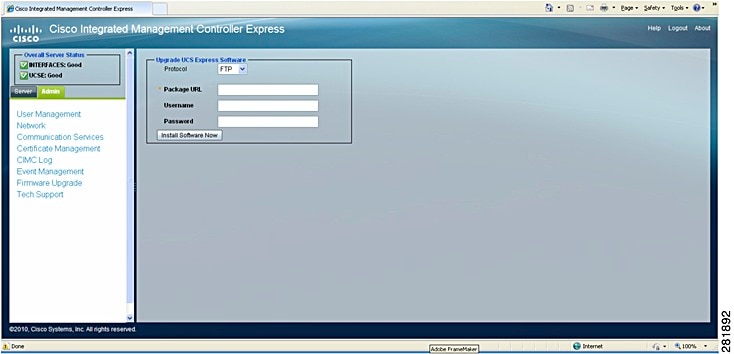

Firmware Upgrade

On this page, you can install CIMC-E firmware from a client browser or TFTP server.

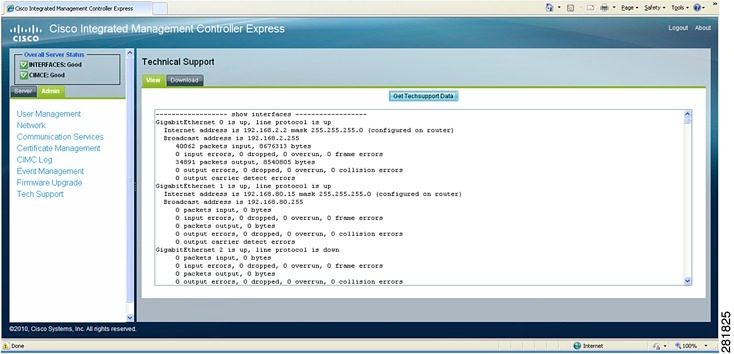

Tech Support

There are two tabs on this page:

View—Use this area to view technical support data.

Download—Use this area to download technical support data to a remote server.


Logging In to CIMC-E

To log in to CIMC-E, follow this procedure:

Procedure


Step 1 In your web browser, type or select the web link for CIMC-E. For example, if the IP address of the Embedded Service Engine is 10.1.1.63 2.55.255.255.0, log in to http://10.1.1.63 in your web browser.

Step 2 If a security dialog box displays, do the following:

a. (Optional) Check the check box to accept all content from Cisco.

b. Click Yes to accept the certificate and continue.

Step 3 In the log in window, enter your username and password.

The default username is admin; the default password is password.

Step 4 Click Log In.


Logging Out of CIMC-E

To log out of CIMC-E, follow this procedure:

Procedure


Step 1 In the upper right of CIMC-E, click Logout.

Logging out returns you to the CIMC-E log in page.

Step 2 (Optional) Log back in or close your web browser.


Embedded Service Engine Overview

Cisco Integrated Services Routers Generation 2 (Cisco ISRs G2) have dual core CPUs on the motherboard. The first core runs Cisco IOS software as Cisco Integrated Services Routers (ISRs) do; the second core, or the Embedded Service Engine, is capable of running Linux-based applications.

The following Cisco ISR G2 platforms support the Embedded Service Engine:

Cisco 2911

Cisco 2921

Cisco 2951

Cisco 3925

Cisco 3945

When the Embedded Service Engine is configured on a Cisco ISR G2, the infrastructure required to run an application on the Embedded Service Engine is partitioned between Cisco IOS software and the Embedded Service Engine.

When embedded applications are enabled, the Embedded Service Engine requires a compact flash card in the second compact flash slot. See Table 3 for further details.


Note CIMC-E is the only application supported on the Embedded Service Engine in Cisco IOS Release 15.1(4)M.

CIMC-E is not supported on the ISM-SRE-300-K9.



Note Cisco SRE-V is not supported on the ISM-SRE-300-K9.


Prerequisites

Compact Flash Card Requirements

Two compact flash cards are required for installing and running CIMC-E with Cisco IOS.
The compact flash card in slot CF0 is used for running Cisco IOS and the compact flash card in slot CF1 is used for the Embedded Service Engine. In Cisco IOS, slot CF0 is shown as "flash0:" and slot CF1 is shown as "flash1:".

Table 3 Compact Flash Card Allocation

Compact Flash Card Slot
Purpose
Compact Flash Size (MB)

CF0

Running Cisco IOS.

256 MB or higher.

CF1

Running CIMC-E on the Embedded Service Engine.

512 MB or higher.


Router Memory Requirements

The minimum memory that is required by different router platforms for the Embedded Service Engine is shown in Table 4.

Table 4 Embedded Service Engine Minimum Memory Requirement

1 GB
1.5 GB
2 GB

Cisco 2911

Cisco 2951

Cisco 3925

Cisco 2921

Cisco 3945


For all platforms, the maximum memory is the platform's maximum supported memory.

CIMC-E Product Files

Table 5 lists the CIMC-E files contained in cimce-k9.vsem.1.0.2.tar.gz. These files are used for installation on the Cisco 2911 and Cisco 2921 platforms.

Table 5 CIMC-E Files Located in cimce-k9.vsem.1.0.2.tar.gz. Used for Installation on Cisco 2911 and Cisco 2921 Platforms

Filename
Purpose

cimce-installer.vsem.1.0.2

CIMC-E rescue helper image. Helps to install the application on Cisco Embedded-Service-Engine.

cimce-k9.vsem.1.0.2.pkg

Main package for installing CIMC-E on Cisco Embedded Service Engines.

cimce-full.vsem.1.0.2.prt1

Package payload containing all data and executable files for a full installation of CIMC-E.

cimce-installer.vsem.1.0.2.prt1

Package payload containing all data and executable files for the installer subsystem associated with CIMC-E.

cimce-k9.vsem.1.0.2.pkg.install.sre

Installer TCL script.

cimce-k9.vsem.1.0.2.pkg.install.sre.header

Installer TCL script header.

cimce-k9.vsem.1.0.2.key

SRE keyfile.


Table 6 lists the CIMC-E files contained in cimce-k9.vsep.1.0.2.tar.gz. These files are used for installation on the Cisco 2951, Cisco 3925, and Cisco 3945 platforms.

Table 6 CIMC-E Files Located in cimce-k9.vsep.1.0.2.tar.gz. Used for Installation on Cisco 2951, Cisco 3925, and Cisco 3945 Platforms

Filename
Purpose

cimce-installer.vsep.1.0.2

CIMC-E rescue helper image. Helps to install the application on Cisco Embedded-Service-Engine.

cimce-k9.vsep.1.0.2.pkg

Main package for installing CIMC-E on Cisco Embedded Service Engines.

cimce-full.vsep.1.0.2.prt1

Package payload containing all data and executable files for a full installation of CIMC-E.

cimce-installer.vsep.1.0.2.prt1

Package payload containing all data and executable files for the installer subsystem associated with CIMC-E.

cimce-k9.vsep.1.0.2.pkg.install.sre

Installer TCL script.

cimce-k9.vsep.1.0.2.pkg.install.sre.header

Installer TCL script header.

cimce-k9.vsep.1.0.2.key

SRE keyfile.


Installing CIMC-E on the Embedded Service Engine

To install CIMC-E on the Embedded Service Engine, follow the procedures described in these sections:

Configuring the Embedded Service Engine (Required)

Installing CIMC-E on the Embedded Service Engine

Configuring the Cisco ISR G2 for CIMC-E

Accessing the CIMC-E CLI

Configuring CIMC-E

Verifying That CIMC-E Is Configured Properly

Configuring the Embedded Service Engine (Required)


Note You must perform the configuration steps in this section, even if the CIMC-E software was factory-installed by Cisco.


The new interface Embedded-Service-Engine has been added to existing service-module commands to manage the Embedded Service Engine. To configure the Embedded Service Engine, you have to:

1. Enter the configuration command service-module enable under the embedded-service-engine 0/0 interface.

2. Save the configuration to NVRAM.

3. Reboot the system.

You must reboot the system before you install an application on the Embedded Service Engine.

SUMMARY STEPS

From the Host-Router CLI

1. enable

2. configure terminal

3. interface Embedded-Service-Engine 0/0

4. service-module enable

5. ip address module-side-ip-address subnet-mask
or
ip unnumbered type number

6. service-module ip address module-side-ip-address subnet-mask

7. service-module ip default-gateway gateway-ip-address

8. no shutdown

9. exit

10. ip route prefix mask ip-address

11. end

12. copy running-config startup-config

13. show running-config

14. reload

DETAILED STEPS


Command or Action
Purpose

From the Host-Router CLI

Step 1

enable

password

Example:

Router> enable

Router> password

Router#

Enters privileged EXEC mode on the host router. Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode on the host router.

Step 3

interface Embedded-Service-Engine 0/0

Example:

Router(config)# interface Embedded-Service-Engine 0/0

Enters interface configuration mode for the slot and port where the Embedded Service Engine resides.

Step 4

service-module enable

Example:

Router(config-if)# service-module enable

Enables the Embedded Service Engine on a service module interface and partitions hardware resources.

Step 5

ip address module-side-ip-address subnet-mask

or

ip unnumbered type number

Example:

Router(config-if)# ip address 10.10.10.1 255.255.0.0

 or

Router(config-if)# ip unnumbered gigabitethernet 1/0

Specifies the IP address for the router side of the interface.

router-side-ip-address subnet-mask—IP address and subnet mask for the router.

or

Enables IP processing on an interface without assigning an explicit IP address to the interface.

type—Type of interface on which the router has an assigned IP address.

number—Number of the interface on which the router has an assigned IP address.

Note The unnumbered interface cannot be another unnumbered interface.

Step 6

service-module ip address module-side-ip-address subnet-mask

Example:

Router(config-if)# service-module ip address 10.10.10.2 255.255.255.0

Specifies the IP address for the module side of the interface.

module-side-ip-address—IP address for the module.

subnet-mask—Subnet mask to append to the IP address; must be in the same subnet as the host router

Step 7

service-module ip default-gateway gateway-ip-address

Example:

Router(config-if)# service-module ip default-gateway 10.10.10.1

Specifies the IP address of the default gateway for the module.

gateway-ip-address—IP address for the default router.

Step 8

no shutdown

Example:

Router(config-if)# end

Restarts a disabled interface.

Step 9

exit

Example:

Router(config-if)# end

Exits global configuration mode on the host router.

Step 10

ip route prefix mask ip-address

Example:

Router# ip route 10.0.0.1 255.255.255.255 Embedded-Service-Engine0/0

Establishes static routes.

Note When the ip unnumbered command is configured on the Embedded Service Engine interface in Step 5, you must use the ip route command to add a static route to the SM.

Step 11

end

Example:

Router(config-if)# end

Returns to Privileged EXEC mode on the host router.

Step 12

copy running-config startup-config

Example:

Router# copy running-config startup-config

Saves the router's new running configuration as the startup configuration.

Step 13

show running-config

Example:

Router# show running-config

Displays the router's running configuration, so that you can verify address configurations.

Step 14

reload

Example:

Router# reload

Proceed with reload? [confirm]

Reloads the operating system.

Configuring the Embedded Service Engine: Example

In the following example, the Embedded Service Engine is enabled.

interface Embedded-Service-Engine0/0
 ip address 10.10.10.1 255.255.0.0
 service-module enable
 service-module ip address 10.10.10.2 255.255.0.0
 service-module ip default-gateway 10.10.10.1
!



The resources are divided between the first core and the Embedded Service Engine after the configuration has been saved to NVRAM and the system has been rebooted.

Router# show running-config

Router# copy running-config startup-config

Router# reload

Proceed with reload? [confirm]

Installing CIMC-E on the Embedded Service Engine

Installing CIMC-E on the Embedded Service Engine is similar to installing an application on any SRE-enabled service module.


Note To stop the install while the files are being downloaded and before the actual installation begins, use the service-module Embedded-Service-Engine 0/0 install abort command. For more information, see Cisco IOS Interface and Component Command Reference.

Once the installation begins, do not enter commands on the module until the "Installation successful..." message appears.


To install CIMC-E on the Embedded Service Engine, complete the following steps:

SUMMARY STEPS

1. enable

2. service-module embedded-service-engine 0/0 install url url

3. service-module embedded-service-engine 0/0 status

4. exit

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

password

Example:

Router> enable

Router> password

Router#

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

service-module embedded-service-engine 0/0 install url url

Example:

Router# service-module embedded-service-engine 0/0 install url ftp;//user:password@10.86.26.195/new/vsep/cimce -k9.vsep.1.0.2.pkg

Uses Cisco SRE to install an application on a service module (Cisco SM-SRE).

url url—URL, as defined in RFC 2396, of the server and directory on which the application packages and Tcl script are located. The URL should point to the .bin or .pkg file on the FTP or HTTP server. The router downloads and installs all other files required to complete the application installation.

Step 3

service-module embedded-service-engine 0/0 status

Example:

Router# service-module embedded-service-engine 0/0 status

(Optional) Displays configuration information related to the hardware and software on an Embedded Service Engine service module.

Step 4

exit

Example:

Router# exit

Exits privileged EXEC mode.

Installing CIMC-E on the Embedded Service Engine: Example

The following is an example installation of the CIMC-E application on the Embedded Service Engine:

Router# service-module embedded-Service-Engine 0/0 install url
ftp://10.86.26.195/vsem/cimce-k9.vsem.1.0.2.pkg


Proceed with installation? [no]: yes
Loading nightly/BNDR/vsem/cimce-k9.vsem.1.0.2.pkg.install.sre !
[OK - 15482/4096 bytes]
partition_support is available.
Has enough memory and disk disk space for app install
rsrc_str is disk= 488 mem= 256
raid option -1
sku vsem
ios_version 15.1(20101031:104834)
ios_image c2900-universalk9-mz
pkg name cimce-k9.vsem.1.0.2.pkg
Resource requirements check completed successfully. Proceeding to Install....


CSL-2911#
CSL-2911#
Install successful on Embedded-Service-Engine0/0



The "Install successful..." message indicates that the installation process is finished.

The following example shows that CIMC-E was installed correctly:

Router# service-module embedded-Service-Engine 0/0 status


Service Module is Cisco Embedded-Service-Engine0/0
Service Module supports session via TTY line 2
Service Module is in Steady state
Service Module heartbeat-reset is enabled
Getting status from the Service Module, please wait..


Cisco CIMC-E Software 1.0
CIMCE Running on VSEM
Embedded Service Engine boot state is KERNEL UP


Module resource information:
 CPU Frequency: 500 MHz
 Memory Size: 256 MB
 Disk Size: 488 MB

No install/uninstall in progress



Configuring the Cisco ISR G2 for CIMC-E

To configure the Cisco ISR G2 for CIMC-E, perform the tasks described in the following sections.

Setting Up the HTTPS Server and Authentication

Configuring the Web Services Management Agent

Configuring Rollback (WSMA Capability)

Setting Up the HTTPS Server and Authentication

The HTTPS server must be started.


Note CIMC-E will not work if client authentication is enabled. For CIMC-E, local authentication is required.


SUMMARY STEPS

1. enable

2. config terminal

3. ip http secure-server

4. ip http authentication local

5. exit

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

password

Example:

Router> enable

Router> password

Router#

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# config t

Enters global configuration mode.

Step 3

ip http secure-server

Example:

Router(config)# ip http secure-server

Enables a secure HTTP (HTTPS) server.

Step 4

ip http authentication local

Example:

Router(config)# ip http authentication local

Specifies a particular authentication method for HTTP server users.

local—Indicates that the login username, password and privilege level access combination specified in the local system configuration (by the username global configuration command) should be used for authentication and authorization.

Step 5

exit

Example:

Router(config)# exit

Exits global configuration mode.

Setting Up the HTTPS Server and Authentication: Example

The following example shows how to set up the HTTPS server and authentication.

Router# config t
Router(config)# ip http secure-server
Router(config)# ip http authentication local
Router(config)# exit
Router#



Configuring the Web Services Management Agent

The Web Services Management Agent (WSMA) enables communication between CIMC-E and Cisco IOS software. A user must be configured with level 15 privileges. In addition, a WSMA profile must be set up to listen for both config and exec mode commands.

SUMMARY STEPS

1. config terminal

2. username name privilege privilege-level password 0 password

3. wsma profile listener profile-name

4. transport https path pathname

5. exit

6. wsma agent exec profile profile-name

7. wsma agent config profile profile-name

8. wsma agent notify profile profile-name

9. exit

DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# config t

Enters global configuration mode.

Step 2

username name privilege privilege-level password 0 password

Example:

Router(config)# username wsmauser privilege 15 password 0 mypassword

Establishes a username-based authentication system.

0—Specifies that an unencrypted password or secret (depending on the configuration) follows.

Step 3

wsma profile listener profile-name

Example:

Router(config)# wsma profile listener wsma

Configures and enables a WSMA listener profile and enters WSMA listener configuration mode.

Step 4

transport https path pathname

Example:

Router(config-wsma-listen)# transport https path /test

Defines a transport configuration for a WSMA listener profile.

Step 5

exit

Example:

Router(config-wsma-listen)# exit

Exits WSMA listener configuration mode.

Step 6

wsma agent exec profile profile-name

Example:

Router(config)# wsma agent exec profile wsma

Enables the WSMA exec agent and associates it with a profile.

Step 7

wsma agent config profile profile-name

Example:

Router(config)# wsma agent config profile wsma

Enables the WSMA config agent and associates it with a profile.

Step 8

wsma agent notify profile profile-name

Example:

Router(config)# wsma agent notify profile wsma

Enables the WSMA notify agent and associates it with a profile.

Step 9

exit

Example:

Router(config)# exit

Exits global configuration mode.

Configuring the Web Services Management Agent: Example

The following example shows how to configure a WSMA listener profile named wsma:

Router# config t
Router(config)# username wsmauser privilege 15 password 0 mypassword
Router(config)# wsma profile listener wsma
Router(config-wsma-listen)# transport https path /cimce
Router(config-wsma-listen)# exit
Router(config)# wsma agent exec profile wsma
Router(config)# wsma agent config profile wsma
Router(config)# wsma agent notify profile wsma
Router(config)# exit
Router#

Configuring Rollback (WSMA Capability)

You must enable WSMA to use rollback by configuring the Cisco IOS software to allow archiving of commands.

SUMMARY STEPS

1. config terminal

2. archive

3. log config

4. hidekeys

5. exit

6. path url

7. maximum number

8. exit

DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# config t

Enters global configuration mode.

Step 2

archive

Example:

Router(config)# archive

Enters archive configuration mode.

Step 3

log config

Example:

Router(config-archive)# log config

Enters configuration change logger configuration mode.

Step 4

hidekeys

Example:

Router(config-archive-log-cfg)# hidekeys

Suppresses the display of password information in configuration log files.

Step 5

exit

Example:

Router(config-archive-log-cfg)# exit

Exits configuration change logger configuration mode.

Step 6

path url

Example:

Router(config-archive)# path flash:roll

Specifies the location and filename prefix for the files in the Cisco IOS configuration archive.

Step 7

maximum number

Example:

Router(config-archive)# maximum 5

Sets the maximum number of archive files of the running configuration to be saved in the Cisco IOS configuration archive.

Step 8

exit

Example:

Router(config-archive)# exit

Exits archive configuration mode.

Configuring Rollback (WSMA Capability): Example

The following example shows how to configure rollback.

Router# config t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)# archive
Router(config-archive)# log config
Router(config-archive-log-cfg)# hidekeys
Router(config-archive-log-cfg)# exit
Router(config-archive)# path flash:roll
Router(config-archive)# maximum 5
Router(config-archive)# exit
Router(config)#



Accessing the CIMC-E CLI

To access the CIMC-E CLI, from any Linux workstation, enter:

ssh admin@Embedded-Service-Engine-Service-Module-IP-Address

as in the following example in which the Embedded Service Engine service module IP address is 10.0.0.2:

> ssh admin@10.0.0.2

admin@10.0.0.2's password:

se-10-0-0-2#


Note The default username and password for CIMC-E is "admin" and "password", respectively.


Configuring CIMC-E

Once the Cisco ISR G2 has been properly configured, the CIMC-E software must be configured with settings that match those configured on the Cisco ISR G2 in the "Configuring the Cisco ISR G2 for CIMC-E" section. To configure CIMC-E, log into the CIMC-E CLI using SSH as described in the "Accessing the CIMC-E CLI" section. The following commands are found in the scope cimce.

SUMMARY STEPS

1. scope cimce

2. set username username

3. set password password

4. set url url

5. commit

DETAILED STEPS


Command or Action
Purpose

Step 1

scope cimce

Example:

se-10-0-0-2# scope cimce

Enters cimce mode.

Step 2

set username username

Example:

se-10-0-0-2 /cimce # set username wsmauser

Sets the username that CIMC-E uses to communicate with the router.

Step 3

set password password

Example:

se-10-0-0-2 /cimce # set password mypassword

Sets the password that CIMC-E uses to communicate with the router.

Step 4

set url url

Example:

se-10-0-0-2 /cimce # set url 10.0.0.2/cimce

Sets the URL of the router Embedded Service Engine IP address for communication with CIMC-E.

Step 5

commit

Example:

se-10-0-0-2 /cimce # commit

Saves configuration changes.

Configuring CIMC-E: Example

In the following example, the IP address of the Cisco ISR G2 router, as reachable from the Embedded Service Engine, is 10.0.0.5:

ssh admin@10.0.0.5
admin@10.0.0.5's password:
se-10-0-0-5# scope cimce
se-10-0-0-5 /cimce # set username wsmauser
se-10-0-0-5 /cimce *# set password <PASSWORD>
se-10-0-0-5 /cimce *# set url 10.0.0.5/cimce
se-10-0-0-5 /cimce *# commit
Username:        wsmauser
Password:        <hidden>
End Point:       10.0.0.5/cimce
New config changes have been saved
se-10-0-0-5 /cimce #



Note The URL is the IP address of the Cisco ISR G2, followed by the path set up in the "Configuring the Web Services Management Agent" section.

The username and password setup here must correspond to the username and password setup in the "Configuring the Web Services Management Agent" section.


Verifying That CIMC-E Is Configured Properly

To verify that the CIMC-E application is configured properly, use the show hardware command in the scope router. In the following example, the IP address of the Embedded Service Engine is 10.0.0.5:

ssh admin@10.0.0.5
admin@10.0.0.5's password:
se-10-0-0-5# scope router
se-10-0-0-5 /router# show hardware
Cisco IOS Software, C2900 Software (C2900-UNIVERSALK9-M)
Cisco CISCO2911/K9 (revision 1.0) with 729056K/57344K bytes of memory.
Chassis Serial Number    : FTX1405A1Z5
Chassis MAC Address      : 0000.e181.5150
se-10-0-0-5#



If CIMC-E is configured properly, you should see an output similar to this example when you run the show hardware command.

Managing the Embedded Service Engine

This section contains the following topics:

Disabling the Embedded Service Engine

Troubleshooting the Embedded Service Engine

Disabling the Embedded Service Engine

To disable the Embedded Service Engine, you have to:

1. Enter the configuration command no service-module enable under the embedded-service-engine 0/0 interface.

2. Save the configuration to NVRAM.

3. Reboot the system.

When you disable the Embedded Service Engine, all resources are returned to the first core.

SUMMARY STEPS

From the Host-Router CLI

1. enable

2. configure terminal

3. interface Embedded-Service-Engine 0/0

4. no service-module enable

5. end

6. copy running-config startup-config

7. show running-config

8. reload

DETAILED STEPS


Command or Action
Purpose

From the Host-Router CLI

Step 1

enable

password

Example:

Router> enable

Router> password

Router#

Enters privileged EXEC mode on the host router. Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode on the host router.

Step 3

interface Embedded-Service-Engine 0/0

Example:

Router(config)# interface Embedded-Service-Engine 0/0

Enters interface configuration mode for the slot and port where the Embedded Service Engine resides.

Step 4

no service-module enable

Example:

Router(config-if)# no service-module enable

Disables the Embedded Service Engine on a service module interface and returns hardware resources to the first core.

Step 5

end

Example:

Router(config-if)# end

Returns to global configuration mode on the host router.

Step 6

copy running-config startup-config

Example:

Router# copy running-config startup-config

Saves the router's new running configuration as the startup configuration.

Step 7

show running-config

Example:

Router# show running-config

Displays the router's running configuration, so that you can verify address configurations.

Step 8

reload

Example:

Router# reload

Proceed with reload? [confirm]

Reloads the operating system.

Disabling the Embedded Service Engine: Example

In the following example, the Embedded Service Engine is disabled:

interface Embedded-Service-Engine0/0
 no service-module enable
!



The resources are returned to the first core after the configuration has been saved to NVRAM and the system has been rebooted.

Router# copy running-config startup-config

Router# show running-config

Router# reload

Proceed with reload? [confirm]

Troubleshooting the Embedded Service Engine

This section contains troubleshooting information for the following scenarios:

Verifying That the Embedded Service Engine Is Enabled

Verifying System Resources

Checking the Status of the Embedded Service Engine

Verifying the Embedded Service Engine Boot Up

Corrupt uboot Image

Corrupt uboot Configuration

Verifying Application Installation

Verifying That the Embedded Service Engine Is Enabled

From the Cisco IOS software prompt, enter the following command:

Router# show running-config



In the command output, verify that the line "service-module enable" is present under the Embedded-Service-Engine0/0 interface:

interface Embedded-Service-Engine0/0
 ip address 10.10.10.1 255.255.0.0
 service-module enable
 service-module ip address 10.10.10.2 255.255.0.0
 service-module ip default-gateway 10.10.10.1
!



If you try to enable the Embedded Service Engine on a system that does not have enough memory, the following message is displayed:

2911B# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
2911B(config)# interface Embedded-Service-Engine 0/0
2911B(config-if)# service-module enable


Memory size does not meet the requirements of Embedded-Service-Engine 0/0

Verifying System Resources

After enabling the Embedded Service Engine, saving the configuration, and rebooting the router, enter the show diag command. Verify that the Embedded Service Engine resources are shown as in the following example:

Show diag:
.
.
.
Embedded Service Engine 0/0 :
  Total platform memory : 2097152K bytes
  Total 2nd core memory : 262144K bytes
  Start of physical address for 2nd core : 0x20000000
  Number of blocks of memory for 2nd core : 1
  2nd core configured enabled
  L2 cache ways for 2nd core : 1
  CF1 for 2nd core
  Mac address of interface is 8843.e100.0006
  Mac address of 2nd core is 8843.e100.0007



Checking the Status of the Embedded Service Engine

Use the service-module status command to check the status of the Embedded Service Engine:

C2951# service-module embedded-Service-Engine 0/0 status
Service Module is Cisco Embedded-Service-Engine0/0
Service Module supports session via TTY line 2
Service Module is in Steady state
Service Module heartbeat-reset is enabled


Getting status from the Service Module, please wait..


Cisco CIMCE Software 1.0
Fndn running on C2951
Embedded Service Engine boot state is KERNEL UP
No install/uninstall in progress



Check that the state is not in RESET or FAILED.

If the state is RESET:

Verify that the Embedded Service Engine is enabled using the service-module embedded-Service-Engine 0/0 status command.

Verify that the interface is not shut down using the show interface embedded-service-engine command.

If the state is FAILED, see the "Corrupt uboot Image" section.

Verifying the Embedded Service Engine Boot Up

Check the console log to verify that the Embedded Service Engine boots up to the KERNEL.

*Sep 20 18:41:54.283: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP
*Sep 20 18:41:54.287: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP
*Sep 20 18:41:55.359: %SM_INSTALL-6-INST_RBIP: Embedded-Service-Engine0/0 received msg:
RBIP Registration Request
*Sep 20 18:41:56.203: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state
to up
*Sep 08 18:46:23.639: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core UP



Corrupt uboot Image

If the uboot image is corrupt, the following console messages are displayed:

Router#
*Sep 28 18:40:01.898: %SECONDCORE-3-UBOOT_BADMAGIC: Invalid Image magic is 0xD0A5468
expected 0x42553049
*Sep 28 18:40:01.898: %SECONDCORE-3-NOT_LAUNCHED: Second core not launched
*Sep 28 18:40:01.922: %SECONDCORE-3-UBOOT_BADMAGIC: Invalid Image magic is 0xD0A5468
expected 0x42553049
*Sep 28 18:40:01.922: %SECONDCORE-3-NOT_LAUNCHED: Second core not launched
*Sep 28 18:40:03.894: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state
to down



If the uboot image is corrupt, do the following:

1. enable

2. configure terminal

3. interface Embedded-Service-Engine 0/0

4. no service-module enable

5. service-module enable

6. end

You do not have to save the configuration to NVRAM, and a reboot is not required.

Corrupt uboot Configuration

Open a session with the Embedded Service Engine:

Router# service-module embedded-Service-Engine 0/0 session


Trying 10.10.10.1, 2002 ... Open


***


 ServicesEngine Bootloader Version : 1.0


boot loader > show config


IP Address:             10.10.10.2
Subnet Mask:            255.255.0.0
TFTP Server:            10.10.10.1
Gateway:                10.10.10.1
Default Helper-file:    cimce-installer.vsep.eng_bld.prt1
Ethernet Interface:     internal
Default Boot:           disk
Default Bootloader:     primary
Bootloader Version:     1.0



If the Embedded Service Engine is stuck at the uboot prompt, it is possible that the uboot configuration is lost or corrupt. If the Default Boot field shown above is NULL, the uboot configuration read may have failed or the uboot configuration is corrupt. Enter the following command from the Cisco IOS software prompt:

Router# service-module embedded-service-engine 0/0 reset

Verifying Application Installation

The following is an example installation of the CIMC-E application on the Embedded Service Engine:

Router# service-module embedded-Service-Engine 0/0 install url
ftp://example@10.86.26.195/new/vsep/cimce-k9.vsep.1.0.2.pkg


Proceed with installation? [no]: yes
Loading new/vsep/cimce-k9.vsep.1.0.2.pkg.install.sre !
[OK - 15049/4096 bytes]
partition_support is available.
Has enough memory and disk disk space for app install
rsrc_str is disk= 256 mem= 256
raid option -1
sku vsep
ios_version 15.1(20101009:200234)
ios_image c2951-universalk9-mz
pkg name cimce-k9.vsep.1.0.2.pkg
Resource requirements check completed successfully. Proceeding to Install....



To verify that CIMC-E was installed correctly, use the following command:

Router# service-module embedded-Service-Engine 0/0 status
Service Module is Cisco Embedded-Service-Engine0/0
Service Module supports session via TTY line 2
Service Module is in Steady state
Service Module heartbeat-reset is enabled
Getting status from the Service Module, please wait..


Cisco CIMC-E Software 1.0
CIMCE Running on VSEM
Embedded Service Engine boot state is KERNEL UP
No install/uninstall in progress



Managing the Server

This section contains the following topics:

Configuring CIMC-E Properties

Viewing Overall Server Status

Shutting Down the Module

Reloading the Module

Resetting the Module

Installing Software on the Module

Configuring CIMC-E Properties

To enable communication with CIMC-E, follow this procedure. This configuration can also be performed from the CIMC-E command line as described in the "Configuring CIMC-E" section.

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click CIMC-E Configuration.

Step 3 Enter the following information:

Table 7 CIMC-E Configuration Field Descriptions

Name
Description

Username

Username for communicating with CIMC-E.

Password

Password for communicating with CIMC-E.

URL

URL of the router.


Step 4 Click Change Username to change the username.

Step 5 Click Change Password to change the password.

Step 6 Click Change URL to change the URL.


The CIMC-E Configuration Pane is shown in Figure 2.

Figure 2 CIMC-E Configuration Pane

Viewing Overall Server Status

To view overall server status, follow this procedure:

Procedure


Step 1 In the Overall Server Status area of the Navigation pane, view the Interfaces and CIMC-E status.

Step 2 (Optional) The Server Summary pane shown in Figure 3.

Figure 3 Server Summary Pane

Review the following information in the Modules area of the Server Summary pane:

Table 8 Module Summary Field Descriptions

Name
Description

Power State field

The current power state.

Software field

The software running on the module, for example, CIMC-E.

Install Status field

Status of installation in progress. This can be:

No install in progress

Install in progress

Aborting install

Overall Server Status field

The overall health of the server.

Online

Not available

Processors field

The overall health of the processors.

Memory field

The overall health of the memory modules.

Power Supplies field

The overall health of the power supplies.

Fans field

The overall health of the fans.

HDD field

The overall health of the HDD.



Shutting Down the Module

To shut down the module, follow this procedure:

Before You Begin

You must have privileges for the module that you want to shut down.

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Summary.

Step 3 In the Actions area, click Shutdown Module.


Reloading the Module

To reload the module, follow this procedure:

Before You Begin

You must have privileges for the module that you want to reload.

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Summary.

Step 3 In the Actions area, click Reload Module.


Resetting the Module

To reset the module, follow this procedure:

Before You Begin

You must have privileges for the module that you want to reset.

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Summary.

Step 3 In the Actions area, click Reset Module.


Installing Software on the Module

To install software on the module, follow this procedure:

Before You Begin

You must have privileges for the module on which you want to install software.

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Summary.

Step 3 In the Actions area, click Install Software.

Step 4 In the Install Software to Module screen shown in Figure 4, enter the following information:

Table 9 Install Software to Module Field Descriptions

Field Name
Description

Package URL

URL of the file to be installed

Username

Username with privileges for the module

Password

Password for the username

Arguments

Name-value pair arguments for installation

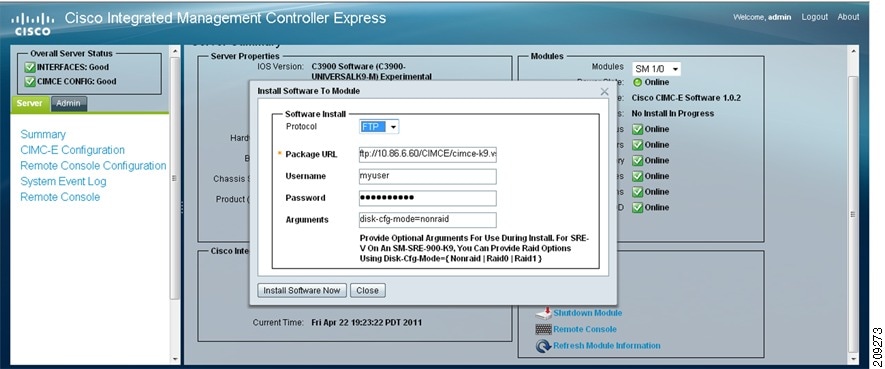

Figure 4 Install Software to Module Screen

Step 5 Click Install Software Now.


Viewing Server Properties

To view server properties, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Summary.

Step 3 In the Server Properties area, review the following information:

Table 10 Server Properties Field Descriptions

Name
Description

Cisco IOS Version field

Cisco IOS software version

Host Name field

Server's host name

Hardware Revision field

Card hardware revision

Board Revision field

System board revision

Chassis Serial Number field

Chassis serial number

Product (FRU) Number field

Field-replaceable unit number


Viewing CIMC-E Information

To view CIMC-E information, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Summary.

Step 3 In the CIMC-E Information area, review the following information:

Table 11 Server Properties Field Descriptions

Name
Description

Hostname field

Host name of the Embedded Service Engine

IP Address field

IP address of the Embedded Service Engine

Version field

CIMC-E version

Current Time field

Time on CIMC-E


Managing the Remote Console

This section contains the following topics:

Configuring the Remote Console

Using the Remote Console

Configuring the Remote Console

To configure the remote console, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Remote Console Configuration.

Step 3 In the Remote Console Access pane shown in Figure 5, enter the following information:

Table 12 Remote Console Access Field Descriptions

Name
Description

New IP Address field

Embedded Service Engine service module IP address.

New Port field

Port on the Embedded Service Engine that accepts Telnet connections. Port 23 is the common Telnet port.


Step 4 Click Change IP or Change Port after entering the new information.


Figure 5 Remote Console Access Pane


Note The information on this screen provides a way for the web browser to reach port 23 on the Embedded Service Engine. If Network Address Translation (NAT) is used on this port, enter the translated IP address and port to use. If NAT is not used on this port, enter the IP address of the Embedded Service Engine and use port 23.


Using the Remote Console

You can use the remote console to telnet into an application on a router blade. For example, you can telnet into a Cisco SRE-V and accept Cisco Software Licensing (CSL) licenses.

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click Remote Console.

Step 3 In the Remote Console pane, enter CIMC-E commands at the prompt.


The Remote Console Pane is shown in Figure 6.

Figure 6 Remote Console Pane

Managing User Accounts

This section contains the following topics:

Creating Local Users

Configuring User Privileges

Viewing Local Users

Viewing User Sessions

Creating Local Users

To create local users, follow this procedure:

Before You Begin

You must log in as the admin user to configure local users.

The Create User screen is shown in Figure 7.

Figure 7 Create User Pane

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click User Management.

Step 3 In the User Management pane, click the Create User tab.

Step 4 To configure a local user, click the Local User tab.

Step 5 Click in a row.

Step 6 In the User Details dialog box, update the following properties:

Table 13 User Properties

Name
Description

ID column

The unique identifier for the user.

Enabled check box

If checked, the user is enabled on the CIMC-E.

User Name column

The username for the user.

Role column

The role assigned to the user. This can be:

read-only—This user can view information but cannot make any changes.

user—This user can perform the following actions on the modules for which they have permissions:

View all information

This user can view information for all modules, regardless of permissions.

Manage the power control options such as power on, power cycle, and power off

Clear all logs (from the CLI)

admin—This user can perform all actions available through the GUI and CLI.


Step 7 Enter password information.

Step 8 Click Save Changes.


Configuring User Privileges

To configure user privileges, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click User Management.

Step 3 In the Local User tab, click in the local user's row.

Step 4 The Edit User Information dialog box is shown in Figure 8.

Figure 8 Edit User Information Dialog Box

In the Edit User Information dialog box, you can update the following properties:

Table 14 User Information

Name
Description

Password

The user's password.

Confirm Password

The user's password again, for confirmation.

Permission

The modules which the user can configure. Check all that apply.



Note For the admin user, you can only change the password. You cannot change the modules permissions for the admin user.


Step 5 (Optional) To change the user's password, enter password information.

Step 6 Click Change Password.

Step 7 (Optional) To delete the user, click Delete User.

Step 8 (Optional) To disable the user, click Disable.

Step 9 (Optional) To assign permissions for modules, check the boxes for the appropriate modules.

Step 10 Click Close.

Step 11 Click Change Password, Delete User, Disable, Close.


Viewing Local Users

To view local users, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click User Management.

Step 3 In the User Management pane, click the Local Users tab.

Step 4 In the Local Users screen, shown in Figure 9, view the following information about local users:


Tip Click a column header to sort the table rows, according to the entries in that column.


Table 15 Local Users Screen Field Descriptions

Name
Description

ID column

The unique identifier for the user.

Enabled column

Whether the user is enabled on CIMC-E.

User Name column

The username for the user.

Role column

The role assigned to the user.



Figure 9 Local Users Pane

Viewing User Sessions

To view user sessions, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click User Management.

Step 3 In the User Management pane, click the Sessions tab.

Step 4 View the information about current user sessions shown in Table 16:


Tip Click a column header to sort the table rows, according to the entries in that column.


Table 16 Local Users Screen Field Descriptions

Name
Description

Session ID column

The unique identifier for the session.

User Name column

The username for the user.

IP Address column

The IP address from which the user accessed the server.

Type column

The method by which the user accessed the server.



The Sessions screen is shown in Figure 10.

Figure 10 Sessions Screen

Configuring Network-Related Settings

This section contains the following topics:

Configuring NIC Properties

Configuring IPv4

Configuring Module Properties

Configuring VLANs

Configuring NIC Properties

To configure NIC properties, follow this procedure:

Before You Begin

You must log in as a user with admin privileges to configure the NIC.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Network.

Step 3 In the Network pane, click the Network Settings tab.

Step 4 In the NIC Properties area, select the interface:


Configuring IPv4

To configure IPv4, follow this procedure:

Before You Begin

You must log in as a user with admin privileges to configure IPv4.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Network.

Step 3 In the Network pane, click the Network Settings tab.

Step 4 In the IPv4 Properties area, update the following properties:

Table 17 IPv4 Properties Field Descriptions

Name
Description

Power State field

Whether module is Online or not.

IP Address field

The IP address of the module.

IP Subnet field

The subnet.


Step 5 Click Save Changes to save the updated properties.

Step 6 Click Shutdown to shutdown IPv4.


Configuring Module Properties

To configure module properties, follow this procedure:

Before You Begin

You must log in as a user with admin privileges to configure module properties.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Network.

Step 3 In the Network pane, click the Network Settings tab.

Step 4 In the Module Properties area, update the following properties:

Table 18 Module Properties Field Descriptions

Name
Description

Module IP Address field

The IP address of the module.

IP Subnet Mask field

The subnet.

Default Gateway field

Default gateway of the module.


Step 5 Click Save Changes to save the updated properties.


The Module Properties area of the Network Settings tab is shown in Figure 11.

Figure 11 Network Settings

Configuring VLANs

To configure VLANs, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Network.

Step 3 In the Network pane, click the VLAN Settings tab.

Step 4 In the VLAN Properties area, update the following properties:

Table 19 VLAN Settings Field Descriptions

Name
Description

VLAN IP field

The IP address of the VLAN.

VLAN Subnet field

The subnet of the IP address.


Step 5 Click Save Changes to save the updated properties.


The VLAN properties are shown in Figure 12.

Figure 12 VLAN Settings

Configuring Communication Services

This section contains the following topics:

Configuring HTTP

Configuring SSH

Viewing Client Information

Restarting HTTP Operations

Configuring HTTP

To configure HTTP, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Communication Services.

Step 3 In the HTTP Properties area, update the Server Port field. The following properties are displayed, as shown in Figure 13:

Table 20 HTTP Properties Field Descriptions

Name
Description

HTTP/S Enabled check box

Whether HTTP and HTTPS are enabled on the CIMC-E.

Server IP

IP address of the server.

Service Port

The port to use for HTTP and HTTPS communication. The default is 80.

Server Protocol

HTTP or HTTPS.

Version

Protocol version.


The HTTP properties are shown in Figure 13.

Figure 13 Communication Services Pane

Configuring SSH

You can configure the port used to connect via SSH to the CIMC-E CLI interface.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Communication Services.

Step 3 In the SSH Properties area, update the SSH Port field.

Step 4 Click Change SSH Port.


Viewing Client Information

To view client information, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Communication Services.

Step 3 In the Client Information area, View the following properties:

Table 21 Client Information Field Descriptions

Name
Description

Client IP

IP address of the client.

Client Port

Port the client is using for HTTP and HTTPS communication. The default is 80.

Browser

Client's browser.

Current Time

Time on the client's system.



Restarting HTTP Operations

To restart HTTP operations, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Communication Services.

Step 3 In the HTTP Operation area, click Restart.


Managing Certificates

The CIMC-E GUI supports the HTTPS protocol and so requires a privacy-enhanced mail (PEM) certificate to establish HTTPS connections. The two ways of getting a server certificate for the CIMC-E GUI to use are described in the following sections:

You can use the default Cisco certificate by following the procedure in the "Using the Default Cisco Certificate" section.

You can use your own self-signed certificate. See the sections starting with "Creating a Self-Signed Certificate" section.


Note CIMC-E does not support the use of certificates signed by Certificate Authorities (CAs).


Using the Default Cisco Certificate

Creating a Self-Signed Certificate

Uploading a Server Certificate

Viewing Current Certificate Information

Using the Default Cisco Certificate

To use the default Cisco certificate, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Certificate Management.

Step 3 In the Actions area, click Use Default Cisco Certificate.


Creating a Self-Signed Certificate

As an alternative to using a public Certificate Authority (CA) to generate and sign a server certificate, you can generate your own self-signed certificate. This section shows commands for generating a self-signed certificate using the OpenSSL certificate server running on Linux. For detailed information about OpenSSL, see http://www.openssl.org.


Note These commands are to be entered on a Linux server with the OpenSSL package, not in the CIMC-E CLI.


Before You Begin

Obtain and install a certificate server software package on a server within your organization.

Procedure

From a Linux machine, you can use openssl to generate a self-signed certificate. To do so, enter these commands:

openssl genrsa -out key.pem 1024
openssl req -new -key key.pem -out request.pem [-batch]
openssl req -x509 -days 30 -key key.pem -in request.pem -out certificate.pem
cat key.pem certificate.pem > myNewKey.pem



What to Do Next

Upload myNewKey.pem to the CIMC-E web server for use with HTTPS connections, as described in the following section.

Uploading a Server Certificate

If you have created your own server certificate, you can use the GUI to upload it.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Certificate Management.

Step 3 In the Actions area, click Upload Server Certificate:


Viewing Current Certificate Information

To view current certificate information, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Certificate Management.

Step 3 The Current Certificate area is shown in Figure 14.

Figure 14 Certificate Management Pane

View the following information about the current certificate:

Table 22 Current Certificate Field Descriptions

Name
Description

Certificate

Certificate name or default.

Serial Number

Certificate's serial number.

Subject Information


Country Code (CC)

The country in which the company resides.

State (S)

The state or province in which the company requesting the certificate is headquartered.

Locality (L)

The city or town in which the company requesting the certificate is headquartered.

Organization (O)

The organization requesting the certificate.

Issuer Information


Country Code (CC)

The country in which the company resides.

State (S)

The state or province in which the company requesting the certificate is headquartered.

Locality (L)

The city or town in which the company requesting the certificate is headquartered.

Organization (O)

The organization requesting the certificate.

Valid From

Date and time the certificate starts being valid.

Valid To

Date and time the certificate is no longer valid.



Configuring Platform Event Filters

This section contains the following topics:

Platform Event Filters

Enabling Platform Event Alerts

Disabling Platform Event Alerts

Platform Event Filters

A platform event filter (PEF) can trigger an action and generate an alert when a critical hardware-related event occurs. For each PEF, you can choose the action to be taken (or take no action) when a platform event occurs. You can also choose to generate and send an alert when a platform event occurs. Alerts are sent as an SNMP trap, so you must configure an SNMP trap destination before the alerts can be sent.

You can globally enable or disable the generation of platform event alerts. When disabled, alerts are not sent even if PEFs are configured to send them.

Enabling Platform Event Alerts

To enable platform event alerts, follow this procedure:

Before You Begin

You must log in as a user with admin privileges to enable platform event alerts.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Event Management.

Step 3 In the Platform Event Filters tab, shown in Figure 15, check the Send Alert check box for each event for which you want to send alerts.

Figure 15 Event Management Screen


Disabling Platform Event Alerts

To disable platform event alerts, follow this procedure:

Before You Begin

You must log in as a user with admin privileges to disable platform event alerts.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Event Management.

Step 3 In the Platform Event Filters tab, uncheck the Send Alert check box for each event you want to disable.


CIMC-E Firmware Management

This section contains the following topics:

Overview of Firmware

Obtaining CIMC-E Firmware from Cisco

Installing CIMC-E Firmware

Overview of Firmware

After you have obtained a new firmware image from Cisco, you can use it to update the firmware on your server. Cisco also provides release notes with each image, which you can obtain from the same website from which you obtained the image.


Note When you update the firmware, you can either upgrade an older firmware version to a newer one, or downgrade a newer firmware version to an older one.


Updating CIMC-E firmware is a process that occurs separately from products on other modules, so these modules do not have to be shutdown. When you update firmware, the CIMC-E transfers the selected firmware version to the Embedded Service Engine. You can install the firmware from an FTP server. The install process always overwrites the firmware in the Embedded Service Engine.

Obtaining CIMC-E Firmware from Cisco

To obtain CIMC-E firmware from Cisco, follow this procedure:

Procedure


Step 1 In a web browser, navigate to the web link provided by Cisco to obtain firmware images for your server.

Step 2 Select one or more firmware images and copy them to a network server.

Step 3 Read the release notes provided with the image or images.


What to Do Next

Install the CIMC-E firmware on the server.

Installing CIMC-E Firmware

To install the CIMC-E firmware, follow this procedure:

Before You Begin

Obtain the CIMC-E firmware from Cisco as described in the "Obtaining CIMC-E Firmware from Cisco" section.

You must log in as a user with admin privileges to install CIMC-E firmware through the browser.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Firmware Management.

Step 3 In the Actions area, click Install CIMC-E Firmware through Browser Client.

Step 4 In the Install Firmware dialog box, shown in Figure 16, do one of the following:

Click Browse and use the Choose File dialog box to select the firmware image that you want to install.

Enter the full path and filename of the firmware image that you want to install.

Figure 16 Firmware Upgrade

Step 5 Click Install Firmware.


Viewing Logs

This section contains the following topics:

CIMC-E Log

System Event Log

CIMC-E Log

To view the CIMC-E Log, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click CIMC Log.

Step 3 The CIMC-E Log is shown in Figure 17.

Figure 17 CIMC-E Log Example

Review the following information for each CIMC-E event in the log.

Table 23 CIMC-E Log Field Descriptions

Name
Description

Timestamp

The date and time the event occurred.

Source

The software module that logged the event.

Description

A description of the event.


Step 4 Click <Newer or Older> to move backward and forward through the pages of CIMC-E events or click <<Newest to move to the top of the list.

By default, the newest CIMC-E events are displayed at the top if the list.

Step 5 Click the column heading (Timestamp, Source, or Description) to sort the log by that column.


System Event Log

The system event log records any action that is performed on a managed module, such as, installing software, performing a reset, or changing IP addresses. To view the System Event Log, follow this procedure:

Procedure


Step 1 In the Navigation pane, click the Server tab.

Step 2 On the Server tab, click System Event Log.

Step 3 The System Event Log is shown in Figure 18.

Figure 18 System Event Log Example

Review the following information for each system event in the log:

Table 24 System Event Log Field Descriptions

Name
Description

Timestamp

The date and time the event occurred.

Source

The software module that logged the event.

Description

A description of the event.


Step 4 Click <Newer or Older> to move backward and forward through the pages of CIMC-E events or click <<Newest to move to the top of the list.

By default, the newest CIMC-E events are displayed at the top if the list.

Step 5 Click the column heading (Timestamp, Source, or Description) to sort the log by that column.


Server Utilities

This section contains the following topics:

Exporting Technical Support Data

Rebooting CIMC-E

Exporting Technical Support Data

Perform this task when requested by Cisco Technical Support. This utility creates a summary report containing configuration information, logs, and diagnostic data that will help Technical Support in troubleshooting and resolving a technical issue.

Procedure


Step 1 In the Navigation pane, click the Admin tab.

Step 2 On the Admin tab, click Tech Support.

Step 3 On the View tab, click Get Techsupport Data. Figure 19 shows an example of technical support data.

Figure 19 Get Tech Support Data

Step 4 Click the Download tab shown in Figure 20.

Figure 20 Download Tab

Step 5 In the Download to Remote Server area, enter the remote server name.

Step 6 Click Download Now.


What to Do Next

Provide the generated report file to Cisco Technical Support.

Rebooting CIMC-E

On rare occasions, such as an issue with the current running firmware, troubleshooting a server may require you to reboot CIMC-E. This procedure is not part of the normal maintenance of a server. After you reboot the CIMC-E, you are logged off and the CIMC-E will be unavailable for a few minutes.

To reboot CIMC-E, enter the following command:

Router# service-module embedded-service-engine 0/0 reload

Do you want to proceed with reload?[confirm]

CIMC-E Command Reference

This command reference documents commands for CIMC-E. You must open a session on the service module to access the CIMC-E commands.

The following commands are new or have been modified:

Scope router

scope router

show hardware

show log

set logbuffer

set loglevel

clear log

Scope syslog

scope syslog

create server

show servers

delete server

Scope service-module

scope service-module

scope module port

reload

reset

show statistics

show status (service-module/module port)

shutdown

Scope interface

scope interface

show description

show stat

show summary

scope interface port

show status (interface/interface port)

set ip

set mask

set module-gateway

set module-ip

set module-mask

set power noshutdown

set power shutdown

set unnumbered-interface

Scope user

scope user

create username

set password

create permissions

delete username

delete permissions

show all

show username

show permissions

Scope cimce

scope cimce

set url

set username

set password

set sshport

show config

show logs

show log (cimce)

show sshport

tail

Scope http

scope http

set port

set ssl enable

set ssl disable

set cert default

show port

show ssl

show status (cimce/http)

shutdown (cimce/http)

start (cimce/http)

restart (cimce/http)

upload cert url

Scope syslog

scope syslog (cimce)

set server

set syslog disable

show server (cimce/syslog)

scope router

To enter router mode, use the scope router command.

scope router

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Router (/router)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use router mode to set router properties, display system information, and enter commands on the console.

Examples

This example shows how to enter router mode:

Router# scope router
router /router #



show hardware

To display hardware specifications of the router, use the show hardware command in router mode.

show hardware

Syntax Description

This command has no arguments or keywords.

Command Modes

Router (/router)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example displays hardware specifications for the router.:

router /router # show hardware



Cisco IOS Software, C2900 Software (C2900-UNIVERSALK9-M), Experimental Version 15.1(20100215:211240) [jquan-tb18 200]

Cisco CISCO2911/K9 (revision 1.0) with 745472K/40960K bytes of memory.

Chassis Serial Number : FTX1405A1Z5

Chassis MAC Address : 0000.e181.5150

show log

To display the system log, use the show log command in router mode.

show log

Syntax Description

This command has no arguments or keywords.

Command Modes

Router (/router)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example displays the system log:

router /router # show log



Log Buffer (4096 bytes):

May 14 14:51:30.554: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.1.1.60 port 514 stopped - CLI initiated

May 14 14:51:57.842: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.1.1.60 port 514 stopped - CLI initiated

May 14 14:51:58.842: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.168.24.4 port 514 started - CLI initiated

May 14 14:52:04.862: %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.168.24.4 port 514 stopped - CLI initiated

May 16 01:47:22.502: %SECONDCORE-5-BOOTSTAGE: CPU on 2nd core SHUTDOWN

May 16 01:47:22.542: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP

May 16 01:47:23.022: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP

May 16 01:57:22.542: %SECONDCORE-5-BOOTSTAGE: CPU on 2nd core SHUTDOWN

May 16 01:57:22.586: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP

May 16 01:57:23.062: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP

May 17 14:09:45.261: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core UP

May 17 14:09:46.521: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to down

May 17 14:09:47.521: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to down

May 17 14:10:33.913: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to up

May 17 14:42:27.825: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core SAFE FOR RESET

May 17 14:42:27.825: %SECONDCORE-5-BOOTSTAGE: CPU on 2nd core SHUTDOWN

May 17 14:42:29.825: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to down

May 17 14:42:30.825: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to down

May 17 14:42:37.865: %SECONDCORE-5-BOOTSTAGE: ROMMON on 2nd core UP

May 17 14:42:38.345: %SECONDCORE-5-BOOTSTAGE: UBOOT on 2nd core UP

May 17 14:42:39.241: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to up

May 17 14:43:29.133: %SECONDCORE-5-BOOTSTAGE: KERNEL on 2nd core UP

May 17 14:43:30.009: %LINK-3-UPDOWN: Interface Embedded-Service-Engine0/0, changed state to down

May 17 14:43:31.009: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to down

May 17 14:44:16.437: %LINEPROTO-5-UPDOWN: Line protocol on Interface Embedded-Service-Engine0/0, changed state to up

set logbuffer

To set the size of the log buffer, use the set logbuffer command in router mode.

set logbuffer number

Syntax Description

number

Size of the log buffer in bytes. Must be at least 4096 and not more than 2147483648.


Command Default

4096

Command Modes

Router (/router)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example sets the size of the log buffer to 8192 bytes:

router /router # set logbuffer 8192
router /router # commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.


set loglevel

To set the level of logging, use the set loglevel command in router mode.

set loglevel [0-7 | level]

Syntax Description

0-7| level

Level of logging. Must be one of the following numbers or corresponding words:

0 (emergencies)—Saves all emergency messages.

1 (alerts)—Saves all activities that need immediate action and those of a more severe nature.

2 (critical)—Saves all critical conditions and those of a more severe nature,

3 (errors)—Saves all error messages and those of a more severe nature

4 (warnings—Saves all warning messages and those of a more severe nature.

5 (notifications)—Saves all notification messages and those of a more severe nature.

6 (informational)—Saves all logging messages available.

7 (debugging)—Saves all debugging messages available.


Command Default

3 (errors)

Command Modes

Router (/router)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Setting a specific log level saves messages less than or equal to the configured level. For example, when you set the log level at 5-notification, all events generating messages with a log level of 4 or less are written into the log file.

The logging system's log levels are used to identify the urgency with which you might want to address log issues. The 0-emergency setting is the most severe level of logging, while 6-info is the least severe, saving mostly informational log messages.

To save changes, you must enter the commit command.

Examples

This example sets the log level to 7 bytes:

router /router # set loglevel 7
router /router # commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.


clear log

To clear the system log, use the clear log command in router mode.

clear log

Syntax Description

This command has no arguments or keywords.

Command Modes

Router (/router)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example clears the system log:

router /router # clear log

The operation completed successfully.

scope syslog

To enter syslog mode, use the scope syslog command.

scope syslog

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Syslog (/router/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use syslog mode to configure and manage syslog servers.

Examples

This example shows how to enter router mode:

Router# scope router
router /router # scope syslog
router /router/syslog #



create server

To create a syslog server, use the create server command in syslog mode.

create server ip-address

Syntax Description

ip-address

IP address of the syslog server.


Command Default

None

Command Modes

Syslog (/router/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Examples

This example creates a syslog server with the IP address 172.1.1.60:

router /router/syslog # create server 172.1.1.60
Configuration updated successfully.



show servers

To display information about the syslog servers, use the show servers command in syslog mode.

show servers

Syntax Description

This command has no arguments or keywords.

Command Modes

Syslog (/router/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example displays the system log:

router /router/syslog # show servers

Logging to 192.1.1.60 (udp port 514, audit disabled,

authentication disabled, encryption disabled, link down),

0 message lines logged,

0 message lines rate-limited,

0 message lines dropped-by-MD,

xml disabled, sequence number disabled

filtering disabled

delete server

To delete a syslog server, use the delete server command in syslog mode.

delete server ip-address

Syntax Description

ip-address

IP address of the syslog server to be deleted.


Command Modes

Syslog (/router/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example deletes a syslog server:

router /router/syslog # delete server 172.1.1.60

Configuration updated successfully.

scope service-module

To enter service-module mode, use the scope service-module command.

scope service-module

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Service-module (/service-module)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use service-module mode to set service-module properties, display system information, and enter commands on the console.

Examples

This example shows how to enter service-module mode:

Router# scope service-module
router /service-module #



scope module port

To enter module port mode, use the scope module port command in service-module mode.

scope module port

Syntax Description

module

ISM or SM.

port

Slot/port of the ISM or SM.


Command Default

None

Command Modes

Module port (/service-module/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use service-module module port mode to set properties and display information for the service module in the specified slot/port.

Examples

This example shows how to enter service-module module port mode:

router /service-module # scope ism 0/0
router /service-module/ISM 0/0 #



reload

To perform a graceful shutdown and reboot of the service module in the specified port, use the reload command in service-module module port mode.

reload

Syntax Description

This command has no arguments or keywords.

Command Modes

Service-module module port (/service-module/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

At the confirmation prompt, press Enter to confirm the action or n to cancel.

Examples

The following example shows how to gracefully shut down the module and reboot the operating system:

router /service-module/ISM 0/0# reload


reset

To reset the service module in the specified port, use the reset command in service-module module port mode.

reset

Syntax Description

This command has no arguments or keywords.

Command Modes

Service-module module port (/service-module/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

At the confirmation prompt, press Enter to confirm the action or n to cancel.


Caution Because you may lose data, use the reset command only to recover from a shutdown or failed state.

Examples

The following example shows how to reset the service module hardware:

router /service-module/ISM 0/0# reset


Use reset only to recover from shutdown or failed state

Warning: May lose data on the NVRAM, nonvolatile file system or unsaved configuration!

show statistics

To display reset and reload information for the service module in the specified port, use the show statistics command in service-module module port mode.

show statistics

Syntax Description

This command has no arguments or keywords.

Command Modes

Service-module module port (/service-module/module port)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example displays statistics for the Cisco ISM in the 0/0 port:

router /service-module/ISM 0/0# show statistics



Module Reset Statistics:

CLI reset count = 0

CLI reload count = 1

Registration request timeout reset count = 0

Error recovery timeout reset count = 0

Module registration count = 3

The last IOS initiated event was a cli reload at *19:31:00.318 UTC Fri Jul 30 20 10

show status (service-module/module port)

To display status information for the service module in the specified port, use the show status command in service-module module port mode.

show status

Syntax Description

This command has no arguments or keywords.

Command Modes

Service-module module port (/service-module/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to:

Display the service module software release version

Check the service module status (steady or down)

Display hardware information for the service module, including CPU, memory, and interface information

Examples

The following example displays status information for Cisco ISM in the 0/0 port:

router /service-module/ISM 0/0 # show status



Service Module is Cisco Embedded-Service-Engine0/0

Service Module supports session via TTY line 2

Service Module is in Steady state

Service Module heartbeat-reset is enabled

Getting status from the Service Module, please wait..

Cisco CIMC-E Software 1.0

UCSE Running on VSEM

Embedded Service Engine boot state is KERNEL UP

Module resource information:

CPU Frequency: 500 MHz

Memory Size: 256 MB

Disk Size: 488 MB

No install/uninstall in progress

shutdown

To gracefully shut down an Embedded Service Engine service module, use the shutdown command in service-module module port mode.

shutdown

Syntax Description

This command has no arguments or keywords.

Command Modes

Service-module module port (/service-module/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

At the confirmation prompt, press Enter to confirm the action or n to cancel.

This command brings down the operating system of the specified service module in an orderly fashion to protect the hard drive. When the system is shut down, the module can be removed from the router.

Examples

The following example shows how to gracefully shut down the service module:

router /service-module/ISM 0/0 # shutdown

Shutdown is used for Online removal of Service Module.
Use service module reset command to recover from shutdown.

WARNING: Confirm that the service-module status shows `is Shutdown' before removing the
module or powering off the system !

scope interface

To enter interface mode, use the scope interface command.

scope interface

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Interface (/interface)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use interface mode to set interface properties, display interface information, and enter commands on the console.

Examples

This example shows how to enter interface mode:

Router # scope interface
router /interface #



show description

To display the descriptive information for the interface, use the show description command in interface mode.

show description

Syntax Description

This command has no arguments or keywords.

Command Modes

Interface (/interface)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display information about the interface.

Examples

The following example displays descriptive information for the interface:

router /interface # show description



Interface Status Protocol Description

Em0/0 up up

Gi0/0 up up $ETH-LAN$$ETH-SW-LAUNCH$$INTF-INFO-GE 0/0$

Gi0/1 admin down down

Gi0/2 admin down down

show stat

To display statistics for the interface, use the show stat command in interface mode.

show stat

Syntax Description

This command has no arguments or keywords.

Command Modes

Interface (/interface)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display performance statistics and status information for the interface.

Examples

The following example displays statistics for the interface:

cimce/interface # show stat

Embedded-Service-Engine0/0

Switching path Pkts In Chars In Pkts Out Chars Out

Processor 250 33014 169 52830

Route cache 8927 2643609 8170 994438

Total 9177 2676623 8339 1047268

GigabitEthernet0/0

Switching path Pkts In Chars In Pkts Out Chars Out

Processor 1316 94523 1338 143909

Route cache 8170 994438 8921 2643089

Total 9486 1088961 10259 2786998

Interface GigabitEthernet0/1 is disabled

Interface GigabitEthernet0/2 is disabled

show summary

To display summary information for the interface, use the show summary command in interface mode.

show summary

Syntax Description

This command has no arguments or keywords.

Command Modes

Interface (/interface)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display summary information for the interface.

Examples

The following example displays summary information for the interface:

router /interface # show summary

*: interface is up
 IHQ: pkts in input hold queue     IQD: pkts dropped from input queue
 OHQ: pkts in output hold queue    OQD: pkts dropped from output queue
 RXBS: rx rate (bits/sec)          RXPS: rx rate (pkts/sec)
 TXBS: tx rate (bits/sec)          TXPS: tx rate (pkts/sec)
 TRTL: throttle count
  Interface                   IHQ       IQD       OHQ       OQD      RXBS      RXPS      TXBS     TXPS  TRTL
-------------------------------------------------------------------------------------------------------------
*Embedded-Service-Engine0/0     0         0         0         1         0         0         0        0     0
*GigabitEthernet0/0             0         0         0         0         0         0         0        0     0
 GigabitEthernet0/1             0         0         0         0         0         0         0        0     0
 GigabitEthernet0/2             0         0         0         0         0         0         0        0     0

scope interface port

To enter interface port mode, use the scope interface port command in interface mode.

scope interface port

Syntax Description

interface

GigabitEthernet, ISM, or SM.

port

Slot/port of the GigabitEthernet, ISM, or SM interface.


Command Default

None

Command Modes

Interface port (/interface/interface port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use interface port mode to set properties and display information for the specified interface port.

Examples

This example shows how to enter interface interface port mode:

router /interface # scope ISM 0/0
router /interface/ISM 0/0 #

show status (interface/interface port)

To display configuration information related to the hardware and software on the interface, use the show status command in interface interface port mode.

show status

Syntax Description

This command has no arguments or keywords.

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example displays status information for Cisco ISM in the 0/0 port:

router /interface/ISM 0/0 # show status



ISM0/0 is administratively down, line protocol is down

Hardware is PSE2, address is 0000.e198.8230 (bia 0000.e198.8230)

Internet address is 4.4.4.4/24

MTU 1500 bytes, BW 1000000 Kbit/sec, DLY 10 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation ARPA, loopback not set

Keepalive set (10 sec)

Full Duplex, 1Gbps, media type is internal

output flow-control is XON, input flow-control is XON

ARP type: ARPA, ARP Timeout 04:00:00

Last input 00:00:03, output 00:00:03, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/60 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

125119 packets input, 10774946 bytes, 0 no buffer

Received 55319 broadcasts (0 IP multicasts)

0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 0 multicast, 0 pause input

13304 packets output, 4252490 bytes, 0 underruns

0 output errors, 0 collisions, 6 interface resets

0 unknown protocol drops

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier, 0 pause output

0 output buffer failures, 0 output buffers swapped out

ISM0/0 is administratively down, line protocol is down

Hardware is PSE2, address is 0000.e198.8230 (bia 0000.e198.8230)

Internet address is 4.4.4.4/24

MTU 1500 bytes, BW 1000000 Kbit/sec, DLY 10 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation ARPA, loopback not set

Keepalive set (10 sec)

Full Duplex, 1Gbps, media type is internal

output flow-control is XON, input flow-control is XON

ARP type: ARPA, ARP Timeout 04:00:00

Last input 00:00:03, output 00:00:03, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/60 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

125119 packets input, 10774946 bytes, 0 no buffer

Received 55319 broadcasts (0 IP multicasts)

0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 0 multicast, 0 pause input

13304 packets output, 4252490 bytes, 0 underruns

0 output errors, 0 collisions, 6 interface resets

0 unknown protocol drops

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier, 0 pause output

0 output buffer failures, 0 output buffers swapped out

set ip

To set the IP address of the interface, use the set ip command in interface interface port mode.

set ip ip-address [unnumbered]

Syntax Description

ip-address

IP address of the interface.

unnumbered

Enables IP processing on an interface without assigning an explicit IP address to the interface.


Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

The set ip command and the set mask command must be entered together. Entering one command without the other is not supported. If you use the unnumbered keyword, you must enter the set unnumbered-interface command to specify the interface on which the router has an assigned IP address. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered.

To save changes, you must enter the commit command.

Examples

This example sets the IP address and mask on the ISM 0/0 interface:

router /interface/ISM 0/0 # set ip 10.0.0.100
router /interface/ISM 0/0 *# set mask 255.255.255.0
router /interface/ISM 0/0 *# commit
Configuration updated successfully.



This example creates an unnumbered interface:

router /interface/SM 2/0 # set ip unnumbered
router /interface/SM 2/0* # set unnumbered-interface GigabitEthernet0/0
router /interface/SM 2/0* # commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.

set mask

Sets the mask of the interface.

set unnumbered-interface

Enables IP processing on an interface without assigning an explicit IP address to the interface.


set mask

To set the mask of the interface, use the set mask command in interface interface port mode.

set mask mask

Syntax Description

mask

Mask of the interface.


Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

The set ip command and the set mask command must be entered together. Entering one command without the other is not supported. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered. To save changes, you must enter the commit command.

Examples

This example sets the IP address and mask on the ISM 0/0 interface:

router /interface/ISM 0/0 # set ip 10.0.0.100
router /interface/ISM 0/0 *# set mask 255.255.255.0
router /interface/ISM 0/0 *# commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.

set ip

Sets the IP address of the interface.


set module-gateway

To set the gateway IP address for the interface, use the set module-gateway command in interface interface port mode.

set module-gateway ip-address

Syntax Description

ip-address

IP address of the module gateway.


Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

The gateway must be reachable by the interface.

Examples

This example sets the gateway IP address on the ISM 0/0 interface:

router /interface/ISM 0/0 # set module-gateway 172.168.1.1
router /interface/ISM 0/0 *# commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.


set module-ip

To set the IP address of the module, use the set module-ip command in interface interface port mode.

set module-ip ip-address

Syntax Description

ip-address

IP address of the interface.


Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

The set module-ip command and the set module-mask command must be entered together. Entering one command without the other is not supported. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered. To save changes, you must enter the commit command.

Examples

This example sets the IP address and mask on the ISM 0/0 interface:

router /interface/ISM 0/0 # set module-mask 255.255.255.0
router /interface/ISM 0/0 *# set module-ip 172.168.1.101
router /interface/ISM 0/0 *# commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.

set module-mask

Sets the mask of the module.


set module-mask

To set the mask of the module, use the set module-mask command in interface interface port mode.

set module-mask mask

Syntax Description

mask

Mask of the interface.


Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

The set module-ip command and the set module-mask command must be entered together. Entering one command without the other is not supported. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered. To save changes, you must enter the commit command.

Examples

This example sets the IP address and mask on the ISM 0/0 interface:

router /interface/ISM 0/0 # set module-mask 255.255.255.0
router /interface/ISM 0/0 *# set module-ip 172.168.1.101
router /interface/ISM 0/0 *# commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.

set module-ip

Sets the IP address of the module.


set power noshutdown

To power on the interface, use the set power noshutdown command in interface interface port mode.

set power noshutdown

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example turns the ISM 0/0 interface power on:

router /interface/ISM 0/0 # set power noshutdown
router /interface/ISM 0/0 *# commit
Configuring power for interface ISM 0/0
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.


set power shutdown

To power down the interface, use the set power shutdown command in interface interface port mode.

set power shutdown

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example turns the ISM 0/0 interface power down:

router /interface/ISM 0/0 # set power shutdown
router /interface/ISM 0/0 *# commit
Configuring power for interface ISM 0/0
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.


set unnumbered-interface

To enable IP processing on an interface without assigning an explicit IP address to the interface, use the set unnumbered-interface command in interface interface port mode.

set unnumbered-interface type number

Syntax Description

type

Interface on which the router has assigned an IP address. The interface cannot be an unnumbered interface. For more information, use the question mark (?) online help function.

number

Interface or subinterface number. For more information about the numbering syntax for your networking device, use the question mark (?) online help function.


Command Default

None

Command Modes

Interface interface port (/interface/module port)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You must use the set ip command with the unnumbered keyword in conjunction with this command. You do not have to specify a mask for an unnumbered interface. The order in which the commands are entered does not matter. An error message is displayed if only one of the commands is entered before the commit command is entered.

To save changes, you must enter the commit command.

Examples

This example creates an unnumbered interface:

router /interface/SM 2/0 # set ip unnumbered
router /interface/SM 2/0* # set unnumbered-interface GigabitEthernet0/0
router /interface/SM 2/0* # commit
Configuration updated successfully.



Related Commands

Command
Description

commit

Saves configuration changes.

set ip

Sets the IP address of the interface.


scope user

To enter user mode, use the scope user command.

scope user

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

User (/user)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

It is important to note that users are restricted in the following ways:

On initial bootup, only one user will exist: admin. The password will be "password".

Only admin can create new users.

Only admin can delete existing users.

admin cannot be removed.

For a given user, userA, only userA and admin can change passwords for userA.

Examples

This example shows how to enter user mode:

Router# scope user
router /user #

create username

To create a user and enter user username mode, use the create username command in user mode.

create username username

Syntax Description

username

Username for the new user.


Command Default

None

Command Modes

User (/user)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

It is important to note that users are restricted in the following ways:

On initial bootup, only one user will exist: admin. The password will be "password".

Only admin can create new users

Only admin can delete existing users.

admin cannot be removed.

For a given user, userA, only userA and admin can change passwords for userA.

To save changes, you must enter the commit command.

You must create a password using the set password command when you create a username.

Examples

This example shows how to create a user:

router /user # create username myuser
router /user/username cisco *# set password mypassword
router /user/username cisco *# commit
User myuser successfully added.
Password for user myuser successfully updated.



Related Commands

Command
Description

commit

Saves configuration changes.

set password

Sets a password for a username.


set password

To set a password for a username, use the set password command in user username mode.

set password password

Syntax Description

password

Password for the username.


Command Default

None

Command Modes

User username (/user/username)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

For a given user, userA, only userA and admin can change passwords for userA.

To save changes, you must enter the commit command.

Examples

This example shows how to set a password for user myuser:

router /user # scope username myuser
router /user/username myuser # set password newpass
router /user/username myuser *# commit
Password for user myuser successfully updated.



Related Commands

Command
Description

commit

Saves configuration changes.


create permissions

To create permissions for a username, use the create permissions command in user username mode.

create permissions module port

Syntax Description

module

ISM or SM.

port

Slot/port of the ISM or SM.


Command Default

None

Command Modes

User username (/user/username)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to grant a user permission to configure the specified module and port.

Examples

This example shows how to create permissions for user myuser:

router /user # scope username myuser
router /user/username myuser # create permissions SM 1/0
Permission successfully added.



delete username

To delete a user, use the delete username command in user mode.

delete username username

Syntax Description

username

Username to delete.


Command Default

None

Command Modes

User (/user)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example shows how to delete the user myuser:

router /user # delete username myuser
router /user *# commit
User myuser successfully deleted.



Related Commands

Command
Description

commit

Saves configuration changes.


delete permissions

To delete permissions for a user, use the delete permissions command in user username mode.

delete permissions module port

Syntax Description

module

ISM or SM.

port

Slot/port of the ISM or SM.


Command Default

None

Command Modes

User username (/user/username)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to delete a user's permission to configure the specified module and port.

Examples

This example shows how to delete permissions for user myuser:

router /user # scope username myuser
router /user/username myuser # delete permissions SM 1/0
Permission successfully deleted.



show all

To display the usernames of all users, use the show all command in user mode.

show all

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

User (/user)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the usernames for all user defined in CIMC-E.

Examples

This example displays the usernames defined in CIMC-E:

router /user # show all


admin
myuser

show username

To display the information about a specific user, use the show username command in user mode.

show username username

Syntax Description

username

Username for which to display information.


Command Default

None

Command Modes

User (/user)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the groups to which the user belongs and the privileges the user has.

Examples

This example displays information for the user myuser:

cimce/user # show username myuser


User Name:       myuser
Group(s):        cimce users
CIMCE Privileges:  CIMC-E User



show permissions

To display permissions for a user, use the show permissions command in user username mode.

show permissions

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

User username (/user/username)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the modules and ports for which a user has permission to configure.

Examples

This example displays permissions for the user myuser:

router /user # scope username myuser
router /user/username myuser # show permissions
sm1/0

scope cimce

To enter cimce mode, use the scope cimce command.

scope cimce

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use cimce mode to set CIMC-E properties, display system information, and enter commands on the console.

Examples

This example shows how to enter cimce mode:

Router# scope cimce
router /cimce #



set url

To set the URL of the router for communication with CIMC-E, use the set url command in cimce mode.

set url url

Syntax Description

url

URL of the router.


Command Default

None

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To enable communications between CIMC-E and the router, you must set the following:

URL of the router

Username

Password

Use this command to set the URL of the router. Use the set username command to set the username. Use the set password command to set the password.

To save changes, you must enter the commit command.

Examples

This example sets the URL of the router to 172.168.24.52 and shows a username and password that were created previously:

router /cimce # set url 172.168.24.52/test
router /cimce *# commit
Username:        myuser
Password:        <hidden>
End Point:       172.168.24.52/test
New config changes have been saved



Related Commands

Command
Description

commit

Saves configuration changes.

set password

Sets the password that CIMC-E uses to communicate with the router.

set username

Sets the username that CIMC-E uses to communicate with the router.


set username

To set the username that CIMC-E uses to communicate with the router, use the set username command in cimce mode.

set username username

Syntax Description

username

Username that CIMC-E uses to communicate with the router.


Command Default

None

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To enable communications between CIMC-E and the router, you must set the following:

URL of the router

Username

Password

Use this command to set the username. Use the set password command to set the password. Use the set url command to set the URL of the router.

To save changes, you must enter the commit command.

Examples

This example sets the username that CIMC-E uses to communicate with the router:

router /cimce # set username myuser
router /cimce *# commit
Username:        myuser
Password:        <hidden>
End Point:       172.168.24.52/test
New config changes have been saved



Related Commands

Command
Description

commit

Saves configuration changes.

set password

Sets the password that CIMC-E uses to communicate with the router.

set url

Sets the URL of the router for communication with CIMC-E.


set password

To set the password that CIMC-E uses to communicate with the router, use the set password command in cimce mode.

set password password

Syntax Description

password

Password that CIMC-E uses to communicate with the router.


Command Default

None

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To enable communications between CIMC-E and the router, you must set the following:

URL of the router

Username

Password

Use this command to set the password. Use the set username command to set the username. Use the set url command to set the URL of the router.

To save changes, you must enter the commit command.

Examples

This example sets the password that CIMC-E uses to communicate with the router:

router /cimce # set password mypassword
router /cimce *# commit
Username:        myuser
Password:        <hidden>
End Point:       172.168.24.52/test
New config changes have been saved



Related Commands

Command
Description

commit

Saves configuration changes.

set url

Sets the URL of the router for communication with CIMC-E.

set username

Sets the username that CIMC-E uses to communicate with the router.


set sshport

To set the SSH port for communication with CIMC-E, use the set sshport command in cimce mode.

set sshport ssh-port

Syntax Description

ssh-port

Port number for SSH communications.


Command Default

None

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

This is the SSH port used to log in to the CIMC-E CLI interface. To save changes, you must enter the commit command.

Examples

This example sets the SSH port to 2222:

router /cimce # set sshport 2222
router /cimce *# commit



Related Commands

Command
Description

commit

Saves configuration changes.


show config

To display the CIMC-E configuration on the router, use the show config command in cimce mode.

show config

Syntax Description

This command has no arguments or keywords.

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the username, password, and URL configured for CIMC-E communication on the router:

Examples

The following example displays the CIMC-E configuration:

router /cimce # show config

Username: myuser

Password: <hidden>

End Point: 172.168.24.52/test

Last Modified: Mon May 17 11:10:11 EDT 2010

show logs

To display information about the CIMC-E log files, use the show logs command in cimce mode.

show logs

Syntax Description

This command has no arguments or keywords.

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display all the CIMC-E log filenames. Use the show log command to display the contents of a specific log file.

Examples

The following example displays the CIMC-E logs:

router /cimce # show logs

SIZE LAST_MODIFIED_TIME NAME

17844 Tue May 04 17:39:15 America/New_York 2010 lighttpd_access.log

742613 Mon May 17 10:58:24 America/New_York 2010 messages.log

18882 Mon May 17 10:42:19 America/New_York 2010 lighttpd_error.log




Related Commands

Command
Description

show log

Saves configuration changes.


show log (cimce)

To display the contents of a specific CIMC-E log file, use the show log command in cimce mode.

show log logname

Syntax Description

This command has no arguments or keywords.

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the contents of a specific log file. Use the show logs command to display all the CIMC-E log filenames.

Examples

The following example displays the contents of the lighttpd_error.log file:

router /cimce # show log lighttpd_error.log

2010-04-28 20:38:11: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-02 02:52:31: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-03 19:43:17: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/server.c.1503) server stopped by UID = 0 PID = 7413

2010-05-04 21:37:14: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-06 03:59:32: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-07 17:55:04: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/server.c.1503) server stopped by UID = 0 PID = 6822

2010-05-07 17:56:13: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-07 14:26:31: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-09 05:33:32: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-10 14:24:33: (/local/source/lineups/bender/opensource/lighttpd-1.4.26/src/server.c.1503) server stopped by UID = 0 PID = 6212

2010-05-10 14:25:18: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-10 20:07:31: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-10 20:21:32: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started

2010-05-10 20:34:32: (/local/source/lineups/bender2/opensource/lighttpd-1.4.26/src/log.c.166) server started

Related Commands

Command
Description

show logs

Displays information about the CIMC-E log files


show sshport

To display the SSH port used for CIMC-E communications, use the show sshport command in cimce mode.

show sshport

Syntax Description

This command has no arguments or keywords.

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display SSH port set with the set sshport command.

Examples

The following example displays the contents of the lighttpd_error.log file:

router /cimce # show sshport

Port: 2222

Related Commands

Command
Description

set sshport

Sets the SSH port for communication with CIMC-E.


tail

To display the specified number of lines of the specified log file, use the tail command in cimce mode.

tail logname number-of-lines

Syntax Description

logname

Log file to display.

number-of-lines

Number of lines to display.


Command Default

None

Command Modes

Cimce (/cimce)

Command History

Release
Modification

1.0

This command was introduced.


Examples

This example displays the last five lines of the messages.log file:

router /cimce # tail messages.log 5


<195>May 17 11:11:16 localhost ntpd[1375]:   ERROR ntp ntp ntp Error lookup
/sw/proto/ntp/stat/1 failed
<195>May 17 11:15:32 localhost ntpd[1375]:   ERROR ntp ntp ntp Error lookup
/sw/proto/ntp/stat/refserver11 failed
<195>May 17 11:15:32 localhost ntpd[1375]:   ERROR ntp ntp ntp Error lookup
/sw/proto/ntp/stat/1 failed
<195>May 17 11:15:32 localhost ntpd[1375]:   ERROR ntp ntp ntp Error lookup
/sw/proto/ntp/stat/refserver11 failed
<195>May 17 11:15:32 localhost ntpd[1375]:   ERROR ntp ntp ntp Error lookup
/sw/proto/ntp/stat/1 failed



scope http

To enter http mode, use the scope http command in cimce mode.

scope http

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use http mode to configure HTTP services.

Examples

This example shows how to enter http mode:

router /cimce # scope http
router /cimce/http #



set port

To set the HTTP port for communication with CIMC-E, use the set port command in http mode.

set port port

Syntax Description

port

Port number for SSH communications.


Command Default

None

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

This is the HTTP/S port used when logging into the CIMC-E GUI interface.

To save changes, you must enter the commit command.

Examples

This example sets the port to 8080:

router /cimce/http # set port 8080
router /cimce/http *# commit
Configuring HTTP service port
Port is set to: 8080
Please restart the HTTP server to apply the new change



Related Commands

Command
Description

commit

Saves configuration changes.


set ssl enable

To enable HTTP SSL service for CIMC-E, use the set ssl enable command in http mode.

set ssl enable

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example enables SSL:

router /cimce/http # set ssl enable
router /cimce/http *# commit
Configuring HTTP SSL service
SSL is set to: enable
Please restart the HTTP server to apply the new change



Related Commands

Command
Description

commit

Saves configuration changes.


set ssl disable

To disable HTTP SSL service for CIMC-E, use the set ssl disable command in http mode.

set ssl disable

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example disables SSL:

router /cimce/http # set ssl disable
router /cimce/http *# commit
Configuring HTTP SSL service
SSL is set to: disable
Please restart the HTTP server to apply the new change



Related Commands

Command
Description

commit

Saves configuration changes.


set cert default

To use the default Cisco server certificate for CIMC-E, use the set cert default command in http mode.

set cert default

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example configures the router to use the default Cisco server certificate:

router /cimce/http # set cert default
router /cimce/http *# commit
Configuring HTTP Certificate
Certificate set to factory default.
Please restart the HTTP server for
changes to take effect.



Related Commands

Command
Description

commit

Saves configuration changes.


show port

To display the HTTP port used for CIMC-E communications, use the show port command in http mode.

show port

Syntax Description

This command has no arguments or keywords.

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the HTTP port set with the set port command.

Examples

The following example displays the HTTP port:

router /cimce/http # show port

Current Port: 8080

Related Commands

Command
Description

set port

Sets the HTTP port for communication with CIMC-E.


show ssl

To display the HTTP SSL service status, use the show ssl command in http mode.

show ssl

Syntax Description

This command has no arguments or keywords.

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the SSL status set with the set ssl enable or set ssl disable command.

Examples

The following example shows that SSL is disabled:

router /cimce/http # show ssl

Current SSL Status: "disable"

Related Commands

Command
Description

set ssl disable

Disables HTTP SSL service for CIMC-E.

set ssl enable

Enables HTTP SSL service for CIMC-E.


show status (cimce/http)

To display the HTTP service status, use the show status command in http mode.

show status

Syntax Description

This command has no arguments or keywords.

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to display the HTTP service status.

Examples

The following example shows that the HTTP service is running:

router /cimce/http # show status

HTTP Service is currently running

Related Commands

Command
Description

set ssl disable

Disables HTTP SSL service for CIMC-E.

set ssl enable

Enables HTTP SSL service for CIMC-E.


shutdown (cimce/http)

To gracefully shut down HTTP service for CIMC-E, use the shutdown command in http mode.

shutdown

Syntax Description

This command has no arguments or keywords.

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example shows how to gracefully shut down HTTP service for CIMC-E:

router /cimce/http # shutdown
Shutting down HTTP service
HTTP service has been shutdown

Related Commands

Command
Description

restart

Restarts HTTP service for CIMC-E.


start (cimce/http)

To start HTTP service for CIMC-E, use the start command in http mode.

start

Syntax Description

This command has no arguments or keywords.

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Examples

The following example starts the HTTP service for CIMC-E:

router /cimce/http # start

Related Commands

Command
Description

restart

Restarts HTTP service for CIMC-E.


restart (cimce/http)

To restart HTTP service for CIMC-E, use the restart command in http mode.

restart

Syntax Description

This command has no arguments or keywords.

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

Use this command to restart HTTP service after it has been shut down using the shutdown (cimce/http) command.

Examples

The following example restarts the HTTP service for CIMC-E:

router /cimce/http # restart

Related Commands

Command
Description

shutdown

Gracefully shuts down HTTP service for CIMC-E


upload cert url

To upload a server certificate from a server for CIMC-E, use the upload cert url command in http mode.

upload cert url url

Syntax Description

url

URL of the FTP or HTTP server.


Command Default

None

Command Modes

Http (/cimce/http)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

The certificate file must be on an FTP or HTTP server. Use the restart command to restart the HTTP server and make changes take effect.

Examples

This example uploads a certificate from an FTP server:

router /cimce/http # upload cert url ftp://192.1.1.60/pub/good.pem
Certificate uploaded successfully.
Please restart the HTTP server for changes
to take effect.



Related Commands

Command
Description

commit

Saves configuration changes.

restart (cimce/http)

Restarts HTTP service for CIMC-E.


scope syslog (cimce)

To enter syslog mode, use the scope syslog command in cimce mode.

scope syslog

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Syslog (/cimce/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

You use syslog mode to configure syslog services.

Examples

This example shows how to enter syslog mode:

router /cimce # scope syslog
router /cimce/syslog #



set server

To set the syslog server for CIMC-E, use the set server command in syslog mode.

set server server

Syntax Description

server

URL of the syslog server.


Command Default

None

Command Modes

Syslog (/cimce/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example sets the syslog server to 192.1.1.60:

router /cimce/syslog # set server 192.1.1.60
router /cimce/syslog *# commit
The operation completed successfully.



Related Commands

Command
Description

commit

Saves configuration changes.


set syslog disable

To disable syslog for CIMC-E, use the set syslog disable command in syslog mode.

set syslog disable

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Syslog (/cimce/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Usage Guidelines

To save changes, you must enter the commit command.

Examples

This example disables syslog:

router /cimce/syslog # set syslog disable
router /cimce/syslog *# commit
Syslog disabled successfully.



Related Commands

Command
Description

commit

Saves configuration changes.


show server (cimce/syslog)

To display the URL of the syslog server for CIMC-E, use the show server command in syslog mode.

show server

Syntax Description

This command has no arguments or keywords.

Command Modes

Syslog (/cimce/syslog)

Command History

Release
Modification

1.0

This command was introduced.


Examples

This example displays the URL of the syslog server for CIMC-E:

router /cimce/syslog # show server

Log server address: 192.1.1.60

Embedded Service Engine Command Reference

This command reference documents commands for the Embedded Service Engine.

The following configuration command is new:

service-module enable

The following EXEC commands are new:

interface embedded-service-engine 0/0

service-module embedded-service-engine 0/0 install

service-module embedded-service-engine 0/0 password-reset

service-module embedded-service-engine 0/0 reload

service-module embedded-service-engine 0/0 reset

service-module embedded-service-engine 0/0 session

service-module embedded-service-engine 0/0 shutdown

service-module embedded-service-engine 0/0 statistics

service-module embedded-service-engine 0/0 status

show interface embedded-service-engine 0/0

For information about other commands used with this feature, see the Cisco IOS Interface and Hardware Component Command Reference at http://www.cisco.com/en/US/docs/ios/interface/command/reference/ir_book.html.

For information about all Cisco IOS commands, use the Command Lookup Tool at http://tools.cisco.com/Support/CLILookup or the Cisco IOS Master Command List, All Releases, at http://www.cisco.com/en/US/docs/ios/mcl/allreleasemcl/all_book.html.

service-module enable

To enable the Embedded Service Engine on a service module interface and partition hardware resources, use the service-module enable command in interface configuration mode. To disable the Embedded Service Engine and return hardware resources to the first core, use the no form of this command.

service-module enable

no service-module enable

Syntax Description

This command has no arguments or keywords.

Command Default

The Embedded Service Engine is not enabled.

Command Modes

Interface configuration (config-if)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

Cisco Integrated Services Routers Generation 2 (Cisco ISRs G2) have dual core CPUs on the motherboard. The first core runs Cisco IOS software; the second core, or the Embedded Service Engine, is capable of running Linux-based applications. Use this command to enable the Embedded Service Engine and partition hardware resource between the first core and the Embedded Service Engine. To enable the Embedded Service Engine, you have to:

1. Enter the configuration command service-module enable under the embedded-service-engine 0/0 interface.

2. Save the configuration to NVRAM.

3. Reboot the system.

You must reboot the system before you install an application on the Embedded Service Engine.

To disable the Embedded Service Engine, you have to:

1. Enter the configuration command no service-module enable under the embedded-service-engine 0/0 interface.

2. Save the configuration to NVRAM.

3. Reboot the system.

After the system has been rebooted, hardware resources are returned to the first core.

Examples

In the following example, the Embedded Service Engine is enabled:

interface Embedded-Service-Engine0/0
 ip address 10.10.10.1 255.255.0.0
 service-module enable
 service-module ip address 10.10.10.2 255.255.0.0
 service-module ip default-gateway 10.10.10.1



In the following example, the Embedded Service Engine is disabled:

interface Embedded-Service-Engine0/0
 no service-module enable



interface embedded-service-engine 0/0

To configure an interface on the router that connects to an Embedded Service Engine, use the interface embedded-service-engine 0/0 command in global configuration mode. This command does not have a no form.

interface embedded-service-engine 0/0

Syntax Description

This command has no arguments or keywords.

Command Default

The interface is not configured.

Command Modes

Global configuration (config)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

This command enters interface configuration mode to configure the interface between the router and the Embedded Service Engine.

Examples

The following example shows how to enter interface configuration mode for the Embedded Service Engine:

Router(config)# interface embedded-service-engine 0/0

Related Commands

Command
Description

ip unnumbered

Enables IP processing on an interface without assigning an explicit IP address to the interface.

service-module ip address

Specifies the IP address of the module side of the interface.

show interface embedded-service-engine 0/0

Displays status, traffic data, and configuration information about the Embedded Service Engine interface.


service-module embedded-service-engine 0/0 install

To use Cisco SRE to install an application on a service module (Cisco SM-SRE), use the service-module embedded-service-engine 0/0 install command in privileged EXEC configuration mode.

service-module embedded-service-engine 0/0 install url url [script filename] [argument "string"] [force]

Syntax Description

url url

Address of FTP or HTTP server, as defined in RFC 2396, on which application packages and Tcl scripts are located.

script

(Optional) Changes name of Tcl script to be run from default value to script specified by filename argument.

filename

Name of Tcl script.

argument

(Optional) Installer will not present options for the variable specified in the string argument.

string

Alphanumeric characters of variable to be passed directly to the Tcl script via the command line. Variable must be enclosed in quotation marks (" ")

force

(Optional) Tcl script automatically proceeds with install without prompting for user input.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

This command uses a common module-dependent bootloader on Cisco SRE to install a Linux-based application, such as Cisco Unity Express or Cisco AXP, on a service module (Cisco SM-SRE).

The slash mark (/) is required between the slot argument and the port argument.

You can only issue one instance of this command at a time on a router. You cannot use this command to install an application on two or more services engine modules in the same router at a time.

The Tcl script to be run must reside in the same FTP or HTTP server and directory as the application packages to be installed. If a credential is required, the username and password must be embedded in the URL, as shown in the following example:

Router# service-module embedded-service-engine 0/0 install url
ftp://username:passwd@server.com/axp


If two or more of the optional keyword/argument combinations are used with this command, they must be issued in the order presented in the command syntax. For example, you cannot use the force keyword before the script or argument keywords nor the argument keyword before the script keyword when you issue this command.

Use the script filename keyword/argument combination with this command to specify that the Cisco IOS software use a Tcl script other than the default installer during the installation.

Use the argument "string" keyword/argument combination with this command to manually provide variables during the installation process and bypass the user interaction feature of the installer. The variable must include the left and right quotation marks (" ").

Use the force keyword with this command to install an application without prompting for user input. If you use this keyword and if the application requires you to provide certain variables during the installation, you should also use the argument "string" keyword/argument combination to manually provide the required variables because the force keyword will direct the installer to bypass all user interaction during the installation.

To stop the install while the Tcl script is being downloaded, use the service-module sm install abort command. This command cannot be used once the actual installation begins.

Examples

The following example shows how to use this command to run a "help.sre" Tcl script rather than the default installation Tcl script:

Router# service-module embedded-service-engine 0/0 install url ftp://server.com/cimce
script help.sre argument arg1
Router#


The following example shows the messages displayed on the module console during a successful installation using Cisco SRE:

Feb  6 19:09:22.526 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING:
Validating package signature ...1 .
Feb  6 19:09:23.058 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING:
Parsing package manifest files ...1 .
Feb  6 19:09:44.742 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING:
Starting payload download1 .
Feb  6 19:09:52.022 EDT: %SM_INSTALL-6-INST_PROG: Service-Module-SM 1/0 PROGRESSING:
Performing Hot install ...1 .
Install successful on Service-Module-SM 1/0 Feb  6 19:10:28.826 EDT:
%SM_INSTALL-6-INST_SUCC: Service-Module-SM 1/0 SUCCESS: install-completed .



Related Commands

Command
Description

service-module embedded-service-engine 0/0 install abort

Stops the install and returns to the boot-loader prompt.


service-module embedded-service-engine 0/0 password-reset

To reset the password for the Embedded Service Engine, use the service-module embedded-service-engine password-reset command in privileged EXEC mode.

service-module embedded-service-engine 0/0 password-reset

Syntax Description

This command has no arguments or keywords.

Command Default

None

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

Use this command to reset the Embedded Service Engine password. You can then open a session on the Embedded Service Engine without a password.

Examples

The following example resets the password on the Embedded Service Engine. After resetting the password, opening a session does not require a password.

Router# service-module embedded-service-engine 0/0 password-reset
Router# service-module embedded-service-engine 0/0 session


Trying 10.86.25.94, 2002 ... Open


CORE2-VSEP#



Related Commands

Command
Description

service-module embedded-service-engine 0/0 session

Begins a configuration session for an Embedded Service Engine service module through a console connection.


service-module embedded-service-engine 0/0 reload

To perform a graceful shutdown and reboot of the Embedded Service Engine, use the service-module embedded-service-engine 0/0 reload command in privileged EXEC mode.

service-module embedded-service-engine 0/0 reload

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

At the confirmation prompt, press Enter to confirm the action or n to cancel.

Examples

The following example shows how to gracefully shut down the module and reboot the operating system:

Router# service-module embedded-service-engine 0/0 reload

Do you want to proceed with reload?[confirm]

Related Commands

Command
Description

interface embedded-service-engine 0/0

Configures an interface on the router that connects to an Embedded Service Engine and enters interface configuration mode.

service-module embedded-service-engine 0/0 reset

Resets the service module hardware.

service-module embedded-service-engine 0/0 shutdown

Gracefully shuts down the service module.

show diag

Displays controller information for service modules.

show interfaces embedded-service-engine 0/0

Displays basic interface configuration information for the Embedded Service Engine.


service-module embedded-service-engine 0/0 reset

To reset the Embedded Service Engine service module hardware, use the service-module embedded-service-engine 0/0 reset command in privileged EXEC mode.

service-module embedded-service-engine 0/0 reset

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

At the confirmation prompt, press Enter to confirm the action or n to cancel.


Caution Because you may lose data, use the service-module embedded-service-engine 0/0 reset command only to recover from a shutdown or failed state.

Examples

The following example shows how to reset the service module hardware:

Router# service-module embedded-service-engine 0/0 reset


Use reset only to recover from shutdown or failed state

Warning: May lose data on the NVRAM, nonvolatile file system or unsaved configuration!

Do you want to reset?[confirm]

Related Commands

Command
Description

interface embedded-service-engine 0/0

Configures an interface on the router that connects to an Embedded Service Engine and enters interface configuration mode.

service-module embedded-service-engine 0/0 reload

Performs a graceful shutdown and reboot of the service module operating system.

service-module sm embedded-service-engine 0/0 shutdown

Gracefully shuts down the service module.

show diag

Displays controller information for service modules.

show interface embedded-service-engine 0/0

Displays basic interface configuration information for service modules.


service-module embedded-service-engine 0/0 session

To begin a configuration session for an Embedded Service Engine service module through a console connection, use the service-module embedded-service-engine 0/0 session command in privileged EXEC mode.

service-module embedded-service-engine 0/0 session [clear]

Syntax Description

clear

(Optional) Clears the service module configuration session.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

Only one session at a time is allowed into the service module from the service module interface.

After starting a session, you can perform any service module configuration task. You first access the service module console in a user-level shell. To access the privileged EXEC command shell, where most commands are available, use the enable command.

After you finish configuration tasks and exit the service module console session, use this command with the clear keyword to clear the session. At the confirmation prompt, press Enter to confirm the action or n to cancel.

Examples

The following example shows a session being opened for an Embedded Service Engine:

Router# service-module embedded-service-engine 0/0 session



Trying 10.10.10.1, 2129 ... Open



SE-Module con now available

Press RETURN to get started!



SE-Module> enable



The following example clears the session that had been used to configure the Embedded Service Engine in slot 1:

Router# service-module embedded-service-engine 0/0 session clear
[confirm]
 [OK]

Related Commands

Command
Description

enable

Enters privileged EXEC mode.

interface

Configures an interface and enters interface configuration mode.

show diag

Displays controller information for a service module.

show interface embedded-service-engine 0/0

Displays basic interface configuration information for service modules.


service-module embedded-service-engine 0/0 shutdown

To gracefully shut down an Embedded Service Engine service module, use the service-module embedded-service-engine 0/0 shutdown command in privileged EXEC mode.

service-module embedded-service-engine 0/0 shutdown

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

At the confirmation prompt, press Enter to confirm the action or n to cancel.

This command brings down the operating system of the specified service module in an orderly fashion to protect the hard drive. When the system is shut down, the module can be removed from the router.

Examples

The following example shows how to gracefully shut down the service module:

Router# service-module embedded-service-engine 0/0 shutdown

Do you want to proceed with shutdown?[confirm]
Use service module reset command to recover from shutdown.

WARNING: Confirm that the service-module status shows 'is Shutdown' before removing the
module or powering off the system !

Related Commands

Command
Description

interface embedded-service-engine 0/0

Configures an interface on the router that connects to an Embedded Service Engine and enters interface configuration mode.

service-module embedded-service-engine 0/0 reload

Performs a graceful shut down and reboot of the Embedded Service Engine operating system.

service-module embedded-service-engine 0/0 reset

Resets the hardware on the Embedded Service Engine.

show diag

Displays controller information for service modules.

show interface embedded-service-engine 0/0

Displays basic interface configuration information for Embedded Service Engines.


service-module embedded-service-engine 0/0 statistics

To display reset and reload information for an Embedded Service Engine service module and its Cisco IOS software, use the service-module embedded-service-engine 0/0 statistics command in EXEC mode.

service-module embedded-service-engine 0/0 statistics

Syntax Description

This command has no arguments or keywords.

Command Modes

User EXEC (>)
Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Examples

The following example displays information for a service module in slot 1:

Router# service-module embedded-service-engine 0/0 statistics



Module Reset Statistics:

 CLI reset count = 0

 CLI reload count = 0

 Registration request timeout reset count = 1

 Error recovery timeout reset count = 1

 Module registration count = 1

Related Commands

Command
Description

interface embedded-service-engine 0/0

Configures an interface on the router that connects to an Embedded Service Engine and enters interface configuration mode.

service-module embedded-service-engine 0/0 reload

Performs a graceful shutdown and reboot of the Embedded Service Engine operating system.

service-module embedded-service-engine 0/0 reset

Resets the Embedded Service Engine hardware.

service-module embedded-service-engine 0/0 shutdown

Gracefully shuts down the Embedded Service Engine.

show interface embedded-service-engine 0/0

Displays basic interface configuration information for Embedded Service Engines.


service-module embedded-service-engine 0/0 status

To display configuration information related to the hardware and software on an Embedded Service Engine service module, use the service-module embedded-service-engine 0/0 status command in privileged EXEC mode.

service-module embedded-service-engine 0/0 status

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

Use this command to:

Display the Embedded Service Engines software release version

Check the Embedded Service Engine status (steady or down)

Display hardware information for the Embedded Service Engine, including CPU, memory, and interface information

Examples

The following example displays information for an Embedded Service Engine:

Router# service-module embedded-service-engine 0/0 status



Service Module is Cisco Embedded-Service-Engine0/0
Service Module supports session via TTY line 2
Service Module is in Steady state
Service Module heartbeat-reset is enabled
Getting status from the Service Module, please wait..


Cisco CIMC-E Software 1.0
CIMCE Running on VSEM
Embedded Service Engine boot state is KERNEL UP


Module resource information:
 CPU Frequency: 500 MHz
 Memory Size: 256 MB
 Disk Size: 488 MB

No install/uninstall in progress



Related Commands

Command
Description

interface embedded-service-engine 0/0

Configures an interface on the router that connects to an Embedded Service Engine and enters interface configuration mode.

show diag

Displays controller information for service modules.

show interface embedded-service-engine 0/0

Displays basic interface configuration information for Embedded Service Engines.


show interface embedded-service-engine 0/0

To display status, traffic data, and configuration information about the Embedded Service Engine 0/0 interface, use the show interface embedded-service-engine 0/0 command in user EXEC or privileged EXEC mode.

show interface embedded-service-engine 0/0

Syntax Description

This command has no arguments or keywords.

Command Modes

User EXEC (>)
Privileged EXEC (#)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

This command displays interface information for the Embedded Service Engine 0/0 interface.

Examples

The following example displays status, traffic data, and configuration information about the interface to the SM-SRE installed in the router.

Router# show interface embedded-service-engine 0/0


Embedded-Service-Engine0/0 is up, line protocol is up
  Hardware is Embedded Service Engine, address is 8843.e1b2.eff5 (bia 8843.e1b2.eff5)
  Interface is unnumbered. Using address of GigabitEthernet0/0 (10.86.25.94)
  MTU 1500 bytes, BW 10000 Kbit/sec, DLY 1000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input 00:00:27, output never, output hang never
  Last clearing of "show interface" counters never
  Input queue: 0/64/0/0 (size/max/drops/flushes); Total output drops: 4
  Queueing strategy: fifo
  Output queue: 0/60 (size/max)
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     33420 packets input, 3249092 bytes, 0 no buffer
     Received 53 broadcasts (0 IP multicasts)
     0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
     0 input packets with dribble condition detected
     66908 packets output, 74463378 bytes, 0 underruns
     0 output errors, 0 collisions, 8 interface resets
     0 unknown protocol drops
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
Router#


Table 25 describes the significant fields shown in the display.

Table 25 show interface embedded-service-engine Field Descriptions

Field
Description

Hardware, address

Hardware type and address.

MTU

Maximum transmission unit (MTU) of the service module interface.

BW

Bandwidth of the interface, in kbps.

DLY

Delay of the interface, in microseconds.

reliability

Reliability of the interface as a fraction of 255 (255/255 is 100 percent reliability), calculated as an exponential average over 5 minutes.

txload

Transmit load on the interface as a fraction of 255 (255/255 is completely saturated), calculated as an exponential average over 5 minutes.

rxload

Receive load on the interface as a fraction of 255 (255/255 is completely saturated), calculated as an exponential average over 5 minutes.

Encapsulation

Encapsulation method assigned to the interface.

loopback

Indicates whether or not loopback is set.

Keepalive

Indicates whether or not keepalives are set and the interval between keepalives if they have been set.

ARP type

Type of Address Resolution Protocol (ARP) assigned.

ARP Timeout

Length of ARP timeout.

Last input

Number of hours, minutes, and seconds since the last packet was successfully received by the interface and processed locally on the router. This field is useful for detecting when a dead interface failed.

Note This field is not updated by fast-switched traffic.

output

Number of hours, minutes, and seconds since the last packet was successfully transmitted by the interface. This field is useful for detecting when a dead interface failed.

output hang

Number of hours, minutes, and seconds (or never) since the interface was last reset because a transmission took too long. When the number of hours in any of the "last" fields exceeds 24 hours, the number of days and hours is printed. If that field overflows, asterisks are printed.

Last clearing

Time at which the counters that measure cumulative statistics (such as number of bytes transmitted and received) shown in this report were last reset to zero. Note that variables that might affect routing (for example, load and reliability) are not cleared when the counters are cleared.

Asterisks (***) indicate that the elapsed time is too large to be displayed.

Input queue

Number of packets in the input queue. Each number is followed by a slash, the maximum size of the queue, the number of packets dropped because of a full queue, and the number of times that queued packets have been discarded.

Total output drops

Number of packets in the output queue that have been dropped because of a full queue.

Queueing strategy

Queueing strategy applied to the interface, which is configurable under the interface. The default is first-in, first-out (FIFO).

Output queue

Number of packets in the output queue, and the maximum size of the queue. Each number is followed by a slash.

5 minute input rate, 5 minute output rate

Average number of bits and packets transmitted per second in the last 5 minutes. If the interface is not in promiscuous mode, it senses network traffic that it sends and receives (rather than all network traffic).

The 5-minute input and output rates should be used only as an approximation of traffic per second during a given 5-minute period. These rates are exponentially weighted averages with a time constant of 5 minutes. A period of four time constants must pass before the average will be within 2 percent of the instantaneous rate of a uniform stream of traffic over that period.

Note The 5-minute period referenced in this output is a load interval that is configurable under the interface. The default value is
5 minutes.

packets input

Total number of error-free packets received by the system.

bytes

Total number of bytes, including data and MAC encapsulation, in the error-free packets received by the system.

no buffer

Number of received packets discarded because there was no buffer space in the main system. Compare with ignored count. Broadcast storms on Ethernets and bursts of noise on serial lines are often responsible for no input buffer events.

Received...broadcasts

Number of broadcasts received.

runts

Number of packets that are discarded because they are smaller than the minimum packet size of the medium. For instance, any Ethernet packet that is less than 64 bytes is considered a runt.

giants

Number of packets that are discarded because they exceed the maximum packet size of the medium. For example, any Ethernet packet that is greater than 1518 bytes is considered a giant.

throttles

Number of times that the interface requested another interface within the router to slow down.

input errors

Errors that include runts, giants, no buffer, cyclic redundancy checksum (CRC), frame, overrun, and ignored counts. Other input-related errors can also cause the input errors count to be increased, and some datagrams may have more than one error; therefore, this sum may not balance with the sum of enumerated input error counts.

CRC

Errors created when the CRC generated by the originating LAN station or far-end device does not match the checksum calculated from the data received. On a LAN, this usually indicates noise or transmission problems on the LAN interface or the LAN bus itself. A high number of CRCs is usually the result of collisions or a station that is transmitting bad data.

frame

Number of packets received incorrectly that have a CRC error and a noninteger number of octets. On a LAN, this is usually the result of collisions or a malfunctioning Ethernet device.

overrun

Number of times that the receiver hardware was unable to hand received data to a hardware buffer because the input rate exceeded the receiver's ability to handle the data.

ignored

Number of received packets that were ignored by the interface because the interface hardware ran low on internal buffers. These buffers are different from system buffer space described. Broadcast storms and bursts of noise can cause the ignored count to increase.

input packets with dribble condition detected

Number of packets with dribble condition. Dribble bit error indicates that a frame is slightly too long. This frame error counter is incremented just for informational purposes; the router accepts the frame.

packets output

Total number of messages that have been transmitted by the system.

bytes

Total number of bytes, including data and MAC encapsulation, that have been transmitted by the system.

underruns

Number of times that the transmitter has run faster than the router could handle. This may never be reported on some interfaces.

output errors

Sum of all errors that prevented the final transmission of datagrams out of the interface that is being examined. Note that this may not balance with the sum of the enumerated output errors, because some datagrams may have more than one error, and others may have errors that do not fall into any of the specifically tabulated categories.

collisions

Number of messages that have been retransmitted because of an Ethernet collision. This is usually the result of an overextended LAN (Ethernet or transceiver cable too long, more than two repeaters between stations, or too many cascaded multiport transceivers). A packet that collides is counted only once in output packets.

interface resets

Number of times an interface has been completely reset. This can happen if packets that were queued for transmission were not sent within several seconds. On a serial line, this can be caused by a malfunctioning modem that is not supplying the transmit clock signal or by a cable problem. If the system notices that the carrier detect line of a serial interface is up, but the line protocol is down, it periodically resets the interface in an effort to restart it. Interface resets can also occur when an interface is looped back or shut down.

babbles

Count of frames greater than 1518 bytes that have been transmitted, indicating that the transmitter has been on the interface longer than the time necessary to transmit the largest frame.

late collision

Number of late collisions. A collision becomes a late collision when it occurs after the preamble has been transmitted.

deferred

Deferred indicates that the chip, while ready to transmit a frame, had to defer because the carrier was asserted.

lost carrier

Number of times that the carrier was lost during transmission.

no carrier

Number of times that the carrier was not present during the transmission.

output buffer failures

Number of failed buffers.

output buffers swapped out

Number of buffers swapped out.


Related Commands

Command
Description

show controllers embedded-service-engine 0/0

Displays controller information for the Embedded Service Engine.
