    Introduction

    This document describes how to configure eBGP peering between VTEP and external node.

    Prerequisites

    Existing VXLAN environment.

    Requirements

    CISCO recommends that you have knowledge of these topics:

    • NXOS Platform
    • QoS
    • Elam understanding
    • VXLAN VRF Laking

    Components Used

    Name Platform Version
    LEAF N9K-C9332D-GX2B 10.2(6)
    BL N9K-C9348D-GX2A 10.2(5)
    EXT-R N9K-C9348D-GX2A 10.2(3)
    SPINE N9K-C93108TC-FX3P 10.1(1)

    "The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command."

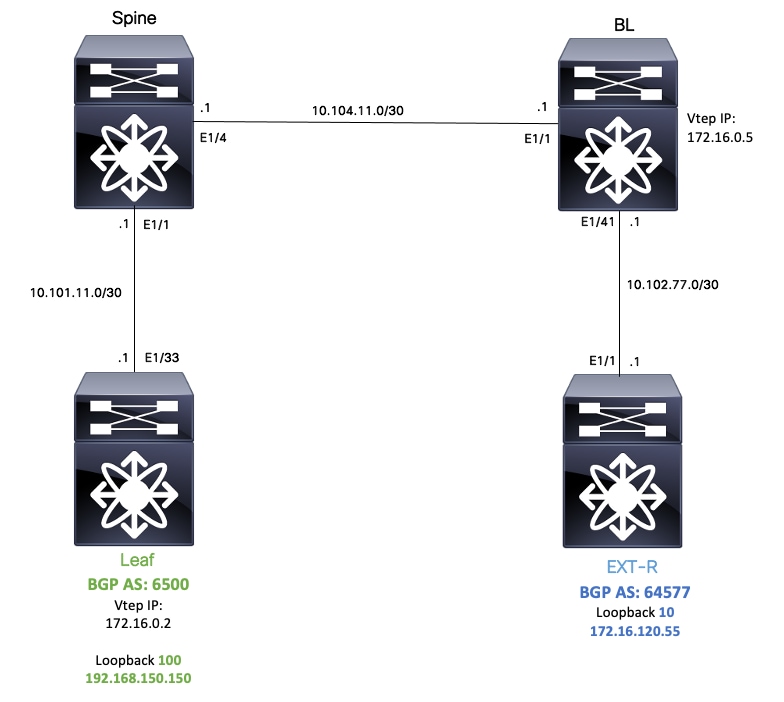

    Topology

    Network Topology

    note-icon

    Note: For this example an eBGP peering session is going to configured between Leaf (vtep) and EXT-R (external device, out of VXLAN fabric.)

    For this example BL knows EXT-R IP via OSPF on default vrf and knows LEAF loopback 100 IP via VXLAN and it is redistributed to OSPF in default VRF.

    In order to perform this leaking Tech Zone Configure and Verify VXLAN VRF leaking on Nexus Switches can be reviewed: https://www.cisco.com/c/en/us/support/docs/switches/nexus-9000-series-switches/221709-configure-and-verify-vxlan-vrf-leaking-o.html

    To simplify this document a summary of VRF leaking configuration on BL is written below.

    BL Configuration for leaking:

    ip prefix-list VXLAN-VRF-default-to-Tenant permit 172.16.120.55/32

    route-map VXLAN-VRF-default-to-Tenant
      match ip address prefix-list VXLAN-VRF-default-to-Tenant

    ip prefix-list VXLAN-VRF-Tenant-to-default  permit 192.168.150.150/32

    route-map VXLAN-VRF-Tenant-to-default
      match ip address prefix-list VXLAN-VRF-Tenant-to-default

    route-map BGP-OSPF
      match ip address prefix-list VXLAN-VRF-Tenant-to-default
      match route-type internal

    router bgp 65000
      address-family ipv4 unicast
        redistribute ospf 1 route-map VXLAN-VRF-default-to-Tenant

    vrf context tenant-a
      address-family ipv4 unicast
        import vrf default map VXLAN-VRF-default-to-Tenant advertise-vpn

    vrf context  tenant-a
       address-family ipv4 unicast
          export vrf default map VXLAN-VRF-Tenant-to-default allow-vpn

    router ospf 1
      redistribute bgp 65000 route-map BGP-OSPF

    Verify Route towards External router

    The first step is to verify if in VTEP exists a route towards External router.

    In this example BL is leaking route 172.16.120.55 from default VRF to tenant VRF and advertising it to LEAF.

    LEAF# show ip route 172.16.120.55 vrf tenant-a
    IP Route Table for VRF "tenant-a"
    '*' denotes best ucast next-hop
    '**' denotes best mcast next-hop
    '[x/y]' denotes [preference/metric]
    '%<string>' in via output denotes VRF <string>

    172.16.120.55/32, ubest/mbest: 1/0
    *via 172.16.0.5%default, [200/2], 00:16:01, bgp-65000, internal, tag 65000, segid: 303030 tunnelid: 0xac100005 encap: VXLAN

    Configure

    On nexus 9000 eBGP peering is supported between a VTEP and External router.

    For this peering to be possible a dedicated loopback on the VTEP needs to be configured.

    Create dedicated loopback

    Configure

    Command or Action Purpose
    Step 1 LEAF# configure terminal
    Enter configuration commands, one per line. End with CNTL/Z.    		 Enters configuration mode.
    Step 2 LEAF(config)# interface lo 100 Create dedicated loopback.
    Step 3 LEAF(config-if)# vrf member tenant-a
    Warning: Deleted all L3 config on interface loopback100    		 Attach tenant VRF to loopback.
    Step 4 LEAF(config-if)# ip address 192.168.150.150/32 Assign an IP to loopback.

    Advertise loopback on BGP

    Created dedicated loopback needs to be advertised on BGP in order to have reachablity to external router.

    Configure

    Command or Action Purpose
    Step 1 LEAF# configure terminal
    Enter configuration commands, one per line. End with CNTL/Z.    		 Enters configuration mode.
    Step 2 LEAF(config)# router bgp 65000 Enters BGP configuration.
    Step 3 LEAF(config-router)# vrf tenant-a Enters BGP VRF.
    Step 4 LEAF(config-router-vrf)# address-family ipv4 unicast Enters BGP VRF Address-family ipv4
    Step 5  LEAF(config-router-vrf-af)# network 192.168.150.150/32 Advertise loopback IP.
    tip-icon

    Tip: BGP advertisement can also be done using route-maps and advertising it using redistribute direct.

    Verify

    Verify route is imported to BGP tenant VRF on LEAF VTEP

    LEAF# show ip bgp 192.168.150.150 vrf tenant-a
    BGP routing table information for VRF tenant-a, address family IPv4 Unicast
    BGP routing table entry for 192.168.150.150/32, version 20
    Paths: (1 available, best #1)
    Flags: (0x80c0002) (high32 0x000020) on xmit-list, is not in urib, exported
    vpn: version 25, (0x00000000100002) on xmit-list

    Advertised path-id 1, VPN AF advertised path-id 1
    Path type: local, path is valid, is best path, no labeled nexthop, is extd
    Imported to 1 destination(s)
    Imported paths list: tenant-b
    AS-Path: NONE, path locally originated
    0.0.0.0 (metric 0) from 0.0.0.0 (192.168.150.150)
    Origin IGP, MED not set, localpref 100, weight 32768
    Extcommunity: RT:1:1 RT:65000:303030

    VRF advertise information:
    Path-id 1 not advertised to any peer

    VPN AF advertise information:
    Path-id 1 not advertised to any peer

    Verify route is imported to BGP L2VPN on LEAF VTEP

    LEAF# sh bgp l2vpn evpn 192.168.150.150
    BGP routing table information for VRF default, address family L2VPN EVPN
    Route Distinguisher: 172.16.0.2:3 (L3VNI 303030)
    BGP routing table entry for [5]:[0]:[0]:[32]:[192.168.150.150]/224, version 59
    Paths: (1 available, best #1)
    Flags: (0x000002) (high32 00000000) on xmit-list, is not in l2rib/evpn

    Advertised path-id 1
    Path type: local, path is valid, is best path, no labeled nexthop
    Gateway IP: 0.0.0.0
    AS-Path: NONE, path locally originated
    172.16.0.2 (metric 0) from 0.0.0.0 (172.16.0.2)
    Origin IGP, MED not set, localpref 100, weight 32768
    Received label 303030
    Extcommunity: RT:65000:303030 ENCAP:8 Router MAC:9c54.1651.5cd7

    Path-id 1 advertised to peers:
    10.101.11.1

    Verify route is imported received on BL tenant VRF

    BL# show ip route 192.168.150.150 vrf tenant-a
    IP Route Table for VRF "tenant-a"
    '*' denotes best ucast next-hop
    '**' denotes best mcast next-hop
    '[x/y]' denotes [preference/metric]
    '%<string>' in via output denotes VRF <string>

    192.168.150.150/32, ubest/mbest: 1/0
    *via 172.16.0.2%default, [200/0], 00:01:13, bgp-65000, internal, tag 65000, segid: 303030 tunnelid: 0xac100002 encap: VXLAN

    Verify route is imported received on BL default VRF

    Since External router is known via default VRF, VTEP loopback IP must be imported to default VRF on BL.

    BL(config-router-vrf-neighbor)# show ip route 192.168.150.150
    IP Route Table for VRF "default"
    '*' denotes best ucast next-hop
    '**' denotes best mcast next-hop
    '[x/y]' denotes [preference/metric]
    '%<string>' in via output denotes VRF <string>

    192.168.150.150/32, ubest/mbest: 1/0
    *via 172.16.0.2, [200/0], 00:12:16, bgp-65000, internal, tag 65000, segid: 303030 tunnelid: 0xac100002 encap: VXLAN

    Configure eBGP peering on LEAF

    Once dedicated loopback is created eBGP peering can be performed on BGP VRF.

    Configure

    Command or Action Purpose
    Step 1 LEAF# configure terminal
    Enter configuration commands, one per line. End with CNTL/Z.    		 Enters configuration mode.
    Step 2 LEAF(config)# router bgp 65000 Enters BGP configuration.
    Step 3 LEAF(config-router)# vrf tenant-a Enters BGP VRF.
    Step 4 LEAF(config-router-vrf)# address-family ipv4 unicast Enters BGP VRF Address-family ipv4
    Step 5 LEAF(config-router-vrf-af)# neighbor 172.16.120.55 remote-as 64577 Creates eBGP neighbor.
    Step 6 LEAF(config-router-vrf-neighbor)# update-source loopback 100 Use loopback 100 as update source.
    Step 7 LEAF(config-router-vrf-neighbor)# address-family ipv4 unicast Enters neighbor address-family ipv4 configuration.
    Step 8 LEAF(config-router-vrf-neighbor-af)# ebgp-multihop 10 Assign ttl for packets for eBGP peering.
    warning-icon

    Warning: The use of update source of a dedicated loopback is mandatory.

    Configure eBGP peering on External router (EXT-R)

    Once dedicated loopback is created eBGP peering can be performed on BGP VRF.

    Configure

    Command or Action Purpose
    Step 1 EXT-R# configure terminal
    Enter configuration commands, one per line. End with CNTL/Z.    		 Enters configuration mode.
    Step 2 EXT-R(config)# router bgp 64577 Enters BGP configuration.
    Step 3 EXT-R(config-router)# vrf blue Enters BGP VRF.
    Step 4 EXT-R(config-router-vrf)# address-family ipv4 unicast Enters BGP VRF Address-family ipv4
    Step 5 EXT-R(config-router-vrf-af)#neighbor 192.168.150.150 remote-as 65000 Creates eBGP neighbor.
    Step 6 EXT-R(config-router-vrf-neighbor)# update-source loopback 10 Use loopback 100 as update source.
    Step 7 EXT-R(config-router-vrf-neighbor)# address-family ipv4 unicast Enters neighbor address-family ipv4 configuration.
    Step 8 EXT-R(config-router-vrf-neighbor-af)# ebgp-multihop 10 Assign ttl for packets for eBGP peering.

    Sumary steps

    LEAF

    1. Configure terminal
    2. interface lo 100
    3. vrf member tenant-a
    4. ip address 192.168.150.150/32
    5. router bgp 65000
    6. vrf tenant-a
    7. address-family ipv4 unicast
    8. network 192.168.150.150/32
    9. neighbor 172.16.120.55
    10. remote-as 64577
    11. update-source loopback 100
    12. address-family ipv4 unicast
    13. ebgp-multihop 10

    EXT-R

    1. Configure terminal
    2. router bgp 64577
    3. vrf blue
    4. address-family ipv4 unicast
    5. neighbor 172.16.120.55
    6. remote-as 64577
    7. update-source loopback 100
    8. address-family ipv4 unicast
    9. ebgp-multihop 10

    Verify

    Verify eBGP neighbor on LEAF

    LEAF# show ip bgp summary vrf tenant-a
    BGP summary information for VRF tenant-a, address family IPv4 Unicast
    BGP router identifier 192.168.150.150, local AS number 65000
    BGP table version is 23, IPv4 Unicast config peers 1, capable peers 1
    13 network entries and 14 paths using 2436 bytes of memory
    BGP attribute entries [8/2816], BGP AS path entries [0/0]
    BGP community entries [0/0], BGP clusterlist entries [3/12]

    Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
    172.16.120.55 4 64577 6 6 23 0 0 00:00:27 0

    Verify eBGP neighbor on External Router


    EXT-R(config-router-vrf-neighbor)# show ip bgp summary vrf blue
    BGP summary information for VRF blue, address family IPv4 Unicast
    BGP router identifier 172.16.120.55, local AS number 64577
    BGP table version is 15, IPv4 Unicast config peers 1, capable peers 1
    13 network entries and 13 paths using 3588 bytes of memory
    BGP attribute entries [2/704], BGP AS path entries [1/6]
    BGP community entries [0/0], BGP clusterlist entries [0/0]

    Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
    192.168.150.150 4 65000 13 6 15 0 0 00:00:48 13
