Get to Know the Sx350 Series Fully Managed Switches

Introduction

The Cisco Sx350 Series Fully Managed Switches are standalone switches that provide Fast Ethernet (FE)/Gigabit Ethernet (GE) and Small Form-Factor Pluggable (SFP) 2 Combo + PoE ports on specific models. The switches come with new generation highly-integrated packet processor for Carrier Ethernet and Small-Medium Enterprise (SME) applications with full wire-speed performance.

The web-based utility allows you to deploy and manage your network efficiently. Setting up and troubleshooting can be done easily with easy-to-use tools such as Cisco Discovery Protocol (CDP), FindIT, and Cisco Smartports, which let your network automatically detect and configure all connected Cisco devices.

This article aims to show the features of the Sx350 Series Fully Managed Switches.

Product Features

Link Flap Prevention
Supports auto detect 100M or 1000M Small SFP modules and auto configure the correct speed.

- The speed of SFP ports can be manually configured

USB port that allows the following:

- Backing up of configuration files

- Loading of new image or configuration files

Quality of Service (QoS)

- Egress policy

- Egress Access Control List (ACL)

- 2 Rates 3 Colors (2R3C)

Port Monitor/Switched Port Analyzer (SPAN)

- 7-session SPAN

- Policy-based Flow Mirroring

Switch Management

- Command Line Interface (CLI) Output modifier

- Bonjour IPv6 Support

Web-based utility

- Search

- Wizards: ACL

- Save icon

- Syslog Popup

- Show tech-support

Traffic Monitoring

- Counters History/Counters Graph

- sFlow v5

PHY-

- 88E1680 – Integrated Octal 10/100/1000 Mbps Energy Efficient Ethernet Transceiver

- 88E3680 – Integrated Octal 10/100 Mbps Energy Efficient Ethernet Transceiver

- 88E1543 – Combo port support

DRAM – 512 MB (DDR3)
Flash – 256 MB NAND Flash
Protocol Based Virtual Local Area Network (VLAN)
IP Subnet-Based VLAN
Logging aggregation disabled by default
PD port support
New PoE chipset allows devices to function as power client and request specific power consumption

- PoE controller embedded in Network ASIC (AC3) allows faster communication speed between the Network-ASIC and the PoE-chip

- Two Combo ports that consist of one RJ45 interface and one Mini-GBIC (SFP) interface

Rest of the ports are PSE: af/at.
Console/Terminal Port (RJ45) for device management and debug

- Asynchronous data of eight data bits

- One-stop bit

- No parity

- Default Baud rate is 115200 bps

USB 2.0 port support

- FAT32 for read/write

- NTFS for read-only

Power over Ethernet (PoE) Switches

SF350-48P 48-Port 10/100 Managed Switch

- 48 FE + 4 GE (2 SFP + 2 Combo)

- AT/AF PoE/Power Sourcing Equipment (PSE) on 48 FE ports

- PoE Budget 375W

SF350-48MP 48-Port 10/100 Managed Switch

- 48 FE + 4 GE (2 SFP + 2 Combo)

- AT/AF PoE on 48 FE ports

- PoE Budget 740W

SG350-28P – 28-Port GigabitPoE Managed Switch

- 24 GE + 4 GE (2 SFP + 2 Combo)

- AT/AF PoE on 24 GE ports

- PoE Budget 185W

SG350-28MP– 28-Port Gigabit PoE Managed Switch

- 24 GE + 4 GE (2 SFP + 2 Combo)

- AT/AF PoE on 24 GE ports

- PoE Budget 375W

SG350-10P – 10-Port Gigabit Managed Switch

- 8 GE + 2 GE (2 Combo)

- AT/AF PoE (PSE) on 8 GE

- Budget 62W + 2 Powered-Device (PD) ports

SG350-10MP 10-Port Gigabit Managed Switch

- 8 GE + 2 GE (2 Combo)

- AT/AF PoE (PSE) on 8 GE

- Budget 124W + 2 PD ports

SG355-10P 10-Port Gigabit Managed Switch

- 8 GE + 2 GE (2 Combo)

- AT/AF PoE (PSE) on 8 GE

- Budget 62W + 2 PD ports

Non-PoE Switches

SG350-10 10-Port Gigabit Managed Switch

- 8 GE + 2 GE (2 Combo)

- 1 PD port AT/AF

SG350-28 28-Port Gigabit Managed Switch

- 24 GE + 4 GE (2 SFP + 2 Combo)

- SF350-48 48-Port Gigabit Managed Switch

- 48 FE + 4 GE (2 SFP + 2 Combo)

Note: To know more about the product and hardware specifications of the Sx350 Series Fully Managed Switches, click here.

Product Views

Note: The actual appearance of the switches may vary depending on the exact model of your device. The images below are taken from the SG350-28P.

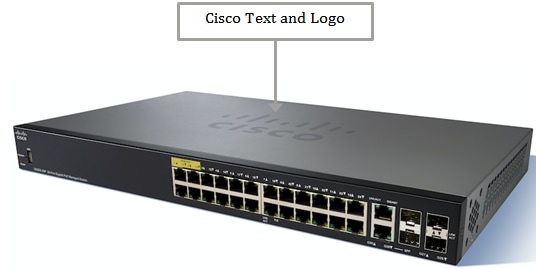

Top View

The Cisco text and logo can be seen at the top of the device.

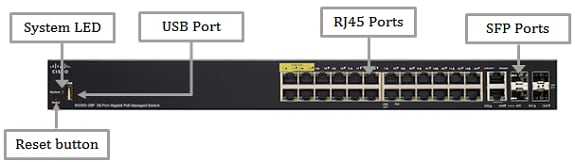

Front View

At the front panel of the device, the System LED, Reset button, and all the ports can be seen. Specifically, these ports are the USB port, RJ45 ports with their LED indicators, and SFP ports. The number of ports and the availability of the LED indicators vary depending on the exact model of your switch.

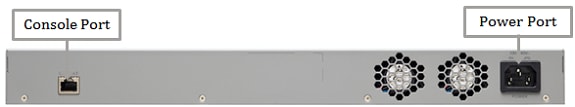

Back View

The Power and Console ports are located at the back of the device. The Console port connects the switch to the serial port of the computer using the supplied console cable.

Package Contents

Note: The actual appearance of the items below may vary depending on the exact model of your device.

a) b)

c) d)

a) Sx350 Series Managed Switch

b) Power Cord

c) Console cable

d) Quick Start Guide

Minimum Requirements

A router that has PoE support, PoE injector, or AC power adapter
Category 5 Ethernet network cable
TCP/IP, network adapter, and operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network
Java-enabled web browser for the web-based configuration such as Mozilla Firefox 20 or later; Google Chrome 23 or later; Safari 5.1 or later

Technical Details

Ports/Button	Function	LED Names	LED Behavior	LED Reference
Reset button	Resets the device to default settings	N/A	N/A	N/A
USB	File management	N/A	N/A	N/A
System	Dual colors LED	System	GREEN OFF – System OFF Solid – System is ON and Ready Blinking – Booting/System Self-Test or acquiring IP address AMBER Blinking – detect hardware failed
Non-PoE Switches: 10/100M RJ45	Link/Act and Speed	Left LED LINK/ACT	Green OFF – No link is detected ON – Link is detected Blinking – Rx/Tx Data
Non-PoE Switches: 10/100M RJ45	Link/Act and Speed	Right LED Speed	Green OFF – 10M link is detected or no link Solid – 100M link is detected
Non-PoE Switches: 10/1000M RJ45	Link/Act and Speed	Left LED LINK/ACT	GREEN OFF – No link is detected ON – Link is detected Blinking – Rx/Tx Data
Non-PoE Switches: 10/1000M RJ45	Link/Act and Speed	Right LED Speed	GREEN OFF – 10M/100M Link is detected or no link Solid – 1000M link is detected
PoE RJ45 Ports	Link/Act and PoE	Left LED LINK/ACT	GREEN OFF – No link is detected ON – Link is detected Blinking – Rx/Tx Data
PoE RJ45 Ports	Link/Act and PoE	Right LED PoE	AMBER OFF – No PD detected Solid – 802.3 af/at PD is detected Blinking – Negotiation
Combo Ports	Link/Act and Speed SFP ports share with RJ45	Left LED LINK/ACT	GREEN OFF – No link is detected ON – Link is detected Blinking – Rx/Tx Data
Combo Ports	Link/Act and Speed SFP ports share with RJ45	Right LED Speed	GREEN OFF – 10M/100M link is detected or no link Solid – 1000M link is detected
SFP ports	Dedicated Mini-GBIC Port	Left LED LINK/ACT	GREEN OFF – No link is detected ON – Link is detected Blinking – Rx/Tx Data
SFP ports	Dedicated Mini-GBIC Port	Right LED LINK/ACT	GREEN OFF – No link is detected ON – Link is detected Blinking – Rx/Tx Data
