This document explains how Quality of Service (QoS) works on the Cisco Adaptive Security Appliance (ASA) and also provides several examples on how to implement it for different scenarios.
You can configure QoS on the security appliance in order to provide rate limiting on selected network traffic, for both individual flows and VPN tunnel flows, in order to ensure that all traffic gets its fair share of limited bandwidth.
The feature was integrated with Cisco bug ID CSCsk06260.
The information in this document is based on an ASA that runs Version 9.2, but earlier versions can be used as well.
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, make sure that you understand the potential impact of any command.
QoS is a network feature that allows you to give priority to certain types of Internet traffic. As Internet users upgrade their access points from modems to high-speed broadband connections like Digital Subscriber Line (DSL) and cable, the likelihood increases that at any given time, a single user might be able to absorb most, if not all, of the available bandwidth, thus starving the other users. In order to prevent any one user or site-to-site connection from consuming more than its fair share of bandwidth, QoS provides a policing feature that regulates the maximum bandwidth that any user can use.
QoS refers to the capability of a network to provide better service to selected network traffic over various technologies for the best overall services with limited bandwidth of the underlying technologies.
The primary goal of QoS in the security appliance is to provide rate limiting on selected network traffic for both individual flow or VPN tunnel flow to ensue that all traffic gets its fair share of limited bandwidth. A flow can be defined in a number of ways. In the security appliance, QoS can apply to a combination of source and destination IP addresses, source and destination port number, and the Type of Service (ToS) byte of the IP header.
There are three kinds of QoS you can implement on the ASA: Policing, Shaping, and Priority Queueing.
With policing, traffic over a specified limit is dropped. Policing is a way to ensure that no traffic exceeds the maximum rate (in bits/second) that you configure, which ensures that no one traffic flow or class can take over the entire resource. When traffic exceeds the maximum rate, the ASA drops the excess traffic. Policing also sets the largest single burst of traffic allowed.

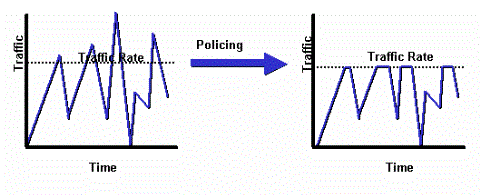

This diagram illustrates what traffic policing does; when the traffic rate reaches the configured maximum rate, excess traffic is dropped. The result is an output rate that appears as a saw-tooth with crests and troughs.
This example shows how to throttle the bandwidth to 1 Mbps for a specific user in the outbound direction:
ciscoasa(config)# access-list WEB-LIMIT permit ip host 192.168.10.1 any ciscoasa(config)# class-map Class-Policy ciscoasa(config-cmap)# match access-list WEB-LIMIT ciscoasa(config-cmap)#exit
ciscoasa(config)# policy-map POLICY-WEB ciscoasa(config-pmap)# class Class-Policy ciscoasa(config-pmap-c)# police output 1000000 conform-action transmit exceed- action drop ciscoasa(config-pmap-c)#exit ciscoasa(config-pmap)#exit
Traffic shaping is used in order to match device and link speeds, which controls packet loss, variable delay, and link saturation, which can cause jitter and delay. Traffic shaping on the security appliance allows the device to limit the flow of traffic. This mechanism buffers traffic over the "speed limit" and attempts to send the traffic later. Shaping cannot be configured for certain types of traffic. The shaped traffic includes traffic passing through the device, as well as traffic that is sourced from the device.
This diagram illustrates what traffic shaping does; it retains excess packets in a queue and then schedules the excess for later transmission over increments of time. The result of traffic shaping is a smoothed packet output rate.
Note: Traffic shaping is only supported on ASA Versions 5505, 5510, 5520, 5540, and 5550. Multicore models (such as the 5500-X) do not support shaping.
With traffic shaping, traffic that exceeds a certain limit is queued (buffered) and sent during the next timeslice.
Traffic shaping on the firewall is most useful if an upstream device imposes a bottlneck on network traffic. A good example would be an ASA that has 100 Mbit interfaces, with an upstream connection to the Internet via a cable modem or T1 that terminates on a router. Traffic shaping allows the user to configure the maximum outbound throughput on an interface (the outside interface for example); the firewall transmits traffic out of that interface up to the specified bandwidth, and then attempts to buffer the excessive traffic for transmission later when the link is less saturated.
Shaping is applied to all aggregate traffic that egresses the specified interface; you cannot choose to only shape certain traffic flows.
Note: Shaping is done after encryption and does not allow for prioritization on the inner packet or tunnel-group basis for VPN.
This example configures the firewall in order to shape all outbound traffic on the outside interface to 2 Mbps:
ciscoasa(config-pmap)#policy-map qos_outside_policy ciscoasa(config-pmap)# class class-default ciscoasa(config-pmap-c)# shape average 2000000 ciscoasa(config-pmap-c)#exit ciscoasa(config-pmap)#exit
With priority queuing, you are able to place a specific class of traffic in the Low Latency Queue (LLQ), which is processed before the standard queue.
Note: If you prioritize traffic under a shaping policy, you cannot use inner packet details. The firewall can only perform LLQ, unlike the routers that can provide more sophisticated queuing and QoS mechanisms (Weighted Fair Queueing (WFQ), Class-Based Weighted Fair Queueing (CBWFQ), and so on).
The hierarchical QoS policy provides a mechanism for users to specify the QoS policy in a hierarchical fashion. For example, if users want to shape traffic on an interface and furthermore within the shaped interface traffic, provide priority queueing for VoIP traffic, then users can specify a traffic shaping policy at the top and a priority queuing policy under the shape policy. The hierarchical QoS policy support is limited in scope. The only option allowed is:
Traffic shaping at the top level
Priority queueing at the next level
Note: If you prioritize traffic under a shaping policy, you cannot use inner packet details. The firewall can only perform LLQ, unlike the routers that can provide more sophisticated queuing and QoS mechanisms (WFQ,CBWFQ, and so on).
This example uses the hierarchical QoS Policy in order to shape all outbound traffic on the outside interface to 2 Mbps like the shaping example but it also specifies that Voice packets with the Differentiated Services Code Point (DSCP) value "ef", as well as Secure Shell (SSH) traffic, shall receive priority.
Create the priority queue on the interface on which you want to enable the feature:
As per RFC 2401 Type of Service (ToS) bits in the original IP header are copied to the IP header of the encrypted packet so that QoS policies can be enforced after encryption. This allows the DSCP/DiffServ bits to be used for priority anywhere in the QoS policy.
Policing on an IPsec tunnel
Policing can also be done for specific VPN tunnels. In order to select a tunnel-group on which to police, you use the match tunnel-group <tunnel> command in your class-map and the match flow ip destination address command.
class-map tgroup_out match tunnel-group ipsec-tun match flow ip destination-address policy-map qos class tgroup_out police output 1000000
Input policing does not work at this time when you use the match tunnel-group command; see Cisco bug ID CSCth48255 for more information. If you try to do input policing with the match flow ip destination-address, you receive this error:
police input 10000000 ERROR: Input policing cannot be done on a flow destination basis
Input policing does not appear to work at this time when you use match tunnel-group (Cisco bug ID CSCth48255). If input policing works, you would need to use a class-map without the match flow ip destination-address address.
class-map tgroup_in match tunnel-group ipsec-tun policy-map qos class tgroup_in police input 1000000
If you try to police output on a class-map that does not have the match ip destination address, you receive:
police output 10000000 ERROR: tunnel-group can only be policed on a flow basis
It is also possible to perform QoS on the inner flow information with the use of Access Control Lists (ACLs), DSCP, and so on. Due to the previously mentioned bug, ACLs are the way to be able to do input policing right now.
Note: A maximum of 64 policy-maps can be configured on all platform types. Use different class-maps within the policy-maps in order to segment traffic.
QoS with Secure Sockets Layer (SSL) VPN
Until ASA Version 9.2, the ASA did not preserve the ToS bits.
SSL VPN tunneling is not supported with this functionality. See Cisco bug ID CSCsl73211 for more information.
ciscoasa(config)# tunnel-group a1 type webvpn ciscoasa(config)# tunnel-group a1 webvpn-attributes ciscoasa(config-tunnel-webvpn)# class-map c1 ciscoasa(config-cmap)# match tunnel-group a1 ciscoasa(config-cmap)# match flow ip destination-address ciscoasa(config-cmap)# policy-map p1 ciscoasa(config-pmap)# class c1 ciscoasa(config-pmap-c)# police output 100000 ERROR: tunnel with WEBVPN attributes doesn't support police!
ciscoasa(config-pmap-c)# no tunnel-group a1 webvpn-attributes ciscoasa(config)# policy-map p1 ciscoasa(config-pmap)# class c1 ciscoasa(config-pmap-c)# police output 100000 ciscoasa(config-pmap-c)#
Note: When users with phone-vpn use the AnyConnect client and Datagram Transport Layer Security (DTLS) to encrypt their phone, prioritisation does not work because AnyConnect does not preserve the DSCP flag in the DTLS encapsulation. Refer to enhancement request CSCtq43909 for details.
Here are some points to consider about QoS.
It is applied through Modular Policy Framework (MPF) in strict or hierarchical fashion: Policing, Shaping, LLQ.
Can only influence traffic that is already passed from the Network Interface Card (NIC) to the DP (Data Path)
Useless to fight overruns (they happen too early) unless applied on an adjacent device
Policing is applied on the input after the packet is permitted and on the output before the NIC.
Right after you rewrite a Layer 2 (L2) address on the output
It shapes outbound bandwidth for all traffic on an interface.
Useful with limited uplink bandwidth (such as1Gigabit Ethernet (GE) link to 10Mb modem)
!--- Enables the IKE policy configuration (config-isakmp) !--- command mode, where you can specify the parameters that !--- are used during an IKE negotiation.
authentication pre-share encryption 3des hash sha group 2 lifetime 86400
!--- Use this command in order to create and manage the database of !--- connection-specific records like group name !--- as 10.1.2.1, IPsec type as L2L, and password as !--- pre-shared key for IPsec tunnels.
tunnel-group 10.1.2.1 type ipsec-l2l tunnel-group 10.1.2.1 ipsec-attributes
!--- Specifies the preshared key "cisco123" which should !--- be identical at both peers.
ikev1 pre-shared-key *
telnet timeout 5 ssh timeout 5 console timeout 0 priority-queue outside queue-limit 2048 tx-ring-limit 256 ! class-map Voice match dscp ef class-map Data match tunnel-group 10.1.2.1 match flow ip destination-address class-map inspection_default match default-inspection-traffic
! ! policy-map type inspect dns preset_dns_map parameters message-length maximum 512 policy-map global_policy class inspection_default inspect dns preset_dns_map inspect ftp inspect h323 h225 inspect h323 ras inspect netbios inspect rsh inspect rtsp inspect skinny inspect esmtp inspect sqlnet inspect sunrpc inspect tftp inspect sip inspect xdmcp policy-map Voicepolicy class Voice priority class Data police output 200000 37500 ! service-policy global_policy global service-policy Voicepolicy interface outside prompt hostname context Cryptochecksum:d41d8cd98f00b204e9800998ecf8427e : end
In order to display the priority-queue statistics for an interface, use the show priority-queue statistics command in privileged EXEC mode. The results show the statistics for both the best-effort (BE) queue and the LLQ. This example shows the use of the show priority-queue statistics command for the interface named outside, and the command output.
ciscoasa# show priority-queue statistics outside
Priority-Queue Statistics interface outside
Queue Type = BE Packets Dropped = 0 Packets Transmit = 0 Packets Enqueued = 0 Current Q Length = 0 Max Q Length = 0
Queue Type = LLQ Packets Dropped = 0 Packets Transmit = 0 Packets Enqueued = 0 Current Q Length = 0 Max Q Length = 0 ciscoasa#
In this statistical report, the meaning of the line items is as follows:
"Packets Dropped" denotes the overall number of packets that have been dropped in this queue.
"Packets Transmit" denotes the overall number of packets that have been transmitted in this queue.
"Packets Enqueued" denotes the overall number of packets that have been queued in this queue.
"Current Q Length" denotes the current depth of this queue.
"Max Q Length" denotes the maximum depth that ever occurred in this queue.
The Output Interpreter Tool (registered customers only) supports certain show commands. Use the Output Interpreter Tool in order to view an analysis of show command output.
There is currently no specific troubleshooting information available for this configuration.
Here are some bugs introduced by the traffic shaping feature:
