Configure a VRF Aware Site-to-Site Tunnel with IKEv2 on FTD

Introduction

This document describes how to configure Virtual Routing and Forwarding (VRF)-aware IKEv2 site-to-site VPN tunnel on Firepower Threat Defense (FTD) managed by a Firepower Management Centre (FMC).

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• Basic understanding of VPN
• Experience with FMC
• Knowledge of VRF implementation

Components Used

The information in this document is based on these software versions:

• Cisco FMC version 7.x
• Cisco FTD version 7.x

Note: The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Virtual Routing and Forwarding

In virtual routing, you can create multiple virtual routers to maintain separate routing tables for groups of interfaces to achieve network separation. This increases functionality by segmenting network paths without the use of multiple devices.
Because the routing instances are independent, IP addresses that overlap can be used without any conflict with each other. Each VRF has its own routing protocol sessions and IPv4, and IPv6 routing tables.

Limitations

• The interface(s) which are in any VRF instance cannot be used as a tunnel endpoint/VPN interface.
• An interface used to terminate the VPN tunnel can only be in Global VRF.

Limitation 1

If the outside interface is added to the virtual router vrf_outside , then this interface is not shown in the dropdown for endpoint interface selection when a site-to-site VPN topology is created.

Limitation 2

If a site-to-site VPN topology on the outside interface exists, then it is not possible to add the interface to a VRF instance. FMC gives an error that states that the outside (WAN) interface that acts as a VPN tunnel terminates the endpoint to be a part of Global VRF and not a custom VRF.

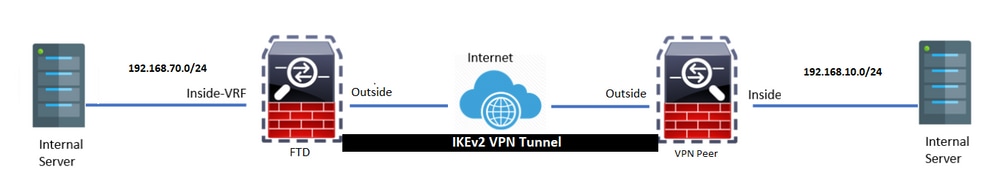

Network Diagram

Configure

Configure an IKEv2 site-to-site VPN tunnel between FTD 7.x and any other device (ASA/FTD/Router or a third-party vendor).

Note: This document assumes that site-to-site VPN tunnel is already configured. Please refer to How to configure site-to-site VPN on FTD managed by FMC for more details.

Navigate to Devices > Device Management. Click on Edit and then select Routing.

Step 1. Click on Manage Virtual Routersas shown in the image.

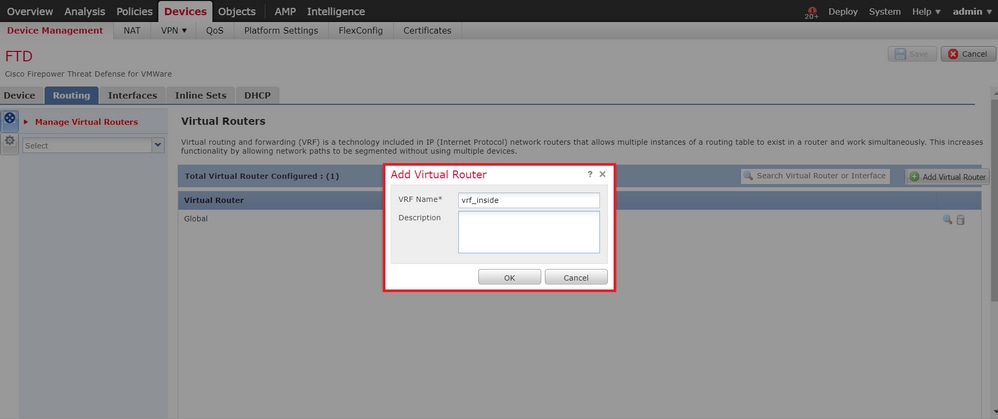

Step 2. Click on Add Virtual Router and add the required VRF instance to it. For this deployment, vrf_insideis used.

Step 3. Once the VRF instance is created, an option to add the required interface(s) is shown. For this deployment, inside interface is added to vrf_insideas shown in the image.

Step 4. For this deployment, these are the traffic selectors for our site-to-site VPN tunnel.

Source:  192.168.70.0/24 [This network is on inside interface which is in "vrf_inside"]

         192.168.80.0/24 [This network is on dmz interface which is not in any vrf instance]

Destination : 192.168.10.0/24

Route Leak

VRF allows a router to maintain separate routing tables for different virtual networks. When exceptions are needed, VRF route leaking allows some traffic to be routed between the VRFs. Route leaking between Global Routing Table (GRT) and Virtual Routing and Forwarding (VRF) table is done with the use of static routes. Either method provides the next-hop IP address (for the multi-access segment) or points the route out of an interface (point-to-point interface).

Route Leaking from VRF to Global

1. Select Devices > Device Management, and click on Edit for FTD.
2. Click Routing. By default, the Global routing properties page appears.
3. Click Static Route.
4. Click Add Route, configure:

• Interface  — Select the inside interface.

• Network — Select the vrf_inside virtual router network object (192.168.70.0/24).

• Gateway — Leave it blank. When leaking a route into another virtual router, do not select the gateway.

The route leak allows endpoints protected by the external (remote) end of the site-to-site VPN to access the 192.168.70.0/24 network in the vrf_inside virtual router.

5. Click OK as shown in the image.

On CLI, the route is shown as :

route inside 192.168.70.0 255.255.255.0 1

Note that the network 192.168.70.0/24 is directly connected to theinside interface but this network is not visible in GRT because the network is in the VRF instance. In order to make this route available in GRT, the route has been leaked from vrf_inside to Global.

Route Leaking from Global to VRF

1. Choose Devices > Device Management, and click on Edit.
2. Click Routing and from the drop-down, selectvrf_inside.
3. Click Static Route .
4. Click Add Route , configure:

• Interface — Select the outside interface of the global router

• Network — Select the global virtual router network object (192.168.10.0/24)

• Gateway — Leave it blank. When leaking a route into another virtual router, do not select the gateway

This static route allows endpoints on the 192.168.70.0/24 network to initiate connections to 192.168.10.0/24 that traverse through the site-to-site VPN tunnel.

5. Click OKas shown in the image.

On CLI, the route is shown as:

route vrf vrf_inside outside 192.168.10.0 255.255.255.0 1

Verify

Use this section in order to confirm that your configuration works properly. All the outputs are collected from FTD shown in the network diagram.

FTD# show vrf
Name            VRF ID          Description             Interfaces
vrf_inside              1                               inside

FTD# show run route
route outside 10.0.0.0 255.0.0.0 10.106.50.1 1
route inside 192.168.70.0 255.255.255.0 1

FTD# show run route vrf vrf_inside
route vrf vrf_inside outside 192.168.10.0 255.255.255.0 1

FTD# show route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, V - VPN
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, + - replicated route
Gateway of last resort is not set

S        10.0.0.0 255.0.0.0 [1/0] via 10.106.50.1, outside
C        10.106.50.0 255.255.255.0 is directly connected, outside
L        10.106.50.212 255.255.255.255 is directly connected, outside
V        192.168.10.0 255.255.255.0 connected by VPN (advertised), outside
S        192.168.70.0 255.255.255.0 [1/0] is directly connected, inside
C        192.168.80.0 255.255.255.0 is directly connected, dmz
L        192.168.80.1 255.255.255.255 is directly connected, dmz

FTD# show crypto ikev2 sa
IKEv2 SAs:

Session-id:8, Status:UP-ACTIVE, IKE count:1, CHILD count:1

Tunnel-id Local                                               Remote                                                  Status         Role
444445753 10.106.50.212/500                                   10.197.224.175/500                                        READY    RESPONDER
      Encr: AES-CBC, keysize: 256, Hash: SHA256, DH Grp:19, Auth sign: PSK, Auth verify: PSK
      Life/Active Time: 86400/11 sec
Child sa: local selector  192.168.70.0/0 - 192.168.70.255/65535
          remote selector 192.168.10.0/0 - 192.168.10.255/65535
          ESP spi in/out: 0x5e950adb/0x47acd2dc

FTD# show crypto ipsec sa peer 10.197.224.175
peer address: 10.197.224.175
    Crypto map tag: CSM_outside_map, seq num: 2, local addr: 10.106.50.212

      access-list vrf-crypto-acl extended permit ip 192.168.70.0 255.255.255.0 192.168.10.0 255.255.255.0
      local ident (addr/mask/prot/port): (192.168.70.0/255.255.255.0/0/0)
      remote ident (addr/mask/prot/port): (192.168.10.0/255.255.255.0/0/0)
      current_peer: 10.197.224.175

      #pkts encaps: 4, #pkts encrypt: 4, #pkts digest: 4
      #pkts decaps: 4, #pkts decrypt: 4, #pkts verify: 4
      #pkts compressed: 0, #pkts decompressed: 0
      #pkts not compressed: 4, #pkts comp failed: 0, #pkts decomp failed: 0
      #pre-frag successes: 0, #pre-frag failures: 0, #fragments created: 0
      #PMTUs sent: 0, #PMTUs rcvd: 0, #decapsulated frgs needing reassembly: 0
      #TFC rcvd: 0, #TFC sent: 0
      #Valid ICMP Errors rcvd: 0, #Invalid ICMP Errors rcvd: 0
      #send errors: 0, #recv errors: 0

      local crypto endpt.: 10.106.50.212/500, remote crypto endpt.: 10.197.224.175/500
      path mtu 1500, ipsec overhead 74(44), media mtu 1500
      PMTU time remaining (sec): 0, DF policy: copy-df
      ICMP error validation: disabled, TFC packets: disabled
      current outbound spi: 47ACD2DC
      current inbound spi : 5E950ADB

    inbound esp sas:
      spi: 0x5E950ADB (1586825947)
         SA State: active
         transform: esp-aes-256 esp-sha-hmac no compression
         in use settings ={L2L, Tunnel, IKEv2, }
         slot: 0, conn_id: 10, crypto-map: CSM_outside_map
         sa timing: remaining key lifetime (kB/sec): (4193279/28774)
         IV size: 16 bytes
         replay detection support: Y
         Anti replay bitmap:
          0x00000000 0x0000001F
    outbound esp sas:
      spi: 0x47ACD2DC (1202508508)
         SA State: active
         transform: esp-aes-256 esp-sha-hmac no compression
         in use settings ={L2L, Tunnel, IKEv2, }
         slot: 0, conn_id: 10, crypto-map: CSM_outside_map
         sa timing: remaining key lifetime (kB/sec): (4147199/28774)
         IV size: 16 bytes
         replay detection support: Y
         Anti replay bitmap:
          0x00000000 0x00000001

Troubleshoot

This section provides information you can use in order to troubleshoot your configuration.

FTD# show crypto ipsec sa peer 10.197.224.175
peer address: 10.197.224.175
    Crypto map tag: CSM_outside_map, seq num: 2, local addr: 10.106.50.212

      access-list vrf-crypto-acl extended permit ip 192.168.70.0 255.255.255.0 192.168.10.0 255.255.255.0
      local ident (addr/mask/prot/port): (192.168.70.0/255.255.255.0/0/0)
      remote ident (addr/mask/prot/port): (192.168.10.0/255.255.255.0/0/0)
      current_peer: 10.197.224.175

      #pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0                              >>>> Packets received from remote end gets decapsulated but there are not encaps for the responses
      #pkts decaps: 4, #pkts decrypt: 4, #pkts verify: 4
      #pkts compressed: 0, #pkts decompressed: 0
      #pkts not compressed: 0, #pkts comp failed: 0, #pkts decomp failed: 0
      #pre-frag successes: 0, #pre-frag failures: 0, #fragments created: 0
      #PMTUs sent: 0, #PMTUs rcvd: 0, #decapsulated frgs needing reassembly: 0
      #TFC rcvd: 0, #TFC sent: 0
      #Valid ICMP Errors rcvd: 0, #Invalid ICMP Errors rcvd: 0
      #send errors: 0, #recv errors: 0

      local crypto endpt.: 10.106.50.212/500, remote crypto endpt.: 10.197.224.175/500
      path mtu 1500, ipsec overhead 74(44), media mtu 1500
      PMTU time remaining (sec): 0, DF policy: copy-df
      ICMP error validation: disabled, TFC packets: disabled
      current outbound spi: 490F4CD1
      current inbound spi : DB5608EB

    inbound esp sas:
      spi: 0xDB5608EB (3679848683)
         SA State: active
         transform: esp-aes-256 esp-sha-hmac no compression
         in use settings ={L2L, Tunnel, IKEv2, }
         slot: 0, conn_id: 11, crypto-map: CSM_outside_map
         sa timing: remaining key lifetime (kB/sec): (4008959/28761)
         IV size: 16 bytes
         replay detection support: Y
         Anti replay bitmap:
          0x00000000 0x0000001F
    outbound esp sas:
      spi: 0x490F4CD1 (1225739473)
         SA State: active
         transform: esp-aes-256 esp-sha-hmac no compression
         in use settings ={L2L, Tunnel, IKEv2, }
         slot: 0, conn_id: 11, crypto-map: CSM_outside_map
         sa timing: remaining key lifetime (kB/sec): (4239360/28761)
         IV size: 16 bytes
         replay detection support: Y
         Anti replay bitmap:
          0x00000000 0x00000001

capture capin type raw-data interface inside [Capturing - 0 bytes]          >>>> Captures applied on LAN(inside) interface shows decapsulated packets are not routed into LAN network
  match ip host 192.168.10.2 host 192.168.70.2

FTD# show cap capin
0 packet captured

0 packet shown

capture asp type asp-drop all [Capturing - 0 bytes]                          >>>> ASP Captures shows decapsulated packets are being dropped on FTD
FTD# show capture asp | i 192.168.70.2
 145: 15:28:47.670894       192.168.10.2 > 192.168.70.2 icmp: echo request
 154: 15:28:49.666545       192.168.10.2 > 192.168.70.2 icmp: echo request
 171: 15:28:51.672740       192.168.10.2 > 192.168.70.2 icmp: echo request
 172: 15:28:53.664928       192.168.10.2 > 192.168.70.2 icmp: echo request

FTD# packet-tracer input outside icmp 192.168.10.2 8 0 192.168.70.2 detailed      >>>> Packet tracer from outside shows "no route" for 192.168.70.0/24 network
Phase: 1
Type: ACCESS-LIST
Subtype:
Result: ALLOW
Config:
Implicit Rule
Additional Information:
 Forward Flow based lookup yields rule:
 in  id=0x2ba3bce77330, priority=1, domain=permit, deny=false
        hits=171480, user_data=0x0, cs_id=0x0, l3_type=0x8
        src mac=0000.0000.0000, mask=0000.0000.0000
        dst mac=0000.0000.0000, mask=0100.0000.0000
        input_ifc=outside, output_ifc=any

Result:
input-interface: outside(vrfid:0)
input-status: up
input-line-status: up
Action: drop
Drop-reason: (no-route) No route to host, Drop-location: frame 0x000055d9b7e8c7ce flow (NA)/NA

FTD# show run route
route outside 10.0.0.0 255.0.0.0 10.106.50.1 1                           >>>> As the network 192.168.70.0/24 is in "vrf_inside" instance, there is no route leaked from Global to vrf_inside

FTD# show run route
route outside 10.0.0.0 255.0.0.0 10.106.50.1 1
route inside 192.168.70.0 255.255.255.0 1                                >>>> After leaking the route from Global to vrf_inside

FTD# show cap capin                                                  >>>> Now capture shows bi-directional traffic on LAN(inside) interface
10 packets captured

   1: 15:44:32.972743       192.168.10.2 > 192.168.70.2 icmp: echo request
   2: 15:44:32.974543       192.168.70.2 > 192.168.10.2 icmp: echo reply
   3: 15:44:33.032209       192.168.10.2 > 192.168.70.2 icmp: echo request
   4: 15:44:33.033353       192.168.70.2 > 192.168.10.2 icmp: echo reply
   5: 15:44:33.089656       192.168.10.2 > 192.168.70.2 icmp: echo request
   6: 15:44:33.092814       192.168.70.2 > 192.168.10.2 icmp: echo reply
   7: 15:44:33.149024       192.168.10.2 > 192.168.70.2 icmp: echo request
   8: 15:44:33.151878       192.168.70.2 > 192.168.10.2 icmp: echo reply
   9: 15:44:33.158774       192.168.10.2 > 192.168.70.2 icmp: echo request
  10: 15:44:33.161048       192.168.70.2 > 192.168.10.2 icmp: echo reply
10 packets shown

FTD# packet-tracer input outside icmp 192.168.10.2 8 0 192.168.70.2 detailed  >>>> Verified packet flow using Packet tracer
Phase: 1
Type: INPUT-ROUTE-LOOKUP
Subtype: Resolve Egress Interface
Result: ALLOW
Config:
Additional Information:
Found next-hop 0.0.0.0 using egress ifc  inside(vrfid:1)

-------------------Output Omitted------------------------

Phase: 8
Type: VPN
Subtype: ipsec-tunnel-flow
Result: ALLOW
Config:
Additional Information:
 Forward Flow based lookup yields rule:
 in  id=0x2ba3bdc75cc0, priority=70, domain=ipsec-tunnel-flow, deny=false
        hits=7, user_data=0xea71cdc, cs_id=0x2ba3bce93e70, reverse, flags=0x0, protocol=0
        src ip/id=192.168.10.0, mask=255.255.255.0, port=0, tag=any
        dst ip/id=192.168.70.0, mask=255.255.255.0, port=0, tag=any, dscp=0x0
        input_ifc=outside(vrfid:0), output_ifc=any

 -------------------Output Omitted------------------------

Phase: 13
Type: VPN
Subtype: encrypt
Result: ALLOW
Config:
Additional Information:
 Reverse Flow based lookup yields rule:
 out id=0x2ba3bd44ed40, priority=70, domain=encrypt, deny=false
        hits=7, user_data=0xea6e344, cs_id=0x2ba3bce93e70, reverse, flags=0x0, protocol=0
        src ip/id=192.168.70.0, mask=255.255.255.0, port=0, tag=any
        dst ip/id=192.168.10.0, mask=255.255.255.0, port=0, tag=any, dscp=0x0
        input_ifc=any(vrfid:65535), output_ifc=outside

Result:
input-interface: outside(vrfid:0)
input-status: up
input-line-status: up
output-interface: inside(vrfid:1)
output-status: up
output-line-status: up
Action: drop
Drop-reason: (ipsec-spoof) IPSEC Spoof detected, Drop-location: frame 0x000055d9b7e8b4d1 flow (NA)/NA
