Cisco GS7000 1218MHz Fiber Deep Intelligent Node Data Sheet
Available Languages
Product description
The Cisco GS7000 Intelligent Node is the latest addition to the 1218-MHz GS7000 Node platform family. This node leverages the recent technological advances of the GS7000 platform and introduces significant operational efficiencies through remote setup and troubleshooting. The Cisco GS7000 Intelligent Node will utilize the cloud-based Cisco Intelligent Node Manager to communicate with the network core for setup as a network element.
The Cisco® GS7000 1218-MHz 4-Port Fiber Deep Intelligent Node deployed with the Cisco Smart PHY Model 120 1x2 iRPD (Remote PHY Device) module has the following Intelligent Node Features
● Highest Output capable Gallium Nitride (GaN) gain stages
● Compatible with Cisco Model 120 1X2 Smart PHY module for Intelligent Node
● Integrated, software controlled electronic accessories (attenuator pads, equalizers, signal directors) for node setup and balancing
● Local node setup, control, and troubleshooting via a smart device (iPhone or Android) and the Cisco Intelligent Node app
● Individual port forward and reverse spectrum capture reduces the need for additional expensive network test equipment. Spectrum is displayed on the LCM Smart Device or remote terminal
● Individual port power saving mode available. The intelligent node is capable of reduced power consumption at each port and complete shutdown of unused ports
● Independent local or remote port setup for output power and tilt
● Remote node access via Cisco Intelligent Node manager for node setup, monitoring, and troubleshooting
● Fiber entry ports on both ends of housing lid
● Fiber management tray and harness for easy access to fiber connections
● Primary and (optional) redundant power supplies with passive load sharing
● Single or dual AC power supply configuration available. Split AC power input available with dual AC Power Supply configuration
● Spring-loaded seizure assemblies to allow coaxial connectors to be installed or removed without removing amplifier chassis
● Enhanced node security via a software-controlled lockout feature
● Element management via the Remote PHY device
● Easy forward and reverse RF split changes
Node block diagram

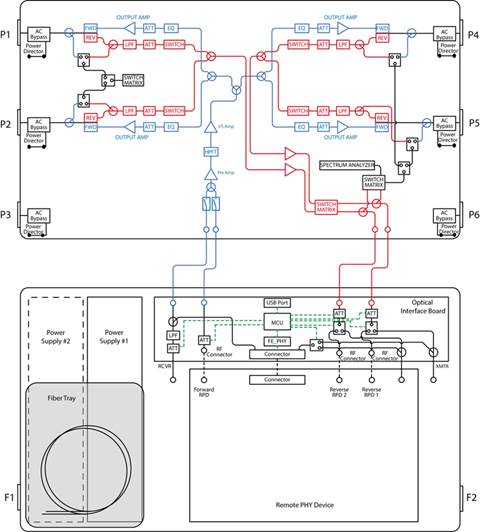

Figures 1 provides block diagrams of node forward and reverse paths.
RF performance specifications
Tables 1 and 2 summarize RF station performance characteristics for the GS7000 Intelligent Node.
Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based on measurements made in accordance with SCTE and ANSI standards (where applicable), using standard frequency assignments.
Table 1. GS7000 RF section general station performance
| GS7000 General Station Performance 5-42/54 Split | Units | Forward | Reverse | Notes |
| Pass band | MHz | 54 to 1218 | 5 to 42 |
|
| Input and output port return loss | dB | 16 | 16 |
|
| Hum modulation at 12A | dB | 65 (54 to 870 MHz) 60 (870 to 1218 MHz) | 60 (5 to 25 MHz) 70 (25 to 42 MHz) |
|
| Hum modulation at 15A | dB | 65 (54 to 870 MHz) 60 (870 to 1218 MHz) | 60 (5 to 25 MHz) 65 (25 to 42 MHz) |
|
| GS7000 General Station Performance 5-85/102 Split | Units | Forward | Reverse | Notes |
| Pass band | MHz | 105 to 1218 | 5 to 85 |
|
| Input and output port return loss | dB | 16 | 16 |
|
| Hum modulation at 12A | dB | 65 (105 to 870 MHz) 60 (870 to 1218 MHz) | 60 (5 to 25 MHz) 70 (56 to 85 MHz) |
|
| Hum modulation at 15A | dB | 65 (105 to 870 MHz) 60 (870 to 1218 MHz) | 60 (5 to 25 MHz) 65 (25 to 85 MHz) |
|
| GS7000 General Station Performance 5-204/258 Split | Units | Forward | Reverse | Notes |
| Pass band | MHz | 258 to 1218 | 5 to 204 |
|
| Input and output port return loss | dB | 16 | 16 |
|
| Hum modulation at 12A | dB | 65 (258 to 870 MHz) 60 (870 to 1218 MHz) | 60 (5 to 25 MHz) 70 (25 to 204 MHz) |
|
| Hum modulation at 15A | dB | 65 (258 to 870 MHz) 60 (870 to 1218 MHz) | 60 (5 to 25 MHz) 65 (25 to 204 MHz) |
|
Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based on measurements made in accordance with SCTE and ANSI standards (where applicable), using standard frequency assignments.
Table 2. Forward and Reverse Station Performance
| Forward Station Performance All Splits | Units |
| Notes |
| Amplifier type | - | GaN |
|
| Operational gain (minimum) | dB | 42 | 1 |
| Frequency response… 102 to 1002 MHz 1003 to 1218 MHz |
dB dB |
±0.75 ±1.0 | 1 |
| Internal tilt (±1 dB) | dB | 21 | 1, 2 |
| Noise figure at: 54 MHz 1218 MHz | dB | 15.5 17.0 | 1 |
| Reference output levels at 1218 MHz (analog equivalent): 1002 MHz 870 MHz 750 MHz 650 MHz 550 MHz 258 MHz 105 MHz 54 MHz |
dBmV | 64 59.9 57.4 55.2 53.3 51.4 45.9 43 42 |
|
| Reference output tilt 54 to 1218 MHz | dB | 22 | 2, 3 |
| 102 to 1218 MHz |
| 21 |
|
| 258 to 1218 MHz |
| 18.1 |
|
| Tilt Adjustability Range | dB | 12 to 22 |
|
| Output Spectrum Capture Accuracy | dB | ±1.0 |
|
| CIN (78 Channel Analog plus digital) (All QAM) | dB | 56 50 |
|
| Reverse Station Performance | Units | Reverse | Notes |
| Amplifier type | - | GaAs FET |
|
| Operational gain (minimum) | dB | 0 | 4 |
| Frequency response (5-85 MHz) | dB | ±0.5 | 4 |
| (5-204 MHz) | dB | +/-0.75 |
|
| Internal tilt (+/-1 dB) | dB | 0 | 4 |
| Input Attenuation Adjustability Range | dB | 0 to 10dB |
|
| Path-to-path isolation | dB | 70 (5 to 85 MHz) | 4 |
| Output Attenuation Adjustability Range | dB | 0 to 10 dB |
|
| Noise Figure 4x1 4x2 | dB |
15.5 12.5 | 4 |
| Reverse Signal Spectrum Capture Accuracy | dB | ±2.0 |
|
Unless otherwise noted, specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based on measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
Notes:
1. Forward performance is for the station from the output of the optical receiver or RPD to the node RF output port (including OIB).
2. The reference output tilt and internal tilt are both linear tilt.
3. The forward reference output tilt specified is set by linear I/S equalization in conjunction with the internal tilt of the launch amplifier.
4. Reverse performance is for the station from the reverse input port to the input of the RPD module, with 0 dB reverse input attenuation.
5. Forward Noise Figure is measured with the OIB attenuator set at 0 dB.
Other specifications
Tables 3 through 6 list other specifications for the GS7000 Intelligent Node.
Table 3. Station delay characteristics
| Station Delay Characteristics 42/54 Split | |||
| Forward (Group Delay) | Reverse (Group Delay in 1.5-MHz Bandwidth) | ||
| Frequency (MHz) | Delay (nS) | Frequency (MHz) | Delay (nS) |
| 55.25 to 58.83 | 21 | 5.0 to 6.5 | 46 |
| 61.25 to 64.83 | 9 | 6.5 to 8.0 | 22 |
| 67.25 to 70.83 | 6 | 8.0 to 9.5 | 15 |
| 77.25 to 80.83 | 4 | 37.5 to 39.0 | 14 |
|
|
| 39.0 to 40.5 | 19 |
|
|
| 40.5 to 42.0 | 30 |
| Station Delay Characteristics 85/102 Split | |||
| Forward (Group Delay) | Reverse (Group Delay in 1.5-MHz Bandwidth) | ||
| Frequency (MHz) | Delay (nS) | Frequency (MHz) | Delay (nS) |
| 109.275 – 112.855 | 10 | 5.0 to 6.5 | 40 |
| 115.275 – 118.855 | 6 | 6.5 to 8.0 | 20 |
| 121.2625 – 124.8425 | 5 | 8.0 to 9.5 | 10 |
| 127.2625 – 130.8425 | 4 | 80.5 to 82.0 | 7 |
|
|
| 82.0 to 83.5 | 9 |
|
|
| 83.5 to 85.0 | 12 |
| Station Delay Characteristics 204/258 Split | |||
| Forward (Group Delay) | Reverse (Group Delay in 1.5-MHz Bandwidth) | ||
| Frequency (MHz) | Delay (nS) | Frequency (MHz) | Delay (nS) |
| 259.2625 – 262.8425 | 6 | 5.0 to 6.5 | 40 |
| 265.2625 – 268.8425 | 3 | 6.5 to 8.0 | 20 |
| 271.2625 – 274.8425 | 2 | 8.0 to 9.5 | 12 |
| 277.2625 – 280.8425 | 4 | 119.5 to 201.0 | 6 |
|
|
| 201.0 to 202.5 | 5 |
|
|
| 202.5 to 204.0 | 5 |
Table 4. Electrical data
| Electrical | Units |
| Notes | |||
| Maximum AC through current (continuous) | Amps | 15 |
| |||
| Maximum AC through current (surge) | Amps | 25 |
| |||
| Component DC Power Consumption (Typical) |
| At +24.5 VDC | At +8.5 VDC | At +5.5 VDC | At -6 VDC |
|
| Launch amplifier with reverse amplifier | Amps | 3.77 | 0.14 | - | - |
|
| Optical Interface Board (OIB) |
|
|
| 0.23 |
|
|
| Remote PHY Module | Amps | 1.83 | - | 0.02 | - |
|
| Power supply DC current rating | Amps | 6.2 | 1.0 | 1.3 | 0.8 |
|
Table 5. Station powering data
| Station Powering Data | ||||||||||||
| GS7000 Node | I DC (Amps at 24 VDC) |
| AC Voltage | |||||||||
| 90 | 85 | 80 | 75 | 70 | 65 | 60 | 55 | 50 | 45 | |||
| Launch Amp including OIB and Remote PHY Module (maximum output power) | 7.54 | AC current (A) | 2.16 | 2.16 | 2.28 | 2.44 | 2.61 | 2.80 | 3.05 | 3.36 | 3.75 | 4.23 |
| Power (W) | 160.6 | 160.1 | 160.0 | 159.9 | 160.0 | 160.1 | 160.4 | 160.9 | 161.7 | 162.1 | ||
AC currents specified are based on measurements made with a typical CATV type ferro-resonant AC power supply (quasi-square wave).
The DC supply has a fixed under voltage lockout of 33V AC.
Table 6. Environmental and mechanical specifications
| Environmental | Units |
|
| Operating temperature range | Degrees | -40 to 140°F (-40 to 60°C) |
| Relative humidity range | Percent | 5 to 95% |
| Mechanical | ||
| Housing Dimensions | Weight | |
| L x H x D: 21.3 x 11.6 x 11.1 in. | Station with 1 Remote PHY module, 1 power supply: 49.8 lb. | |
Ordering information
The GS7000 Intelligent Node is available in the forward/reverse splits shown in Table 7. You can also select the desired RPD from Table 7 as well. Other complementary and spare components can be found in Table 8. Consult with your account representative, customer service representative, or system engineer to determine the best configuration for your particular application.
Table 7. Cisco GS7000 1.2-GHz intelligent node configurations
| Cisco GS7000 1.2-GHz Node Configurations | Part Number for Ordering |
| Node and RPD | |
| GS7K 1.2GHz SHO 42/54, TPA, STDFBRTRY, 1 PS, No Rx | GS7KIH4XXXX |
| GS7K 1.2GHz SHO 85/102, TPA, STDFBRTRY, 1 PS, No Rx | GS7KIH8XXXX |
| GS7K 1.2GHz SHO 204/258, TPA, STDFBRTRY, 1 PS, No Rx | GS7KIH2XXXX |
| Intelligent Node Compatible Smart PHY 120 RPD | IRPD-1X2= |
| Intelligent Node Compatible Smart PHY 120 RPD with SCTE 55-1 and 2 OOB | IRPD-1X2-PKY= |
Table 8. Cisco GS7000 intelligent node additional components
| Cisco GS7000 Additional Components | Part Number for Ordering |
| Launch Amp, Housing and OIB | |
| GS7K iNode Launch Amp 42/54 MHz | GS7KI-LA-1.2-4254= |
| GS7K iNode Launch Amp 85/102 MHz | GS7KI-LA-1.2-8502= |
| GS7K iNode Launch Amp 204/258 MHz | GS7KI-LA-1.2-0458= |
| GS7K iNode 1.2 GHz Housing with OIB and Standard Fiber Tray | GS7KI-HSG-1.2G= |
| GS7K iNode 1.2 GHz LID with OIB and Standard Fiber Tray | GS7KI-LID= |
| GS7K iNode 1.2 GHz OIB | GS7KI-OIB= |
| Optical Fiber Tray Kit | |
| Brackets for passives used in Expanded Fiber Tray | 4027000 |
| Expanded Fiber Tray, without brackets, SCA | 4057377 |
| SC APC bulkheads (PKG of 10) | 4027740 |
| Power Supply | |
| GS7000 1.2 GHz Power Supply | GS7K-PS-1.2G= |
| Frequency Split Kit | |
| GS7K iNode 1.2 GHz SHO Split Kit 42/54 MHz (QTY=10) | GS7KI-SKT-42= |
| GS7K iNode 1.2 GHz SHO Split Kit 85/102 MHz (QTY=10) | GS7KI-SKT-85= |
| GS7K iNode 1.2 GHz SHO Split Kit 204/258 MHz (QTY=10) | GS7KI-SKT-204= |
