Cisco GS7000 High-Output 4-Way Segmentable Node with 42/54 MHz Split Data Sheet

Available Languages

Download Options

  • PDF     (2.3 MB)
    View with Adobe Reader on a variety of devices
Updated:January 14, 2019
Document ID:1549302817998667

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

The Cisco® GS7000 High-Output Segmentable Node with 42/54 MHz Split is the latest-generation 1-GHz optical node platform designed to support fiber deep applications of up to 60 dBmV. This platform allows independent segmentation and redundancy for both the forward and reverse paths in a reliable, easily configurable, technician-friendly package.

The forward path of the Cisco GS7000 4-Way Segmentable Node launch amplifier can be initially deployed in nonsegmented mode with a single broadcast optical receiver distributing common RF services to either four output ports (all high level) or six output ports (two high level and four lower level). The forward path can also be fully segmented by using four independent optical receivers that each feeds its own output port, or left/right segmented by using two independent optical receivers that each feeds half of the node’s output ports. Forward path optical redundancy is also supported using optional redundant optical receivers. The type of forward path segmentation and/or redundancy is determined by the type of Cisco GS7000 Forward Configuration Module installed.

The Cisco GS7000 Node’s reverse path is equally flexible. Reverse traffic can be segmented or combined and routed to a maximum of four Fabry-Perot (FP), distributed feedback (DFB), coarse wavelength-division multiplexing (CWDM), or dense wavelength-division multiplexing (DWDM) reverse optical transmitters, or to the Cisco GS7000 Enhanced Digital Reverse (EDR) optical transmitters as part of the EDR system. Reverse path optical redundancy is supported using optional redundant optical transmitters. The type of reverse path segmentation and/or redundancy is determined by the type of Cisco GS7000 Reverse Configuration Module installed. A Reverse Input Port is also provided for high-frequency (5-210 MHz) reverse signal injection.

All optical transmitters and optical receivers used in the Cisco GS7000 platform have new high-profile module covers that include both a self-contained fiber pigtail storage area and an integrated pull ring for easier module installation and removal. Additionally, the GS7000 optical receiver has a new low-current design that dissipates less power, and incorporates a two-state interstage RF attenuator switch for performance optimization.

Figure 1. Cisco GS7000 High-Output 4-Way Segmentable Node with 42/54 Split

Features

● Six-port 1-GHz RF platform

● Gallium nitride (GaN) gain stages

● Standard accessories in the Cisco GainMaker® style (for example, attenuator pads, equalizers, diplexers, and crowbar)

● Field-accessible plug-in forward interstage linear equalizers, forward and reverse configuration modules, and signal directors

● Three-state reverse switch (on/off/6-dB) allows each reverse input to be isolated for noise and ingress troubleshooting (status monitoring or local control module required)

● Auxiliary reverse injection (5-210 MHz) configurable on up to two ports

● Positions for up to four optical receivers and four optical transmitters in housing lid

● Optional low-cost local control module may be installed with a redundant forward configuration module to allow optical path redundancy when no status monitor is required

● Optional status monitoring using a DOCSIS transponder (using standard HMS MIBs)

● Fiber entry ports on both ends of housing lid

● Fiber management tray and track provides easy access to fiber connections

● Primary and redundant power supplies with passive load sharing

● Spring-loaded seizure assemblies allow coaxial connectors to be installed or removed without removing amplifier chassis

● Dual/split AC power

Node Block Diagrams

Figures 2, 3, and 4 provide block diagrams of different node configurations.

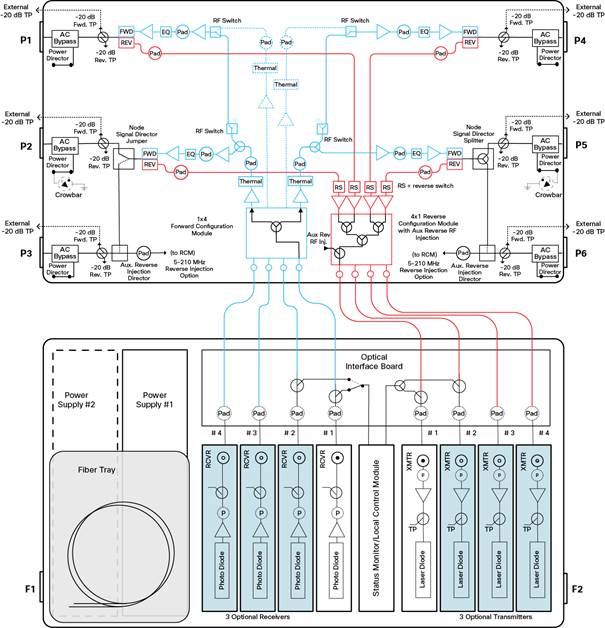

Figure 2. Block Diagram: Nonsegmented Node

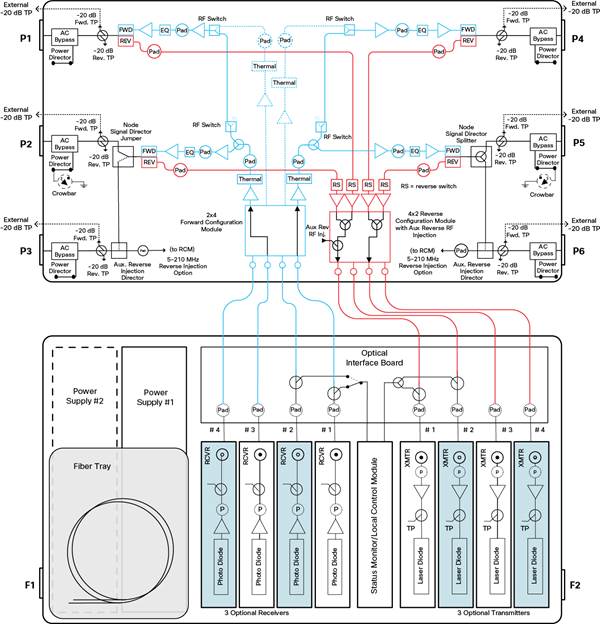

Figure 3. Block Diagram: Left/Right Segmented Node

Figure 4. Block Diagram: Fully Segmented Node

Configuration Module Block Diagrams

Figures 5 and 6 provide block diagrams of forward and reverse configuration modules.

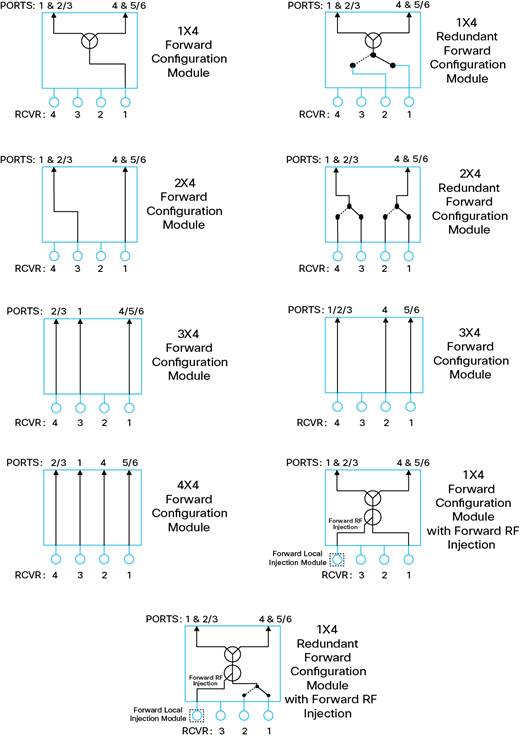

Figure 5. Block Diagrams: Forward Configuration Modules

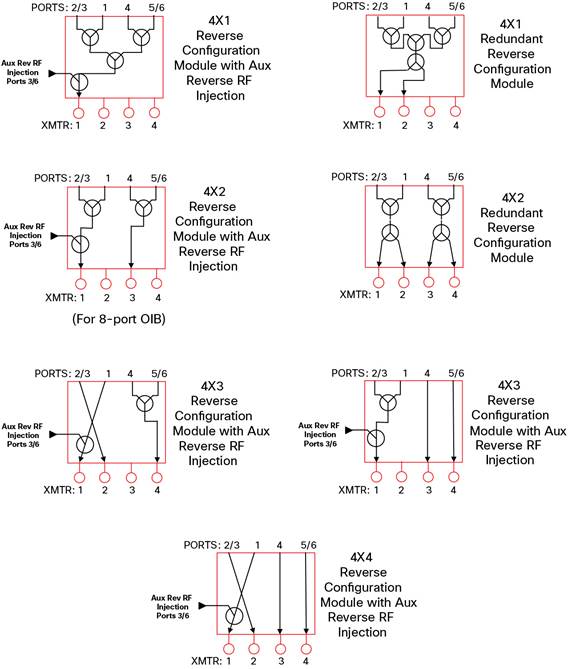

Figure 6. Block Diagrams: Reverse Configuration Modules

Optical Section Specifications

Table 1. Specifications for Optical Section of Forward Receiver Module

Optical Section: Forward Receiver Module

Units

GS7000 Standard RX

GS7000 Low Input RX

Notes

Wavelength

nm

1310 and 1550

1310 and 1550

Optical input range

mW

dBm

0.5 to 1.6

-3 to +2

0.25 to 0.79

-6 to -1

1, 2

Pass band

MHz

52-1002

52-1002

Frequency response

dB

± 0.5

± 0.5

3

Tilt (±1.0 dB)

dB

0

0

Optical input test point (±10%)

VDC

1V/mW

1V/mW

Redundant optical Rx switching threshold (± 1.0 dB)

dBm

-6

-6

Rx RF output level at 0 dBm optical Rx power

dBmV

Refer to Figures 7 and 8 (below)

Refer to Figures 9 and 10 (below)

4

Rx RF output test point (± 1.0 dB)

dB

- 20

- 20

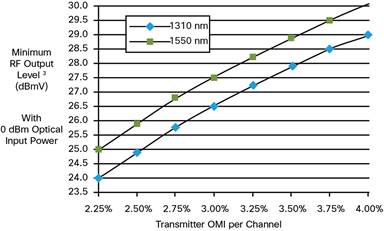

Figure 7. Standard Receiver RF Output Level and Transmitter OMI: Rx Switch in -6 dB Setting

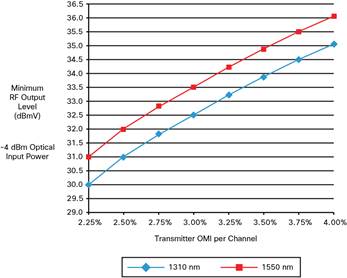

Figure 8. Standard Receiver RF Output Level and Transmitter OMI: Rx Switch in 0 dB Setting

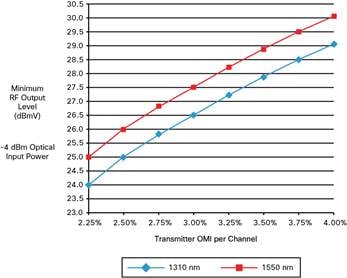

Figure 9. Low Input Receiver RF Output Level and Transmitter OMI: Rx Switch in 0 dB Setting

Figure 10. Low Input Receiver RF Output Level and Transmitter OMI: Rx Switch in -6 dB Setting

Notes for Optical Section Specifications:
1. Standard Receiver (Rx) has a 2-position RF attenuator switch (-6 dB and 0 dB). The -6 dB setting is used for greater than 0 to +2 dBm optical Rxpower, the 0 dB setting is used for -3 to 0 dBm Rx power.
2. Low Input Receiver (Rx) has a 2-position RF attenuator switch (-6 dB and 0 dB). The -6 dB setting is used for greater than -4 to -1 dBm optical Rxpower, the 0 dB setting is used for -6 to -4 dBm Rx power.
3. For forward receiver module only. Does not include frequency response contributions from forward optical transmitter.
4. Minimum receiver RF output level for the stated transmitter percent OMI/ch. (Optical Modulation Index per channel), with receiver optical input power of 0 dBm (Standard Rx), with receiver optical input power of -4 dBm (Low Input Rx) and specified Rx attenuator setting. To determine RF output levels at other optical input power, add (or subtract) 2 dB in RF level for each 1 dB increase (or decrease) in receiver optical input power.
For reverse optical transmitter and link performance, see the “Analog Reverse Optical Transmitters with Thermal Compensation” data sheet.
Unless otherwise noted, specifications reflect typical performance and are referenced to 68° F (20° C). Specifications are based upon measurements made in accordance with SCTE and ANSI standards (where applicable), using standard frequency assignments.

RF Section Specifications

Tables 2, 3, and 4 list RF section specifications.

Table 2. RF Section General Station Performance

General Station Performance

Units

Forward

Reverse

Notes

Pass Band

MHz

54-1002

5-42

Input/Output Port Return Loss

dB

17

16

Hum Modulation at 12 A

dB

70 (54-870 MHz)

60 (871-1002 MHz)

60 (5-10 MHz)

70 (11-42 MHz)

Hum Modulation at 15 A

dB

65 (54-870 MHz)

60 (871-1002 MHz)

60 (5-10 MHz)

65 (11-42 MHz)

Test Points (± 0.5 dB)

dB

-20

-20

Table 3. RF Section Forward Station Performance

Forward Station Performance

Units

15 dB I/S EQ with 0.5 dB I/S Pad

Notes

Amplifier type

-

GaN

Operational gain (minimum)

dB

34

1

Frequency response

dB

± 0.5

1

Internal tilt (±1 dB)

dB

14.5

1, 2

Port to port isolation with full segmentation

dB

60 (54-750 MHz)

55 (751-1002 MHz)

1

Port to port isolation with left/right segmentation

dB

66 (54-750 MHz)

55 (751-1002 MHz)

1

Noise figure at: 54 MHz

1002 MHz

dB

14.0

13.5

1

Reference output levels at: 1002 MHz

870 MHz

750 MHz

650 MHz

550 MHz

55 MHz

dBmV

60

58

56.2

54.5

53

45.5

3

Reference output tilt (54 - 1002 MHz)

dB

14.5

2, 4

73 NTSC channels (CW) with digital

7

Composite triple beat

dB

60

5

Composite second order (high side)

dB

62

5

Cross modulation

dB

52

5, 8

Composite intermodulation noise (CIN)

dB

51

5

Table 4. RF Section Reverse Station Performance

Reverse Station Performance

Units

Reverse

Notes

Amplifier type

-

GaAs FET

Operational gain (minimum)

dB

-2

6

Frequency response

dB

± 0.5

6

Internal tilt (+/- 1 dB)

dB

0

6

Path to path isolation

dB

55

6

Noise figure

dB

7.5

6
Notes for Tables 3 and 4:
1. Forward performance is for station from output of optical Rx to node RF output port, with 0 dB pad in optical interface board (OIB), any forward configuration module, 0 dB interstage (I/S) pad, 15 dB linear I/S EQ, factory select output pad, and signal director jumper. Includes OIB losses.
2. Reference output tilt and internal tilt are both “linear” tilt.
3. RF Output Levels are referenced to an Optical Input Level at -1 dBm for 1550 nm at 3.0% OMI or 1310 nm at 3.5% OMI.
4. The forward reference output tilt specified is achieved via field installation of appropriate linear I/S EQ, in conjunction with the internal tilt of the launch amplifier and the tilt associated with the optical link (transmitter/receiver combination).
5. Stated distortion performance is for launch amplifier section operated at reference output levels and tilts. Full station performance can be determined by combining optic performance and launch amplifier performance.
6. Reverse performance is for station from reverse input port to input of reverse optical transmitter module, with 0 dB reverse input pad.
7. Loaded with 78 NTSC CW carriers from 55-550 MHz. “Digital” refers to 550 - 1002 MHz loading with QAM carriers at -6 dB relative to analog video carrier levels.
8. X-mod (at 15.75 kHz) specified using 100% synchronous modulation and frequency-selective measurement device.

Other Specifications

Table 5. Station Delay Characteristics

Station Delay Characteristics 42/54 MHz Split

Forward
(Chrominance to Luminance Delay)

Reverse
(Group Delay in 1.5 MHz BW)

Frequency (MHz)

Delay (nS)

Frequency (MHz)

Delay (nS)

55.25 - 58.83

18

5.0 - 6.5

35

61.25 - 64.83

8

6.5 - 8.0

15

67.25 - 70.83

5

8.0 - 9.5

7

37.5 - 39.0

11

39.0 - 40.5

14

40.5 - 42.0

20

Table 6. Electrical Power Specifications

Electrical

Units

Max. AC Through Current (continuous)

A

15

Max. AC Through Current (surge)

A

25

Component DC Power Consumption (typical)

@+24 VDC

@ +8 VDC

@ +5 VDC

@ -6 VDC

Launch Amplifier (includes reverse amp)

A

2.8

0.4

0.5

-

Status Monitoring Transponder

A

0.01

-

0.2

-

GS7000 Low Current Optical Receiver

A

0.12

-

-

-

Reverse Transmitter: High Gain FP

A

0.09

-

-

0.07

Reverse Transmitter: High Gain DFB

A

0.09

-

-

0.09

Power Supply DC Current Rating

A

6.20

0.90

1.30

0.80

Table 7. Station Powering Data

Station Powering Data

GS7000 Node

I DC

(A at 24 VDC)

AC Voltage

90

85

80

75

70

65

60

55

50

45

With: 1 forward Rx, 1x4 forward config module, 1 reverse Tx, 4x1 reverse configuration module

2.95

AC Current (A)

1.4

1.4

1.4

1.5

1.5

1.6

1.7

1.8

2.0

2.2

Power (W)

96.4

96.2

95.9

95.6

95.4

95.4

95.3

95.3

95.5

95.8

With: 4 forward Rx’s, 4x4 forward config module, 4 reverse Txs, 4x4 reverse configuration module

3.70

AC Current (A)

1.7

1.7

1.7

1.8

1.9

2.0

2.1

2.3

2.5

2.8

Power (W)

121.5

121.1

120.8

120.6

120.6

120.5

120.5

120.7

120.9

121.0
Data in Table 7 is based on stations configured with a status monitoring transponder. AC currents specified are based on measurements made with typical CATV type ferroresonant AC power supply (quasi-square wave).
DC supply has a fixed under-voltage lockout of 33 VAC.

Table 8. Environmental and Mechanical Specifications

Environmental

Operating temperature range

-40 - 140°F (-40 - 60°C)

Relative humidity range

5% to 95%

Mechanical

Housing Dimensions

21.3 in. L x 11.6 in. H x 11.1 in. D

(541 mm x 295 mm x 282 mm)

Weight

Station with 4 RX, 4 TX, 2 power supplies: 50.0 lbs.

(22.7 kg)

Ordering Information

The Cisco GS7000 Node is available in a wide variety of configurations. The GS7000 Ordering Matrix provides ordering information for configured node stations.

Table 9 contains ordering information for required and optional accessories. Please consult with your Account Representative, Customer Service Representative, or Applications Engineer to determine the best configuration for your particular application.

Table 9. Cisco GS7000 Node Accessories

Required Accessories

Part Number

Plug-in Pads (attenuators): Available in 0.5 dB steps from 0 to 20 dB

● 1 required for each Optical Receiver Module installed in the node (for Optical Interface Board)
● 1 required for each Optical Transmitter Module installed in the node (for Optical Interface Board)
• 1 required for each Reverse input path activated (for Launch Amplifier)

589693 (0 dB) sequentially thru 589734 (20.5dB)

Optional Accessories

Plug-in Forward Linear Equalizers: Available in 1.5 dB steps from 0 to 21 dB.

• Node shipped with 15 dB Linear Equalizers (4) * installed for 14.5 dB of tilt to 1002 MHz ( *4008787)

4007228 (0 dB)

see table below

Plug-in Signal Directors - 2 required

Node shipped with Jumpers installed to activate 4 RF output ports

● Optional 2-Way Splitters are required to activate 5 or 6 RF output ports

4011907

4011908

Note: Configured nodes ship without reverse input pads and any of the pads on the OIB. All other standard accessories are shipped from the factory. Forward Launch Amplifier attenuator pads, (4) 15 dB linear EQs, and (2) signal director jumpers are shipped with every configured node.

Table 10. Cisco GS7000 Forward Components

GS7000 Forward Launch Amplifiers

Part Number on Module

Part Number for Ordering

Node High Output Launch Amplifier, 4-way forward segmentation, 42/54 MHz split

GS7K-LA-HO-4254

GS7K-LA-HO-4254=

GS7000 Forward Configuration Modules

Forward Configuration Module, 1x4

4019273

4019283

Forward Configuration Module, 1x4 Redundant

4019275

4019284

Forward Configuration Module, 1x4, Forward RF Injection, Redundant

4022272

4022270

Forward Configuration Module, 2x4

4019277

4019285

Forward Configuration Module, 2x4 Redundant

4019279

4019286

Forward Configuration Module, 3x4, RX 1, 3, 4

4024784

4024783

Forward Configuration Module, 3x4, RX 1, 2, 4

4024786

4024785

Forward Configuration Module, 4x4

4019281

4019287

Forward Linear Equalizers

0 dB 1GHz Forward Linear EQ

-

4007228

1.5 dB 1GHz Forward Linear EQ

-

4008778

3.0 dB 1GHz Forward Linear EQ

-

4008779

4.5 dB 1GHz Forward Linear EQ

-

4008780

6.0 dB 1GHz Forward Linear EQ

-

4008781

7.5 dB 1GHz Forward Linear EQ

-

4008782

9.0 dB 1GHz Forward Linear EQ

-

4008783

10.5 dB 1GHz Forward Linear EQ

-

4008784

12.0 dB 1GHz Forward Linear EQ

-

4008785

13.5 dB 1GHz Forward Linear EQ

-

4008786

15.0 dB 1GHz Forward Linear EQ

-

4008787

16.5 dB 1GHz Forward Linear EQ

-

4019258

18.0 dB 1GHz Forward Linear EQ

-

4019259

19.5 dB 1GHz Forward Linear EQ

-

4019260

21.0 dB 1GHz Forward Linear EQ

-

4019261

GS7000 Node Signal Directors

Node Signal Director Jumper

4009369

4011907

Node Signal Director Splitter

4009371

4011908

GS7000 Optical Receivers

Standard Optical Receiver, SCA connector

4022468

4013593

Standard Optical Receiver, SCU connector

4022469

4013594

Standard Optical Receiver, FCA connector

4022470

4013595

Low Input Optical Receiver, SCA connector

GS7K-LIRX-SA

GS7K-LIRX-SA=

Low Input Optical Receiver, FCA connector

GS7K-LIRX-FC

GS7K-LIRX-FC=

GS7000 Forward Local Injection Module Kit (does not include FCM)

Forward Local Injection Module

-

4013575

Table 11. Cisco GS7000 Reverse Amplifiers and Configuration Modules

GS7000 Reverse Configuration Modules

Part Number on Module

Part Number for Ordering

Reverse Configuration Module, 4x1, Aux Reverse RF Injection

4014282

4011918

Reverse Configuration Module, 4x1, Redundant

4009066

4011919

Reverse Configuration Module, 4x2, Aux Reverse RF Injection

(for use with 8-position OIB)

4014286

4014300

Reverse Configuration Module, 4x2, Redundant

4009076

4011921

Reverse Configuration Module, 4x3, TX 1, 3, 4

4024788

4024787

Reverse Configuration Module, 4x3, TX 1, 2, 4

4024791

4024790

Reverse Configuration Module, 4x4, Aux Reverse RF Injection

4014289

4011922

GS7000 1310 nm Reverse Optical Transmitters

3 dBm, DFB, High Gain, Analog, SC/APC

4013900.1310

4011952

3 dBm, DFB, High Gain, Analog, SC/UPC

4013901.1310

4011953

3 dBm, DFB, High Gain, Analog, FC/APC

4013902.1310

4011954

Table 12. Cisco GS700 CWDM Reverse Optical Transmitters

GS7000 CWDM Reverse Optical Transmitters

Part Number on Module

Part Number for Ordering

3 dBm, CWDM High Gain, 1470 nm, Analog, SC/APC

4013900.1470

4011955

3 dBm, CWDM High Gain, 1490 nm, Analog, SC/APC

4013900.1490

4011956

3 dBm, CWDM High Gain, 1510 nm, Analog, SC/APC

4013900.1510

4011957

3 dBm, CWDM High Gain, 1530 nm, Analog, SC/APC

4013900.1530

4011961

3 dBm, CWDM High Gain, 1550 nm, Analog, SC/APC

4013900.1550

4011965

3 dBm, CWDM High Gain, 1570 nm, Analog, SC/APC

4013900.1570

4011966

3 dBm, CWDM High Gain, 1590 nm, Analog, SC/APC

4013900.1590

4011967

3 dBm, CWDM High Gain, 1610 nm, Analog, SC/APC

4013900.1610

4011968

3 dBm, CWDM High Gain, 1470 nm, Analog, SC/UPC

4013901.1470

4011969

3 dBm, CWDM High Gain, 1490 nm, Analog, SC/UPC

4013901.1490

4011970

3 dBm, CWDM High Gain, 1510 nm, Analog, SC/UPC

4013901.1510

4011974

3 dBm, CWDM High Gain, 1530 nm, Analog, SC/UPC

4013901.1530

4011975

3 dBm, CWDM High Gain, 1550 nm, Analog, SC/UPC

4013901.1550

4011976

3 dBm, CWDM High Gain, 1570 nm, Analog, SC/UPC

4013901.1570

4011977

3 dBm, CWDM High Gain, 1590 nm, Analog, SC/UPC

4013901.1590

4013218

3 dBm, CWDM High Gain, 1610 nm, Analog, SC/UPC

4013901.1610

4013299

3 dBm, CWDM High Gain, 1470 nm, Analog, FC/APC

4013902.1470

4013542

3 dBm, CWDM High Gain, 1490 nm, Analog, FC/APC

4013902.1490

4013543

3 dBm, CWDM High Gain, 1510 nm, Analog, FC/APC

4013902.1510

4013544

3 dBm, CWDM High Gain, 1530 nm, Analog, FC/APC

4013902.1530

4013545

3 dBm, CWDM High Gain, 1550 nm, Analog, FC/APC

4013902.1550

4013546

3 dBm, CWDM High Gain, 1570 nm, Analog, FC/APC

4013902.1570

4013547

3 dBm, CWDM High Gain, 1590 nm, Analog, FC/APC

4013902.1590

4013548

3 dBm, CWDM High Gain, 1610 nm, Analog, FC/APC

4013902.1610

4013549

Table 13. Cisco GS7000 DWDM Reverse Optical Transmitters

GS7000 DWDM Reverse Optical Transmitters

Part Number on Module

Part Number for Ordering

7 dBm, DWDM, ITU Grid, CH. 19, 1562.23 nm, Analog, SC/APC

4022938.19

4022938.19

7 dBm, DWDM, ITU Grid, CH. 20, 1561.42 nm, Analog, SC/APC

4022938.20

4022938.20

7 dBm, DWDM, ITU Grid, CH. 21, 1560.61 nm, Analog, SC/APC

4022938.21

4022938.21

7 dBm, DWDM, ITU Grid, CH. 22, 1559.79 nm, Analog, SC/APC

4022938.22

4022938.22

7 dBm, DWDM, ITU Grid, CH. 23, 1558.98 nm, Analog, SC/APC

4022938.23

4022938.23

7 dBm, DWDM, ITU Grid, CH. 24, 1558.17 nm, Analog, SC/APC

4022938.24

4022938.24

7 dBm, DWDM, ITU Grid, CH. 25, 1557.36 nm, Analog, SC/APC

4022938.25

4022938.25

7 dBm, DWDM, ITU Grid, CH. 26, 1556.55 nm, Analog, SC/APC

4022938.26

4022938.26

7 dBm, DWDM, ITU Grid, CH. 27, 1555.75 nm, Analog, SC/APC

4022938.27

4022938.27

7 dBm, DWDM, ITU Grid, CH. 28, 1554.94 nm, Analog, SC/APC

4022938.28

4022938.28

7 dBm, DWDM, ITU Grid, CH. 29, 1554.13 nm, Analog, SC/APC

4022938.29

4022938.29

7 dBm, DWDM, ITU Grid, CH. 30, 1553.33 nm, Analog, SC/APC

4022938.30

4022938.30

7 dBm, DWDM, ITU Grid, CH. 31, 1552.52 nm, Analog, SC/APC

4022938.31

4022938.31

7 dBm, DWDM, ITU Grid, CH. 32, 1551.72 nm, Analog, SC/APC

4022938.32

4022938.32

7 dBm, DWDM, ITU Grid, CH. 33, 1550.92 nm, Analog, SC/APC

4022938.33

4022938.33

7 dBm, DWDM, ITU Grid, CH. 34, 1550.12 nm, Analog, SC/APC

4022938.34

4022938.34

7 dBm, DWDM, ITU Grid, CH. 35, 1549.32 nm, Analog, SC/APC

4022938.35

4022938.35

7 dBm, DWDM, ITU Grid, CH. 36, 1548.51 nm, Analog, SC/APC

4022938.36

4022938.36

7 dBm, DWDM, ITU Grid, CH. 37, 1547.72 nm, Analog, SC/APC

4022938.37

4022938.37

7 dBm, DWDM, ITU Grid, CH. 38, 1546.92 nm, Analog, SC/APC

4022938.38

4022938.38

7 dBm, DWDM, ITU Grid, CH. 39, 1546.12 nm, Analog, SC/APC

4022938.39

4022938.39

7 dBm, DWDM, ITU Grid, CH. 40, 1545.32 nm, Analog, SC/APC

4022938.40

4022938.40

7 dBm, DWDM, ITU Grid, CH. 41, 1544.53 nm, Analog, SC/APC

4022938.41

4022938.41

7 dBm, DWDM, ITU Grid, CH. 42, 1543.73 nm, Analog, SC/APC

4022938.42

4022938.42

7 dBm, DWDM, ITU Grid, CH. 43, 1542.94 nm, Analog, SC/APC

4022938.43

4022938.43

7 dBm, DWDM, ITU Grid, CH. 44, 1542.14 nm, Analog, SC/APC

4022938.44

4022938.44

7 dBm, DWDM, ITU Grid, CH. 45, 1541.35 nm, Analog, SC/APC

4022938.45

4022938.45

7 dBm, DWDM, ITU Grid, CH. 46, 1540.56 nm, Analog, SC/APC

4022938.46

4022938.46

7 dBm, DWDM, ITU Grid, CH. 47, 1539.77 nm, Analog, SC/APC

4022938.47

4022938.47

7 dBm, DWDM, ITU Grid, CH. 48, 1538.98 nm, Analog, SC/APC

4022938.48

4022938.48

7 dBm, DWDM, ITU Grid, CH. 49, 1538.19 nm, Analog, SC/APC

4022938.49

4022938.49

7 dBm, DWDM, ITU Grid, CH. 50, 1537.40 nm, Analog, SC/APC

4022938.50

4022938.50

7 dBm, DWDM, ITU Grid, CH. 51, 1536.61 nm, Analog, SC/APC

4022938.51

4022938.51

7 dBm, DWDM, ITU Grid, CH. 52, 1535.82 nm, Analog, SC/APC

4022938.52

4022938.52

7 dBm, DWDM, ITU Grid, CH. 53, 1535.04 nm, Analog, SC/APC

4022938.53

4022938.53

7 dBm, DWDM, ITU Grid, CH. 54, 1534.25 nm, Analog, SC/APC

4022938.54

4022938.54

7 dBm, DWDM, ITU Grid, CH. 55, 1533.47 nm, Analog, SC/APC

4022938.55

4022938.55

7 dBm, DWDM, ITU Grid, CH. 56, 1532.68 nm, Analog, SC/APC

4022938.56

4022938.56

7 dBm, DWDM, ITU Grid, CH. 57, 1531.90 nm, Analog, SC/APC

4022938.57

4022938.57

7 dBm, DWDM, ITU Grid, CH. 58, 1531.12 nm, Analog, SC/APC

4022938.58

4022938.58

7 dBm, DWDM, ITU Grid, CH. 59, 1530.33 nm, Analog, SC/APC

4022938.59

4022938.59

Table 14. Cisco GS7000 EDR CWDM Reverse Optical Transmitters

GS7000 EDR CWDM Reverse Optical Transmitters

Part Number on Tx Module

Part Number of OPM

Part Number for Ordering

EDR GS2185 Tx with OPM CWDM-1270

4042904

4043989.1270

4042879.1270

EDR GS2185 Tx with OPM CWDM-1290

4042904

4043989.1290

4042879.1290

EDR GS2185 Tx with OPM CWDM-1310

4042904

4043989.1310

4042879.1310

EDR GS2185 Tx with OPM CWDM-1330

4042904

4043989.1330

4042879.1330

EDR GS2185 Tx with OPM CWDM-1350

4042904

4043989.1350

4042879.1350

EDR GS2185 Tx with OPM CWDM-1370

4042904

4043989.1370

4042879.1370

EDR GS2185 Tx with OPM CWDM-1390

4042904

4043989.1390

4042879.1390

EDR GS2185 Tx with OPM CWDM-1410

4042904

4043989.1410

4042879.1410

EDR GS2185 Tx with OPM CWDM-1430

4042904

4043989.1430

4042879.1430

EDR GS2185 Tx with OPM CWDM-1450

4042904

4043989.1450

4042879.1450

EDR GS2185 Tx with OPM CWDM-1470

4042904

4043989.1470

4042879.1470

EDR GS2185 Tx with OPM CWDM-1490

4042904

4043989.1490

4042879.1490

EDR GS2185 Tx with OPM CWDM-1510

4042904

4043989.1510

4042879.1510

EDR GS2185 Tx with OPM CWDM-1530

4042904

4043989.1530

4042879.1530

EDR GS2185 Tx with OPM CWDM-1550

4042904

4043989.1550

4042879.1550

EDR GS2185 Tx with OPM CWDM-1570

4042904

4043989.1570

4042879.1570

EDR GS2185 Tx with OPM CWDM-1590

4042904

4043989.1590

4042879.1590

EDR GS2185 Tx with OPM CWDM-1610

4042904

4043989.1610

4042879.1610

Table 15. Cisco GS7000 EDR DWDM Reverse Optical Transmitters

GS7000 EDR DWDM Reverse Optical Transmitters

Part Number on Tx Module

Part Number of OPM

Part Number for Ordering

EDR GS2185 Tx with OPM DWDM-17

4042904

4043988.17

4042880.17

EDR GS2185 Tx with OPM DWDM-18

4042904

4043988.18

4042880.18

EDR GS2185 Tx with OPM DWDM-19

4042904

4043988.19

4042880.19

EDR GS2185 Tx with OPM DWDM-20

4042904

4043988.20

4042880.20

EDR GS2185 Tx with OPM DWDM-21

4042904

4043988.21

4042880.21

EDR GS2185 Tx with OPM DWDM-22

4042904

4043988.22

4042880.22

EDR GS2185 Tx with OPM DWDM-23

4042904

4043988.23

4042880.23

EDR GS2185 Tx with OPM DWDM-24

4042904

4043988.24

4042880.24

EDR GS2185 Tx with OPM DWDM-25

4042904

4043988.25

4042880.25

EDR GS2185 Tx with OPM DWDM-26

4042904

4043988.26

4042880.26

EDR GS2185 Tx with OPM DWDM-27

4042904

4043988.27

4042880.27

EDR GS2185 Tx with OPM DWDM-28

4042904

4043988.28

4042880.28

EDR GS2185 Tx with OPM DWDM-29

4042904

4043988.29

4042880.29

EDR GS2185 Tx with OPM DWDM-30

4042904

4043988.30

4042880.30

EDR GS2185 Tx with OPM DWDM-31

4042904

4043988.31

4042880.31

EDR GS2185 Tx with OPM DWDM-32

4042904

4043988.32

4042880.32

EDR GS2185 Tx with OPM DWDM-33

4042904

4043988.33

4042880.33

EDR GS2185 Tx with OPM DWDM-34

4042904

4043988.34

4042880.34

EDR GS2185 Tx with OPM DWDM-35

4042904

4043988.35

4042880.35

EDR GS2185 Tx with OPM DWDM-36

4042904

4043988.36

4042880.36

EDR GS2185 Tx with OPM DWDM-37

4042904

4043988.37

4042880.37

EDR GS2185 Tx with OPM DWDM-38

4042904

4043988.38

4042880.38

EDR GS2185 Tx with OPM DWDM-39

4042904

4043988.39

4042880.39

EDR GS2185 Tx with OPM DWDM-40

4042904

4043988.40

4042880.40

EDR GS2185 Tx with OPM DWDM-41

4042904

4043988.41

4042880.41

EDR GS2185 Tx with OPM DWDM-42

4042904

4043988.42

4042880.42

EDR GS2185 Tx with OPM DWDM-43

4042904

4043988.43

4042880.43

EDR GS2185 Tx with OPM DWDM-44

4042904

4043988.44

4042880.44

EDR GS2185 Tx with OPM DWDM-45

4042904

4043988.45

4042880.45

EDR GS2185 Tx with OPM DWDM-46

4042904

4043988.46

4042880.46

EDR GS2185 Tx with OPM DWDM-47

4042904

4043988.47

4042880.47

EDR GS2185 Tx with OPM DWDM-48

4042904

4043988.48

4042880.48

EDR GS2185 Tx with OPM DWDM-49

4042904

4043988.49

4042880.49

EDR GS2185 Tx with OPM DWDM-50

4042904

4043988.50

4042880.50

EDR GS2185 Tx with OPM DWDM-51

4042904

4043988.51

4042880.51

EDR GS2185 Tx with OPM DWDM-52

4042904

4043988.52

4042880.52

EDR GS2185 Tx with OPM DWDM-53

4042904

4043988.53

4042880.53

EDR GS2185 Tx with OPM DWDM-54

4042904

4043988.54

4042880.54

EDR GS2185 Tx with OPM DWDM-55

4042904

4043988.55

4042880.55

EDR GS2185 Tx with OPM DWDM-56

4042904

4043988.56

4042880.56

EDR GS2185 Tx with OPM DWDM-57

4042904

4043988.57

4042880.57

EDR GS2185 Tx with OPM DWDM-58

4042904

4043988.58

4042880.58

EDR GS2185 Tx with OPM DWDM-59

4042904

4043988.59

4042880.59

EDR GS2185 Tx with OPM DWDM-60

4042904

4043988.60

4042880.60

EDR GS2185 Tx with OPM DWDM-61

4042904

4043988.61

4042880.61

Table 16. Cisco GS7000 Additional Components

Cisco GS7000 Additional Components

Part Number on Module

Part Number for Ordering

Optical Interface Board

8-position Optical Interface Board, 4Rx/4Tx

4023056

4011927

Power Supply

Node Power Supply

4009226

4011930

Local Control Modules and Status Monitoring Modules (with USB interface)

Local Control Module (LCM)

4027113

4027114

EDR Local Control Module (EDR/LCM)

-

4044102

Status Monitoring Module: DOCSIS

-

4036793

Test Point Cable Kit

Test Point Cable Kit, (includes the 6 cables required to enable GS7000 housing external test points)

4016084

4013568

Optical Fiber Tray Kit

Standard Fiber Tray

-

4042908

Expanded Fiber Tray (additional fiber handling/routing capacity), without brackets, SCA

-

4057377

Expanded Fiber Tray (additional fiber handling/routing capacity), with brackets, SCA

-

4026885

Expanded Fiber Tray (additional fiber handling/routing capacity), with brackets, SCU

-

4028274

Expanded Fiber Tray Brackets Only

-

4027000

Housings

GS7000 Node Housing, empty

-

4009045

GS7000 Node Housing, Expanded Tray, SCA

-

4027378

GS7000 Node Housing, Expanded Tray, SCU

-

4028275

GS7000 Node Housing, Standard Tray

-

4012095

Optical Fiber Tray Kit

Standard Fiber Tray

-

4027376

Expanded Fiber Tray (additional fiber handling and routing capacity): includes brackets for passives and 4 SC APC bulkheads

-

4026885

Expanded Fiber Tray (additional fiber handling and routing capacity): includes brackets for passives and 4 SC UPC bulkheads

-

4028274

Brackets for passives used in Expanded Fiber Tray

-

4027000

SC APC bulkheads, package of 10

-

4027740

SC UPC bulkheads, package of 10

-

4027741

Optical Amplifiers and Switch

17 dBm Broadcast Amplifier

-

4027007

20 dBm Broadcast Amplifier

-

4027008

22 dBm Broadcast Amplifier

-

4027009

17 dBm Narrowcast Gain Flattened Amplifier (40 Wavelength) - Low Gain

-

GS7K-GFEDFA-17L=

17 dBm Narrowcast Gain Flattened Amplifier (40 Wavelength) - High Gain

-

GS7K-GFEDFA-17H=

21 dBm Narrowcast Gain Flattened Amplifier (40 Wavelength) - Low Gain

-

GS7K-GFEDFA-21L=

21 dBm Narrowcast Gain Flattened Amplifier (40 Wavelength) - High Gain

-

GS7K-GFEDFA-21H=

Optical Switch

-

4027014

GS7000 Frequency Split Kit

GS7000 Frequency Split Kit 85/105 (PKG OF 10)

GS7K-SPLTKT-85105=

GS7000 Split Kit Cable Assembly

GS7K-SPLKT-CBL

Cisco Systems, Inc.

1 800 722-2009 or 678 277-1120

http://www.cisco.com

Was this Document Helpful?

FeedbackFeedback
