Cisco Coaxial Media Converter Accessories Data Sheet
Available Languages
The Cisco® Coaxial Media Converters (CMC) convert data between a coaxial cable network, a Passive Optical Network (PON), or an Ethernet network. The Cisco CMC connects to cable modems through the CATV coaxial cable network to an aggregation network through the PON or Ethernet network in the upstream direction.
Some of the Cisco CMC accessories are shipped with Cisco CMC by default. They can be selected individually by customers depending on field requirements. The accessories available are listed In Table 1.
Accessory Specifications
Table 1. Product Overview
| Product Descriptions |
Part Number |
Figure |
Note |
| Cable Gland with O-Ring - for one CAT5 |
GLND-PG16-RJ-1H= |
|
IP 67 waterproof |
| Cable Gland with O-Ring - for two CAT5 |
GLND-PG16-RJ-2H= |
|
IP 67 waterproof |
| F-Connector with O Ring, from 5/8” to Metric (M10x0.75mm) |
FCONNTOR-CMC-M= |
|
IP 67 waterproof |
| F-Connector with O Ring, from 5/8” to Standard (3/8”) |
FCONNTOR-CMC-S= |
|
IP 67 waterproof |
| Port Plug with O-Ring, 5/8” |
PLUG-CMC-RF= |
|
IP 67 waterproof |
| SC/APC-SC/APC Adaptor |
OPT-ADP-SC-SC= |
|
Subscriber Connector/Angle-Polished Connector (SC/APC) Adaptor |
| SC/APC-SC/APC Adaptor |
OPT-ADP-SC-FC= |
|
Subscriber Connector/Angle-Polished Connector (SC/APC) Adaptor |
| Pads |
Same as Cisco GS7000/Gainmaker |
|
|
| Forward Linear Equalizer |
Same as Cisco GS7000/Gainmaker Node Forward Linear EQ |
|
|
| Signal Director (two way Splitter) |
Same as Cisco GS7000 Node Signal Director – two way Splitter |
|
|
| Signal Director (Jumper) |
Same as Cisco GS7000 Node Signal Director – Jumper |
|
|
| Console Cable |
CAB-CONSOLE-DB9= |
|
|
| GE SFP |
GLC-SX-MM-RGD GLC-LX-SM-RGD GLC-ZX-SM-RGD |
|
|
Cable Gland with O-Ring Specifications (RJ45 waterproof connector)
The cable gland is a waterproof part used for the RJ-45 port. There are two types of cable glands: with one hole and with two holes. The cable gland with two holes should be selected when 1+1 redundancy is used for outside PON ONT connectivity.
Table 2. Cable Gland O-Ring Specifications
| No. |
Item |
Description |
| 1 |
Threads |
PG16 |
| 2 |
Material |
Fitting: Nylon 6/6 UL94 V-0, Color: Gray Form Seal: Buna-N O-Ring: Buna-N, Color: Black |
| 3 |
Temperature Range |
-40°C to +100°C |
| 4 |
Protection Rating |
IP67 |
| 5 |
Dimensions |
Inch |
| 6 |
Gland for One CAT5 (GLND-PG16-RJ-1H) |
|
| 7 |

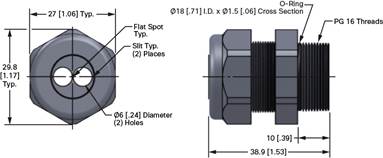

Gland for Two CAT5 (GLND-PG16-RJ-2H) |
|
F-Connector with O-Ring Specification
Table 3. F-Connector 5/8” with O-Ring Specification
| No. |
Item |
Description |
| 1 |
F-Connector – 5/8” to Metric |
From 5/8” to Metric (M10x0.75 mm) |
| 2 |
F-Connector – 5/8” to Standard |
From 5/8” to Standard (3/8”) |
| 3 |
Material |
BODY: BRASS INSULATOR: TEFLON CONTACT: BRASS O-RING: SILICONE RUBBER |
| 4 |
Temperature Range |
-40°C to +110°C |
| 5 |
Protection Rating |
IP67 |
| 6 |
Impedance |
75 Ohm |
| 7 |
Frequency Range |
Up to 1.1 GHz |
Port Plug 5/8” with O-Ring Specification
A port plug is a waterproof part used to terminate the unused power port, fiber ports, and RF ports. Plugs can be easily added or removed in the field by using a wrench.
Table 4. Port Plug 5/8” with O-Ring Specification
| No. |
Item |
Description |
| 1 |
Threads |
5/8” Inch |
| 2 |
Material |
Aluminum Alloy 2011-T3, 2024 - T4 OR 6061 -T6 |
| 3 |
Protection |
With O-RING: Apple Rubber P/N AS568A-906 |
| 4 |
Protection Rating |
IP67 |
SC/APC - SC/APC Adaptor
Table 5. SC/APC-SC/APC Adaptor Specification
| No. |
Item |
Description |
| 1 |
Adapter Type |
SC/APC - AC/APC |
| 2 |
Mode |
Single mode |
| 3 |
Standards |
Meet EIA/TIA, IEC and NTT-SC* Standards |
| 4 |
Housing Material |
Polymer |
| 5 |
Color |
Green |
| 6 |
Mounting Style |
Flange, Snap |
| 7 |
Low insertion loss |
Single mode: 0.15 dB (typical) |
SC/APC - FC/APC Adaptor
Table 6. SC/APC-FC/APC Adaptor Specifications
| No. |
Item |
Description |
| 1 |
Adapter Type |
SC/APC - FC/APC |
| 2 |
Mode |
Single mode |
| 3 |
Housing Material |
Metal |
| 4 |
Color |
Black |
| 5 |
Mounting Style |
Flange, Snap |
| 6 |
Low insertion loss |
Single mode: 0.2 dB (typical) |
Console Cable
The console cable is used for connecting your computer's serial port to the Cisco CMC console port. To use the cable, connect the Cisco CMC PCB and the DB9 connector to the serial port on your computer. Table 7 contains console cable specifications.
Table 7. Console Cable Specifications
| No. |
Item |
Description |
| 1 |
Console Connector |
Connect to Cisco 16x4 Coaxial Media Converter console port, 6Pin, FEMALE |
| 2 |
DB9 Connector |
CONNECTOR, D-SUB, 9Pin, FEMALE, SOLDER TYPE |
Pads (Attenuators)
Plug-in pads produce flat (even) loss across the forward and reverse frequency spectrums. Pads are used during station balancing to adjust signal levels as needed. The (dB) loss produced is equal to the pad value printed on the top of the pad. The pads are rated for operation to 1 GHz. The Pad with “75 Ω” printed on the top will work as a 75Ohm terminator.
Forward Linear Equalizers
Forward linear equalizers produce linear tilt. A linear equalizer should be used in the plug-in input or inter-stage equalizer location if Cisco CMC output tilt does not have the desired station output tilt. The EQ value is the amount of tilt from lowest to highest frequency (52 - 1002 MHz).
Note: Cisco CMC re-uses the same linear Equalizers and Pads from Cisco GS7000/GainMaker nodes. For a more detailed specification please refer to the below URL: http://www.cisco.com/c/dam/en/us/products/collateral/video/gainmaker-amplifiers/716336.pdf
Signal Director - 2 Way Splitter and Jumper
The two-way Splitters are required to split forward RF signal to four RF output ports. The Jumpers are required to route all forward path signals to two RF output ports.
Table 8. Signal Director Part Number
| Type |
Part Number |
Description |
| 2 Way Splitter |
4011908 |
Cisco GS7000 Node Signal Director Splitter (Kit/10) |
| Jumper |
4011907 |
Cisco GS7000 Node Signal Director Jumper (Kit/10) |
Gigabit Ethernet SFP
The Cisco CMC Gigabit Ethernet SFPs are used in the Cisco CMC system to connect the Cisco CMC to uplink Switches\Routers. The supported Gigabit Ethernet SFPs (at FCS) are listed in Table 1. For detailed product description and specification refer to the related Gigabit Ethernet SFPs datasheet at the following URL. http://www.cisco.com/c/en/us/products/collateral/interfaces-modules/gigabit-ethernet-gbic-sfp-modules/product_data_sheet0900aecd8033f885.pdf
