Cisco Unified CallConnector Advanced Client

  • Viewing Options

  • PDF (936.5 KB)
  • Feedback

For employees of small businesses to communicate effectively with suppliers and customers in today's competitive business environment, they need ready access to information, updated in real time. They also need to stay connected - to one another and to the business applications they use to do their jobs. With the right solution, your business can collaborate more effectively and problem-solve like never before.

Solution Overview

The Cisco ® Unified CallConnector Advanced Client is designed to streamline the business communications of your employees by providing them with real-time information about the availability of their contacts and offering multiple methods for communicating with them. The solution lets employees know who is available and the best method for connecting with them. With the Cisco Unified CallConnector Advanced Client, you can:

• Quickly locate contacts and connect to them using voice, instant messaging (IM), text messages (Short Message Service [SMS]), or email messages

• Know who is calling and click to answer or make calls and access the phone features from your PC

• Get alerts when contacts are available and for new voice messages

• View voice messages, click to listen to the important ones first, and reply or call back

• Send instant, SMS, and email messages to colleagues and external contacts

• Use the Cisco Unified CallConnector toolbar in Outlook to locate contacts, manage calls, and send instant messages

Cisco Unified CallConnector Advanced is a desktop unified communications application that integrates the contact data in your PC applications with the features of your Cisco Unified Communications Manager Express. As a client-server solution that is easy to deploy, configure, and use, this application offers integrated access to call handling, visual voicemail, presence and telephone status, federated instant messaging, and integration with Outlook and other Windows applications. Figure 1 shows the Cisco Unified CallConnector Advanced directory windows in two custom views.

Figure 1. Cisco Unified CallConnector Advanced Directory Windows

Cisco Unified CallConnector Advanced requires the Cisco Unified CallConnector Server. The server maintains the connections to the services of the Cisco Unified Communications Manager Express and to the user's configuration data. It makes these services available to all Cisco Unified CallConnector Clients, including the Cisco Unified CallConnector Advanced Client. The server includes a license for eight Cisco Unified CallConnector Advanced Clients. For larger deployments, additional Cisco Unified CallConnector Advanced licenses can be purchased in eight-user increments.

Use the Powerful Search Option to Locate Contacts in the Cisco Unified CallConnector Directories

The Cisco Unified CallConnector Advanced directory displays a list of names with integrated click-to-IM, click-to-call, and click-to-send services from any one of several contact directories. You can view and quickly locate contacts and call or send messages (through IM, text message [SMS], or email). Graphical icons display the telephone status (idle, ringing, or connected) as well as availability (available, busy, or away) and current location (work, home, traveling, or vacation) for contacts for whom this information is available. The powerful search option allows you to locate contacts simply by entering the first few letters of any visible information about that contact - such as first or last name, department, or phone number. Table 1 lists some of the features supported by the Cisco Unified CallConnector Advanced directory.

Table 1. Features of Cisco Unified CallConnector Advanced Directory

Access multiple directories

You can access contact information from any of four directories - Corporate, Personal, External, and Outlook. You can also select the Outlook contact folder to view the personal contact information.

Create custom views

You can customize how the directory information is presented by selecting the information fields to view and the display style - tabular or hierarchical and a single line of contacts or a two-line view with photos or avatars.

Perform a global search

You can quickly locate a contact across all the directories by entering the first few letters. You can search for names, departments, or phone numbers of any entry in the directory that is visible.

Enter multiple numbers

Multiple phone numbers are supported per entry, including two work numbers and home and mobile numbers.

Drag and drop

You can drag and drop entries to make a call, transfer, pick up a ringing call, add someone to a conference, or create a chat group.

View phone status

Contacts in the corporate directory associated with presence show their phone status (idle, ringing, or connected). External contacts in the personal directory display availability status.

View presence status

You can view the availability and location of your colleagues and external IM contacts in real time.

Manage contacts

You can add, modify, or delete the contact information in your personal directory.

Integrate calling

You can dial numbers, transfer calls, and set up conferences from the directory.

Send messages

You can send quick messages by email, SMS, or IM.

Manage Active Calls

The call window displays all the active calls, with the callers' names read from the directories. You can click a contact, auto-dial from Outlook, or drag and drop a number to make, transfer, or set up a conference call. The phone features are available from the context-sensitive toolbar. Popup windows provide notification and caller information for your calls. In the call window, you can:

• View a list of all the current calls on your phone

• Make or answer calls, and dial from the keypad window

• Access the advanced phone features to transfer, conference, park, pick up, or page calls

• Drag and drop numbers from other applications to make calls

The call window supports the features listed in Table 2.

Table 2. Features Available in Cisco Unified CallConnector Advanced Call Window

View all calls

You can display all active calls with caller names from the directory.

Click to dial, transfer, and conference

You can use the directory listings to make a new call or conference into or transfer a connected call.

Drag and drop

You can drag and drop a number from any Windows application that supports drag and drop to make calls, transfer calls, or establish conference calls.

Access phone features

The context-sensitive toolbar provides access to the telephony features of the Cisco Unified CME with a mouse click.

Receive popup notification of incoming calls

A popup notification window provides information about incoming calls, with caller names from the directory and with buttons to answer a call or route it to voicemail.

Communicate Through Instant Messages

With the Cisco Unified CallConnector Advanced Client, you can view presence status and send instant messages to your colleagues at work and to external contacts on compatible IM servers. Cisco Unified CallConnector Advanced provides administrator-controlled access to IM and presence federation with compatible Extensible Messaging and Presence Protocol (XMPP) IM servers, such as Google Talk, and Facebook. When your external account is added to the Cisco Unified CallConnector Advanced Client, it downloads your contact lists, allowing you to view your contacts' presence status and click and send instant messages. You can also make your personal availability known (Figure 2).

Figure 2. Cisco Unified CallConnector Advanced Instant Message Window

While instant messaging, you can:

• View the status of your IM contacts and see when they are typing

• Send emoticons and change the font size, color, and type

• Send documents and files instantly to your contact

• Add additional parties to create a multi-person chat session

• Escalate an IM session to a voice call

• View the recent calls, IM sessions, and email messages exchanged with this party

View and Listen to Voice Messages on a PC

The Cisco Unified CallConnector Advanced Client displays a popup alert message when you have new voice messages. You can view all the new and saved voice messages, play them in any order, call back, or send an IM or email message. You can also download and forward voice messages by email.
The Cisco Unified CallConnector Advanced Client allows you to change your greeting manually or have it change automatically when your availability status changes.
From the VoiceView window, you can:

• View the number of messages waiting and the voice message popup notification

• View the new and saved voice messages in the Cisco Unity® Express mailbox

• Play, pause, rewind, move forward, and delete voice messages

• View the caller's name and presence status (if available)

• Change the voice message greeting

Figure 3 shows the VoiceView window.

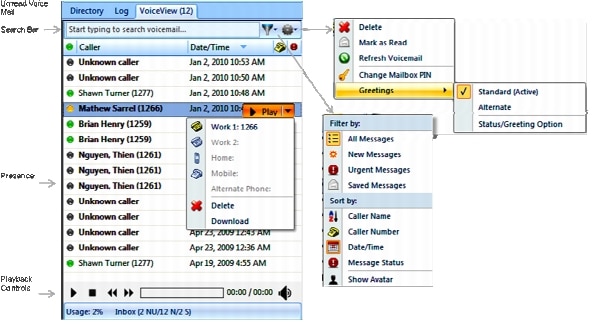

Figure 3. Cisco Unified CallConnector Advanced VoiceView Window

Experience Enhanced Outlook Integration

The Cisco Unified CallConnector Advanced Client provides a toolbar and right-click menu in Outlook to allow you to access all your communications services directly from within Outlook (Figure 4). You can locate contacts, manage calls, and send instant messages without leaving Outlook. In addition, you can synchronize your availability to the Outlook calendar so that your status is updated based on your Outlook calendar setting. With Outlook integration, you can:

• Right click on an Outlook contact and auto-dial to make calls

• Use the toolbar to locate contacts from any directory

• Manage calls from the toolbar in Outlook without having to switch applications

• Update your availability status and location from pull-down menus

• Highlight and drag and drop any number to the call window

Figure 4. Cisco Unified CallConnector Toolbar in Outlook 2010

AdvancedClient_tb_2

View a History of Calls and Instant Messages

All of your call histories and instant messages are archived on the Cisco Unified CallConnector Advanced Server and are available for viewing in the log window. From this window, you can:

• View the incoming, missed, and outgoing calls made from your phone

• Search and locate calls in the call list

• View all the IM sessions

• Click to view the details of messages sent during a session

• Call back or send instant messages from the log entries

Deploying Cisco Unified CallConnector Advanced

Cisco Unified CallConnector Advanced is a client-server application and requires installation of the Cisco Unified CallConnector Server. The Cisco Unified CallConnector Server makes deploying and using the client applications easier by:

• Configuring client parameters on the server

• Performing all license management

• Configuring dialing plans on the server, instead of in each individual client

• Importing contact information from Cisco Unified Communications Manager Express, Active Directory, or Exchange folder

• Initiating automatic client software updates

Servers can be installed in virtual-machine environments for ease of server management. An easy-to-use installation GUI is provided that connects to the Cisco Unified Communications Manager Express for configuration information, imports the user contact information, and sets up the Cisco Unified CallConnector Advanced call-control parameters.
Table 3 gives licensing options for the Cisco Unified CallConnector Advanced Client.

Table 3. Licensing Options for Cisco Unified CallConnector Advanced

Description

Benefit

Cisco Unified CallConnector Server (includes 8 Cisco Unified CallConnector Advanced Clients)

Server license includes eight Cisco Unified CallConnector Advanced Client licenses, simplifying and reducing the cost for smaller deployments.

Eight-user license PAKs

Additional Cisco Unified CallConnector Advanced licenses are available in sets of eight.

System Requirements

Table 4 lists the computer requirements for the Cisco Unified CallConnector Advanced Client, Table 5 lists the requirements for the Cisco Unified CallConnector Server, and Table 6 lists the software versions needed for the Cisco Unified Communications Manager Express.

Table 4. Cisco Unified CallConnector Advanced Client Requirements

Parameter

Description

Disk space

200-MB free hard disk space

Reserve an additional 100 MB for upgrades.

Hardware

3.2-GHz or faster processor for workstation

Memory

2-GB RAM minimum

Operating system

Microsoft Windows XP Advanced (Service Pack 2 or later), Windows Vista, or Windows 7 (Both 32- and 64-bit Windows versions are supported.)

Note: No virtual desktop environments, including VMWare, Windows 7 Terminal Server and Citrix client environments are supported.

IP phone

Cisco Unified IP Phone 7940G, 7960G, or 7970G Series models

Table 5. Cisco Unified CallConnector Server Minimum System Requirements

Parameter

Description

Disk space

Smaller sites (up to 25 users): 2-GB free hard disk space

Sites with 25 to 75 users: 4-GB free hard disk space

Larger sites with 75 to 250 users: 8-GB free hard disk space

Hardware

Smaller sites (up to 25 users): 2.66-GHz or faster multicore processor

Sites with 25 to 75 users: 2.66-GHz or faster quad-core processor

Larger sites with 75 to 250 users: Dedicated quad-core 3-GHz or faster processor

Memory

Smaller sites (up to 25 users): 2-GB system memory

Sites with 25 to 75 users: 4-GB system memory

Larger sites with 75 to 250 users: 8-GB system memory recommended

Operating system

Microsoft Windows XP Professional (SP 2 or later)

Windows Vista

Windows Server 2003 or 2008 (recommended)

Windows Small Business Server

Both 32- and 64-bit Windows OSs are supported.

IP phone

Cisco Unified IP Phone 7940G, 7960G, or 7970G Series models

Applications

Microsoft Internet Explorer 6.0 with Service Pack 2 or Internet Explorer 7.0-8.0

Table 6. Cisco Unified Communication Manager Express Requirements

Cisco Unified Communications Manager Express Software Version

Cisco IOS® Software Release

8.0

15.0 XA

8.1

15.1.2T

8.5

15.1.3T

Ordering Information

To place an order, contact your local Cisco representative, visit the Ordering Home Page on the Cisco website, or refer to Table 7.

Table 7. Ordering Information

Product Name

Part Number

Cisco Unified CallConnector Server (Includes 8 Advanced Client user licenses)

SW-UCC-SERVER

SMARTNet Support for Cisco Unified CallConnector Server

CON-SAU-UCCSERV

Cisco Unified CallConnector Advanced Client (8 additional user licenses)

L-SW-UCC-8ADVANCED

SMARTNet Support for Cisco Unified CallConnector Advanced Client

CON-SAU-UCC8AD

For More Information

For more information about the Cisco Unified Communications Manager Express solution, including Cisco Unified CallConnector Advanced Client and Cisco Unified CallConnector Server, please visit: http://www.cisco.com/go/unifiedcallconnector. If you have questions, send an email message to access-ccme-cue@cisco.com.

Cisco Unified Communications Services and Support

Using the Cisco Lifecycle Services approach, Cisco and our partners offer a broad portfolio of end-to-end services to support the Cisco Unified Communications System. These services are based on proven methodologies for deploying, operating, and optimizing IP communications solutions. Initial planning and design services, for example, can help you meet aggressive deployment schedules and minimize network disruption during implementation. Operate services reduce the risk of communications downtime with expert technical support, and optimize services enhance solution performance for operational excellence. Cisco and our partners offer a system-level service and support approach that can help you create and maintain a resilient, converged network that meets your business needs.
