Cisco Network Convergence System 5500 Series: Modular Line Cards NC55-24H12F-SE Data Sheet

Product overview

Based on the Cisco Global Cloud Index, digitalization is projected to grow global data center and public/private cloud networks traffic more than 25 percent annually, resulting in a threefold increase by 2019. To help network providers meet these challenges, the Cisco^® Network Convergence System 5500 Series is built with features such as extremely high port densities, deep packet buffering, and forwarding hardware optimized for these types of deployments.

The Cisco NCS 5500 Series modular chassis provides a wide variety of combo line cards to address the customer’s need to use flexible interfaces and port densities along with full bandwidth utilization of a forwarding ASIC. The Cisco NCS 5500 Series also offers a high-scaled line card, which improves the Forwarding Information Base (FIB) scale capabilities x8 times when compared with base versions of the line card. These line cards are capable of advanced packet forwarding, segment routing, programmable network management, and telemetry along with the robust and mature features already present in 64-bit Cisco IOS^® XR Software.

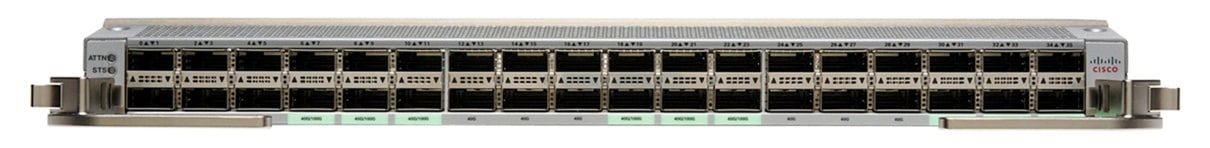

The Cisco NC55-24H12F line card (Figure 1) provides 24 ports of 100G/40G and 12 ports of 40G ports for a total of 36 ports. 24 of the 36 ports can be upgraded to 100GE through a license on a per-port basis. This line card uses QSFP28/QSFP+ form factor transceivers and can be used in any of the NCS 5500 Series of modular chassis. This card is designed for scale-enhanced configuration needs with expanded FIB, QoS, ACL, and so on.

Cisco IOS XR Software overview

The Cisco NCS 5500 Series is powered by the industry-leading carrier-class 64-bit version of Cisco IOS XR Software designed on operational efficiency, optimized utilization, and service agility (evolved programmable network). Cisco IOS XR Software offers rich features such as iPXE boot, autoprovisioning, native support for third-party application hosting, machine-to-machine interface, telemetry, and flexible software package delivery.

For a complete list of supported features, refer to Cisco Feature Navigator.

Software requirements

These NCS 5500 Series line cards will be supported on the Cisco IOS XR Software Release 6.1.2 or later.

Specifications

Tables 1 through 5 list primary specifications for the Cisco NCS 5500 Series modular chassis.

Table 1.         Features and benefits of Cisco NCS 5500 Series line cards (Cisco IOS XR Software 6.1.2 or Beyond)

Table 2.         NCS 5500 Series 24 Ports of 100GE and 12 Ports of 40GE high-scale line card

Table 3.         NCS 5500 Series 24 Ports of 100GE and 12 Ports of 40GE Base Scale Line Card Optional License

Note:    List of supported features is not exhaustive, and some features are supported in later software releases.

Table 4.         Software feature support on NCS 5500 modular chassis in Cisco IOS XR Software 6.1.2 release or beyond

Supported transceivers modules

Check the Cisco NCS 5500 Series supported transceivers module matrix.

https://www.cisco.com/c/en/us/support/interfaces-modules/transceiver-modules/products-device-support-tables-list.html

Environment

Table 5.         Environmental properties

Regulatory standards compliance

Table 6.         Regulatory standards compliance: Safety and EMC

Get additional information related to NCS5500 regulatory compliance and safety standards.

Ordering information

Table 7 provides ordering information.

Table 7.         Ordering information for NCS5500 Series line cards

For details on the Cisco Network Convergence System 5500 Series Perpetual Software Licenses, refer to this data sheet and details on the flexible consumption model for the NCS 5500 Series are available in the data sheet for the IOS XR Software flexible consumption model.

Warranty

The Cisco NCS 5500 Series has a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a Return Materials Authorization (RMA).
