Product Overview

The Cisco® ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Patch Panel is a standalone unit that contains both a 40-channel optical multiplexer and a 40-channel optical demultiplexer, precabled within the unit’s housing. Two models are available: 15216-EF-40-ODD includes the odd-numbered frequencies as defined by ITU G.694.2, while 15216-EF-40-EVEN includes the even-numbered frequencies. The two units can be combined using the Cisco ONS 15216 40 Channels 50 GHz De-Interleaver with Coupler for an in-service capacity upgrade from 40 to 80 channels.

The Cisco ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Patch Panel is identical to the existing Cisco ONS 15216 Mux/Demux 40-Channel Patch Panel, with the exception of a simpler fiber management system. This is achieved by replacing the moving parts and door with lateral clips and tie wraps for fiber and USB cable management as shown in Figure 1.

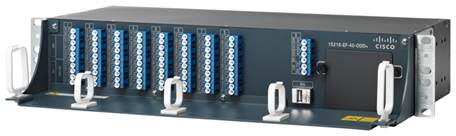

Figure 1. Cisco ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Patch Panel

The physical arrangement of the ports also differs from that of the Cisco ONS 15216 40-Channel Mux/Demux Patch Panel. Instead of 10 columns and 4 rows to accommodate the 40 channels, ports are now arranged in 8 columns and 5 rows. The placement of the clips provides optimal fiber routing, facilitating the addition of fibers in an incremental manner and resulting in a simple design that is easy to maintain and troubleshoot. A separate tie wrap is provided for fastening the USB cable used for passive inventory management.

Figures 2 through 4 illustrate the different application configurations in which the Cisco ONS 15216 Mux/Demux Patch Panels can be deployed.

Figure 2. 40-Channel Standalone Configuration

Figure 3. 40-Channel In-Service Upgrade to 80 Channel Standalone Configuration

Figure 4. 80 Channel Standalone Configuration

The Cisco ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Patch Panel can also be used as the add/drop stage of the Cisco ONS 15454 MSTP SMR-1, SMR-2, and 80-WXC Reconfigurable Add/Drop Multiplexers (ROADMs), as shown in Figures 5 and 6.

Figure 5. Cisco ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Odd Patch Panel Single Module ROADMConfiguration

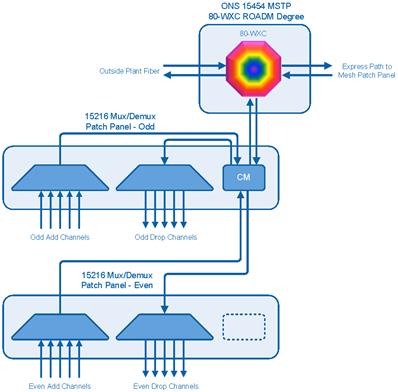

Figure 6. Cisco ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Odd/Even Patch Panel 80-WXC ROADMConfiguration

Major Features and Benefits

The Cisco ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Patch Panels provide the following customer benefits:

Cost-effectiveness for dense wavelength-division multiplexing (DWDM) hub or terminal applications; ideal for point-to-point data center interconnections

Best-in-class operational efficiency with zero electrical power requirements

No moving parts, providing easy installation and troubleshooting

Fiber management plate with integrated clips for secure but easy fiber access

Tie wraps for fastening USB cables

Integrated cable routing guides that determine fiber bend radius to maintain optimal optical performance, also preventing fibers from becoming pinched

Low optical insertion loss for improved distance and performance

USB port for passive inventory

Preassembled unit

Licensed Version

A licensed version of the ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Patch Panel is available, facilitating the cost-effective construction of networks with low initial channel counts.

As demand increases, additional software licenses can be purchased in a pay-as-you-grow fashion to add additional channels in increments of 10, without the need for additional hardware.

In addition to point-to-point networks, the licensed version is also ideal in ROADM networks with low wavelength density but complex topology and traffic matrix, as the licensed version allows the add/drop of any combination of channels in the C-band, up to the licensed channel count, not necessarily contiguous bands of channels.

Product Specifications

Table 1 provides the channel plan for the Cisco ONS 15216 Exposed Faceplate Mux/Demux 40 Channel Patch Panel. Tables 2 through 4 provide optical and mechanical specifications.

Table 1. Cisco ONS 15216 Exposed Faceplate Mux/Demux 40-Channel Patch Panel Channel Plan

Channel Wavelength

15216-EF-40-ODD

15216-EF-40-EVEN

Channel ID

Frequency (THz)

Wavelength (nm)

Channel ID

Frequency (THz)

Wavelength (nm)

1

195.9

1530.33

1

195.85

1530.72

2

195.8

1531.12

2

195.75

1531.51

3

195.7

1531.90

3

195.65

1532.29

4

195.6

1532.68

4

195.55

1533.07

5

195.5

1533.47

5

195.45

1533.86

6

195.4

1534.25

6

195.35

1534.64

7

195.3

1535.04

7

195.25

1535.43

8

195.2

1535.82

8

195.15

1536.22

9

195.1

1536.61

9

195.05

1537.00

10

195.0

1537.40

10

194.95

1537.79

11

194.9

1538.19

11

194.85

1538.58

12

194.8

1538.98

12

194.75

1539.37

13

194.7

1539.77

13

194.65

1540.16

14

194.6

1540.56

14

194.55

1540.95

15

194.5

1541.35

15

194.45

1541.75

16

194.4

1542.14

16

194.35

1542.54

17

194.3

1542.94

17

194.25

1543.33

18

194.2

1543.73

18

194.15

1544.13

19

194.1

1544.53

19

194.05

1544.92

20

194.0

1545.32

20

193.95

1545.72

21

193.9

1546.12

21

193.85

1546.52

22

193.8

1546.92

22

193.75

1547.32

23

193.7

1547.72

23

193.65

1548.11

24

193.6

1548.51

24

193.55

1548.91

25

193.5

1549.32

25

193.45

1549.72

26

193.4

1550.12

26

193.35

1550.52

27

193.3

1550.92

27

193.25

1551.32

28

193.2

1551.72

28

193.15

1552.12

29

193.1

1552.52

29

193.05

1552.93

30

193.0

1553.33

30

192.95

1553.73

31

192.9

1554.13

31

192.85

1554.54

32

192.8

1554.94

32

192.75

1555.34

33

192.7

1555.75

33

192.65

1556.15

34

192.6

1556.55

34

192.55

1556.96

35

192.5

1557.36

35

192.45

1557.77

36

192.4

1558.17

36

192.35

1558.58

37

192.3

1558.98

37

192.25

1559.39

38

192.2

1559.79

38

192.15

1560.20

39

192.1

1560.61

39

192.05

1561.01

40

192.0

1561.42

40

191.95

1561.83

Table 2. 15216-EF-40-ODD/EVEN Optical Specifications

Parameter

Minimum

Maximum

Input optical power

300 mW

Insertion loss

4 dB

6 dB

Drop adjacent channel isolation

20 dB

Drop nonadjacent channel isolation

30 dB

Drop CrossTalk

16 dB

Add adjacent channel isolation

17 dB

Add nonadjacent channel isolation

30 dB

Add CrossTalk

14 dB

Return loss

40 dB

Monitor add/drop loss

18 dB

22 dB

Polarization dependent loss (PDL)

0.7 dB

Polarization mode dispersion (PMD)

0.5 ps

Insertion loss uniformity

1.5 dB

Chromatic dispersion (CD)

±12.0 ps/nm

Table 3. Environmental and Mechanical Specifications

Parameter

15216-EF-40-ODD=

15216-EF-40-EVEN=

Minimum

Maximum

Minimum

Maximum

Operating temperature range

41ºF (-5ºC)

149ºF (65ºC)

41ºF (-5ºC)

149ºF (65ºC)

Storage temperature range

-40ºF (-40ºC)

185ºF (85ºC)

-40ºF (-40ºC)

185ºF (85ºC)

Dimensions height

3.45 in. (87.6 mm)

3.45 in. (87.6 mm)

Dimensions width

17.21 in. (437.1 mm)

17.21 in. (437.1 mm)

Dimensions depth

10.89 in. (276.7 mm)

10.89 in. (276.7 mm)

Weight

10.36 lbs. (4.7 kg)

10.36 lbs. (4.7 kg)

Humidity

5%

95%

5%

95%

USB port power

400 mW

600 mW

400 mW

600 mW

Table 4. Regulatory Compliance

Safety

Environmental

GR-1089-Issue 6

UL60950-1

IEC 60950-1 Ed.2

GR-63-CORE Issue 3

Table 5 provides ordering information. To place an order, visit the Cisco Ordering Home Page. To download software, visit the Cisco Software Center.

Table 5. Ordering Information

Part Number

Description

15216-EF-40-ODD=

ONS 15216 40-Channel Mux/DeMux Exposed Faceplate Patch Panel Odd

15216-EF-40-EVEN=

ONS 15216 40-Channel Mux/DeMux Exposed Faceplate Patch Panel Even

15216-EF-ODD-LIC=

Licensed 10ch Exposed Faceplate mux demux ODD patch panel

15454-LIC-CH-10=

SW License for 10Chs Add/Drop or Express - 10 CH Capacity ex

For More Information

For more information, visit Cisco ONS 15216 DWDM System, or contact your local account representative. Alsovisit the Cisco End-of-Life Policy and Subscribe to receive end-of-life and end-of-sale information.
