Product Overview

The Cisco ONS 15216 Mux/Demux 40-Channel Patch Panel introduces athermal arrayed waveguide grating (AWG) technology, which allows passive dense wavelength-division multiplexing (DWDM) systems to have the same optical performance as systems using active-temperature-controlled AWG technology. This breakthrough lets enterprises and service providers deploy 80 channels of DWDM capacity, taking advantage of a reduced footprint while consuming no electricity.

Figure 1. Cisco ONS 15216 Mux/Demux 40-Channel Patch Panel

The Cisco ONS 15216 Mux/Demux 40-Channel Patch Panels (Figure 1) are standalone units that contain both a 40-channel optical multiplexer and a 40-channel optical de-multiplexer, which are precabled in the housing for easy and immediate operation. Two units are available, covering the even and odd numbered channels specified by the (International Telecommunication Union) ITU grid. The Cisco ONS 15216 Mux/Demux Patch Panel 50-GHz Interleaver De-Interleaver easily plugs into the Cisco ONS 15216 Mux/Demux 40-Channel Patch Panel for in-service capacity upgrade from 40 channels up to 80 channels in a 4 rack unit (RU) footprint, combining both the odd and even channel units. Figures 2 through 5 illustrate the different application configurations in which the Cisco ONS 15216 Mux/Demux 40-Channel Patch Panel can be deployed.

Features and Benefits

The Cisco ONS 15216 Mux/Demux 40-Channel Patch Panels and Cisco ONS 15216 Mux/Demux Patch Panel 50‑GHz Interleaver De-Interleaver offer the following features and benefits:

Cost effective for DWDM applications

Best-in-class operational efficiency, with no electrical power requirements

Connector panel that slides forward and locks into place for easy access and maintenance

Patch panel front door that securely locks to prevent accidental tampering with the fiber connections

Integrated cable routing guides that maintain fiber bend radius for optimal optical performance and prevent fibers from being pinched

Low optical-insertion loss for improved distance and performance

USB port for passive inventory

Entire unit that comes preassembled

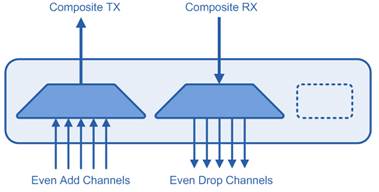

Figure 2. 40-Channel Standalone Configuration

Figure 3. 40-Channel In-Service Upgrade to 80-Channel Standalone Configuration

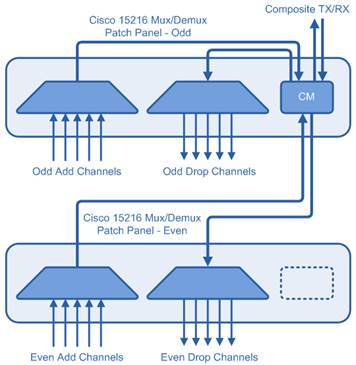

Figure 4. 80-Channel Standalone Configuration

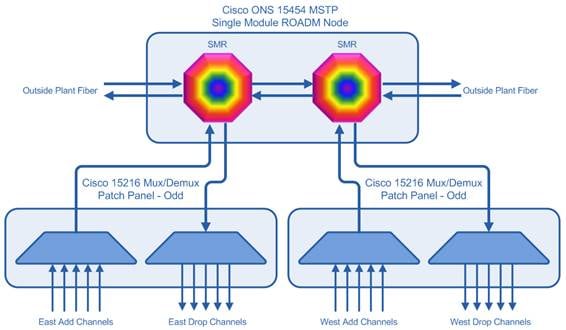

Figure 5. Cisco ONS 15216 Mux/Demux 40-Channel Odd Patch Panel Connected to Single Module ROADM Configuration

Product Specifications

Tables 1 through 4 provide optical and mechanical specifications for the Cisco ONS 15216 Mux/Demux 40-Channel Patch Panel and the Cisco ONS 15216 Mux/Demux Patch Panel 50-GHz Interleaver De-Interleaver.

Table 1. Cisco ONS 15216 Mux/Demux 40-Channel Patch Panel Channel Plan

Cisco Product Number 15216-MD-40-ODD

Cisco Product Number 15216-MD-40-EVEN

Channel Id

Frequency (THz)

Wavelength (nm)

Channel Id

Frequency (THz)

Wavelength (nm)

1

195.9

1530.33

1

195.85

1530.72

2

195.8

1531.12

2

195.75

1531.51

3

195.7

1531.90

3

195.65

1532.29

4

195.6

1532.68

4

195.55

1533.07

5

195.5

1533.47

5

195.45

1533.86

6

195.4

1534.25

6

195.35

1534.64

7

195.3

1535.04

7

195.25

1535.43

8

195.2

1535.82

8

195.15

1536.22

9

195.1

1536.61

9

195.05

1537.00

10

195.0

1537.40

10

194.95

1537.79

11

194.9

1538.19

11

194.85

1538.58

12

194.8

1538.98

12

194.75

1539.37

13

194.7

1539.77

13

194.65

1540.16

14

194.6

1540.56

14

194.55

1540.95

15

194.5

1541.35

15

194.45

1541.75

16

194.4

1542.14

16

194.35

1542.54

17

194.3

1542.94

17

194.25

1543.33

18

194.2

1543.73

18

194.15

1544.13

19

194.1

1544.53

19

194.05

1544.92

20

194.0

1545.32

20

193.95

1545.72

21

193.9

1546.12

21

193.85

1546.52

22

193.8

1546.92

22

193.75

1547.32

23

193.7

1547.72

23

193.65

1548.11

24

193.6

1548.51

24

193.55

1548.91

25

193.5

1549.32

25

193.45

1549.72

26

193.4

1550.12

26

193.35

1550.52

27

193.3

1550.92

27

193.25

1551.32

28

193.2

1551.72

28

193.15

1552.12

29

193.1

1552.52

29

193.05

1552.93

30

193.0

1553.33

30

192.95

1553.73

31

192.9

1554.13

31

192.85

1554.54

32

192.8

1554.94

32

192.75

1555.34

33

192.7

1555.75

33

192.65

1556.15

34

192.6

1556.55

34

192.55

1556.96

35

192.5

1557.36

35

192.45

1557.77

36

192.4

1558.17

36

192.35

1558.58

37

192.3

1558.98

37

192.25

1559.39

38

192.2

1559.79

38

192.15

1560.20

39

192.1

1560.61

39

192.05

1561.01

40

192.0

1561.42

40

191.95

1561.83

Table 2. Optical Specifications for Cisco Product Number 15216-MD-40-ODD/EVEN

Parameters

Specification

Maximum input optical power

300 mW

Insertion loss

4.5 dB – 6.5 dB

Drop adjacent channel isolation

20 dB

Drop nonadjacent channel isolation

30 dB

Drop crosstalk

16 dB

Add adjacent channel isolation

17 dB

Add nonadjacent channel isolation

30 dB

Add crosstalk

14 dB

Return loss

40 dB

Monitor add or drop loss

18 dB – 22 dB

Filter type

Athermal array waveguide

Polarization-dependent loss (PDL)

0.7 dB

Polarization mode dispersion (PMD)

0.5 ps

Insertion loss uniformity

1.5 dB

Chromatic dispersion (CD)

±12.0 ps per nm

Table 3. Optical Specifications for Cisco Product Number 15216-MD-ID-50

Parameters

Minimum

Maximum input optical power

300 mW

Insertion loss

1.5 dB – 2.5 dB

Insertion loss uniformity

0.5 dB

Channel band ripple

0.3 dB

Group delay ripple (GDR)

2.5 ps

Chromatic dispersion (CD)

–20.0 ps per nm to 20.0 ps per nm

Optical-return loss

40.0 dB

Polarization-dependent loss (PDL)

0.4 dB

Polarization mode dispersion (PMD)

0.3 ps

De-Interleaver Specifications

Operating bandwidth

–10 GHz to 10 GHz

Adjacent channel isolation

25 dB

Interleaver Specifications

Operating bandwidth

–10 GHz to 10 GHz

Adjacent channel isolation

25 dB

Table 4. Environmental and Mechanical Specifications

Product Number

Parameters

Specification

15216-MD-40-ODD=

15216-MD-40-EVEN=

Operating temperature range

32°F to 122°F (0°C to 50°C)

15216-MD-ID-50=

41°F to 104°F (5°C to 40°C)

15216-MD-40-ODD=

15216-MD-40-EVEN=

Dimensions (H x W x D)

3.45 x 17.21 x 10.895 in.

(87.6 x 437.1 x 276.7 mm)

Weight

10.36 lb (4.7 kg)

Humidity

5% to 95% noncondensing

USB port power

400 mW to 600 mW

15216-MD-ID-50=

Dimensions (H x W x D)

2.452 x 2.645 x 9.911 in.

(62.2 x 67.2 x 251.7 mm)

Weight

1.54 lb (0.7 kg)

Humidity

5% to 95% noncondensing

USB port power

400 mW to 600 mW

Connector type

LC UPC II

USB

Type A

Table 5. Regulatory Compliance

Description

Specification

Safety

GR-1089

UL60950/CSA 22.2 No. 60950-00

IEC 60950

Environmental

GR-63-CORE

Warranty Information

Find warranty information on Cisco.com at the Product Warranties page.

Ordering Information

To place an order, visit the Cisco Ordering homepage. To download software, visit the Cisco Software Center. For part numbers, refer to Table 6.

Table 6. Ordering Information

Product Name

Part Number

ONS 15216 40ch Mux Demux Patch Panel Odd

15216-MD-40-ODD=

ONS 15216 40ch Mux Demux Patch Panel Even

15216-MD-40-EVEN=

Mux/Demux Plugin Interleaver Module

15216-MD-ID-50=
