Cisco Power Supply

8700 Watt Enhanced AC Power Supply for Cisco Catalyst 6500 Series Switches

  • Viewing Options

  • PDF (202.3 KB)
  • Feedback

Product Overview

The 8700 Watt (W) enhanced AC power supply for Cisco ® Catalyst ® 6500 Series Switches (Figure 1) is a triple AC input power supply with remote restart capability. The 8700W enhanced AC power supply is designed for the 6-, 9-, and 13-slot Cisco Catalyst 6500 Series Switch chassis. A Cisco Catalyst 6500 Series Switch configured with the 8700W enhanced AC power supply will support up to 420 IEEE 802.3af Class 3 (15.4W) Power over Ethernet (PoE) devices with full redundancy in a single chassis, providing superior PoE scalability. A Cisco Catalyst 6500 Series Switch along with the 8700W enhanced AC power supply is PoE plus ready with ability to support up to 1750W of power per slot.
The 8700W enhanced AC power supply provides the ability to remotely power cycle or shut down Cisco Catalyst 6500 Series Switches for maintenance using Normally Open (NO) or Normally Closed (NC) built-in external relay contacts using a front-panel terminal block interface. The power supply relay contacts can be controlled through any appropriate third-party relay controller.

Figure 1. Cisco 8700W Enhanced AC Power Supply for Cisco Catalyst 6500 Series Switches

Applications

The 8700W enhanced AC power supply allows a Cisco Catalyst 6500 Series Switch to be remotely power cycled or shut down even with no access to the console or CLI of the switch for maintenance using an appropriate third-party relay controller, as shown in Figure 2. This feature reduces the maintenance cost and improves mean-time-to-repair (MTTR).

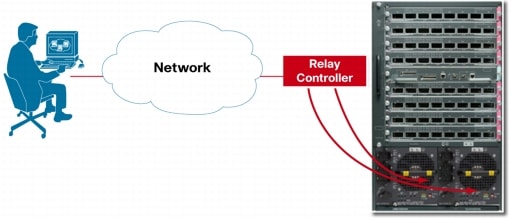

Figure 2. Remote Power Cycle or Shutdown of Cisco Catalyst 6500 Series Switch Using the 8700W Enhanced AC Power Supply

Features and Benefits

Table 1 lists the 8700W enhanced AC power supply features and benefits.

Table 1. Features and Benefits

Feature

Benefits

PoE scalability

Supports up to 420 IEEE 802.3af Class 3 (15.4W) PoE devices in a single chassis with full redundancy, thus reducing total cost of ownership for high-density PoE deployments in the campus access layer.

Remote power restart using external relay controller

Remotely power cycles or shuts down the Cisco Catalyst 6500 Series Switch using any appropriate third-party relay controller without needing access to the supervisor engine CLI, thereby reducing maintenance costs and improving MTTR.

Remote power restart using Cisco IOS® Software CLI

Remotely power cycle or shut down the Cisco Catalyst 6500 Series Switch using the Cisco IOS Software CLI, reducing maintenance costs and improving MTTR.

Multiple input

Remote power cycle scales the system power depending on the need (scale as you grow) with fully isolated inputs, providing flexibility.

Universal multiple (triple) input (110-220VAC, 50-60Hz)

Flexibility to provision circuits with either high-input voltage (200-220V) or low-input voltage (100-120V) depending on availability and power output needs.

Compatible with 6-, 9-, and 13-slot chassis

Investment protection: the 8700W enhanced AC power supply can be installed into existing Cisco Catalyst 6500 Series Switch chassis: both E- and non-E series Cisco Catalyst 6500 Series Switch chassis.

Note: Available power is limited to 4000W in Cisco Catalyst 6506 and 6509 Switches, 4500W in the Cisco Catalyst 6509-NEB-A Switch and 6000W in the Cisco Catalyst 6513 Switch. Full power available in the Cisco Catalyst 6506-E and 6509-E Switches.

Hot swappable

Eliminates downtime when replacing power supply.

Mixed power supply operation (along with lower capacity AC or DC power supply)

Eliminates downtime when upgrading to the new 8700W enhanced AC power supply.

Product Architecture

The 8700W enhanced AC power supply provides highest capacity AC power supply on Cisco Catalyst 6500 Series Switches. Table 2 compares the AC power supply options on a Cisco Catalyst 6500 Series Switch.

Table 2. AC Power Supply Options for the 6-, 9-, and 13-Slot Chassis for Cisco Catalyst 6500 Series Switches



3000WAC

6000WAC

8700WAC

Number of power input (16A)

1

2

3

Type of interface

10/100*

10/100/1000**

10/100*

10/100/1000**

10/100*

10/100/1000**

Number of IEEE Class 3 devices supported with 220V input

124

110

304

286

420***

384

Number of IEEE Class 3 devices supported with 110V input

42

42

124

114

193

179

Remote power restart and shutdown

No

No

Yes


All calculations are based on a single Cisco Catalyst 6500 Supervisor Engine 32 on a Cisco Catalyst 6506-E or 6509-E Switch.
*Calculations based on WS-X6148-45AF.
**Calculations based on WS-X6148-GE-AF.
***Calculations based on WS-X6148X2-45AF.

Table 3 shows the output power with various input modes on the 8700W enhanced AC power supply.

Table 3. Available Output Power on the 8700W Enhanced AC Power Supply Based on Input Power

Number of Inputs

Type of Input

Output Power

Number of IEEE 802.3af Class 3 Devices Supported*

1

110v

-

-

2

110v

2800W

110

3

110v

4200W

179

1

220v

2800W

110

2

220v

5800W

262

3

220v

8700W

384 (420**)


* Calculations are based on Cisco Catalyst 6500 Supervisor Engine 32, WS-X6148A-GE-AF and E-Series chassis.
** Calculations are based on Cisco Catalyst 6500 Supervisor Engine 32, WS-X6148X2-45AF and 6509-E-Series chassis.

Product Specifications

Table 4 provides product specifications for the 8700W enhanced AC power supply, and Table 5 provides power supply cable specification for various locales.

Table 4. 8700W Enhanced AC Power Supply Specifications

Chassis compatibility

Cisco Catalyst 6506, 6506-E, 6509, 6509-E, 6509-NEB-A, and 6513 Switches and Cisco 7609 and 7613 Routers

Software compatibility

Cisco IOS Software Release:

• 12.2(18)SXF7 and later
• 12.1E: not supported

Cisco Catalyst OS: not supported

Supervisor compatibility

Cisco Catalyst 6500 Series Supervisor Engine 720

Cisco Catalyst 6500 Supervisor Engine 32

Cisco Catalyst 6500 Series Supervisor Engine 2

Physical specification

(H x W x D): 7.2 x 8 x 16.3 (in)

Weight: 40 lb (18 kg)

Input-voltage range and frequency

100-240VAC, 47-63 Hz

Input current (each input)

16A max at nominal line voltage (110VAC or 220VAC)

Input-frequency range, output power

See Table 3

Output holdup time

20 ms minimum

Power-supply input receptacles

IEC 320-C19

Power cord rating

16A

BTU

~ 34800 BTUs per hour (at 8700W)

~ 23200 BTUs per hour (at 5800W)

~ 16800 BTUs per hour (at 4200W)

~ 11200 BTUs per hour (at 2800W)

Note: ~90% of PoE power is dissipated at the PoE device and along the cabling and not at the switch closet itself. Plan for cooling capacity for the switch closet accordingly.

Environmental Conditions

Operating temperature: 32 to 104°F (0 to 40°C)

Storage temperature: -40 to 158 °F (-40C to 70°C)

Relative humidity operating, noncondensing: 10% to 90%

Relative humidity nonoperating, noncondensing: 10% to 95%

MTBF: Demonstrated 300,000 hrs

EMI and EMC Compliance

FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55022 Class A

CISPR 22 Class A

AS/NZS 3548 Class A

VCCI Class A

EN 55024

EN300 386

EN 50082-1

EN 61000-3-2

EN 61000-3-3

EN 61000-6-1

CISPR24

Safety Compliance

UL 60950

CAN/CSA-C22.2 NO. 60950

EN 60950

IEC 60950

LED Indicators

3 green "INPUT OK," illuminate when input voltage is 85VAC or greater

3 green "INPUT 220VAC" illuminate when input voltage is 170VAC or greater in addition to the 3 green "INPUT OK" LED

1 green "FAN OK," illuminates when the power supply fan is operating

1 red "OUTPUT FAIL," normally is off but illuminates when power supply outputs are out of regulation limits

Reliability and availability

Hot swappable and supports hitless failover to the redundant power supply

MIBS

POWER-ETHERNET-MIB, CISCO-POWER-ETHERNET-EXT-MIB-MY, CISCO-ENTITY-FRU-CONTROL-MIB

Network management

Power restart and shutdown via an external relay controller

Additional specifications

Normally Closed (NC) relay controller - Min 200mA DC Rating

Normally Open (NO) relay controller - Min 200mA DC Rating

Table 5. 8700W Enhanced AC Power Supply Cable Specifications

Locale

Part Number

Cord Length

Plug Type Wall Appliance

Wall Plug Rating

Australia, New Zealand

CAB-AC-16A- AUS

14 ft (4.3 m)

AU20S3

250VAC,
16A

People's Republic of China

CAB-AC16A-CH

14 ft (4.3 m)

GB16C

250VAC,
16A

Continental Europe

CAB-AC-2500W-EU

14 ft (4.3 m)

CEE 7/7

250VAC,
16A

International

CAB-AC-2500W-INT

14 ft (4.3 m)

IEC 309

250VAC,
16A

Israel

CAB-AC-2500W-ISRL

14 ft (4.3 m)

SI16S3

250VAC,
16A

Japan, North America (nonlocking) 200-240VAC operation*

CAB-AC-2500W-US1

14 ft (4.3 m)

NEMA 6-20

250VAC,
16A

Japan North America (locking) 200-240VAC operation

CAB-AC-C6K-TWLK

14 ft (4.3 m)

NEMA L6-20

250VAC,
16A

Japan, North America 100-120VAC operation1

CAB-7513AC

14 ft (4.3 m)

NEMA 5-20

125VAC,
20A

Power Distribution Unit**

CAB-C19-CBN

14 ft (4.3 m)

IEC 60320 C19

IEC 60320 C20

250VAC,
16A

Switzerland

CAB-ACS-16

14 ft (4.3 m)

SEV 5934-2
Type 23

250VAC,
16A


* The 8700W power supply operating on 110VAC delivers 4200W.
** The PDU power cable is designed for users who power their switch from a PDU. The end of the cable that plugs into the Cisco Catalyst 6500 Series Switch chassis has a C19 connector; the other end of the cable that plugs into the PDU has a C20 connector.

Ordering Information

To place an order, visit the Cisco Ordering homepage. Table 6 lists the ordering information for the 8700W power supply.

Table 6. Ordering Information

Product Name

Part Number

Catalyst 6500 Series 8700W enhanced AC power supply

WS-CAC-8700W-E

Power Cord, 250VAC, 16A, Australia C19

CAB-AC-16A-AUS

16A AC Power Cord For China

CAB-AC16A-CH

Power Cord, 250VAC, 16A, Europe

CAB-AC-2500W-EU

Power Cord, 250VAC, 16A, International

CAB-AC-2500W-INT

Power Cord, 250VAC, 16A, Israel

CAB-AC-2500W-ISRL

Power Cord, 250VAC, 16A, twist lock NEMA L6-20 plug, United States

CAB-AC-C6K-TWLK

Power Cord, 250VAC, 16A, straight blade NEMA 6-20 plug, United States

CAB-AC-2500W-US1

AC Power Cord, North America (110V)

CAB-7513AC

Cabinet Jumper Power Cord, 250VAC 16A, C20-C19 Connectors

CAB-C19-CBN

AC Power Cord (Swiss) 16A

CAB-ACS-16

A separate relay controller is needed to use the remote power restart and shutdown of the 8700WAC power supply. These relays can be purchased directly from any appropriate third-party vendors. Cisco has verified the proper operation of the remote power restart feature with relay controllers from Dataprobe Inc ( http://www.dataprobe.com).
