DATA SHEET
Cisco Systems® introduces four new cable line cards-the Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X Broadband Processing Engines (BPEs)-that bring new choices and capabilities to the Cisco uBR7246VXR Universal Broadband Router. With their flexible, all-inclusive product design, the line cards offer:

• An advanced physical layer (PHY) to provide ingress noise cancellation

• Advanced time-division multiple access (A-TDMA) capabilities

• Advanced spectrum management

• An onboard processor for improved performance to support additional subscribers and services

• Integrated upconverters for Cisco uBR7200 Series MC28U and MC16U line cards

• Flexible software Media Access Control (MAC) domain configuration or virtual interfaces

• Reduced cable wiring through frequency stacking

• Data Over Cable Service Interface Specifications (DOCSIS®), European DOCSIS (Euro-DOCSIS), and J-DOCSIS support on one line card.

The Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X line cards address the expanding service and operational needs of multiple system operators (MSOs). An unmatched set of advanced features and a scalable architecture make these line cards an ideal choice for cable operators facing the challenge of delivering carrier-class IP-based data, voice, and video services to a growing number of subscribers. The line cards provide unparalleled flexibility and improved robustness to the Cisco uBR7246VXR, further enhancing this communications-grade cable modem termination system (CMTS). The DOCSIS and Euro-DOCSIS 2.0-qualified and PacketCable 1.1-qualified technology help cable operators accelerate deployment of advanced IP services. By upgrading existing Cisco uBR7246VXR CMTSs with new Cisco BPEs, cable operators can improve overall bandwidth availability and increase their signal quality and reliability. This evolutionary upgrade to existing Cisco CMTSs adds processing power and hardware-accelerated quality of service (QoS) capabilities without requiring a chassis upgrade, and therefore delivers exceptional investment protection. Figure 1 depicts the Cisco uBR7200 Series MC28U BPE.

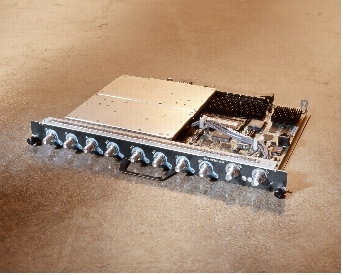

Figure 1. Cisco uBR7200 Series MC28U Broadband Processing Engine

PRODUCT OVERVIEW

The Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X BPEs deliver advanced CMTS functions, such as:

• PHY RF interface (upstream burst demodulation, downstream modulation, RF allocation)

• MAC processing (modem registration, transmission opportunity scheduling, and hardware-accelerated Layer 2 QoS)

• On-board packet processing

Featuring a highly integrated and robust RF front end and superior processing engine for DOCSIS- or Euro-DOCSIS-based networks, the Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X BPEs enable high-performance, reliable, and secure bidirectional transmission of IP packets over the cable plant for data, voice, and video services. The cards support:

• 6 MHz National Television Systems Committee (NTSC) channel operation, using standard (STD), Harmonic Related Carrier (HRC), or Incremental Related Carrier (IRC) frequency plans conforming to EIA-S542, Annex B. The card supports downstream channels in the 88 to 860 MHz range, and upstream channels in the 5 to 42 MHz range.

• 8 MHz Phase Alternating Line (PAL) and Systemme Electronique Couleur Avec Memoire (SECAM) channel plans conforming to the International Telecommunications Union (ITU) J.83 Annex A standard. The card supports a greater upstream spectrum range of 5 to 65 MHz and an increased downstream channel width of 8 MHz.

• 6 MHz J-DOCSIS channel operation (extensions for Japan and select regions): 6 MHz Annex B extension support with a downstream extended frequency range of 70 to 860 MHz and an upstream frequency range of 5 to 55 MHz.


Table 1 summarizes the features and benefits of these line cards.

Table 1. Features and Benefits

Feature

Benefit

Industry-leading port density

Reduces per-port cost

Maximizes plant capacity (frequency reuse)

Advanced RF front end that includes technology patented by Cisco

Optimizes RF performance and robustness

Integrated upconverter for Cisco uBR7200 MC28U and MC16U models

Reduces operational cost and complexity

Onboard spectrum analyzer hardware

Reduces return-path monitoring costs

Enhances remote troubleshooting capabilities

Dedicated MAC layer hardware

Provides hardware acceleration of DOCSIS 1.1 features

Enables scalability of data and voice deployment

Optimizes cable modem registration time

Provides hardware-based Layer 2 QoS

Allows use of best-of-breed PHY

DOCSIS, Euro-DOCSIS, and J-DOCSIS support on one line card

Provides operational savings

Lowers capital expenditures (CapEx)

PacketCable 1.1-qualified, Euro-DOCSIS 2.0-qualified,
DOCSIS 1.1-qualified

Maximizes return on investment to support converged services

Provides advanced PHY robustness for 1.x and 2.0 deployments

Advanced RF Front End

The Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X line cards combine the highest level of integration with enhanced RF robustness and performance for the Cisco uBR7246VXR. The innovative design uses leading PHY chips from multiple vendors. Advanced RF features include direct sampling of the upstream channels and automatic ingress noise cancellation.
The Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X use technology patented by Cisco to determine carrier-to-noise ratio (CNR) values for selected upstream channels. This technique, not offered by any other CMTS vendor, is a Cisco differentiator. Cable operators routinely measure CNR as one means of characterizing the health of their cable networks. Understanding CNR, how it degrades through a cascade of devices, and how it affects all the signals carried on the network are critical to ensuring reliable network operation.. Cisco's revolutionary technique offers a higher degree of accuracy and flexibility when calculating this value. Conventional techniques for estimating CNR of selected upstream channels are based upon Error Vector Magnitude (EVM) calculations. Cisco's patented technique achieves precise CNR measurements by scheduling timeslots on selected channels specifically for collecting signal and noise information. The technique supports measurements on a node-by-node basis to analyze CNR on one or more specific modems of an upstream channel-not supported using EVM-based calculations. Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X meet or exceed DOCSIS specifications for downstream CNR of 35 dB and 25 dB for upstream operation.
In addition, the Cisco uBR7200 Series MC28U and MC16U feature integrated upconverters. Depending on the specific model, either one or two downstream (DS) modulators and eight or six upstream (US) burst receivers are offered on a single line card.

Superior MAC

The Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X line cards feature dedicated MAC layer hardware for maximum performance in large-scale deployments. The MAC layer hardware enables scalability to thousands of cable modems, simultaneously providing hardware acceleration for sophisticated security features, such as DOCSIS 1.1 extensions to baseline privacy interface (BPI+), or processor-intensive functions, such as concatenation, fragmentation, and payload header suppression (PHS) necessary to deploy advanced data and voice services.

Flexible Software MAC Domain Configuration or Virtual Interfaces

Cisco BPEs support flexible upstream allocation and usage-known as software MAC domain configuration or virtual interfaces. Cable operators can associate differing combinations of upstreams to downstreams. Upstreams are no longer fixed by their physical location, but can be assigned to virtual upstream channels. For instance using a Cisco MC28U or MC28X, a cable operator can associate any combination of upstreams (up to eight) to each of the two downstreams. Operators can configure one downstream, six upstreams, plus one downstream and two upstreams, or can configure two independent 1x4 CMTS MAC domains. MAC domains can be configured according to a particular class of service that groups downstreams and upstreams by application; e.g., commercial service requiring a higher QoS or flat-rate residential service. Cable operators can configure MAC domains in a more flexible and dynamic manner to meet differing customer demands and usage. If more capacity is required in one MAC domain, operators can reconfigure the BPE, as opposed to creating a new MAC domain by installing a new cable line card.

Table 2. Specifications

Item

Description

Physical

Occupies a single slot in the Cisco uBR7246VXR chassis

Hot-swappable; no slot dependency

Dimensions (H x W x D): 1.35 x 13.5 x 10.56 in. (3.43 x 34.29 x 26.82 cm)

Weight:
MC28U: 6 lbs (2.72 kg), MC28X: 4.75 lbs (2.15) kg)
MC16U: 5.25 lbs (2.38 kg), MC16X: 4.75 lbs (2.16 kg)

Power Consumption

MC28U: 80 Watts (273 BTU/h), MC28X: 50 Watts (170.6 BTU/h),
MC16U: 62 Watts (211.6 BTU/h), MC16X: 47 Watts (160.4 BTU/h)

Power Output

MC28U and MC16U: +50 to 61 dBmV at RF
MC28X and MC16X: +42 dBmV at IF (+/-2 dB)

RF Output Power Range

50 to 61 dBmV

Modulation

Downstream: 64-QAM, 256-QAM

Upstream: QPSK 8-, 16-, 32-, 64-QAM

Downstream Frequency Range

DOCSIS: 6 MHz Annex B, 88-860 MHz

Euro-DOCSIS: 8 MHz Annex A, 85-860 MHz

J-DOCSIS: 6 MHz Annex B extension, 70-860 MHz

Upstream Frequency Range

DOCSIS: 6 MHz Annex B, 5-42 MHz

Euro-DOCSIS: 8 MHz Annex A, 5-65 MHz

J-DOCSIS: 6 MHz Annex B extension, 5-55 MHz

Environmental

Operating altitude: -197 to 13,123 ft (-60 to 4000 m)

Storage temperature: -4 to 149°F (-20 to 65°C)

Operating temperature, nominal: 41 to 104°F (5 to 40°C)

Storage relative humidity: 5 to 95 percent

Operating relative humidity: 10 to 90 percent

Safety

UL 1950, Third Edition (Safety of Information Technology Equipment, Including Electrical Business Equipment), with No D3 Deviations

CSA 950 \Q95 Third Edition (Safety of Information Equipment Technology, Including Electrical Business Equipment)

EN 60950 (Safety of Information Equipment Technology, Including Electrical Business Equipment)

IEC 60950

ACA TS001, 1997 Test Report and Statement of Compliance AS/NZS3260

Electromagnetic emissions

EN55022: 1998 Class B

CISPR 22: 1997 Class B

CFR 47 Part 15 Class B

ICES -003, Issue 2, Class B, April 1995

VCCIV-3/2000.04

AS/NZS 3548: 1995 Class B

CNS-13438 Class B-BSMI (BCIQ) in Taiwan

Electromagnetic Immunity

EN50082-1: 1992

EN50082-1: 1997

EN55024: 1998

EN61000-3-2: 1995

EN61000-3-3: 1995

EN61000-4-2: 1995 [including AMD1 + AMD2] ESD immunity

EN61000-4-3: 1997 Radiated RF field immunity

EN61000-4-4: 1995 Immunity to electrical fast transients

EN61000-4-5: 1995 Surge immunity

EN61000-4-6: 1996 [including AMD1] RF conducted immunity

Network Equipment Building Systems (NEBS) - Level 3

Designed and tested to meet requirements of GR-1089-CORE - Issue 2, December 1997

Revision 1, February 1999

Mechanical

IEC 68-2-1, IEC 68-2-2, IEC 68-2-56: Operational temperature

and humidity

IEC 68-2-27: Operating Shock

IEC 68-2-64, IEC 68-2-6, IEC 68-2-47: Operating and nonoperating vibration

IEC 68-2-32: Nonoperating free-fall drop

IEC 68-2-40: Nonoperating altitude

IEC 68-2-27, IEC 68-2-32: Nonoperating mechanical shock

IEC 68-2-3: Nonoperating humidity

IEC 68-2-14, IEC 68-2-33: Nonoperating temperature shock

LEDs

One power LED (green)

One status LED (green/yellow): solid green indicates the processor has booted and passed its diagnostics, LED blinks green on a protect card, yellow when in one of the booting states.

Maintenance (yellow): indicates the line card can be removed

One upstream-enabled LED on each upstream port (green): upstream path is configured and able to pass traffic

One downstream-enabled LED on each downstream port (green): downstream path is configured and able to pass traffic through the upconverter at the radio frequencies

Minimum Cisco IOS® Software Release

Release 12.2(15)BC2

Compatible Cisco Network Processing Engines (NPEs)

To operate Cisco uBR7200 Series MC28U, MC28X, MC16U, and MC16X BPEs, the Cisco uBR7246VXR must contain a Cisco NPE-400 or uBR7200-NPE-G1 processor. The NPE-400 must have at least 128 MB of DRAM memory (see recommendation that follows). The uBR7200-NPE-G1 must have at least 256 MB of DRAM memory (see recommendation that follows). If the Cisco uBR7246VXR contains more than one BPE, Cisco recommends installing 256 MB of DRAM memory on the NPE-400, and installing either 512 MB or 1 GB of DRAM memory on the uBR7200-NPE-G1, to ensure best performance.

Standard Management Information Bases (MIBs)

IF-MIB (RFC-2233)

ENTITY-MIB (RFC-2737)

MIBII (RFC1213)

EtherLike-MIB (RFC-2665)

IGMP-MIB (RFC-2993)

RMON-MIB (RFC-1757)

Expression MIBs

Simple Network Management Protocol (SNMP)v2-CONF

SNMPv2-SMI

SNMPv2-TC

SNMPv2-MIB

IANAifType-MIB

SNMPv3 MIBs

SNMP-FRAMEWORK-MIB (RFC-2571)

SNMP-MPD-MIB (RFC-2572)

SNMP-NOTIFICATION-MIB (RFC-2573)

SNMP-TARGET-MIB (RFC-2573)

SNMP-USM-MIB (RFC-2574)

SNMP-VACM-MIB (RFC-2575)

DOCSIS and Euro-DOCSIS MIBs

DOCS-IF-MIB (v2 Rev04)

DOCS-CABLE-DEVICE-MIB (RFC2669)

DOCS-BPI-PLUS-MIB (Rev 5)

DOCS-QOS-MIB (Rev 4)

DOCS-CABLE-DEVICE-TRAP-MIB

DOCS-SUBMGT-MIB (Rev 2)

Cisco Generic MIBs

CISCO-SYSLOG-MIB

CISCO-SMI-MIB

CISCO-TC-MIB

CISCO-PRODUCTS-MIB

CISCO-FLASH-MIB

CISCO-CONFIG-MAN-MIB

CISCO-CONFIG-COPY-MIB

CISCO-MEMORY-POOL-MIB

CISCO-BULK-FILE-MIB

CISCO-SONET-MIB

CISCO-TCP-MIB

CISCO-RTTMON-MIB

CISCO-FTP-CLENT-MIB

CISCO-IPMROUTE-MIB

CISCO-QUEUE-MIB

CISCO-IMAGE-MIB

CISCO-ENVMON-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-PRODUCTS-MIB

Table 3. Maximum DOCSIS and Euro-DOCSIS 1.1 Data Rates

Upstream Channel Width

Modulation Scheme

Baud Rate
Sym/sec

Maximum Raw Bit Rate
Mbit/sec

3.2 MHz

16-QAM

QPSK

2.56 M

10.24

5.12

1.6 MHz

16-QAM

QPSK

1.28 M

5.12

2.56

800 kHz

16-QAM

QPSK

640 K

2.56

1.28

400 kHz

16-QAM

QPSK

320 K

1.28

0.64

200 kHz

16-QAM

QPSK

160 K

0.64

0.32

Table 4. Maximum DOCSIS and Euro-DOCSIS 2.0 (A-TDMA mode) Data Rates

Upstream Channel Width

Modulation Scheme

Baud Rate
Sym/sec

Maximum Raw Bit Rate
Mbit/sec

6.4 MHz

64-QAM

32-QAM

16-QAM

8-QAM

QPSK

5.12 M

30.96

25.80

20.64

15.48

10.30

3.2 MHz

64-QAM

32-QAM

16-QAM

8-QAM

QPSK

2.56 M

15.48

12.90

10.30

7.68

5.12

1.6 MHz

64-QAM

32-QAM

16-QAM

8-QAM

QPSK

1.28 M

7.68

6.45

5.12

3.84

2.56

800 kHz

64-QAM

32-QAM

16-QAM

8-QAM

QPSK

640 K

3.84

3.20

2.56

1.92

1.28

400 kHz

64-QAM

32-QAM

16-QAM

8-QAM

QPSK

320 K

1.92

1.60

1.28

0.96

0.64

200 kHz

64-QAM

32-QAM

16-QAM

8-QAM

QPSK

160 K

0.96

0.80

0.64

0.48

0.32

Table 5. Ordering

Part Number

Description

UBR-MC28U

Cisco uBR7246VXR Line Card, 2 downstreams with upconverter, 8 upstreams,
A-TDMA, Adv PHY, CPU

UBR-MC28X

Cisco uBR7246VXR Line Card, 2 downstreams, 8 upstreams, A-TDMA, Adv PHY, CPU,
no upconverter

UBR-MC16U

Cisco uBR7246VXR Line Card, 1 downstream with upconverter, 6 upstreams, A-TDMA,

Adv PHY, CPU

UBR-MC16X

Cisco uBR7246VXR Line Card, 1 downstream, 6 upstreams, A-TDMA, Adv PHY, CPU,
no upconverter
